Mercedes Benz W116 speaker cover
Print Profile(1)
Description

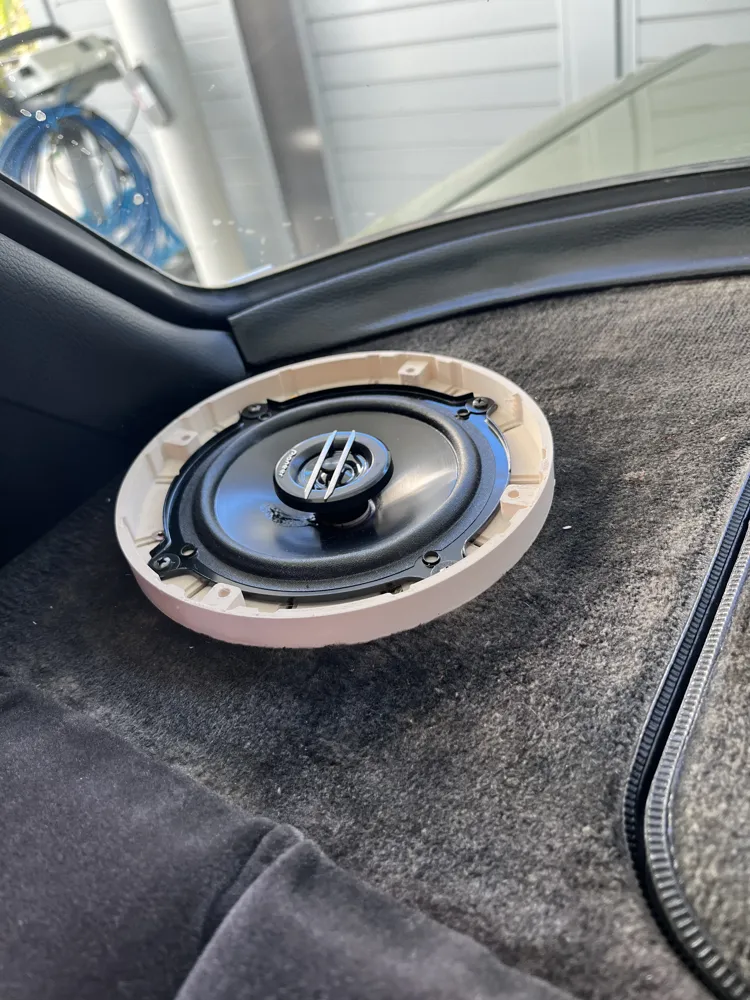

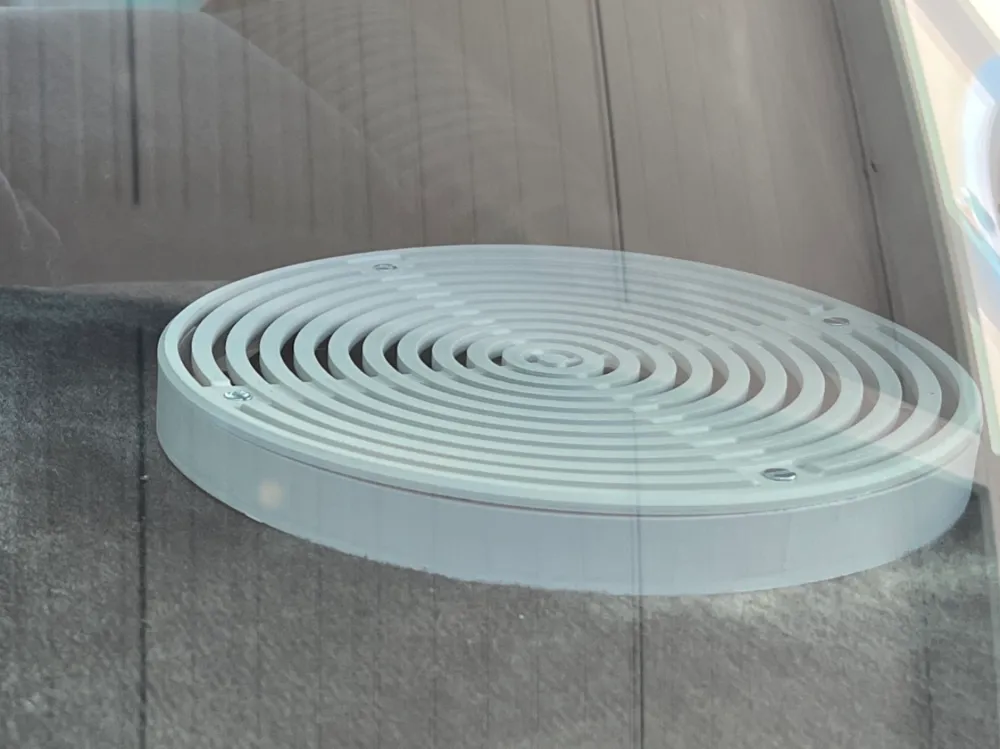

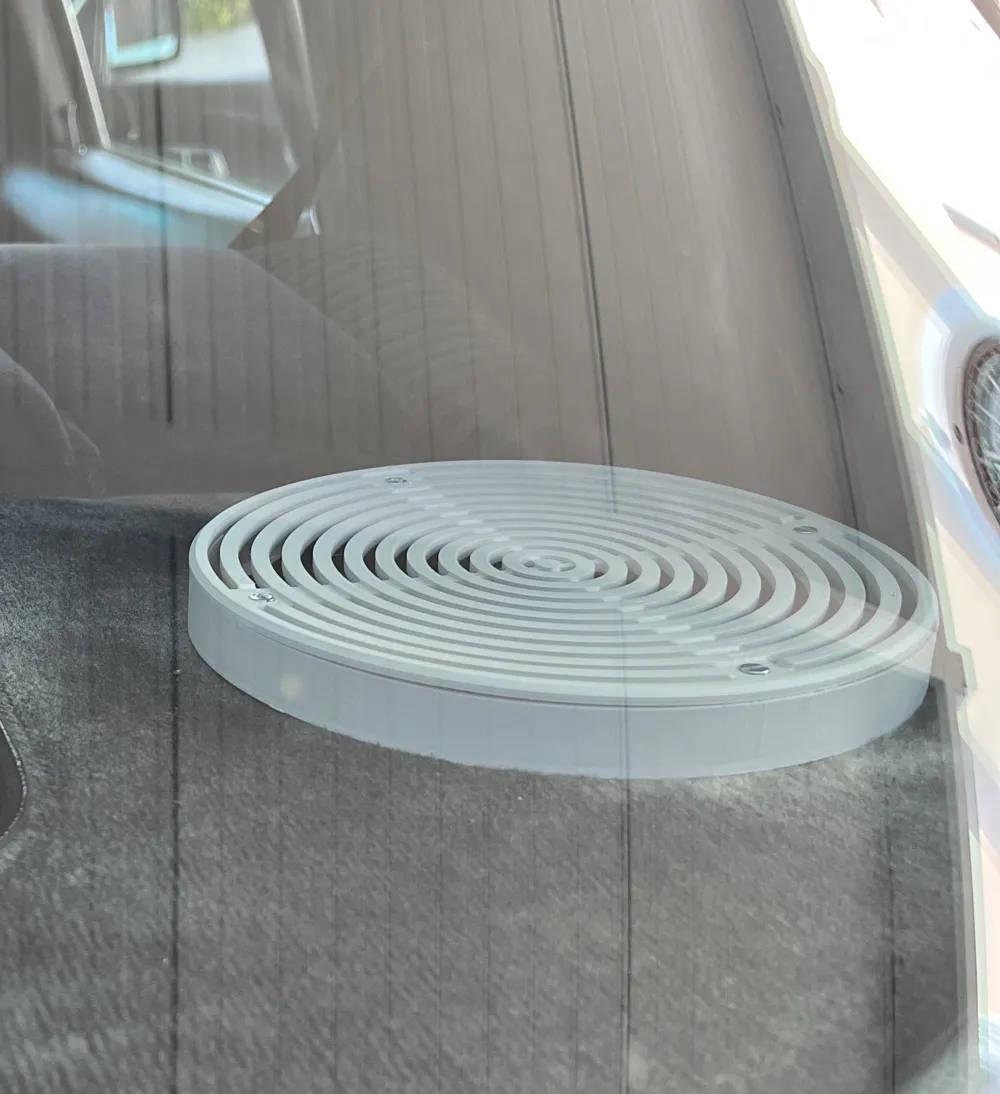

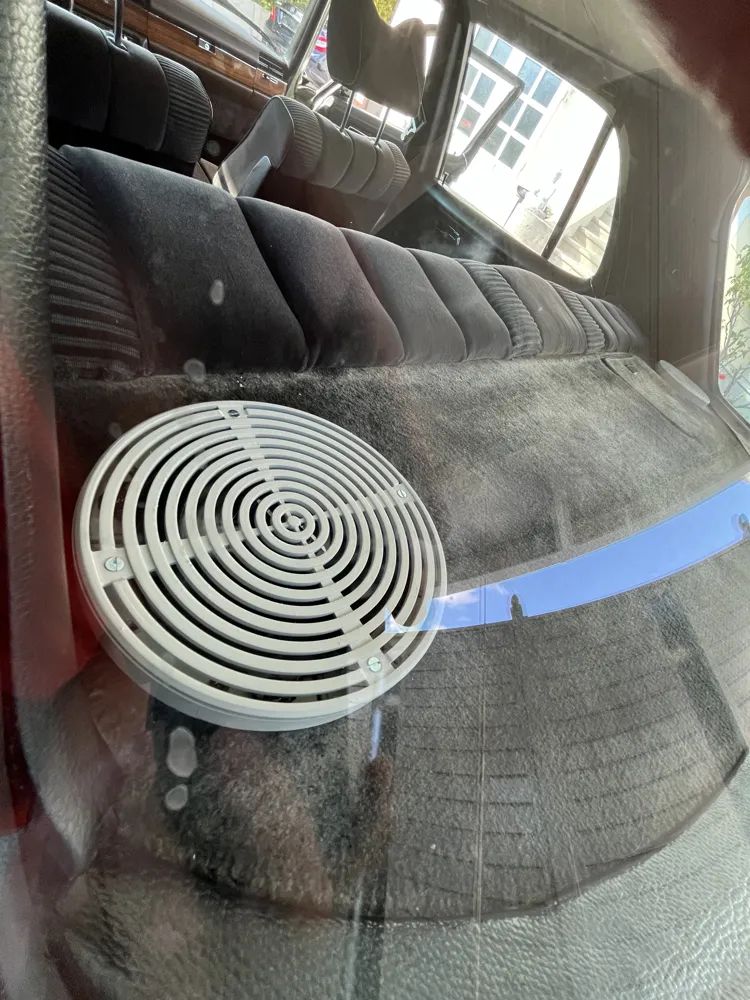

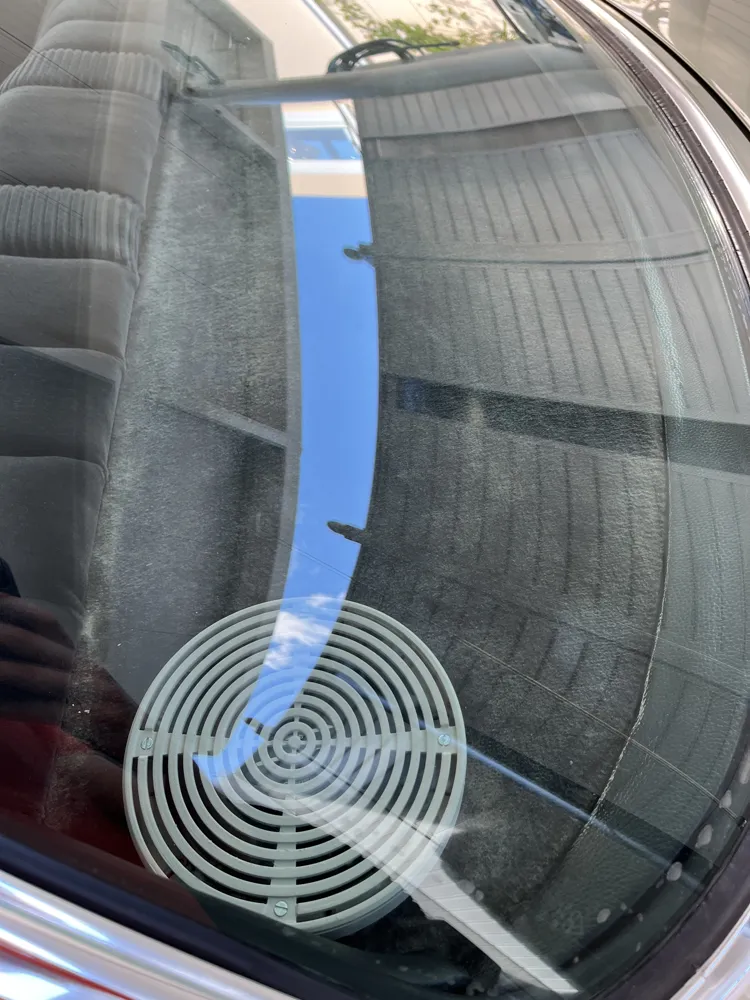

Rear speaker mount/cover for 13cm speaker in Mercedes Benz W116 (probably also fits W123 and 107 Series).
Tested with Pioneer TS-1320F.

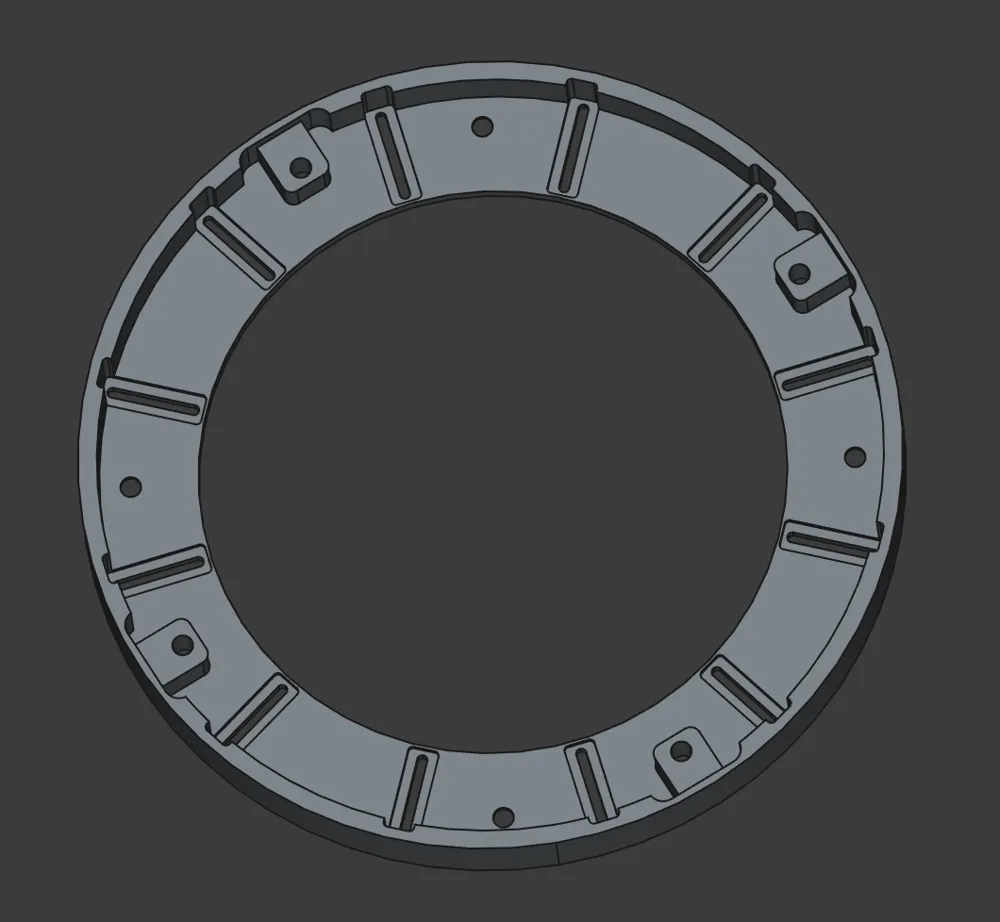

Adapts the old 3-hole or 4-hole setup with nearly every possible diameter (12 mounting slots!) to the standard size that fits the speakes i used.
You need:
- 4 short (depends on speaker 6-10mm) M3 screws (to mount the speaker)
- 4 long (18-20mm) M3 screws with countersunk head (to mount the top part)
- 8 M3 Nuts that you press into the backside of the bottom adapter.
DO NOT PRINT IN PLA AS IT MIGHT MELT!
