Description
Versions

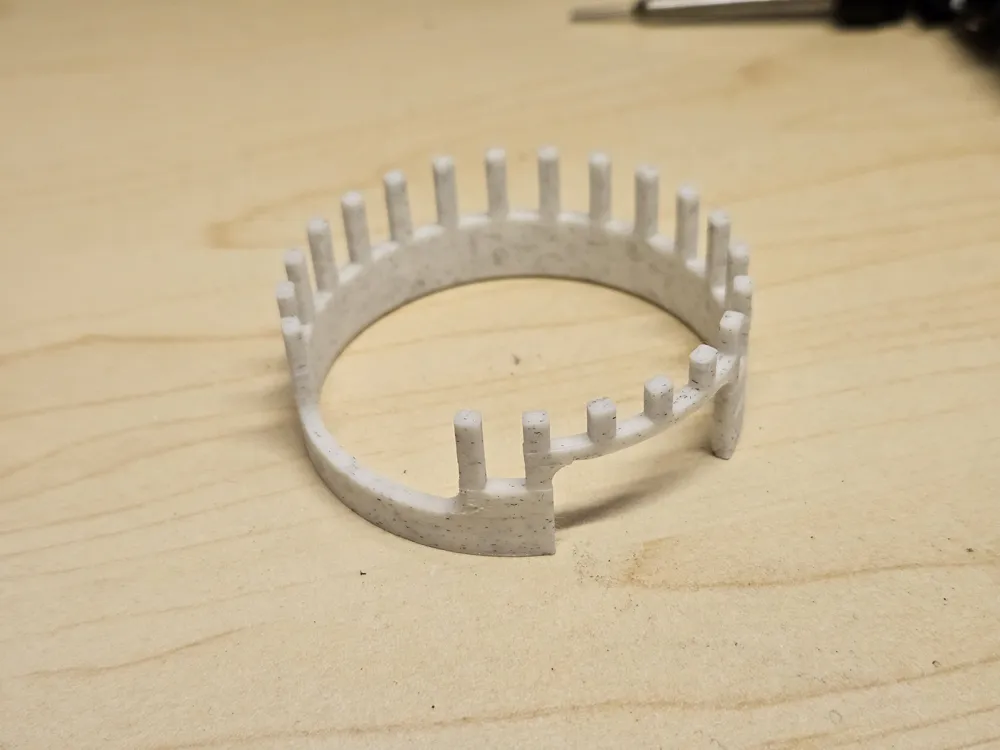

Two versions of the internal driver support ring are available.
One is the standard stock ring as a replacement part.
The other is modified with and additional cut-out, this allows it to be used when modifying the DT770s to have a detachable cable as you need room for the female jack.
Detachable Cable Mod Tips
If you are planning to do the modification I have found that the little tab on the driver makes it really hard to clock it around a bit, if you file it down about halfway I have found you can click it in at any position without it rattling around.
Printing
For either version I would recommend using mouse ears and support, print in the orientation shown in the images above.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
