Side Case for SpoolEase
Print Profile(1)
Bill of Materials
- WT32-SC01 PLUS x 1: https://aliexpress.com/item/1005006050379552.html
- PN532 module x 1: https://aliexpress.com/item/1005007476486157.html
- JST 8P 1.25mm L=15cm Cable x 1: https://aliexpress.com/item/1005007079265201.html
- Kapton Tape (20mm) x 1: https://es.aliexpress.com/item/1005007518587827.html
Description

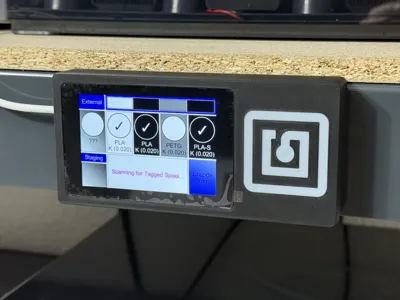

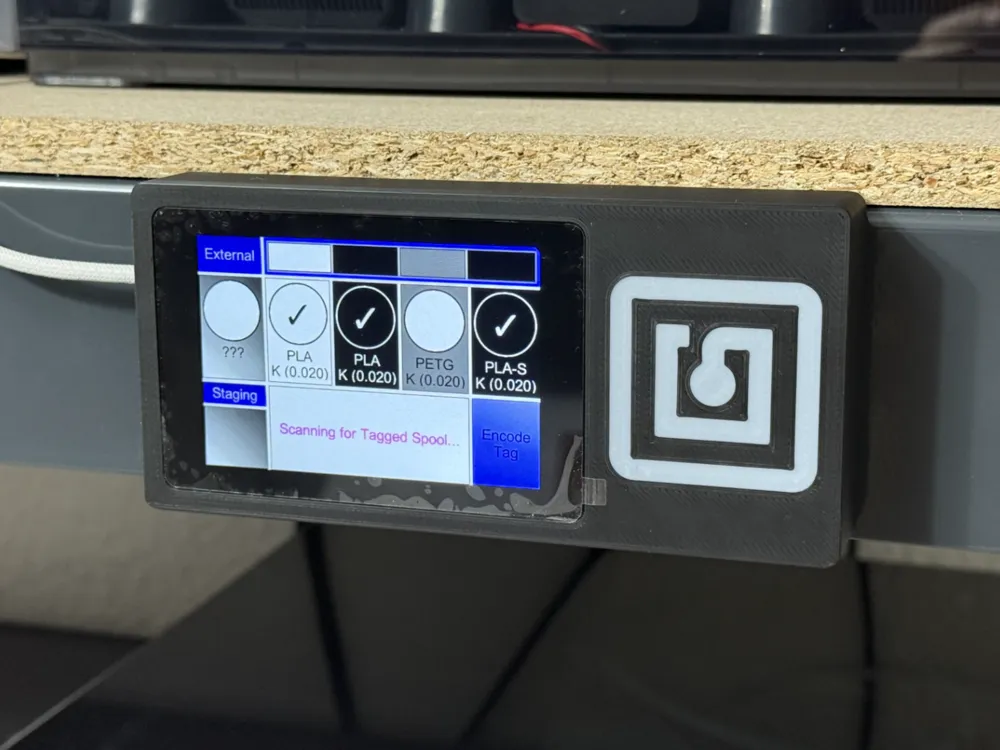

SpoolEase project case with magnets to attach it to the side of the printer held in place (X1C).
Hardware Requirements
- 1x WT32-SC01 PLUS.
- 1x PN532 module.
- 1x JST 8P 1.25mm L=15cm Cable.
- 1x Kapton Tape (20mm).
- 6x Heat Insert (M3x5x4 VORON).
- 6x DIN912 M3x6mm.
- 4x DIN912 M2x5mm.
- 9x Magnet (6x3mm).
Instructions
See the attached PDF for step-by-step instructions and images.
Make sure you have correctly calibrated the flow and shrinkage of your filament.
