Wan Ke Xiao Qu NAS Case Four-Bay 3.5-inch HDD Enclosure Soft Router Mini Host Open Source Model N22 (256mm Printer Version)
Print Profile(1)
Description

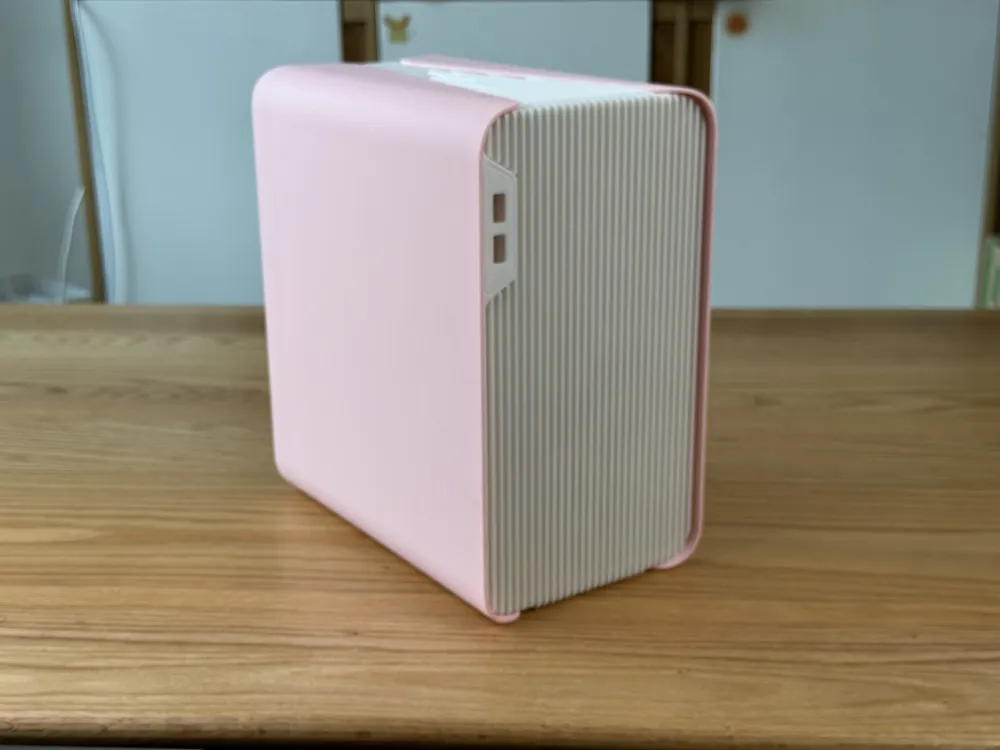

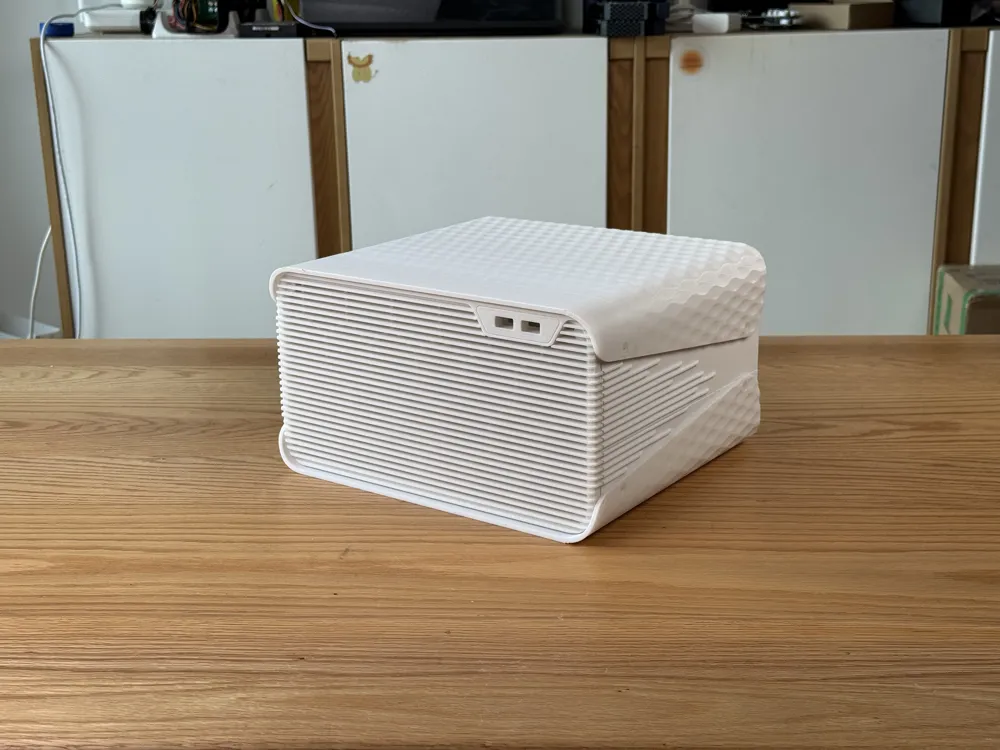

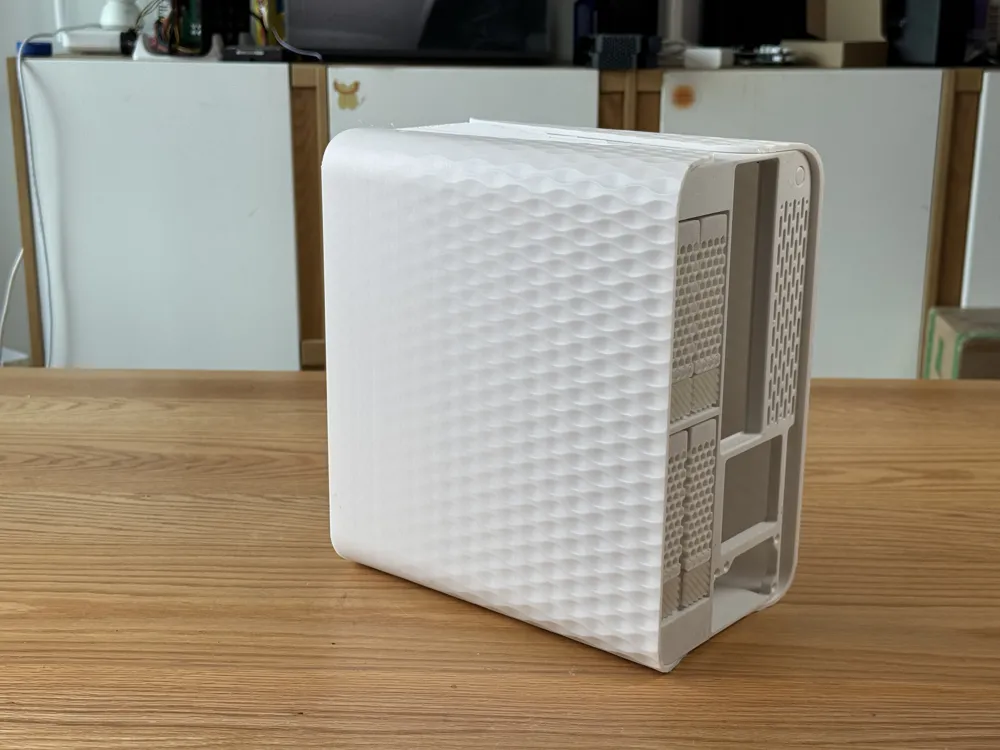

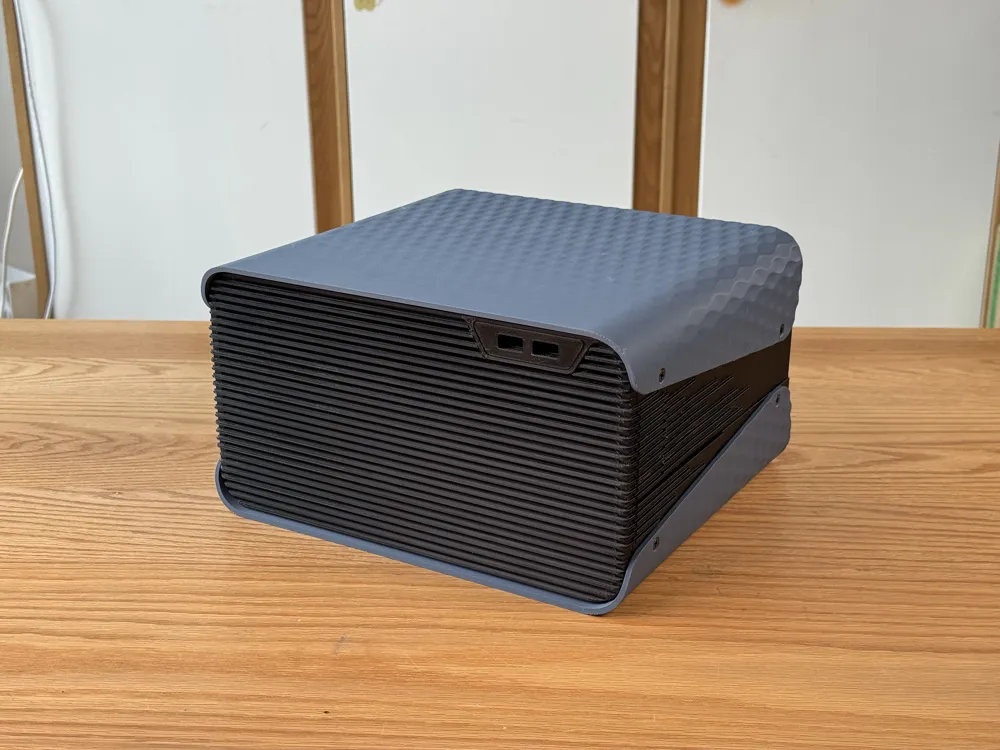

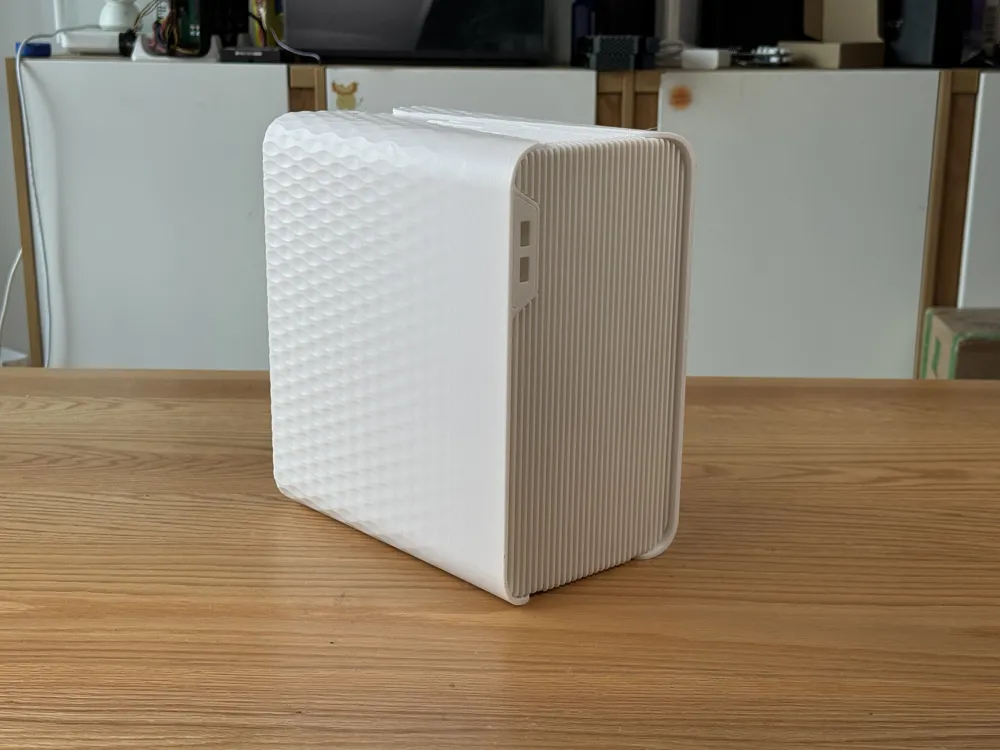

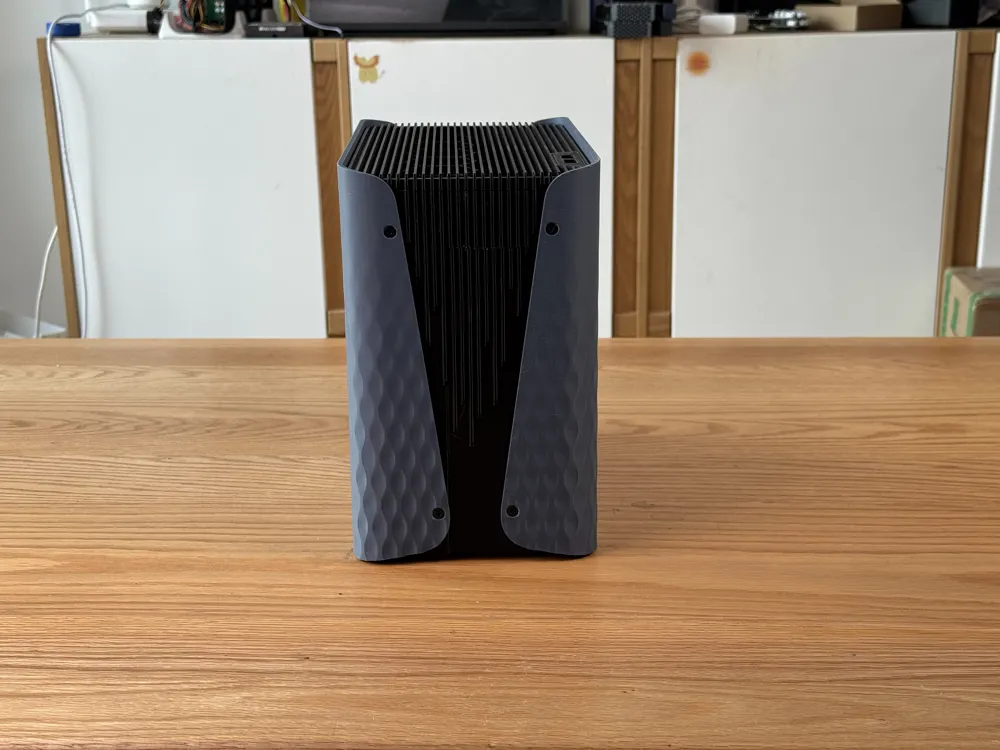

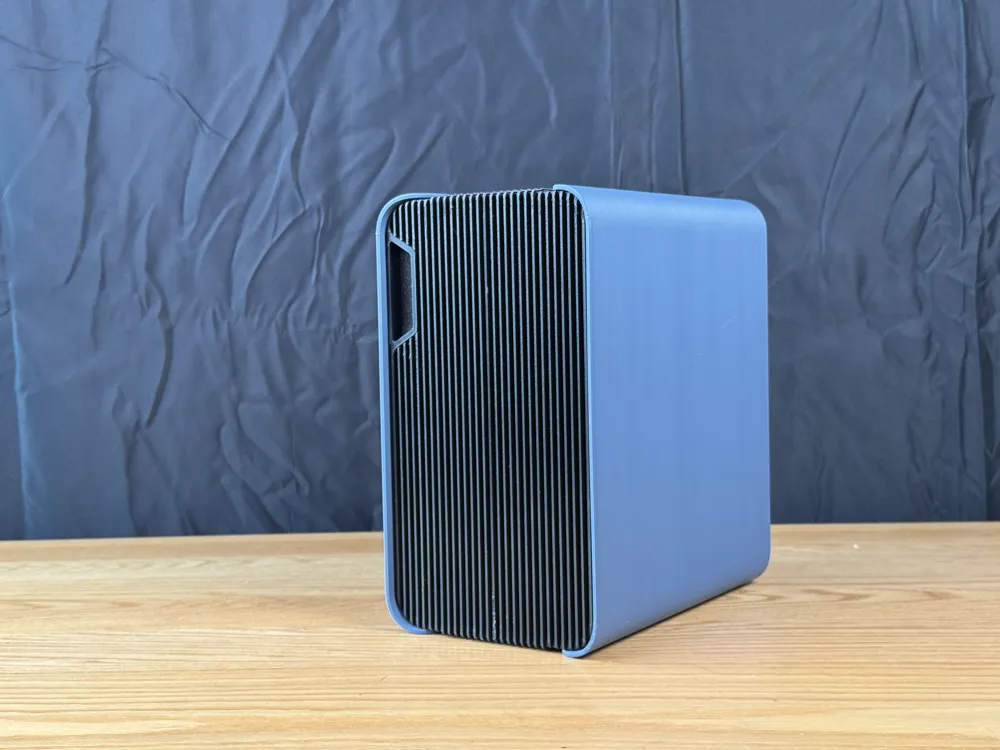

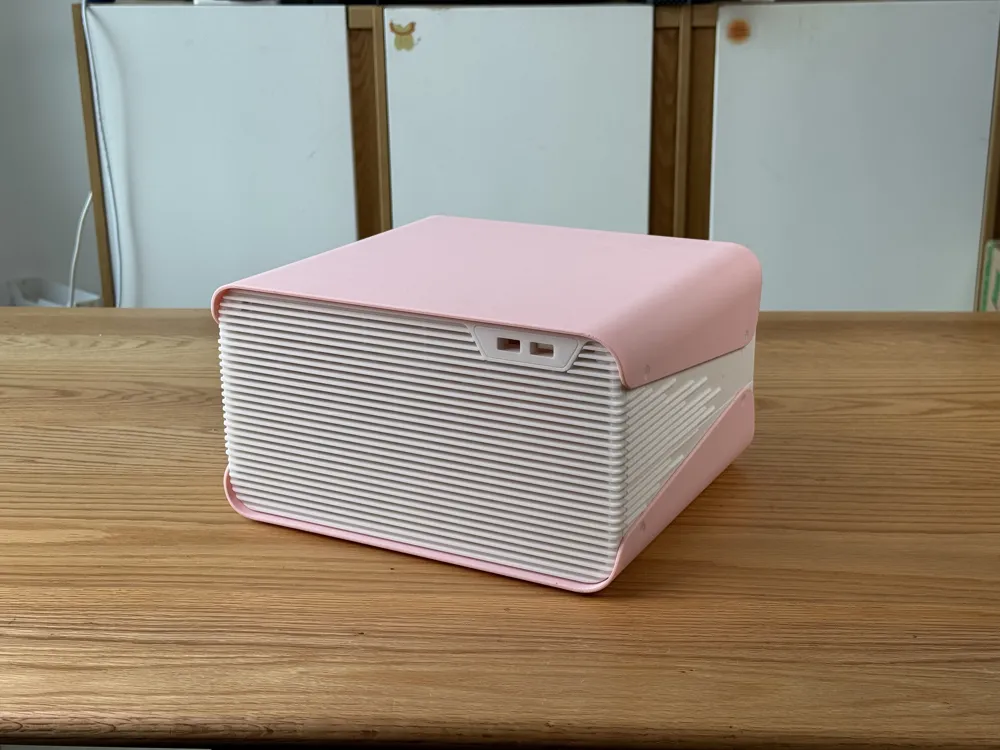

[Wan Ke Xiao Qu Open Source] N22 four-bay NAS case, entirely 3D printed.
Product Introduction:
This NAS case is specially designed for personal DIY players and features a split design for printing,

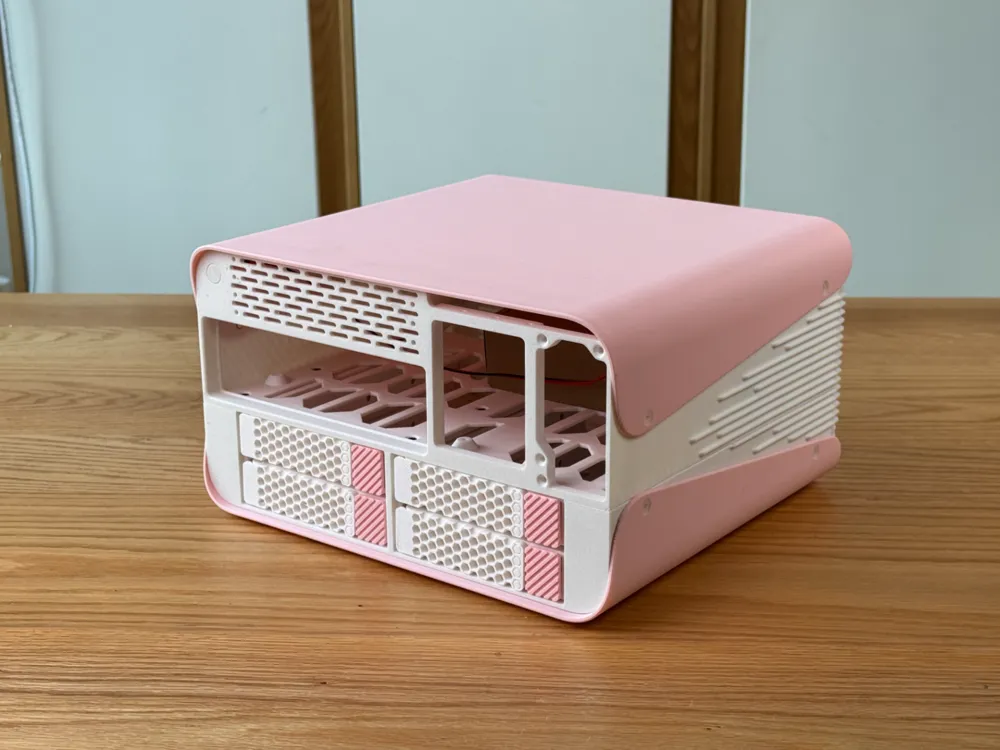

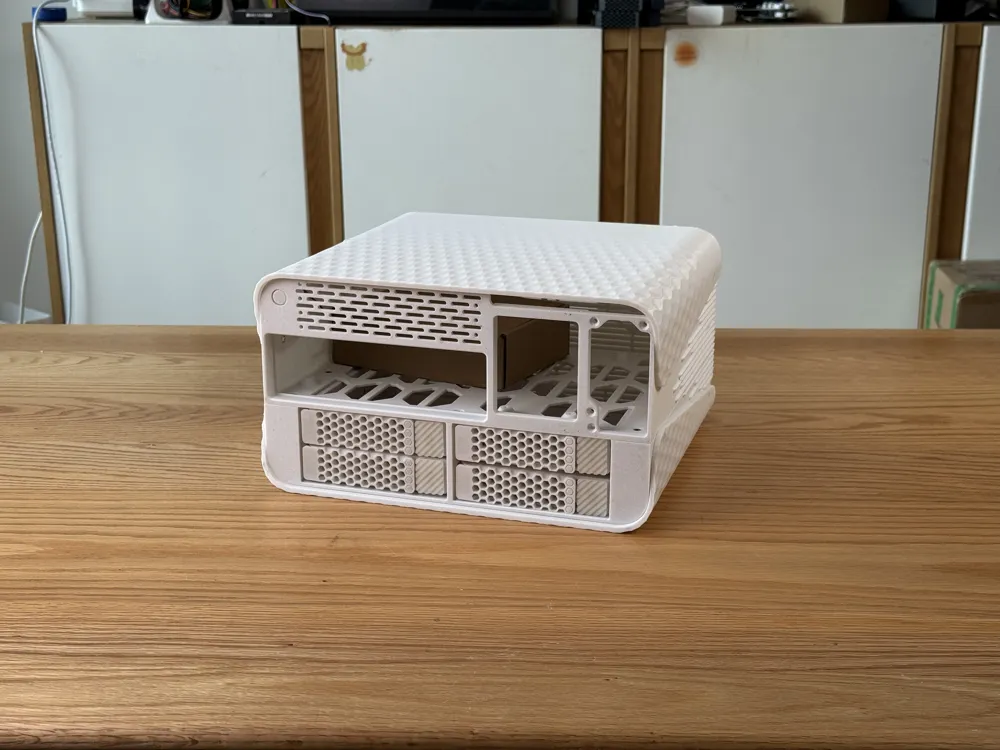

It can accommodate four 3.5-inch hard drives, with 6-bay modules and more accessories to be updated later on the homepage.
Compatible with small 1U power supplies (FLEX power supplies),
Motherboard compatibility up to 22.6 cm motherboards (due to different motherboard hole designs, not all motherboards of this exact size are usable, but 22 cm motherboards are theoretically all usable).
Supports hard drive hot-swapping (requires use with a hard drive backplane and hard drive caddy). The hard drive backplane can be purchased by searching "Wan Ke Xiao Dian" on Xiao Huang Yu.
Accessory Purchase:
Case Screws:
1. 15 M3x8 countersunk self-tapping screws
2. 8 M4x6 self-tapping screws
3. 8 M4x3 heat set inserts
4. Several M3x8 round head self-tapping screws (for fixing the motherboard)
5. Several Imperial #6x32 screws (for fixing the power supply and hard drives, approx. 20-30 pieces)
6. 1 x 8mm power button with wire
7. 1 x USB 3.0 front panel connector (optional)
This product is my original design and creation, open source but does not provide commercial licensing. If there is a commercial need, you can contact me for authorization. Related introductions can also be found by searching "[Wan Ke Xiao Qu]" on Bilibili.
