Description

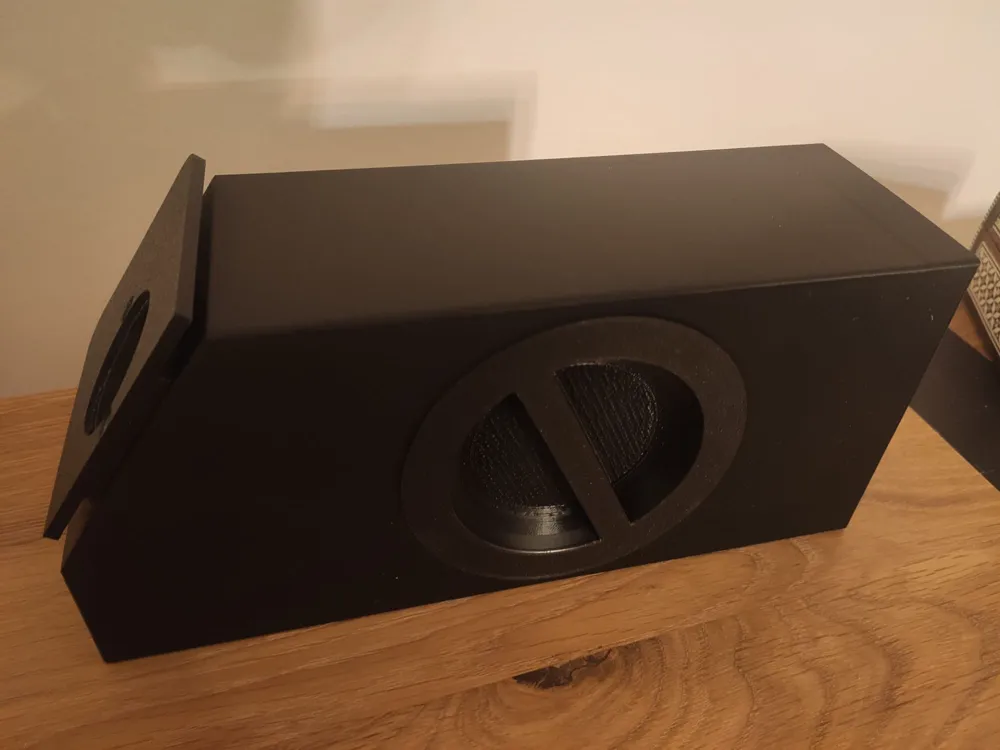

Easy printable vacuumbox for the Dreame L10S Ultra.

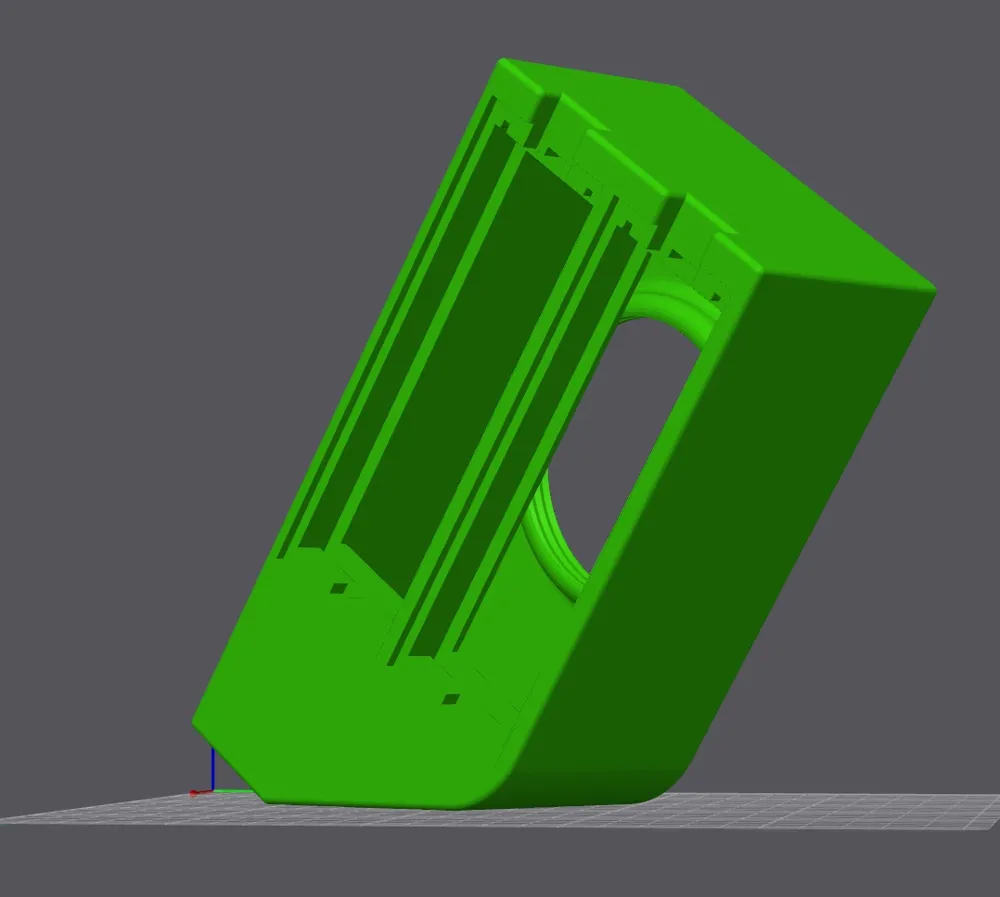

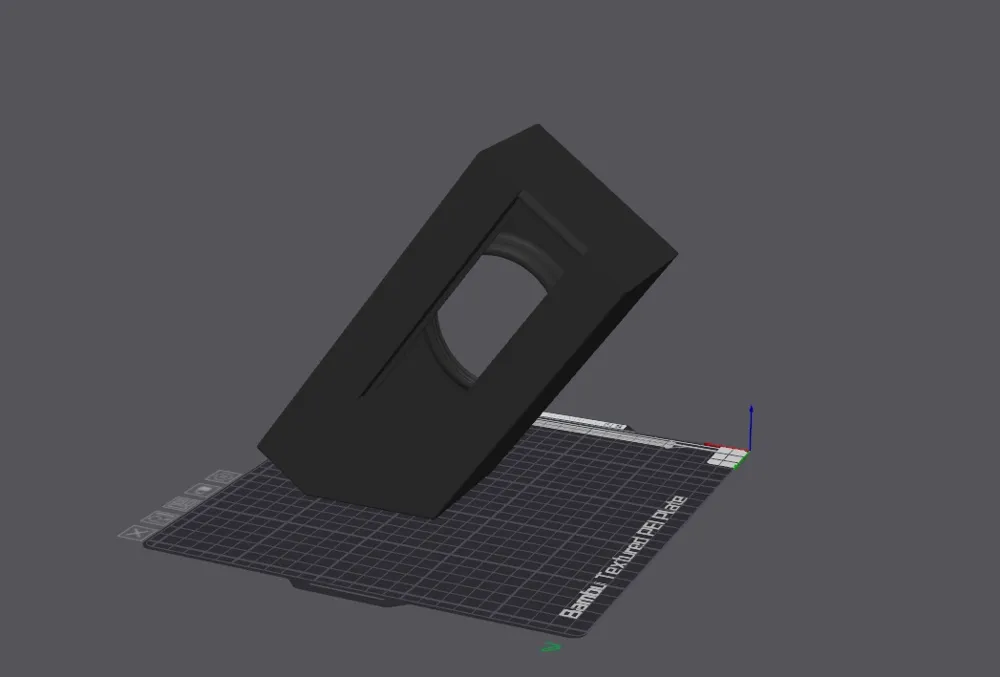

You can print the Box in one piece, just orientate it like shown in the picture.

I printed mine in PLA. Layerhight 0,2

What did you need additionaly to the printed Parts?

2x Heatetinserts M3

2x M3 x 16 countersunk screw

1x Airfilter

Very Important!! There are 2 versions.

Version 1 “Dreame L10S Ultra Box for Xiaomi Filter”

For these Version you need one of the following Filters.

If you want to use the original Filter go ahed with the Version 2 “Dreame L10S Ultra Box for Dreame Filter”.

Seal:

Sometimes the non original filters are slightly different than the original one. So if needed you can add a TPU Seal under the filter.

Xiaomi Filter:

https://de.aliexpress.com/item/1005002776793783.html?spm=a2g0o.productlist.main.17.714927b3l0bfFv&algo_pvid=989427cf-0a36-4dd2-92df-8d9604d0f212&algo_exp_id=989427cf-0a36-4dd2-92df-8d9604d0f212-8&pdp_npi=4%40dis%21EUR%213.42%212.56%21%21%213.63%212.72%21%402103847a17070523552065481e346b%2112000025633718759%21sea%21DE%212447104886%21&curPageLogUid=4Mruz6IWw8Zj&utparam-url=scene%3Asearch%7Cquery_from%3A

Xiaomi Filter:

https://www.amazon.de/HEPA-Filter-f%C3%BCr-Xiaomi-Roborock-St%C3%BCck/dp/B08CZWWWDB/ref=pd_ci_mcx_mh_mcx_vsims_pao_d_0?pd_rd_w=sAeeA&content-id=amzn1.sym.be1e7380-5c37-40db-91c4-b087ffabe331&pf_rd_p=be1e7380-5c37-40db-91c4-b087ffabe331&pf_rd_r=9T5X38A502J436B6XGW3&pd_rd_wg=h0XCO&pd_rd_r=3668b19e-c340-44dd-8320-382ad5435e83&pd_rd_i=B08CZWWWDB

Dreame Filter:

https://www.amazon.de/LOOHAOC-Ersatzteilset-HEPA-Filter-kompatibel-Xiaomi/dp/B0CGWSD45V/ref=sr_1_6?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=Y5N4U2GVAQE9&dib=eyJ2IjoiMSJ9.R0KmXDs7qKeErWIhvZePRwxjg4mHydMBxNX5y9O335su58pjZ-3TPgBUbo-AVXhTBduodwrQ4FzSpGSAjFLTOLwfneg3w5rjoAjw4r0r1wB_nJIFY4PbMonzqN0A7YPEE2tR5GK6nd7TPOF5bJjnMOJ2Www-RrE66BkKU9NFTDjHG9msJtPHKBSQw13vAWDMVJtaky0dNE6VXRiX69HOTV2_bI3e5v3Mkqouxvg2bT-86MyBvuWtO4q_KoFXbyIXQdQqD2PwOjG-Uq_3a5AbaWWNnyedLp6_epfwGOp0pMw.q7iuIXxpfEGQ2Pm_n-GqAZ8CGNx0xwuy6K16Qr_KR64&dib_tag=se&keywords=dreame+l10s+ultra+filter&qid=1709064313&sprefix=dreame+l10s+ultra+filter%2Caps%2C118&sr=8-6

History:

26.02.2024 → Upload a new Version of the Xiaomi Box

27.02.2024 → Create new Version for Dreame filter

01.03.2024 → Add a smaller Version that fit on an MK3

02.03.2024- > Added Seal for Dreame filter

12.03.2024 → Add Dual Filter version, add new “Schieber” with and without Seal, add Seal
