Adjustable Camber Arms (Traxxas Funco)
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 20% infill
Designer
3.7 h
4 plates
Open in Bambu Studio
Boost
24
29
3
0
3
2
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

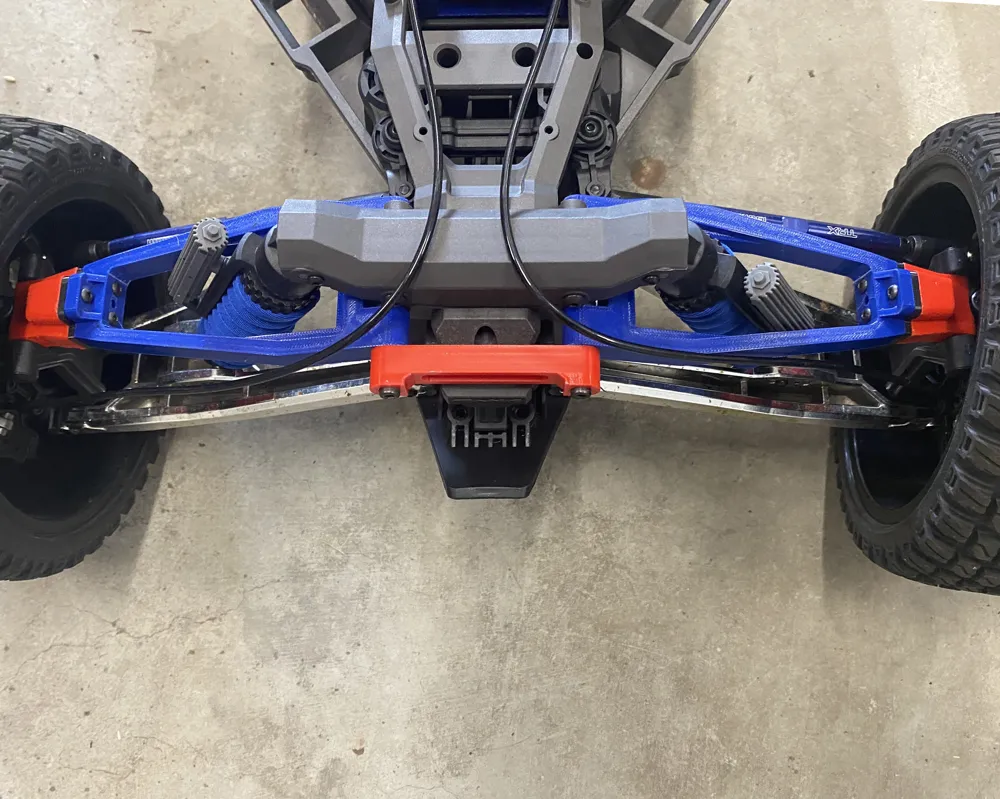

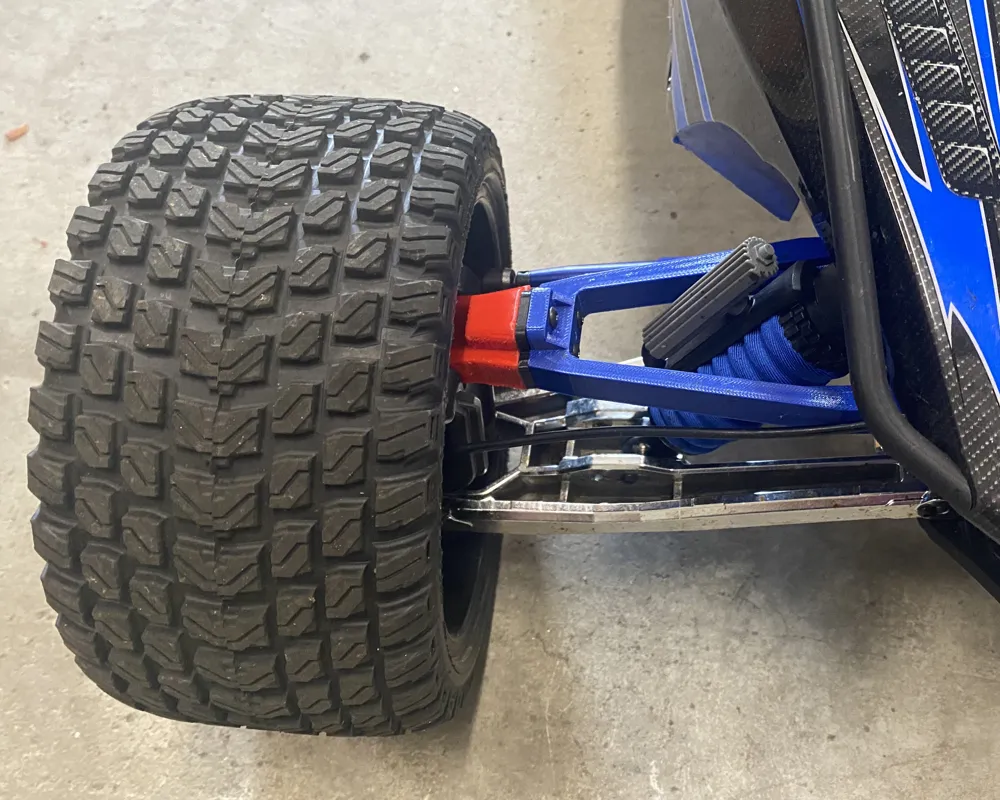

Front Upper Adjustable Camber Arms for Traxxas Funco Sandcar
Adjustable camber arms that transform your Funco Sandcar's handling, especially for street bashing applications.
Camber Adjustment Range:
- Stock setting: 1.5° positive camber
- Adjustable range: -1.5° to +1.5° using included spacers
- 2mm spacer: 0.5° positive
- 3mm spacer: 0° (neutral)
- 3.5mm spacer: 0.5° negative
Material & Printing:
- Default material: PETG for optimal durability
- Compatible with other materials (account for spacer shrinkage variations)
- Support pin holes: 3.93mm (recommend finishing with a 4mm drill at high speed for smooth operation)
- PLA-CF option available for maximum strength (though PETG is sufficient for most applications)
Performance Benefits:
- Optimized for use with Gravvex tire setups (belted rear, unbelted front)
- Enhanced street bashing performance
- Impact-resistant design
- PETG parts can be annealed at 80°C for 30 minutes for additional strength and stress relief

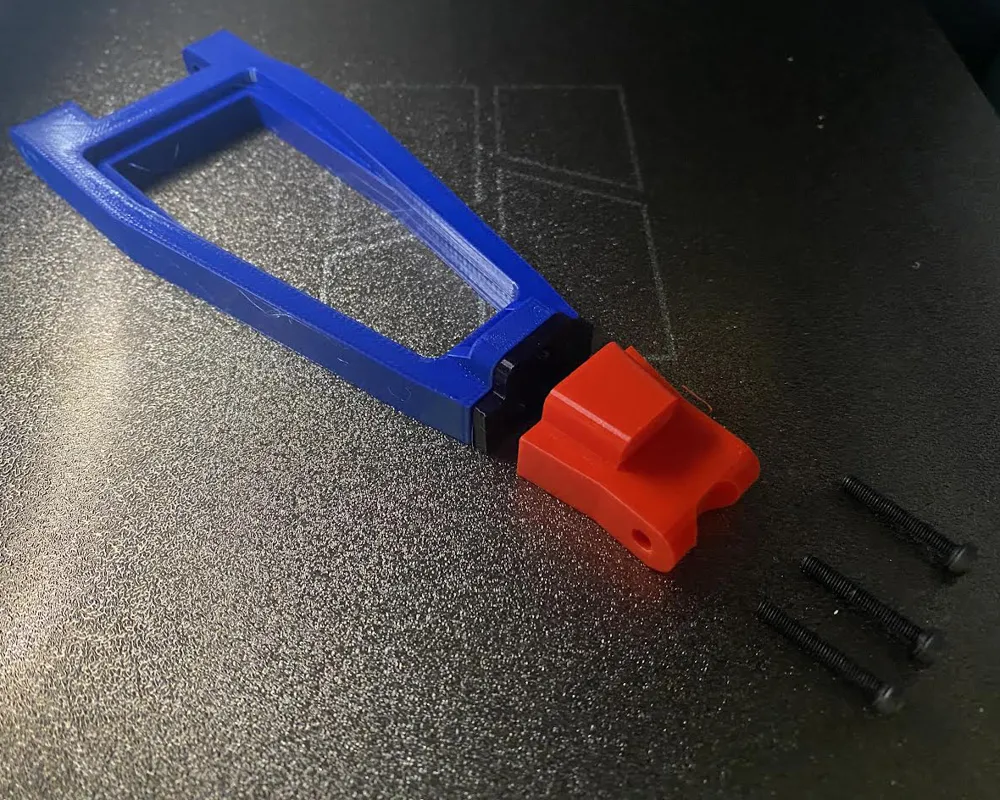

Assembly: Each arm requires 3x M3-12mm bolts for installation
