Tern GSD Gen 2 Atlas Lockstand Extension Cap

Tern GSD Gen 2 Atlas Lockstand Exension Cap

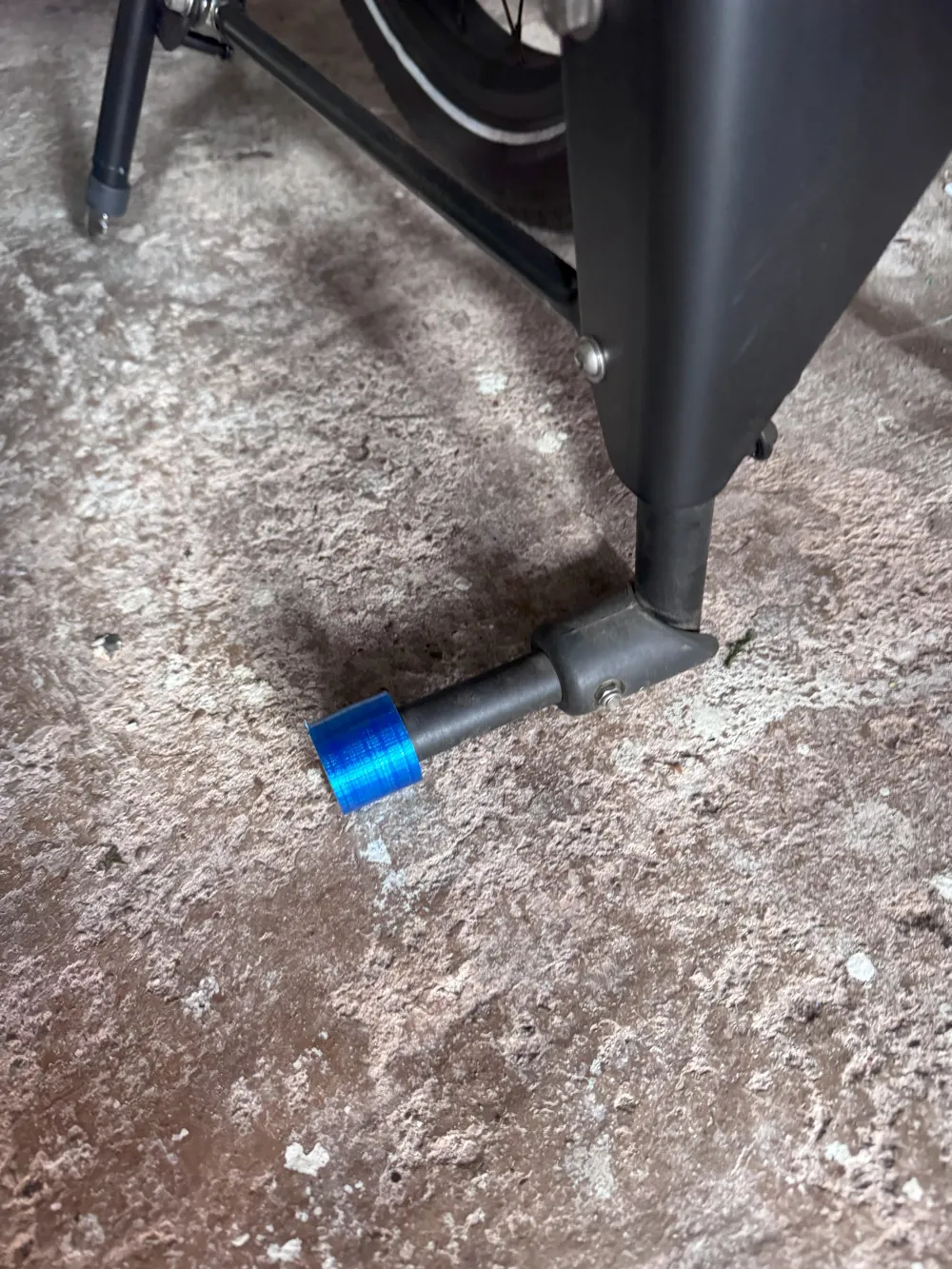

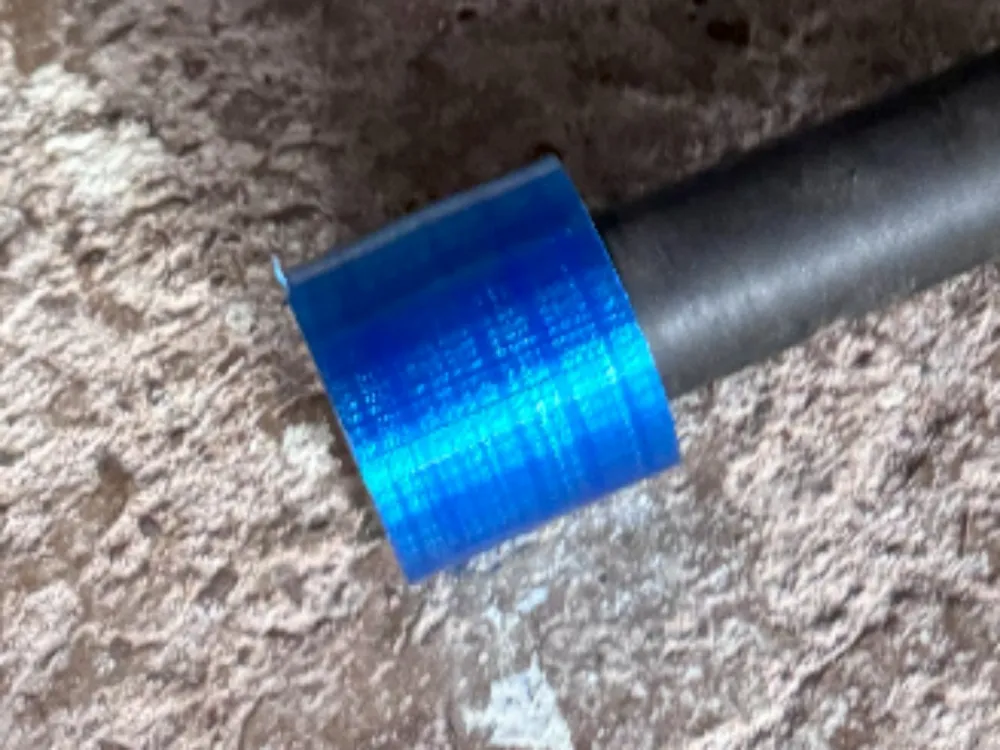

I have lost an extension cap on one side, and when I park my bike on an even surface, there is some wobble. So, instead of spending another $30 on a set of extensions, I quickly made this cap. It is best to print two, one for each side, because my model is a tiny bit wider, but it works well. I used 95A hardness TPU with 70% gyroid infill and 4 walls. If you are using softer TPU, it is up to you, but I would recommend that you don't. Softer TPU, even with 99%-100% infill, just felt too soft for my liking. So far, at the time of writing this, I have done over 750 miles. I mostly park my bike on concrete or tarmac surfaces, sometimes on the grass, and the TPU seems to hold well. There is no visible tear between layers or around the screw.

Any comments or suggestions are very welcome. If you printed it in a different way that works well, please let me know.

Happy printing!
