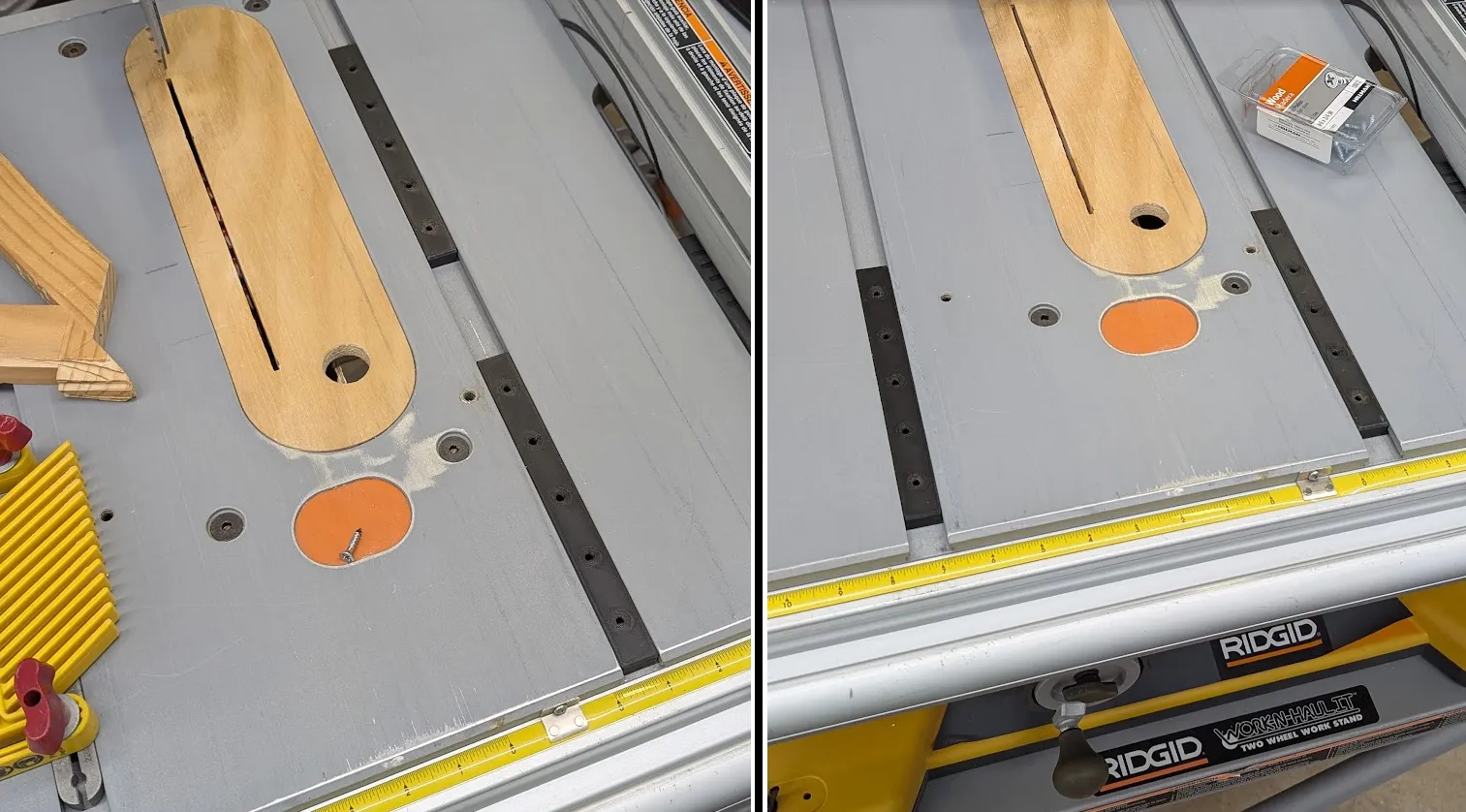

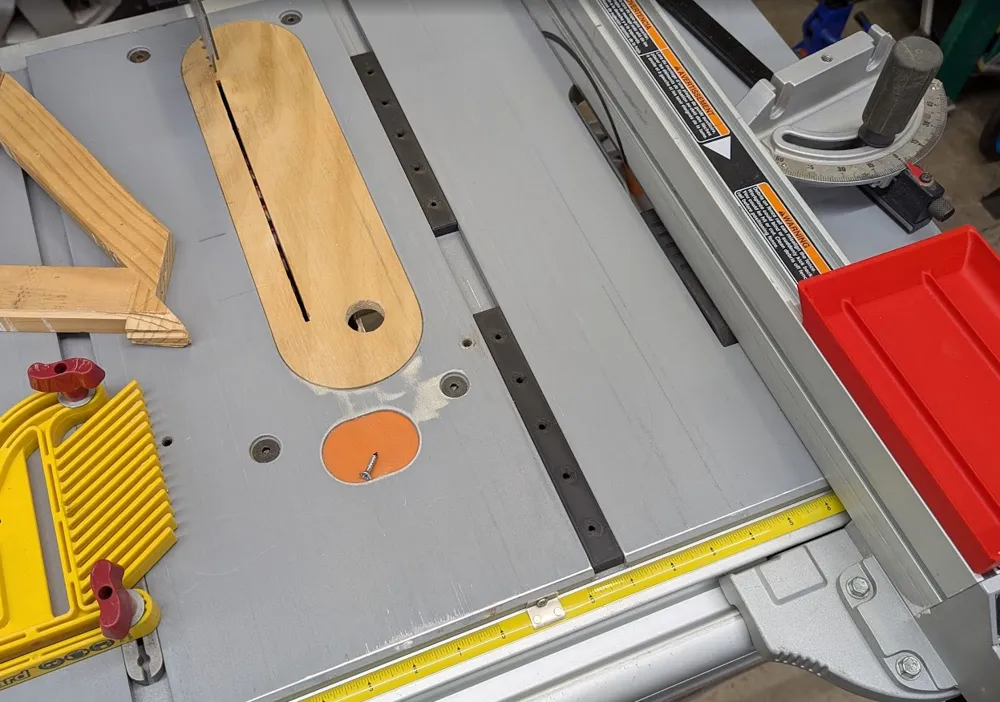

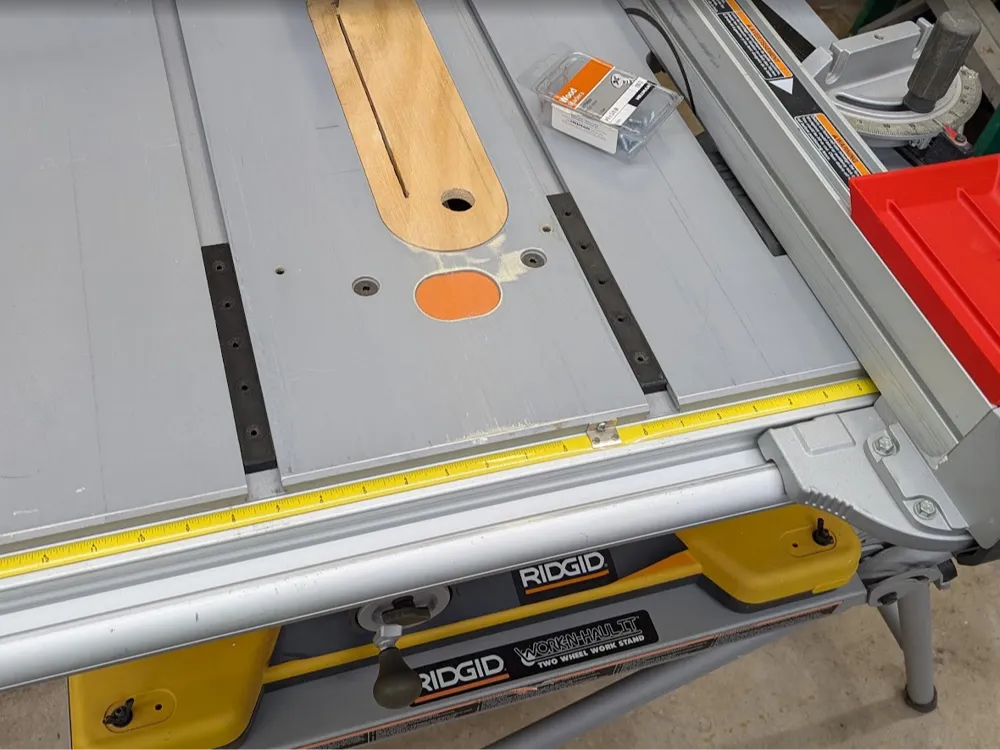

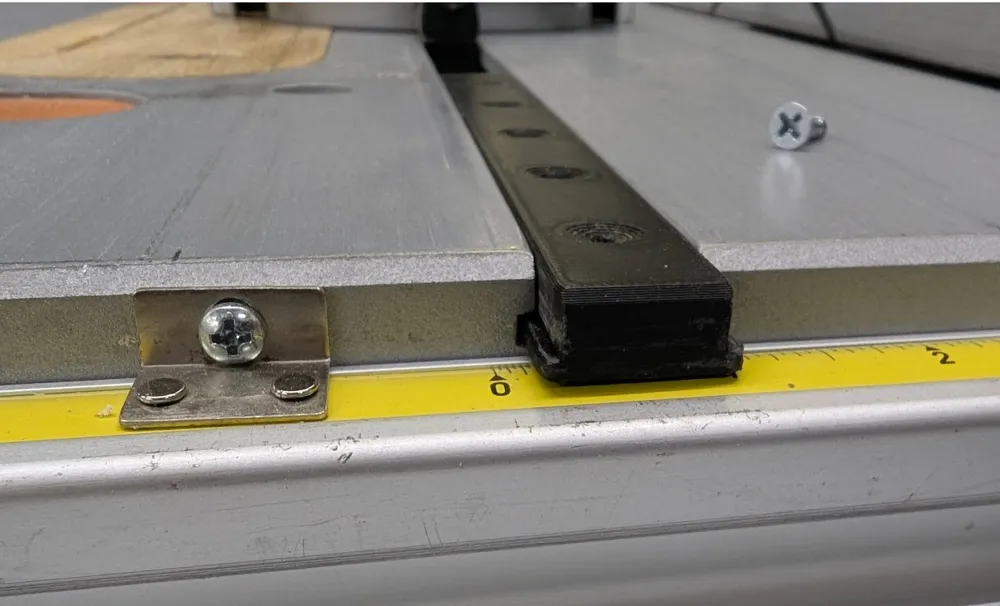

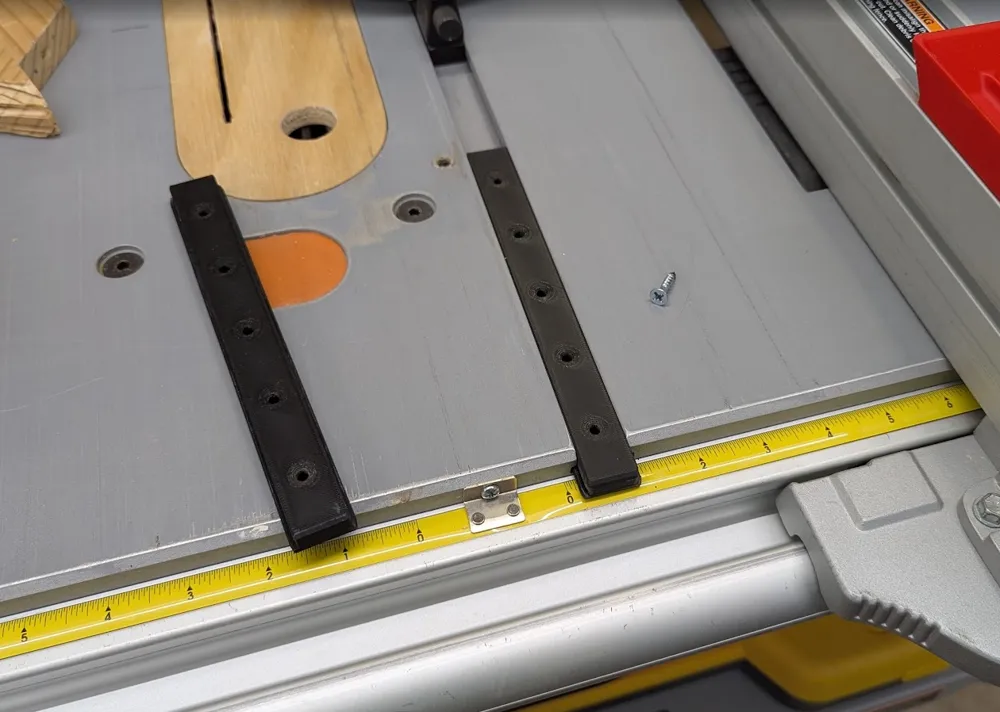

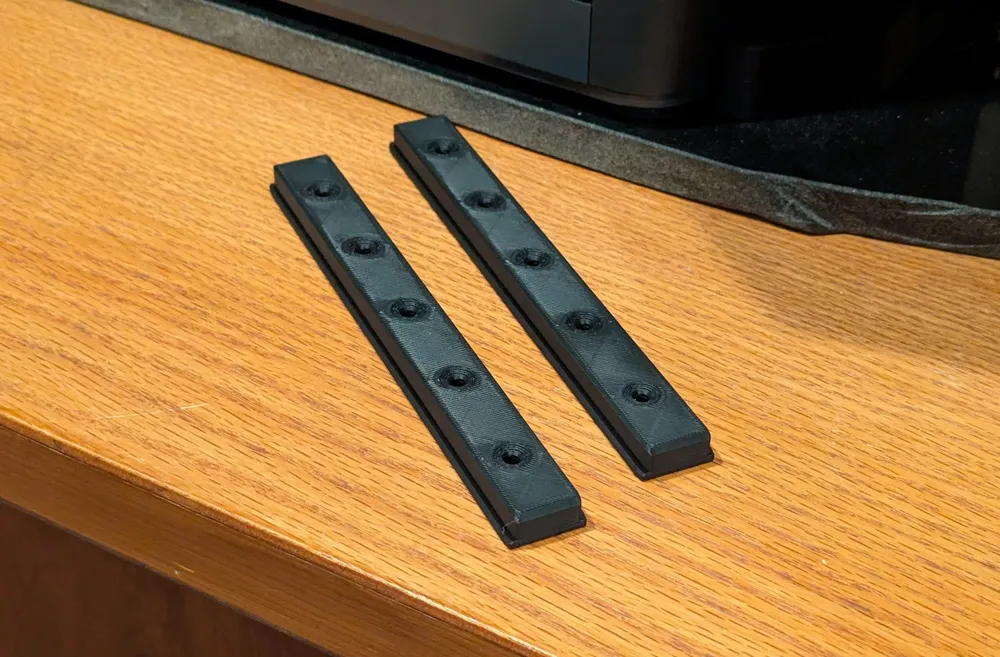

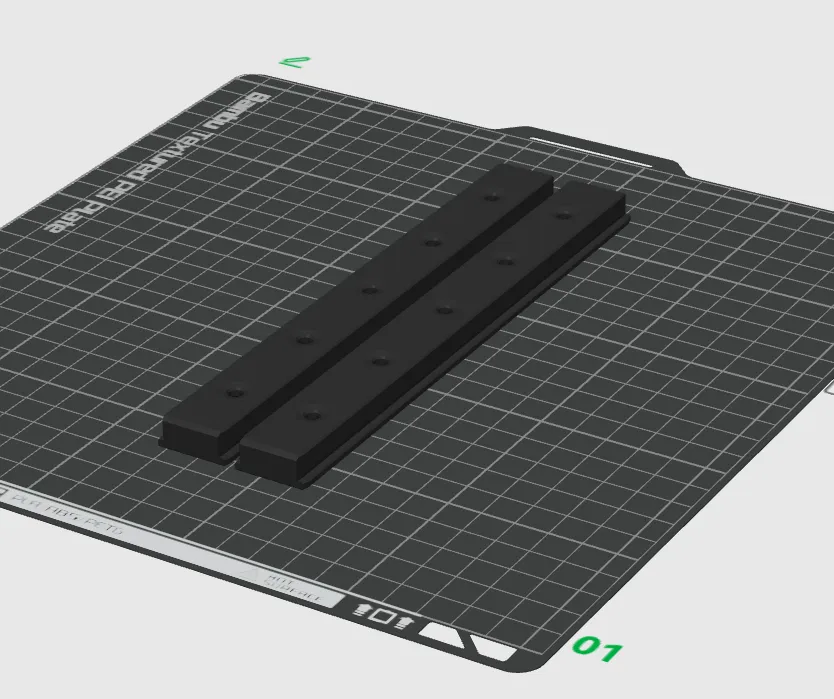

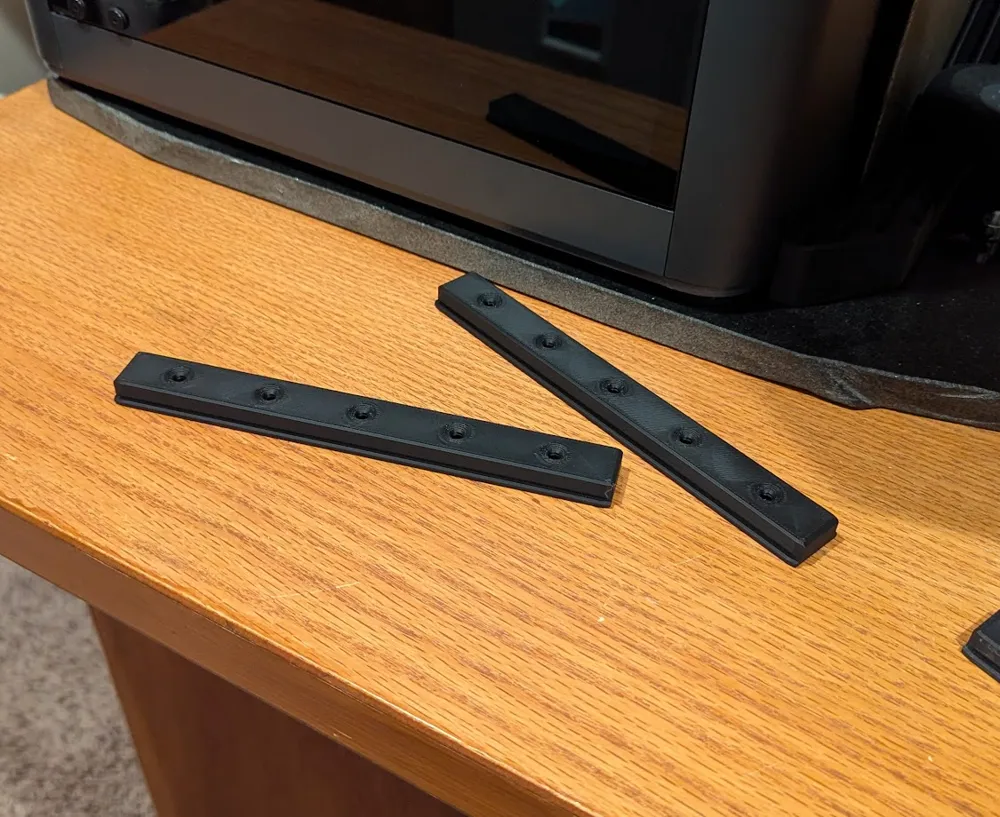

These miter slot rails for the RIDGID table saw are quick and easy to configure. They are long enough that they allow the sled to be stable and the profile is a set of two so you can make a long sled or a wide sled.

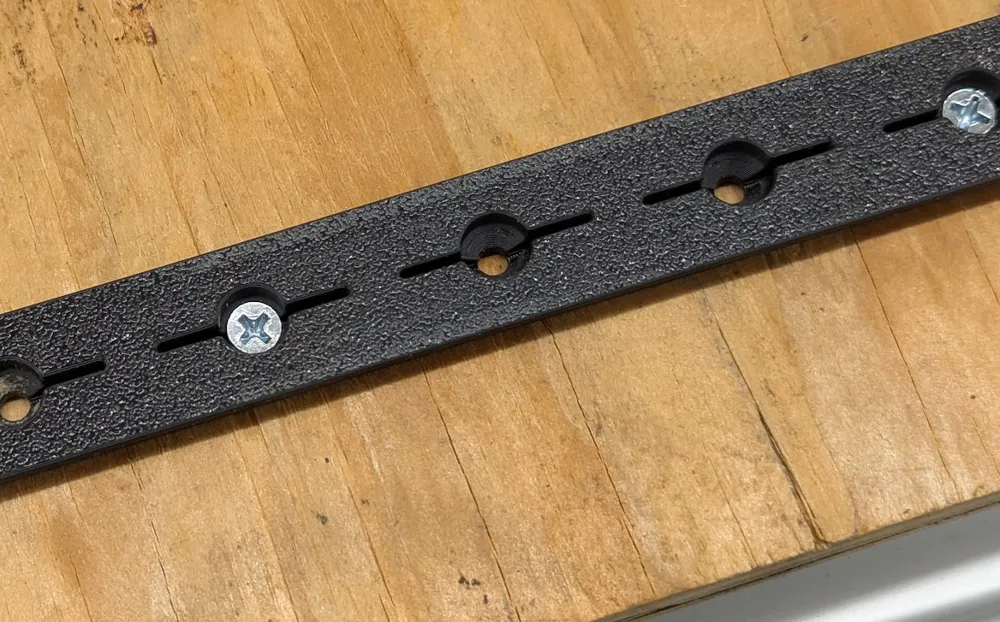

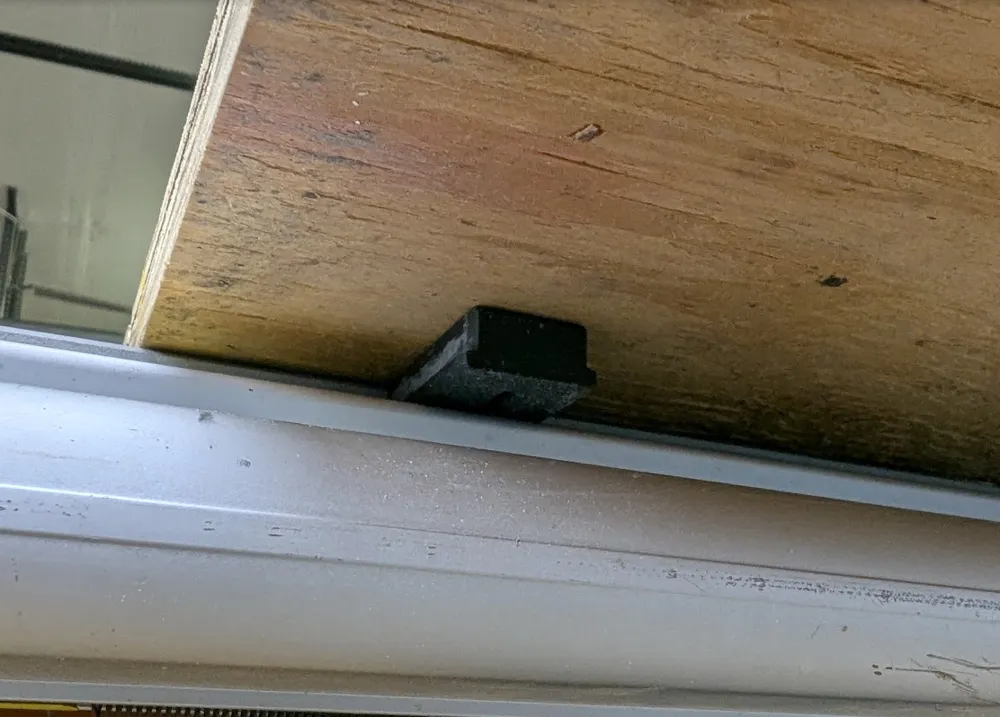

The best (and maybe most important) feature is that they are adjustable in tightness to the rail with the compliant slots at each screw hole. If you want a more snug fit in the rail, tighten the screws a little further. Attach to your sled with #8 wood screws.

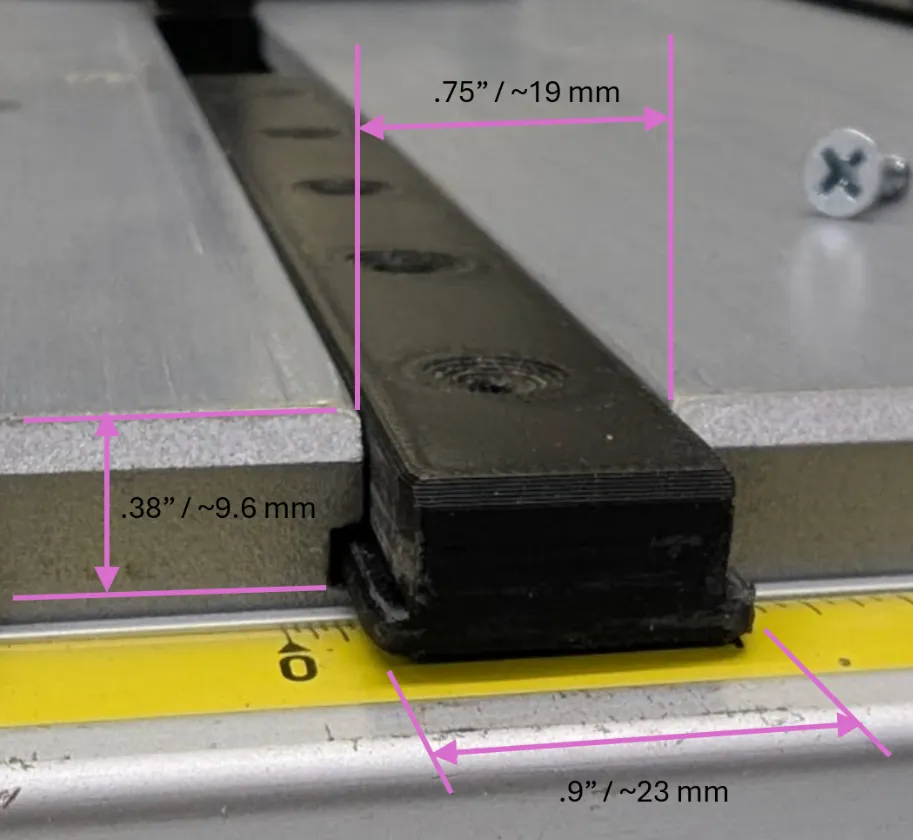

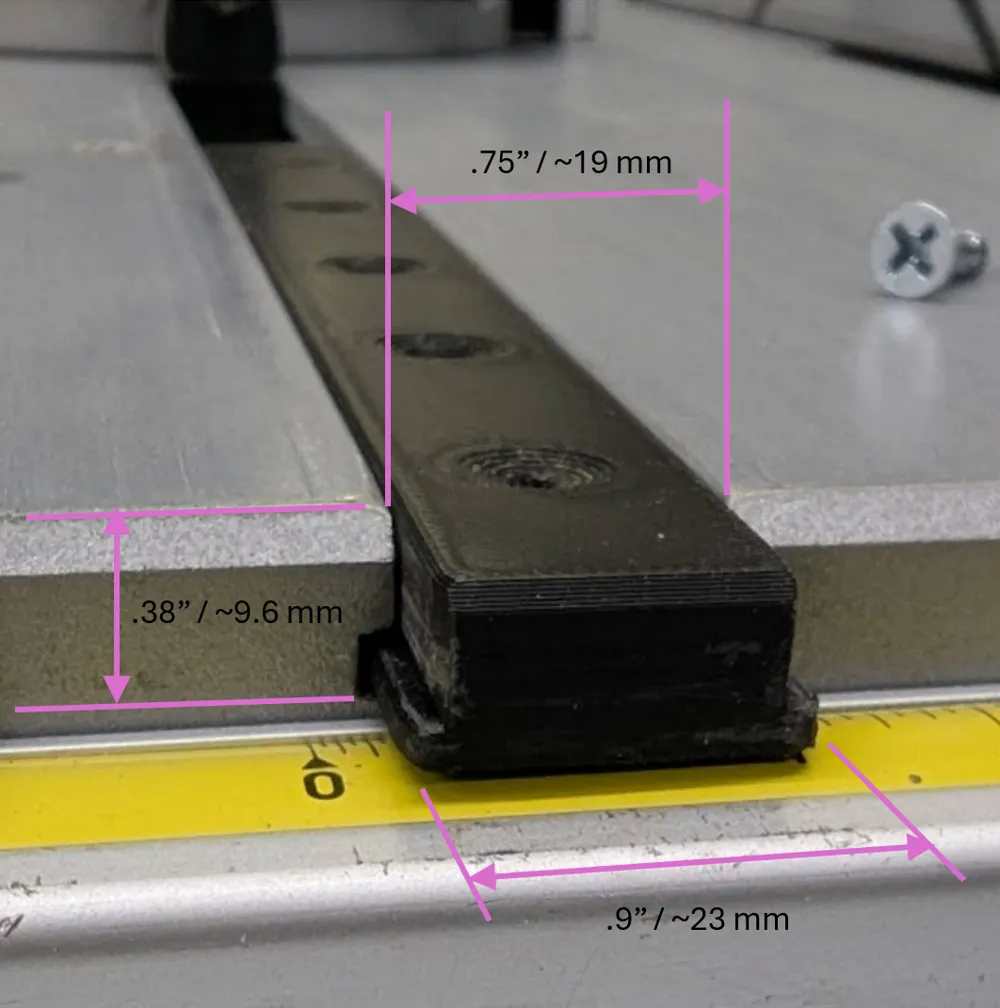

Here are the approximate dimensions so you can confirm that they are going to work:

table saw accessories
