Description

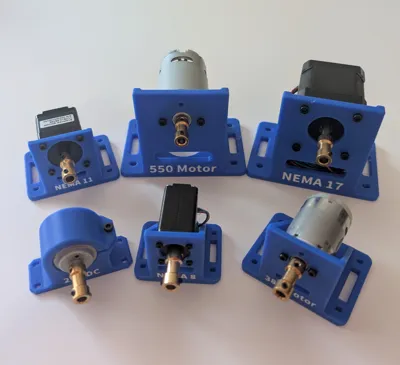

Multiple various sizes of stepper and DC motor mounts/stands. All the mounts will sit flat on a table but can also be screwed down to something if desired.
Mounts Included:
- NEMA 6 Stepper Motor Mount
- NEMA 8 Stepper Motor Mount
- NEMA 11 Stepper Motor Mount
- NEMA 14 Stepper Motor Mount
- NEMA 16 Stepper Motor Mount
- NEMA 17 Stepper Motor Mount
- NEMA 23 Stepper Motor Mount
- NEMA 24 Stepper Motor Mount
- NEMA 34 Stepper Motor Mount
- NEMA 42 Stepper Motor Mount
- 260 DC Motor Mount
- 380 DC Motor Mount
- 550 DC Motor Mount
- 260 DC Motor Mount Bracket
- 380 DC Motor Mount Bracket
- 775 DC Motor Mount Bracket
- XD-3420 DC Motor Mount Bracket
I have also included the .step CAD files for each.
If you want to copy and modify any of them, they were all created in OnShape at the following URL.
https://cad.onshape.com/documents/d3ff4e59f08a13592b3aa458/w/14274be595fecbdbba99cda8/e/9bab1234cba7f087a4a093f8?renderMode=0&uiState=68b61608f3b23f9817d4a724
