GEPRC CineLog 35 V2 Walksnail Avatar VTX Mount

When building the GEPRC CineLog35V2 FPV Drone, I was really disappointed that the Walksnail Moonlight VTX would fit, but I wouldn't have access to the MicroSD - furthermore, cables on the AiO board were touched by the VTX' metal casing.

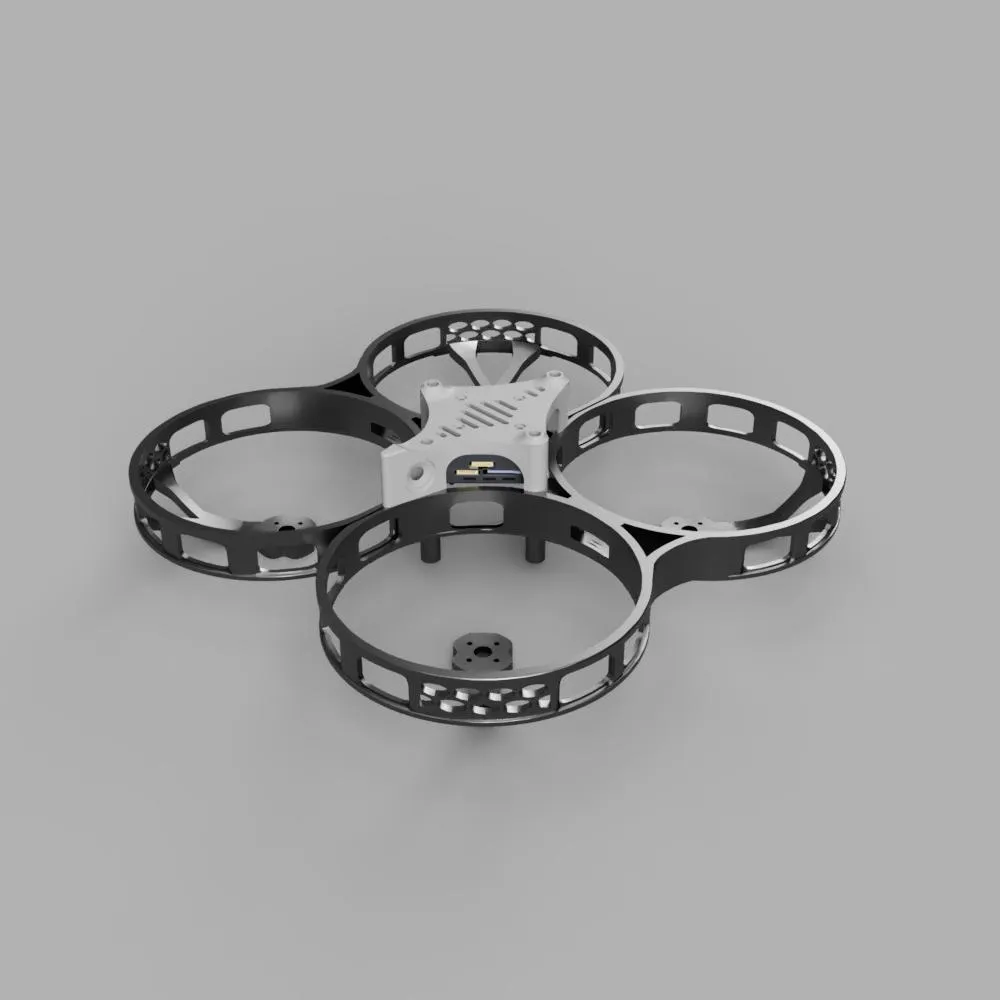

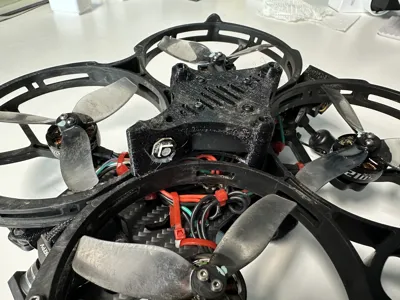

Therefore I used some available renderings of the drone and created a case for the VTX, which is mounted on top of the frame itself. To make the drone a bit more nerdy, you can glue in round WS2812B/Neopixel LEDs - there's enough space for cables beneath/inside. Alternatively, you could use googly eyes. ;-)

BOM:

• 4 M2x20mm screws (18mm might also work)

Printing:

• TPU recommended
• 2 Walls, 15% infill
• 0.2mm layers

Remixes:

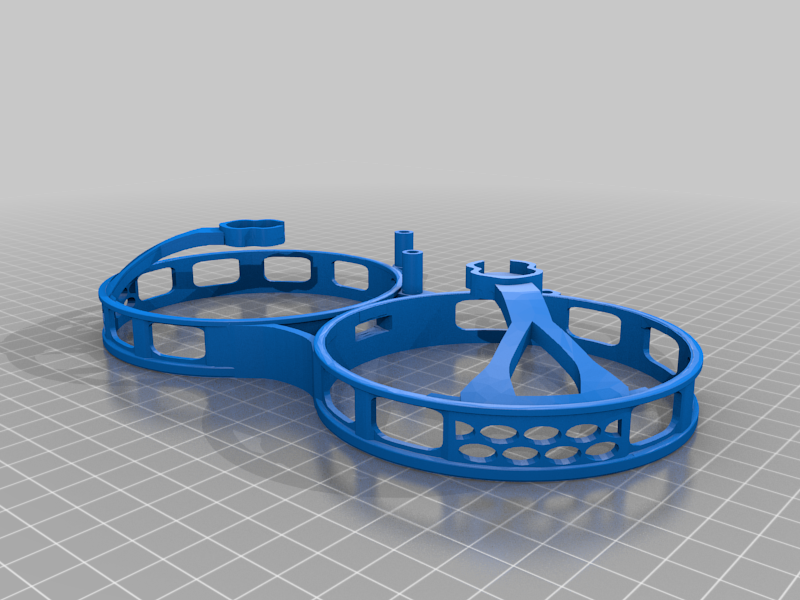

Both mentioned remixes were only used for reference and general measurements.
