Bow Stand Arms and Feet
Print Profile(1)
Description

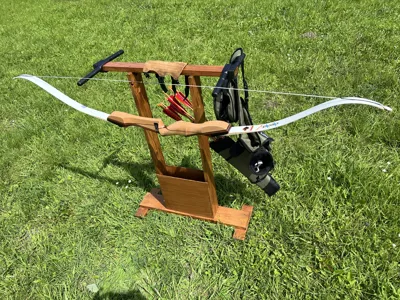

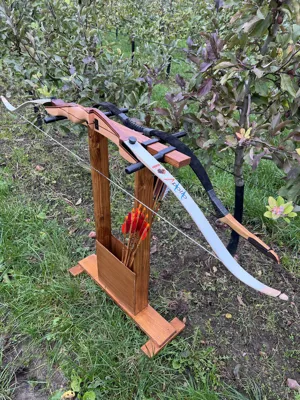

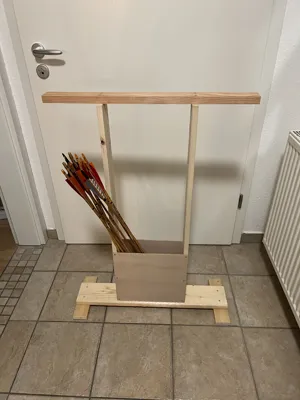

This model requires wood and some crafting skills to build a nice bow stand for a maximum of 2 bows
For the stand: min 2x M5 screw x min 25mm thread length & 16x countersunk screw l=16mm, some foam depending on the dimensions for the arrow box, wood finish and screws for the construction
One M6 screw is needed per arm
I used hex M6 screws and printed a suitable knurled screw head here on MakerWorld so I can tighten them by hand (just search for Rändelschraube and support other creators :) )

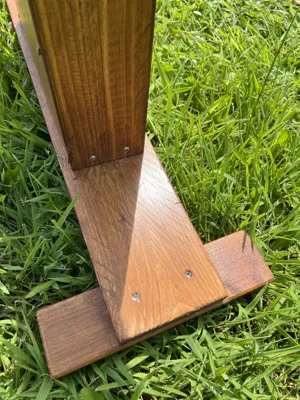

For the feet, 4x countersunk screws for wood with a head diameter of approx 8.7mm are used per foot
As 3D Printed parts, the arms and feet are supplied in this model
Printed in PLA, but all other filament materials can also be used

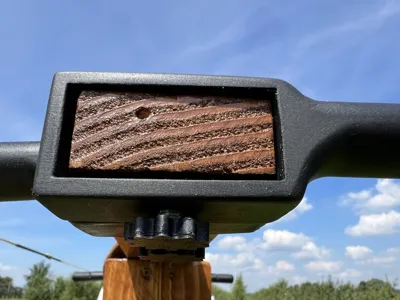

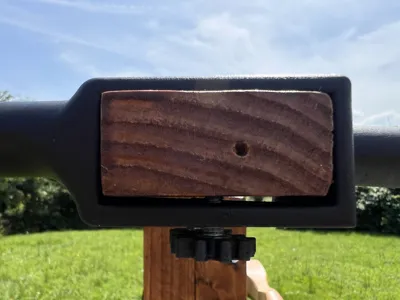

The dimensions of the opening for connecting the arms are 53mm x 25mm, the length of the board used does not matter in this case, but should be at least 50cm depending on the bow

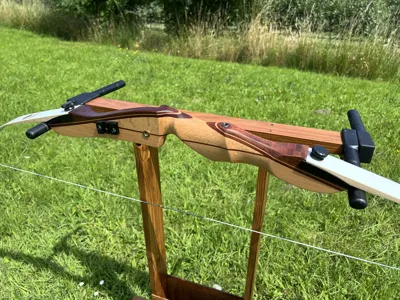

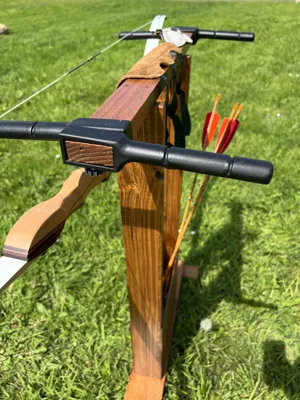

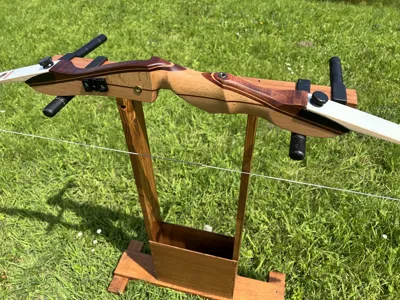

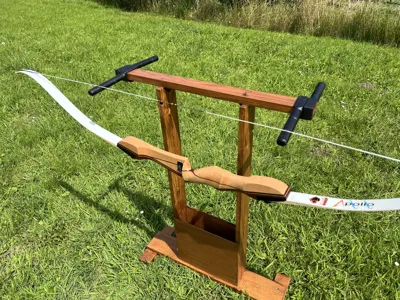

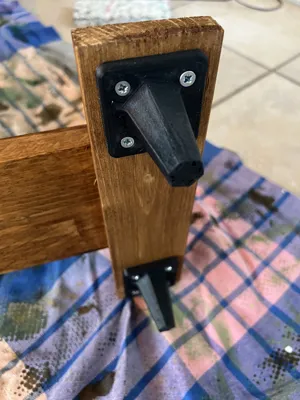

The arms are adjustable and offer space for 2 bows, whether placed on the handle or stored via the grooves in the arms on the string (As desired)

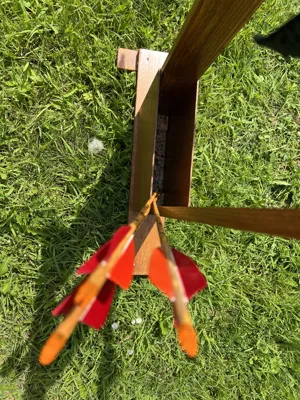

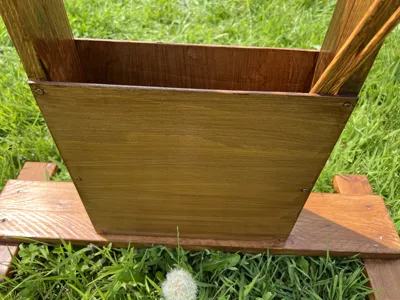

I also used some foam for the bottom of the arrow box so that the arrow tips do not always hit the wood
When I have a chance, I will also upload my construction plan for my box
→ covering the arms with thin leather is also possible to protect your high-quality bows and create an even more beautiful look
Feel free to let me know via PN if you need help, I am happy to answer any questions
Have fun building and shooting :)
