This is a quick connect coupler for the XTool Metal Fabricator exhaust housing.

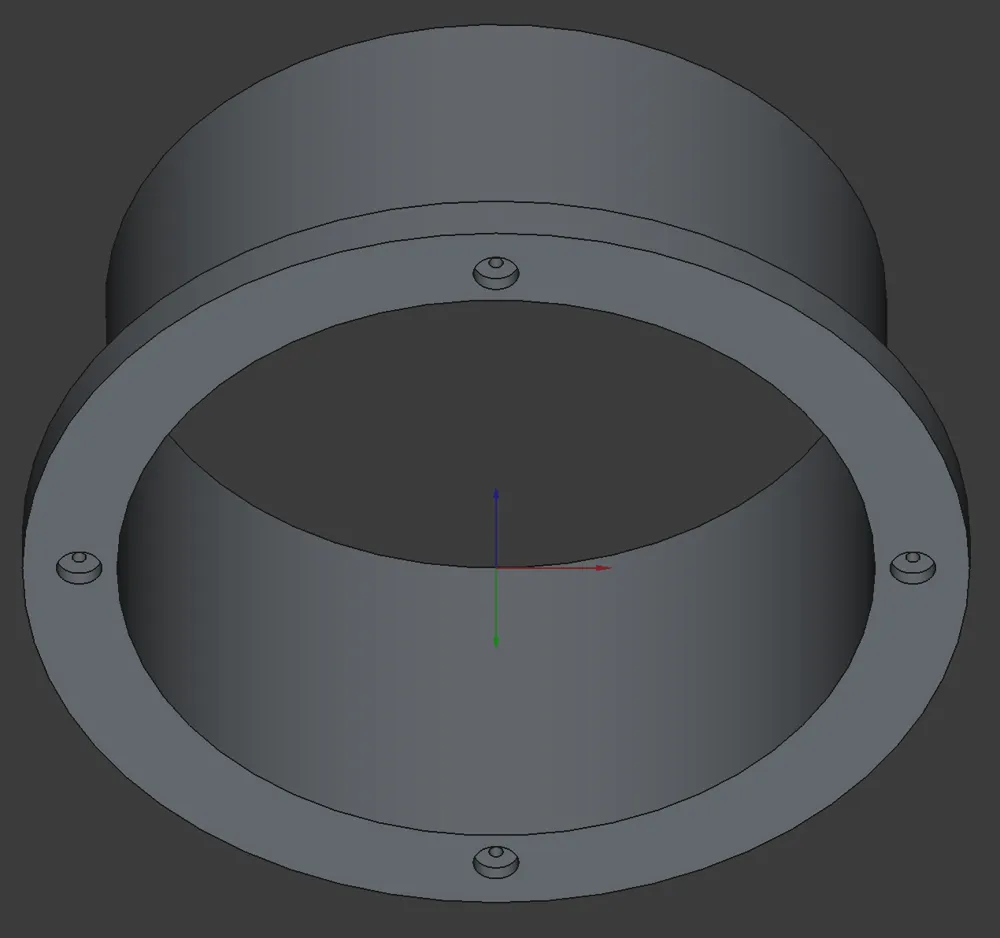

The four pockets are intended for 12mm dia by 4mm thick magnets with a center hole for the screw.
The magnets can be found on Amazon and come in a pack of 50.

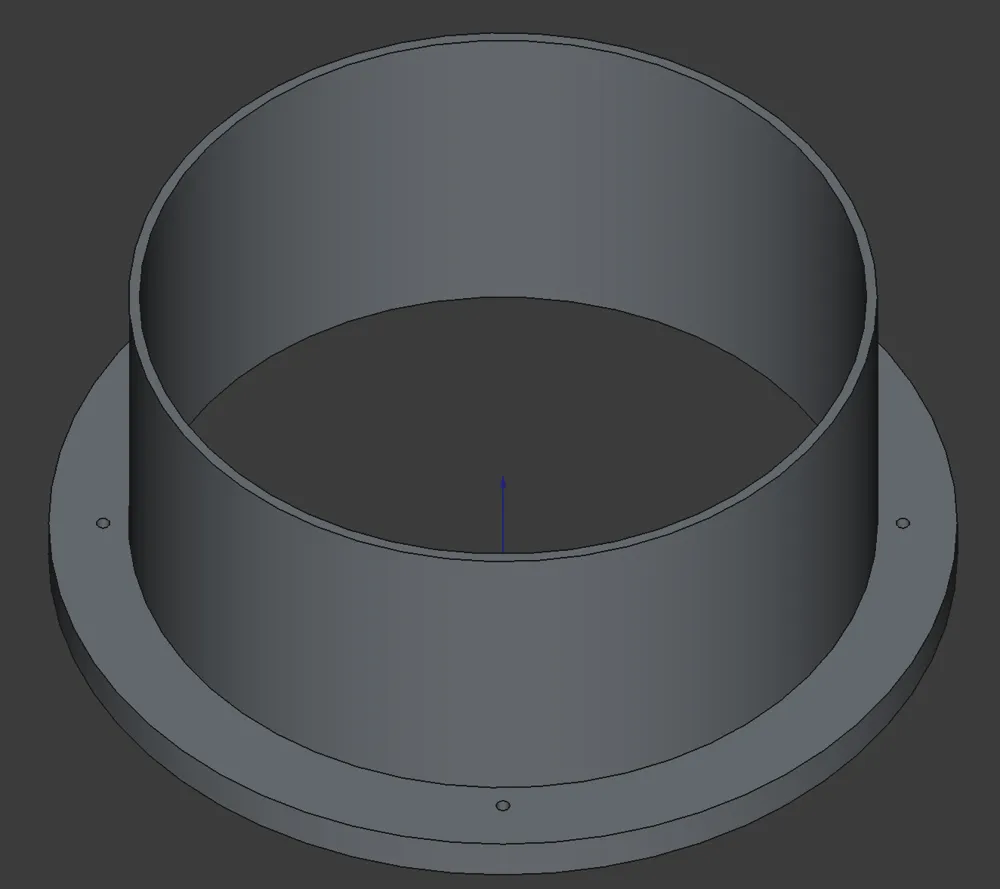

One plate has an inside diameter of 200mm and the other has an outside diameter of 200mm.
The base ring is 250mm outside diameter and is 12mm thick.

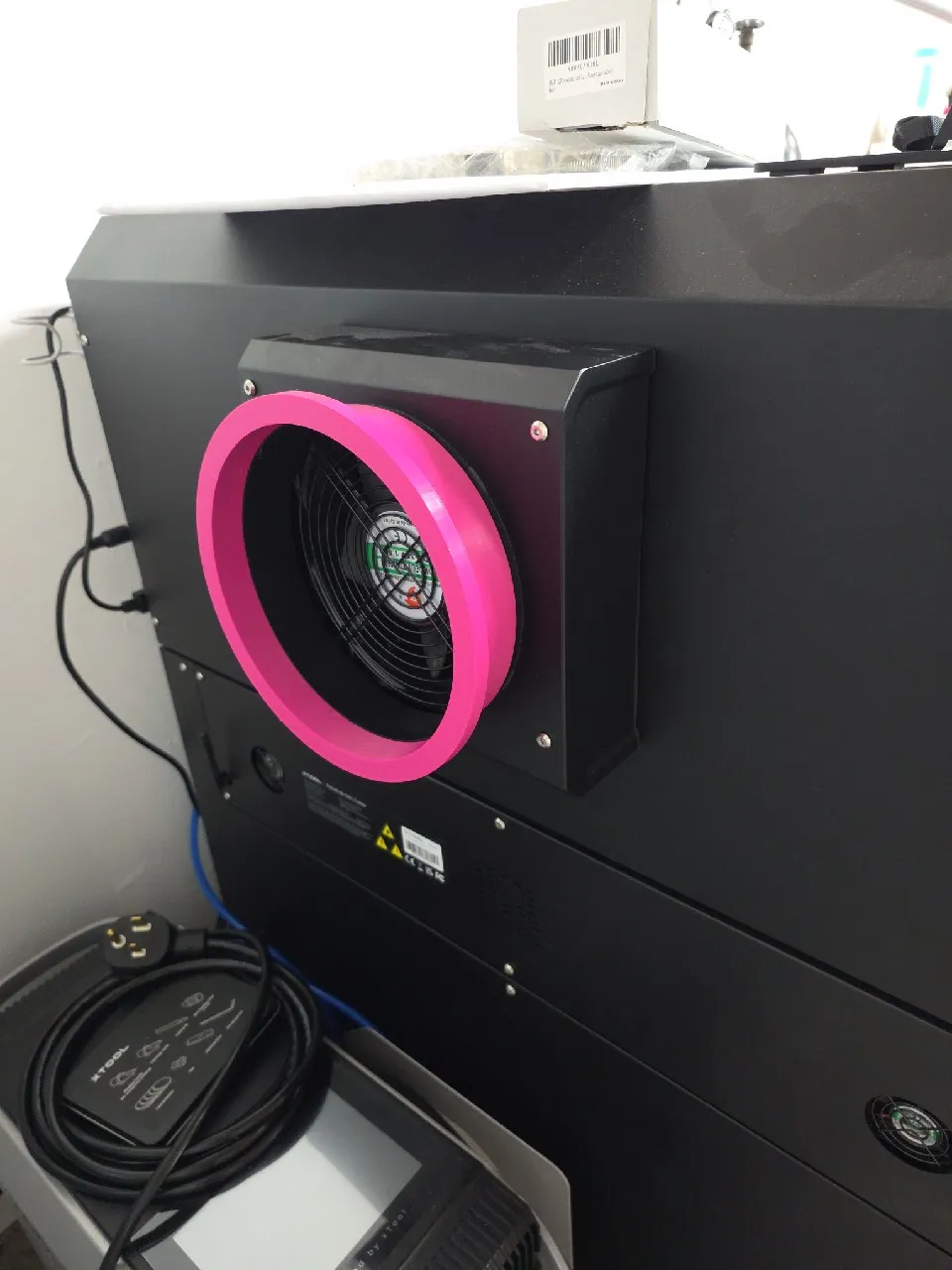

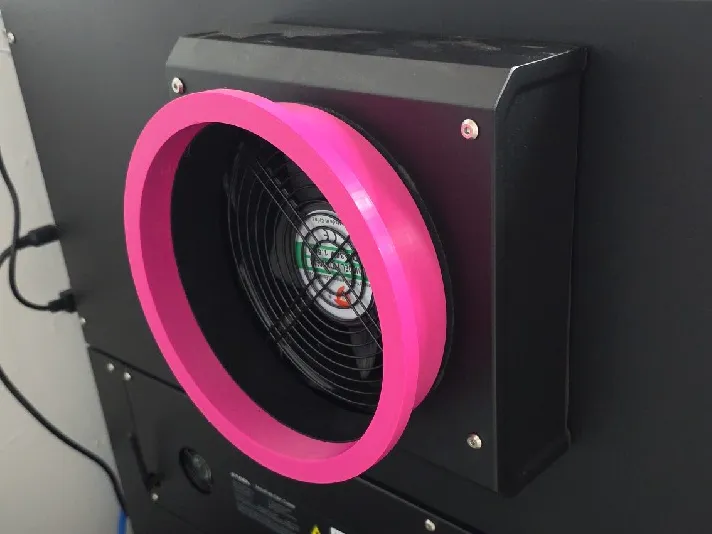

This is the first print and fitting test, but without the holes for the magnets.
