Fan Wall Mount with Cable Passthrough Grilles
Print Profile(5)
Description
Description

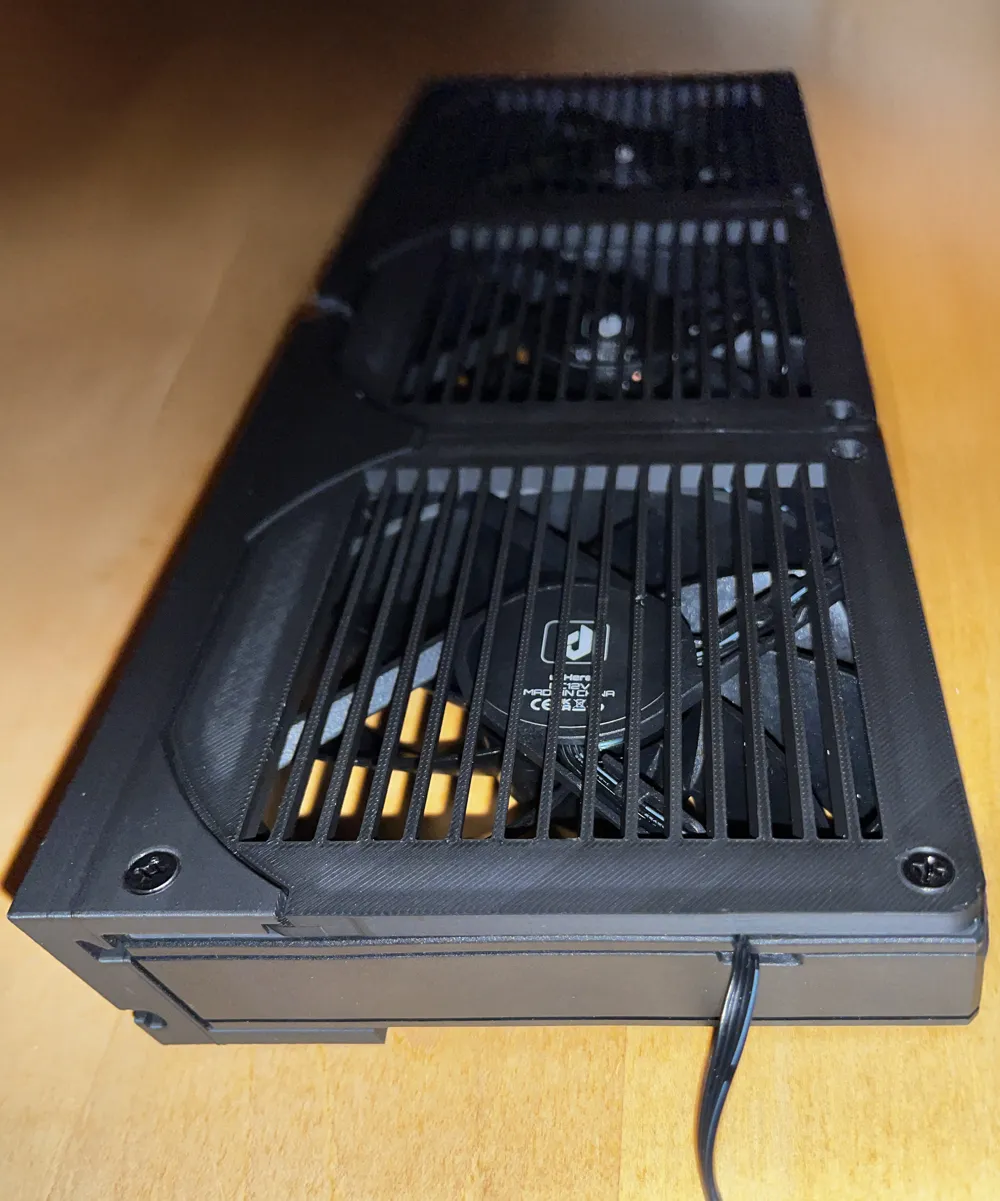

This fan wall mount consists of two parts (left and right) and offers cable routing both inside and out – inside for the 4-pin fan connector, outside for the 12V power supply. Both cables meet in the middle and can be routed upwards or downwards, for example, to the PWM Fan Speed Control Box. Three insertable protective grilles with slanted slats prevent direct upward airflow and protect the fan heads.

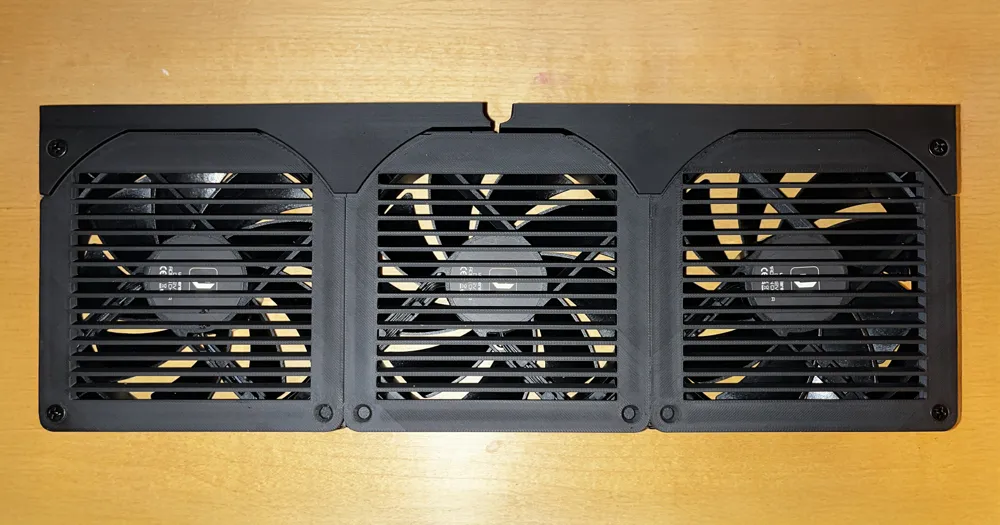

The protective grilles can be glued together sideways to form one grille and then fixed to the fan with one screw on the left and right. Alternatively, all grilles must be screwed to the fan separately.
It was specifically designed for installing a PWM 120 mm fan and includes 4 screws. The components are listed below.
Filament: Depending on the area of application and temperature load, ABS is suitable here
Additionally, there are 2 other print profiles with adjusted cable routing
- Wall mount cable routing right
- Wall mount without cable routing
Here are the links to the individual components:
Fan:
- PWM 120 mm Fan BLACK - https://amzn.to/3KeZGxe
- PWM 120 mm Fan WHITE - https://amzn.to/4pDiSoC
Optional:
- 12 V 2A Power Supply - https://amzn.to/3Kf7K0Z
- PWM Fan Speed Control Module - https://amzn.to/4gB3e93
Optional in combination with a box for the fan speed control module
- DC Sockets - https://amzn.to/3KeWcec
Shelly Integration for Smart Home
- Cable 1.5mm² - https://amzn.to/3IBDfSj
- Shelly 1 Gen3 - https://amzn.to/3IbLW5R
- Shelly Plus Add-On - https://amzn.to/4nJPlI4
- Temperature Sensor - https://amzn.to/4nDEQ94

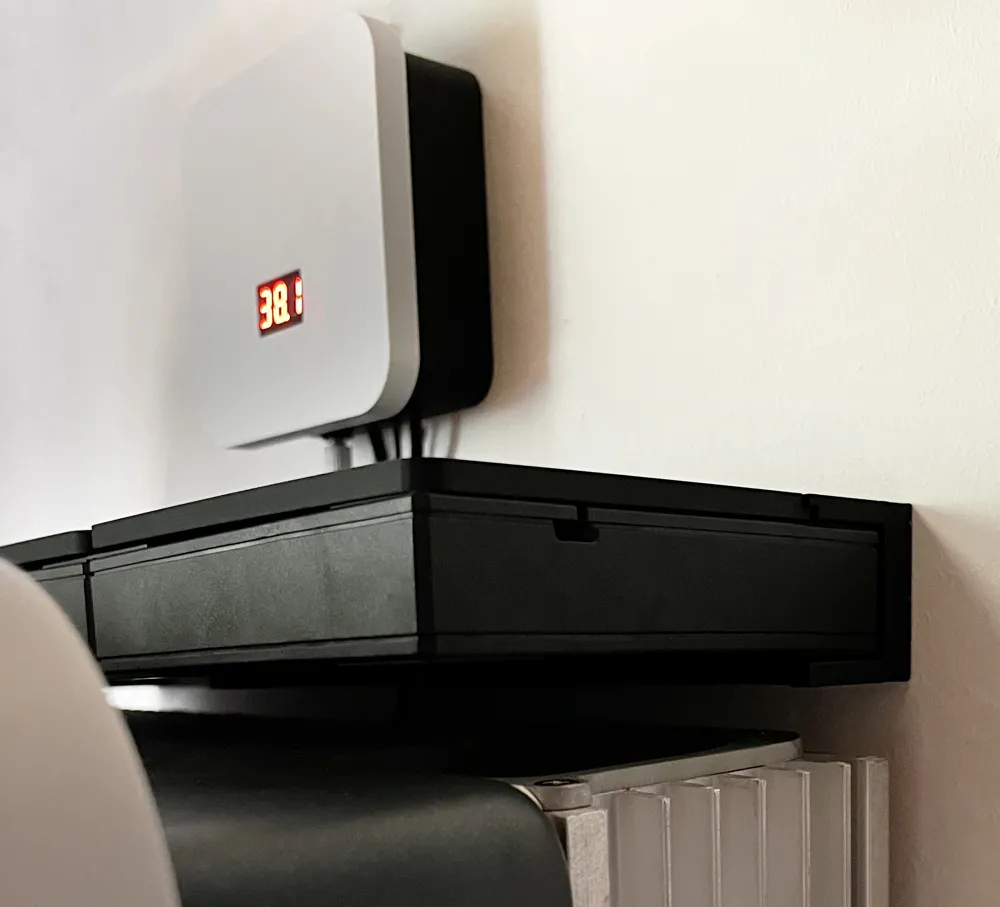

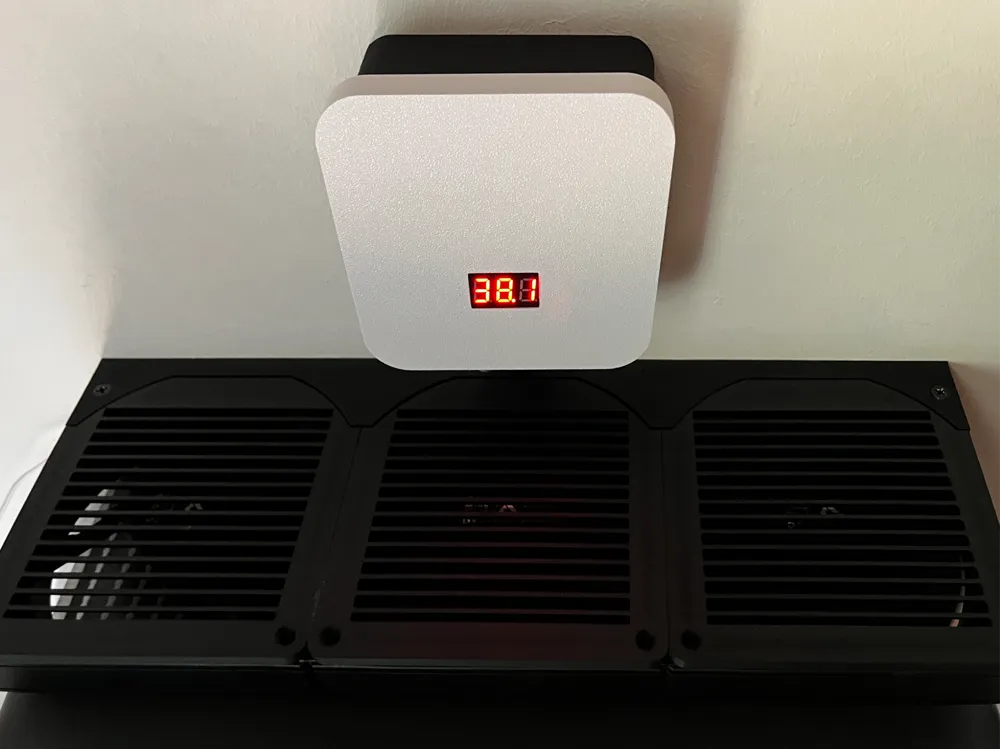

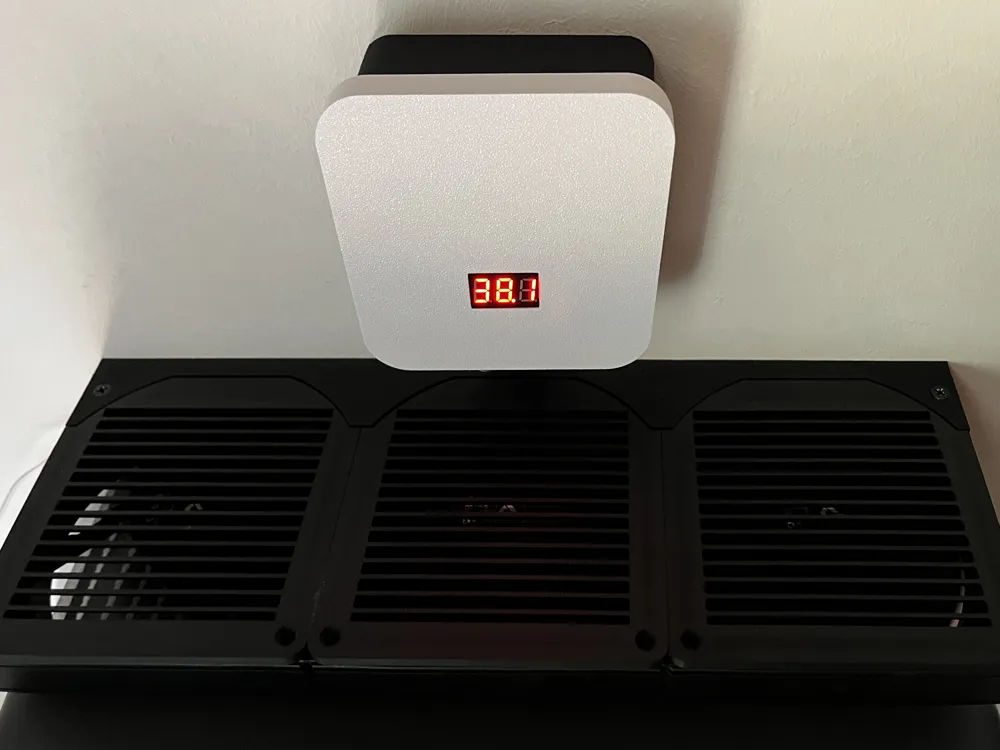

!!! Suitable housing for the fan speed control module above the fan wall mount is also available !!!
→ https://makerworld.com/en/models/1752040-case-for-fan-speed-control-module#profileId-1862736
