Wheel Bend 90 degrees for KE 50 Conveyor system
Print Profile(1)
Bill of Materials
Description

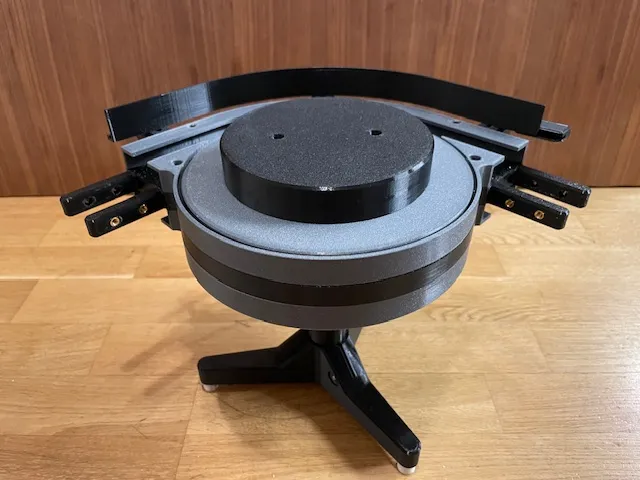

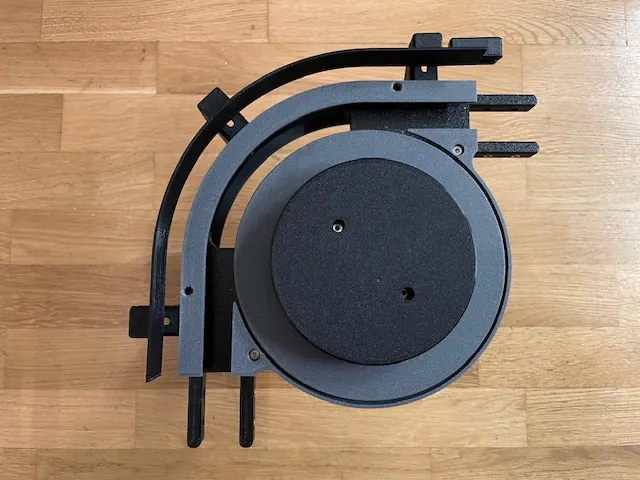

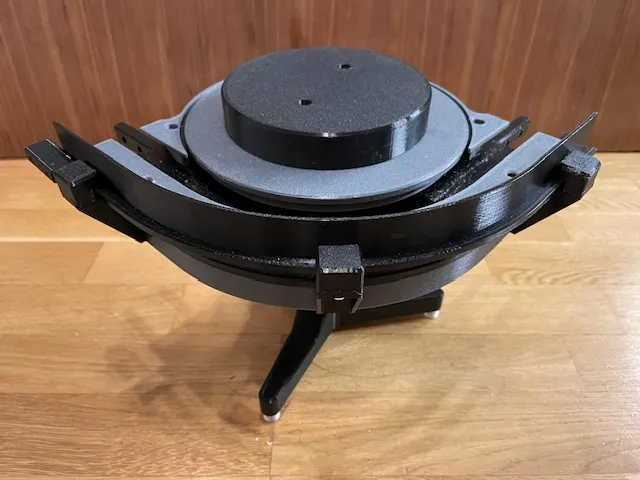

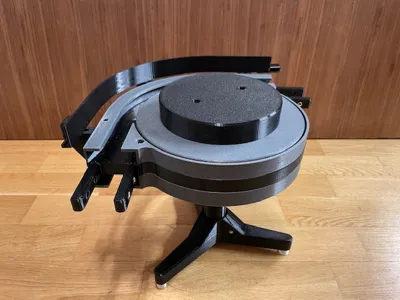

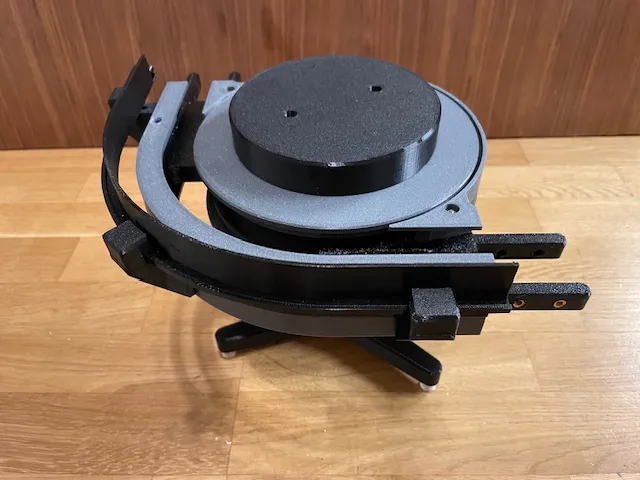

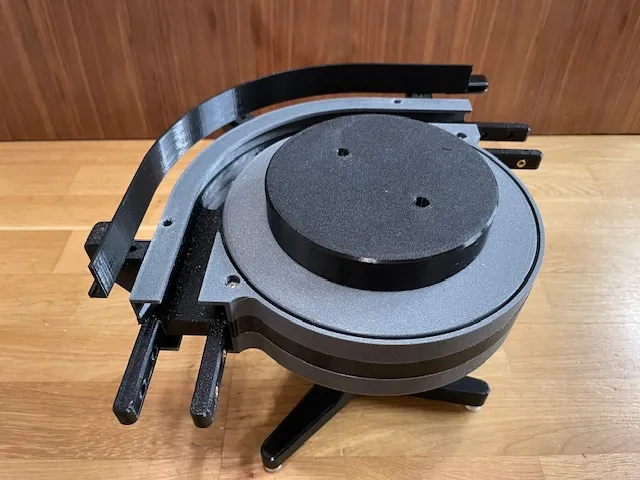

This is a 90 degree wheel bend for the KE 50 conveyor system.
This is an accessory to the KE 50 Base kit that is used when you need a 90 degree turn of the chain.
The wheels are fitted with ball bearings to secure a nearly frictionless turn around bends.
Check out page 17, 18 and 28 in the assembly manual to see how to put this assembly together.
I also submitted the fully assembled bend as a step model which can be a nice way to see how everything fits together.
The name of the step file is “KE-0012 v19.step”.
Check out the assembly video below:
