Configurable Pastern strap for hoof boots

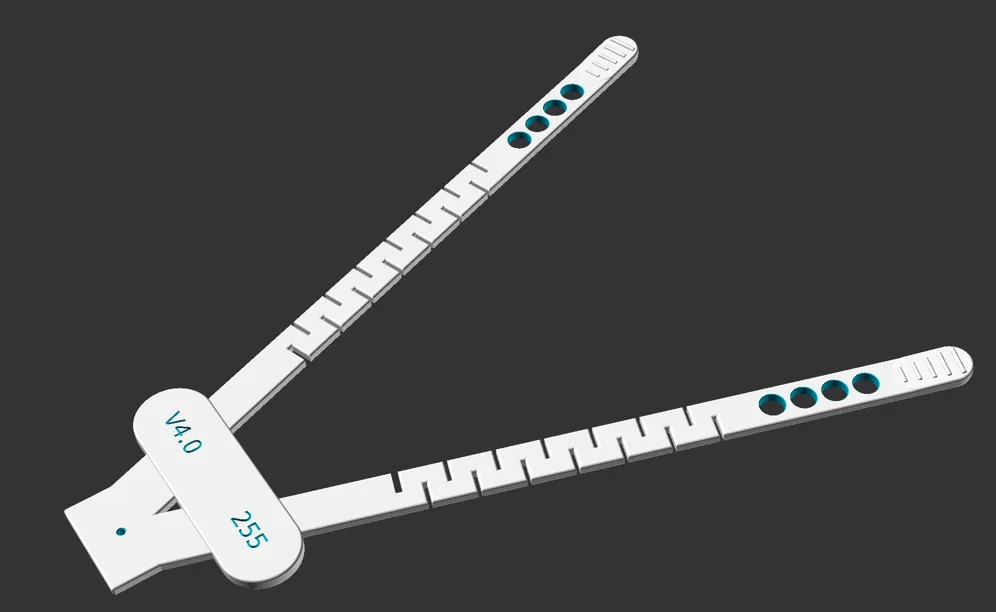

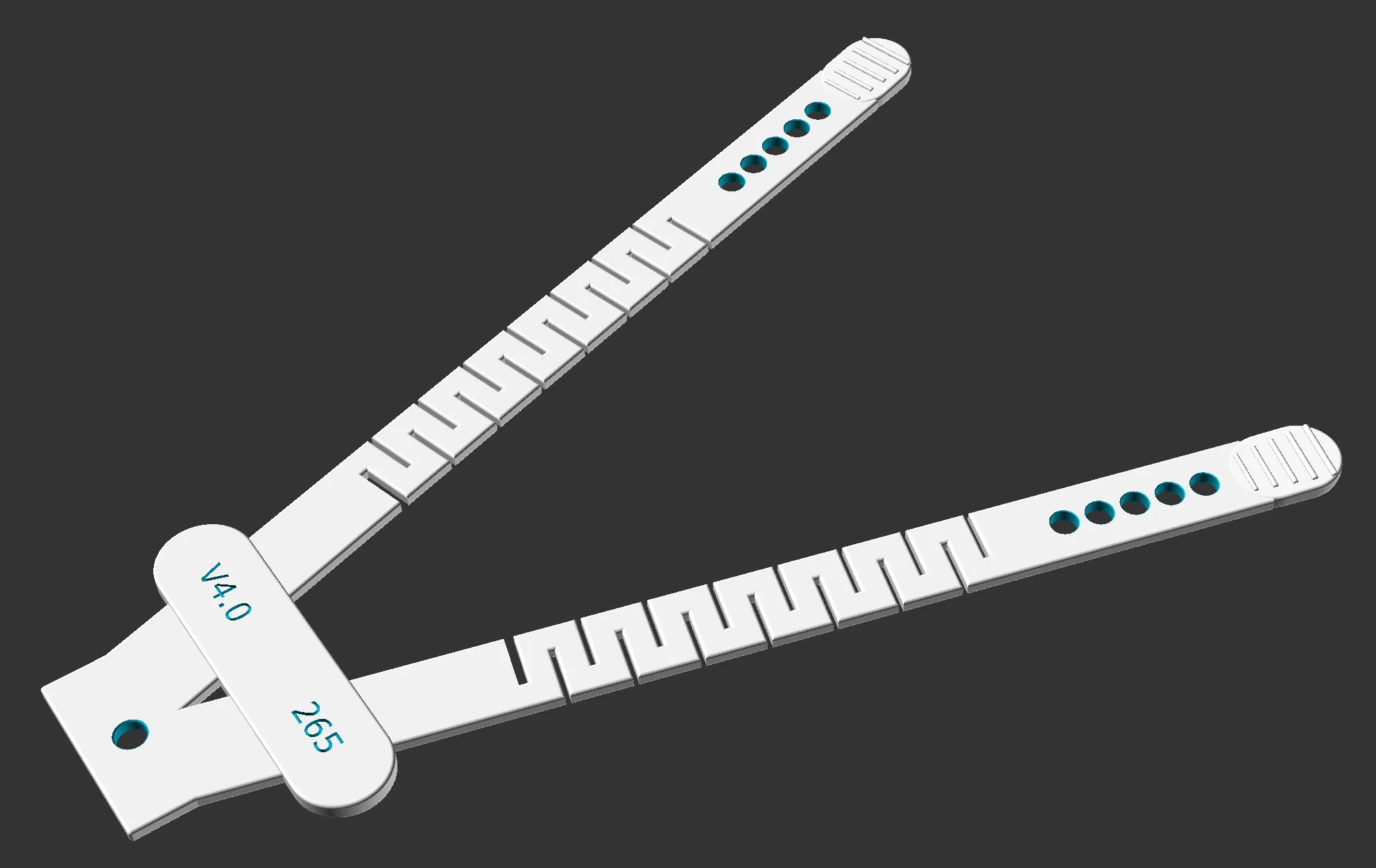

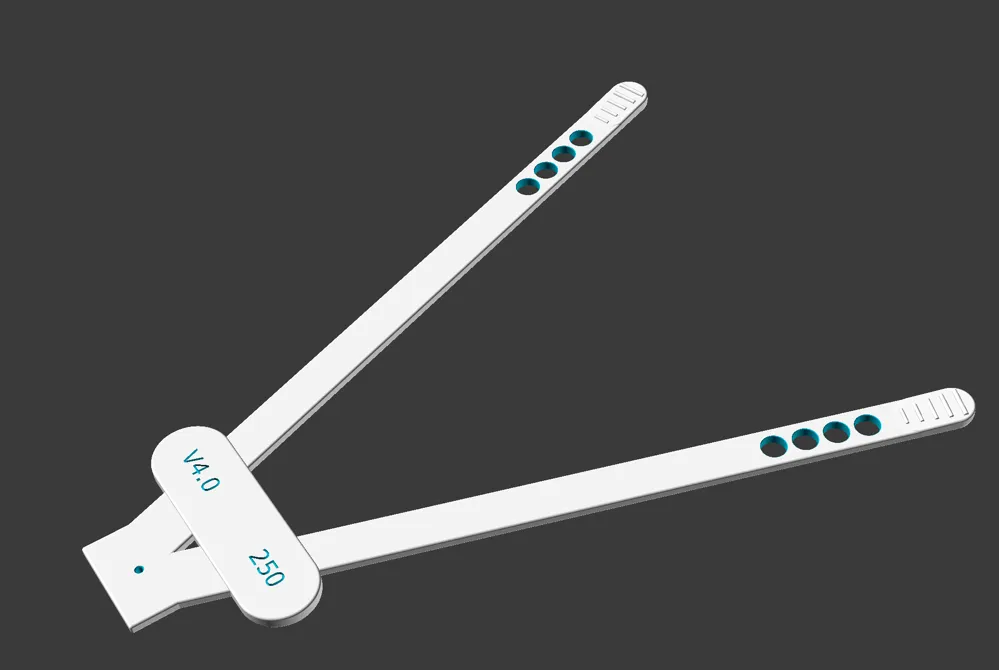

This is a configurator for gaiters for hoof boots

The length, width, and thickness of the gaiters are configurable

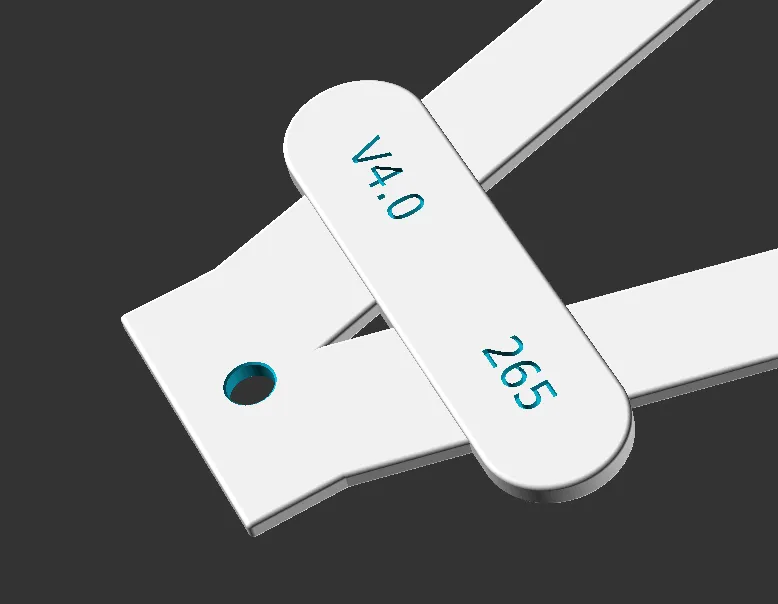

as well as the position and diameter of the mounting hole

Furthermore, the size and position of the "cross-strap" can be controlled

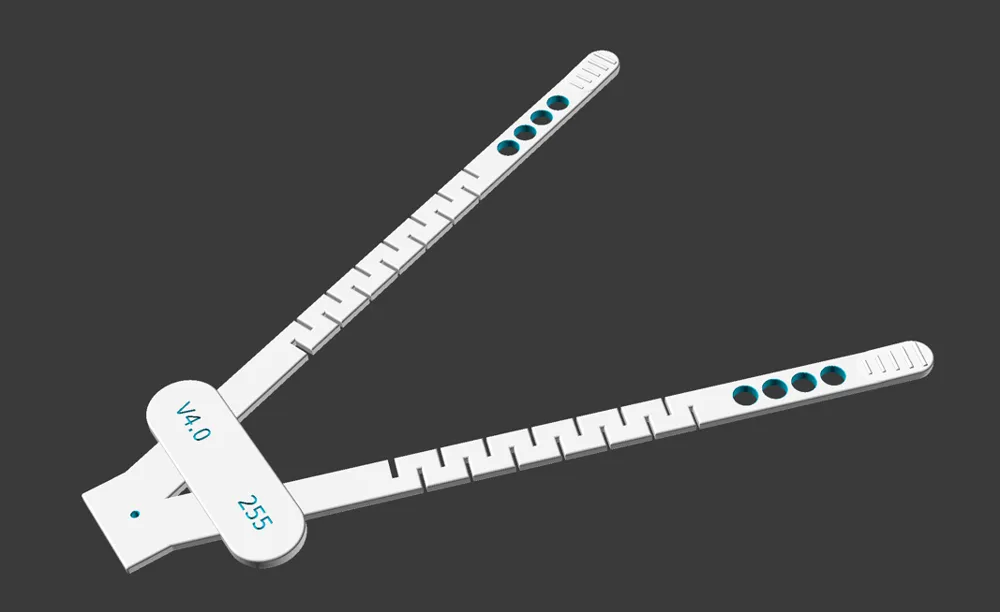

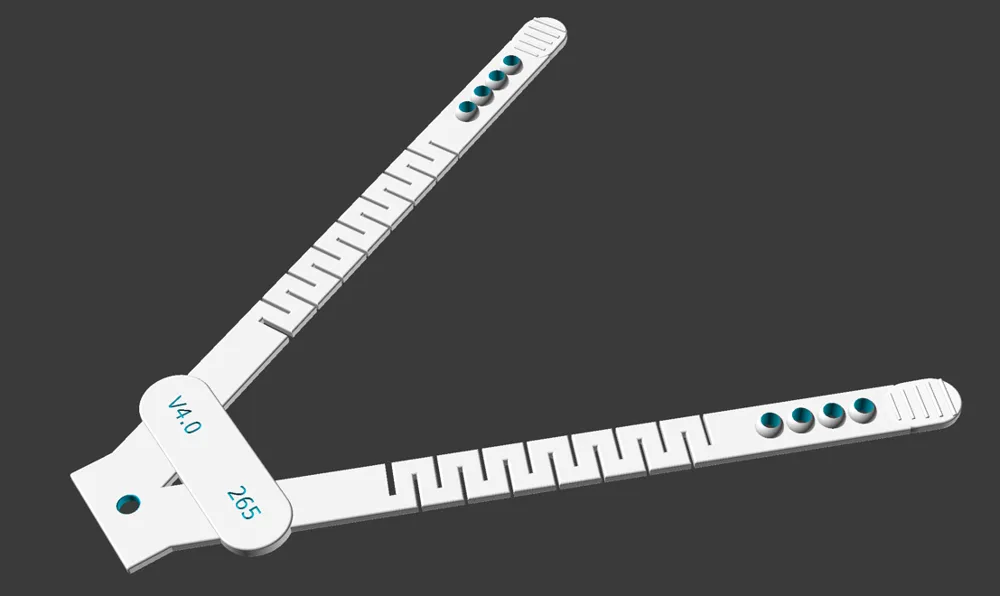

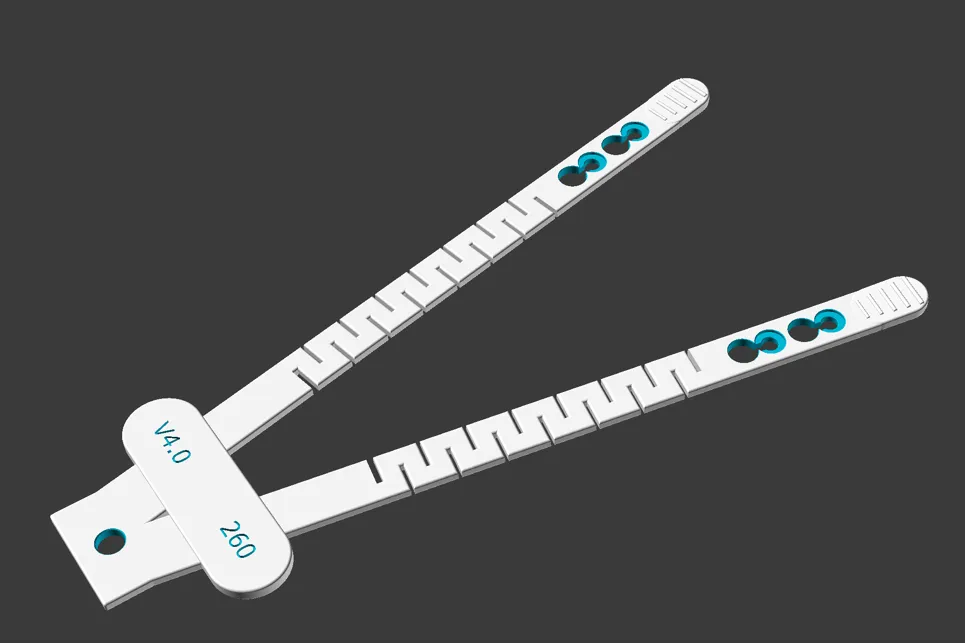

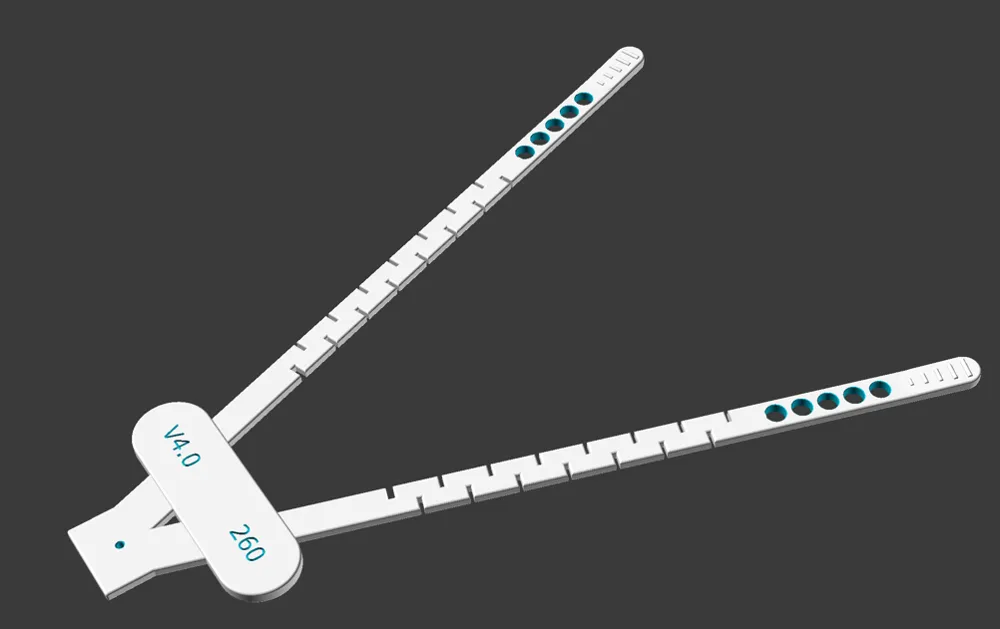

The "Flex" option controls whether the gaiters should be made even more elastic

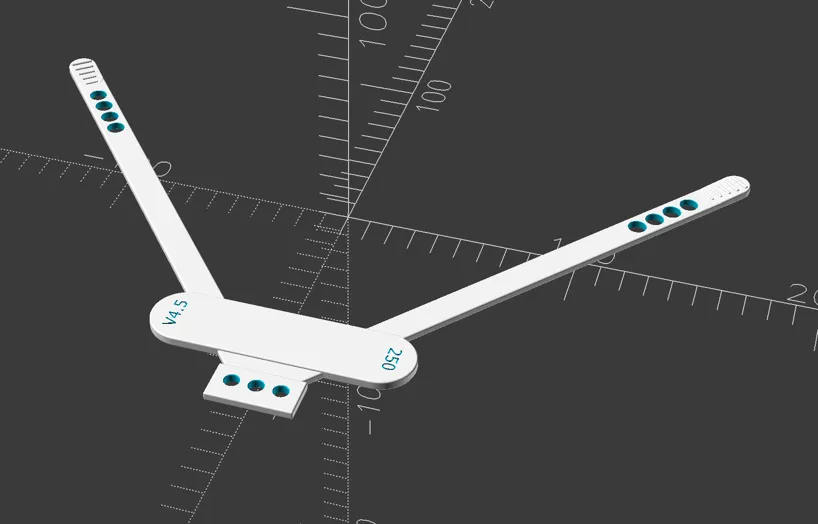

If _plate_hole_additional_distance_ is greater than 0, one hole each is added to the right and left
at this distance. The rear plate automatically becomes wider as a result

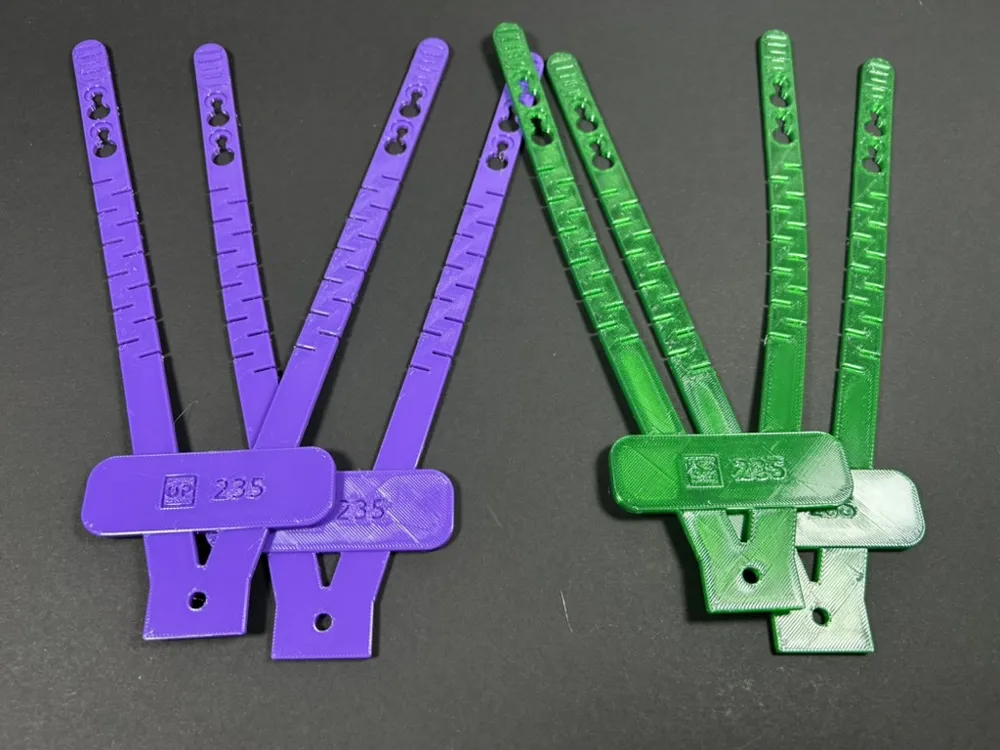

Currently, three variants are available for the front connection

Depending on the diameter, more or fewer holes are available in the given space

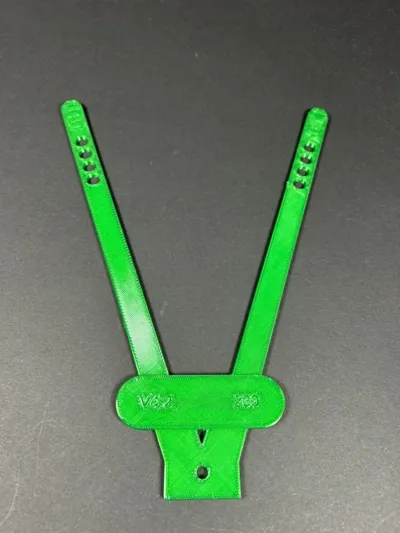

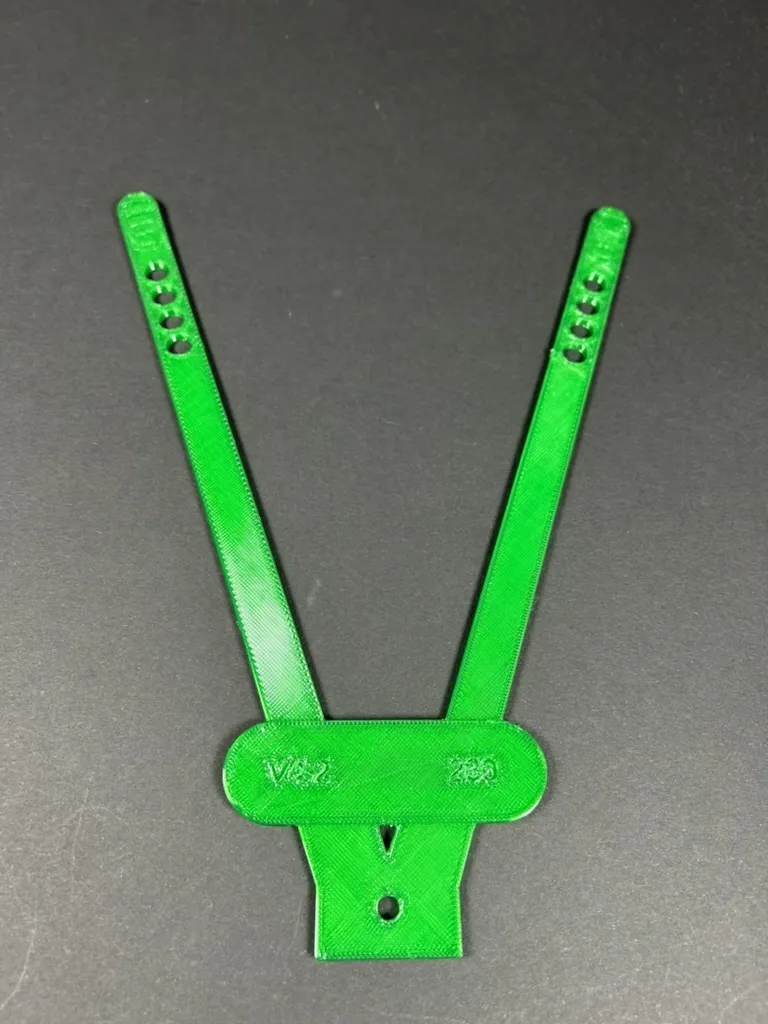

Preparation for Use

(after printing)

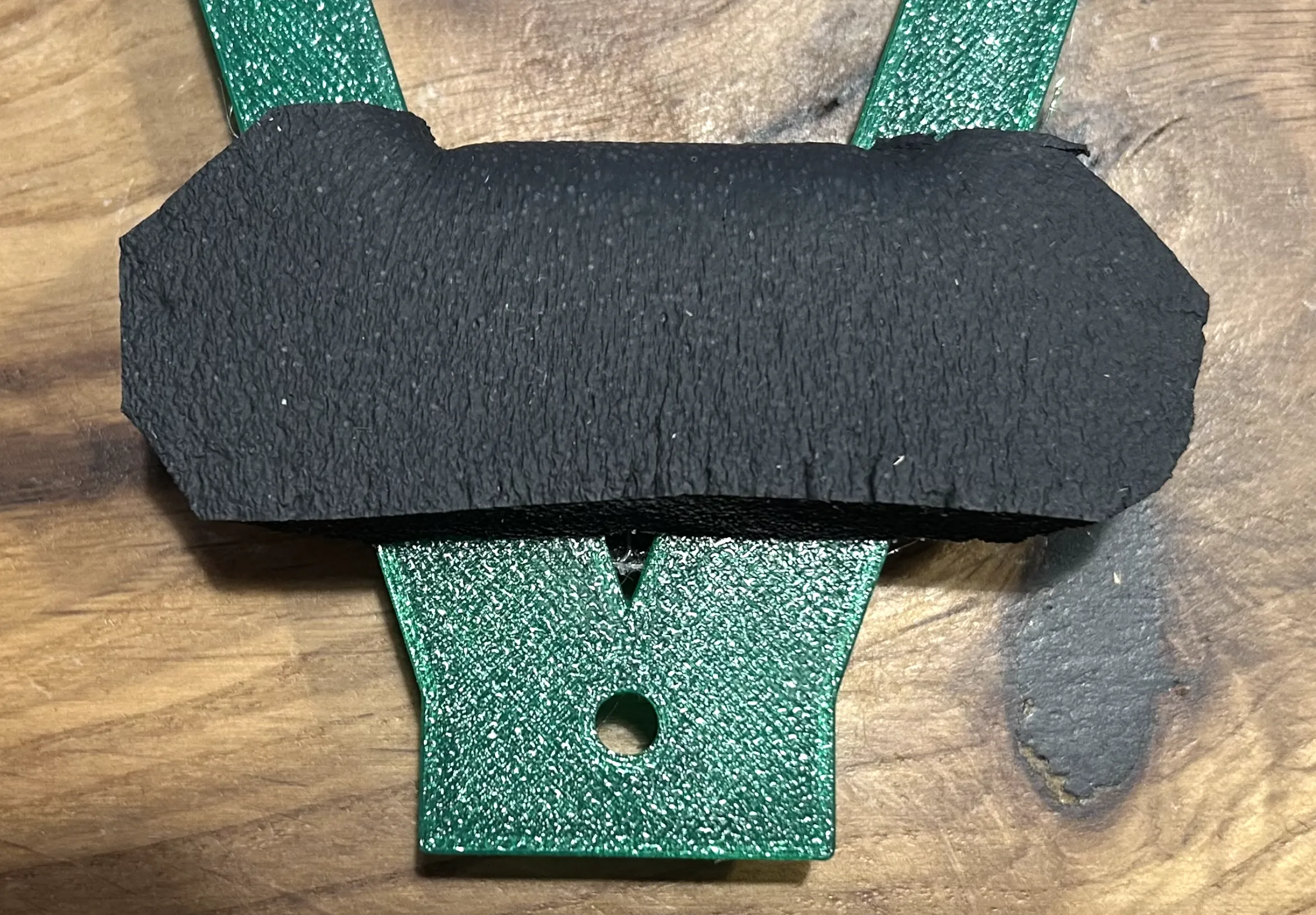

The cross-strap must then be glued with neoprene. Superglue works best for this. We also tried self-adhesive neoprene, but it doesn't hold permanently

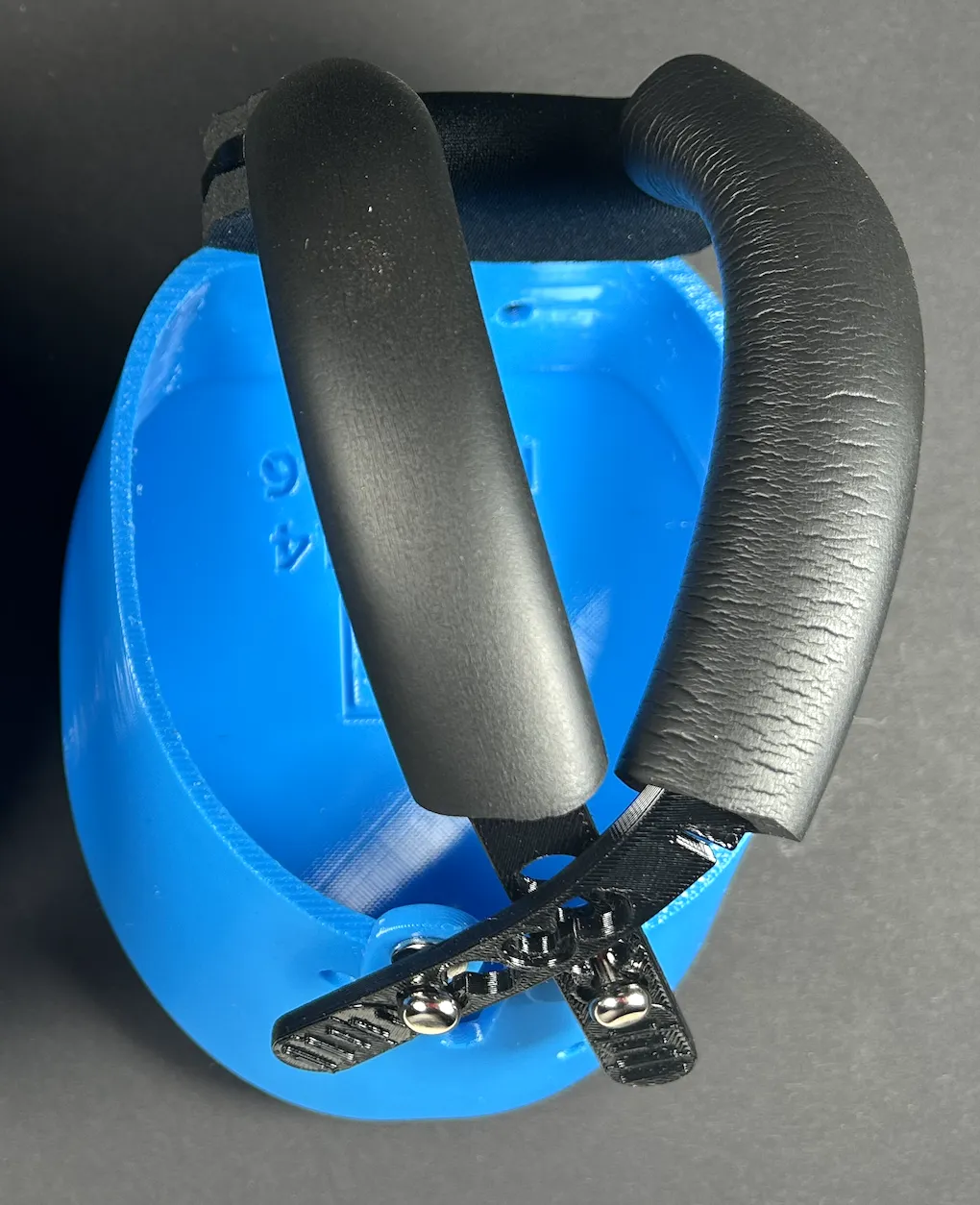

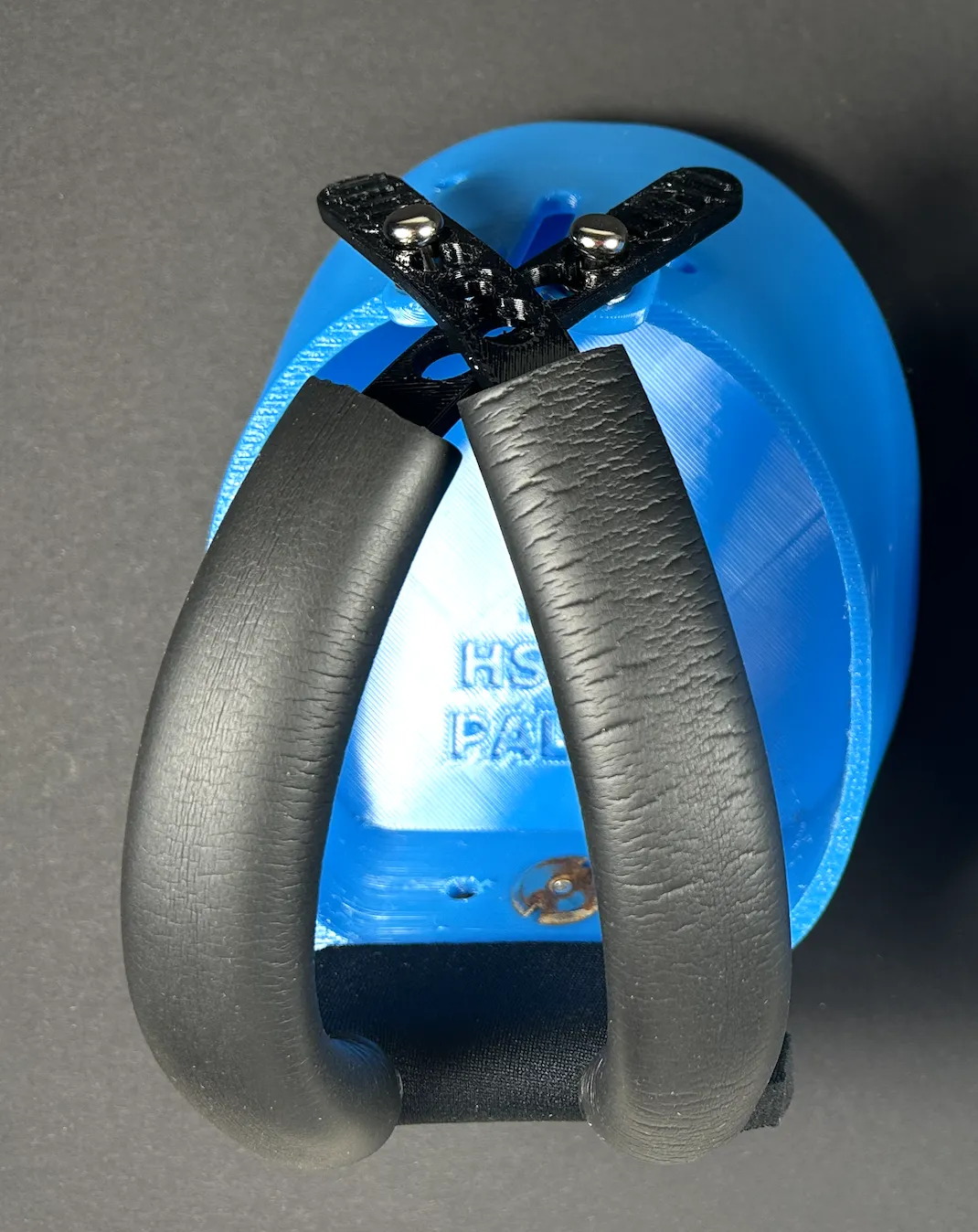

And suitable neoprene tubing must still be pulled over the sides

We use https://amzn.eu/d/axa71pV

This fits very well (with some dish soap) for the dimension

If you change the width or thickness, you will probably need to look for (neoprene/EPDM) hoses with different inner diameters

If you know other sources for foam tubes in these sizes, I would be very happy to receive a comment about the source

Connection to the Hoof Boot

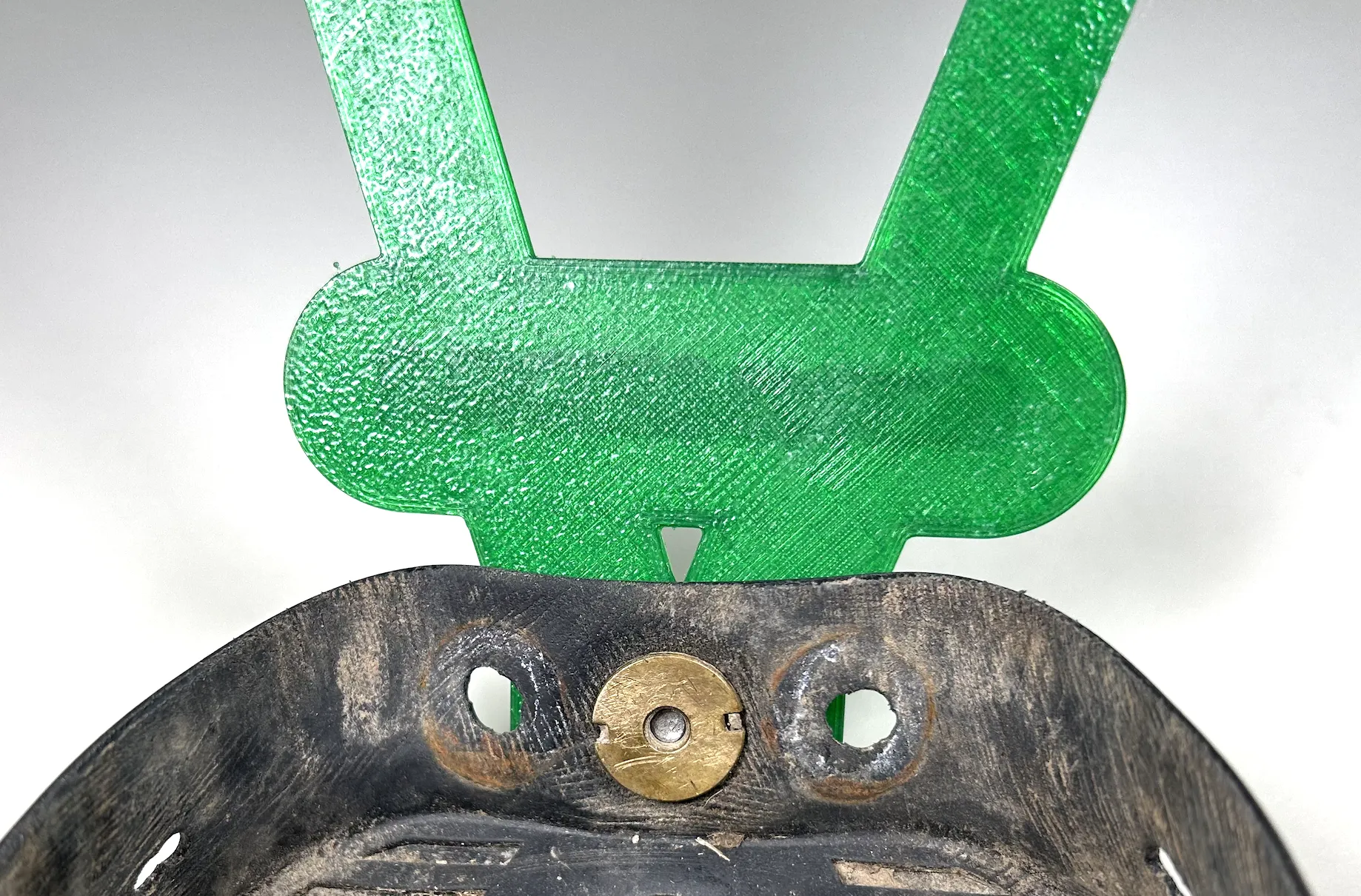

Then you can attach the ND-Gaiter with a screw through the lower hole

to the hoof boot. Since version 4.4, this is also possible with 2 or 3 screws

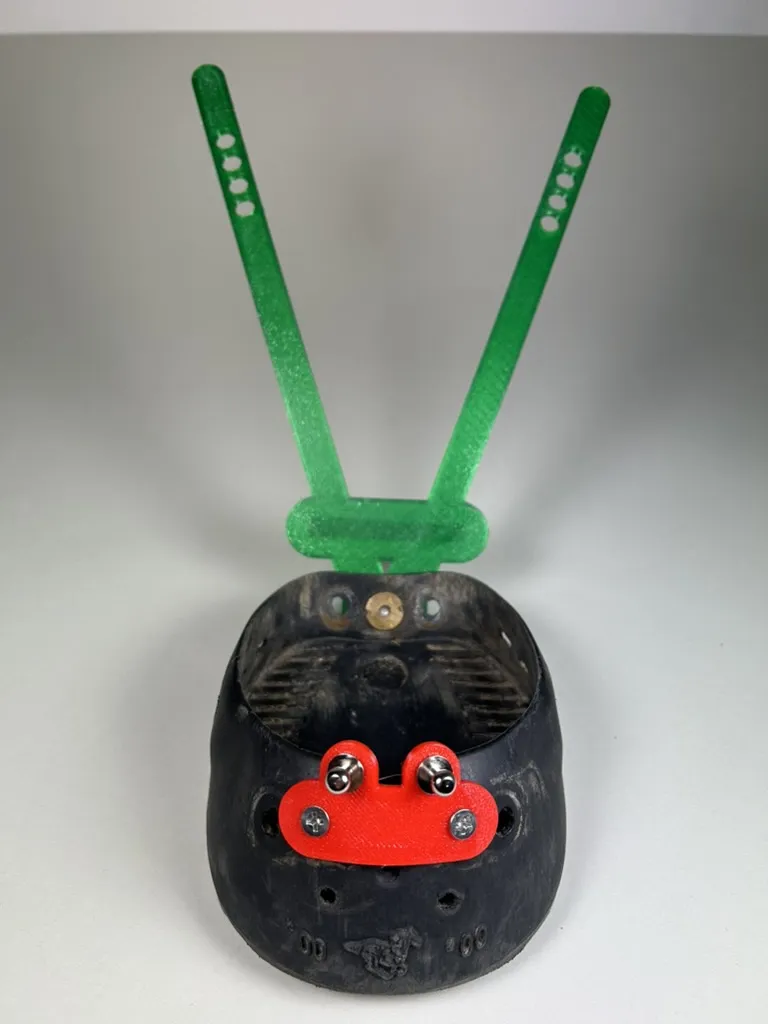

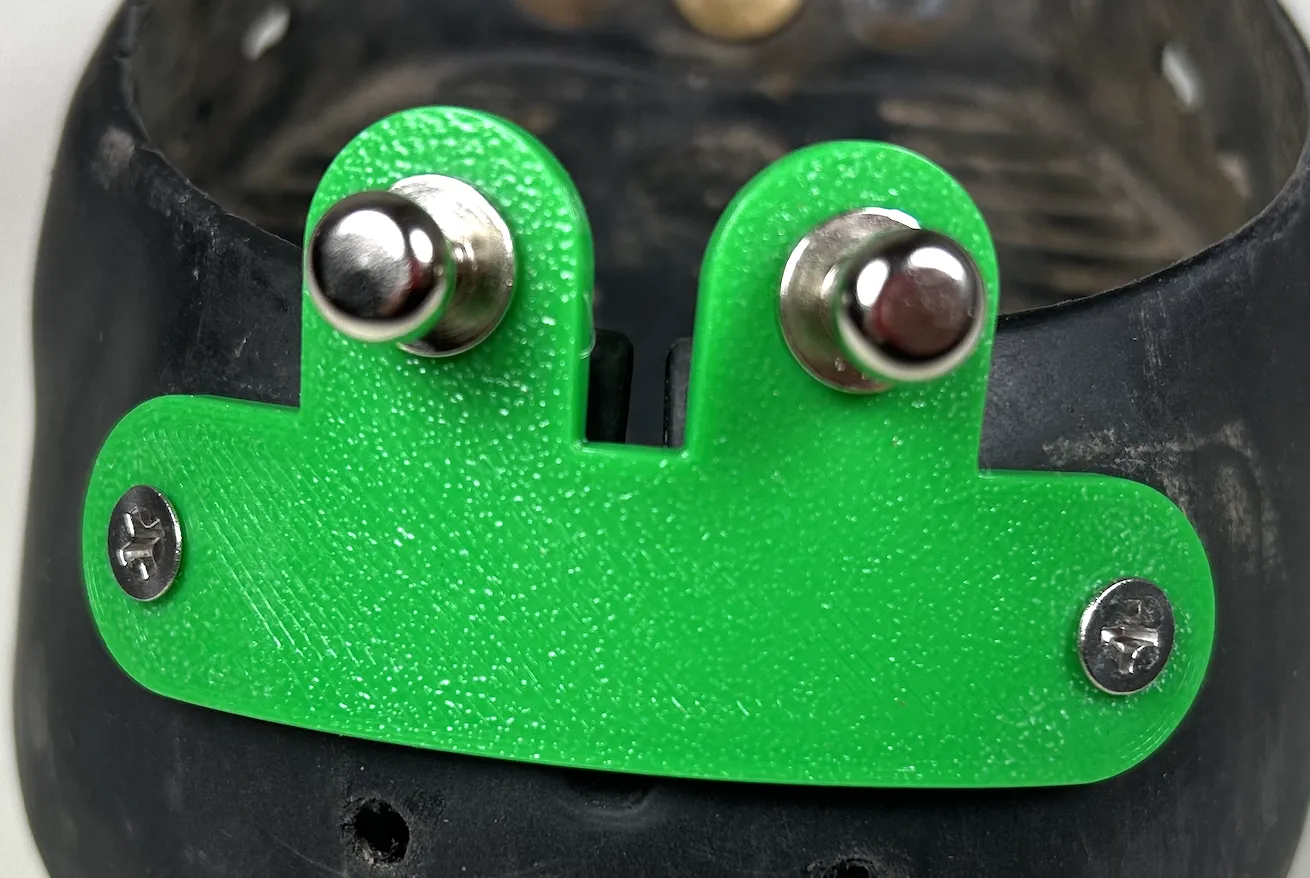

For the front connection, you need an adapter plate Nd-Plate

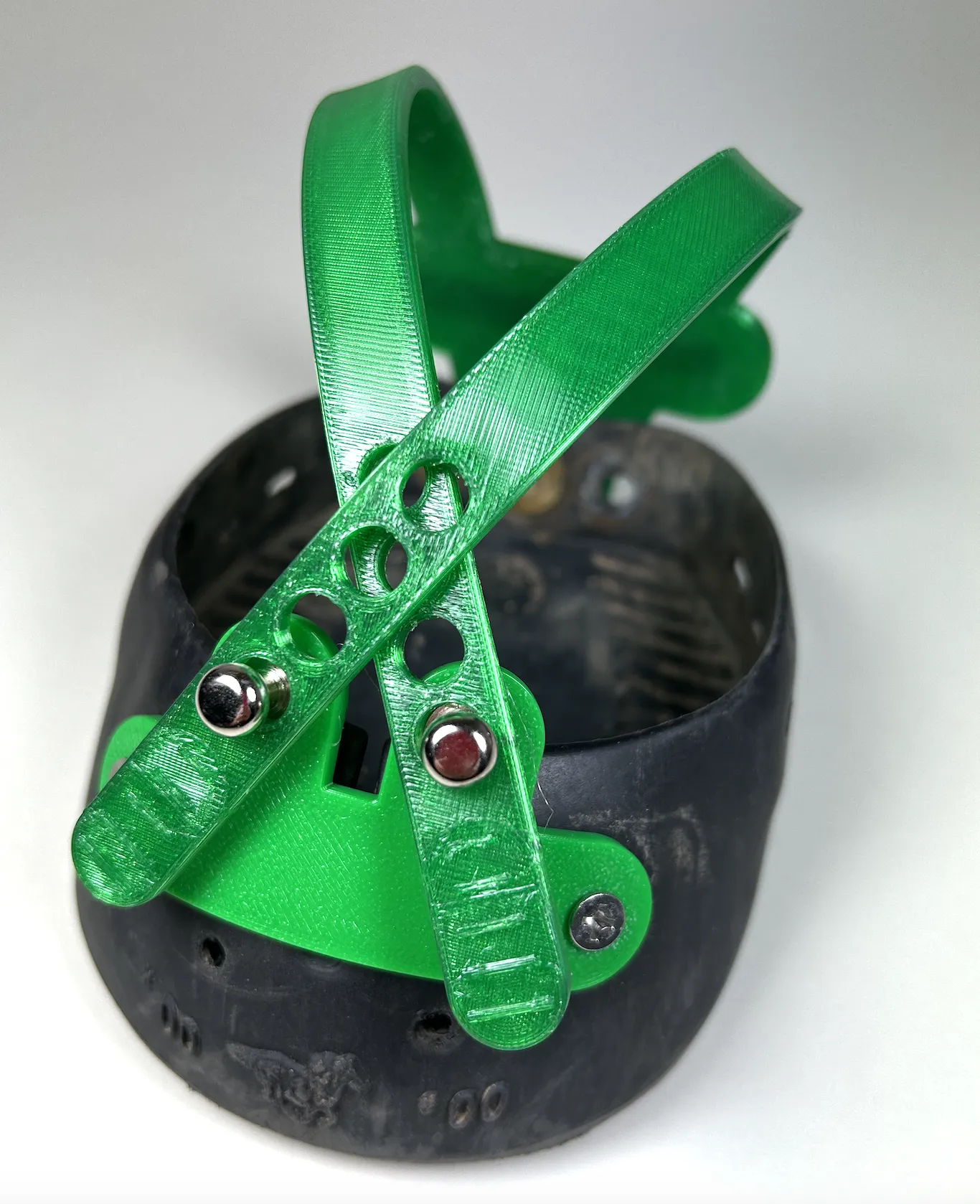

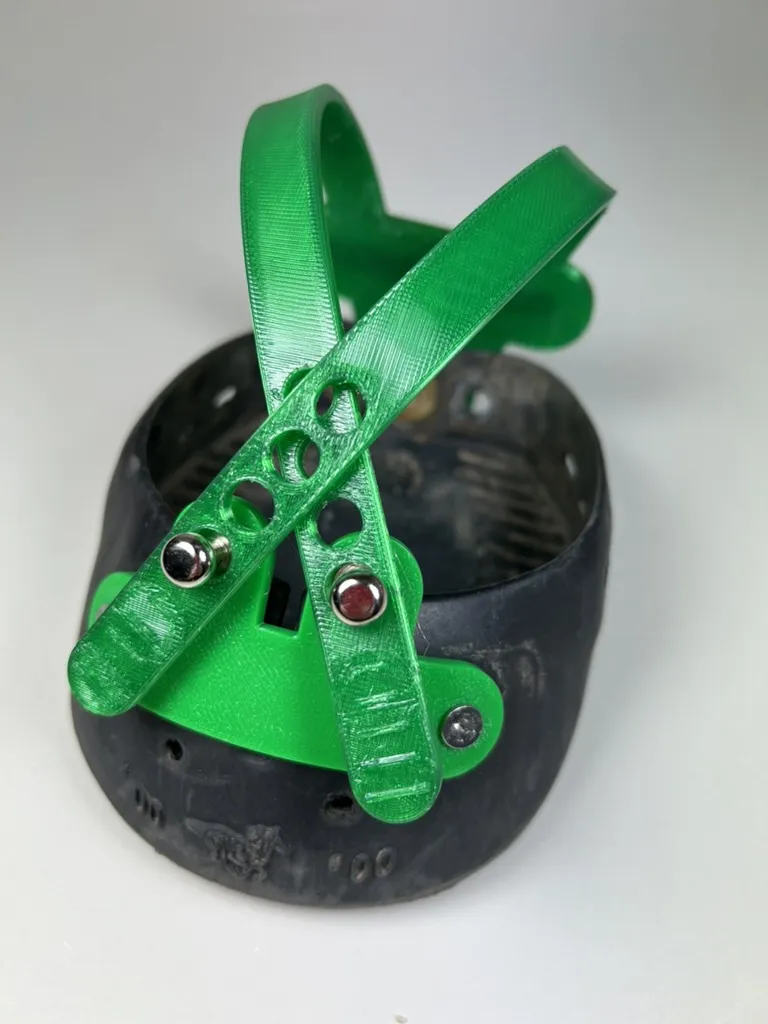

With the adapter plate, you can attach head rivets to your hoof boot so that the ND-Gaiter stays in place at the front

However, for the image, I have not yet attached the pads, so that the functionality can be seen better

For use on a horse, you must attach the pads

Versions

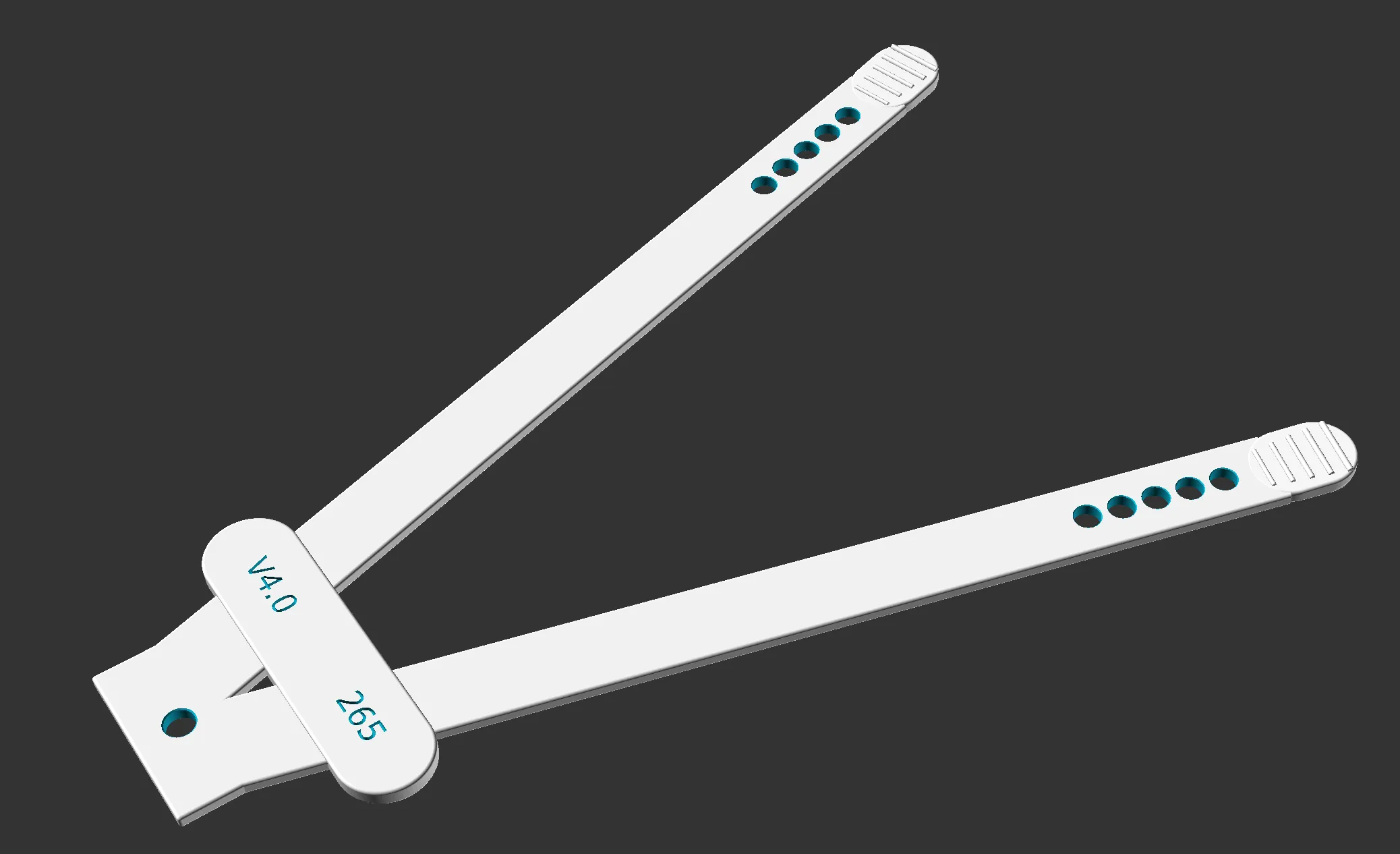

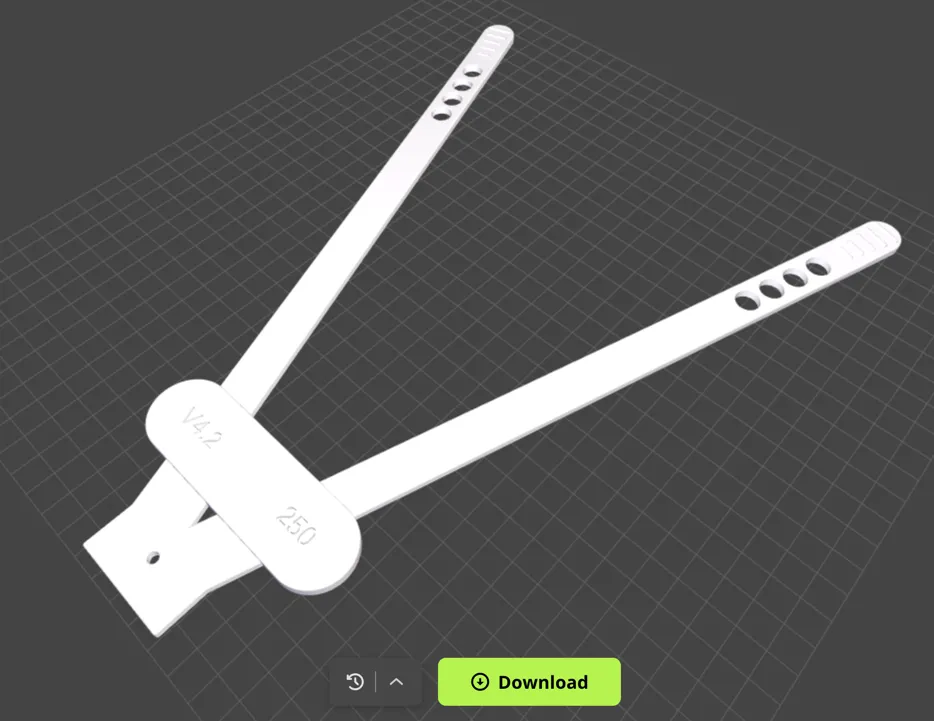

Since version 4.0, the configurator for gaiters is available online on MakerWorld (exclusively)

Previous versions have long been tested on hooves

Version 4.1

• Improved alignment on the build plate

Version 4.2

• Some limit values adjusted
• Internal fields are no longer displayed
• Limitation of boreholes depending on the width of the gaiter

Version  4.3

• Grouping for the rear hole changed
• Maximum value for rear hole changed
• Default  for rear hole changed

• Texts better positioned and rotated



Version 4.4 (09.01.2026)

• The Flex option is now switched off by default

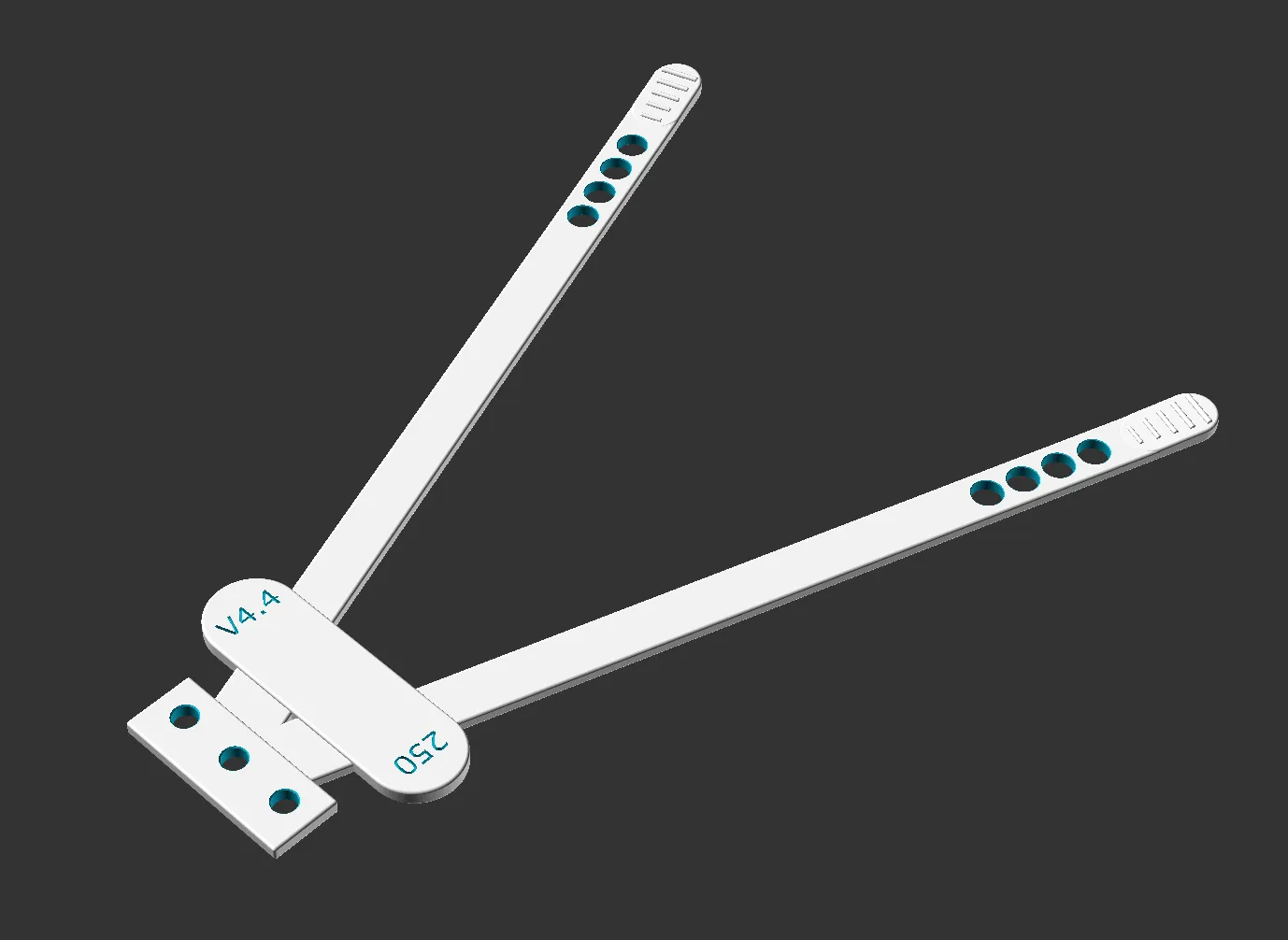

• Three holes can now also be configured at the back


Version 4.5 (11.02.2026)

• Wider plate possible
• Larger angle possible

Note

The precisely fitting hoof boots and accessories from 3D printing are planned, constructed, and printed by me with the
utmost care. For months, several riders have been testing

these ND-Gaiters on their horses

Please always discuss the use of the gaiters (and hoof boots) with your (barefoot) farrier!
