GW_480 Motor Grip - XT30 Grip Cable Outlet

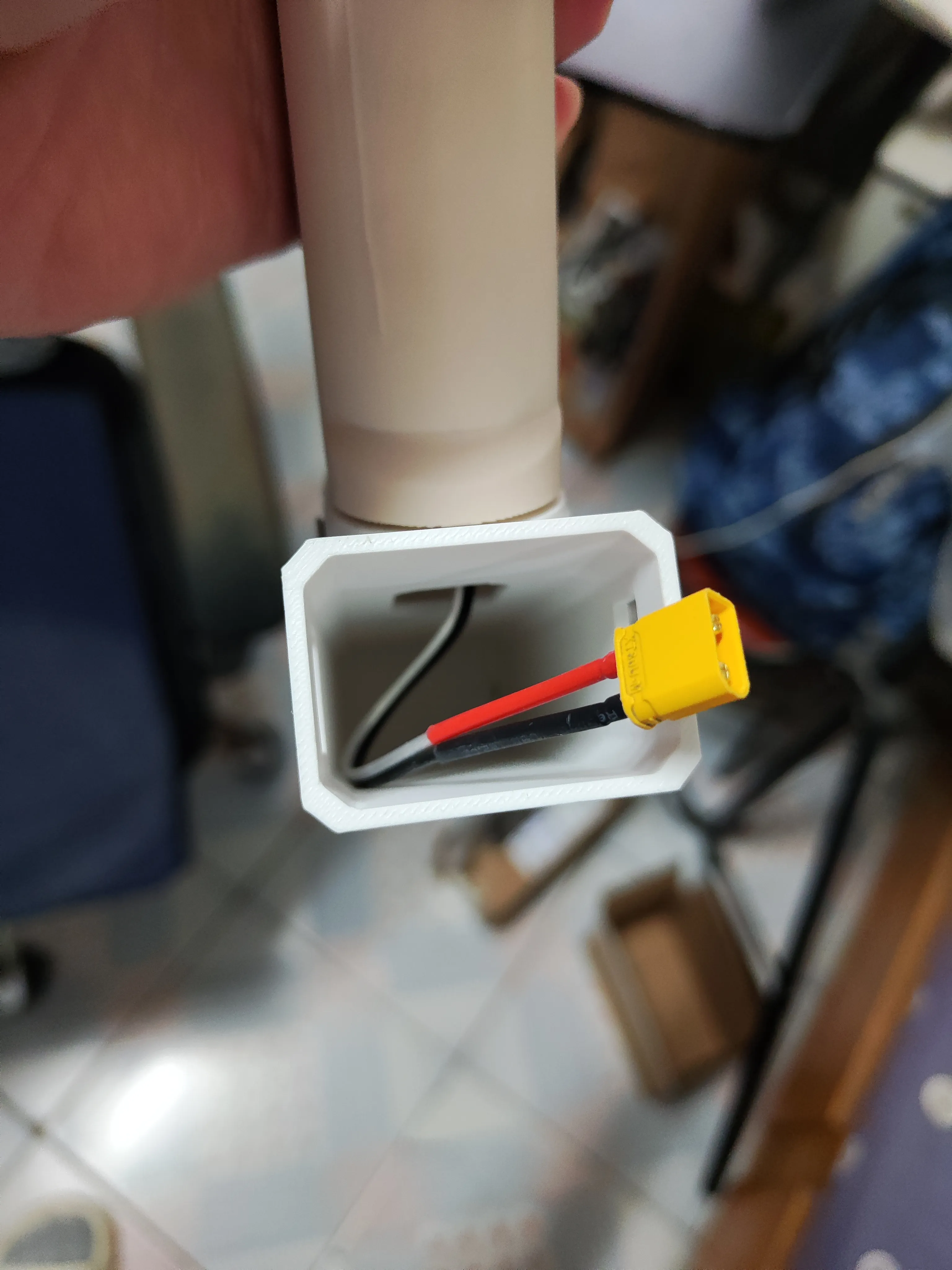

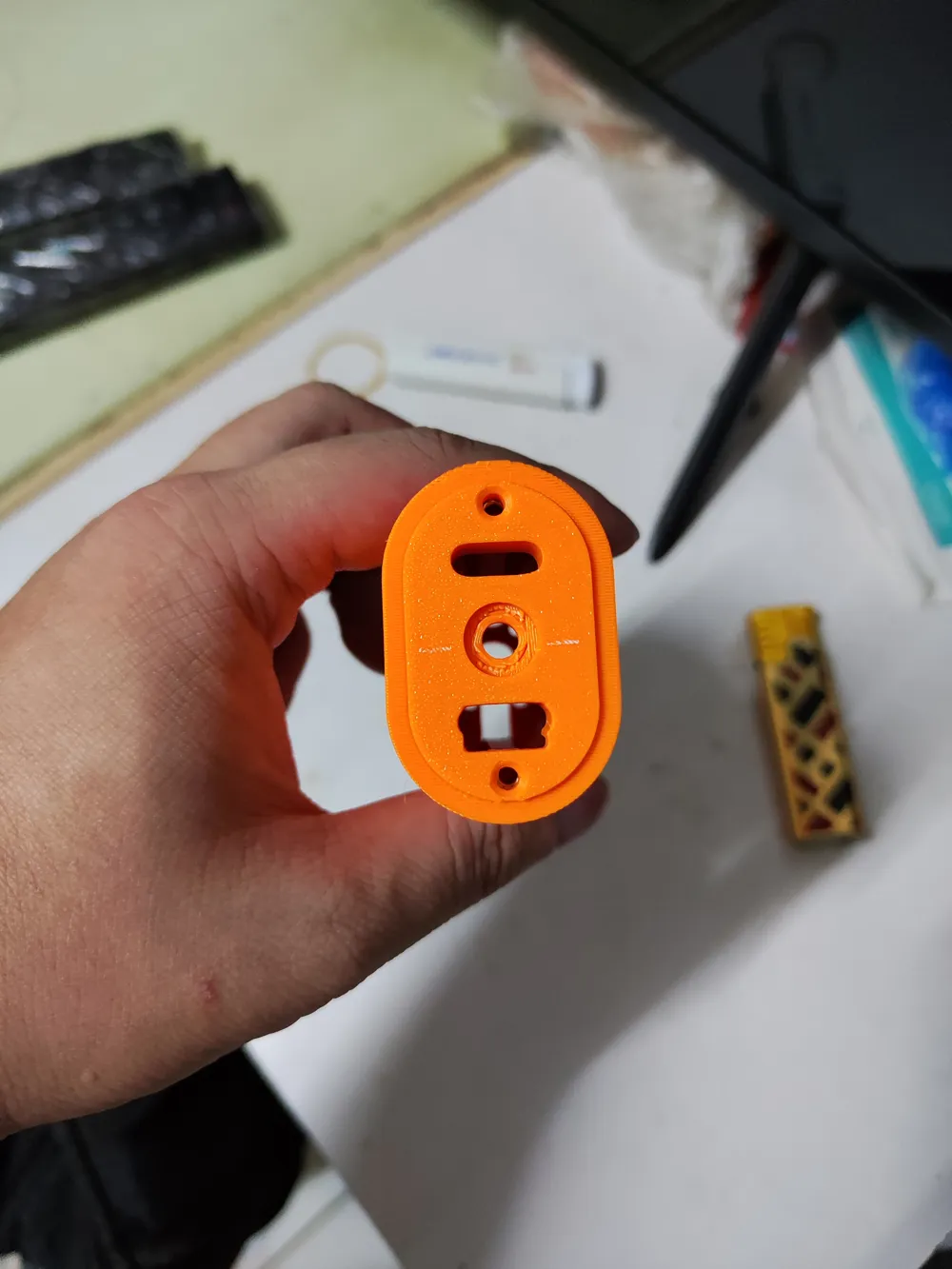

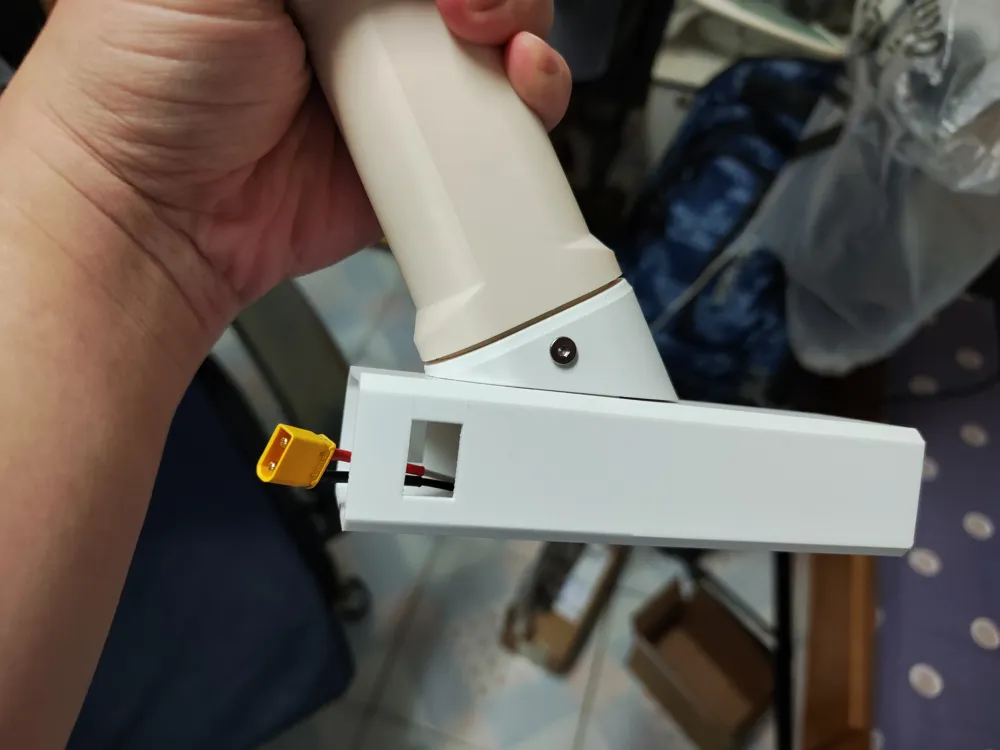

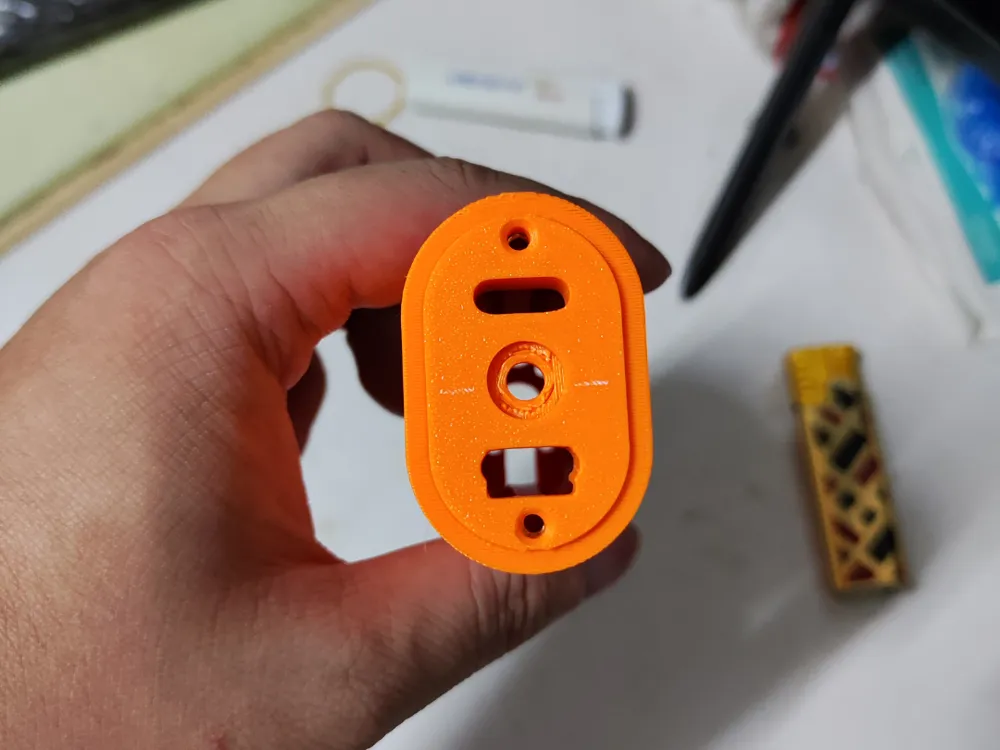

Added an XT30 wire outlet and an XT30 outlet on the bottom cover to the original grip, allowing the bottom outlet of the grip to connect to a happy bottle for battery installation

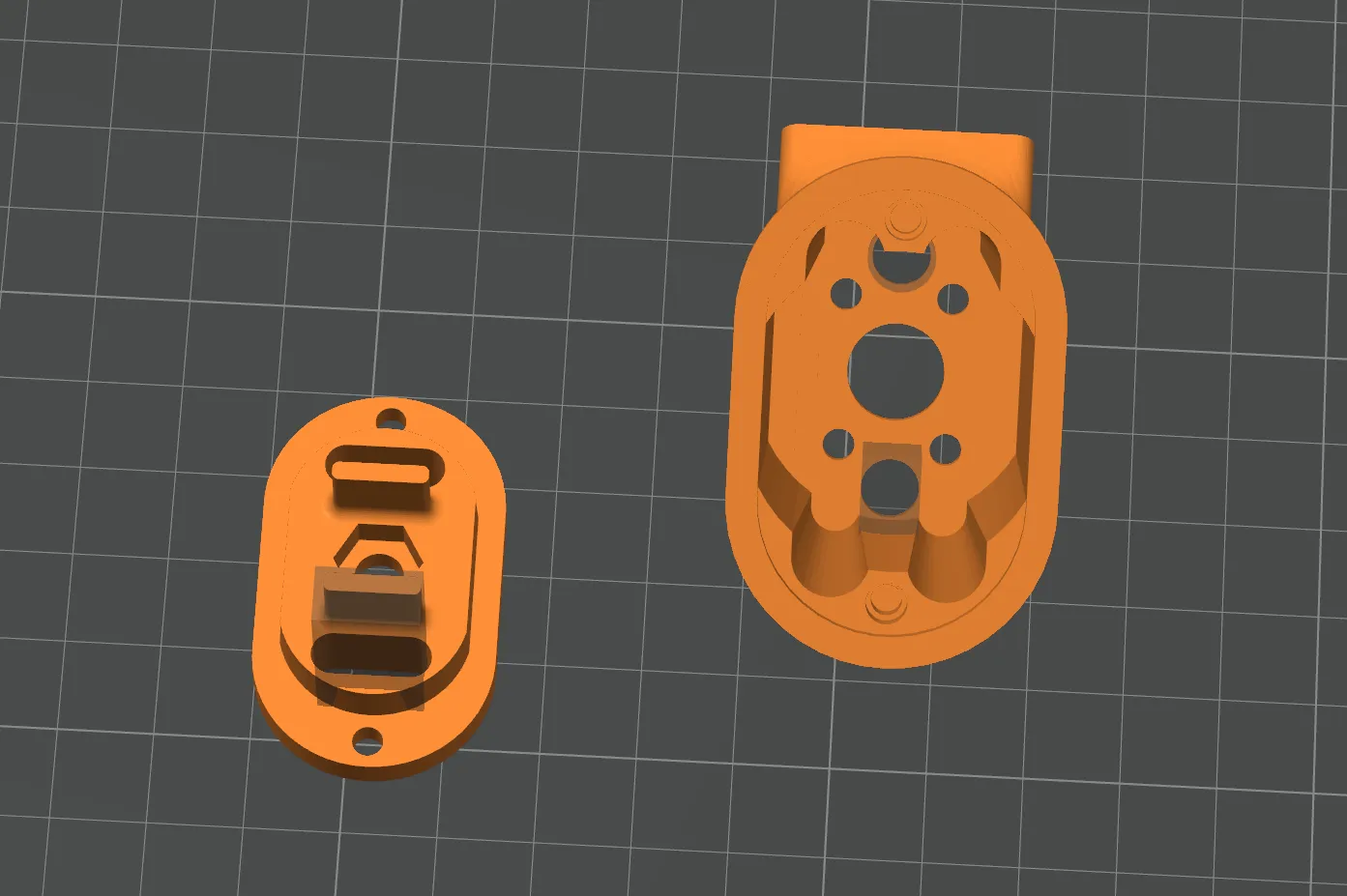

The openings are created using negative parts, so an effect preview cannot be achieved, please download the 3mf file for printing

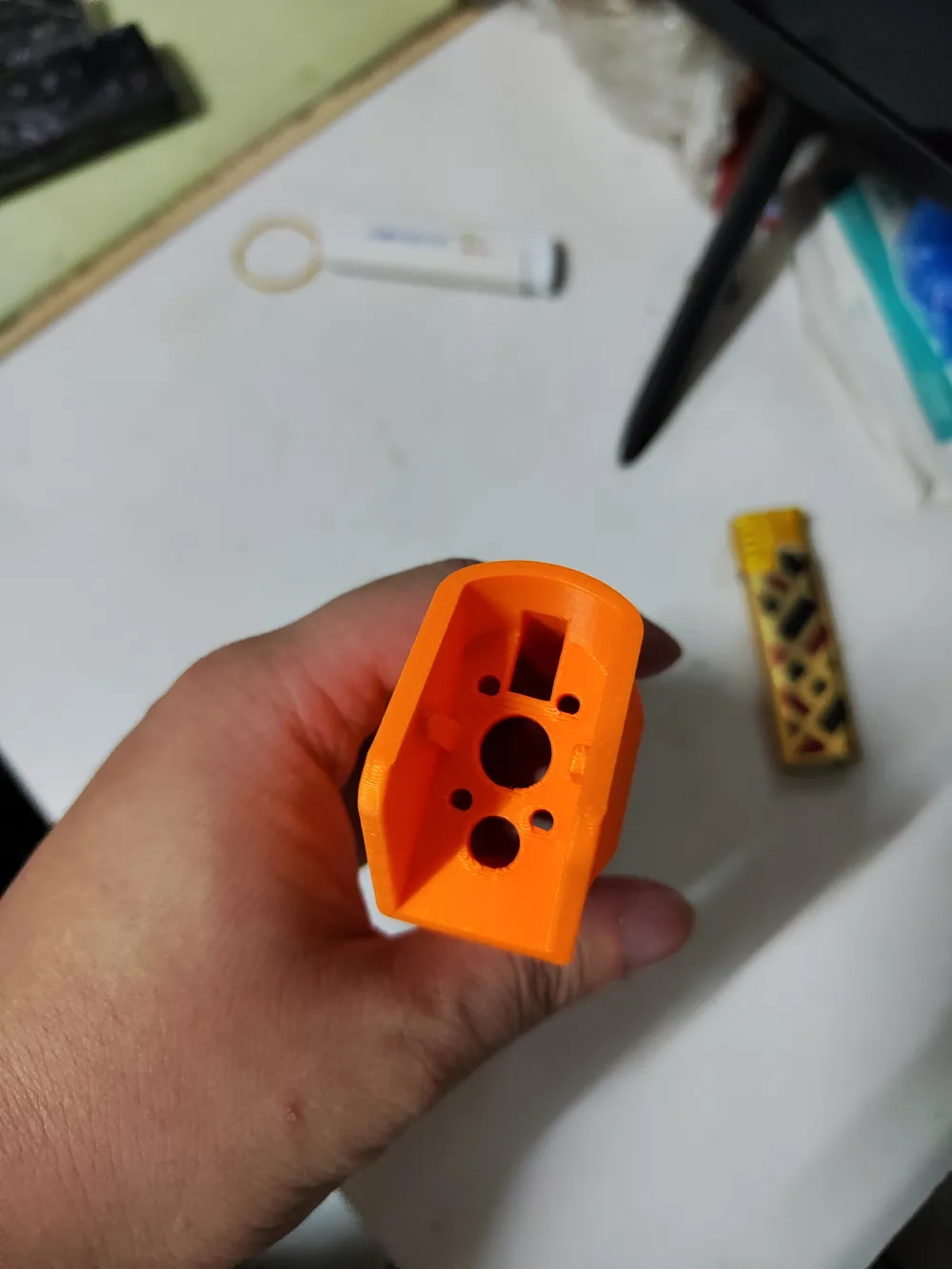

Use m3*10 screws to fasten the motor cover

For the motor grub screw, it is recommended to use m6*10 flat head grub screws tightened firmly (M5 nuts and M5 grub screws are not recommended for the motor as M5 grub screws are too small and may push into the motor shaft)

The grip requires the use of M3*3*5 heat set inserts

Compatible grip battery compartment linkMotor Grip Adapter Battery Compartment and Cover from Lu Dashu MakerWorld: Free 3D Models
