0.2mm layer, 6 walls, 25% infill

Designer

2.2 h

1 plate

4.3(3)

Open in Bambu Studio

Boost

Released

Bill of Materials

List other parts

M5x10 Button Head Cap Screw x 1:

Description

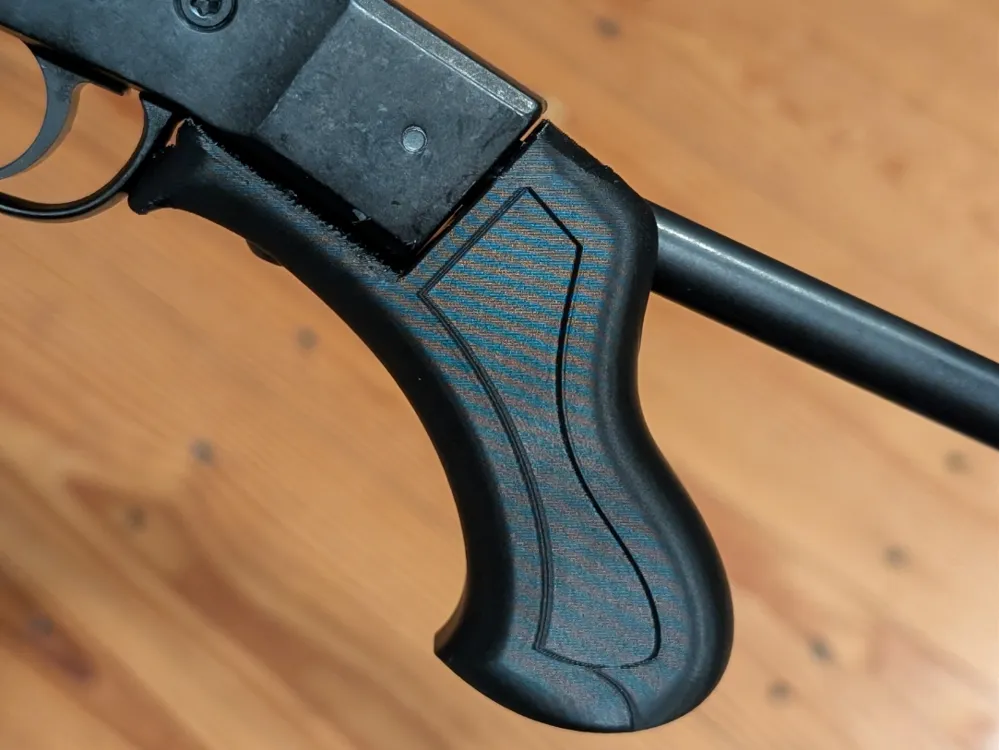

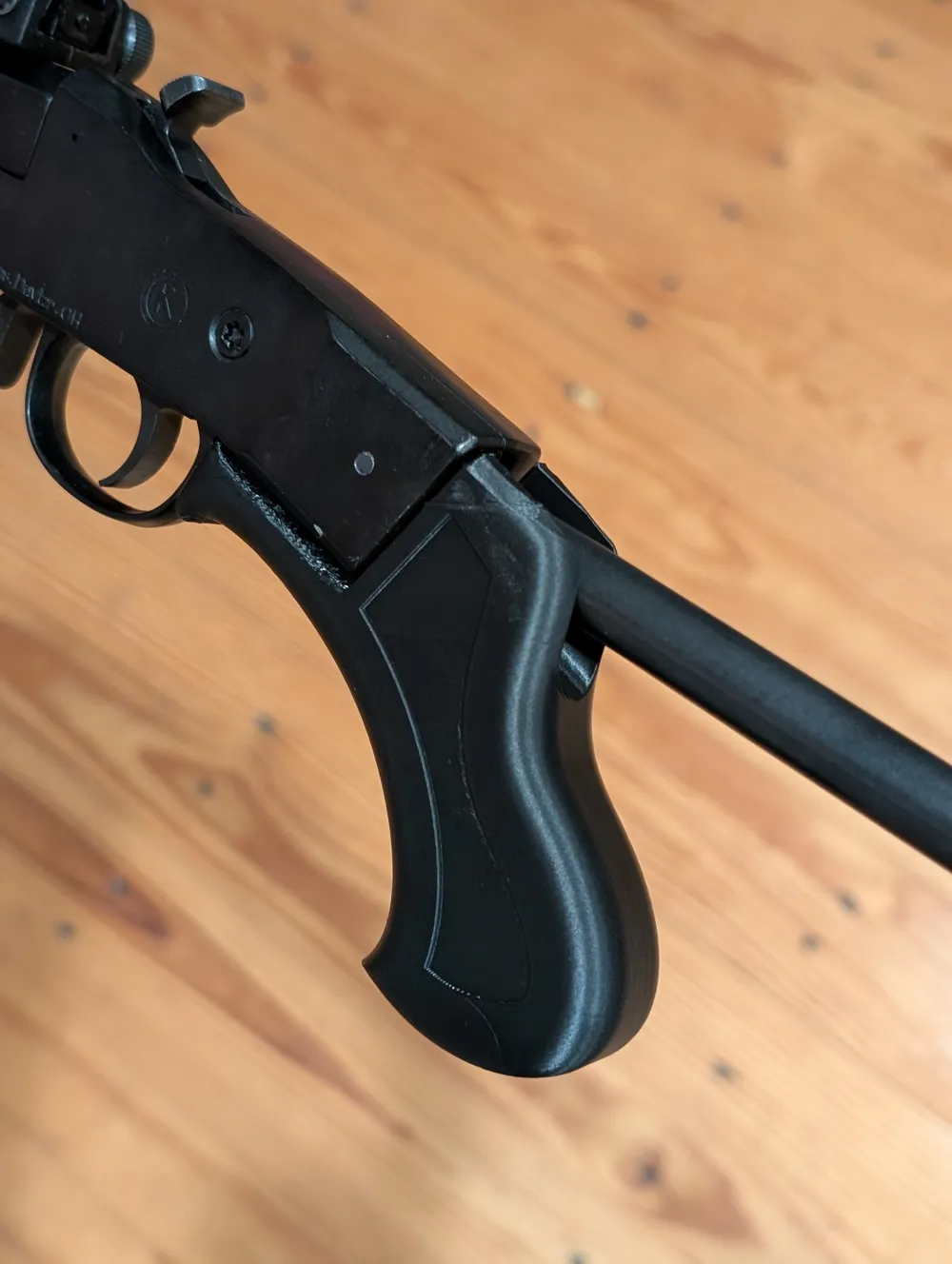

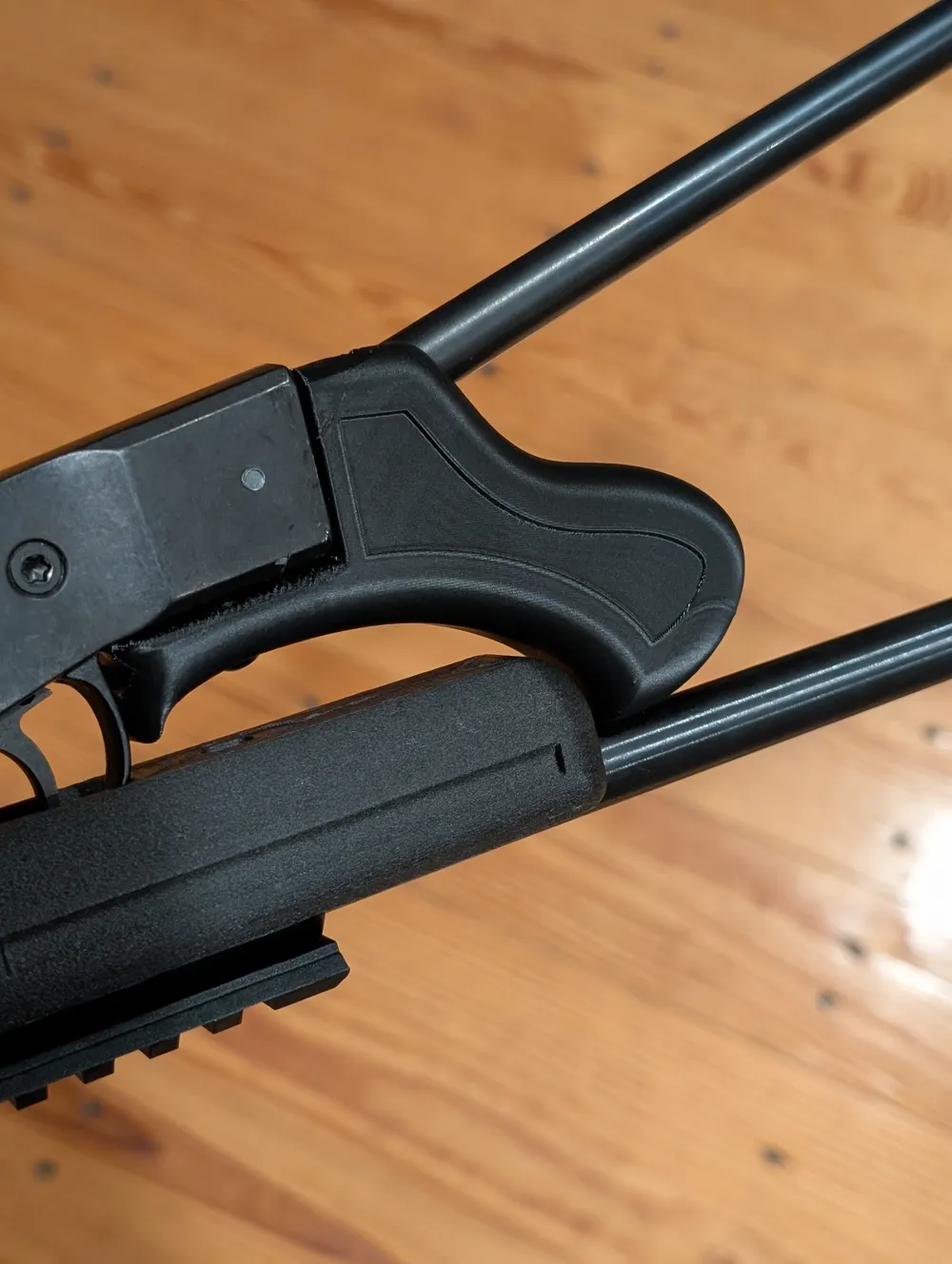

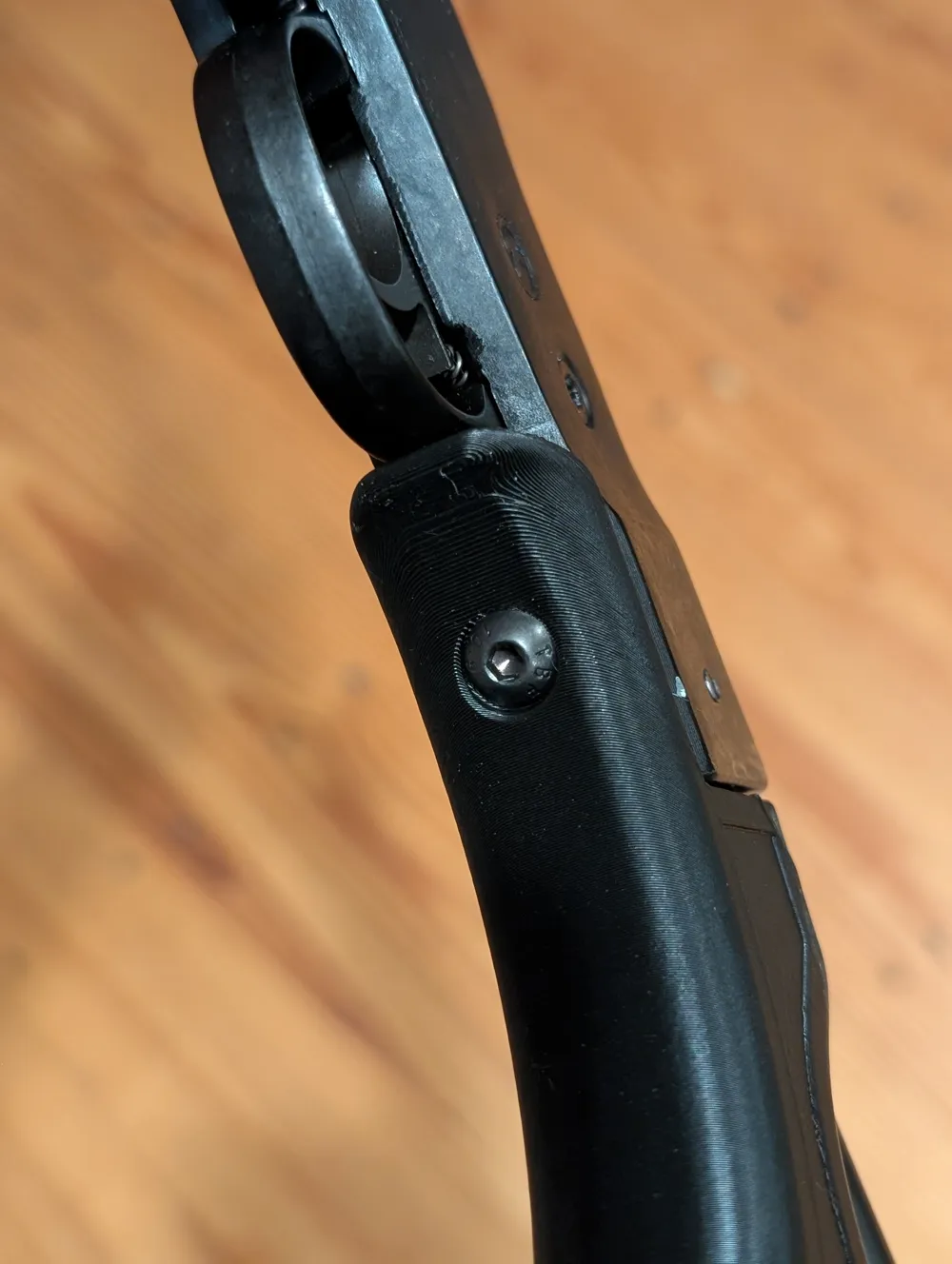

Grip for the Chiappa Little Badger TDX. Use a M5 x 10mm button head screw to hold in place.

Comment & Rating (5)

@user_3592805818

Print Profile

0.2mm layer, 6 walls, 25% infill

the print was good. this model didn't work for my hand size putting the trigger almost out of reach. would love to see another variation..

@user_556525149

Im new to this world. is there something I can do to make the start of the print more sturdy? ill check out the odyssey. thanks

@250_SMACKS.

I dropped a chiappa on Odysee that uses an ar15 pistol grip and has a threaded muzzle if you’re interested. It’s under 250smacks.

@user_3110240626

Print Profile

0.2mm layer, 6 walls, 25% infill

@user_3668373243

Print Profile

0.2mm layer, 6 walls, 25% infill

(Edited)

Strength Issue:great finish but the design could be improved, there is a weak point near the mounting hole and you can actually flex the handle pretty easily and mine broke even when paying attention when handling. However I still think it is a great idea and a really great design to start off with to customize
