RCBS Rebel Primer Catcher Bucket

Support me by Buying Me A Coffee

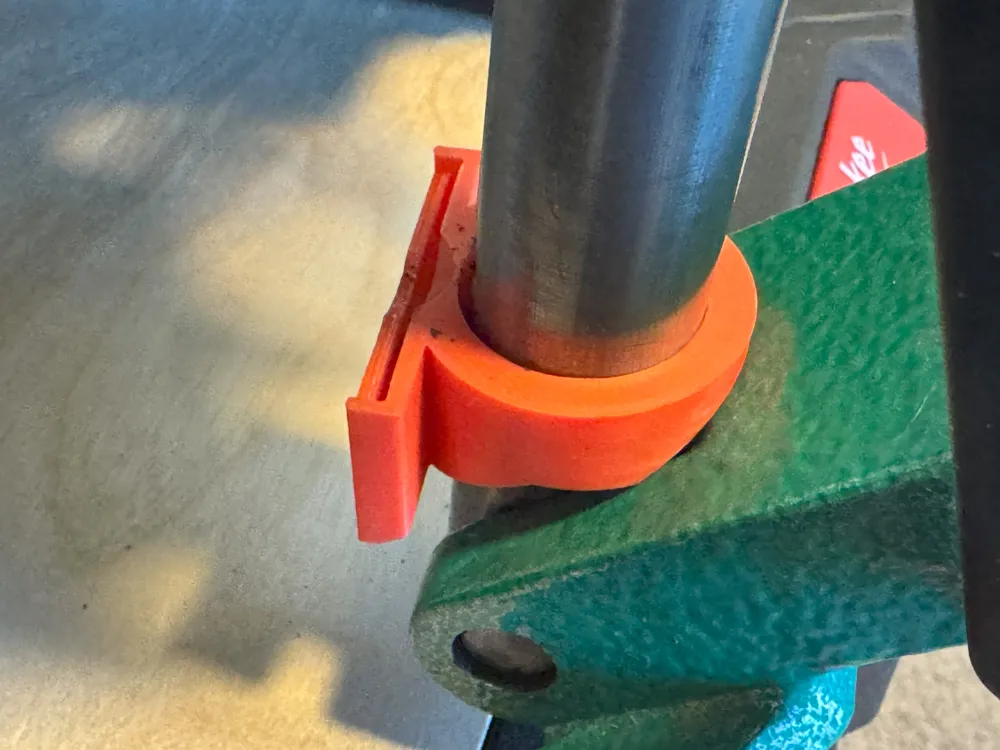

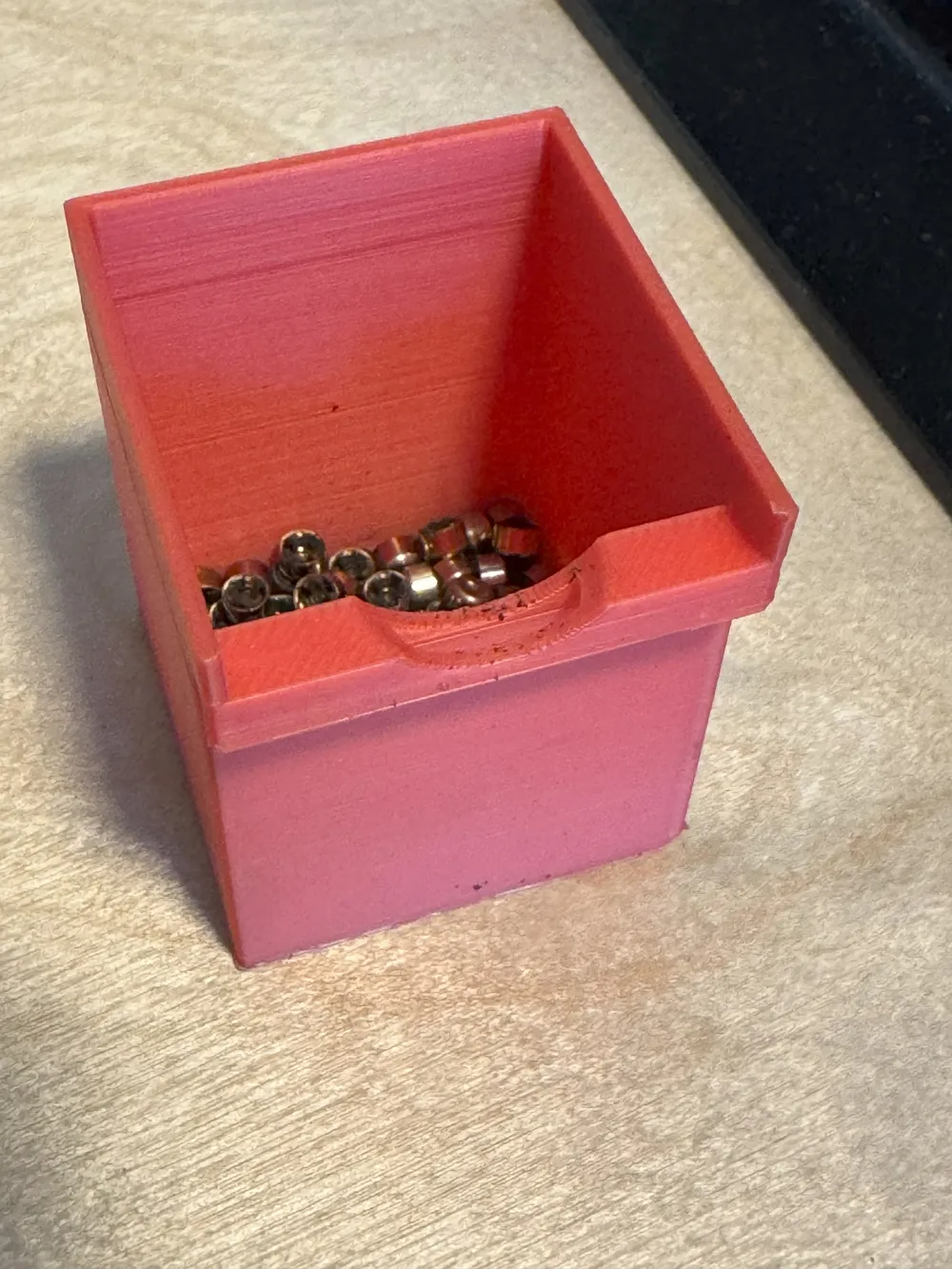

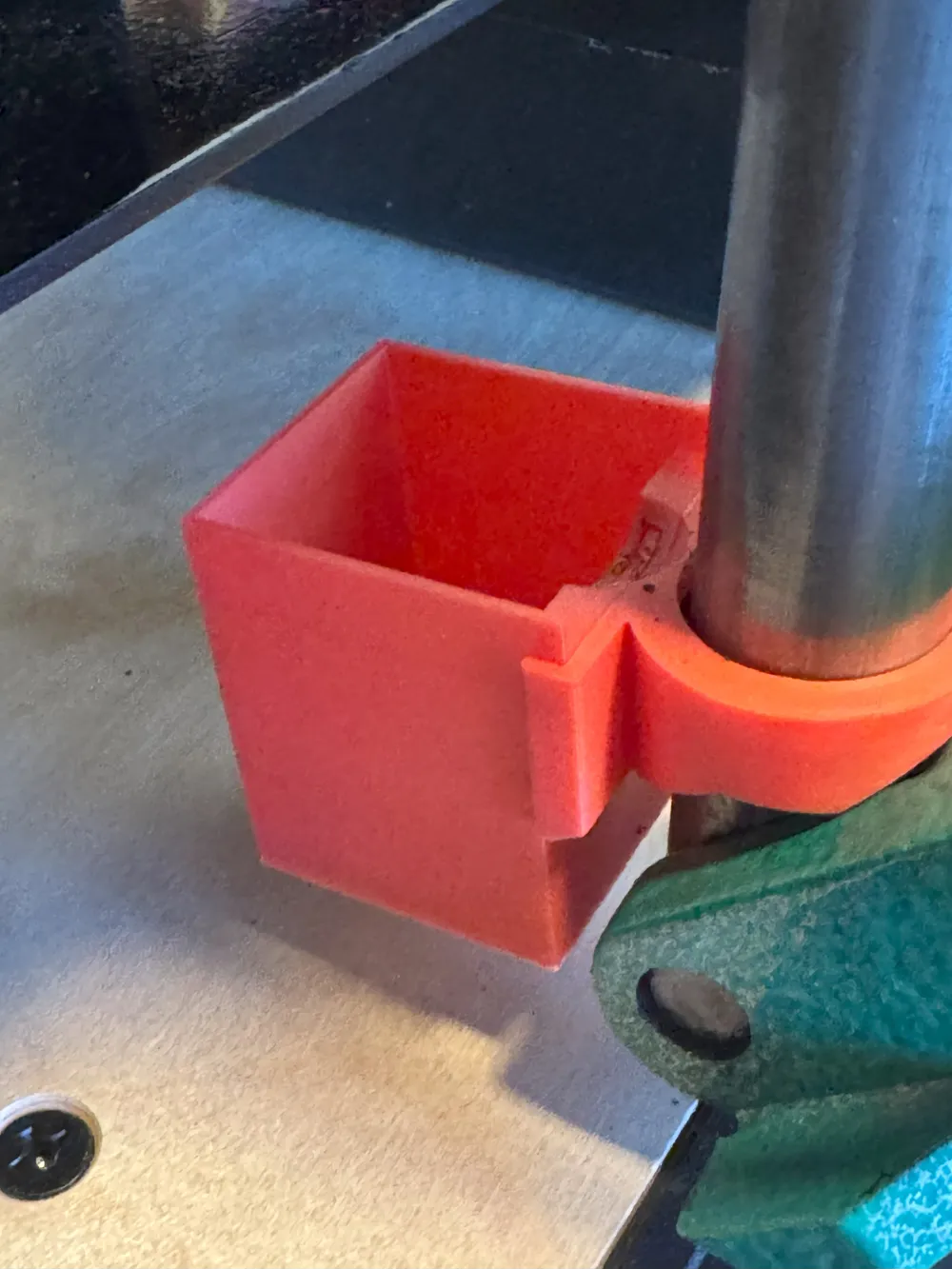

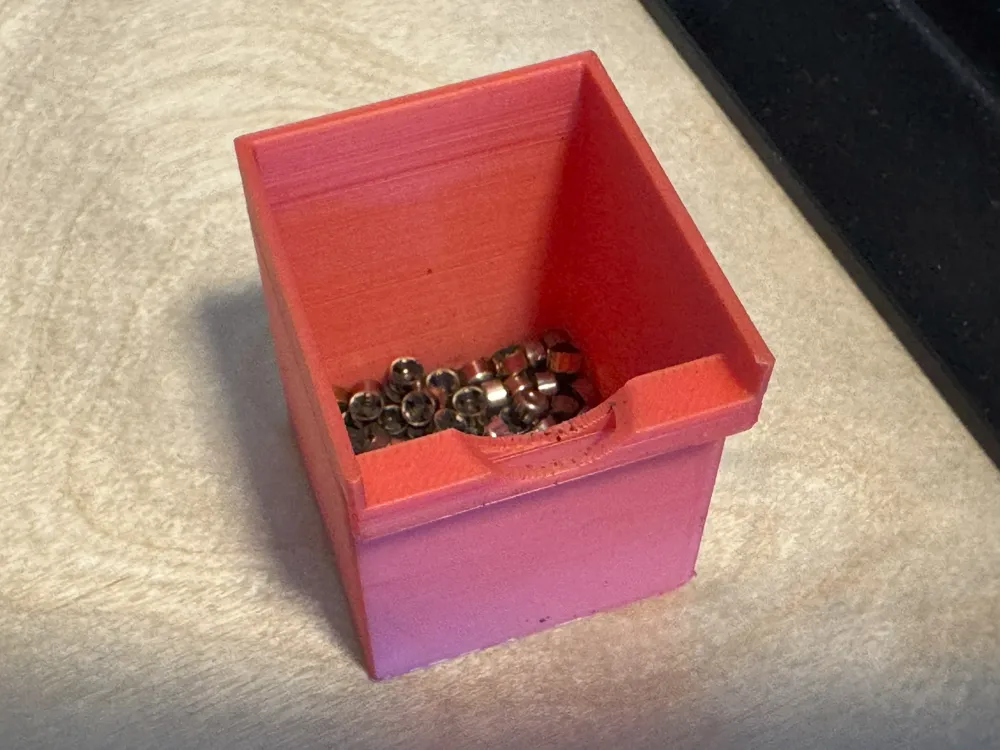

The RCBS Rebel does not have a primer catcher, and the other primer catcher models out there did not fit my needs. My version of the primer catcher has a detachable bucket to make it easier to dispose of your spent primers and is designed to work with a strong mount. The collar is over-sized so it will slide up and down the ram easily and it self-centers.

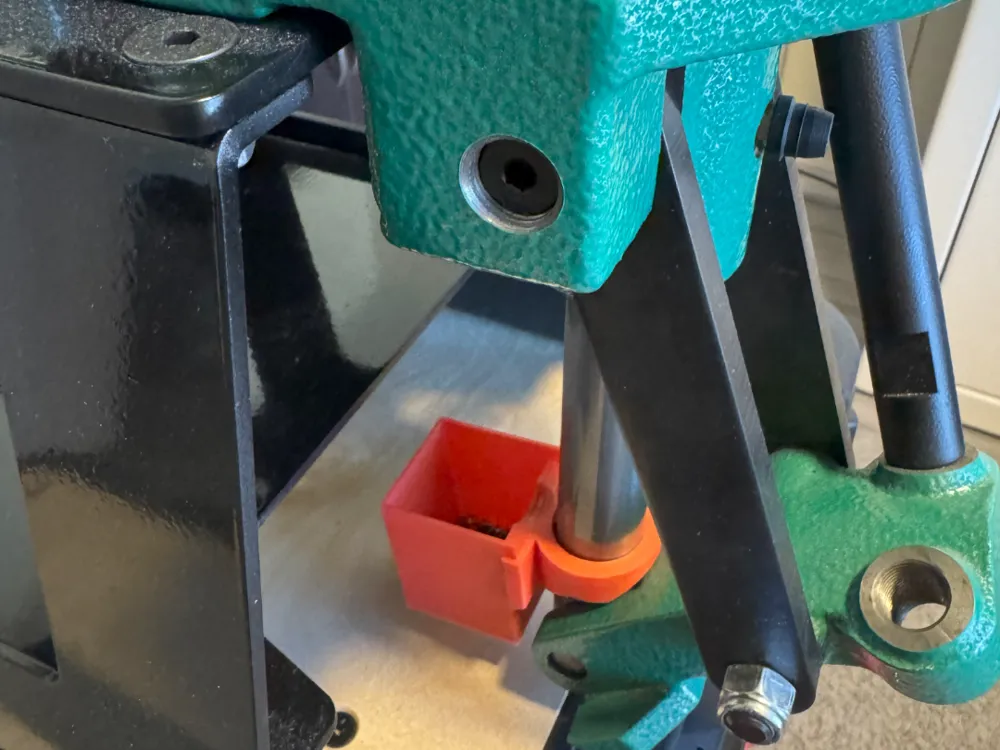

To install, you'll need to remove the set screw from the bottom of the ram and remove the pivot pin to separate the ram. Once the ram is separated from the press, slide the collar onto the ram and then reassemble the ram.

I recommend printing this in PETG or something stronger than PLA.
