Govee Outdoor 2-Elite-Pro XL Cable Mount & Raceway

FOLLOW me for new updates and models - https://makerworld.com/en/@menerso

Check out my other GOVEE models - https://makerworld.com/en/collections/9427068-govee-accessories

Check out my other Around the House models - https://makerworld.com/en/collections/6181334-around-the-house

UPDATE 01-30-26:  Added a cover mount for the Pro series lights.  This will cover the whole light other than the lens. It prints face down with supports.

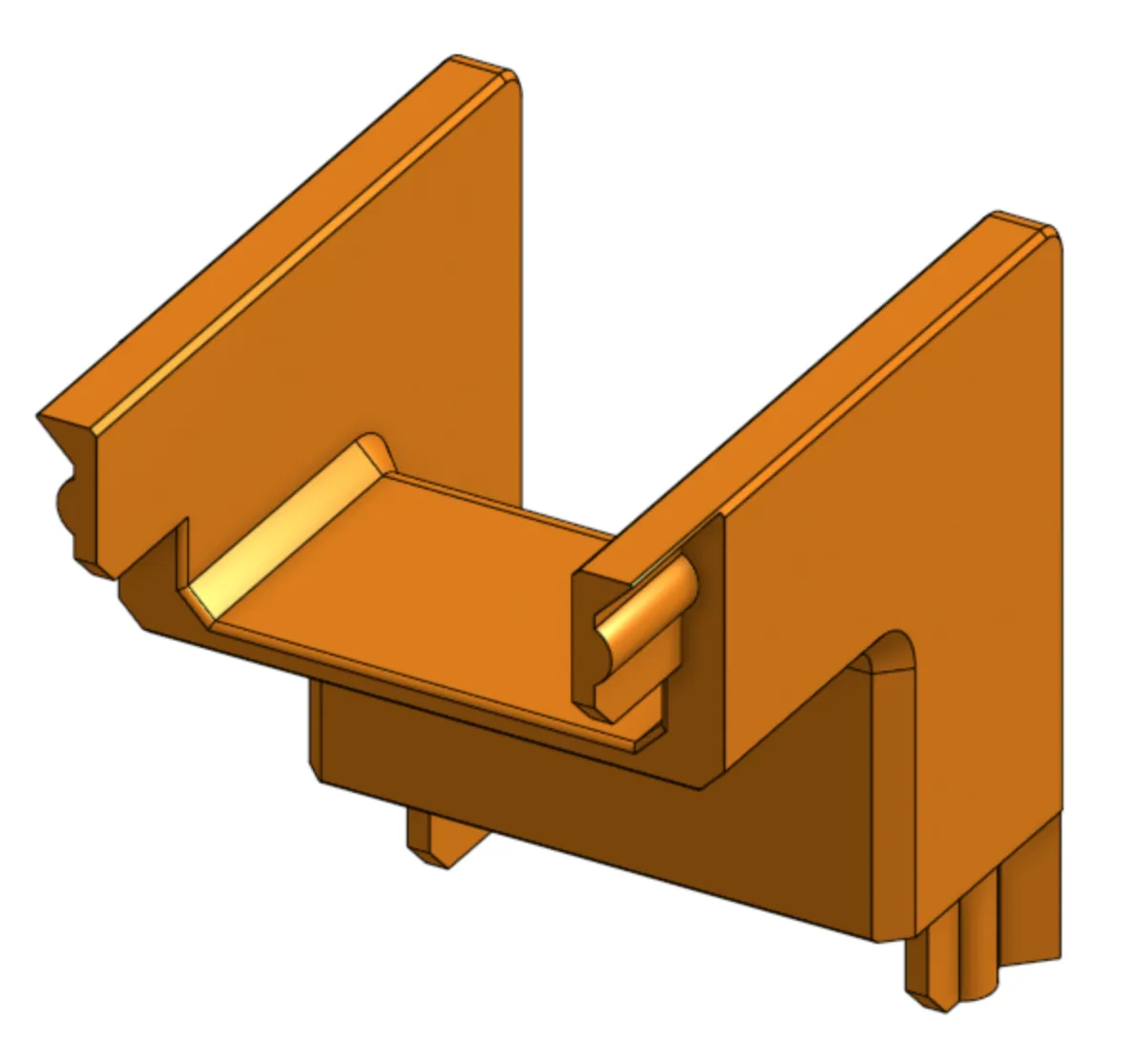

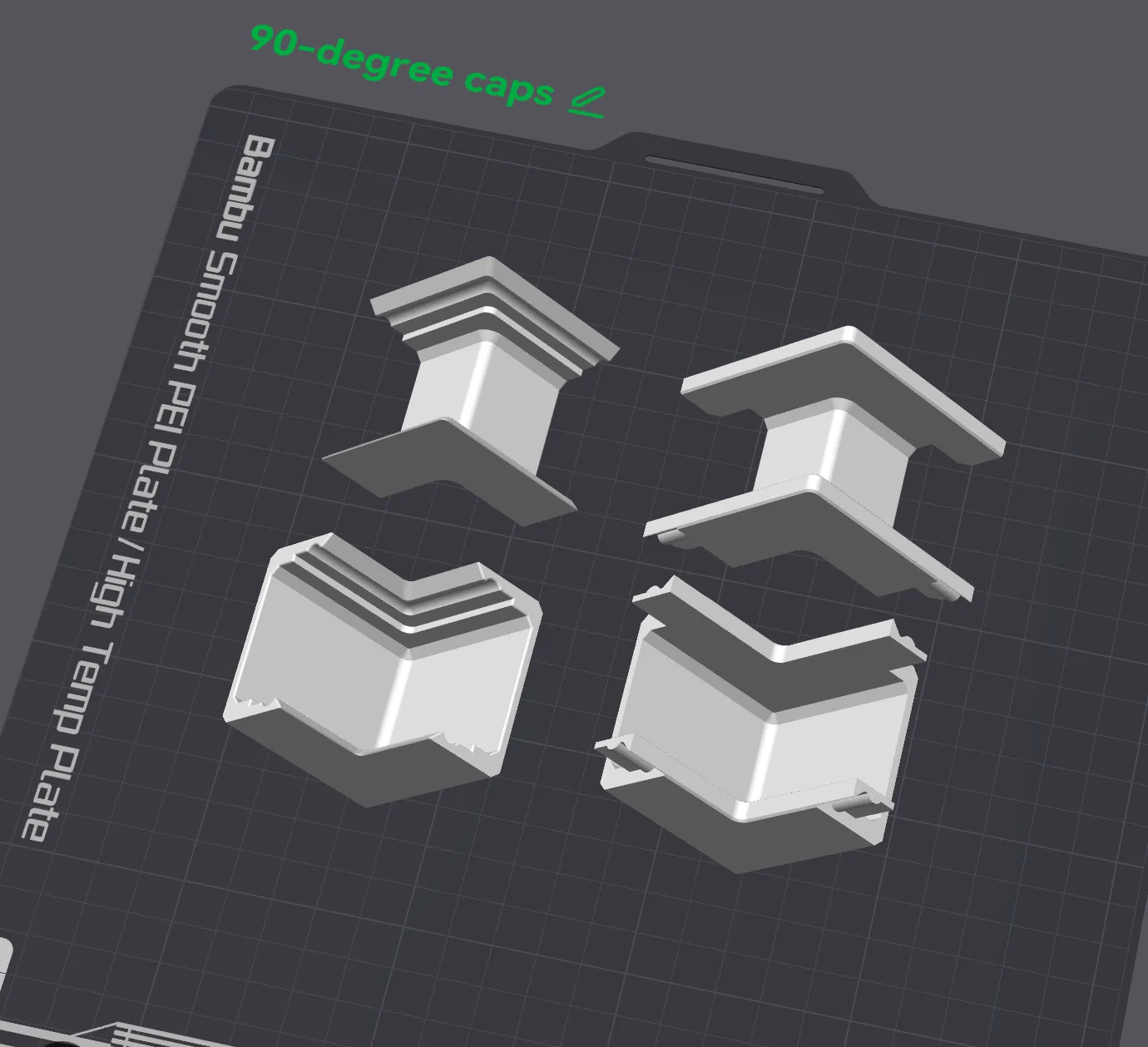

UPDATE 11-18-25:  Added a 90-degree vertical bend caps.  One you can snap on to the cap mounts, and the other can just slide into the caps without the mount plates.  I prefer to print these at a 45-degree angle with a brim.

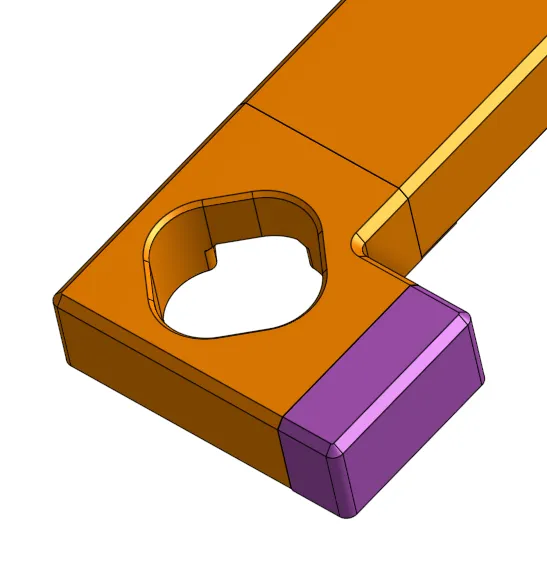

UPDATE 11-16-25:  Added a T-cap and a Light Mount End Cap.  Both were requested by you.  Let me know if there are any other options you are looking for.
I added these to STL Files section.  I have not added a Profile for them yet.  The are named Govee Outdoor Pro XL T-cap.stl and Govee Outdoor Pro XL mount cap.stl.

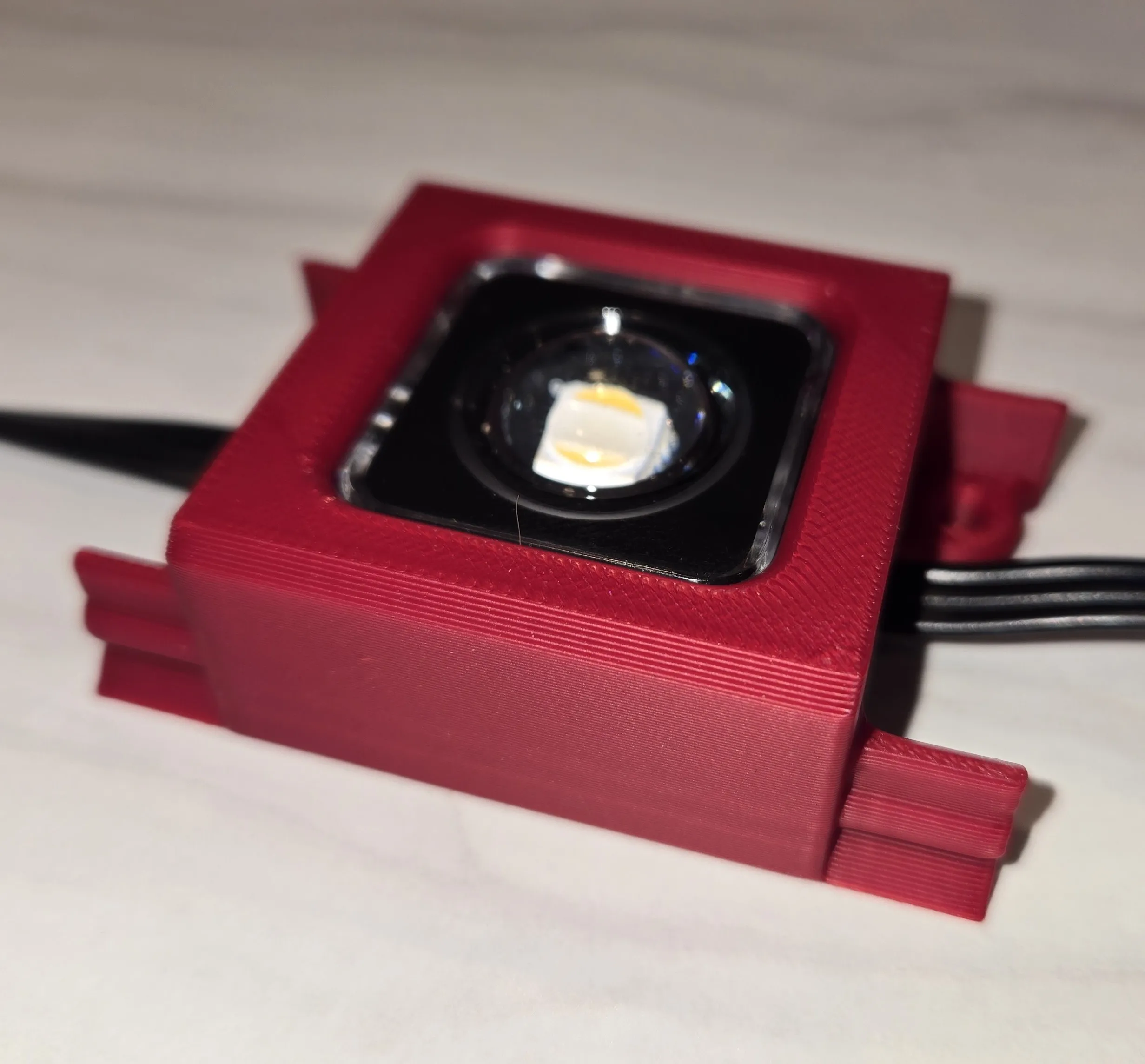

UPDATE 11-4-25:  Added the parts for the Govee Outdoor 2/Elite light strips.  These models will fit the previous version of the Govee lights.

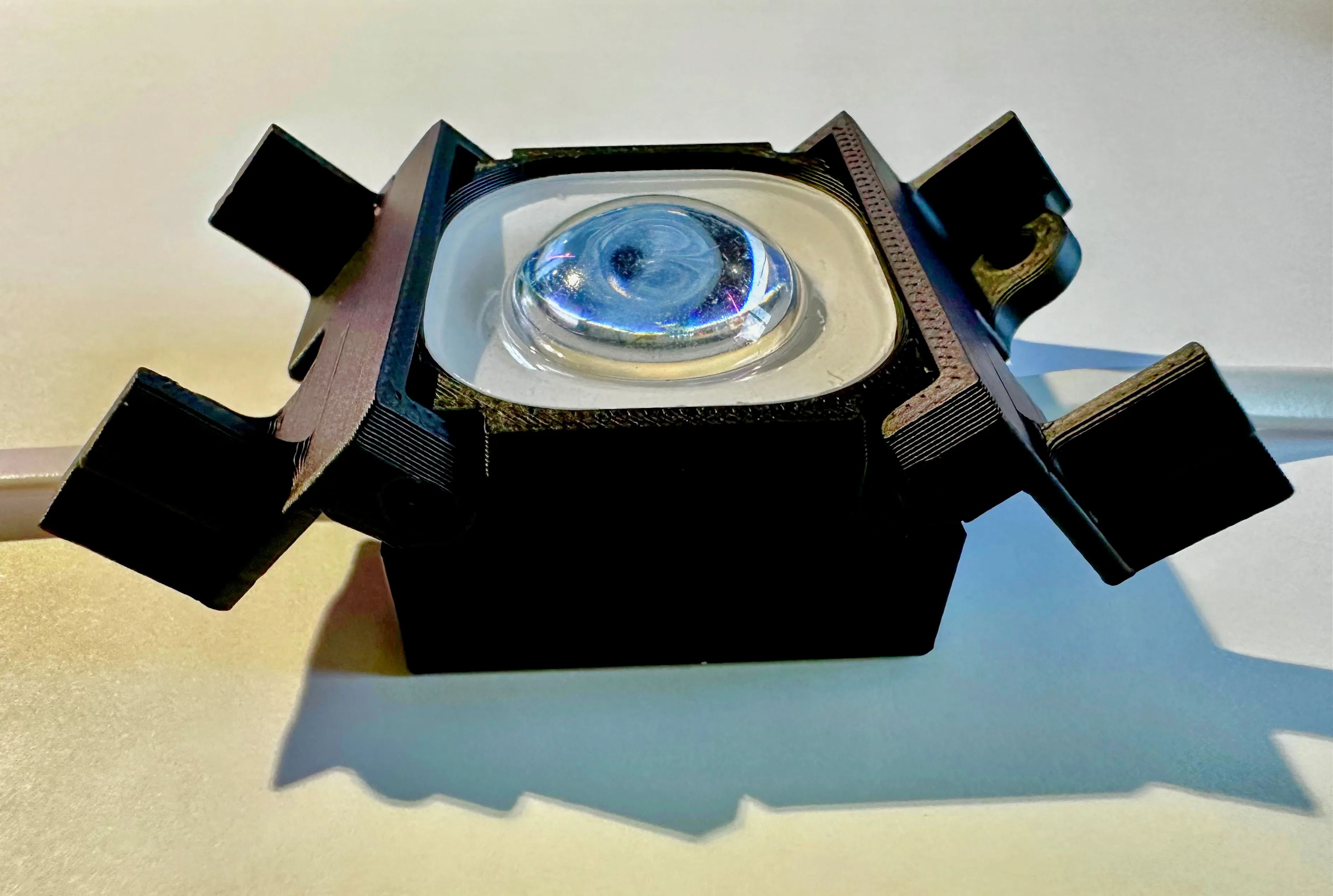

UPDATE 10-31-25:   I added a hinged light mount that can be used for gable ends / peaks in the house architecture.  The hinges let it adjust to any angle.  Prints in place without any supports.  Download .stl file directly or use my profile above.

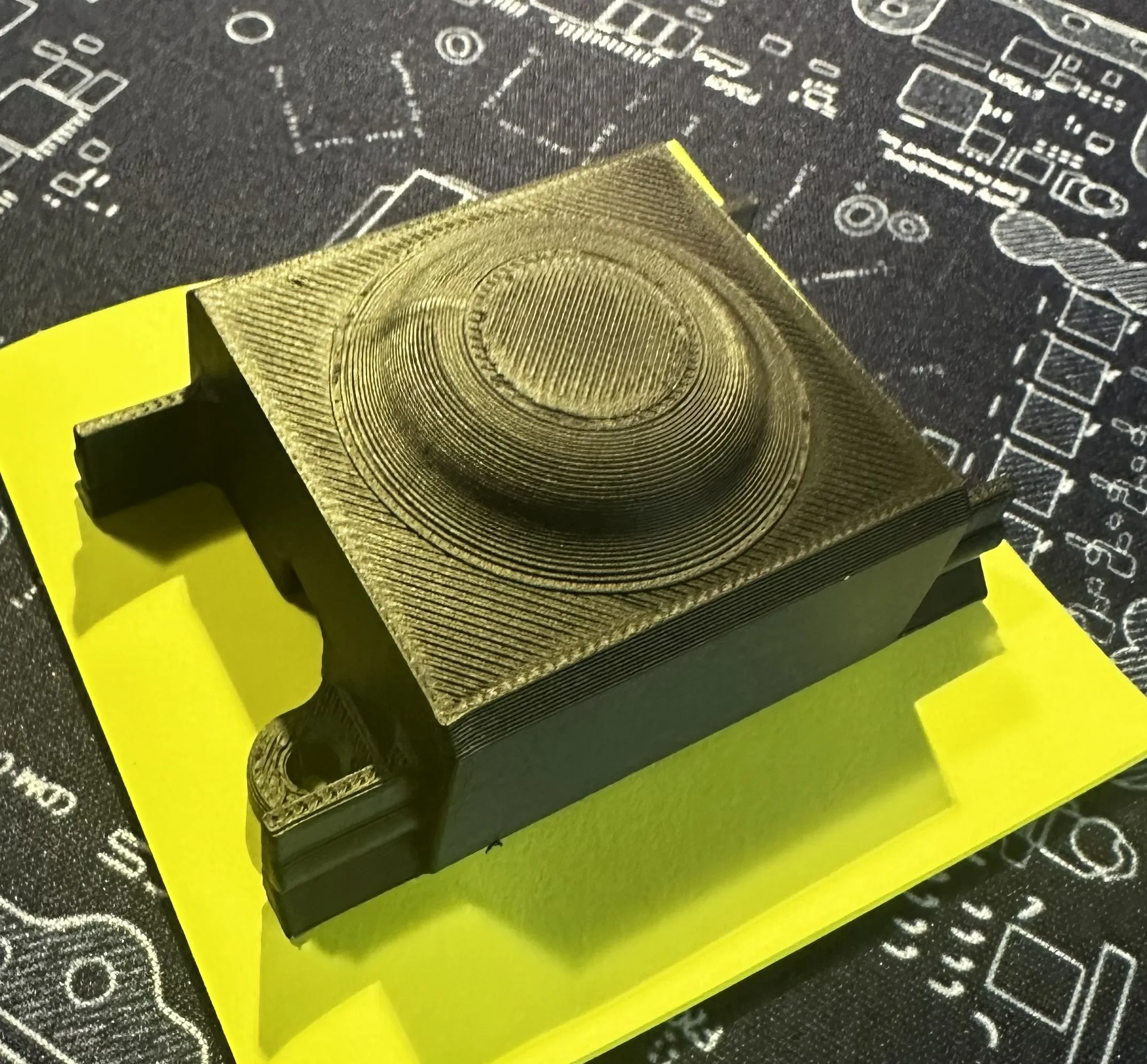

UPDATE 10-30-25: Added a light BLACKOUT fixture in case, for some reason, you want to not have a light shown.  I recommend using dark filament for this because light still may make light colored filaments glow.  This is optional.

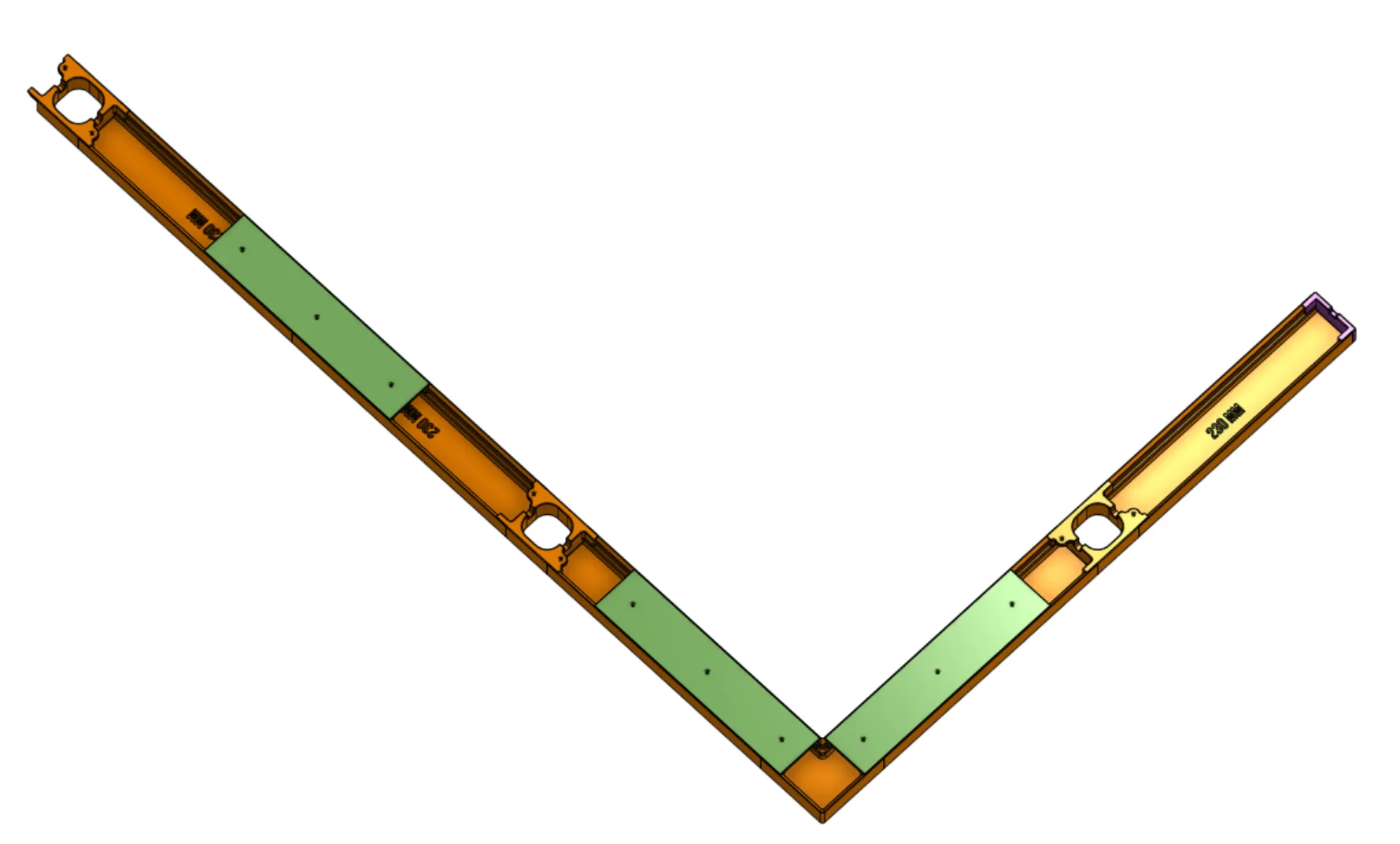

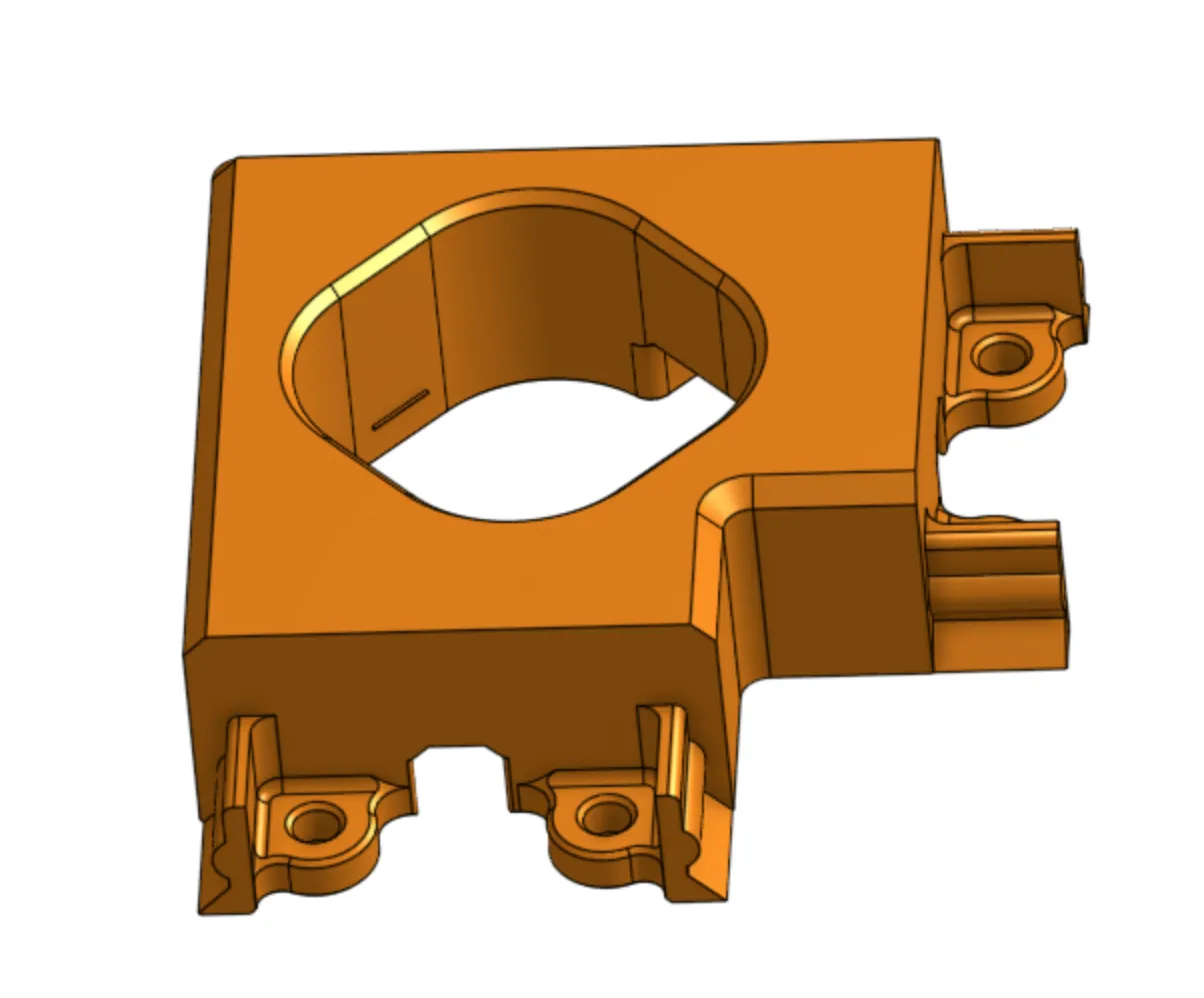

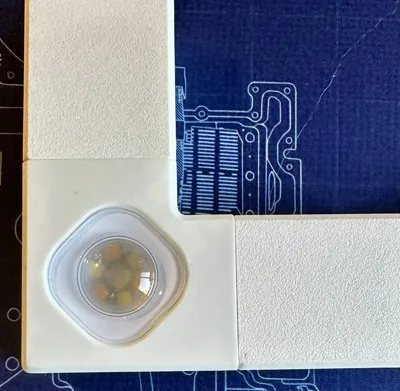

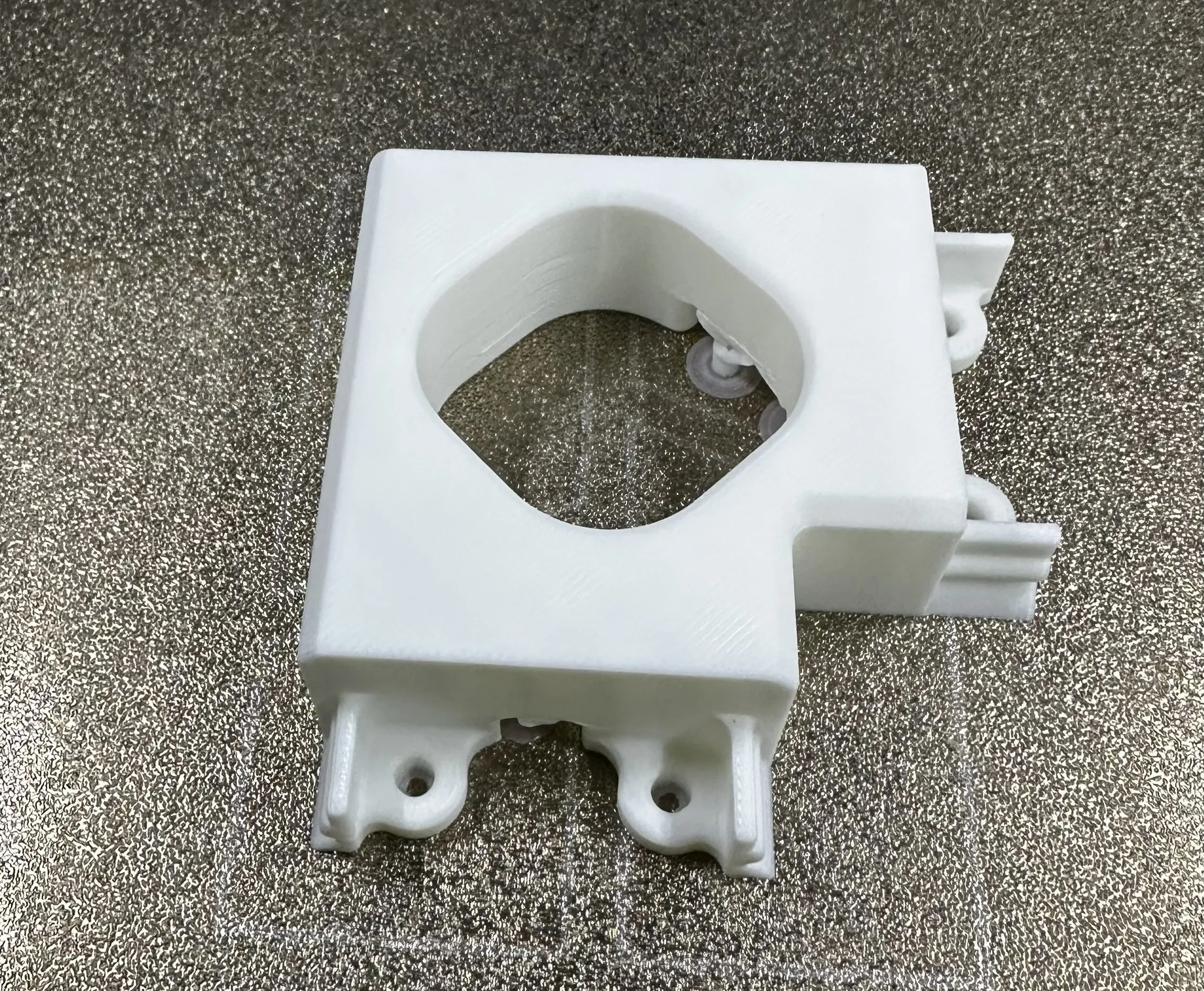

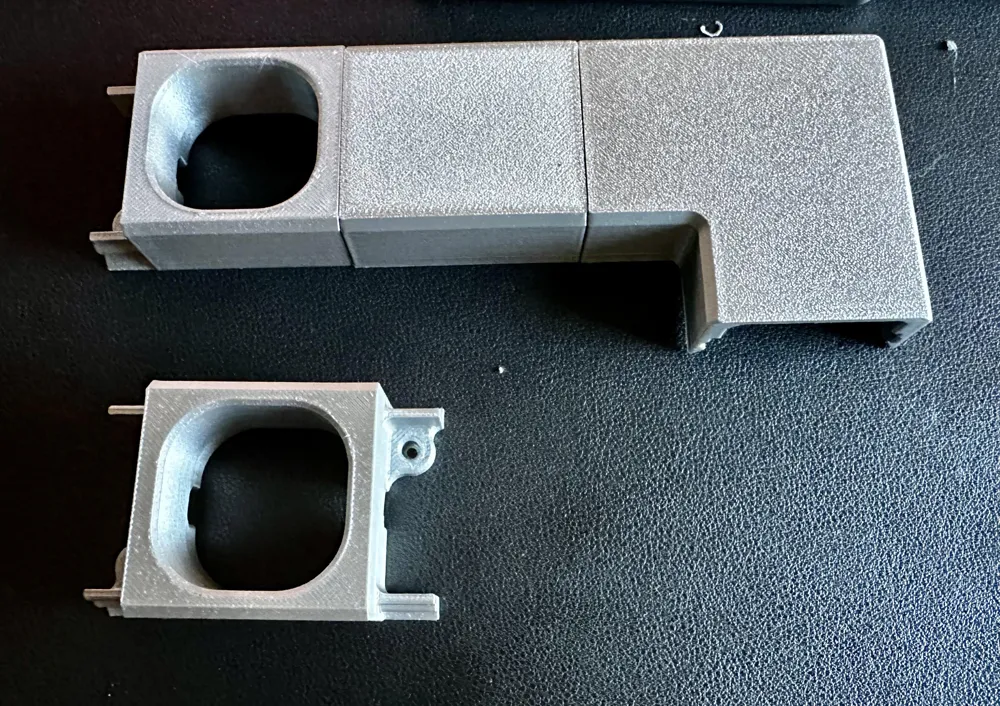

UPDATE 10-27-25: Added a 90-degree corner light mount.  This is optional depending on your layout.  You will need to customize the two raceways that connect to the corner.  They will be a slight bit shorter due to the cable will be “bunched” up.  I also added multiple screw holes for more options.  You should not need to use all 4 screw holes.

----------

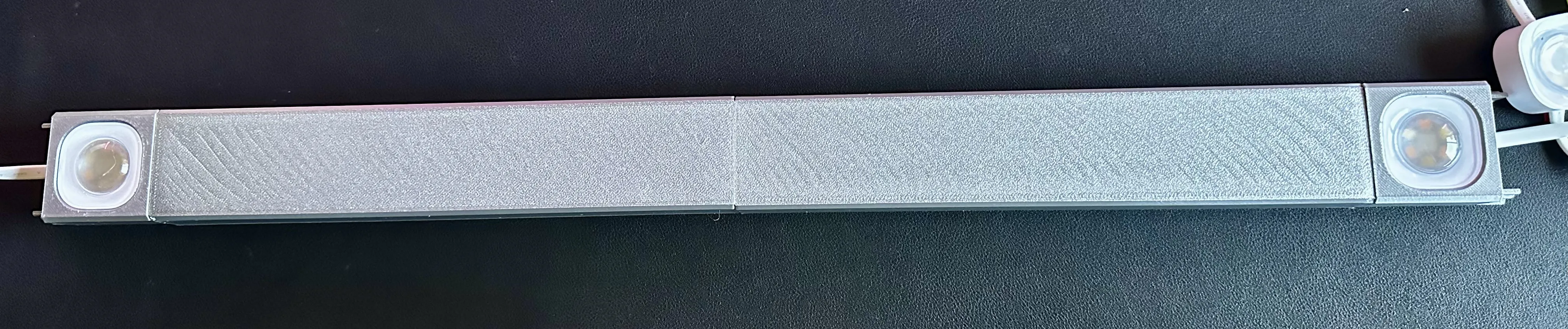

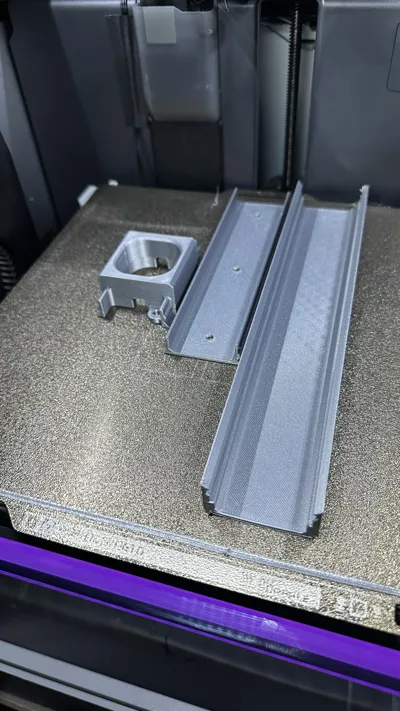

A Bigger, Beefier, with hidden screws version of my other Govee Outdoor Pro raceways and mounts (made to save filament).  This model works with the Govee Permanent Outdoor PRO lights - https://us.govee.com/products/govee-rgbicww-led-permanent-outdoor-lights

This model meant to; 1) HIDE LED light mount screws and 2) have a big enough area in the channels to put the connectors in without issue. NO Supports are needed and 3) for someone who doesn't care about using a lot of filament vs my other non-XL model

You can Customize the lengths of the raceways and mounts using the Customize feature above.

Use PETG, ABS or ASA for outside

Screws

Use #6 Stainless Steel self-tapping screws if going into metal or just #6 wood screws.  Self-Tapping: https://a.co/d/1UFSzRh or Wood: https://a.co/d/3N1rLlk

Light Placement

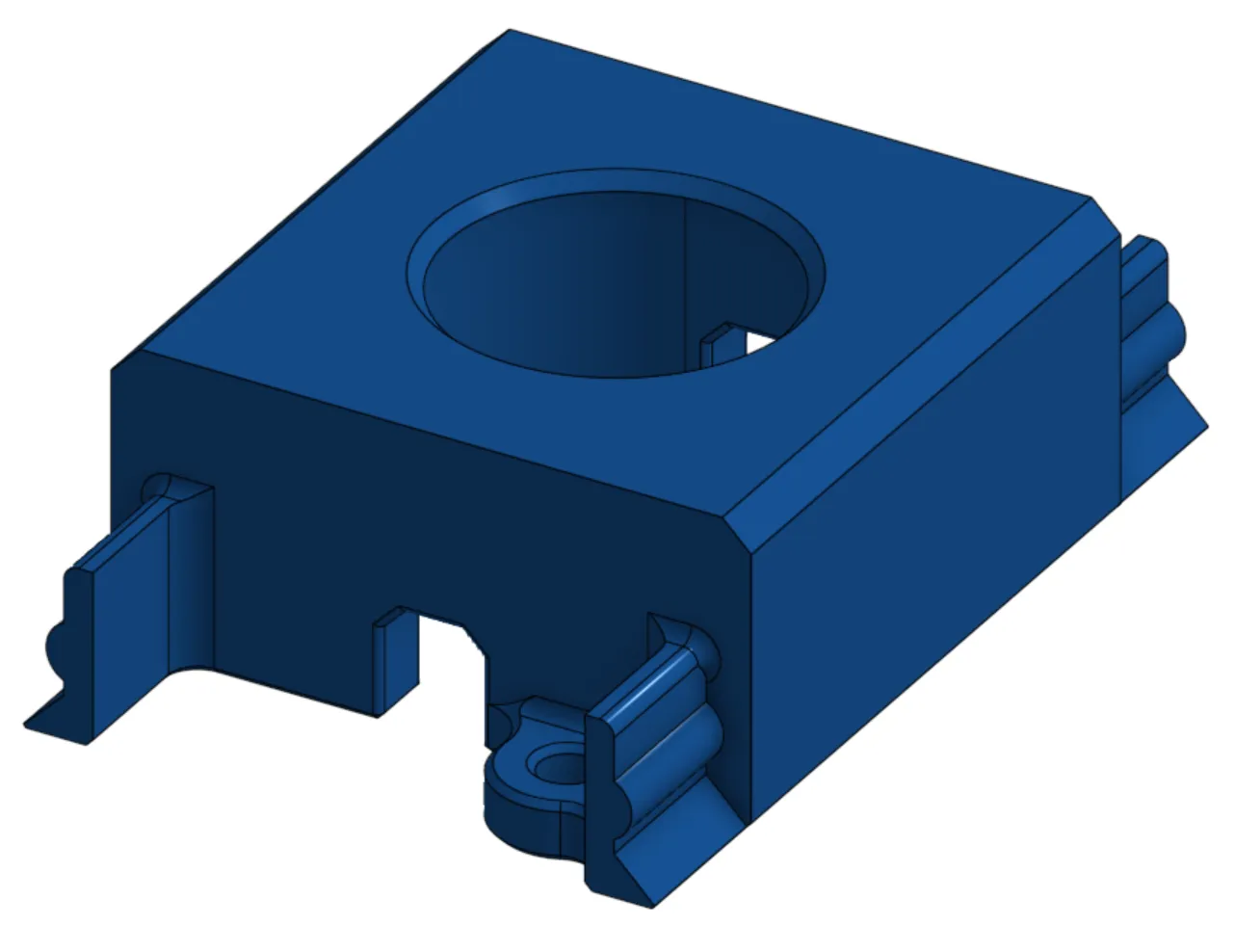

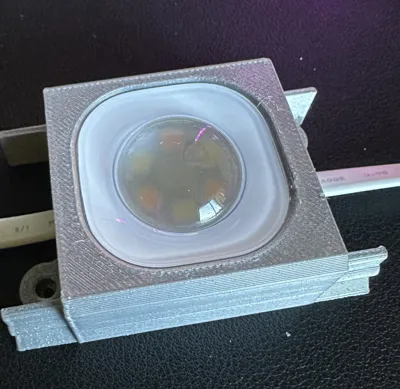

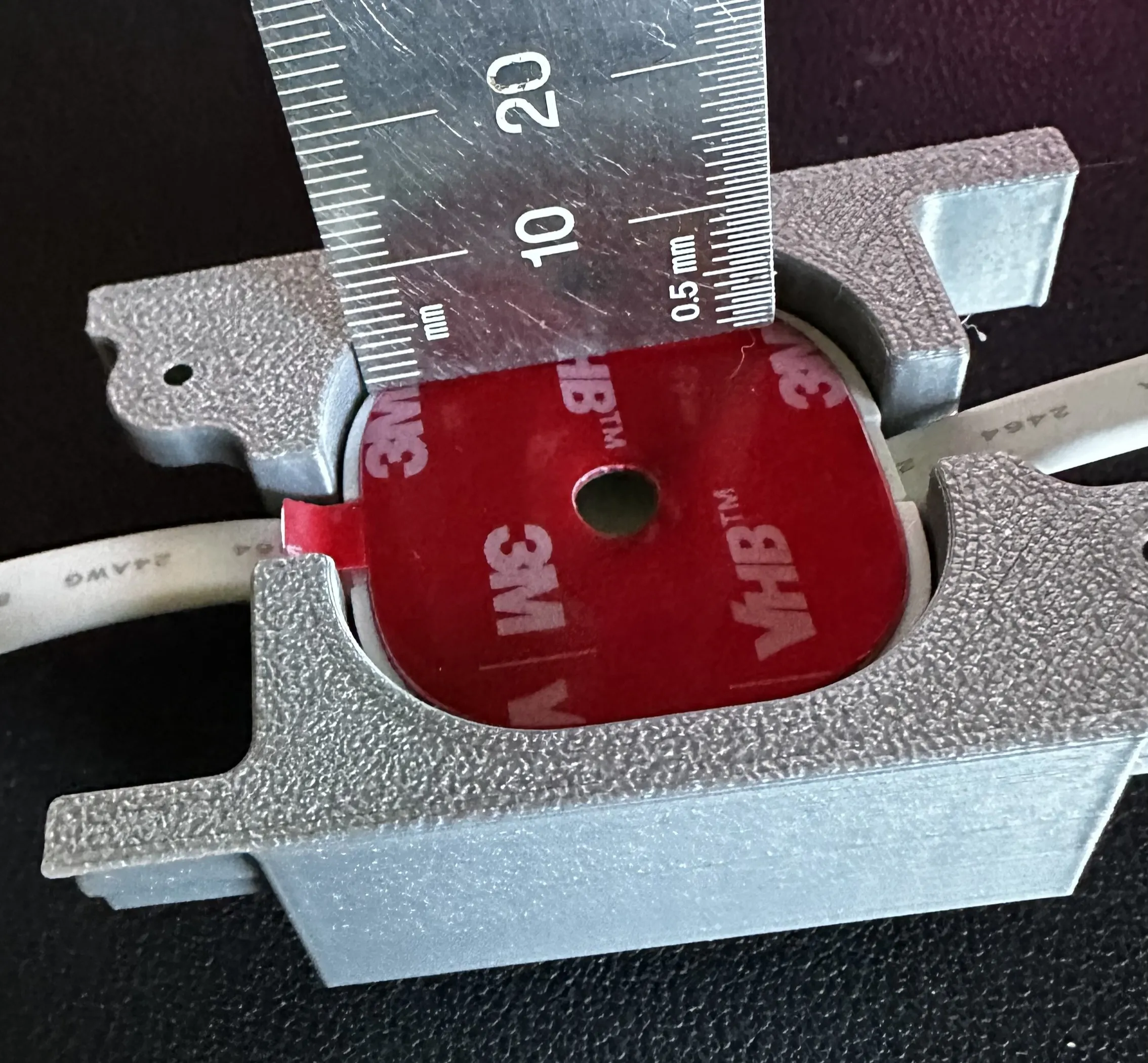

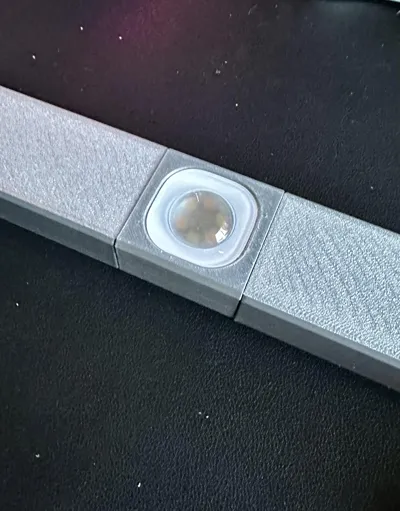

You will need to press in the light to top of the connector.  It is a snug fit, so it should not move, and it is hanging down anyway.  This is needed so that the caps can be tall enough to fit the screw connector between light strings.

String Connectors

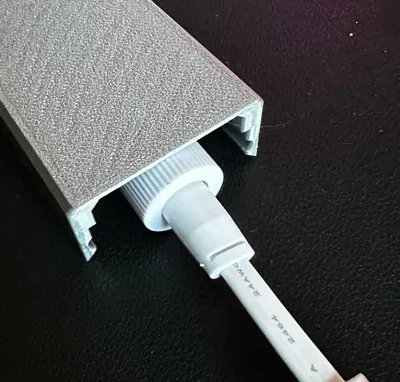

The standard Govee screw-on string connectors will fit inside the cap as long as you don't put a mount strip directly under.  I did include a mount with a hole in case the connector is directly in the middle of two caps.

Screw Holders

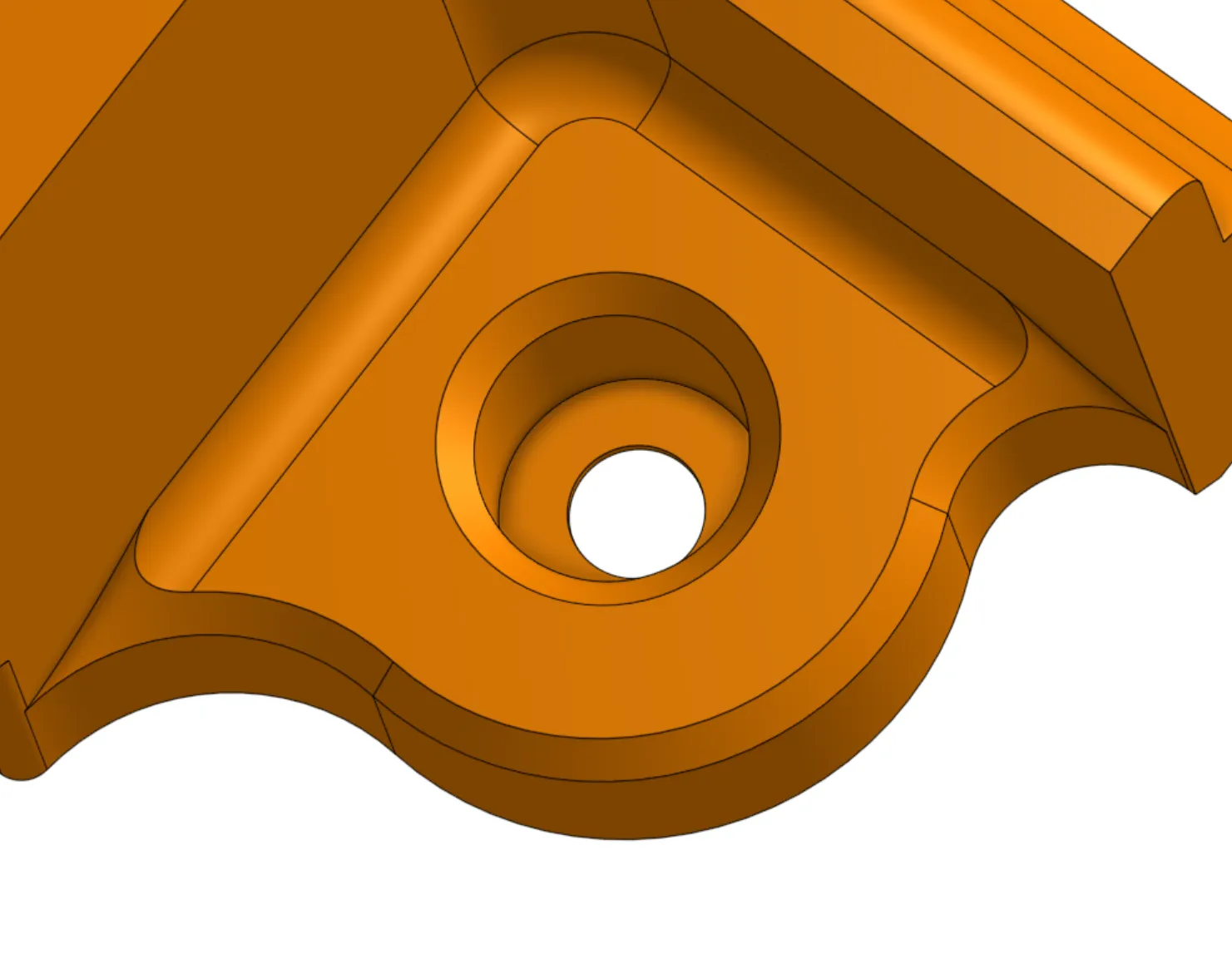

All the screw holes have a thin .2mm addition to the hole.  This allows you to screw in the screws a tiny bit so that they hold into the hole while you are mounting.  This is a life saver.  The screw will blow away the thin plastic when you screw them in.

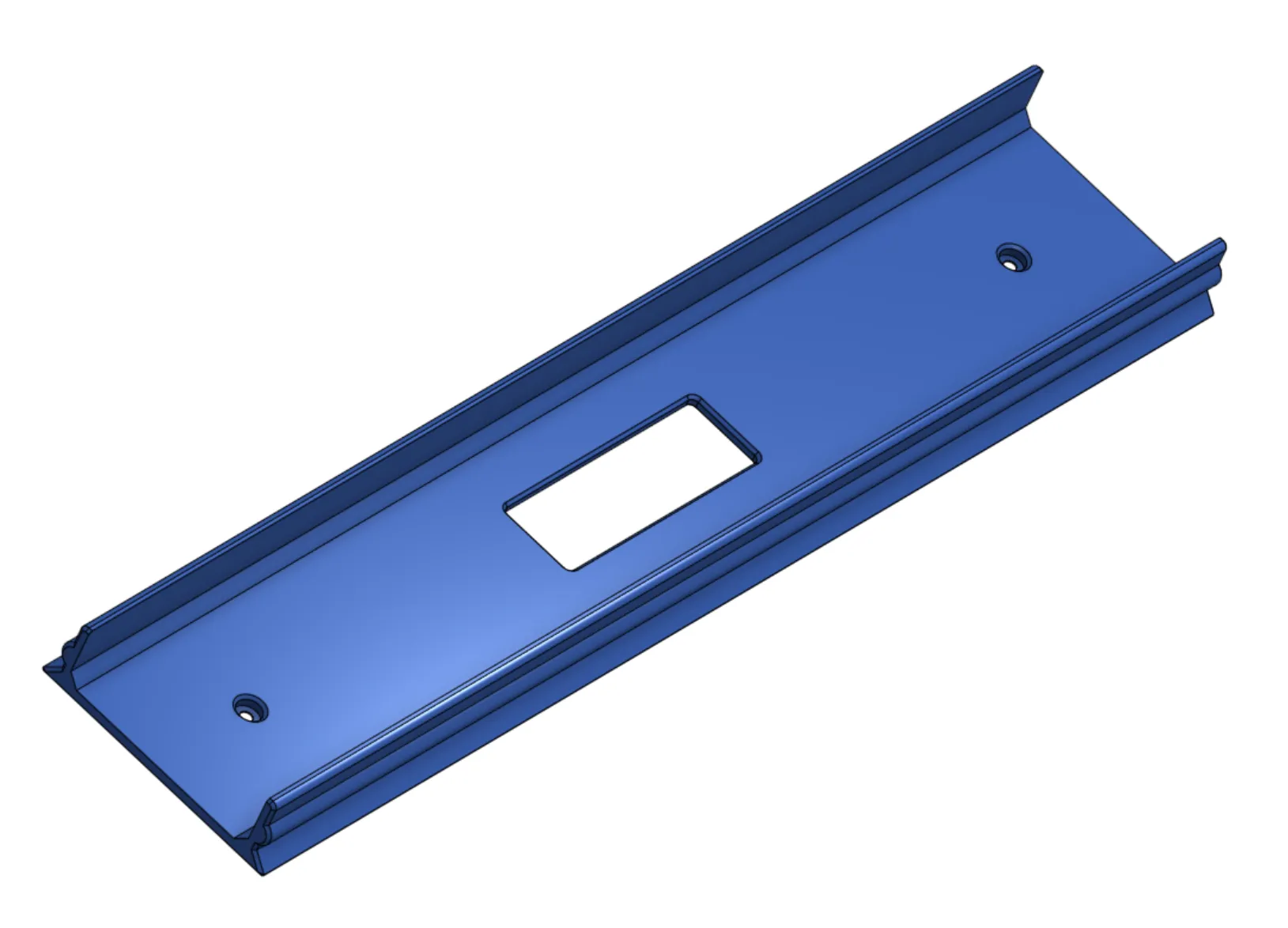

Mounts do NOT need to go the full length

they only are needed to snap the seams on the caps together.

Govee Splice Connectors

The splice connectors that Govee supplies WILL NOT FIT under the raceway cap.  They are too tall and un-necessary since any splices you make will be covered with the caps.  I recommend just cutting and using some butt connectors and heat shrink tubing for any spices.

OPTIONAL

There are end caps, blackout fixtures and corner brackets if you need.  The end caps are a friction fit, but you could put a drop of glue or silicon if you want.  All the files can be downloaded from the STL files section above.
