Pen adapter H2D Pen Module - Stabilo Fineliner
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
30 min
1 plate
H2D Print Profile,0.2mm layer, 2 walls, 20% infill
40 min
1 plate
Open in Bambu Studio
Boost
79
197
50
16
245
175
Released
Description
Content has been automatically translated.
Pen Adapter for the H2D Pen Module – compatible with Stabilo 88 Fineliner
The standard pen module is unable to securely hold very thin pens. This is exactly where this adapter comes in:
It was specially designed to precisely and stably secure a Stabilo Fineliner in the module.
Advantages:
- Precise Centering: Due to the widened insert at the bottom end, the pen sits exactly in the center of the module.
- Stable Fixation: The fineliner is firmly locked so that it cannot come loose or move when drawing or tracing.
- Clean Line Drawing: Especially with circular contours, the adapter prevents offsets or uncleanly closing lines - this happens when the pen is thickened with, for example, tape and then inserted into the module.
- Easy Insertion: Insert the adapter, insert the pen – and the module is ready for use.
- Precise Insertion: Due to its design, the adapter cannot be pushed too deeply into the pen module.

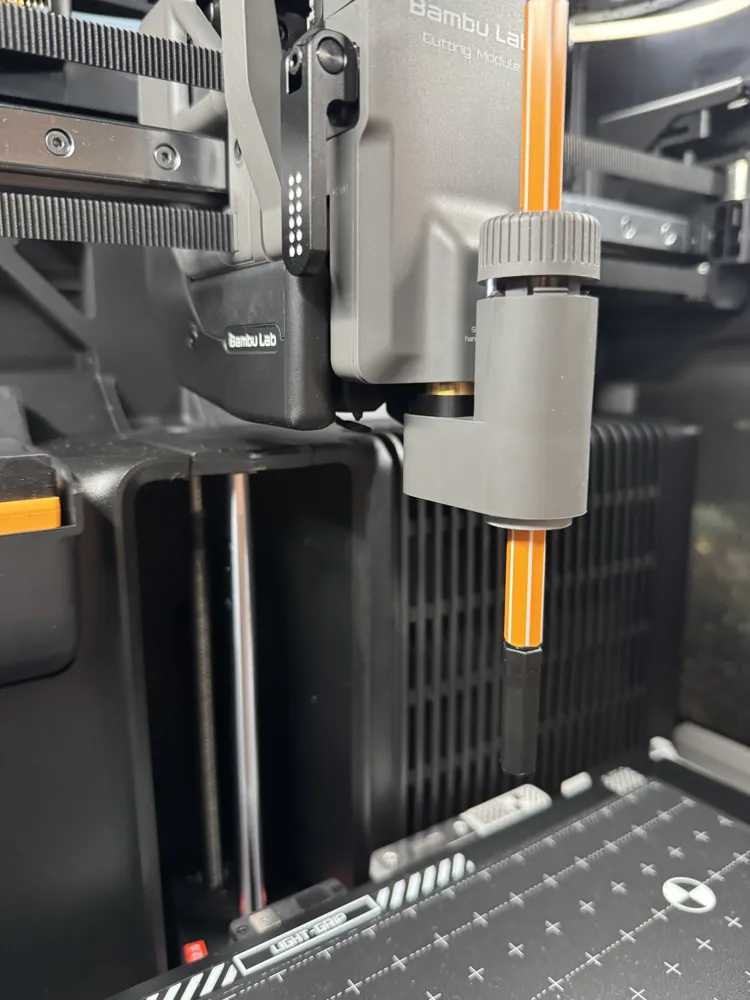

The adapter is shown in gray in the picture.
Print Recommendation:
- Material: PLA or PETG
- When using PETG, observe tolerances (shrinkage during cooling).
- Infill: 20–30 %
- Layer height: 0.2 mm
- Support material: not required
Boost Me (for free)
If you like the model, feel free to leave a Boost
