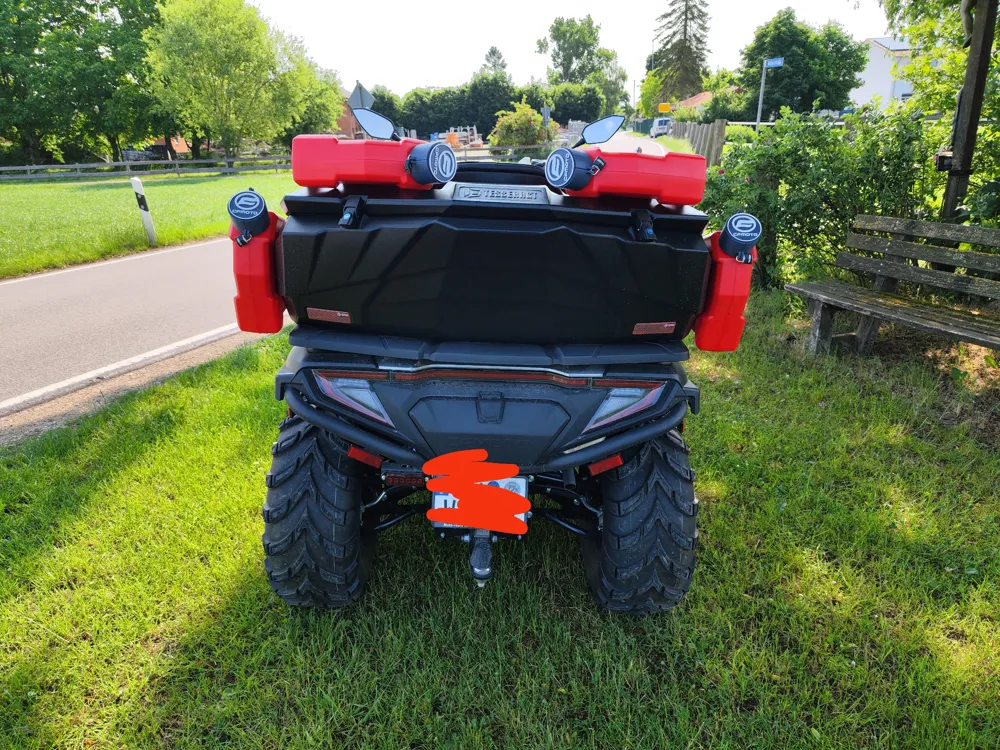

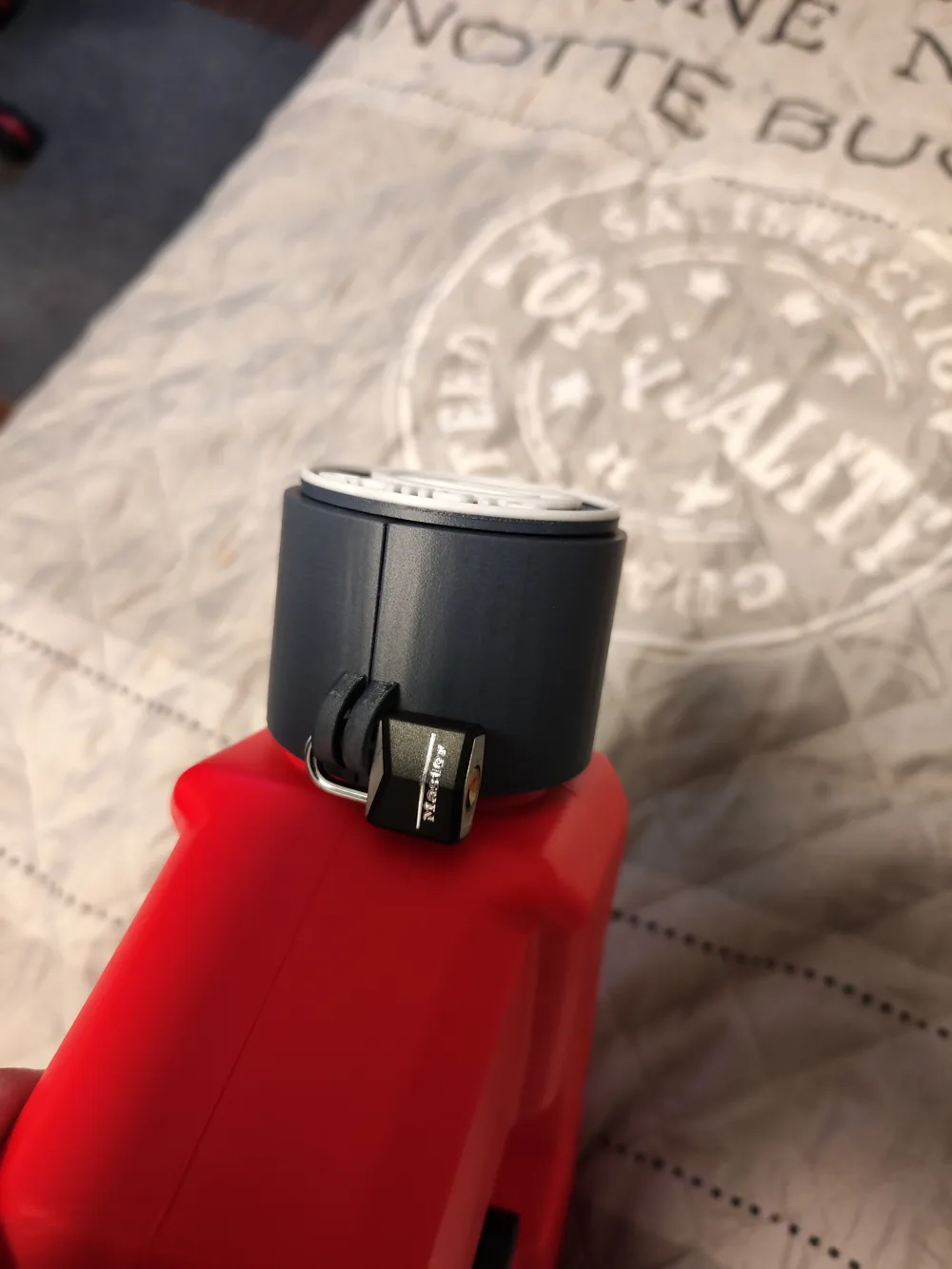

Version 2 Reservekanister Kappe ATV / Quad

I have re-created the print profile and the complete file because the first model had some weaknesses

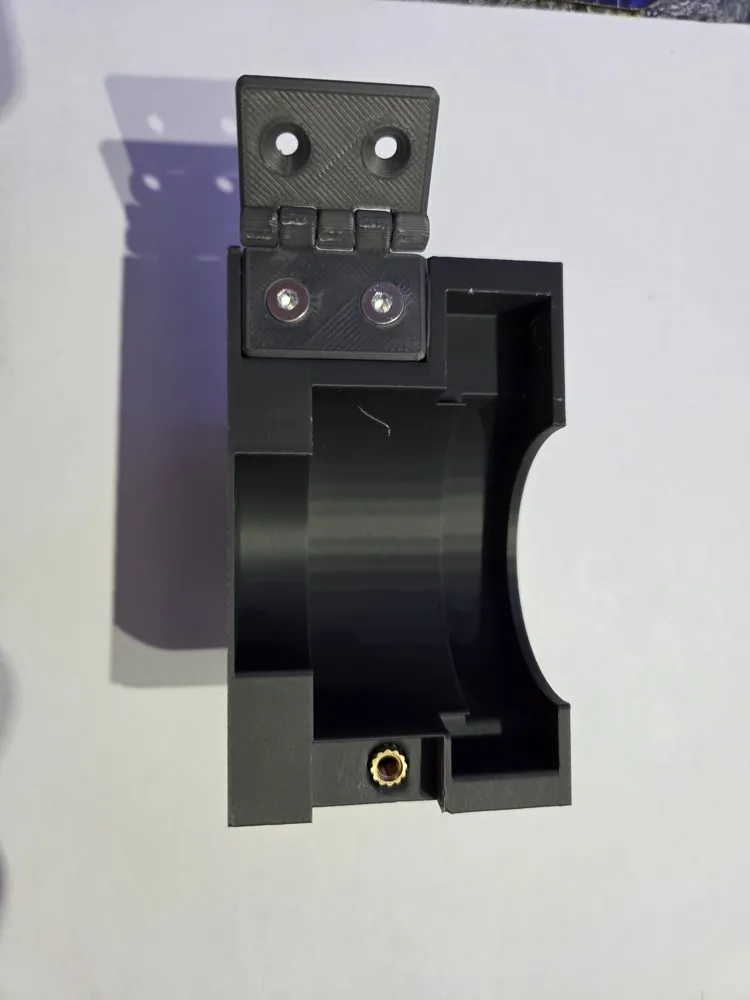

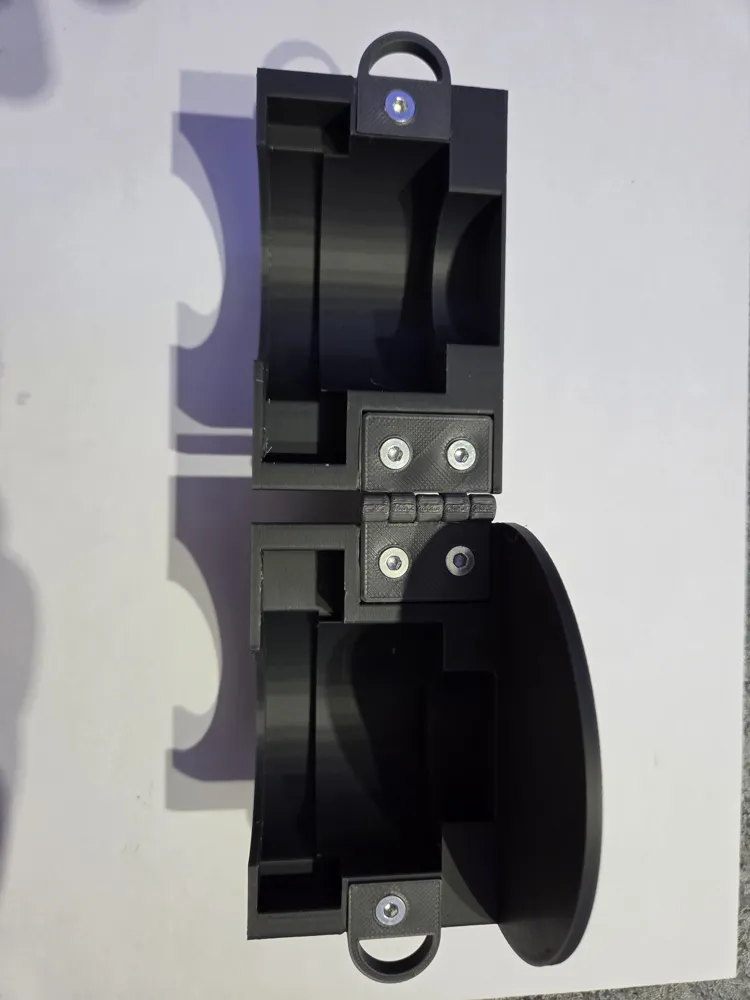

In the new model, the lock connectors are printed horizontally, as is the hinge at the back, which significantly increases stiffness and stability

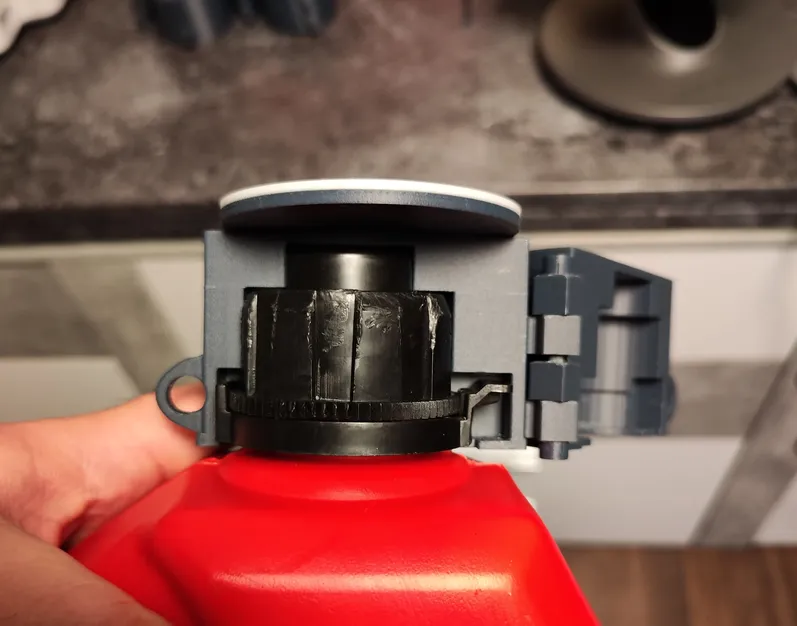

The last two pictures show the old version

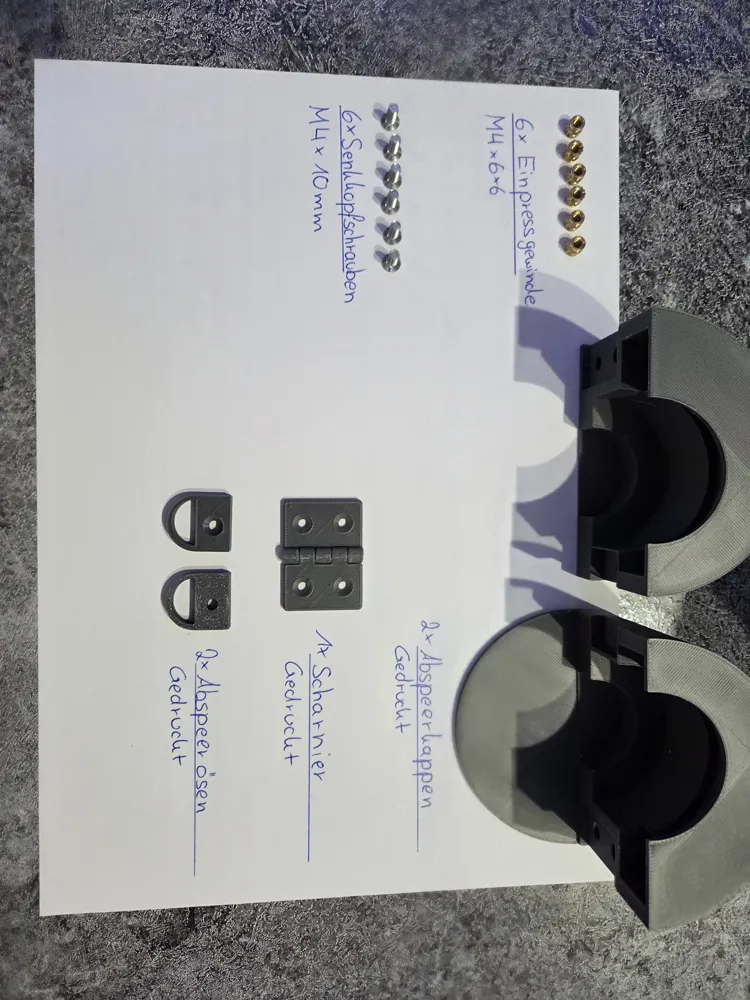

Everything you need

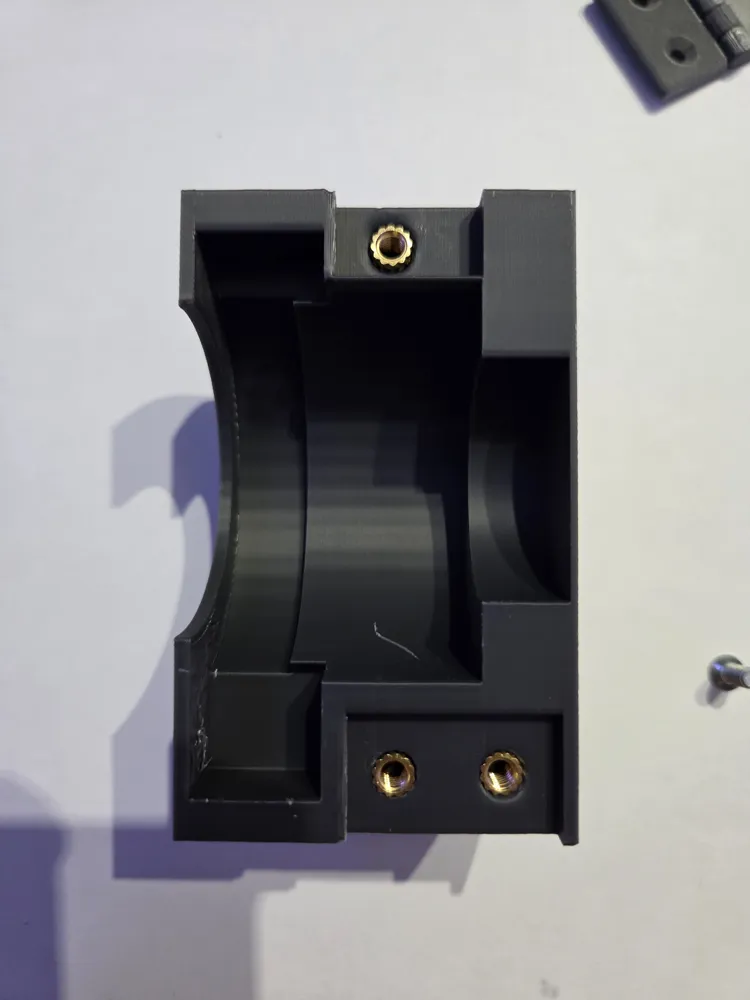

6x heat-set inserts M4 x 10mm

https://www.amazon.de/Gewindeeinsatz-Einschmelzgewinde-Plastikbox-Einpressmuttern-Kunststoffteile/dp/B0D17HNCLD/ref=sxin_17_pa_sp_search_thematic_sspa?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&content-id=amzn1.sym.766d91f6-73c2-4f00-8b15-a614b1849edd%3Aamzn1.sym.766d91f6-73c2-4f00-8b15-a614b1849edd&crid=2U4ZIJ8FN33KK&cv_ct_cx=einpressgewinde&keywords=einpressgewinde&pd_rd_i=B0D17HNCLD&pd_rd_r=df9d7cae-1a67-48c7-a2e8-f7b11e33fe44&pd_rd_w=RvbHb&pd_rd_wg=6YSvP&pf_rd_p=766d91f6-73c2-4f00-8b15-a614b1849edd&pf_rd_r=KYNBJC8VQFJAJHQQE12N&qid=1783156008&sbo=RZvfv%2F%2FHxDF%2BO5021pAnSA%3D%3D&sprefix=einpressgewind%2Caps%2C110&sr=1-5-0bff13d2-7188-4a82-bb3a-ccd1e70f0167-spons&aref=skKC77YdgD&sp_csd=d2lkZ2V0TmFtZT1zcF9zZWFyY2hfdGhlbWF0aWM&th=1

6x M4 x 10mm countersunk screws

https://www.amazon.de/zrfgbxim-Senkkopfschrauben-Flachkopfschrauben-Unterlegscheiben-Maschinenschrauben/dp/B0DCC9CJQ3/ref=sr_1_4?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=3A25DUXE9DTCL&dib=eyJ2IjoiMSJ9.BmUhbmYX4b_AwxumvfDrylwW3JZBMaf39LEpCLtNcDMy4_VxLKWqGtLa8olZkbelAcG4nBRgQNU2LlBDQEUBbIvk9UsgVPZk8YLgO_Q13trtIQF1dn74ms2fwnaxg7V2ph9WObWwNzXx364NpfDjckCMN9glmtx7fwqMItTLD9Mk_MJMAQ5e3AgSovp9KKIweW-UeWrf6Zzp41ZDEl_l4hvbqlyg43jE1dkaVzTuCq89ST8kC_pBUDexioas18MUox_GYAmo_c46U5hSCZ2RGOdJOUDTvCmQvgKUYHOoFNw.Lvf1L_HyC_PHMQx6RBI-za-cgyRENhpLwvtK3l7KO2c&dib_tag=se&keywords=senkkopfschrauben&qid=1783156074&s=industrial&sprefix=senkkopfschrauben%2Cindustrial%2C95&sr=1-4

And of course, all 3D printed models and a soldering iron for melting in the inserts

I hope I could help one or two people with this model

I am still very new to CAD design and am constantly trying to improve

I would be very happy about a thumbs up or a boost :)

Have a nice day and may your 3D prints always turn out perfectly
