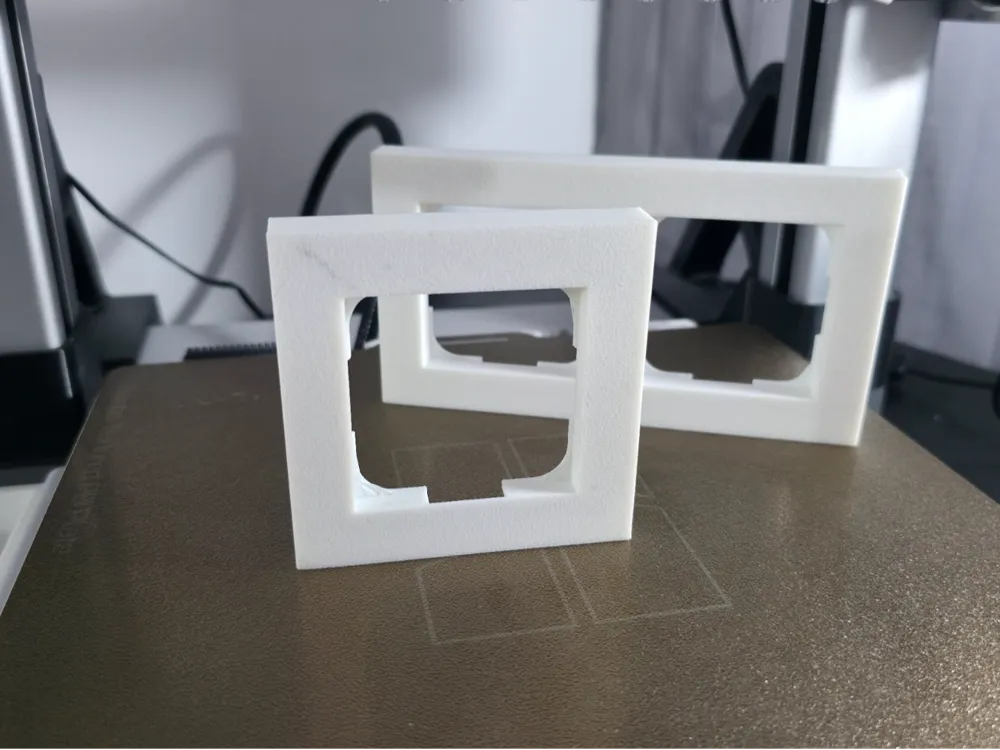

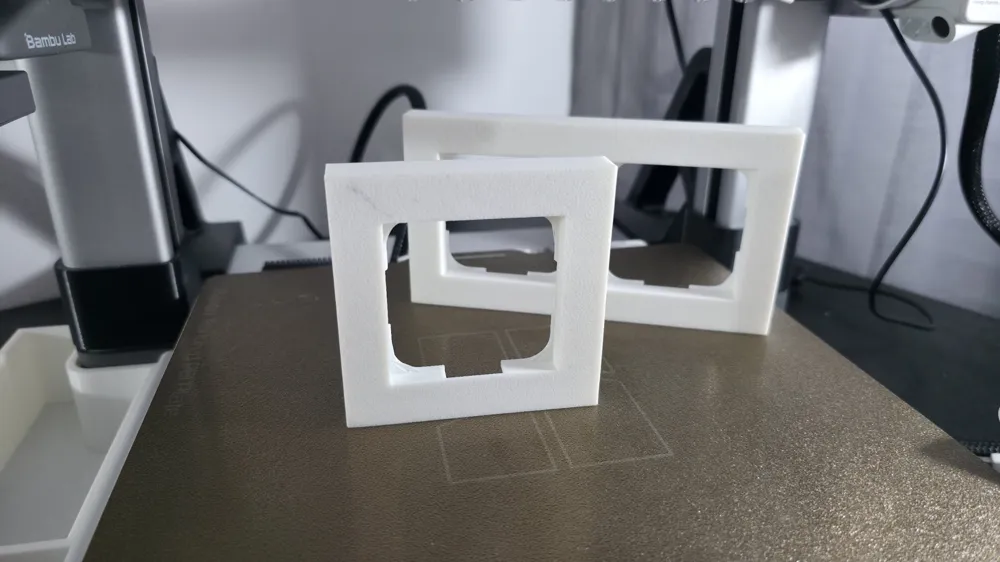

Aqara H2 Single Frame

Overview

A single frame designed for the Aqara Light Switch H2, perfect for those who want to customize and modularize their smart home system with style and functionality. Ideal for 3D printing enthusiasts and DIY (do-it-yourself) solutions

Design & Manufacturing

• Format and proportions: compatible with standard dimensions (likely 86 × 86 mm), adjusted to comfortably and precisely accommodate the H2
• Structure: built to ensure stability and facilitate the assembly and disassembly of the switch
• Print settings: recommended with 0.16 mm layer, 4 walls and 15% infill, balancing good resolution, mechanical rigidity, and material economy
• Estimated print time: about 1.2 hours for a single piece (single frame)

Usage & Application

• Ideal for those who want to customize their installation of Aqara Light Switch H2 or Wall Socket H2, offering an exclusive frame for aesthetic integration into plates or panels
• Perfect for hobbyists, 3D printer enthusiasts and creative home projects that use modular smart components

Advantages

• Compatibility: aligned with the design and proportions of the Aqara H2, ensuring a proper fit
• Customization: allows for customized finishing—you can paint, use filament with a different color or texture to match the environment
• Printing practicality: well-defined parameters (layer, walls, infill) facilitate execution even for 3D printing beginners
• Light and efficient: low print time and reduced material usage make the project quick and accessible

Material: PLA
Hotend: 0.4mm
