Parkside Drill Bit Holder
IP Report
Print Profile(3)
6 Slot PETG - 0.2mm layer, 3 walls, 20% infill
Designer
30 min
1 plate
5 Slot PETG - 0.2mm layer, 3 walls, 20% infill
Designer
28 min
1 plate
PLA - A1 Mini - 0.2mm layer, 3 walls, 15% infill
31 min
1 plate
Open in Bambu Studio
Boost
226
559
46
19
546
391
Released
Description

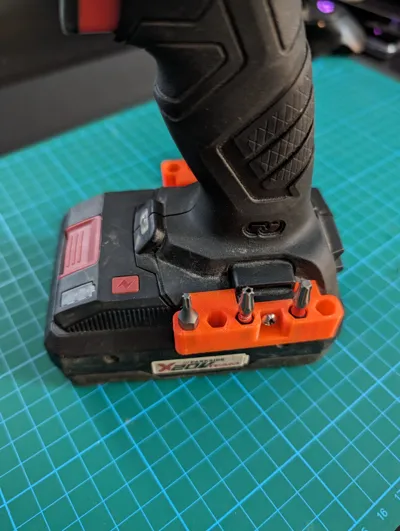

Parkside drill bit holder - Store your most common bits easily on your drill!

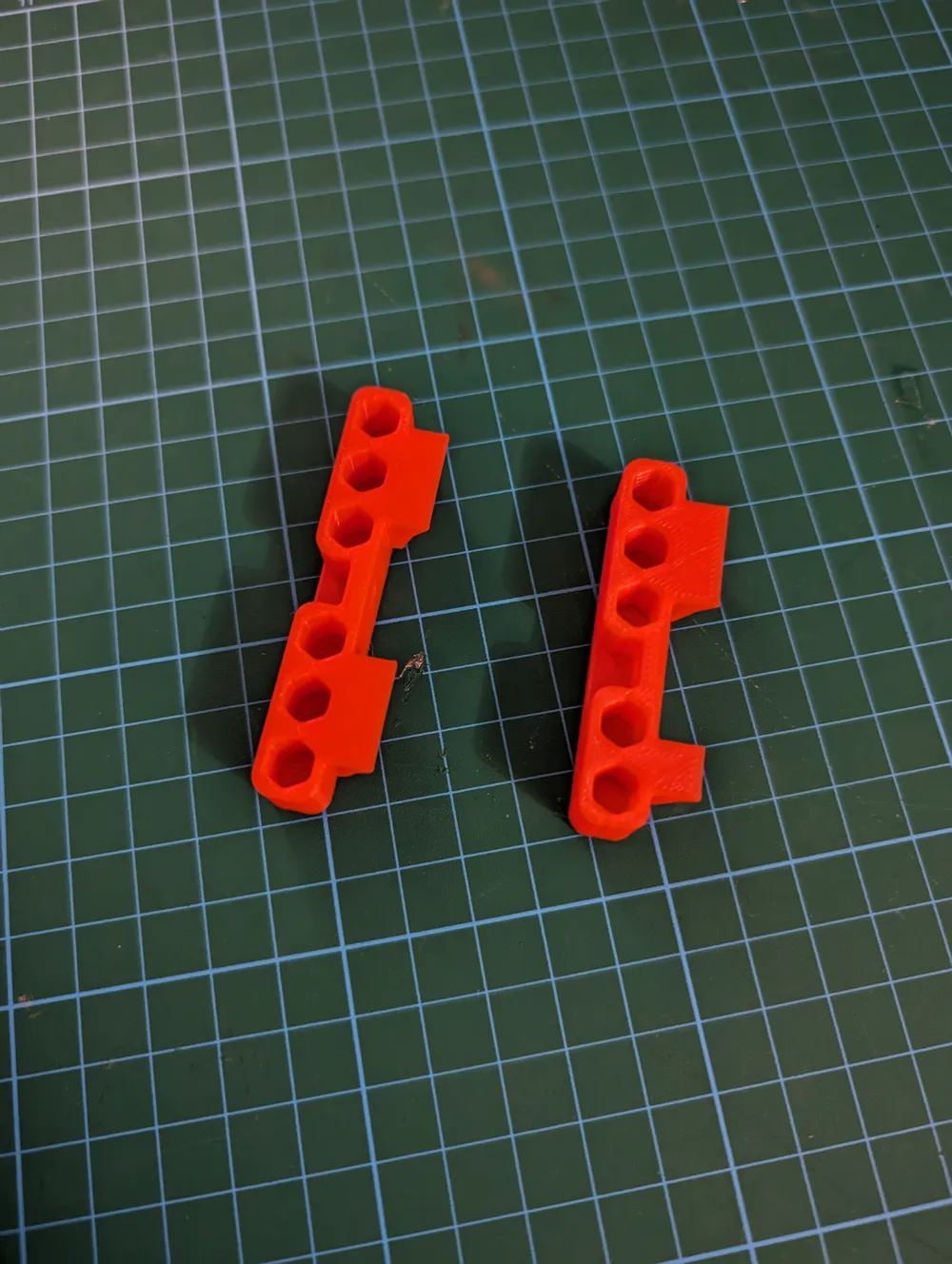

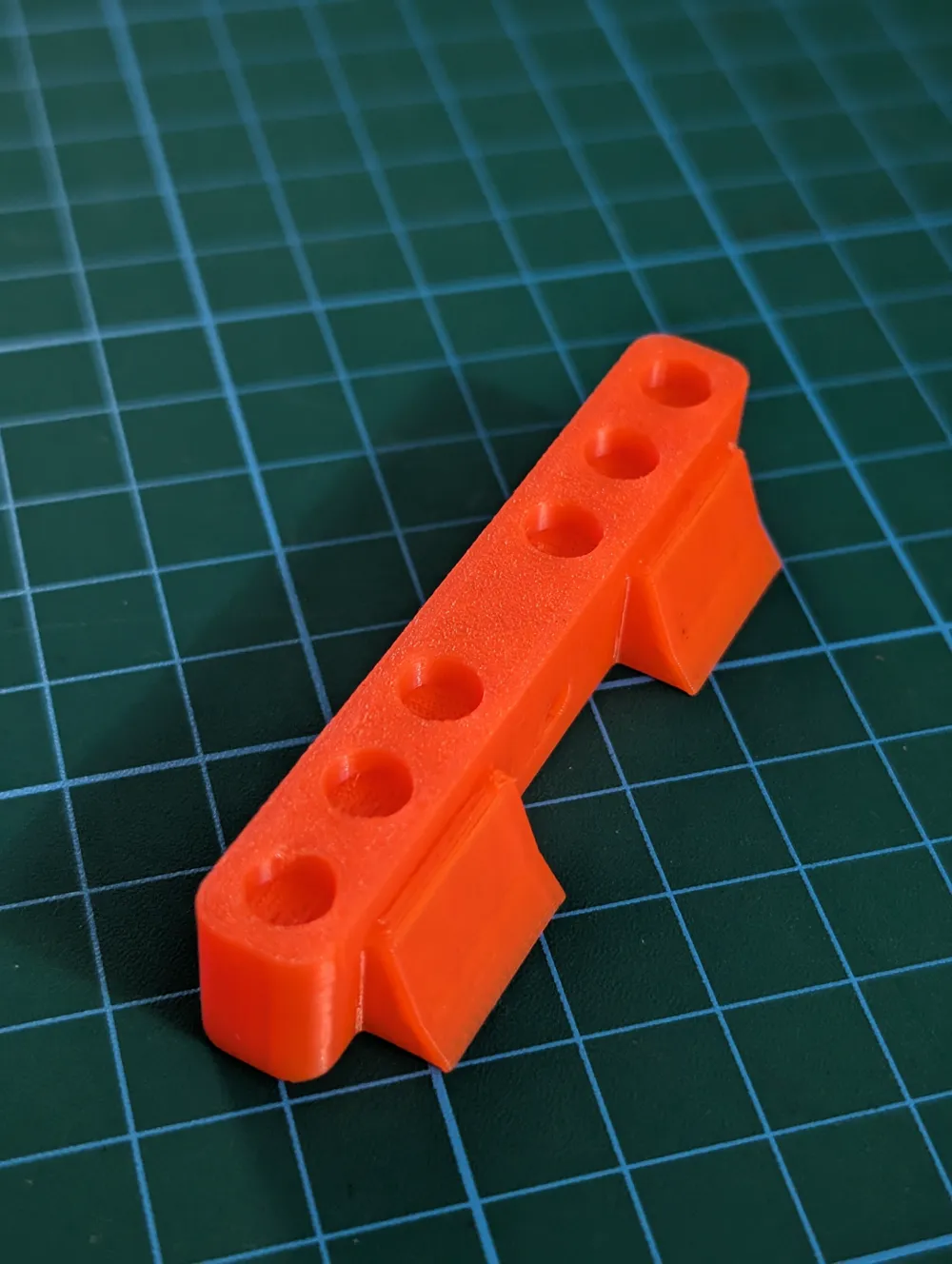

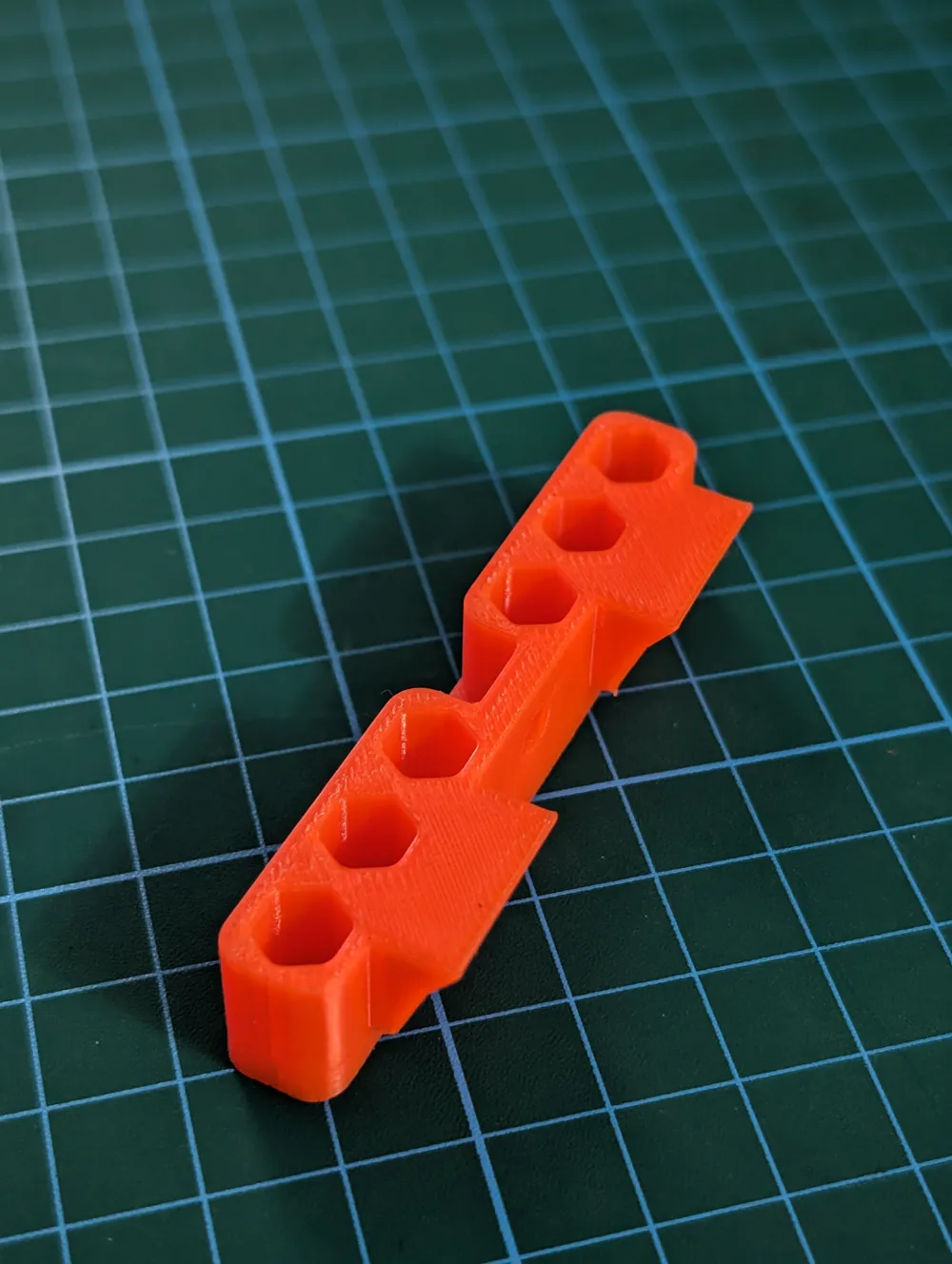

I provided two versions - 5 bit and 6 bit, so select correct plate or raw stl.

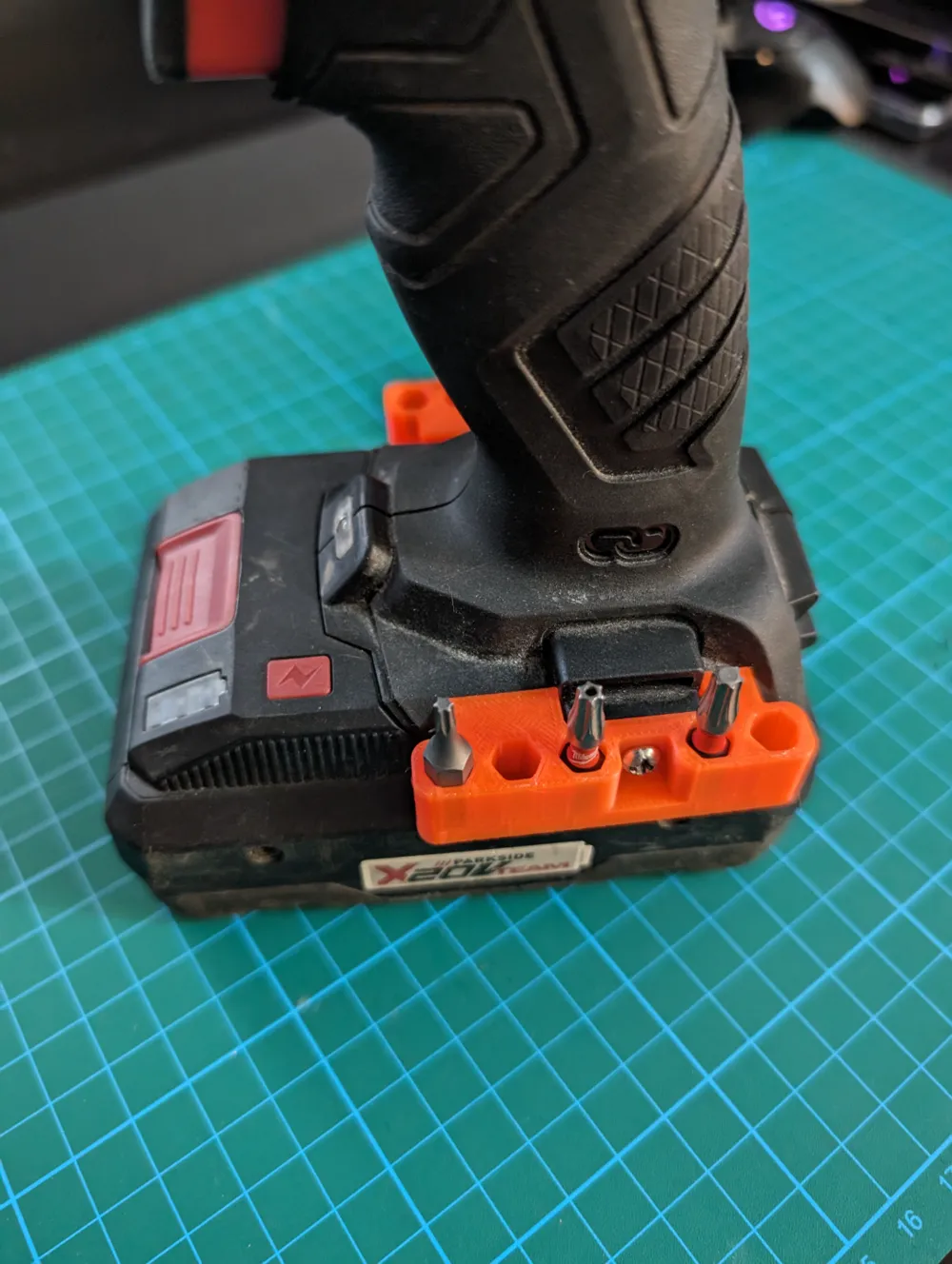

Version with 5 slots is most useful for me - i can have all the standard Torx bits ready (TX10, 15, 20, 25, 30)

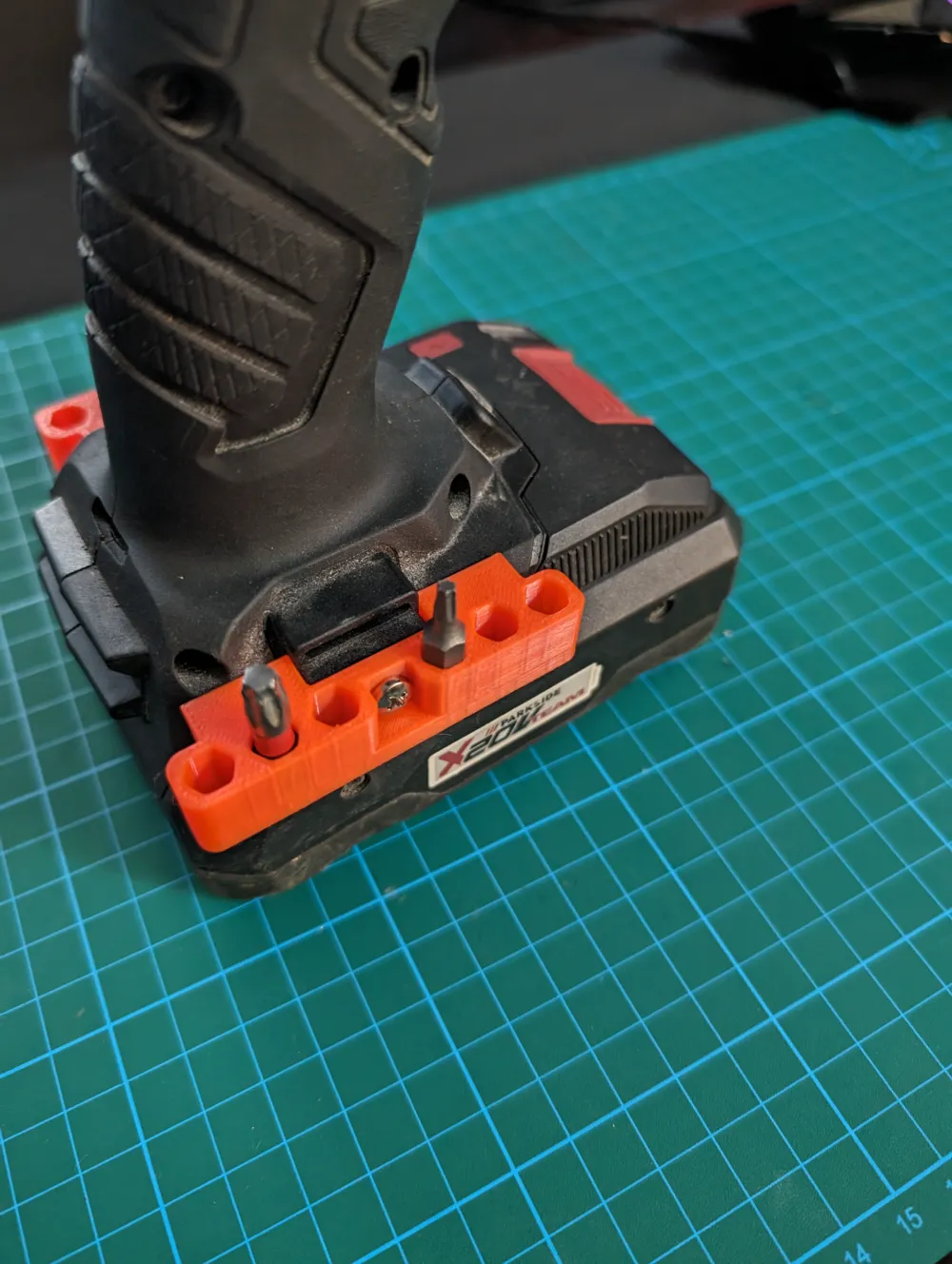

They can be mounted on both sides of the drill.

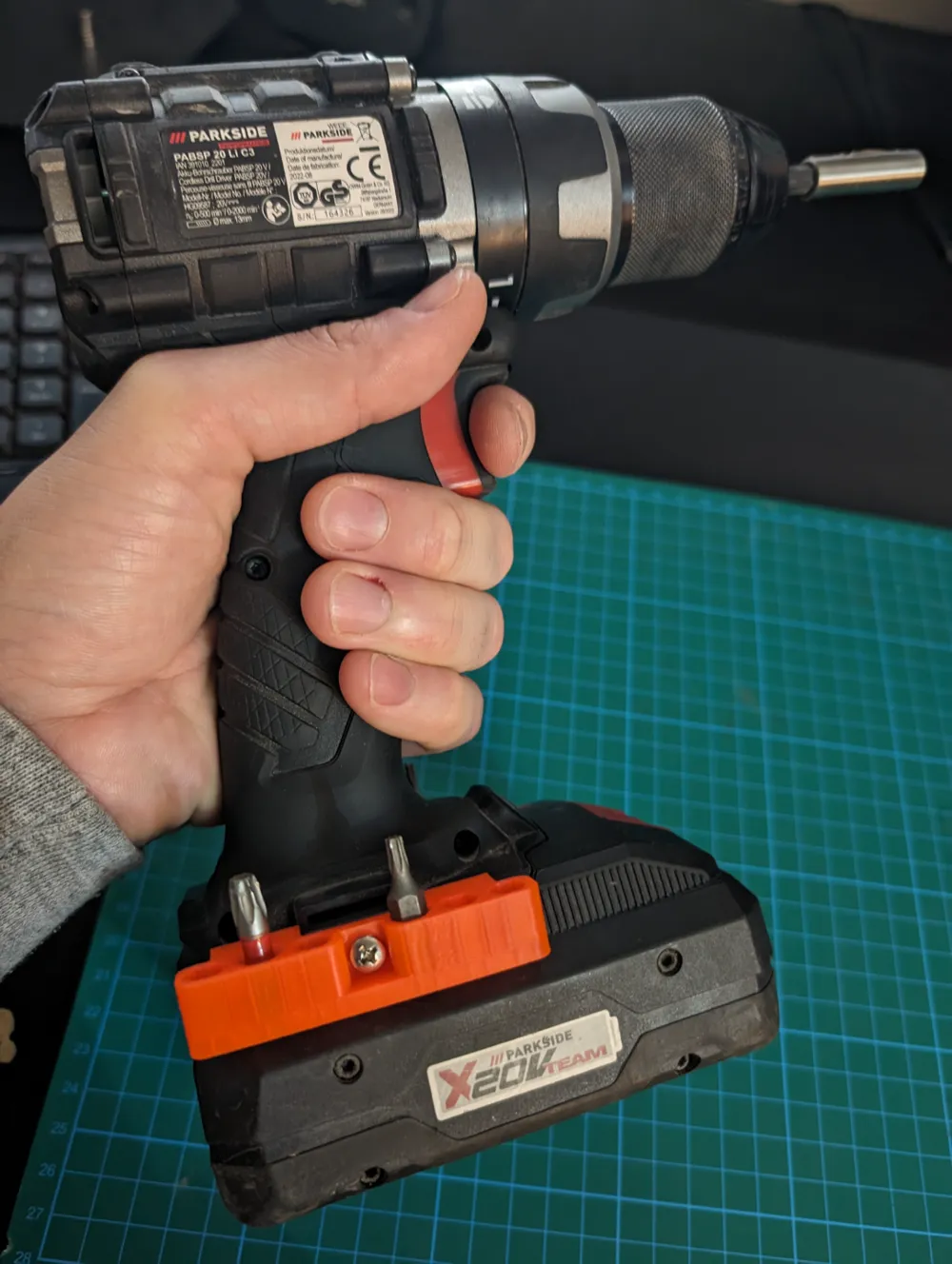

Checked on Parkside Performance PABSP versions of the drill (PABSP 20 Li B2 / C3).
- I suggest printing in PETG due to heat resistance
You will need:
- 5x or 6x round magnet 6x2,65 (diameter = 6mm, depth = 2,65mm) - i suggest buying 20 of them, they are pretty cheap and worth having
- 1x M4 screw with length of 10mm

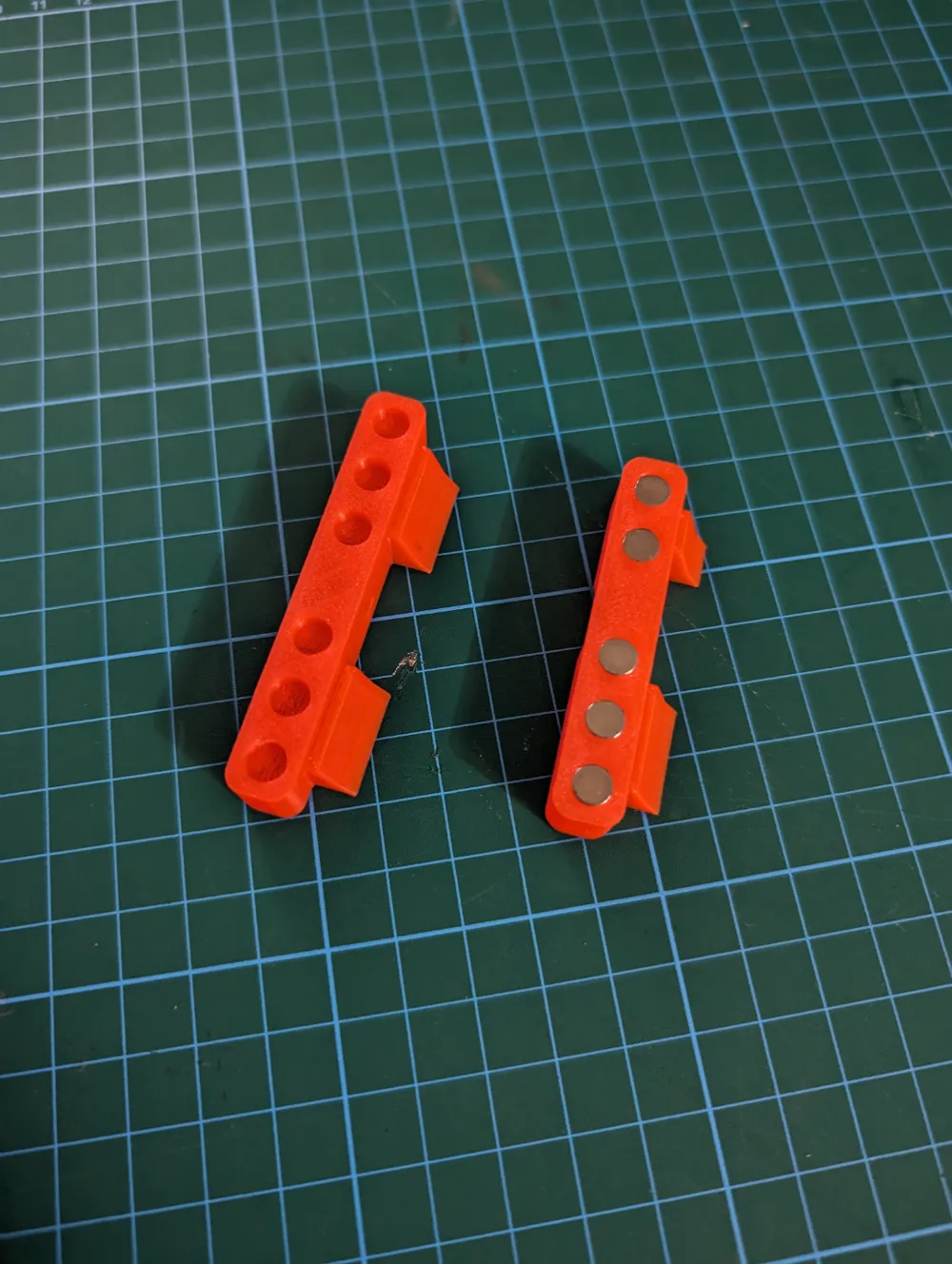

Magnet slots has quite tight fit, if they are loose, use superglue. If you will need other magnet dimensions, just contact me.
