Adjustable Sensor & Reflector Mount Sick GL6

Adjustable Sensor & Reflector Mount

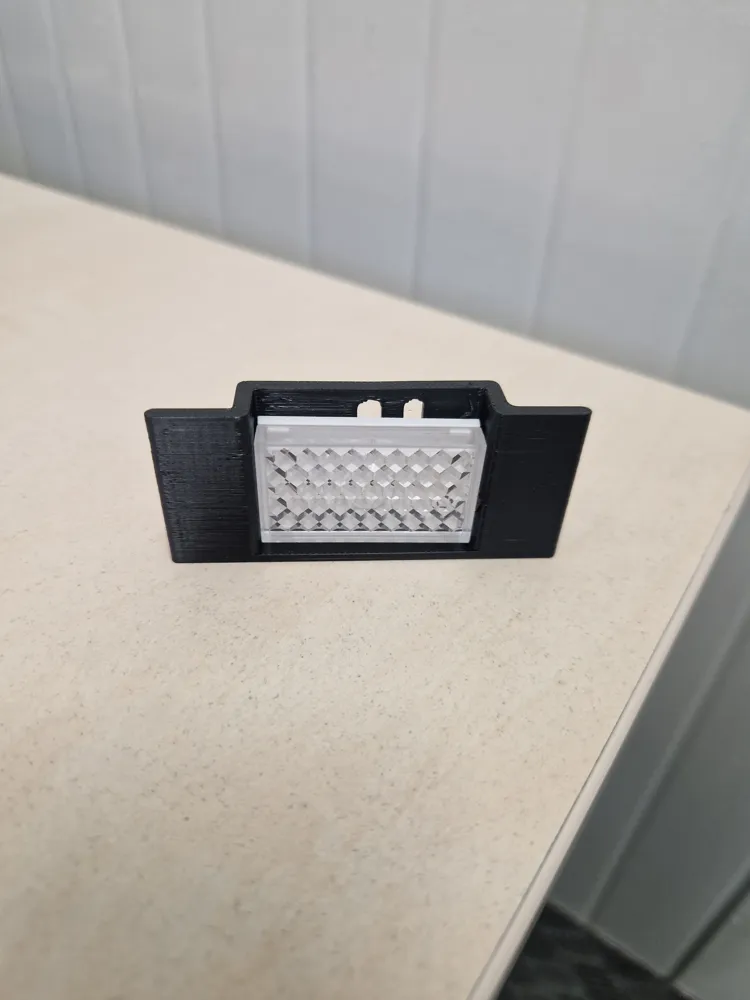

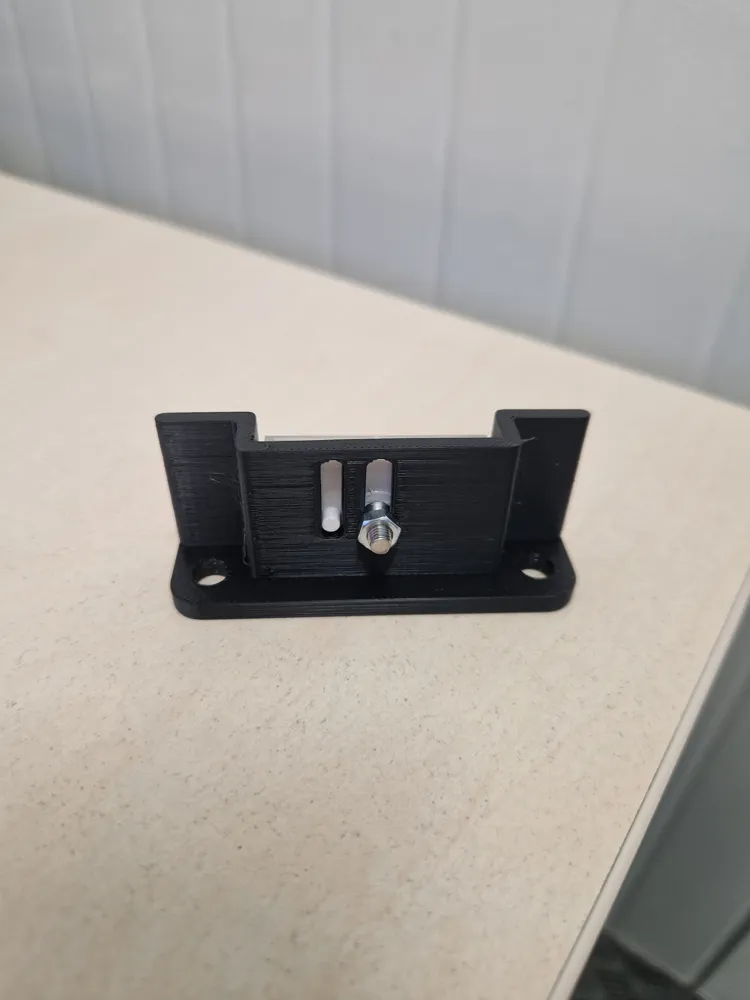

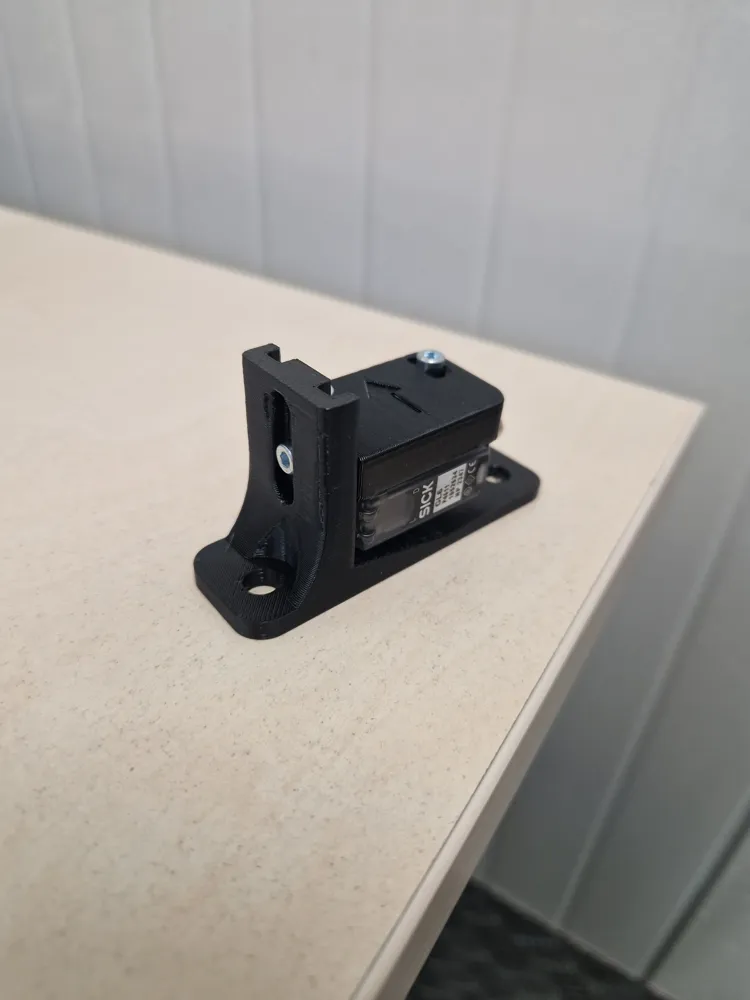

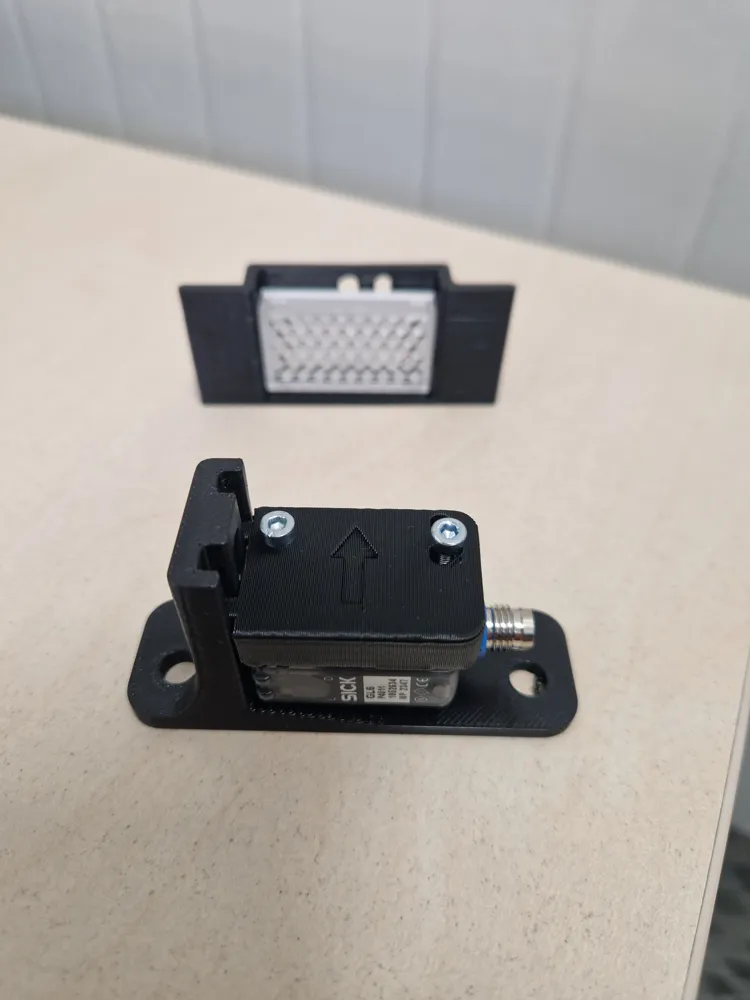

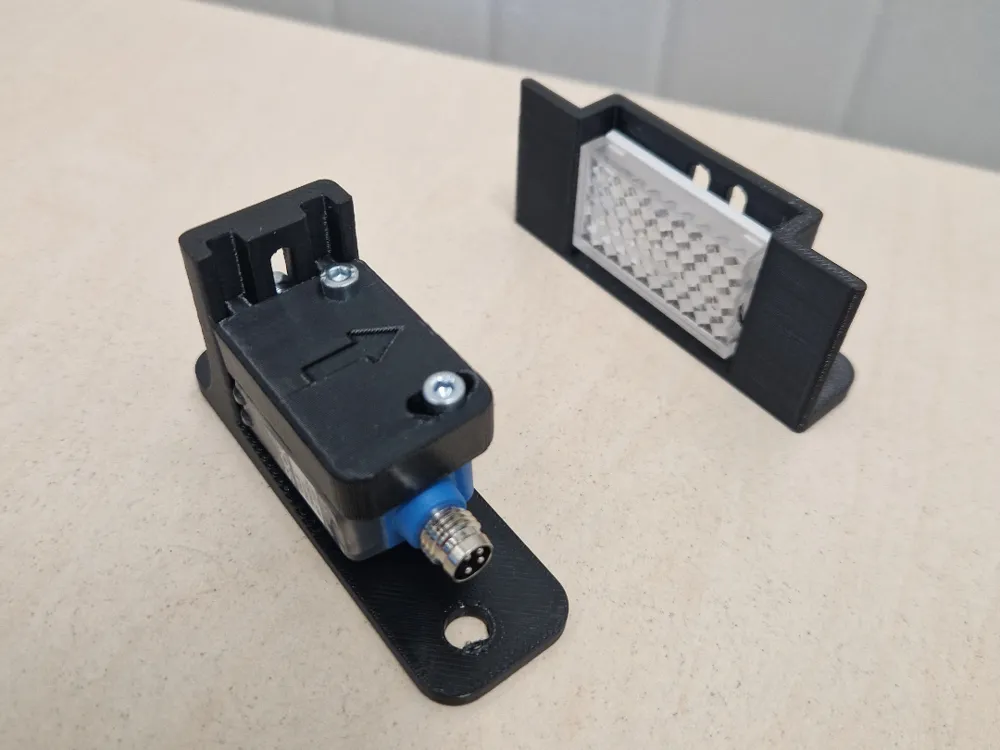

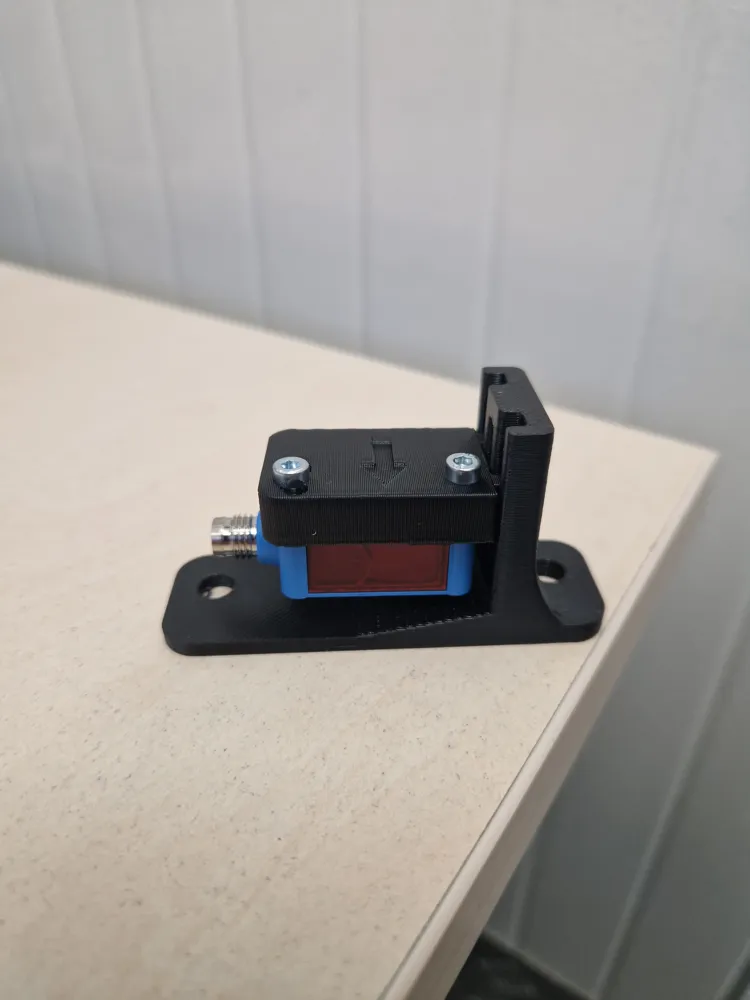

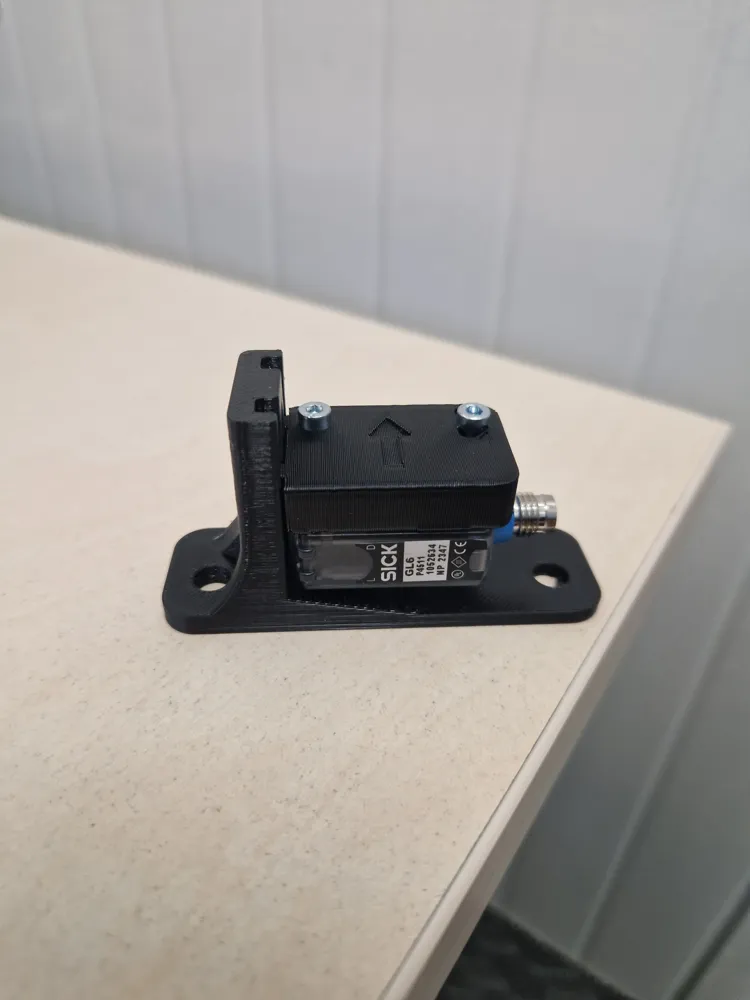

This is an adjustable mounting bracket designed for the SICK GL6 photoelectric sensor and reflector.
The bracket allows easy adjustment and precise alignment of the sensor and reflector in automation or DIY projects.

🔧 Specifications:

• Fits SICK GL6 sensor
• Sensor mounting hole spacing: 25.4 mm
• Bracket mounting hole spacing: 60 mm
• Uses 3 × M3x16 screws (for securing the sensor and reflector)
• Bracket installation with M6 screws
• Includes a pause in the print to insert an M3 nut, then resume printing for a stronger and more reliable mount

✅ Provides a stable and adjustable solution for sensor and reflector positioning.
Perfect for industrial automation setups or custom projects where flexibility and durability are needed.
