Lightweight Infinite Skadis 200x200mm - Free 3D Print Model

Search models, users, collections, and posts

zomb

Tools>Organizers

IP Report

Print Profile(2)

All

P1S

H2C

H2D Pro

X2D

H2S

H2D

X1E

X1 Carbon

P1P

P2S

A2L

Cubic infill, significantly reduced print time + variants

Designer

9.7 h

5 plates

5.0(58)

0.2mm layer, 3 walls, 20% infill

Designer

3.4 h

1 plate

5.0(21)

Open in Bambu Studio

Boost

563

1788

140

1.7 k

688

Released

Bill of Materials

Bambu Filaments

Select all

Jade White (10100) / Filament with spool / 1kg

PLA Basic

Description

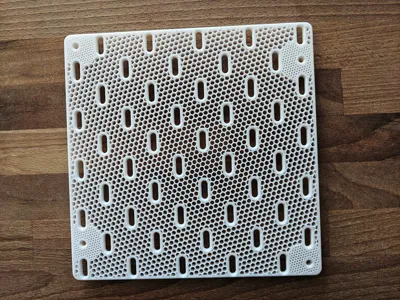

A Skadis-compatible pegboard panel that prints in one piece on the A1+. Panels connect seamlessly edge to edge. Mount as many as you need to cover any wall space.

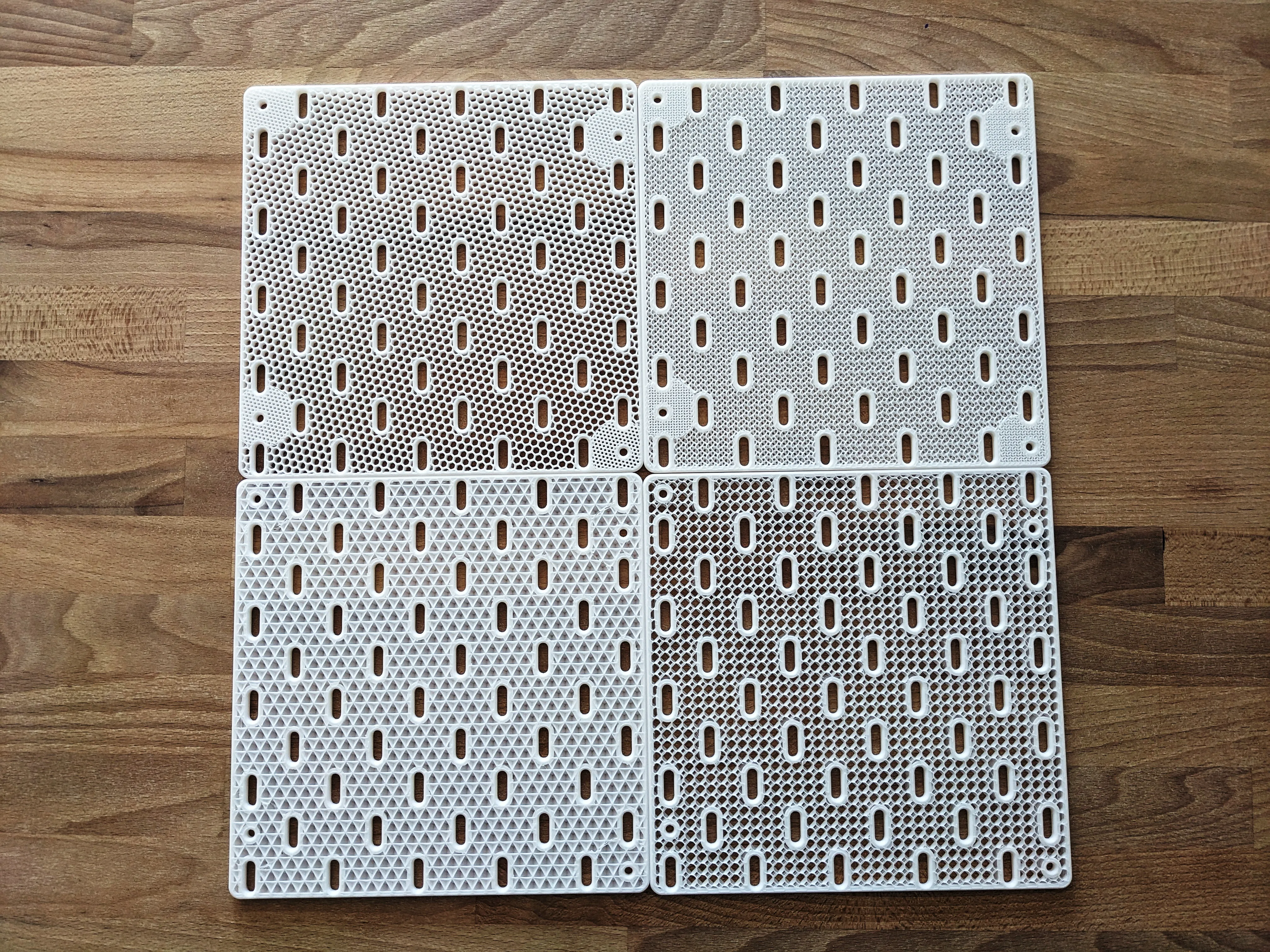

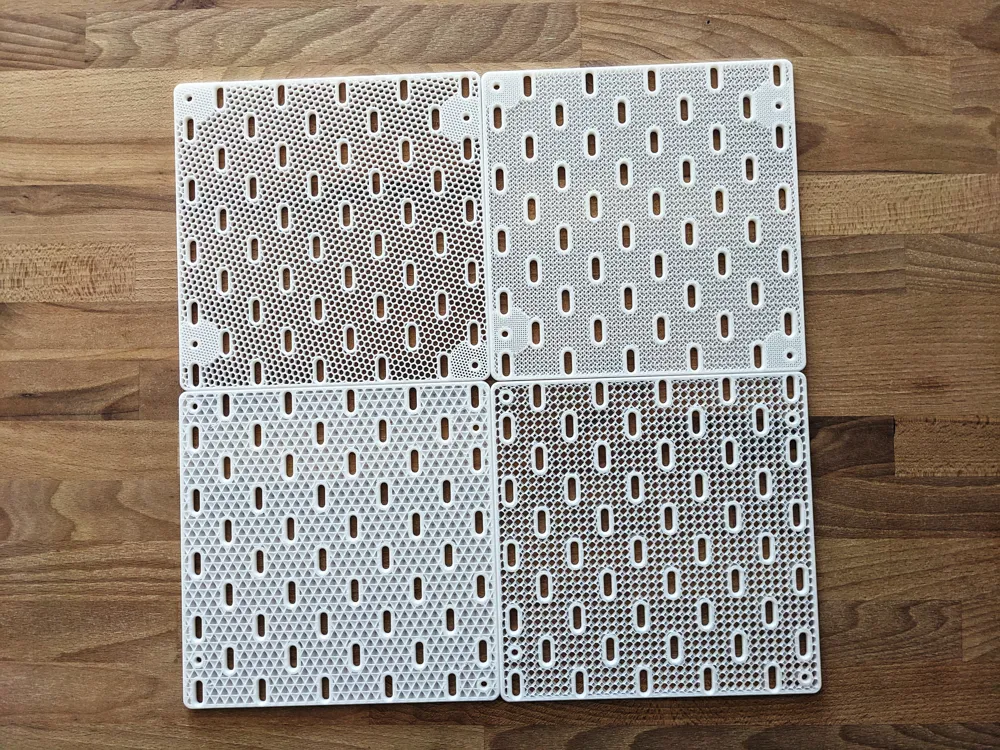

Panel size: 200x200x5mm. Nine mounting points for better stability. The infill pattern is fully visible from the front, so your choice of pattern (honeycomb, cross hatch, triangles) directly affects the look of the board. Cubic infill cuts print time almost in half compared to honeycomb. A print profile for it is included.

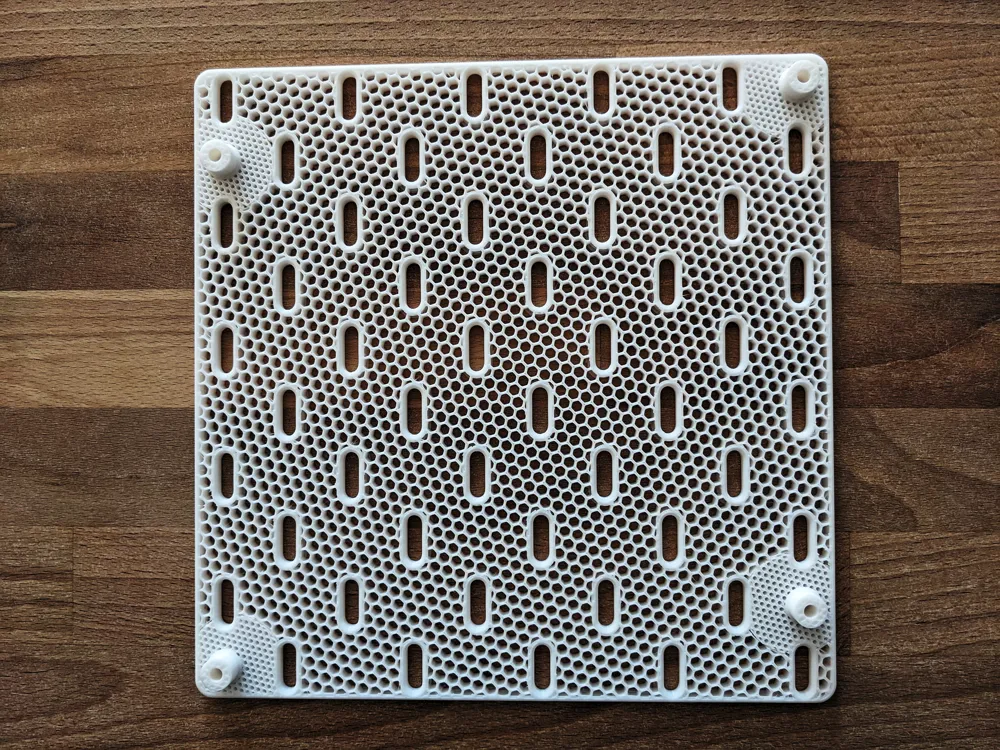

Five panel variants available: basic version with 4 holed standoffs, with four standoffs and four additional standoffs for heavier load, with four screw holes (no standoffs), without holes and without standoffs, and 8 holed standoffs.

For easy alignment just check: Infinite skadis Alignment Tool

If you want to reduce number of wall holes check: Lightweight Infinite Skadis Multi Panel Mount

Want to mount your panel without drilling? Check out the Lightweight Infinite Skadis Wall Mount - No Screws

New to Lightweight Infinite Skadis? Start here:

Model	For
Lightweight Infinite Skadis Board 320x320mm	H2S+
Lightweight Infinite Skadis Board 280x280mm	H2D+
Lightweight Infinite Skadis Board 240x240mm	A1/P1/X1
Lightweight Infinite Skadis Board 200x200mm	A1+
Lightweight Infinite Skadis Board 160x160mm	A1 Mini

Customization

For Bambu Studio, check the Strength tab, under Sparse infill:

Sparse infill density controls how dense the grid is.
Sparse infill pattern allows you to choose the visual style (e.g., honeycomb, cross hatch, triangles).

Update 12/04/2026: Updated cubic print profile. Added four panel variants (5 in total):

basic version - 4 holed standoffs (old)
with four standoffs + four additional standoffs for heavier load
with four screw holes (no standoffs)
without holes and without standoffs
8 holed standoffs

Update 11/11/2025: Switching to cubic infill significantly reduces print time, almost by half compared to the default honeycomb pattern! A print profile using this infill has been added. Big thanks to @melvinkeoh for pointing it out!

Update 04/09/2025: The countersink section of the screw holes has been enlarged, ensuring a better fit for countersunk screws.

If you print it, please leave a make or rating. It helps a lot.

Boost Me (for free)

Hey! All my models are designed in the stolen hours between work, sleep, and pretending I'll go to bed early. Everything here is free - if something saved you a trip to the hardware store or just made your day a little easier, a boost is a great way to say thanks. Got questions, feedback, or a wild idea? Drop me a DM - I read everything, eventually. Thanks for stopping by!!

light weight pegboard

expandable wall panel

Comment & Rating (140)

@Dylanwadefilm

Thanks for your awesome designs!! love the lightweight models; really sleek & perfect for collectibles. :) Giving the desk standing one a try now.

The designer has replied

@zomb

Thanks a lot for the kind words. I’m really glad you like the lightweight models! Hope the desk-standing version works well for you. Ps. Nice collection! Ps2. I like the shelves, looks familiar... ;) ;) ;P

@roshiprints

Print Profile

0.2mm layer, 3 walls, 20% infill

came out great.

The profile uploader has replied

@zomb

Looks great, and happy that you like it ;) Thanks for the rating!

@imor3d

Boosted

I'm boosting it again because I loved the result and how it looks. I'm showing how it turned out. I still need to put another row below

The designer has replied

Show original

@zomb

Thank you for the boost and for sharing how it turned out. It already looks great, and I really like your poke-boxes (these are suped cool!). I’m sure the next row will make it even better.

(Edited)

@imor3d

Boosted

Replying to @zomb :

Gracias!

@Lilougiro

Print Profile

0.2mm layer, 3 walls, 20% infill

The profile uploader has replied

@zomb

Thanks for the feedback! I haven’t tried printing it in black filament yet, but seeing your photo really makes me want to give it a go 🙂

@Lilougiro

Replying to @zomb :

Actually, I printed 3 of it, will do a 4th one, each with different patterns. Don't know which pattern to choose last, feel free to recommend if you want me to test one :))

@Lilougiro

Replying to @zomb :

went for gyroïde but at 14% infill !

@ewjvg

Boosted

Made a wall that doesn't warp with the humidity around here like the default ikea skadis mdf wall plates. Made them with 18% infill. That has two benefits. its creates a nice pattern of see through holes and take it down to 64g. I think the pattern looks awesome with the black plate behind it. Awesome design. Thankyou for sharing.

The designer has replied

@zomb

That’s a fantastic application, and it makes total sense in a more humid environment. Using printed panels to avoid the MDF warping issue is a clever workaround. Thanks a lot for the kind words and for sharing your setup. Really glad the design is working so well for you. Ps. very nice tool collection ;)

@bmelton

Boosted

Great, perfect print. Lined my closet with Skadis using the connector pieces to minimize holes in the wall and those also worked great. The only hard part was that some of the holes have to be drilled blind, which isn't *that* bad except that drywall anchors are hard to get _perfectly_ centered, even with a small pilot hole, so if you're doing this from scratch my recommendation is to drill a small (e.g., 1.5mm) pilot hole -- if that pilot hole hits a stud, then sink a self-tapping m4 in there. If it hits a void, redrill the hole big enough to accommodate the anchor lead. That should help a lot with accuracy.

The designer has replied

@zomb

That’s great to hear. I’m glad the print turned out perfectly and that the connector pieces helped minimize wall holes. Thanks for sharing how you used it, much appreciated. Thank you for the boost, really appreciate it ;)

@imor3d

Boosted

Print Profile

Cubic infill, significantly reduced print time + variants

Very good design I have already made 15 and I still need some I am very happy with the result

The profile uploader has replied

Show original

@zomb

Great to hear that! Thanks for the support!

@chantych

Thank you very much. It printed perfectly. I made some joints so I wouldn't need to use 4 screws on each panel (but I'm also not going to hang anything too heavy). Here's the joints: https://makerworld.com/pt/models/2901905-joiners-for-lightweight-infinite-skadis-200x200mm --EDIT Oh and i've made it with my own patterns of fill (DONT DO THAT) it became very weak. I'll reprint with creator's profile :)

(Edited)

@LuizYK

Boosted

I really liked it, very useful and well made, congratulations

Show original

@user_8767810

im struggling to find connectors that would allow me to connect a few panels of this kind to each other , can anyone recommend connectors that would work with this design?

The designer has replied

@zomb

Hello, are you looking for smtn like this green thing in the middle on first photo? https://makerworld.com/en/models/1809267-lightweight-infinite-desktop-skadis-wall#profileId-1929934

(Edited)

@user_8767810

Replying to @zomb :

yes ive been looking for similar designs that would work with your version, so the link you provided will fit?

@zomb

Replying to @user_8767810 :

Yes It should fit, bad news is that the model has only diagonal version. If you like i can prepare horizontal & vertical variant, but it might take some time.
