Lillygo T-CAN485 case with Din mount
Print Profile(0)
Description

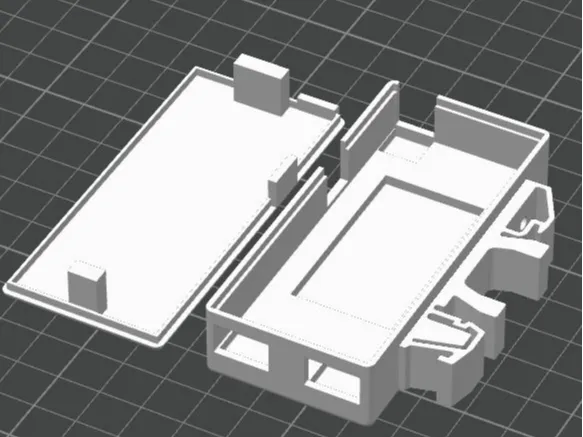

Small case for the LilyGO T-CAN485 ESP32 board that can be mounted on a DIN rail. Top held on by press-fit, bottom can be mounted to something using double-sided tape (don't print on a textured bed if you plan on doing that).
Be aware that for CAN and RS485 the DC-DC converter on this board has to be enabled and that the RS485 part of this board is kinda flaky, so it might be necessary to mod the PCB (remove termination / decrease bias resistors / change transceiver) before RS485 works properly:
This remix is based on
