Magnetic Stirrer
Print Profile(1)

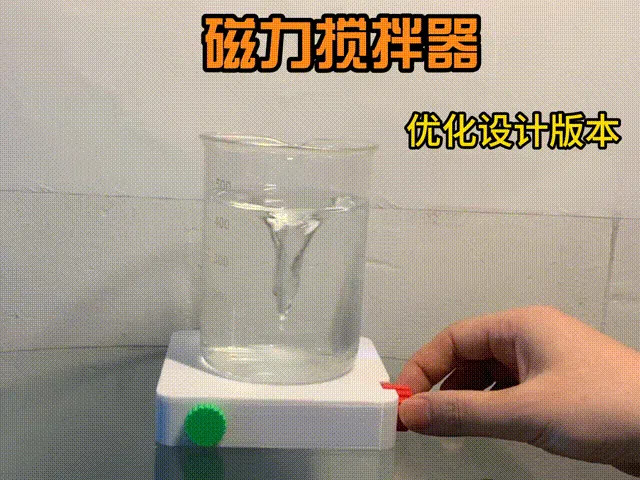

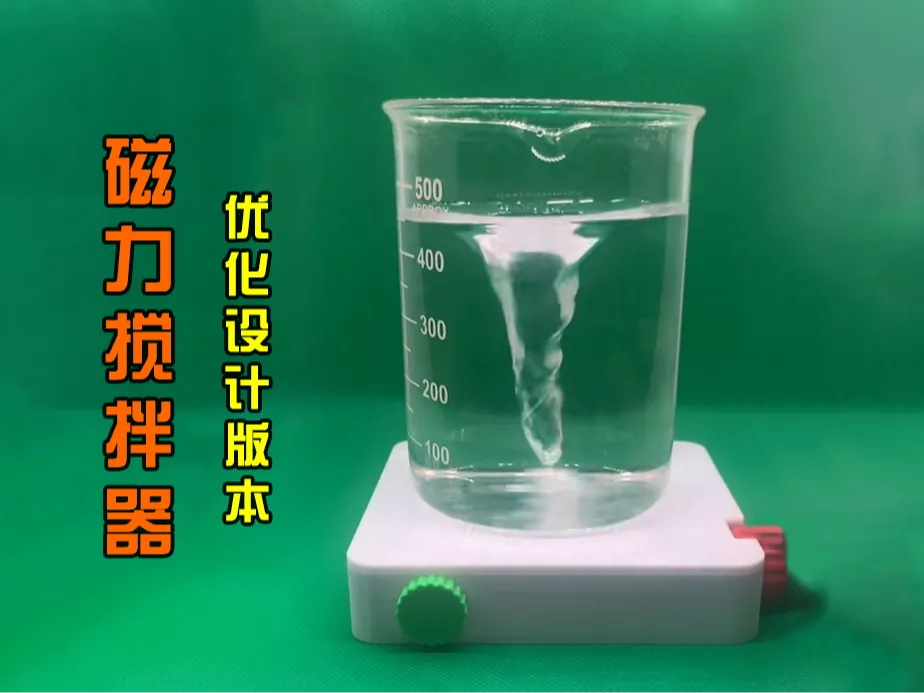

Description
Can achieve rapid mixing and stirring of liquids

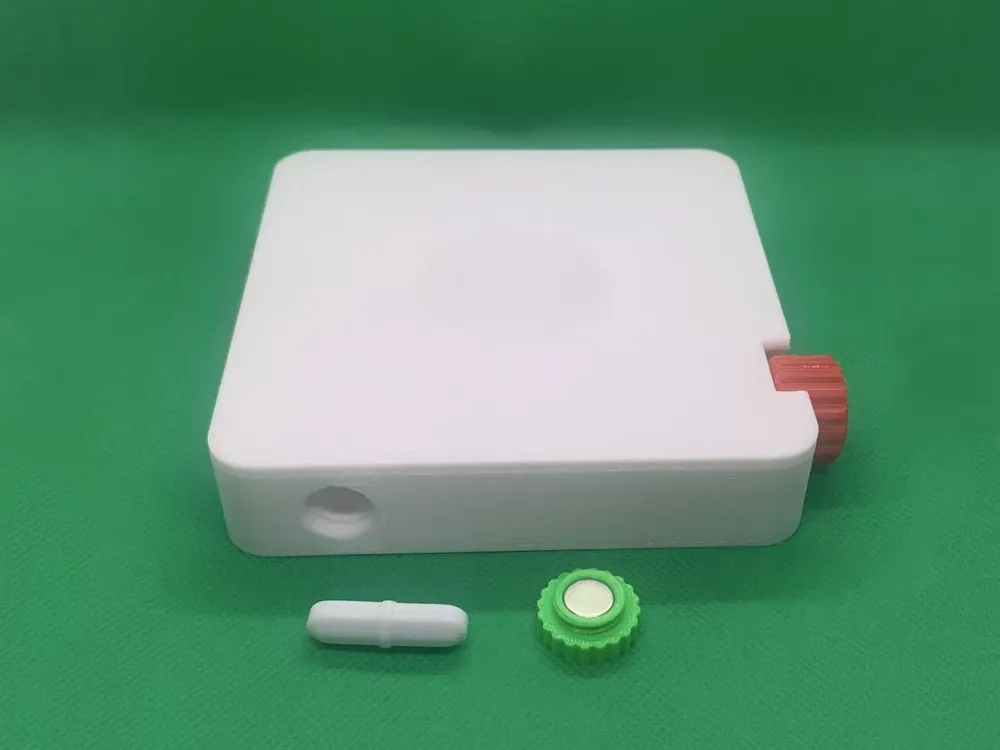

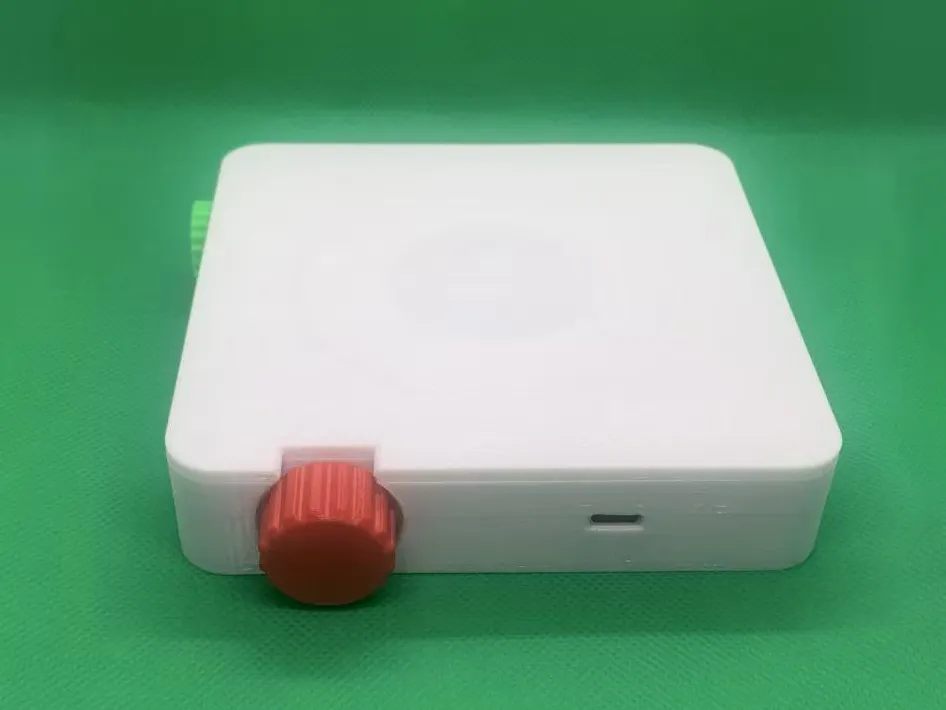

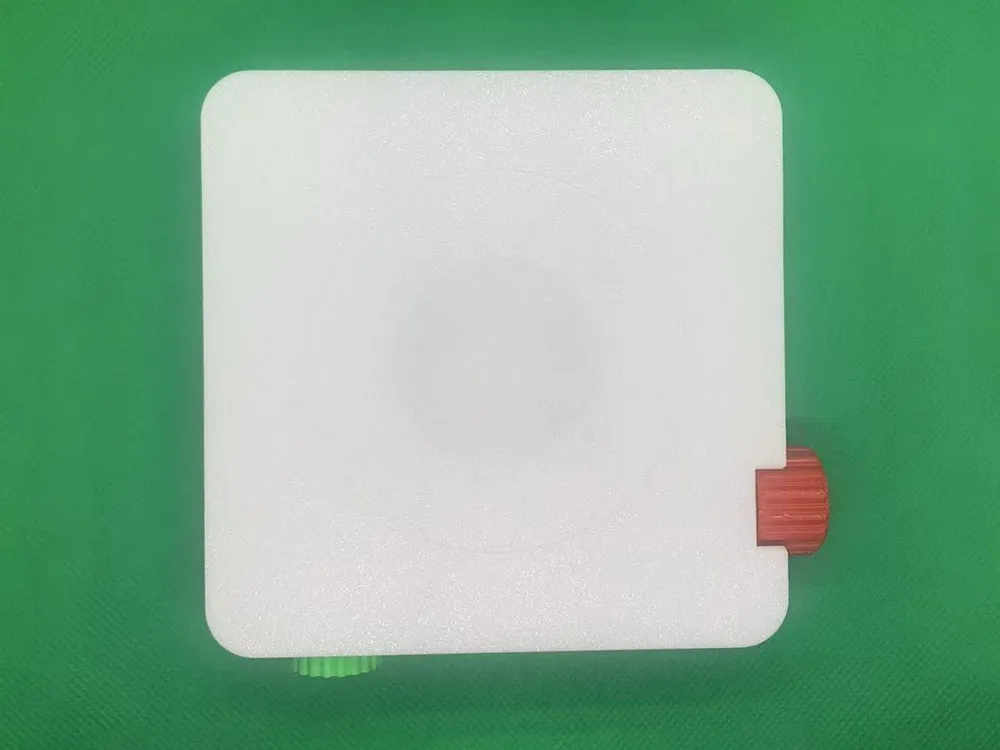

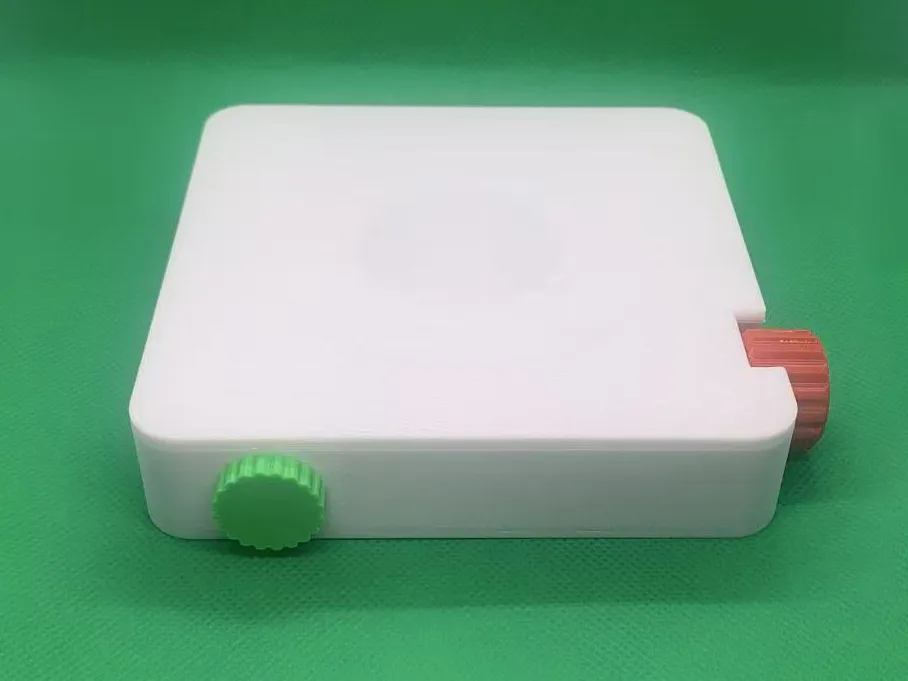

Platform size: 120*120*25mm
Design motivation: I wanted a magnetic stirrer to mix sugar into coffee After searching various model websites I found many different types of magnetic stirrers each with pros and cons So I combined the advantages of various designs to create this magnetic stirrer
Bill of materials:

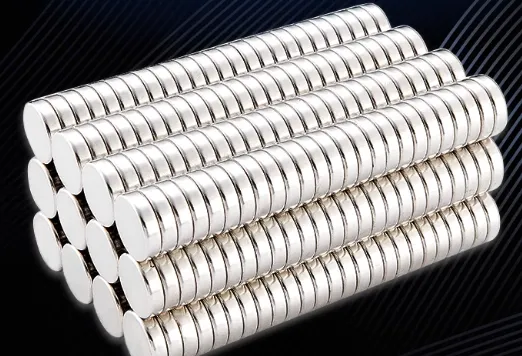

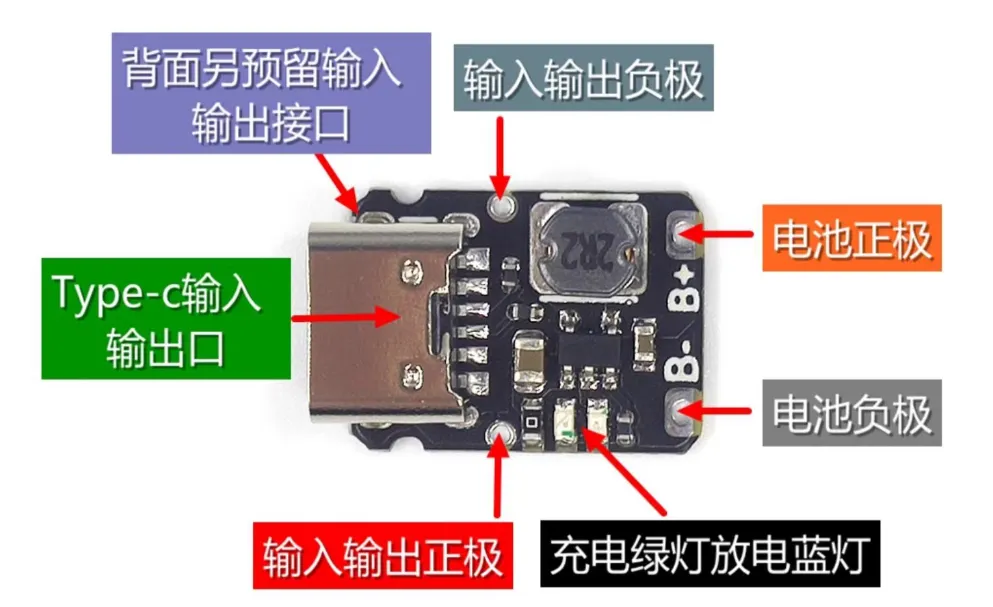

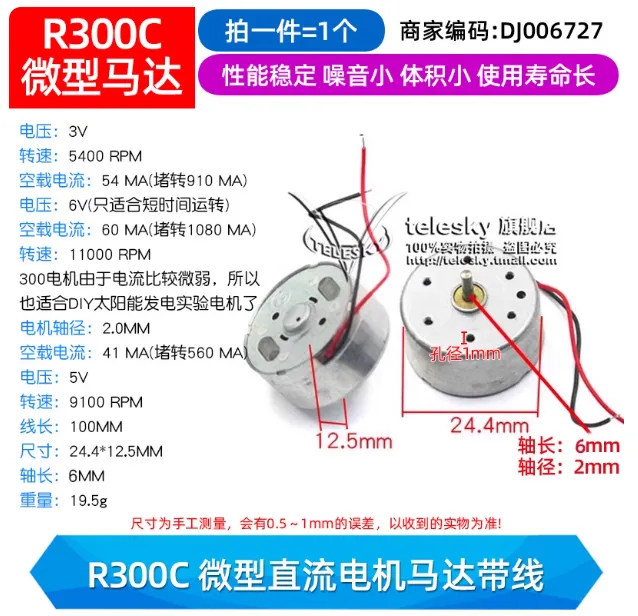

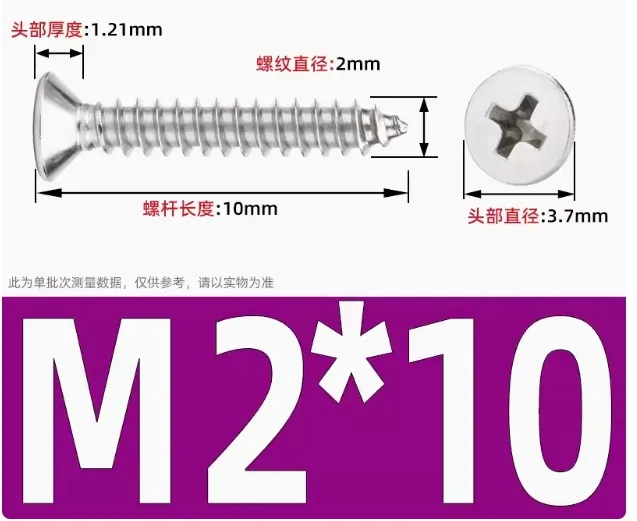

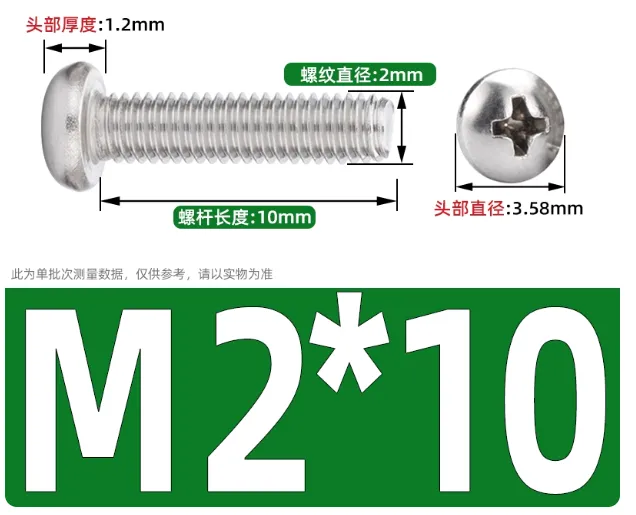

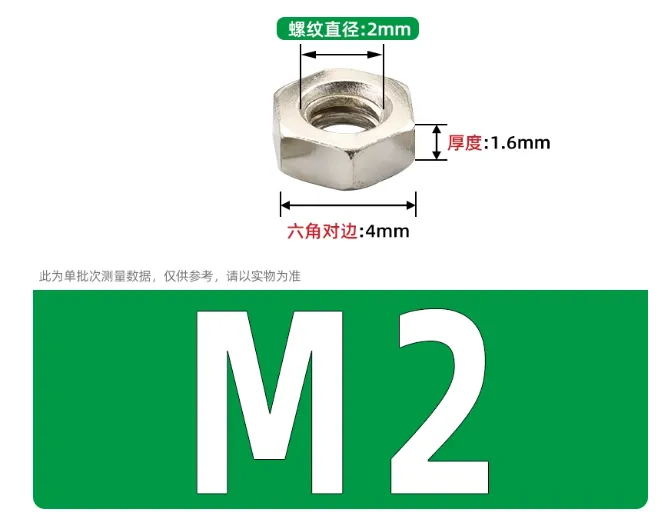

No | Name (Reference Link) | Quantity | Reference Picture |
1 | 1 |  | |

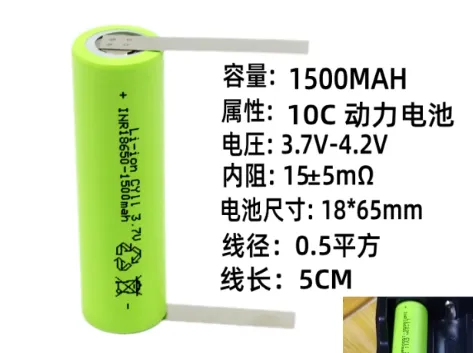

2 | 18650 lithium battery with solder tabs (without protection board) | 1 |  |
3 | 1 |  | |
4 | 1 |  | |
5 | 1 |  | |
6 | 3 |  | |
7 | 5 |  | |
8 | 3 |  | |
9 | 3 |  | |
10 | Connecting wires | Several |
|

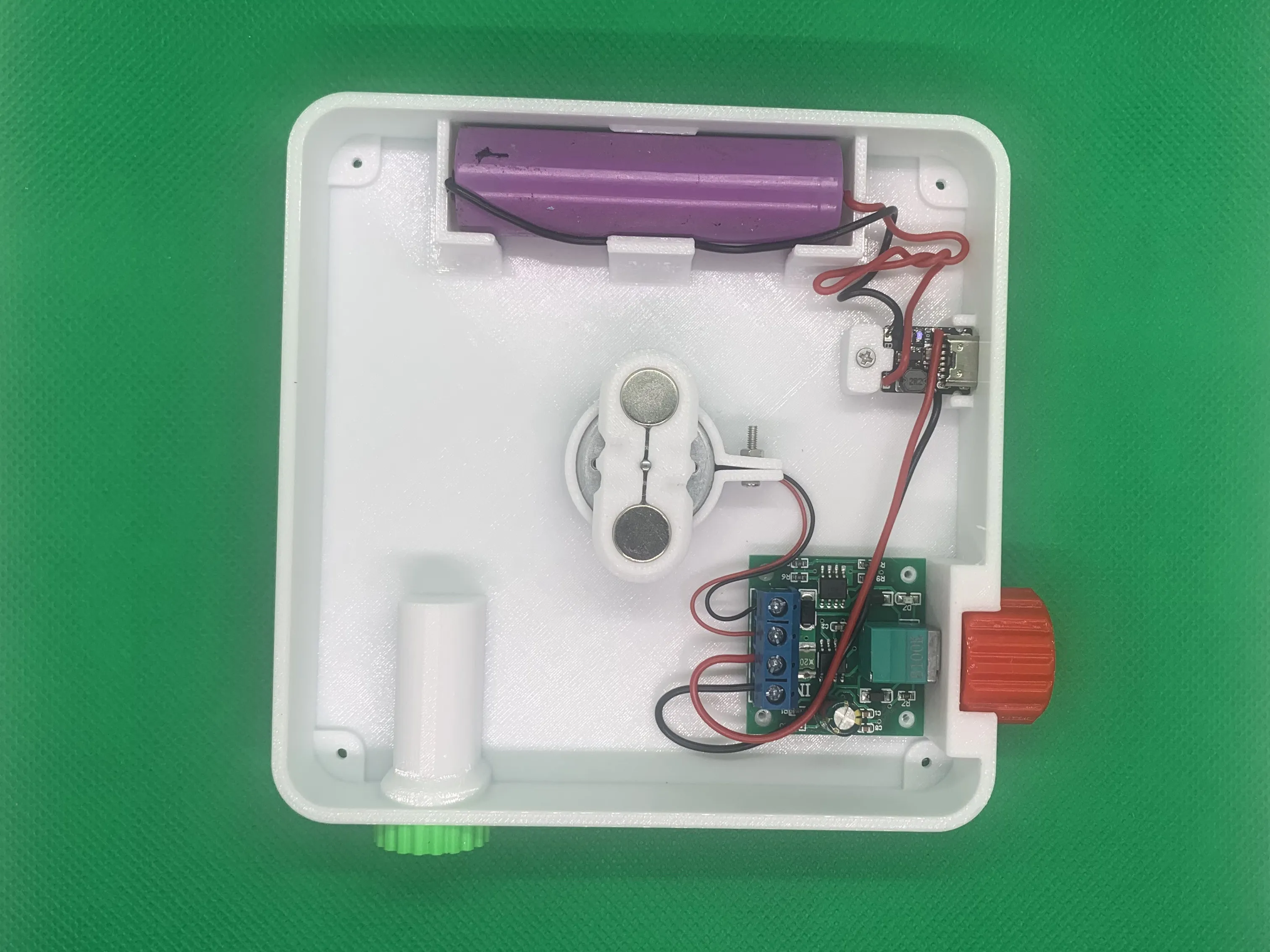

Wiring and installation are shown in the figure below

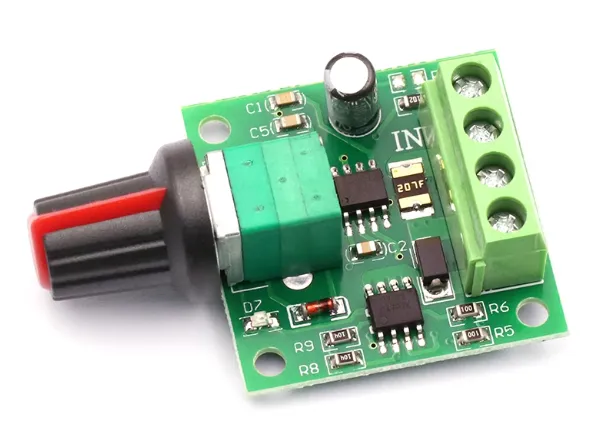

Installation instructions: The PWM DC motor speed controller does not require screws for installation; it can be installed with its own nuts and washers The entire installation generally does not require glue, relying on snaps and screws for fixation When routing wires, ensure they do not interfere with the top cover

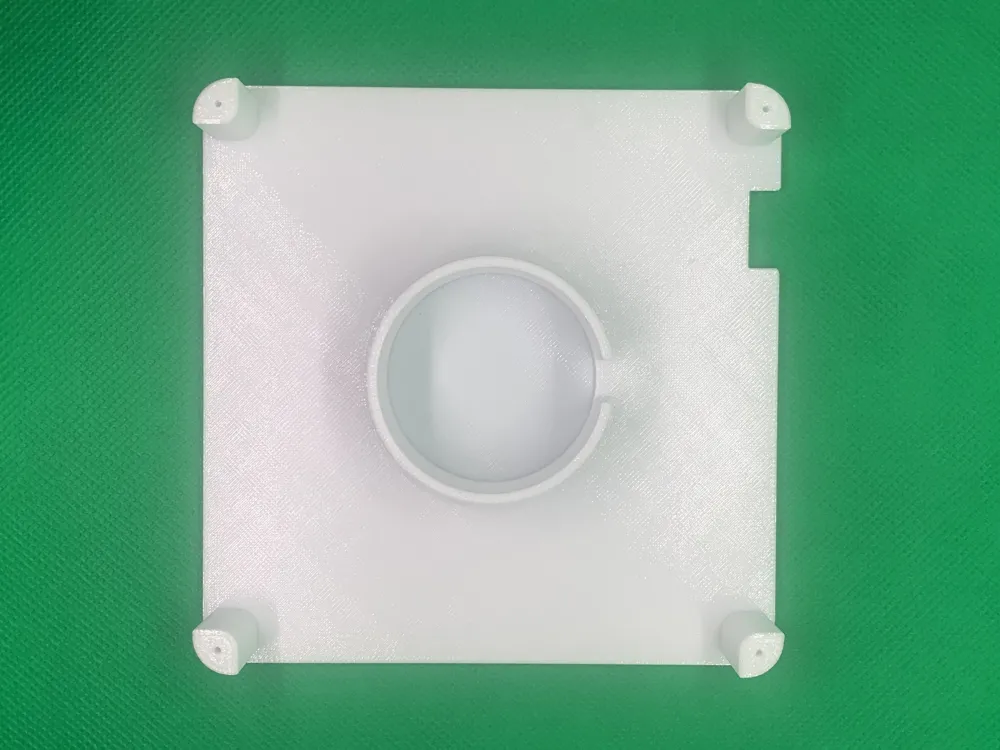

PS: The top cover has special reinforcement around the central rotor area so that the platform can hold heavy objects without the top cover deforming or interfering with the rotor It is recommended to use PETG for printing so that hot water can also be stirred without issues
