Vetical Windmill / Mounted with ball bearings
Print Profile(2)
Bill of Materials
Description

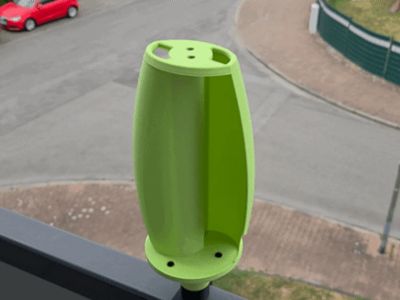

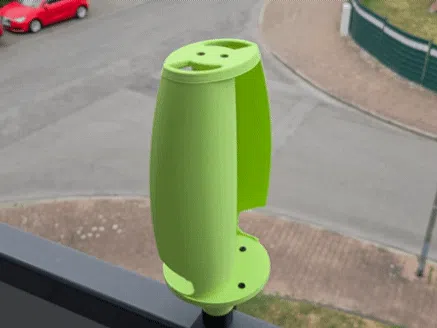

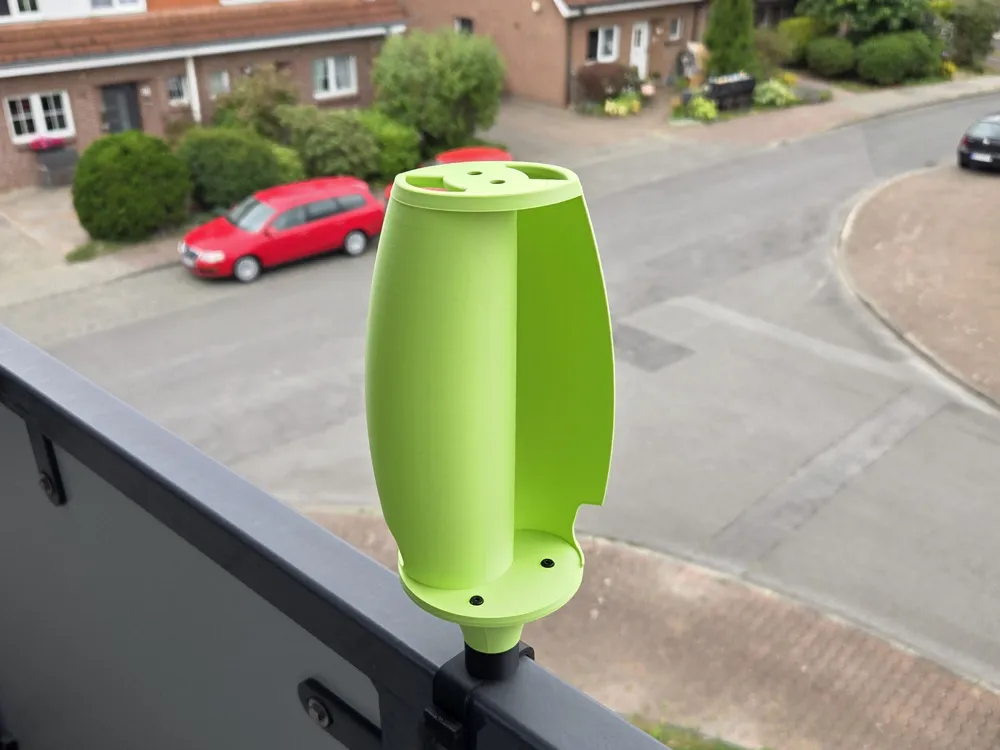

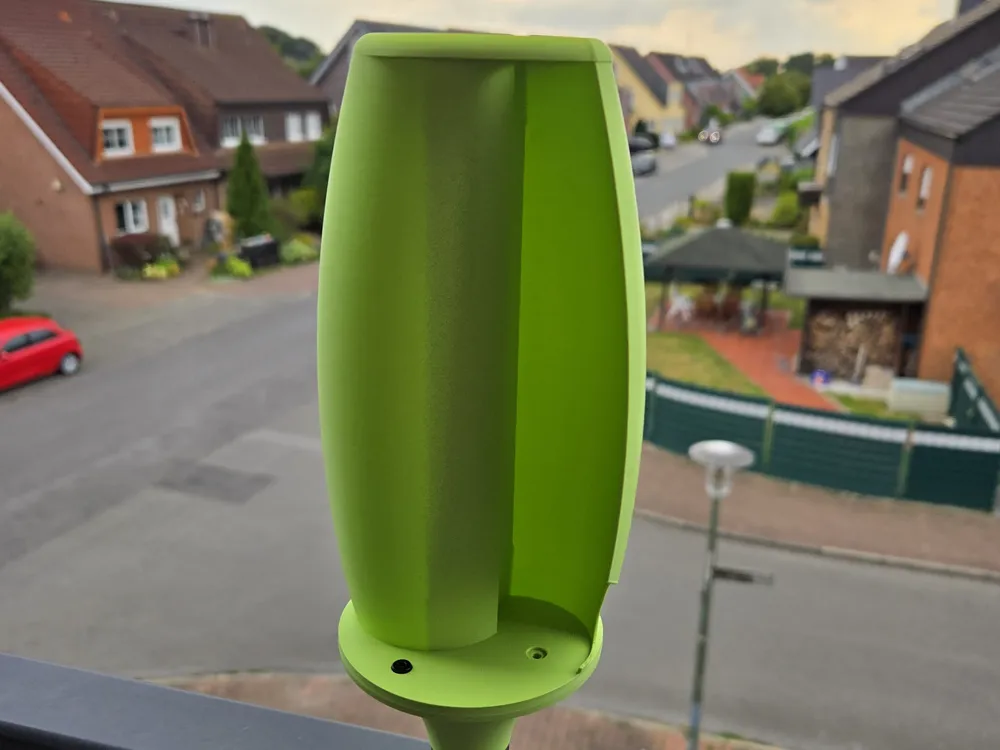

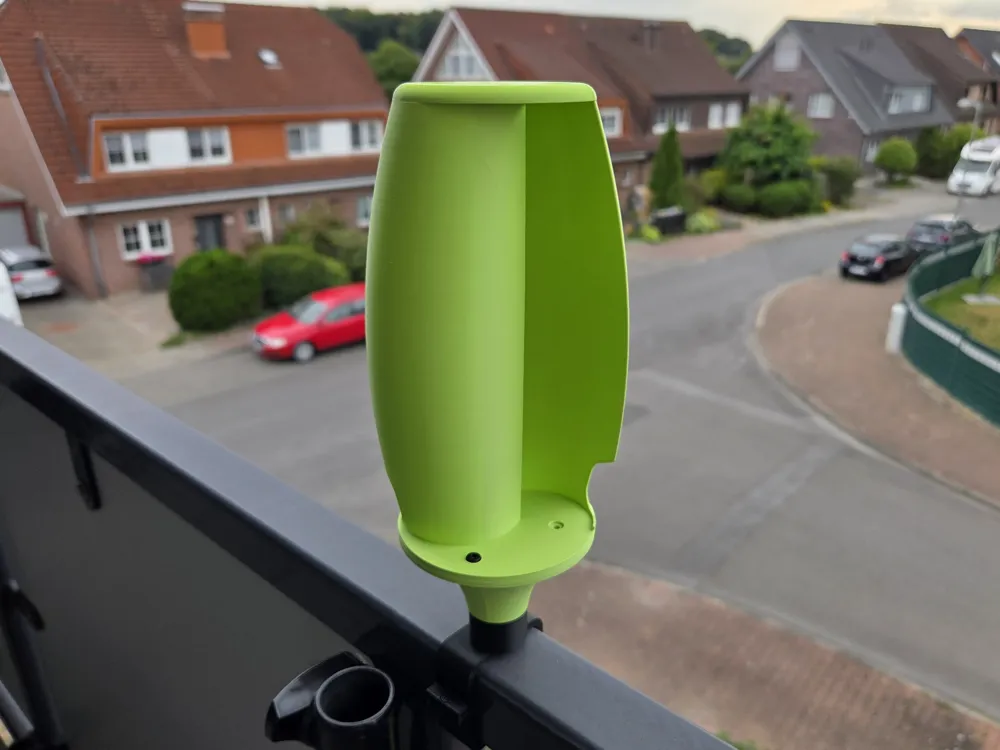

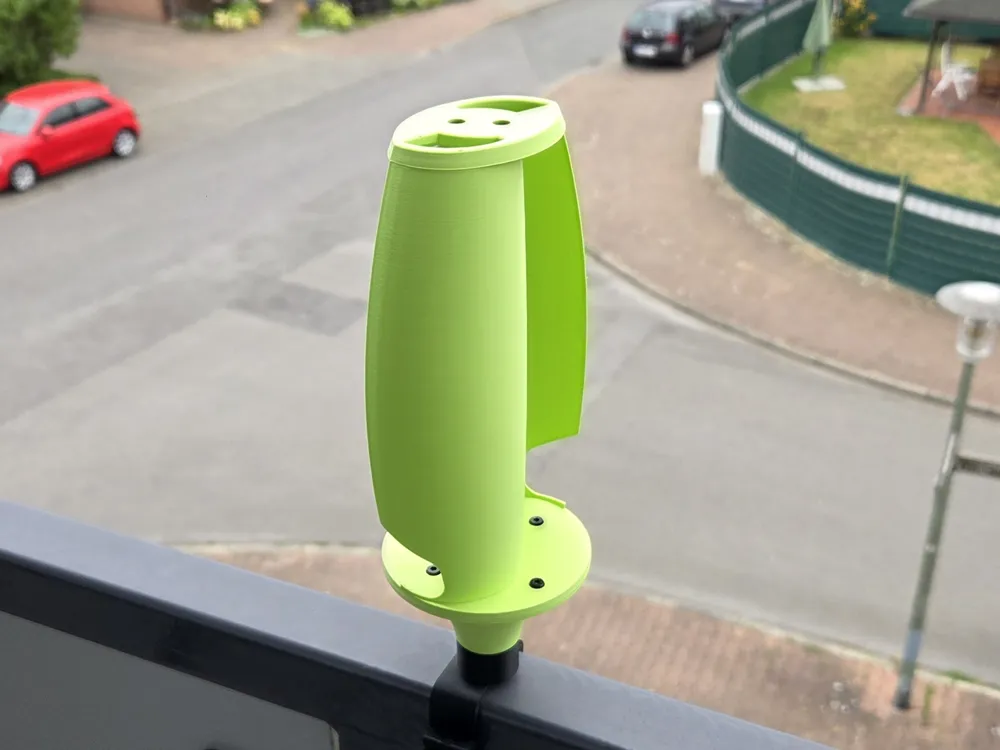

Vertical Windmill
(Vetical Axis Wind Turbine - VAWT)
(Easy print and easy build)
Here you can find all my → Windmills
🖨️ 3D Printed Parts
Part 1 – Turbine Body

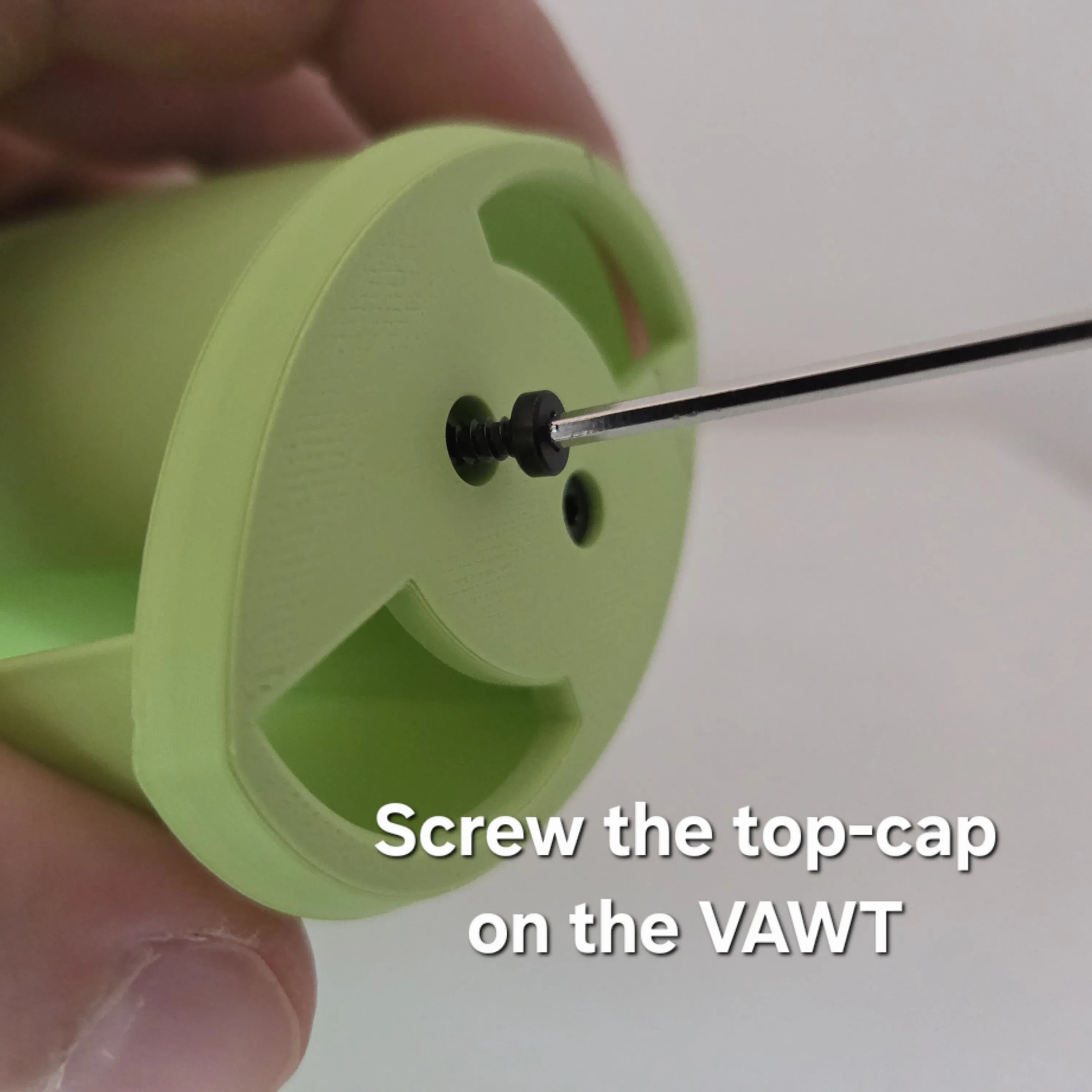

Part 2 – Cap
Part 3 – Mount (for 10 mm Rod)
Part 4 – Stand
(optional) Part 5 – Stators
🧩 Non-printed Components
6× 3×8 mm SHCS self-tapping screws

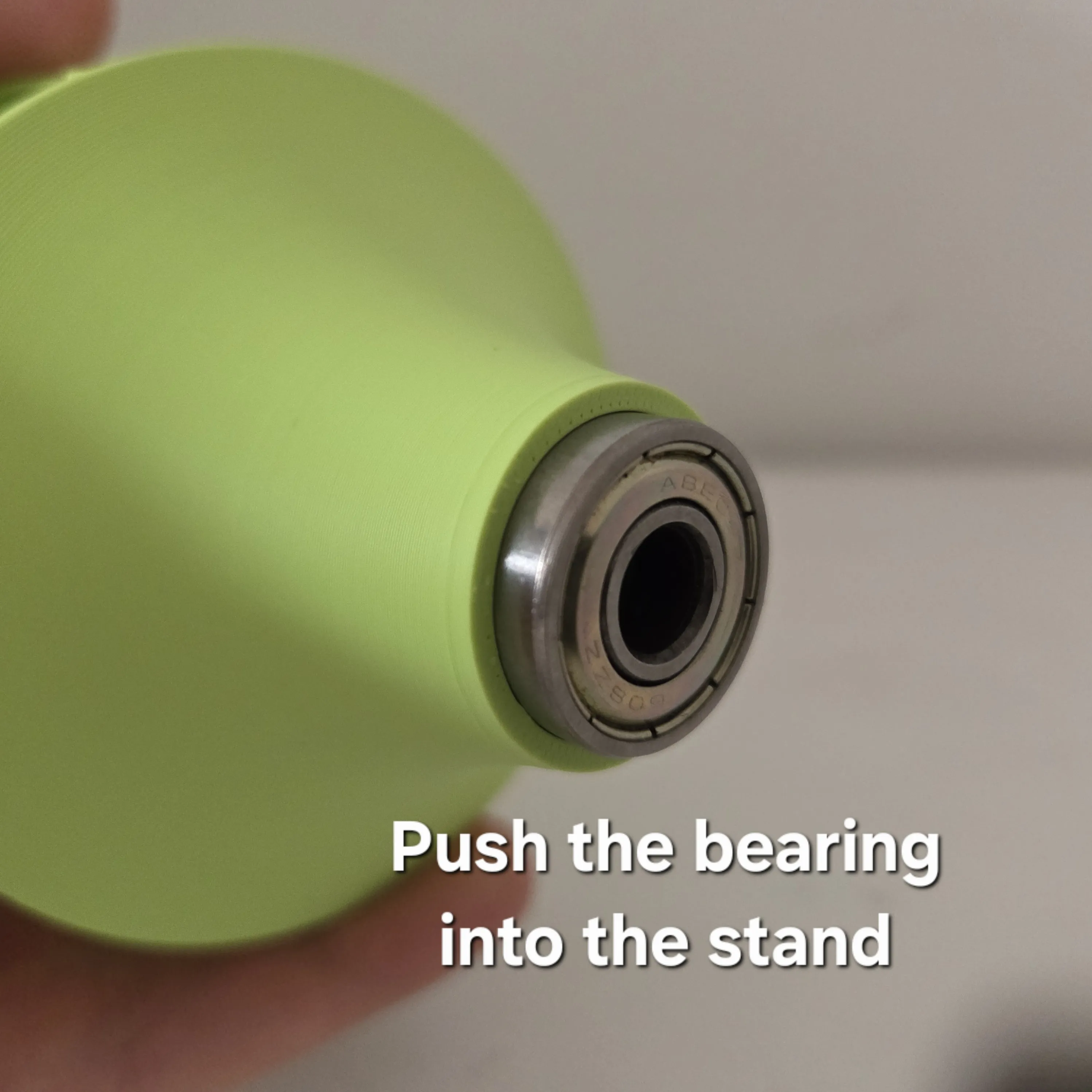

1x 608 ball bearing (8 mm inner diameter × 22 mm outer diameter × 7 mm height)
🛠️ Required Tools

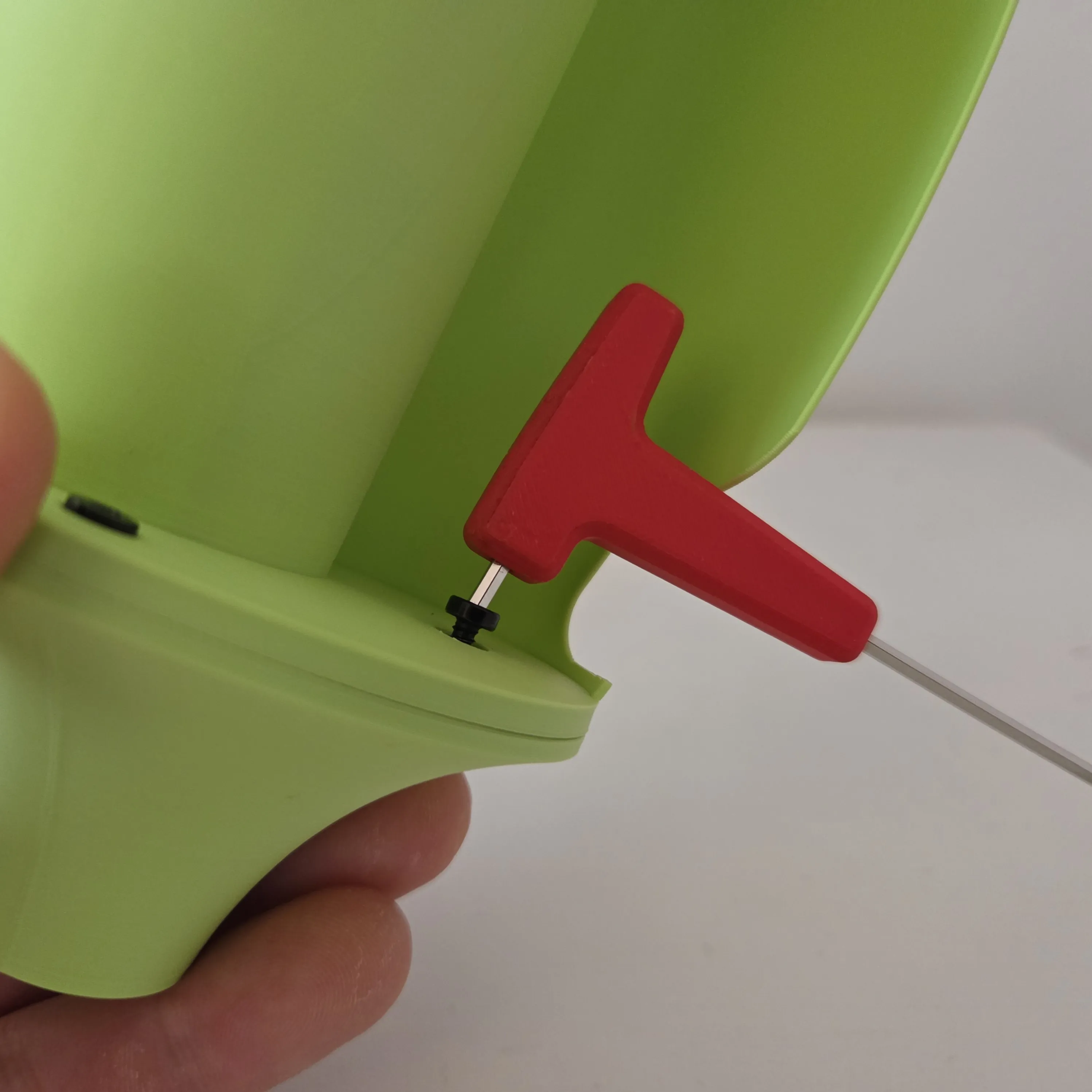

Large Allen wrench (included in the Bambu Lab tool kit)

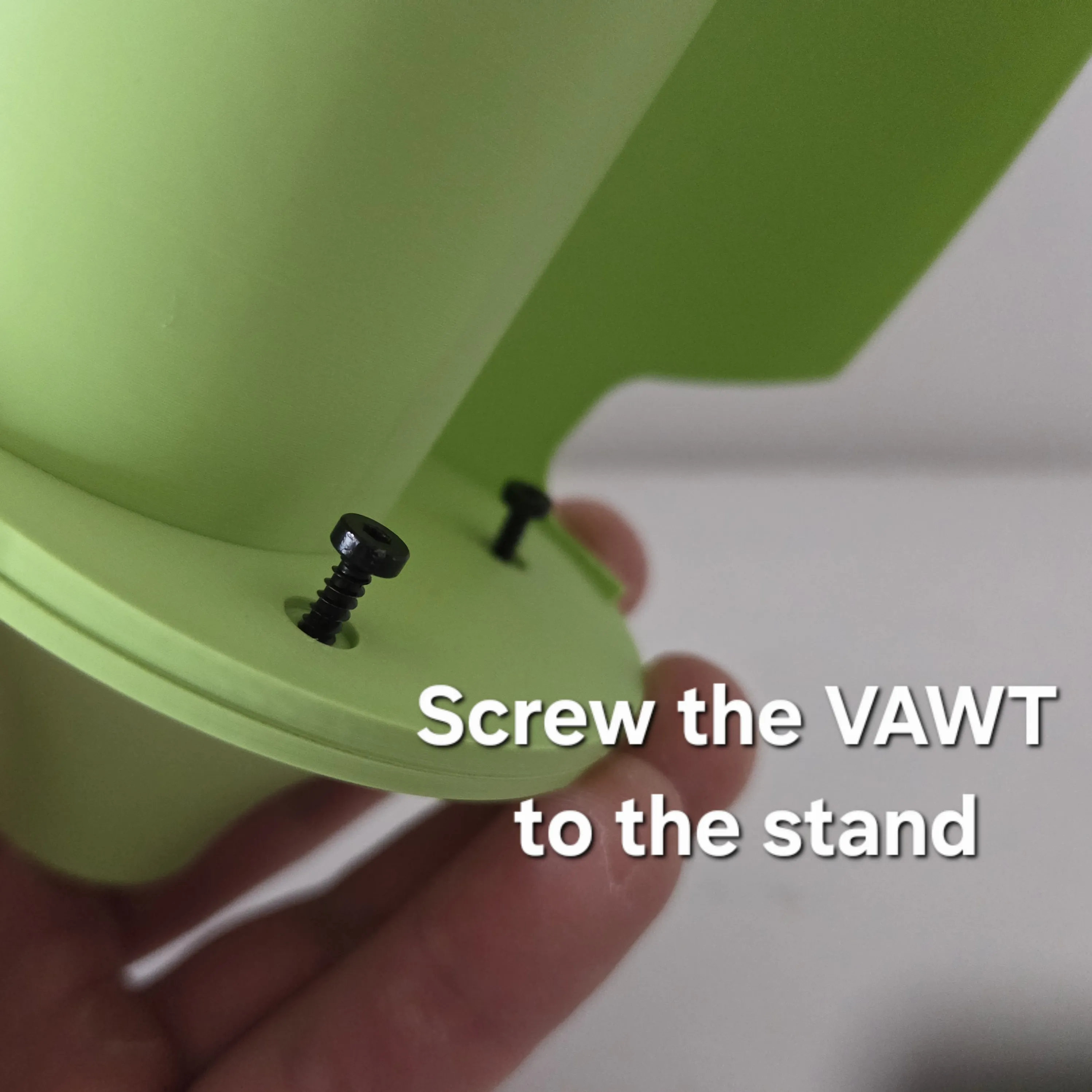

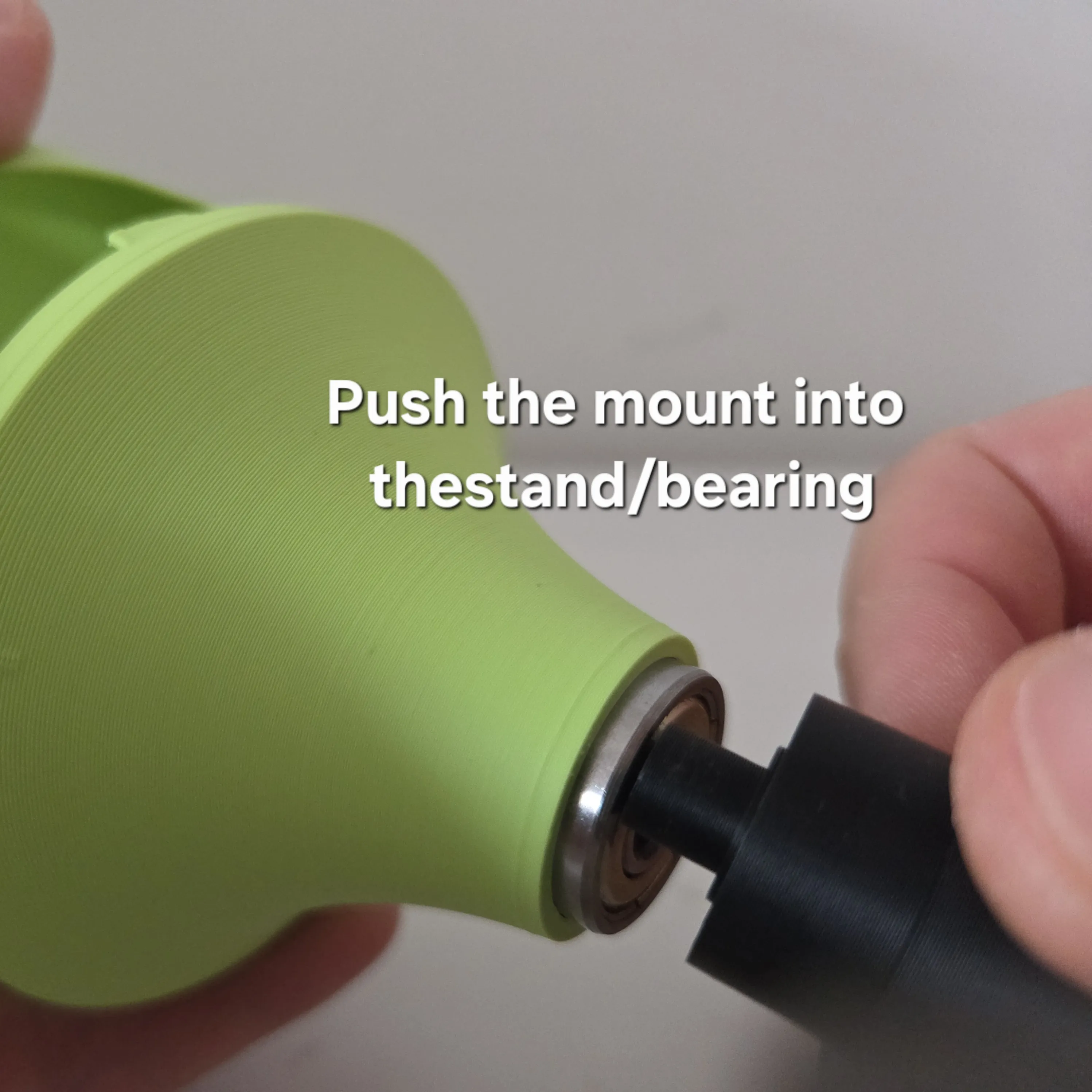

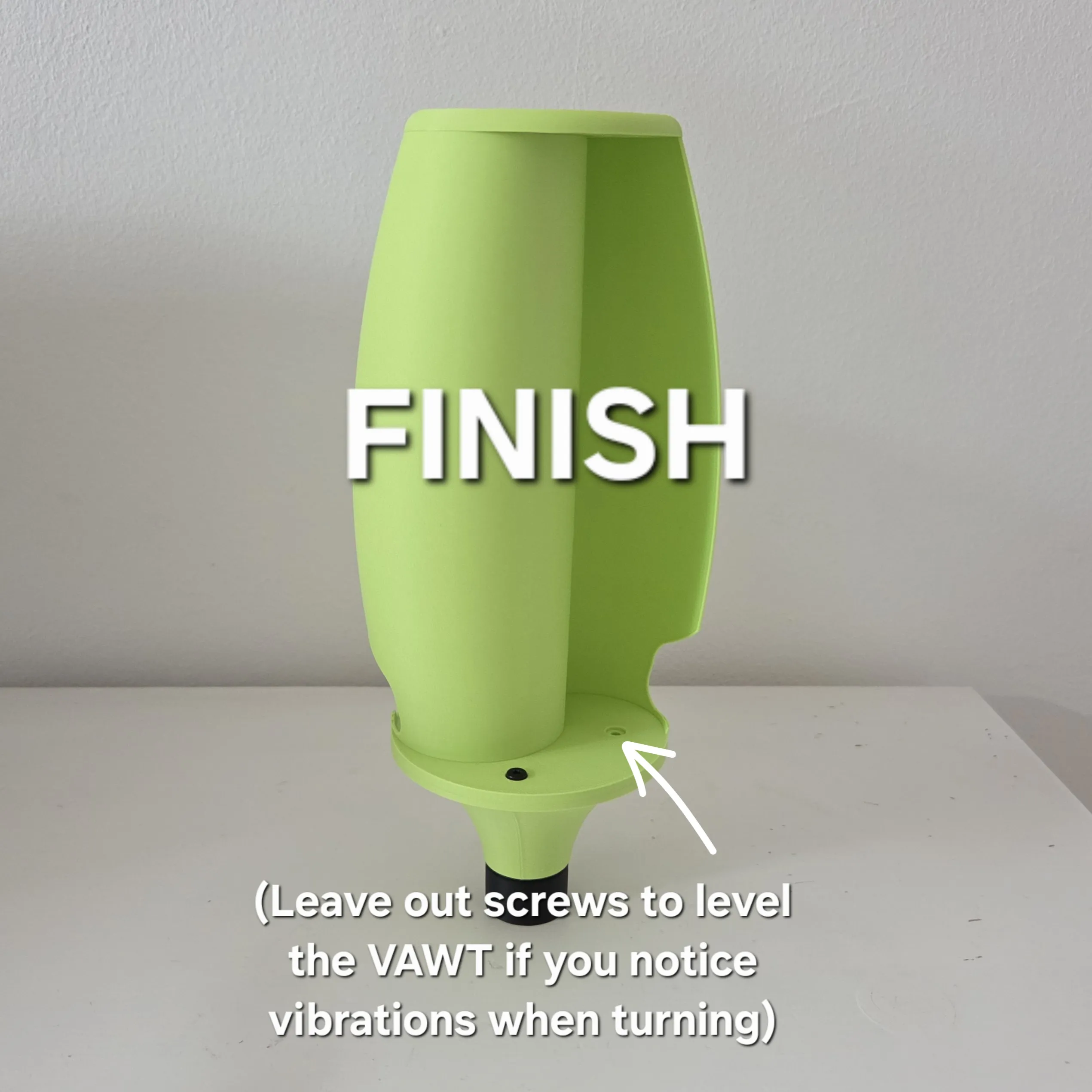

Assembly instructions:

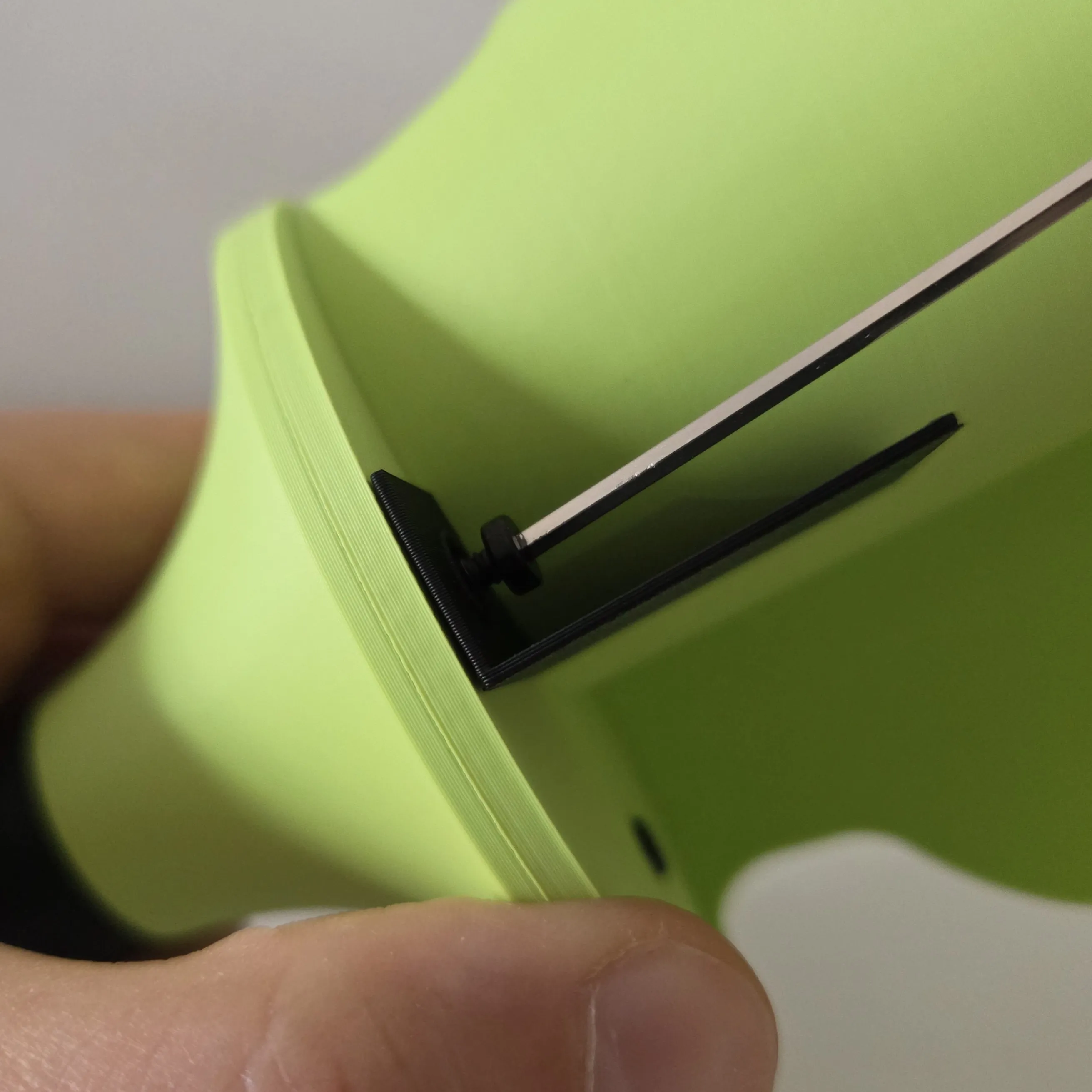

-optional: If you have problems with less wind, print the stators on print plate 2
