Cangye 1250mm focusing tube baffling section + perforated light shield

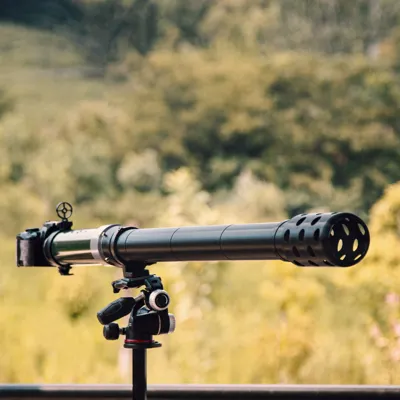

This is a customized accessory for Cangye 1250, used to reduce glare and enhance image quality

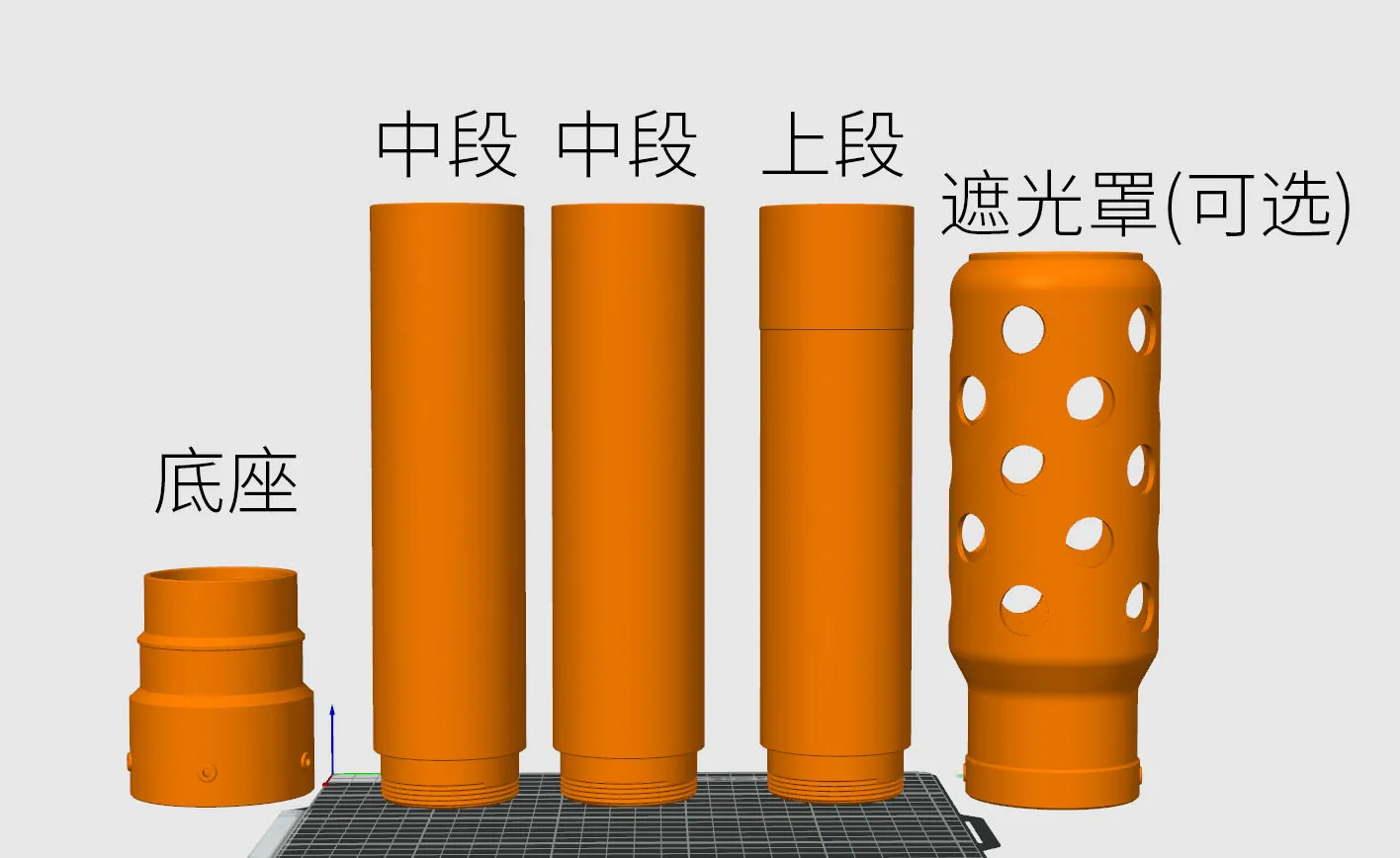

Please note that the 'middle section' part needs to be printed twice, while other parts only need to be printed once

Installation should be very simple, requiring no extensive instructions, just refer to the appearance diagram and screw them together

Please note that you will need to prepare at least 7 flat-head screws of M4*6mm specification (also compatible with M4*5) from a hardware store to secure some parts

【If you cannot find screws of the above specifications (unlikely), you can also fix them with super glue】

*****Printing Suggestions*****

Although we printed with PLA, PLA has the issue of softening at high temperatures. It is recommended that you use more heat-resistant materials such as ABS or PETG when printing yourself

100% infill is recommended, unless you are very confident in your filament's strength

*****Notes*****

You will print a total of 5 parts (If the perforated glare shield is not needed, you can remove it, then it will be 4)

Total filament consumption is 695g, which is basically more than half a filament spool

If your printer does not support resume printing or you are not confident in this feature, try to ensure using a brand new 1KG filament spool for this task
