Build Plate QR Code Alignment Jig
Print Profile(3)
Bill of Materials
Description
This set of alignment jigs was created to help Bambu Lab X1 users accurately position and apply replacement QR code stickers on the 256×256 build plates.

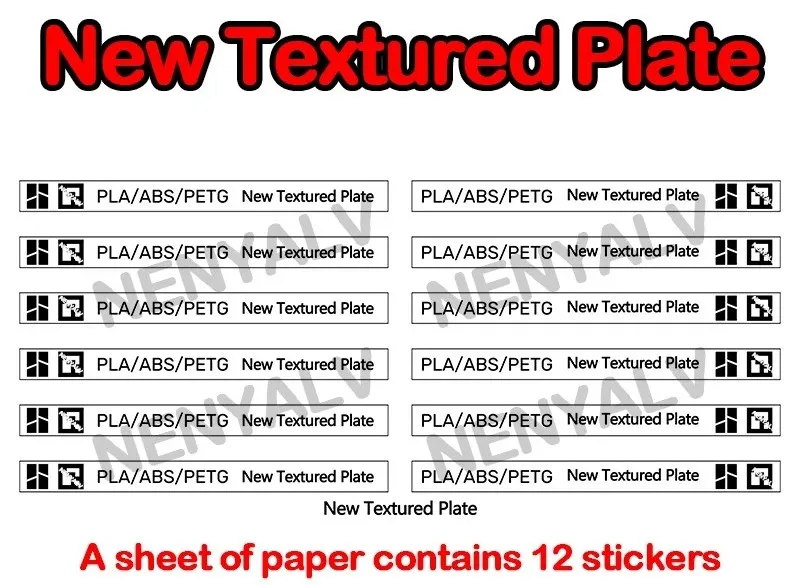

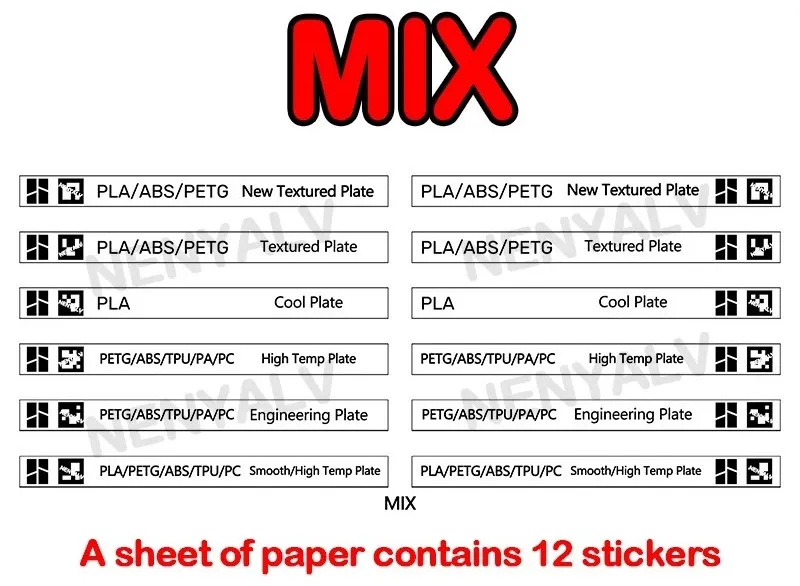

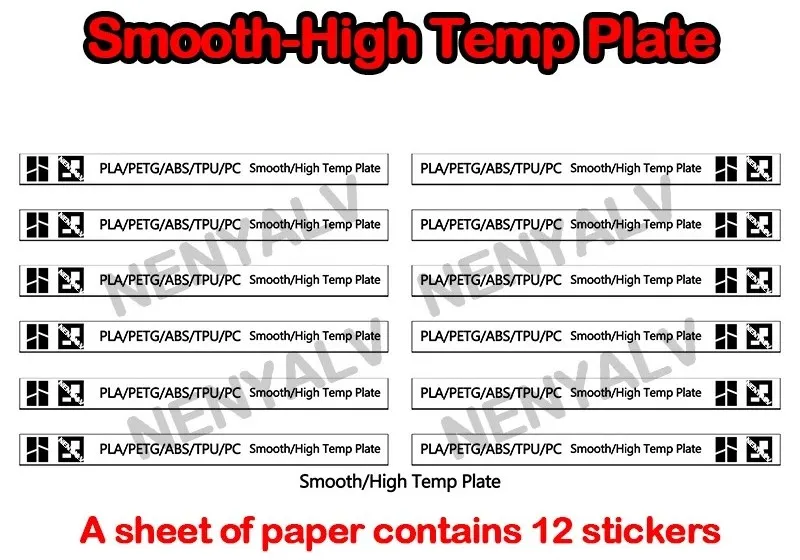

The jigs were specifically designed for third-party replacement stickers such as those available on AliExpress (product link), supplied in sheets of 12, identified as Replacement QR code Sticker for Bambu Lab X1C Third Party Build Plates.
|  |  |

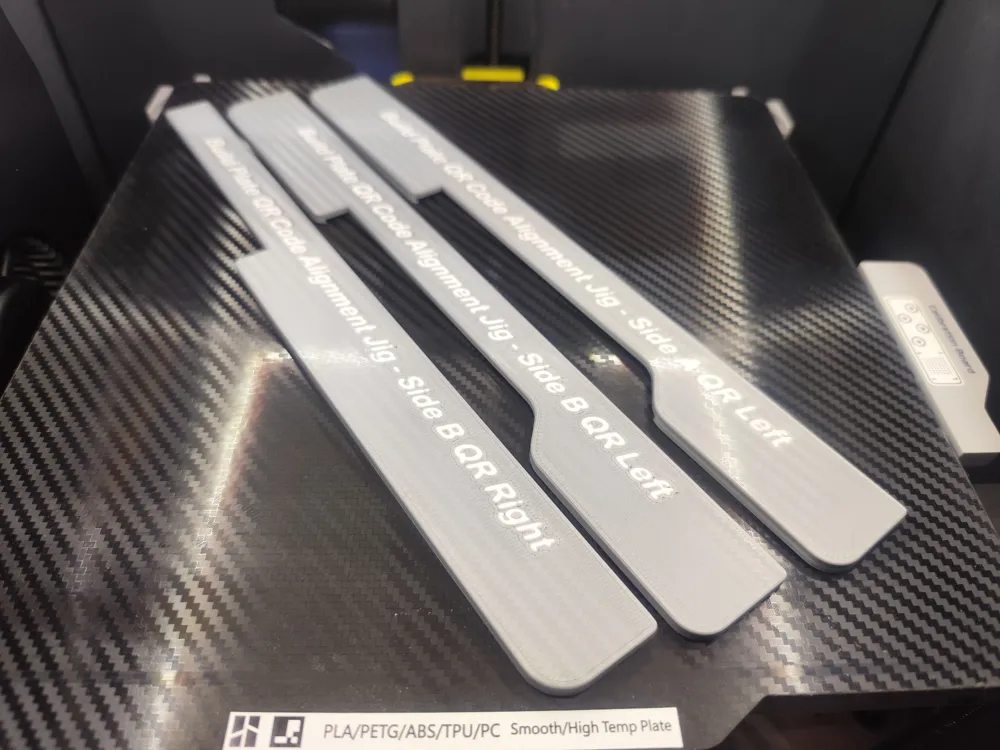

Three dedicated jigs are included, each adapted to the correct plate side and QR code position:

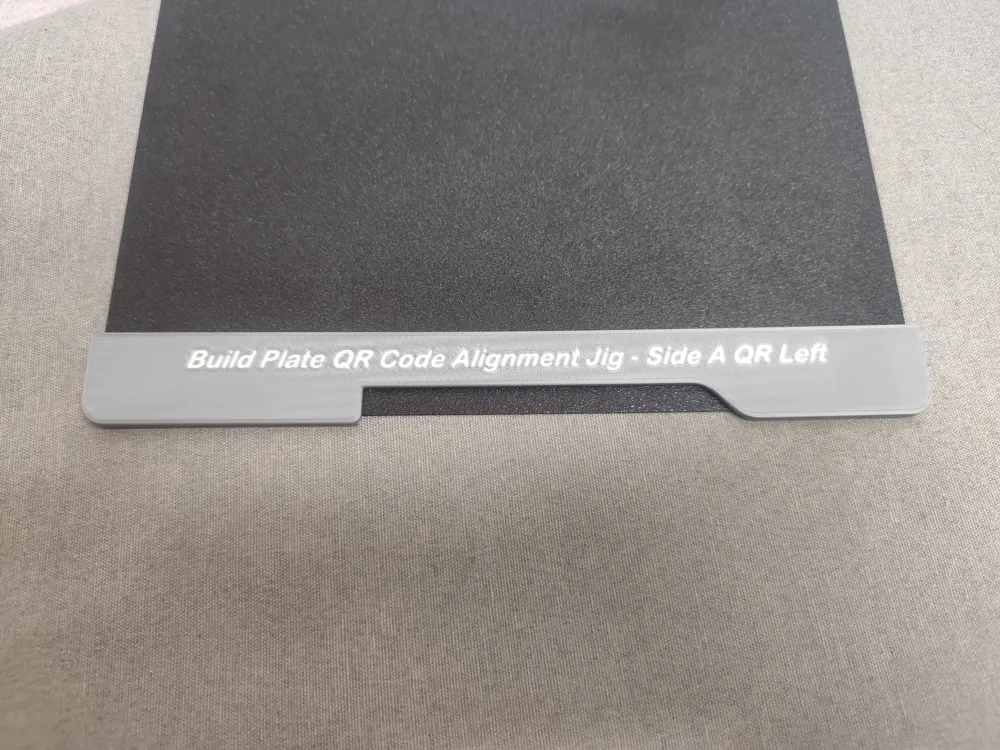

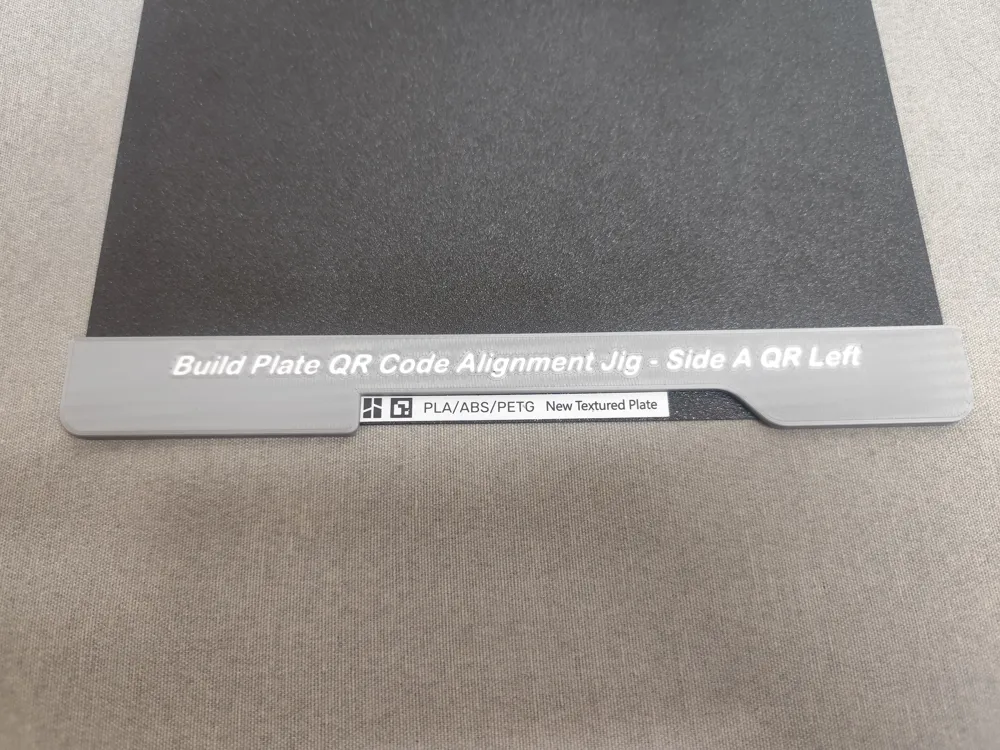

- BP-QR-Jig_SideA_QR-Right_R01 → for applying stickers with the QR code on the left side of plate A
- BP-QR-Jig_SideB_QR-Right_R01 → for applying stickers with the QR code on the left side of plate B
- BP-QR-Jig_SideB_QR-Left_R01 → for applying stickers with the QR code on the right side of plate B

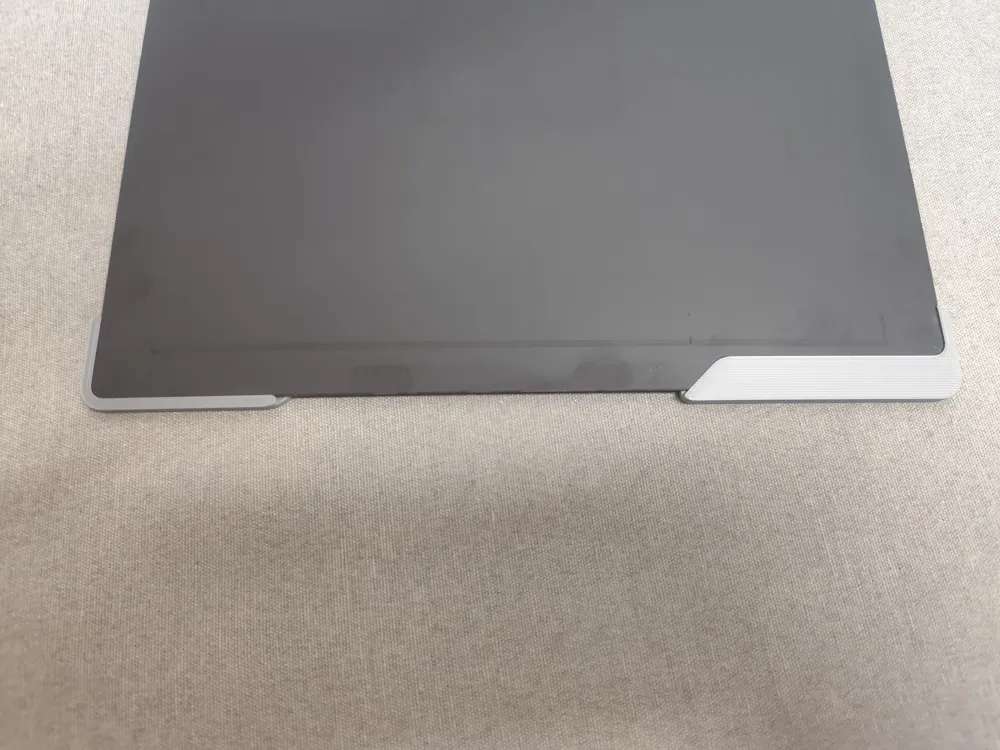

Each jig is designed to fit precisely onto the 256×256 mm build plates and includes slots for four 8×2 mm neodymium magnets, ensuring a secure hold during sticker alignment (as shown in the attached images).
