Description
Finally, the carburetor gets more air! The best alternative to products from expensive manufacturer-XY.

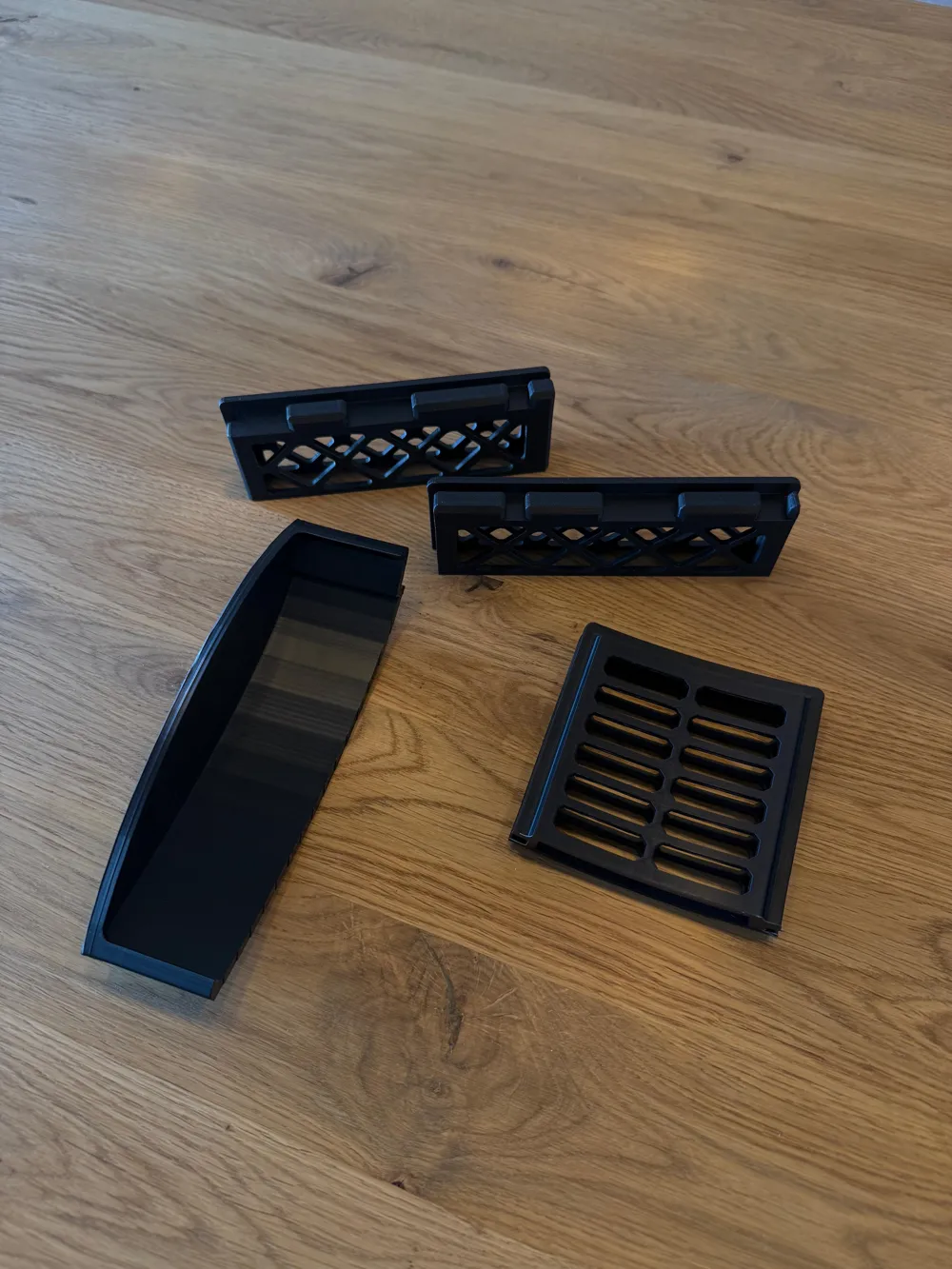

This file includes the following:

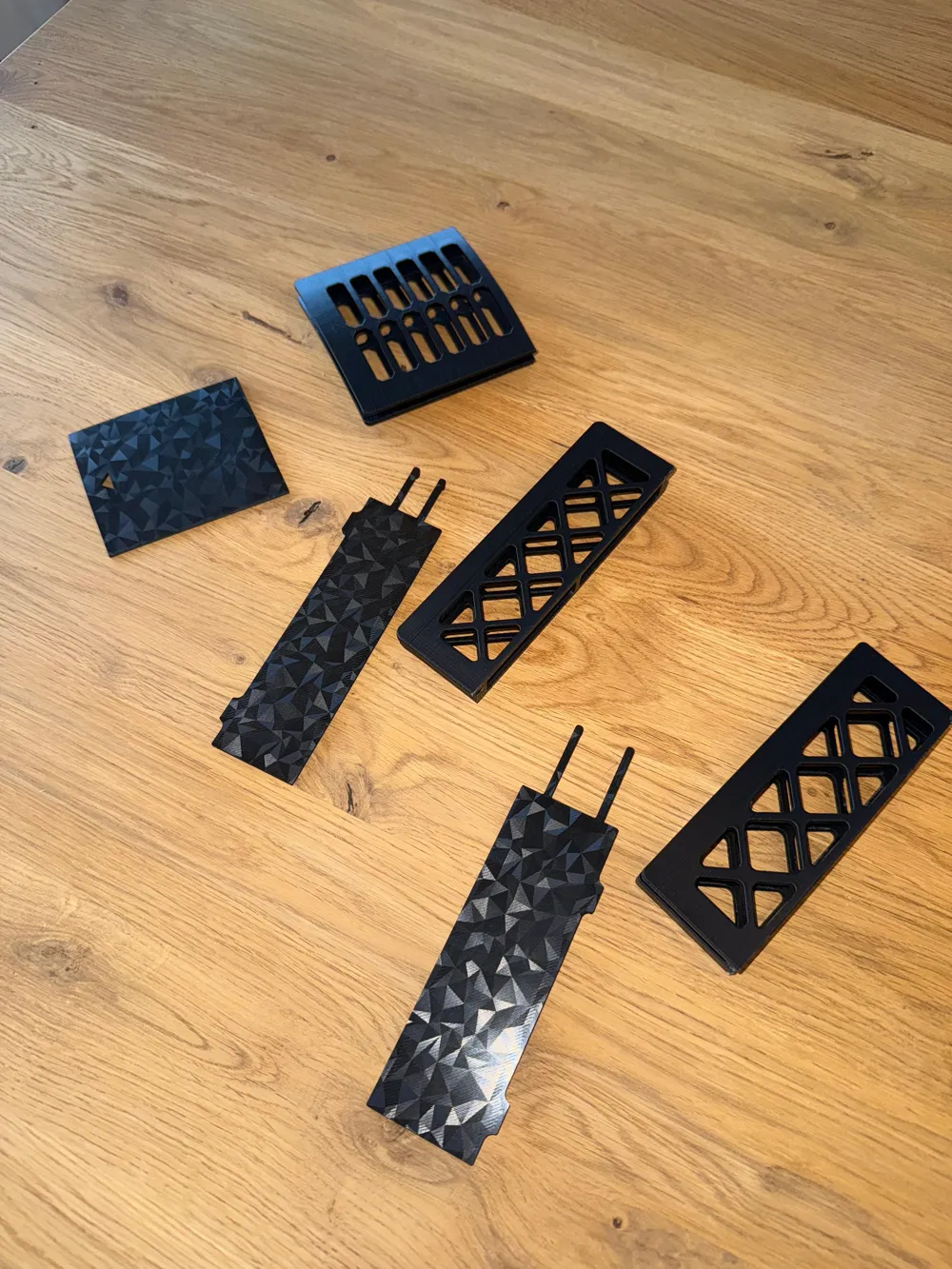

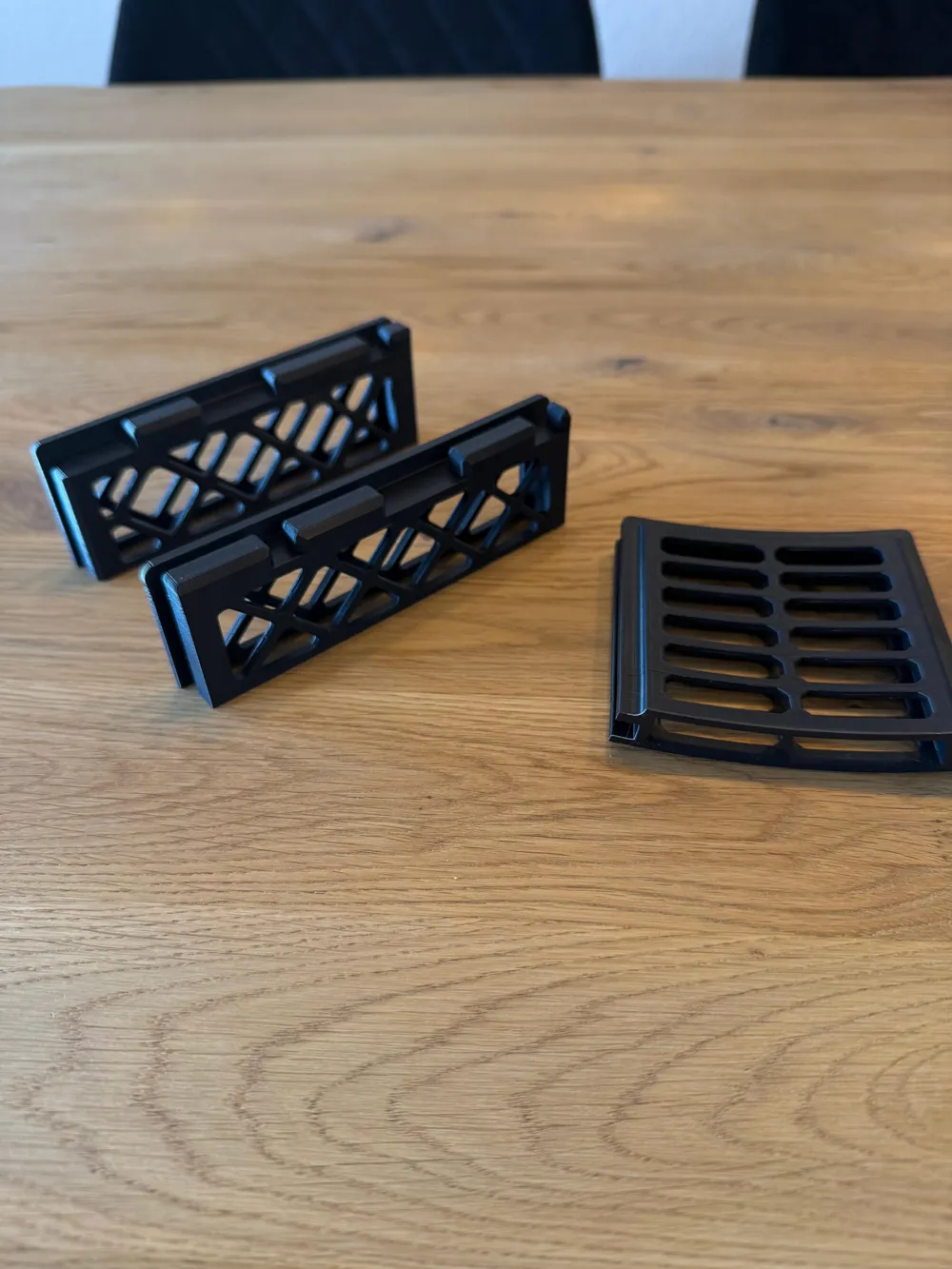

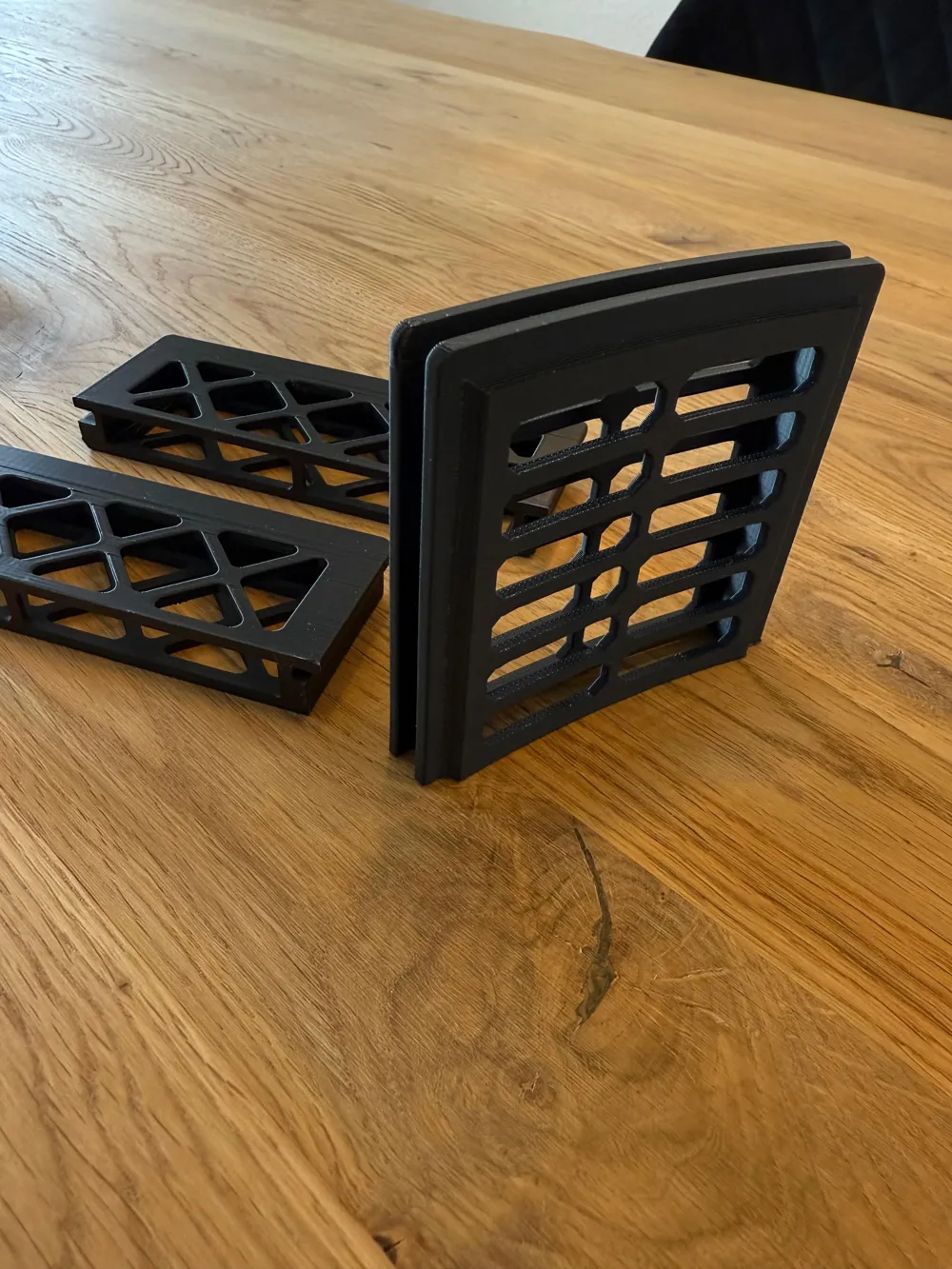

- Templates for the air filter extension
- Template for the heart box extension/air intake

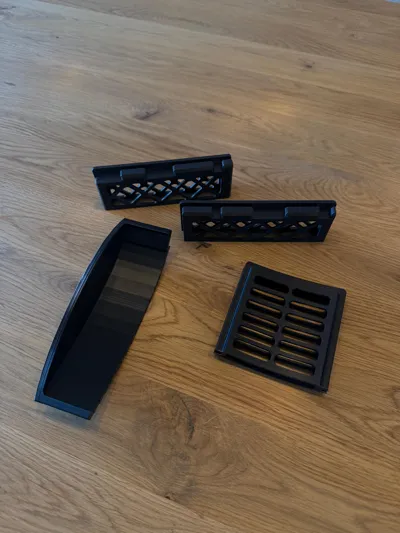

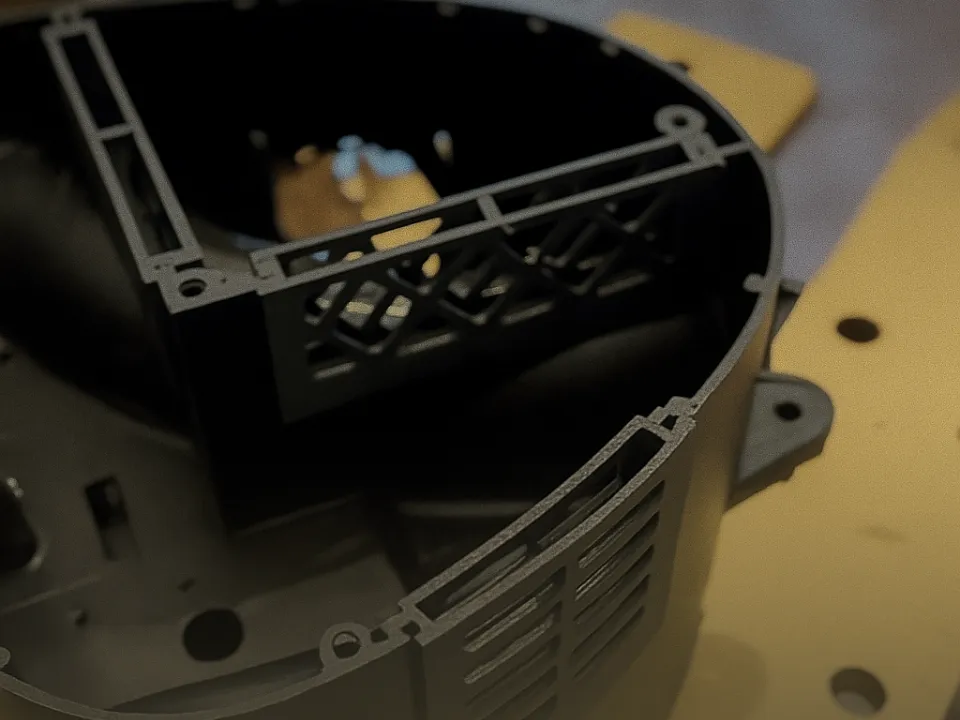

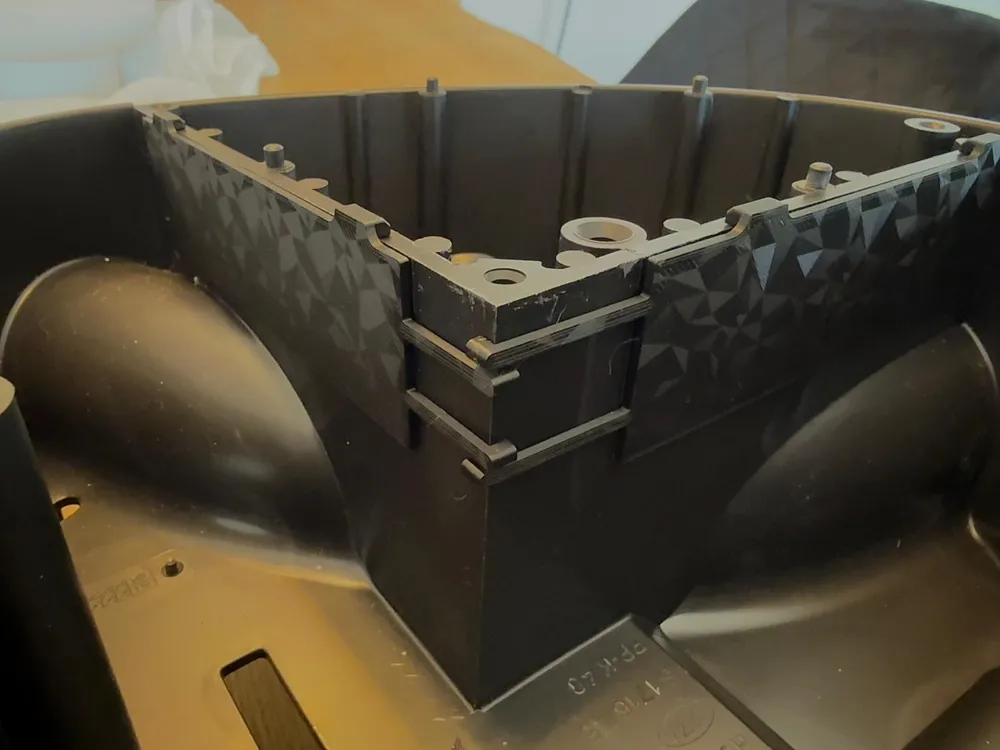

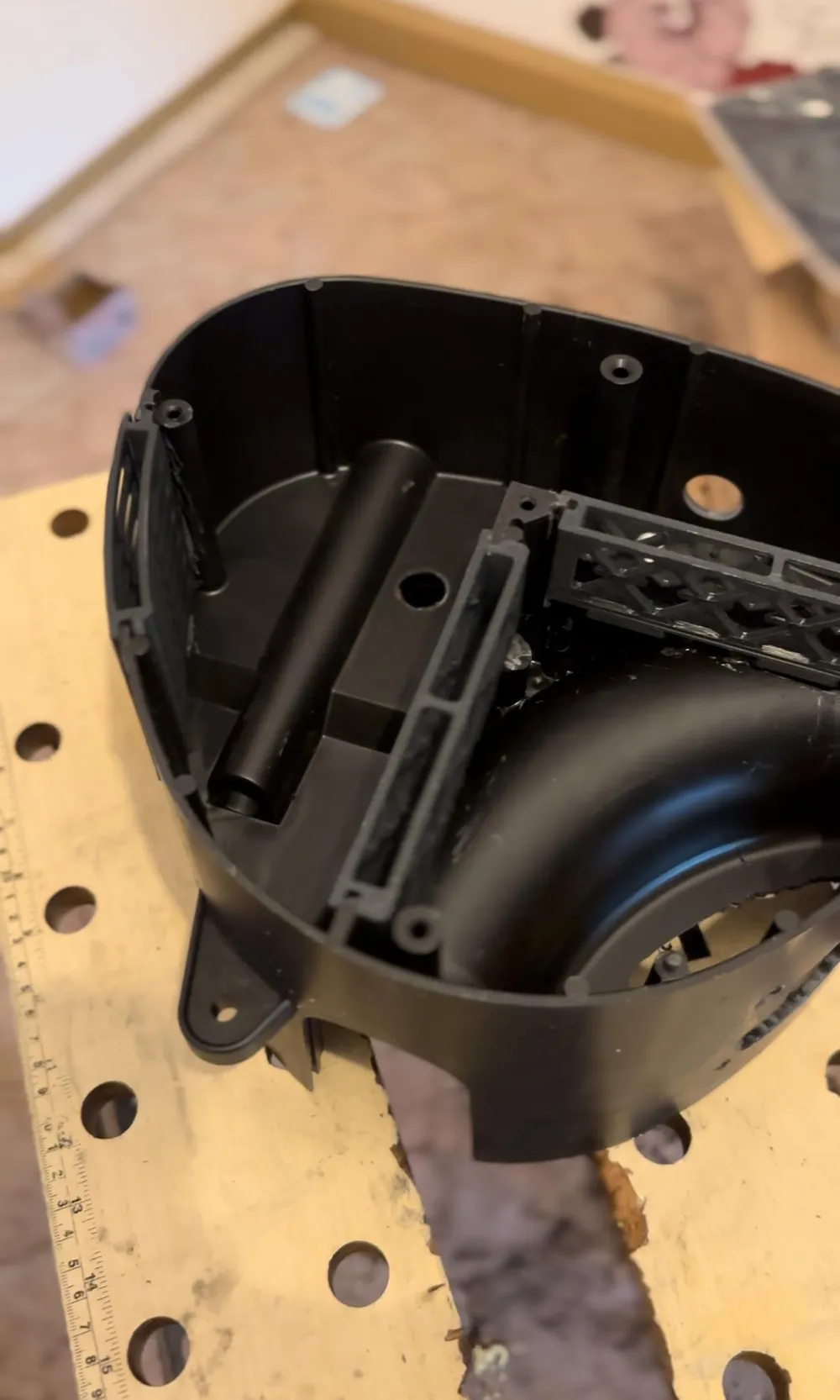

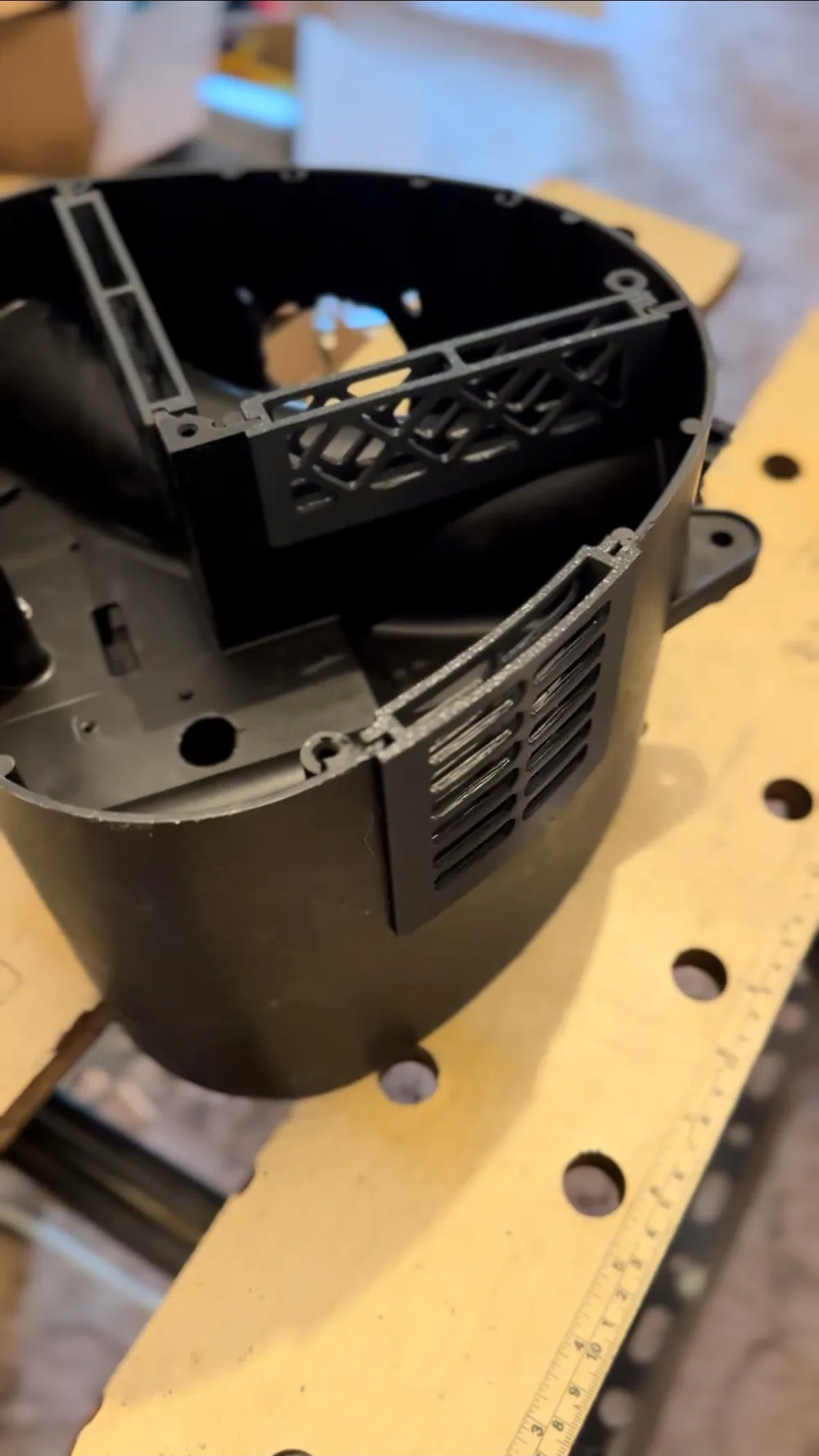

- Air filter extension Top and Left

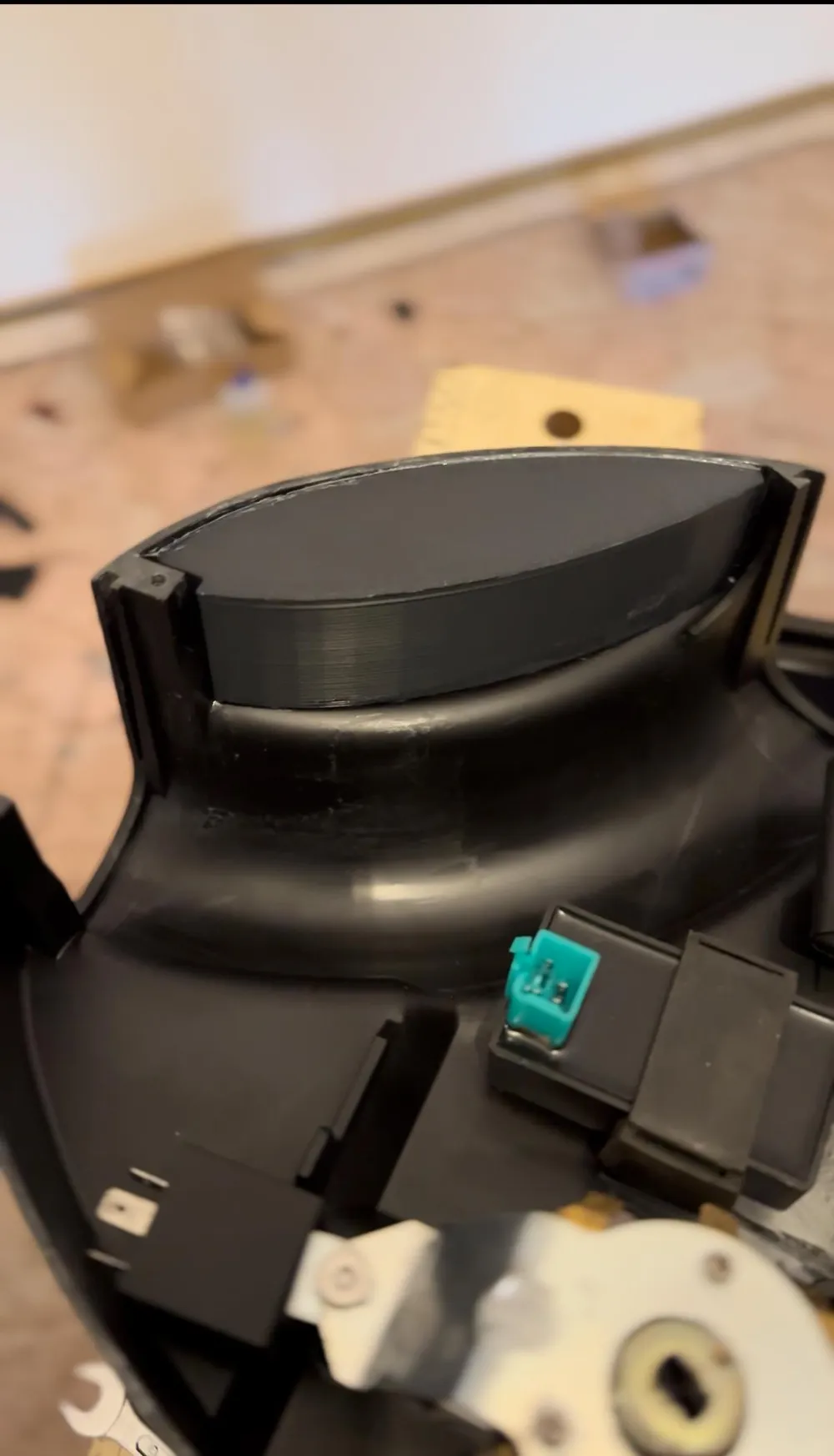

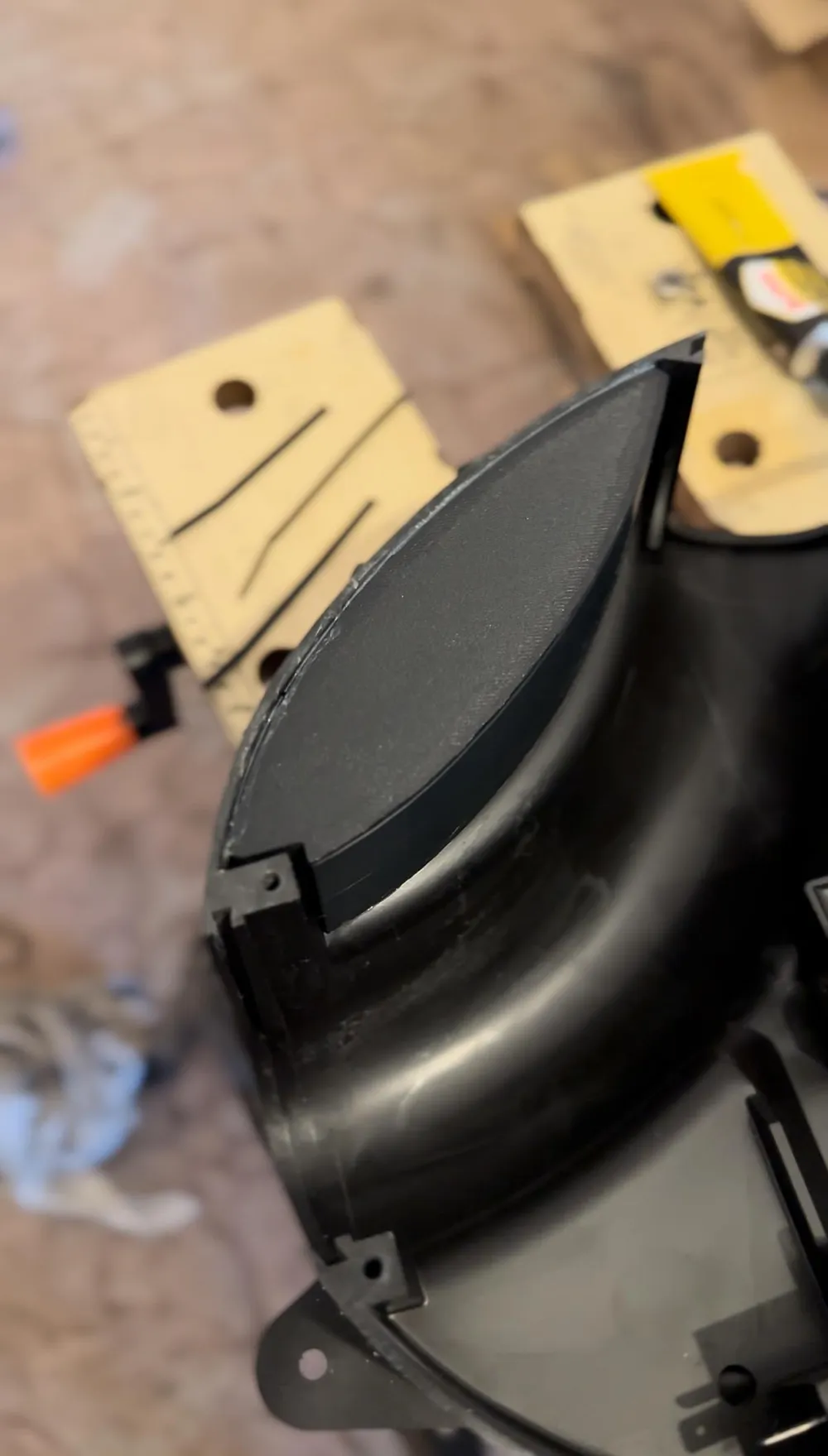

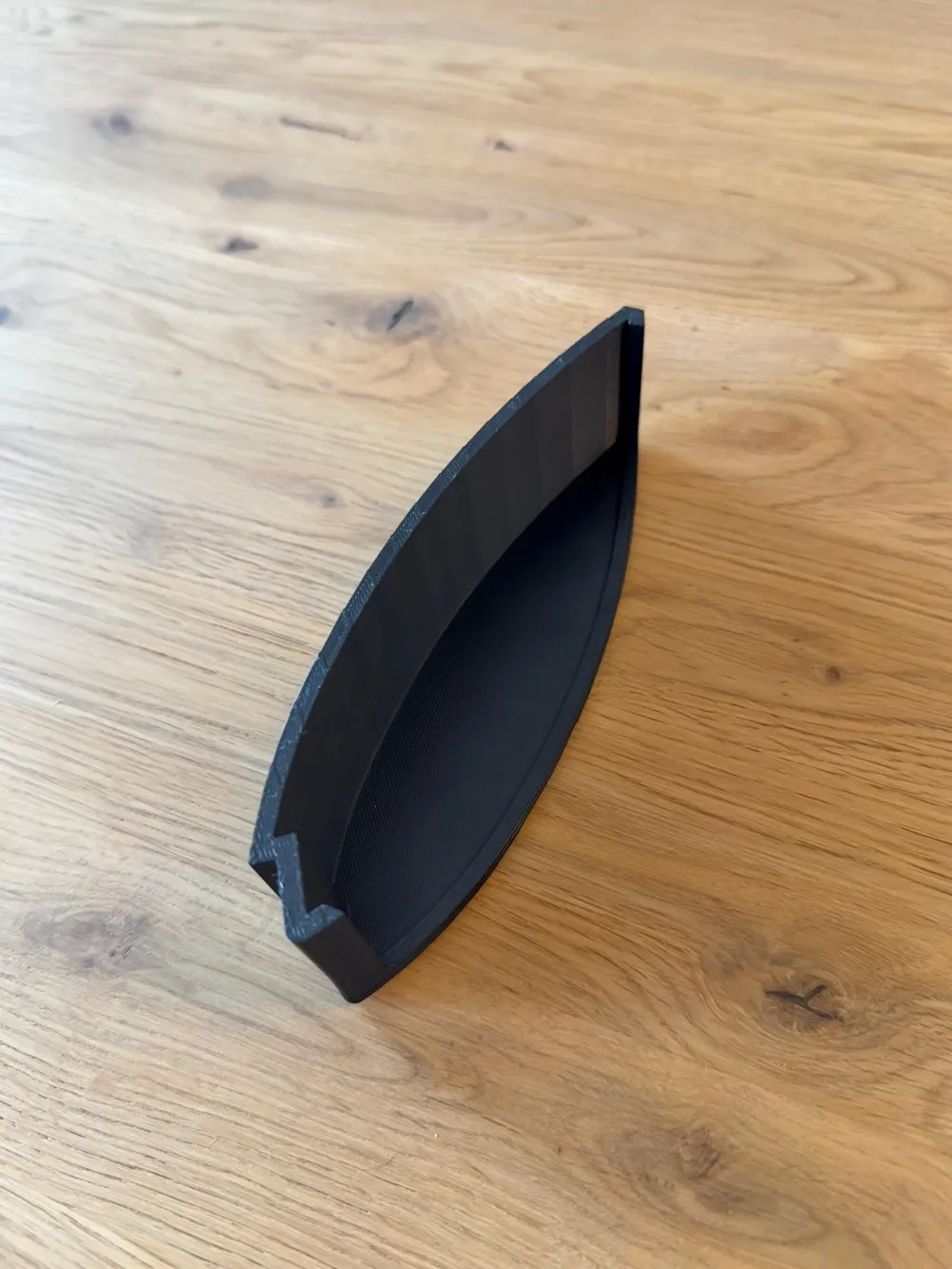

- Air intake heart box

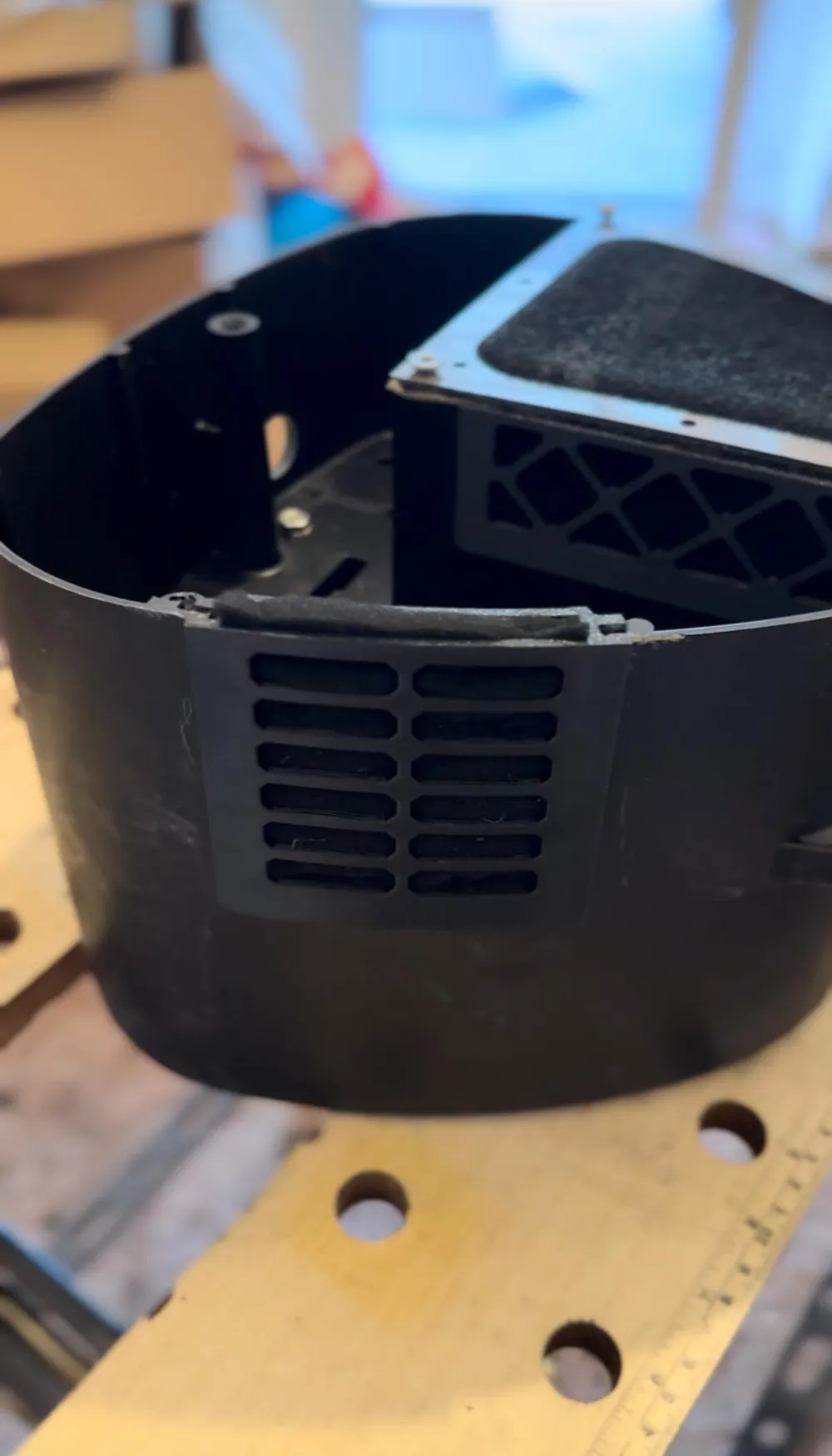

- Air intake extension battery side area
The templates are printed with PLA and the “air intake” template is adjusted to the shape of the heart box with a hairdryer.

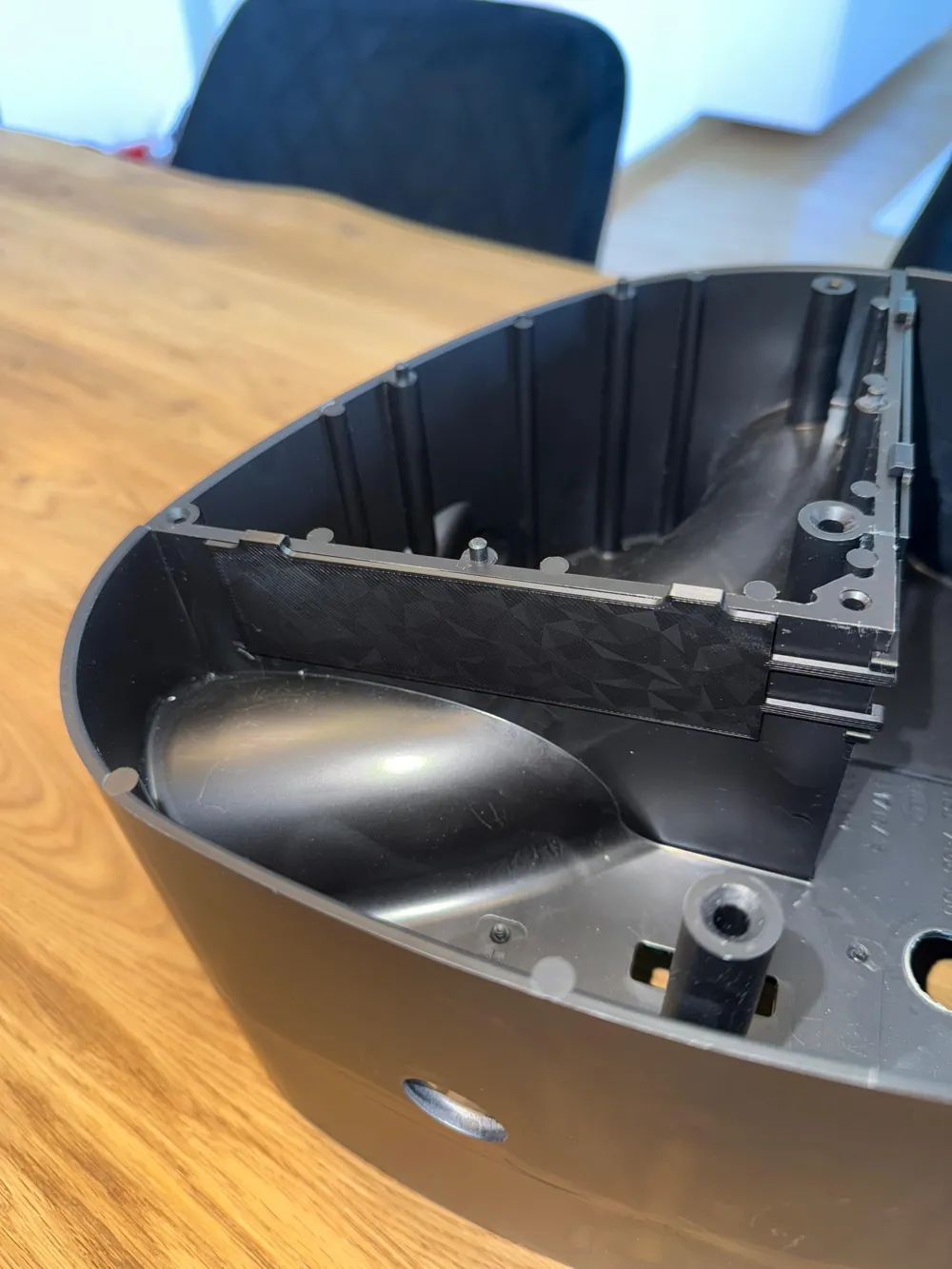

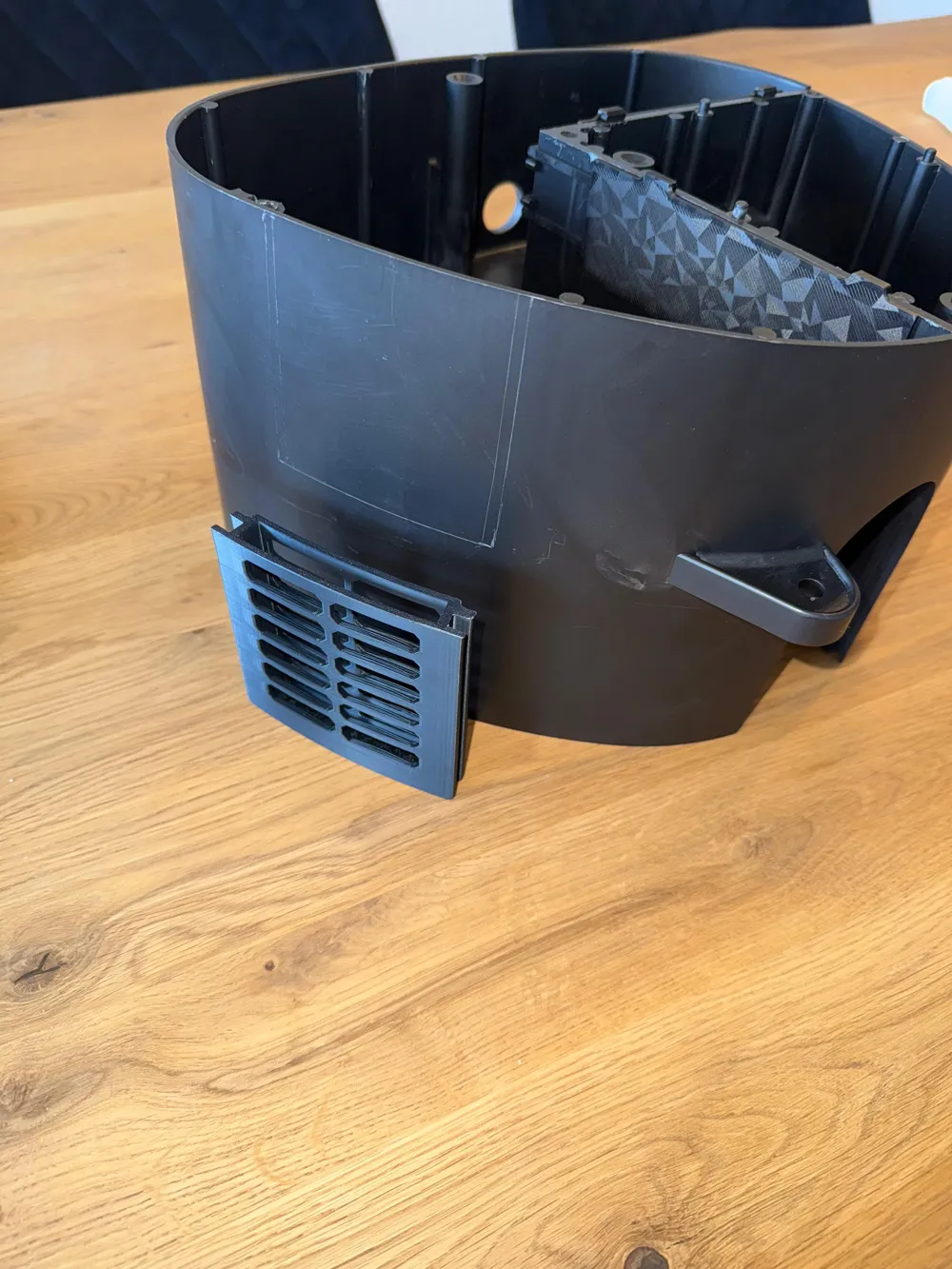

The templates are scribed around the heart box with a knife or a scribing needle. (Presumably, it also works with a marker/pen)

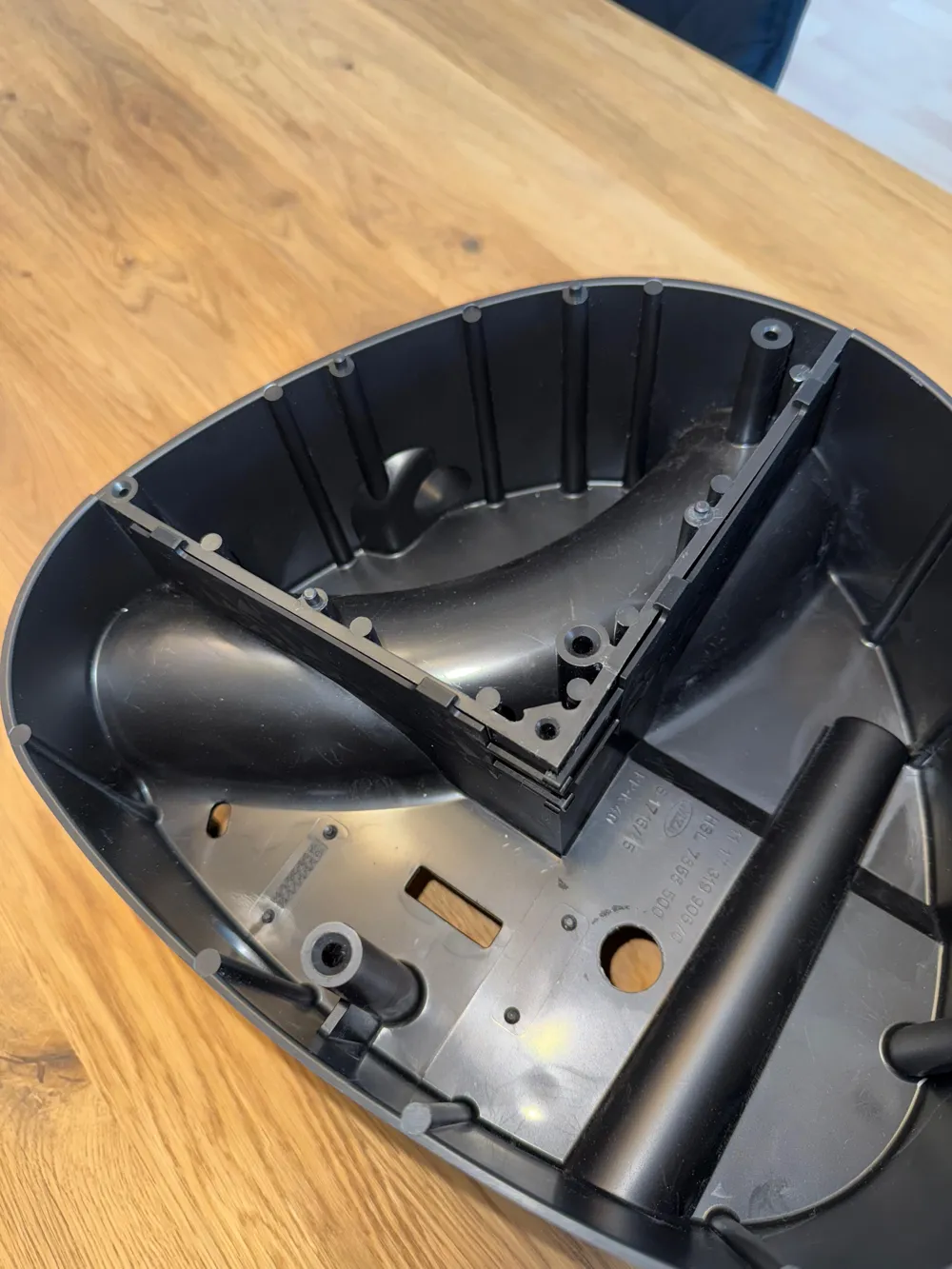

After marking, everything is worked out and deburred with a milling cutter and/or a Dremel. The components can also have a small amount of play; they will not fall out.
The cutouts are adjusted until all parts fit perfectly loosely.
----------------------------------------
Update 11/16/2025
The file has been revised. Higher scaling is no longer necessary. The inserts now have more play. Thanks to all suggestions for improvement
----------------------------------------

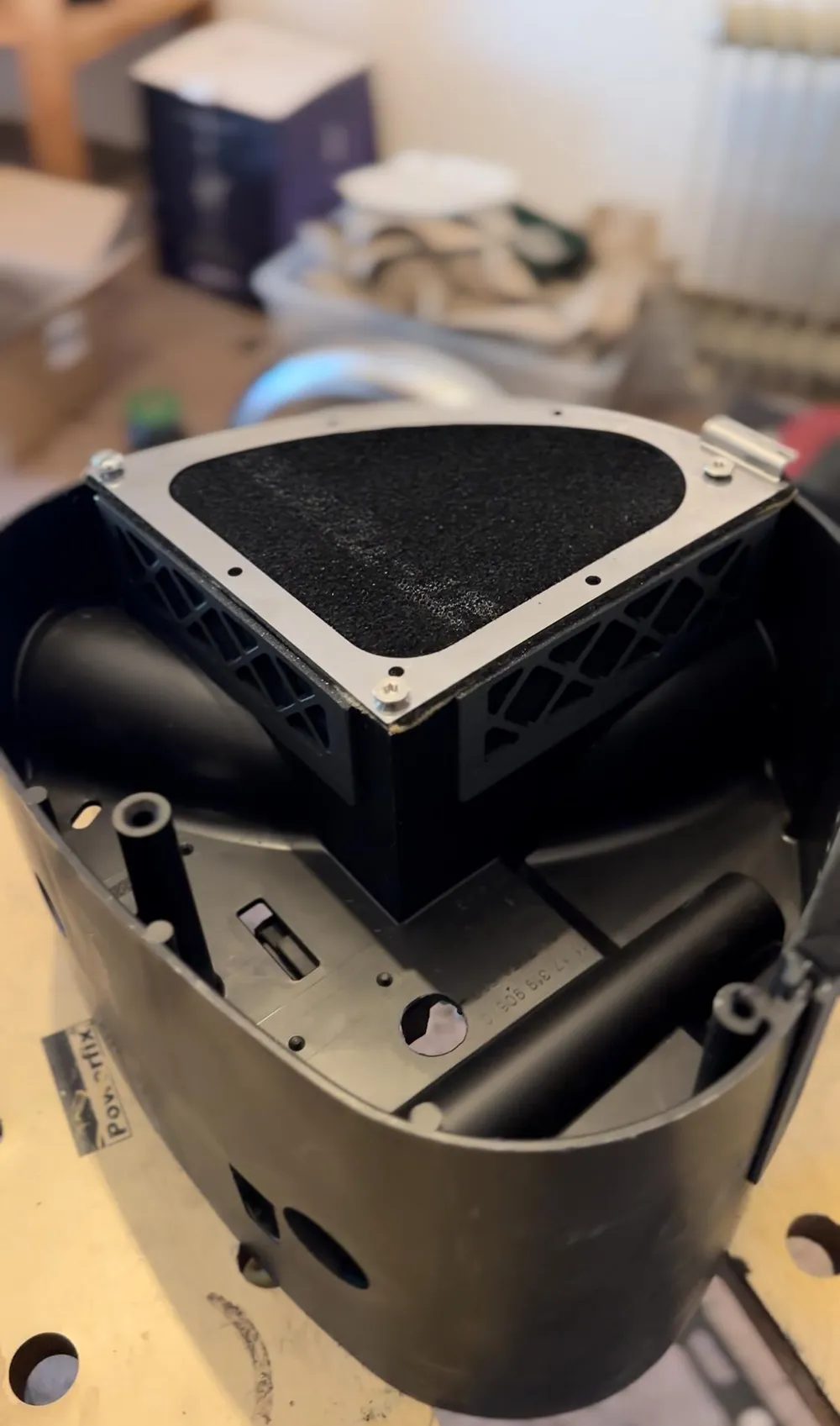

For the interior, a 1cm thick air filter mat is required; it must be flexible as there is a central web in the components.
