🚀 RocketMist - Space Rocket Humidifier

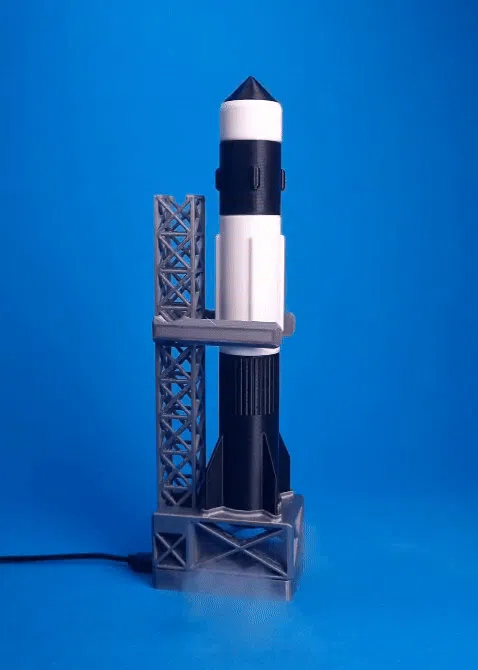

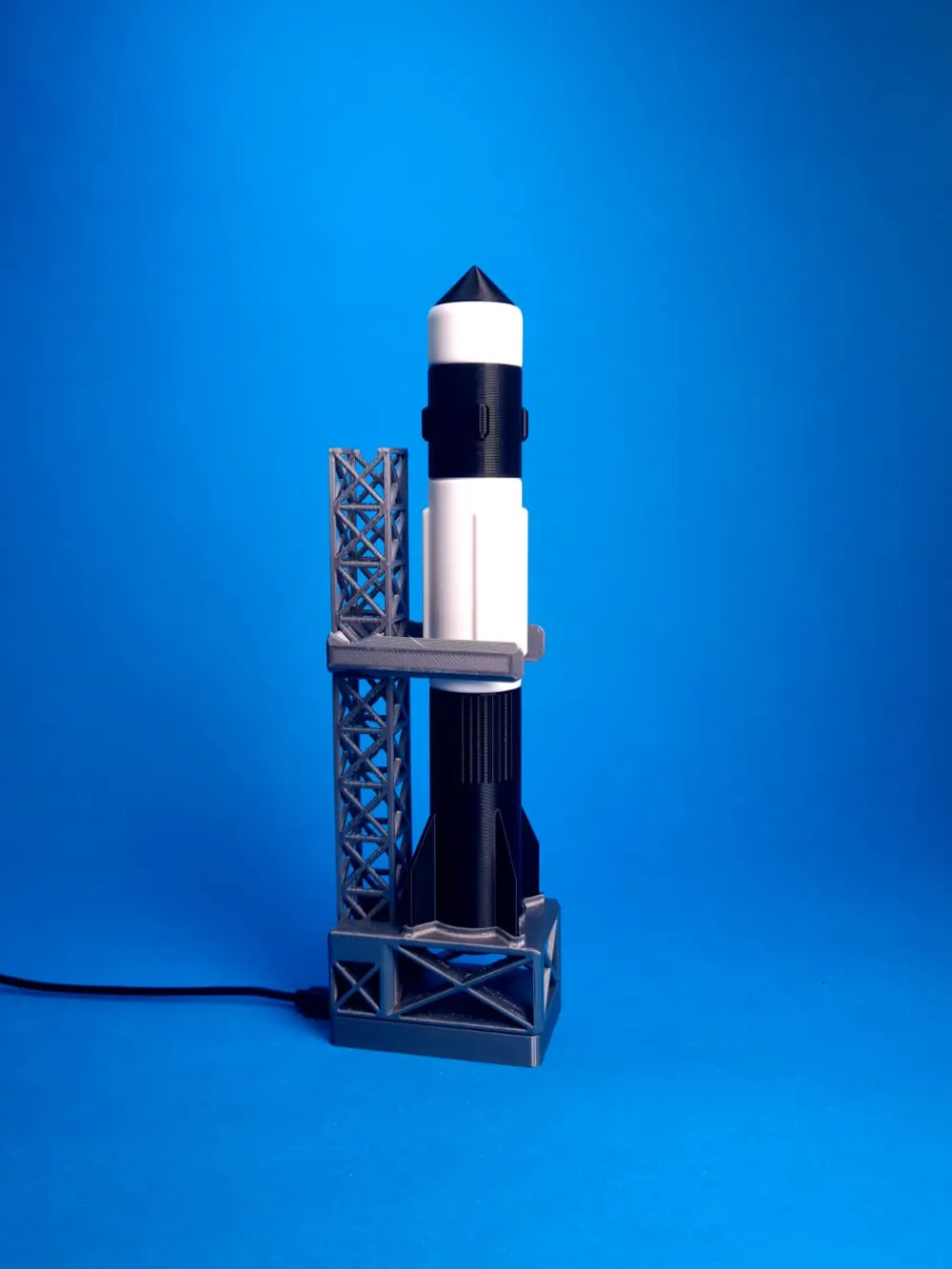

A desk humidifier disguised as a launch-ready rocket.
With mist venting from the nozzle, it looks like countdown ignition is about to begin.

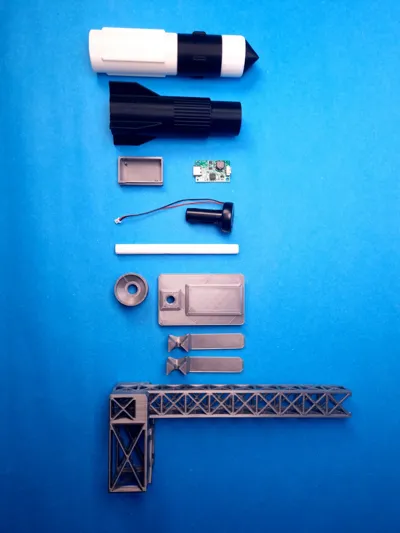

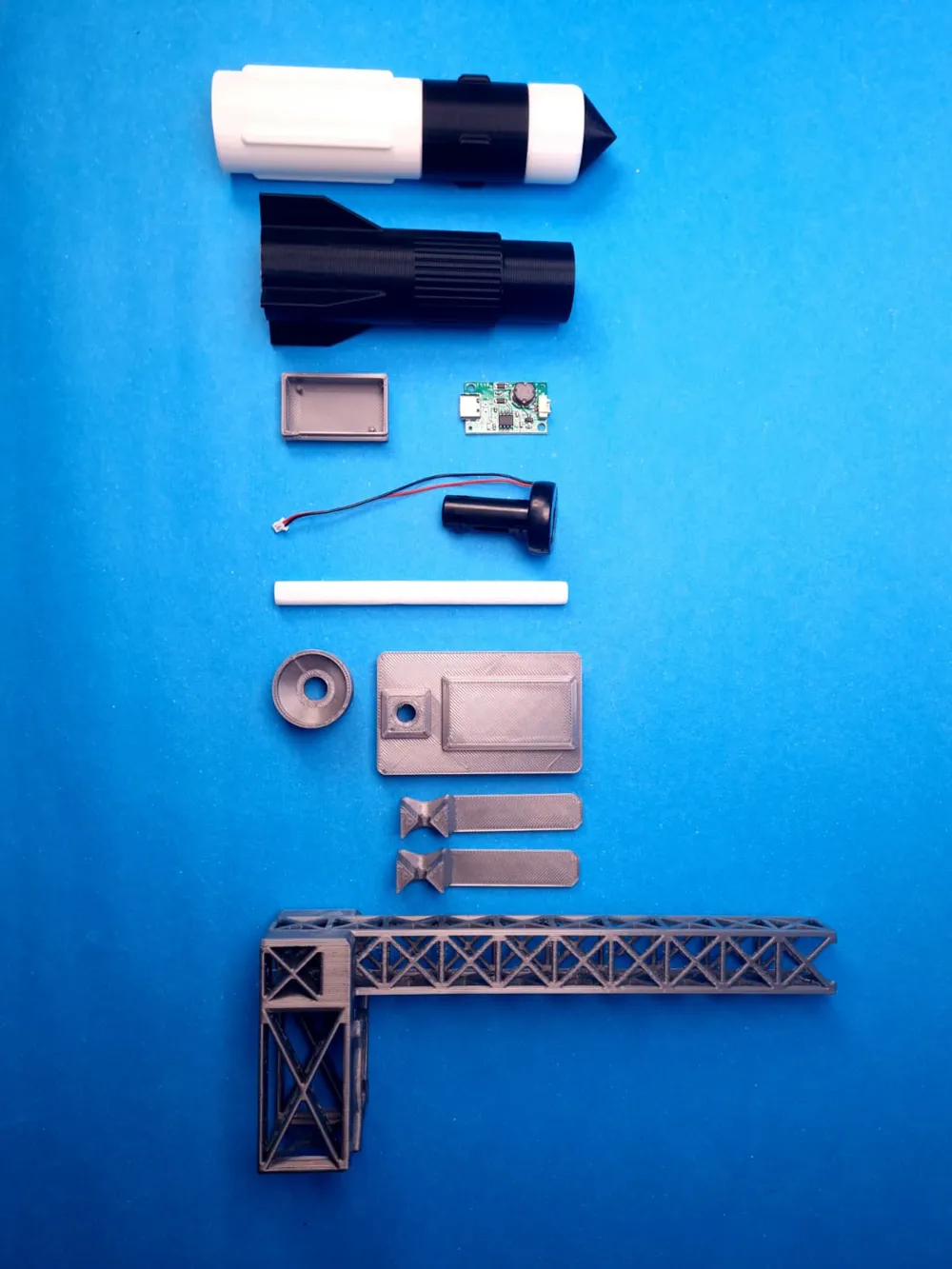

📦 Parts List

• Rocket Top (PLA, white/black mixed)
• Rocket Bottom (PLA, black)
• Nozzle (PLA, silver silk)
• PCB Drawer (PLA, silver silk)
• Base Platform (PLA, silver silk)
• Launch Construction Tower (PLA, silver silk)
• Stabilizing Arms (x2, PLA)

🖨️ Print Instructions

• Material: PLA
• Supports required:
  • ✅ Construction tower
  • ✅ Base platform
  • ✅ Rocket bottom
  • ✅ Nozzle
• Brim recommended for large rocket parts (bottom, top).
• Rocket top can print without supports (optional light support helps detail).

🔧 Assembly Instructions

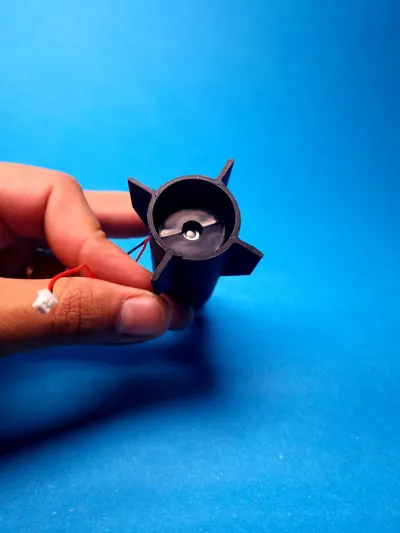

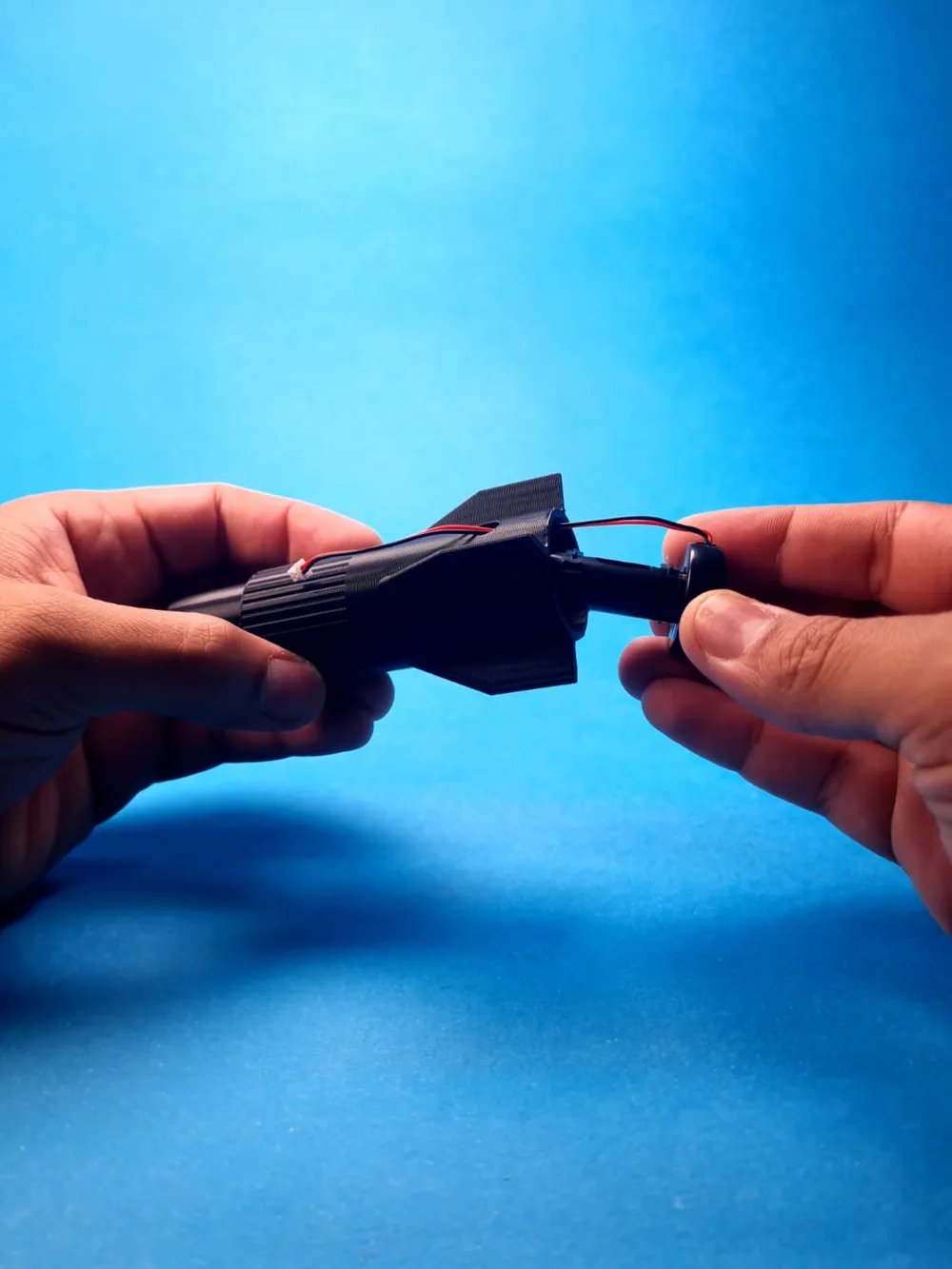

1. Insert mist module from rocket bottom.
2. Thread the cable through side hole.
3. Lock nozzle in place to secure module.

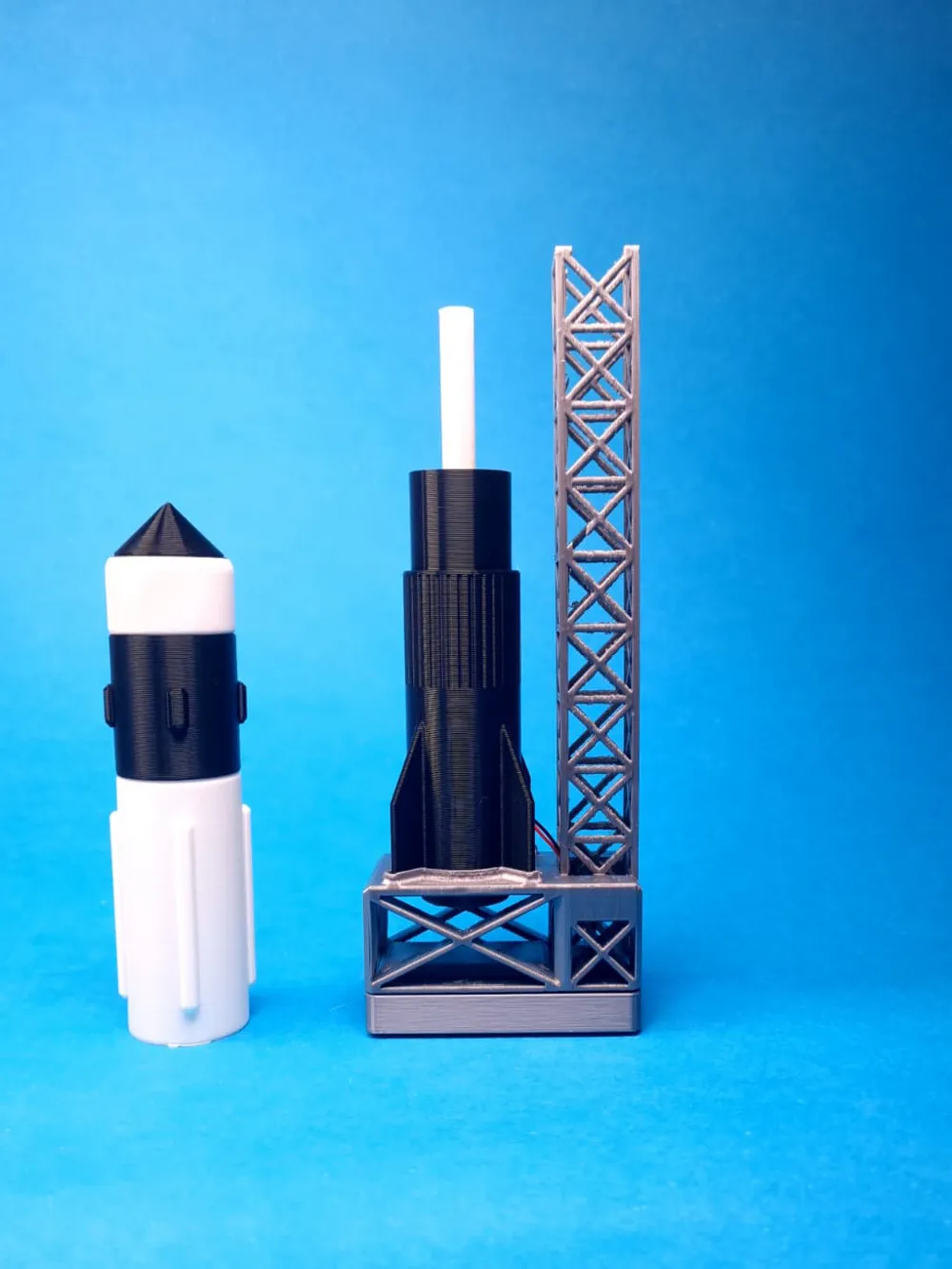

4. Place filter inside from the bottom-part top-opening.
5. Close with rocket top section.
6. Mount rocket onto base platform.

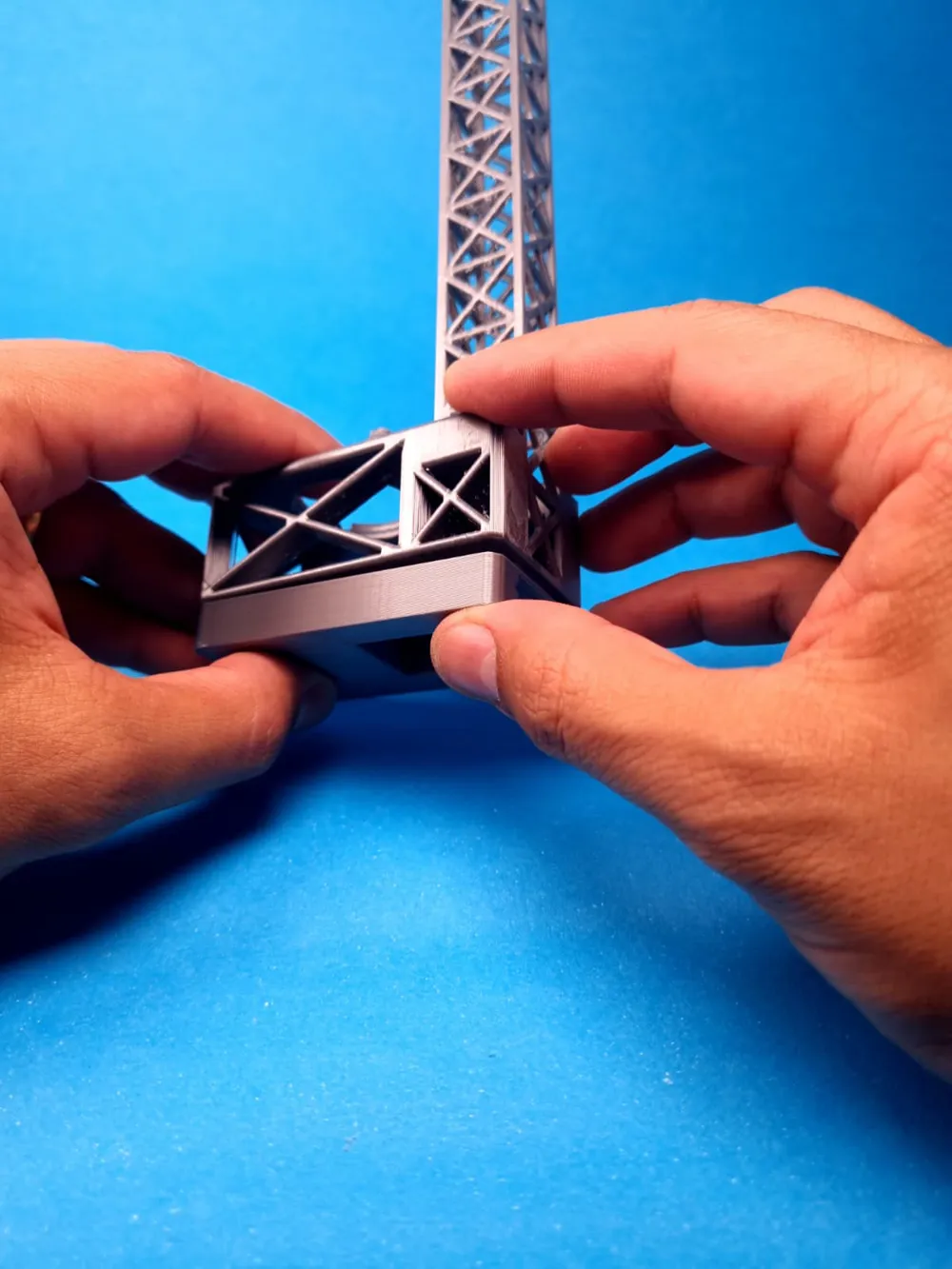

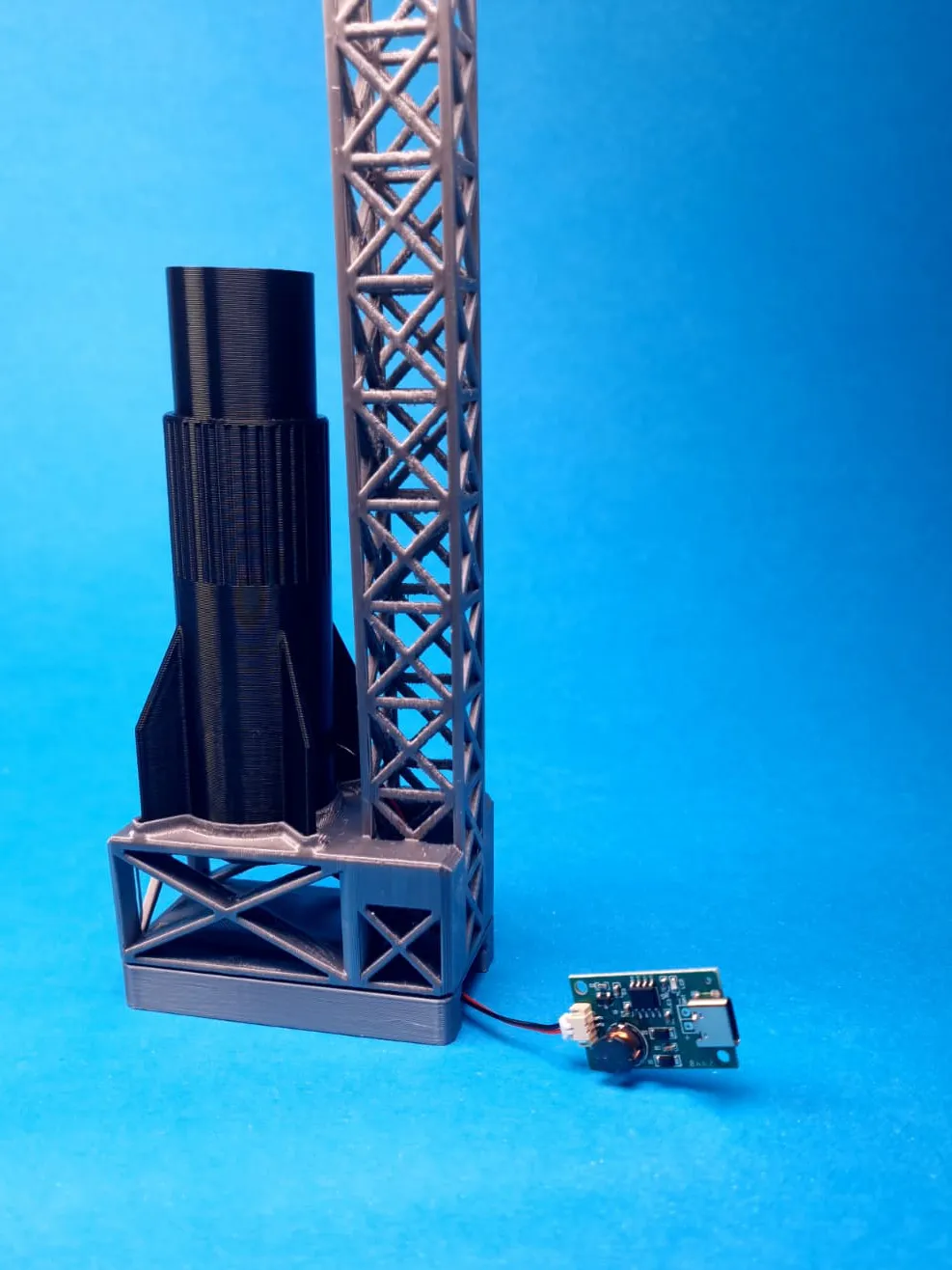

7. Thread cable through construction tower to PCB drawer underneath.

🌫️ Functional Notes

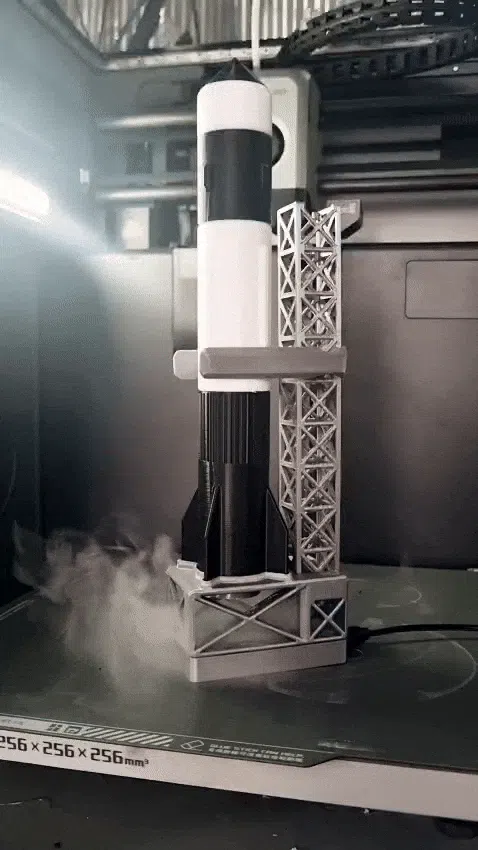

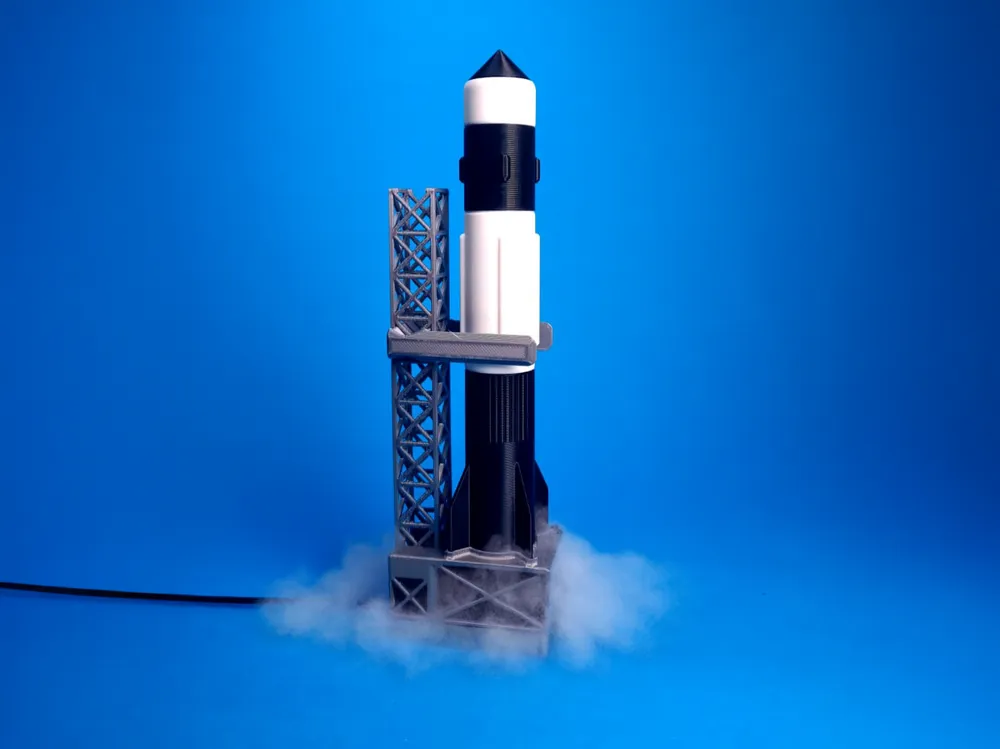

• The mist escapes directly from the rocket nozzle, simulating engine ignition.
• USB-C powered (module from Aliexpress).

------------------------------------------------------------------------------------------------------
