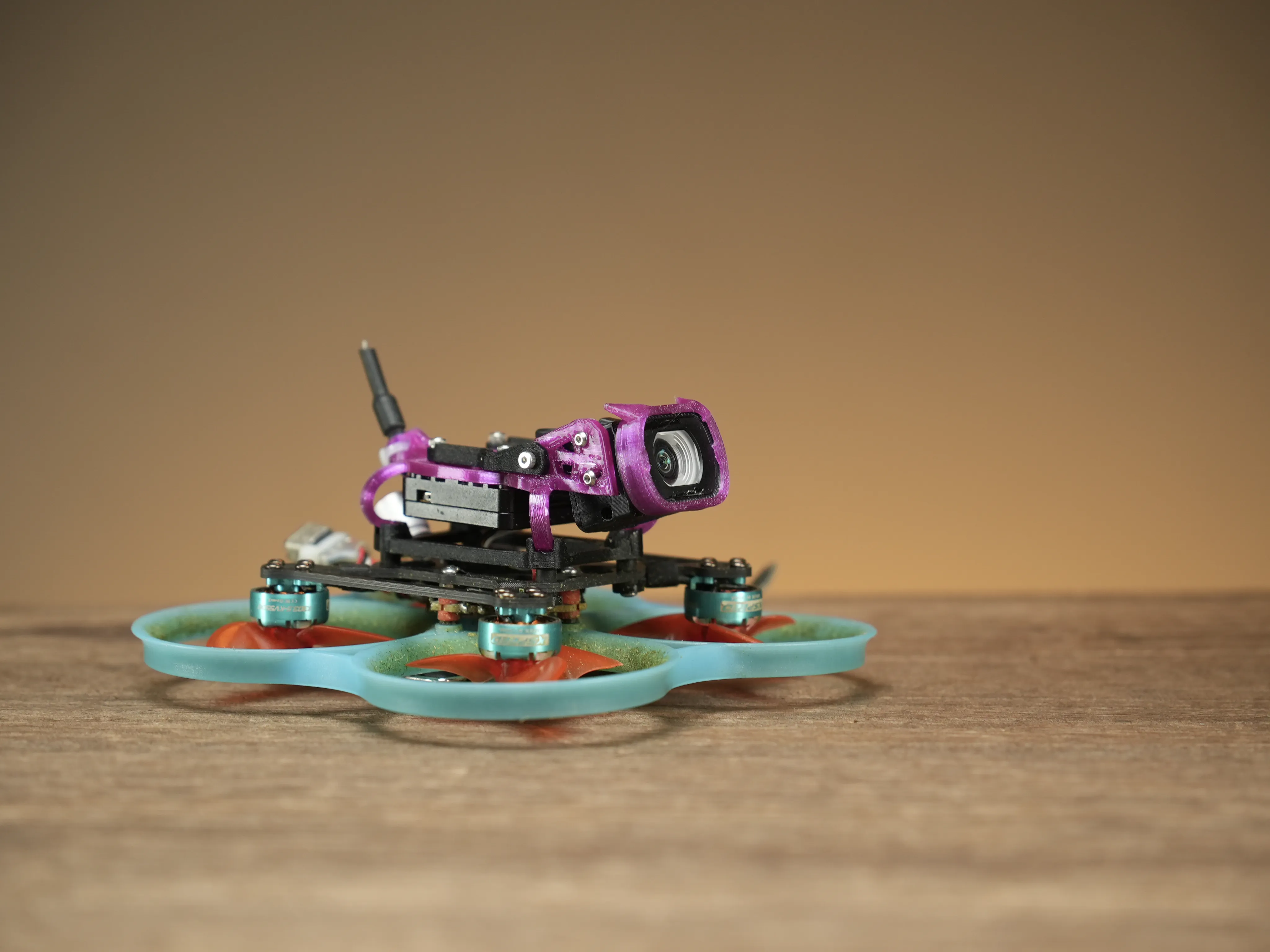

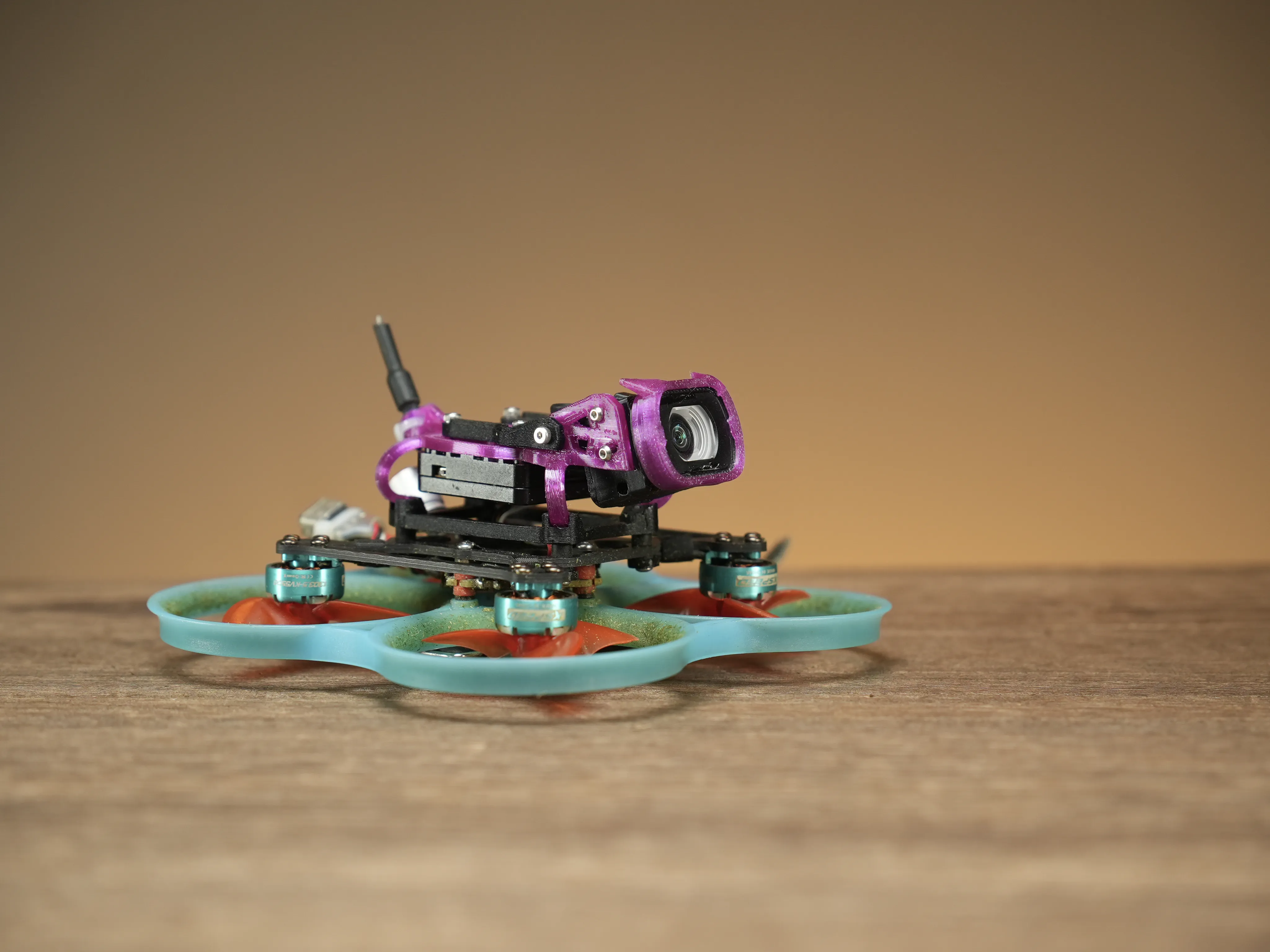

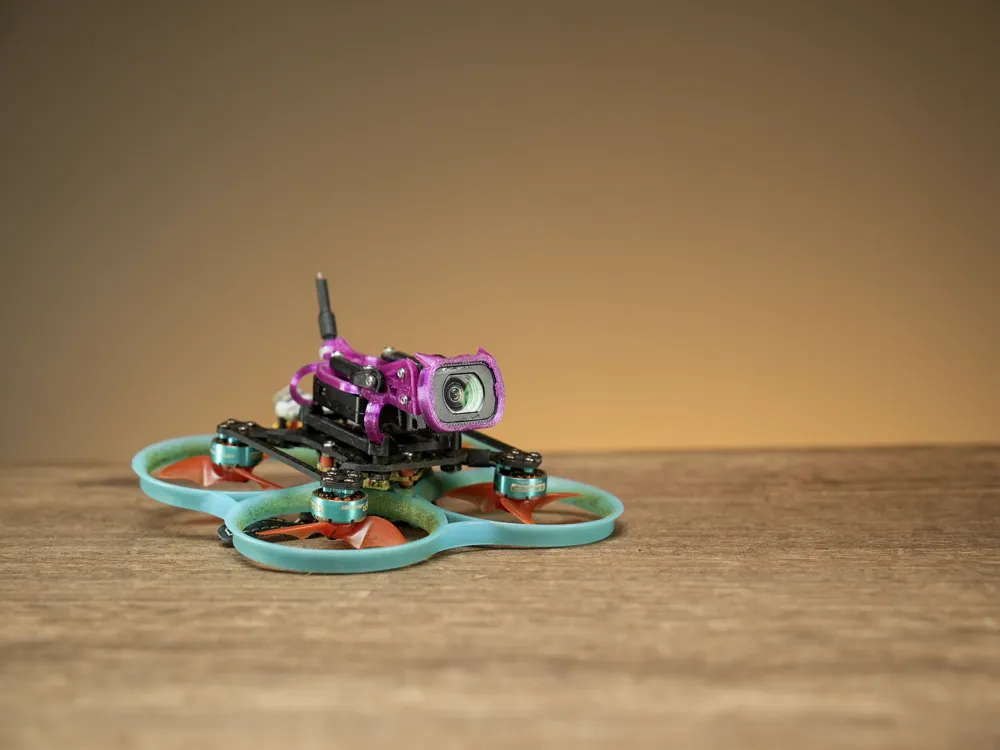

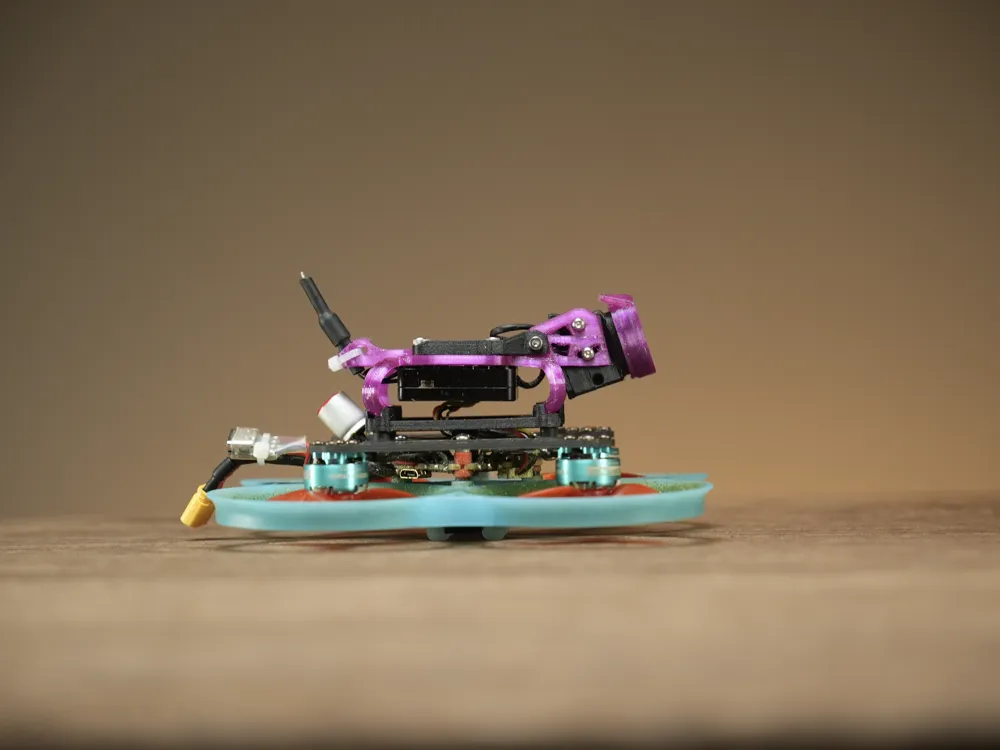

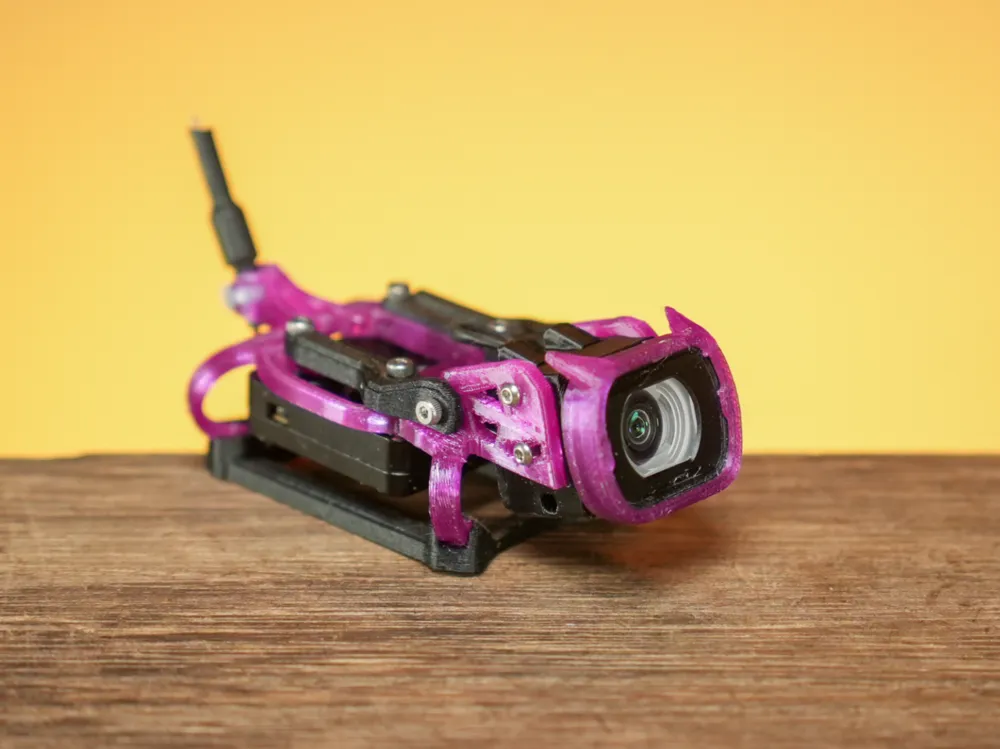

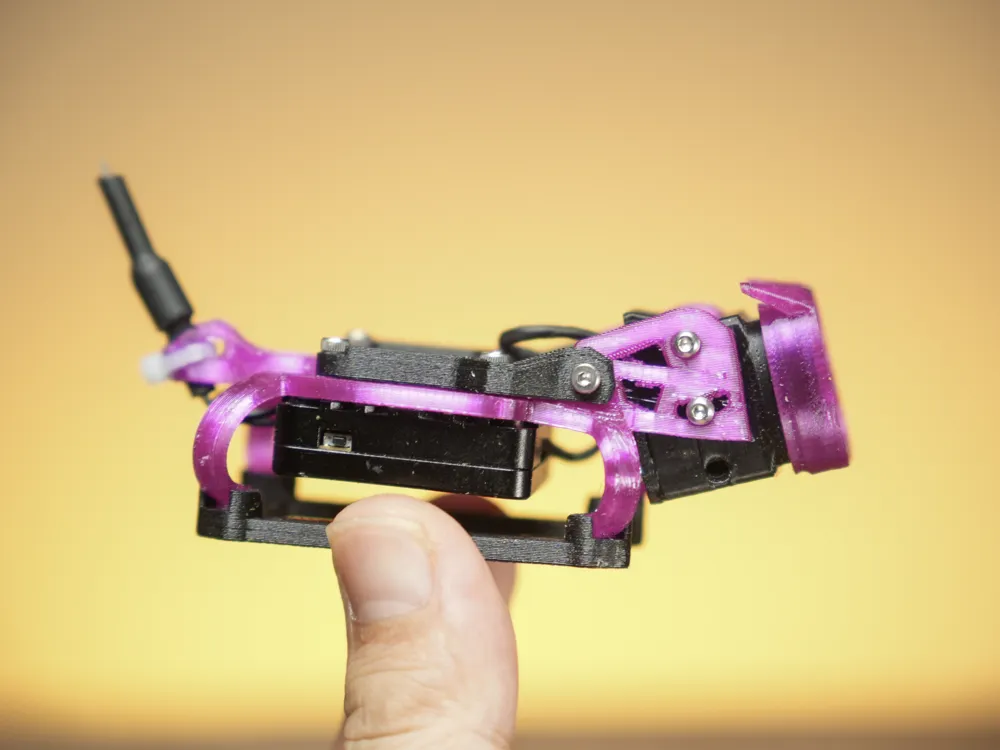

DJI O4 lite uses Pocket 3 wide-angle lens, adapted for Pavo20 Pro shock-absorbing frame
Print Profile(2)
Description

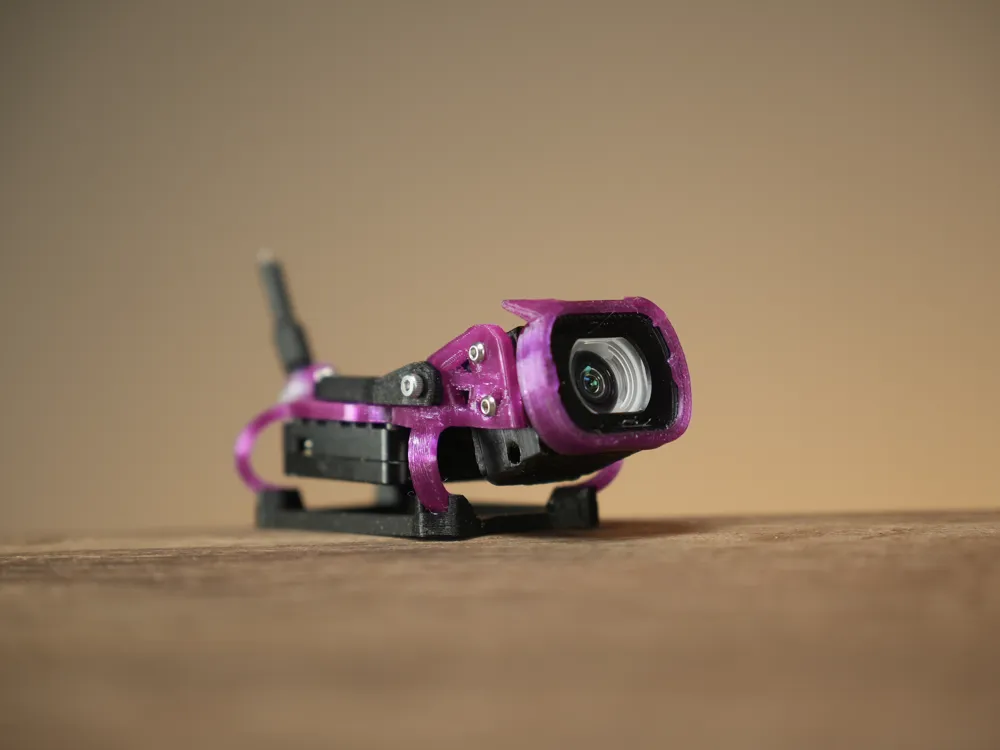

It is regrettable to state that the jello effect on the O4 was not completely eliminated under 3-4S, but the jello effect is not frequent and only occurs in very rare cases. For the back cover of the wide-angle lens part, you need to cut a small piece of shock-absorbing foam and stick it on the back cover so that after tightening, it can press against the O4, preventing it from shaking inside

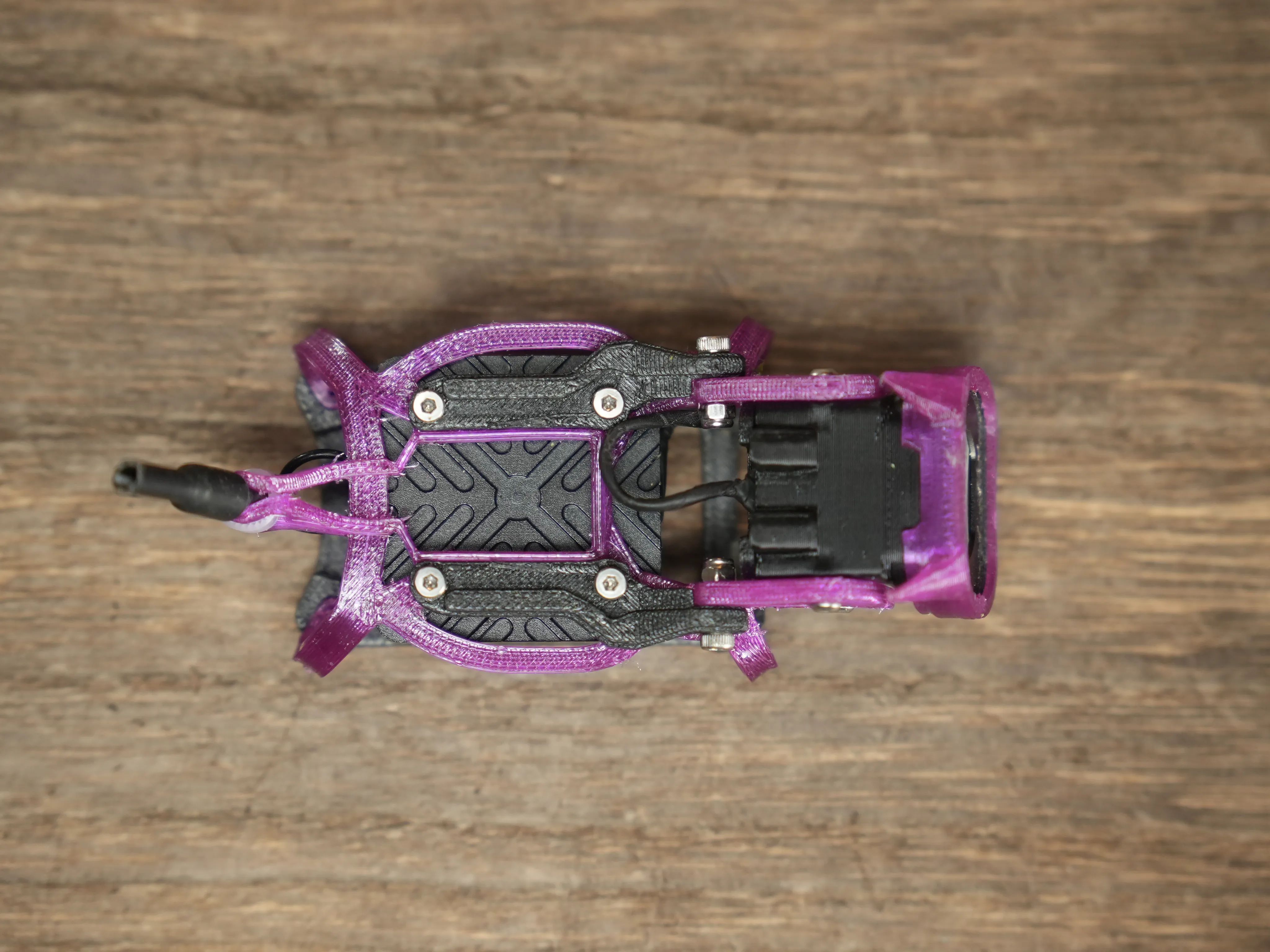

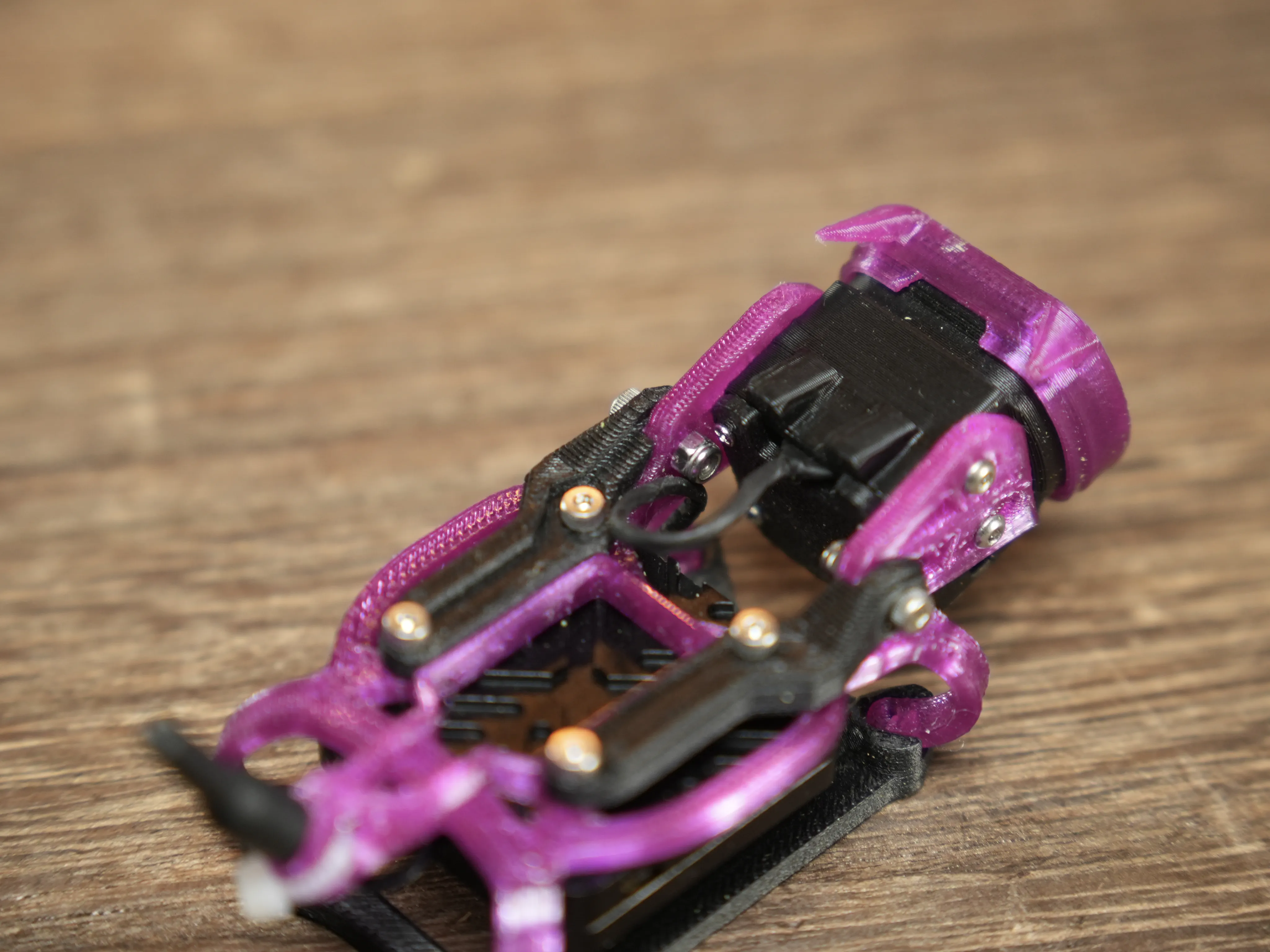

top mount
Note that self-locking nuts should be used for fastening here

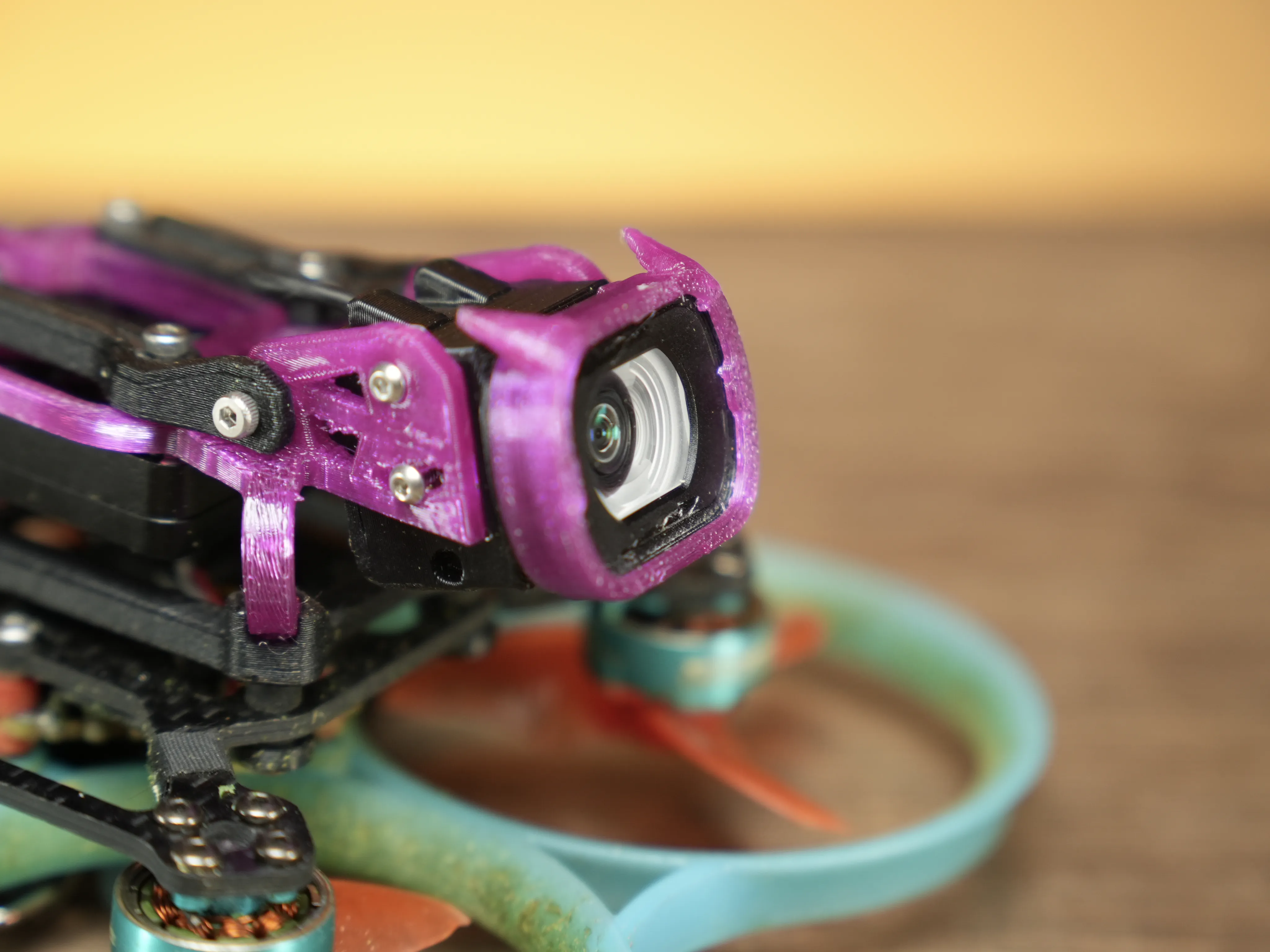

The front anti-collision part is TPU 95, black is recommended, I used purple, and in some specific angles with direct sunlight, purple light enters the frame
