Snas 4-bay ITX 3.5-inch hard drive all-in-one NAS chassis
Print Profile(1)
Description
Boost Me (for free)
Heat-set inserts 3*5*4.5 3*3*5
Notes: The top handle is for decorative purposes only, use with caution. The last screw for the motherboard is difficult to install; it's optional if you can't. There is no 2.5-inch hard drive bay designed; use M.2 for the system drive
Regarding hard drive temperature: three 6025 fans, and two 8010 fans can also be added to the bottom
Actual test with only three 6025 fans at room temperature around 30 degrees Celsius, hard drive temperature around 35-38 degrees Celsius. If you feel the temperature is not low enough, you can add the 8010 fans to the bottom. Thermalright fans

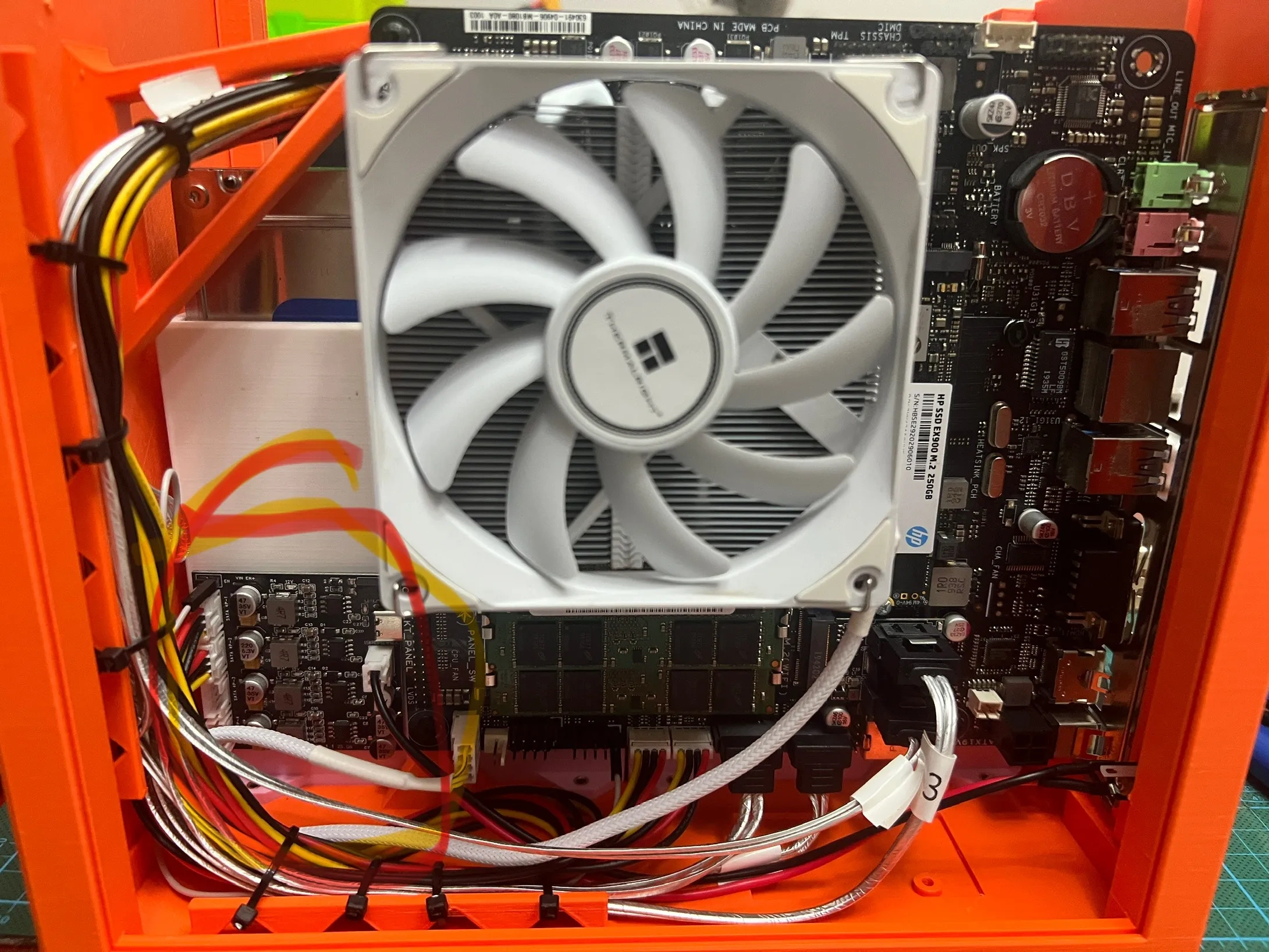

Thin ITX motherboard, half-height baffle, DC 19V power supply, CPU cooler height limit 47mm

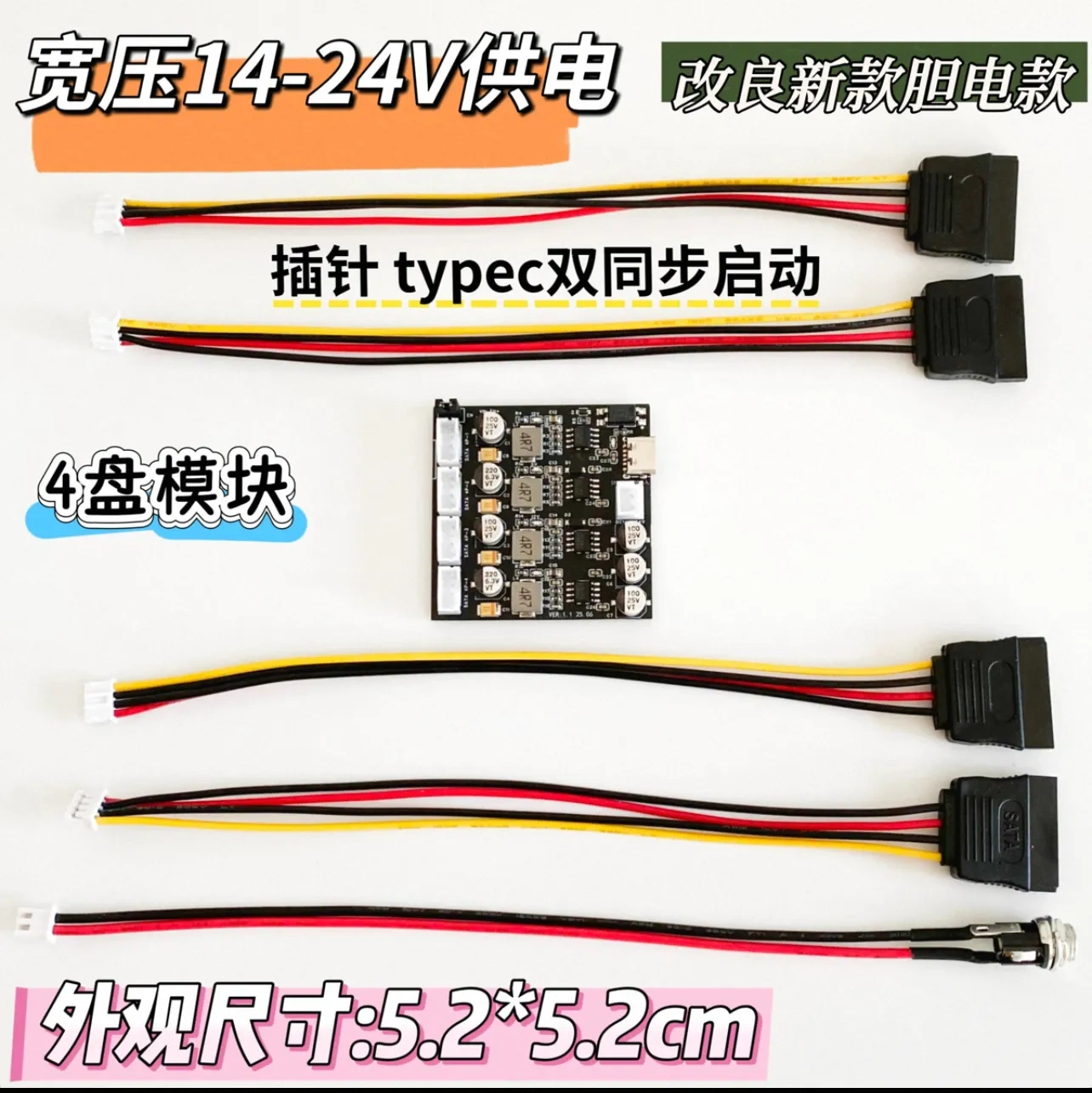

No hard drive backplane was used; a DC-powered hard drive module with synchronous boot was used, with 12V and 19V input, which can be attached to the back of the hard drive cage
