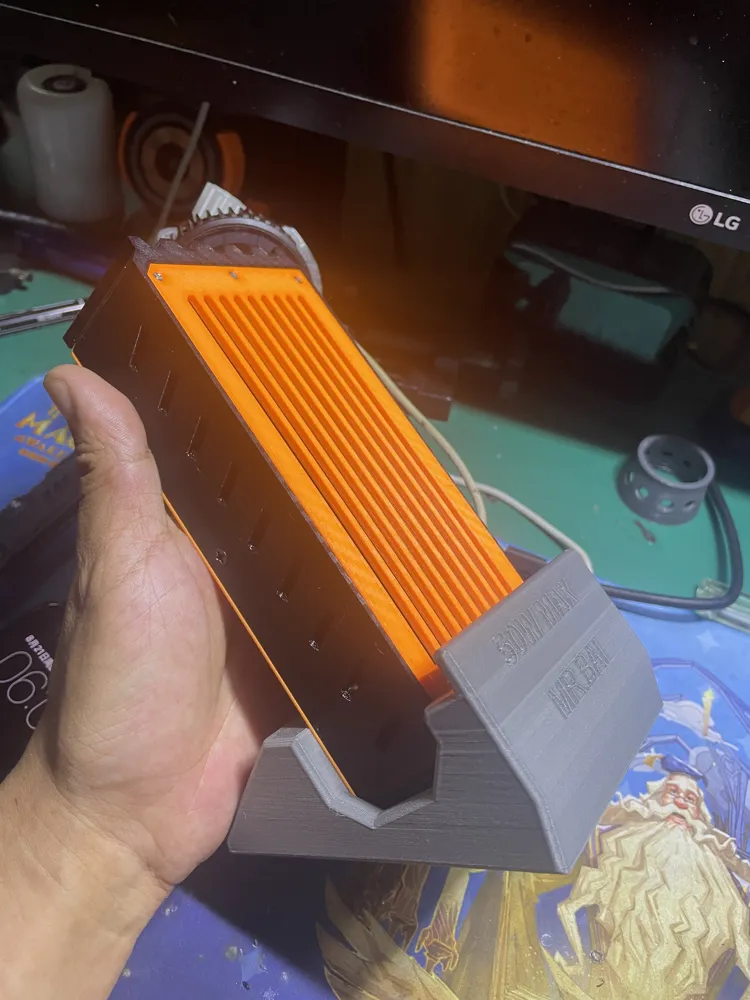

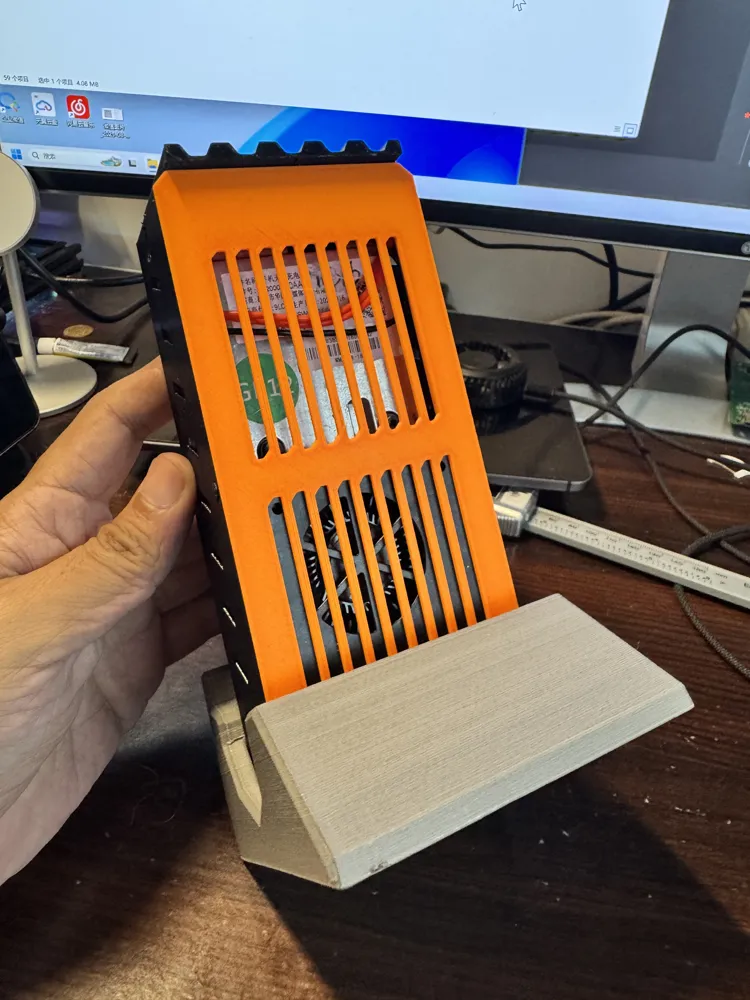

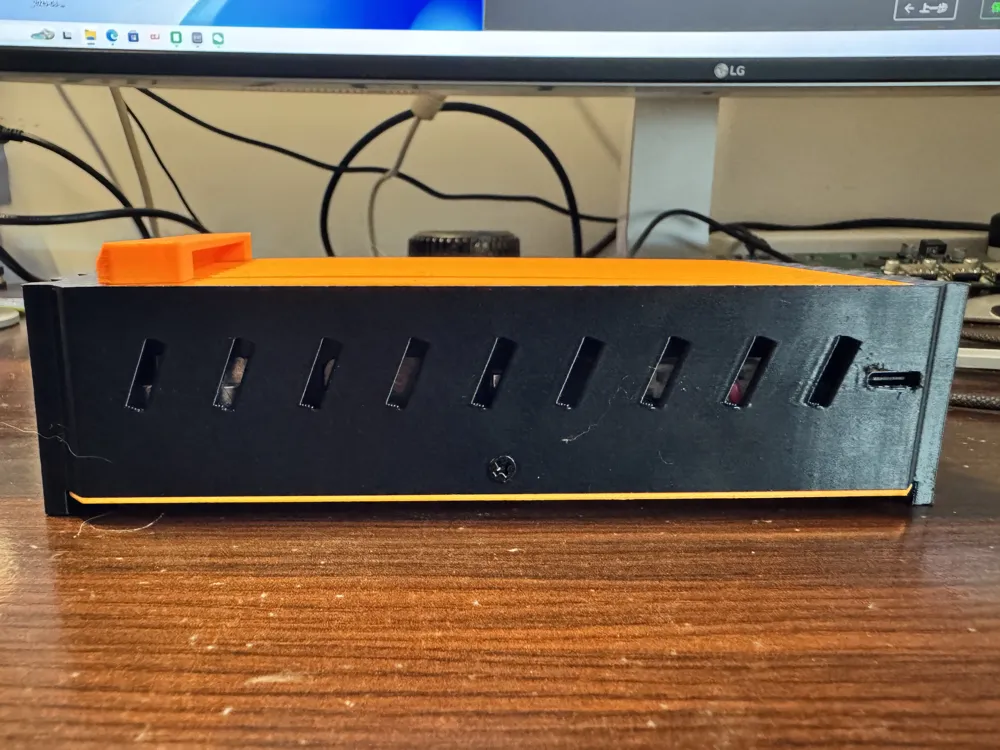

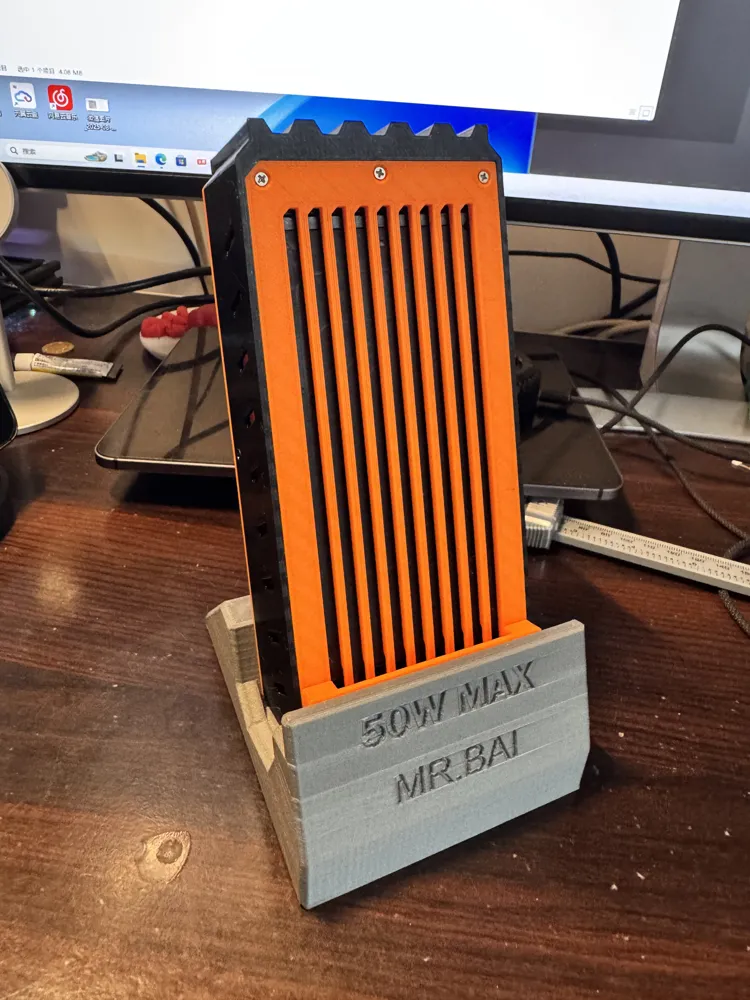

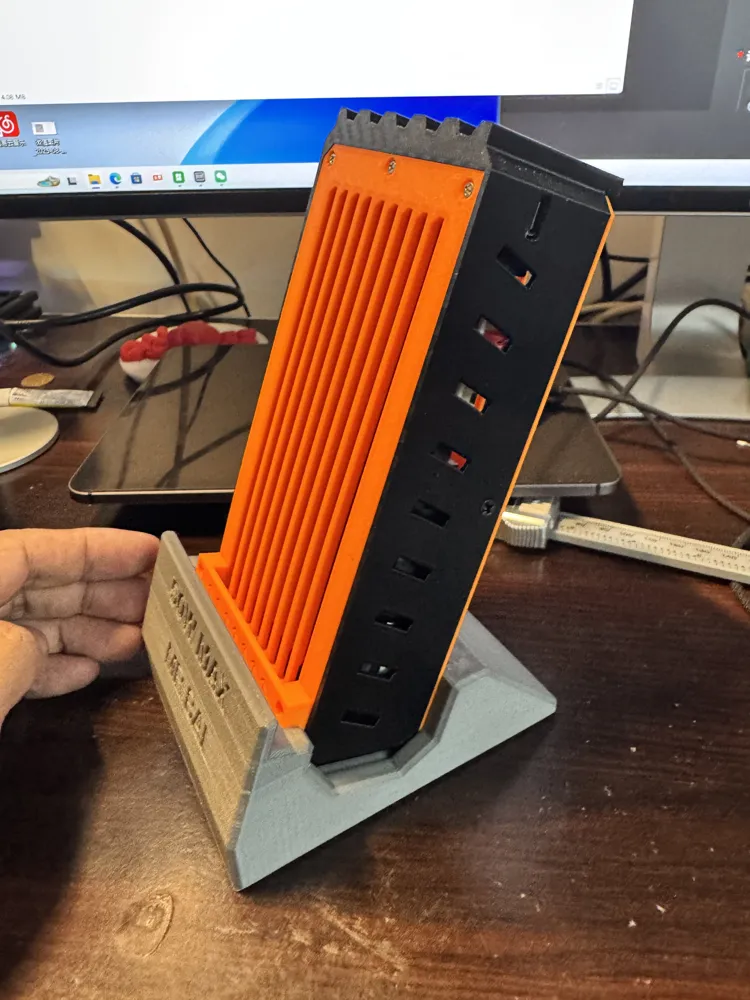

Chery 50W wireless charging module modified for home use, usable vertically or horizontally. Supports 50W wireless fast charging for multiple phone brands, including Huawei, Honor, Oppo, and more.

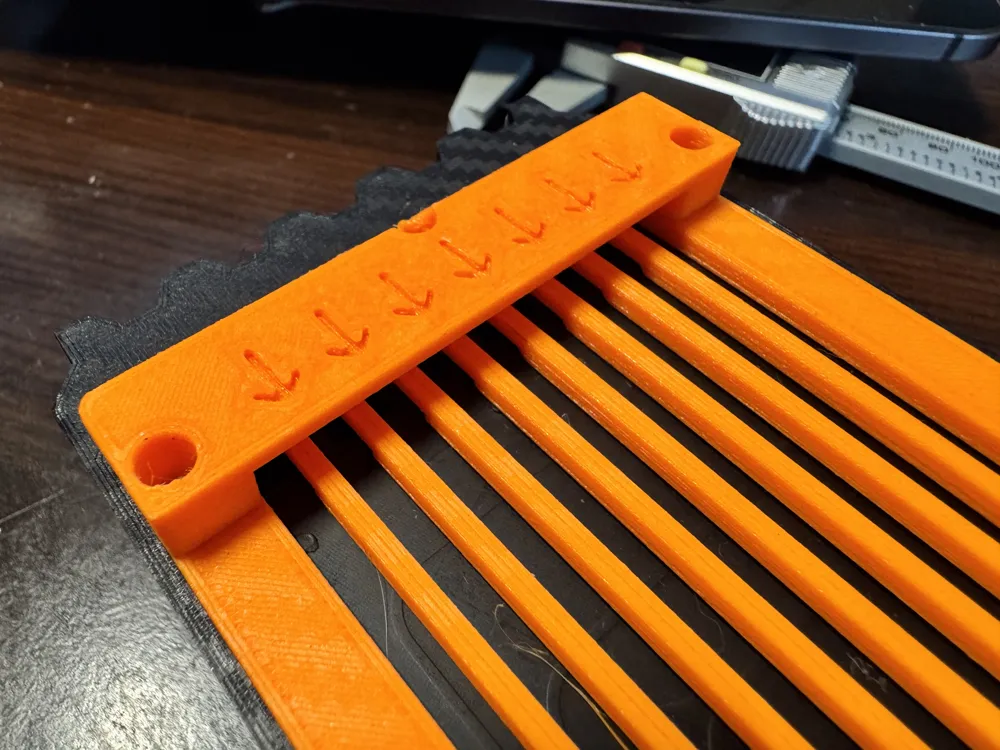

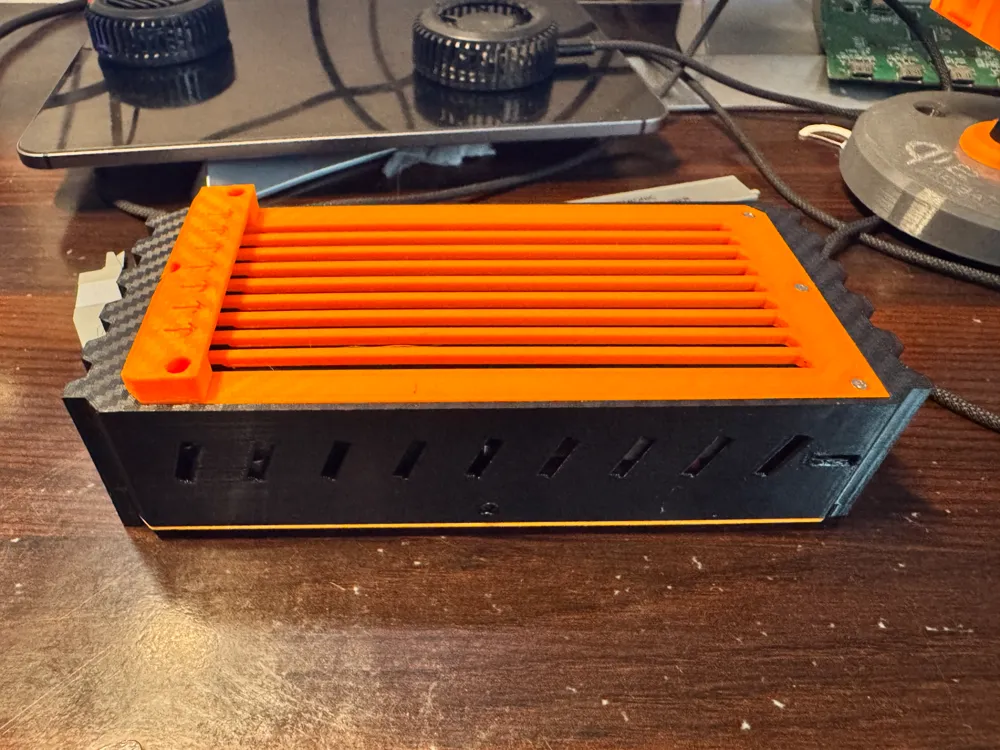

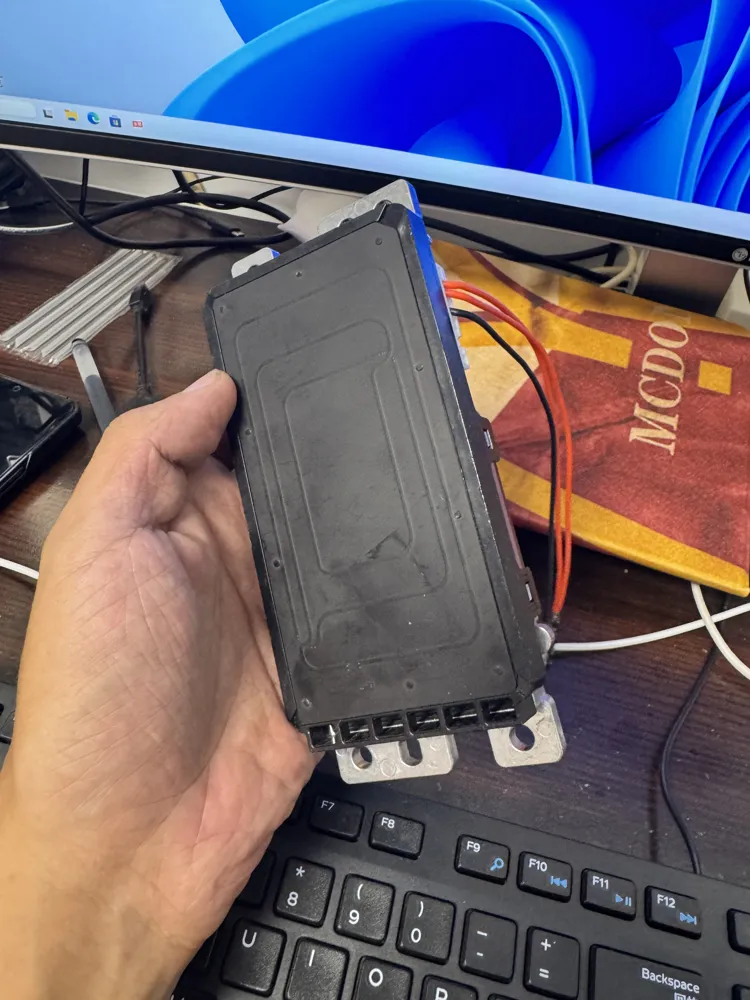

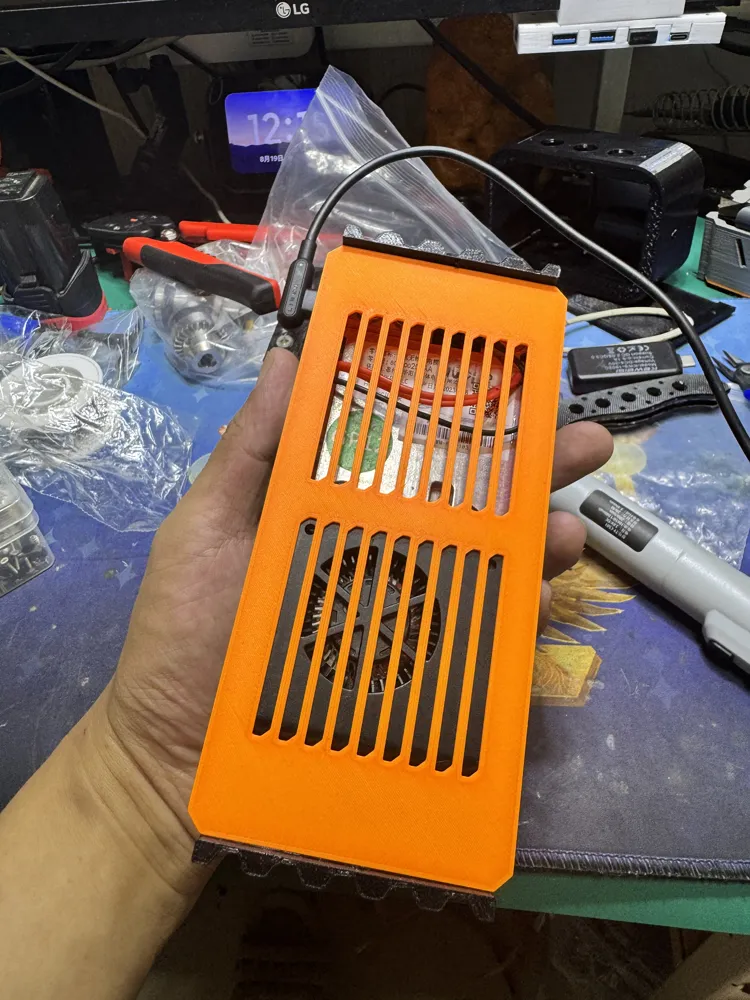

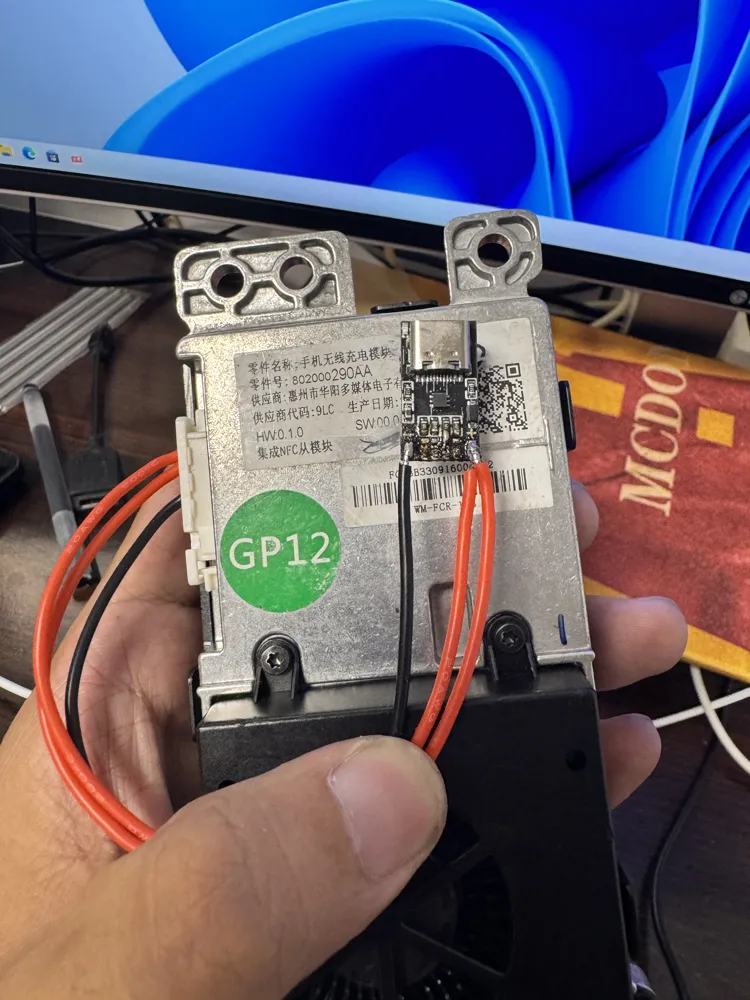

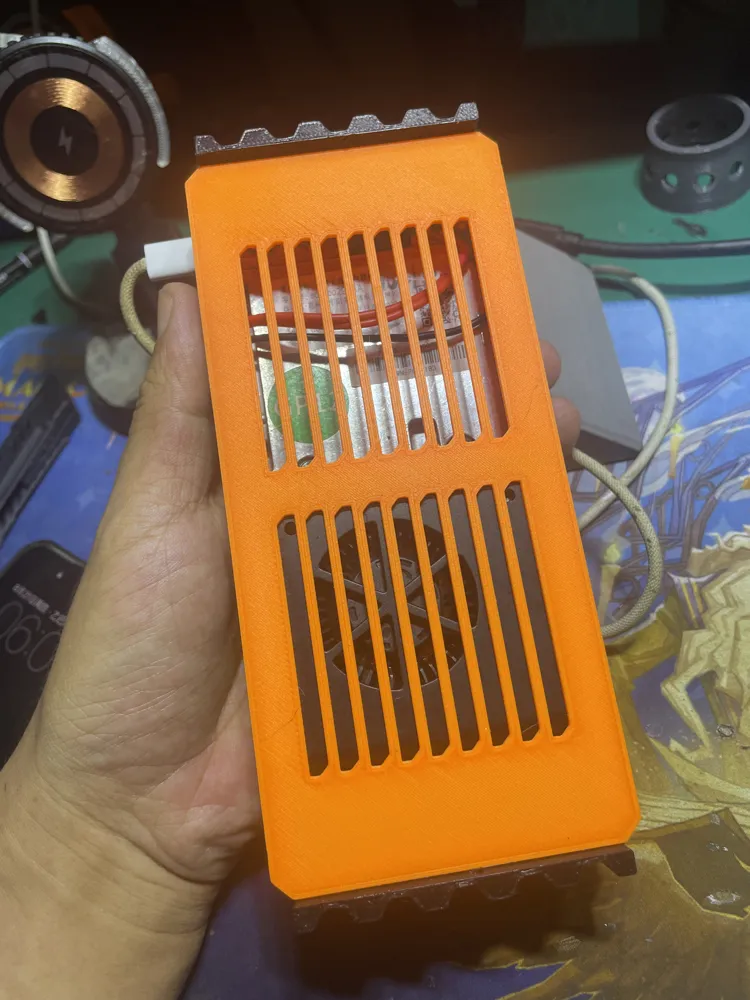

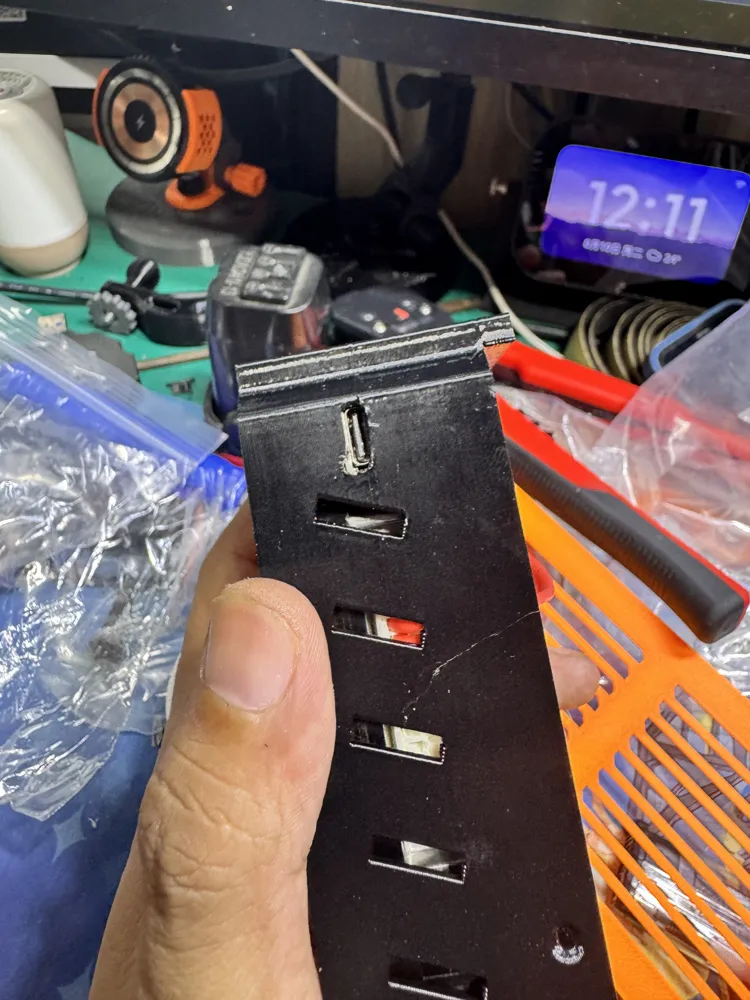

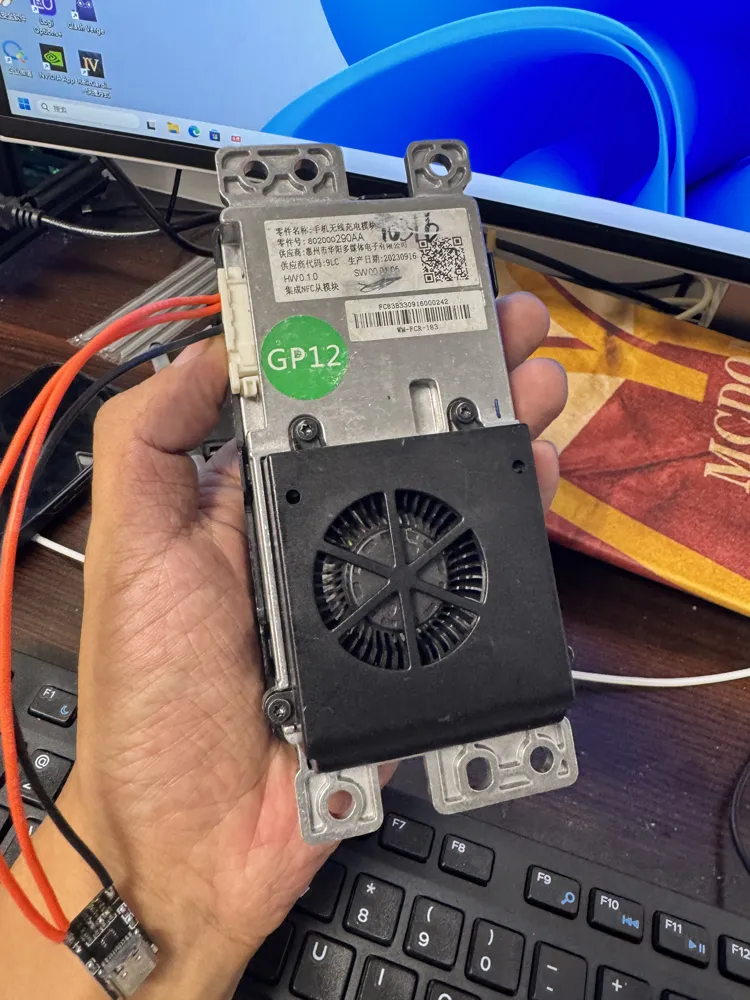

I designed this bracket and casing for the Chery 50W wireless charging module. With this model, you can take this true automotive-grade wireless charger home for use. It features a high-efficiency cooling fan and supports private wireless charging protocols for multiple phone brands. Where else can you find a treasure that supports fast wireless charging for so many phone brands simultaneously? Look, here it is. This charging module itself does not have any CAN communication protocol with the car, meaning it can be used immediately by basically connecting three wires (positive, negative, ACC), without any accompanying car computer to control its activation. My activation method is to use a PD decoy module to trick the PD charger into outputting 12V voltage. But remember to choose a charger with 60W or more. Below are the details of the modules used,

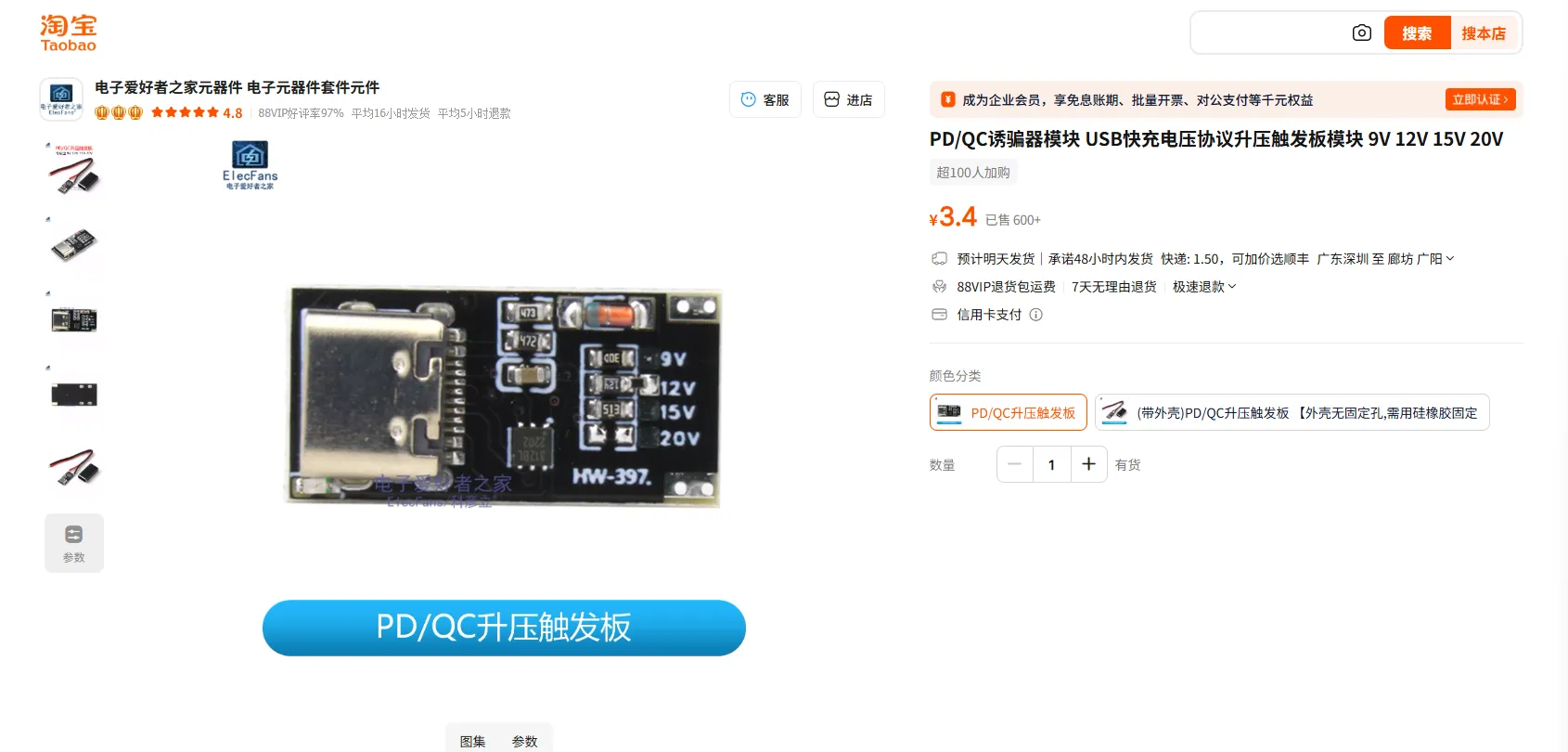

1. PD decoy module x1

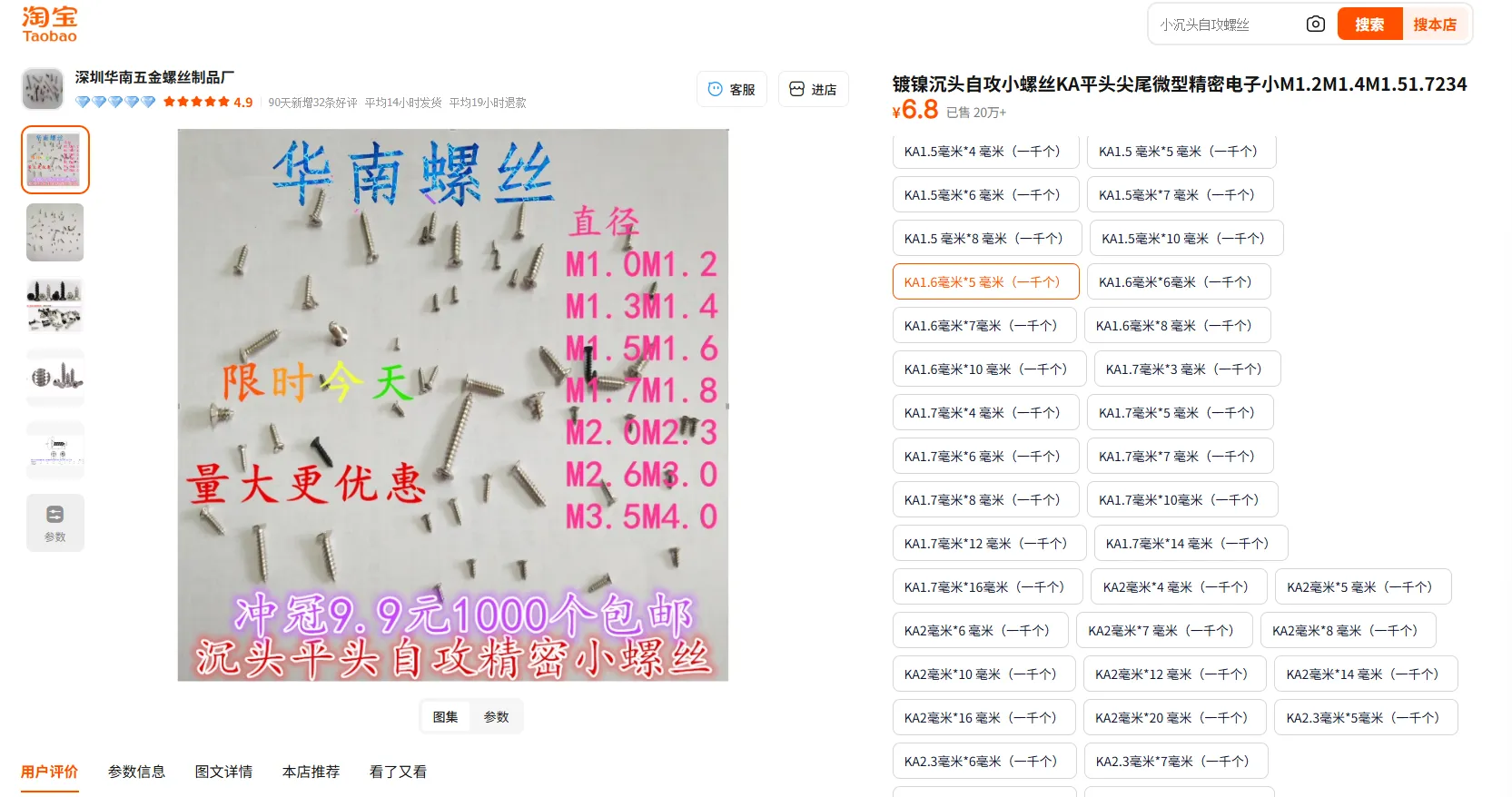

2. Small self-tapping screws, 1.6x5mm x6, M3x5mm x2 (approximate size is fine, can be salvaged from old appliances or toys)
