Dark Ages - HRE and HoC Board Game Insert and Tray

Remixed by

Print Profile(2)

All
P1S
H2D Pro
X1 Carbon
A1
P1P
H2S
X1
X1E
H2D
P2S
H2C
X2D
A2L
A1 mini

0.16mm layer, 2 walls, 10% infill
0.16mm layer, 2 walls, 10% infill
Designer
69.8 h
17 plates

0.16mm layer, 2 walls, 15% infill
0.16mm layer, 2 walls, 15% infill
Designer
80.3 h
29 plates

Open in Bambu Studio
Boost
3
3
3
0
9
4
Released

Description

This is a remix of https://www.thingiverse.com/thing:4972538 with significant changes.


The creator of the original insert was able to get most everything in one box, but I wanted to allocate more space for a card organizer and tray so I know I needed to keep both boxes.

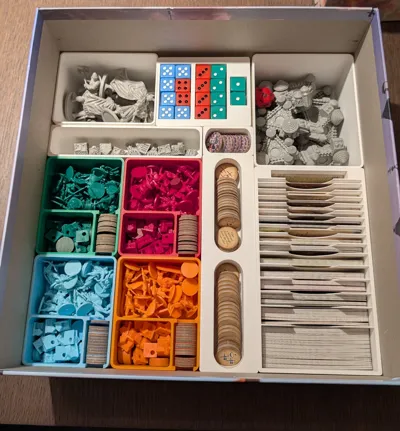

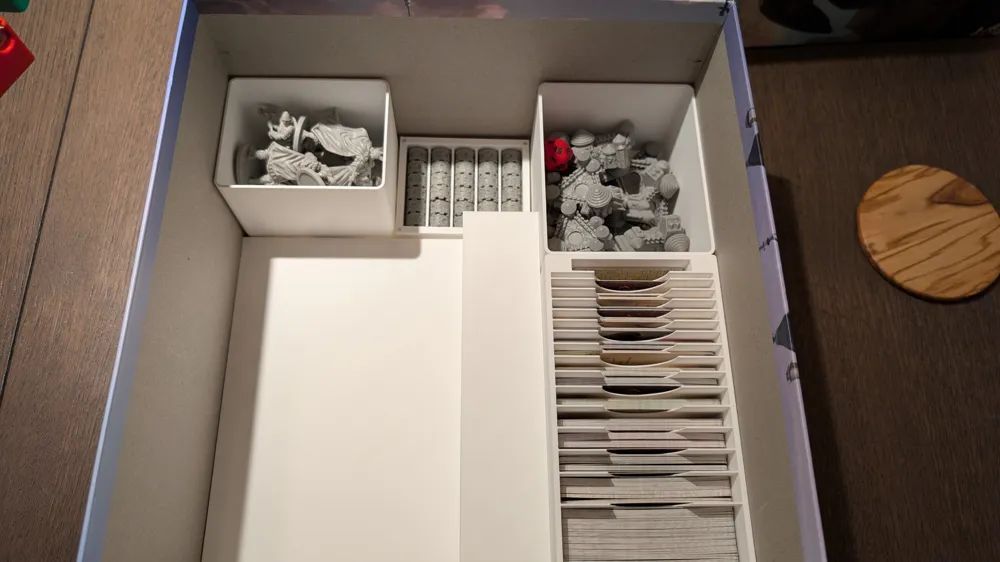

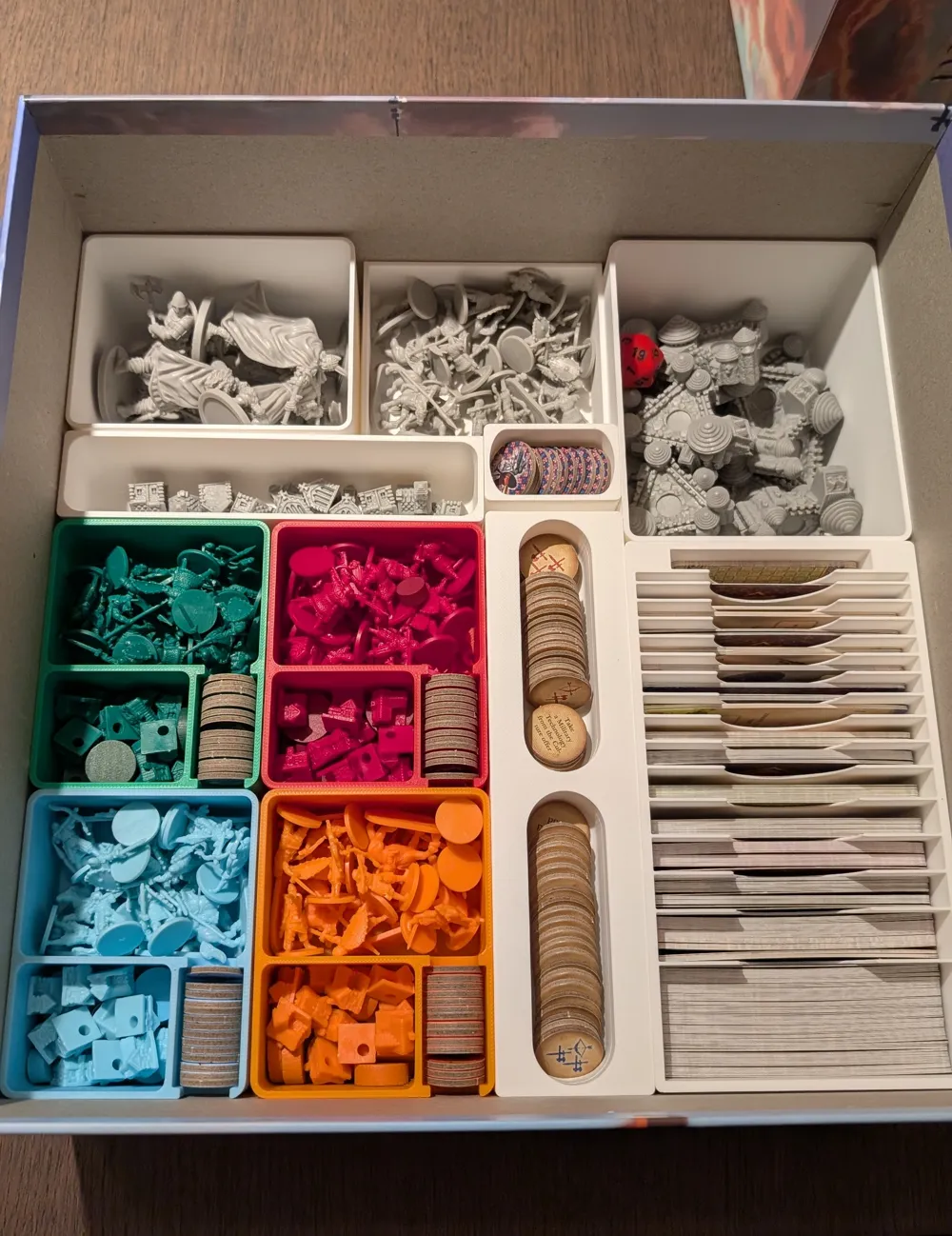

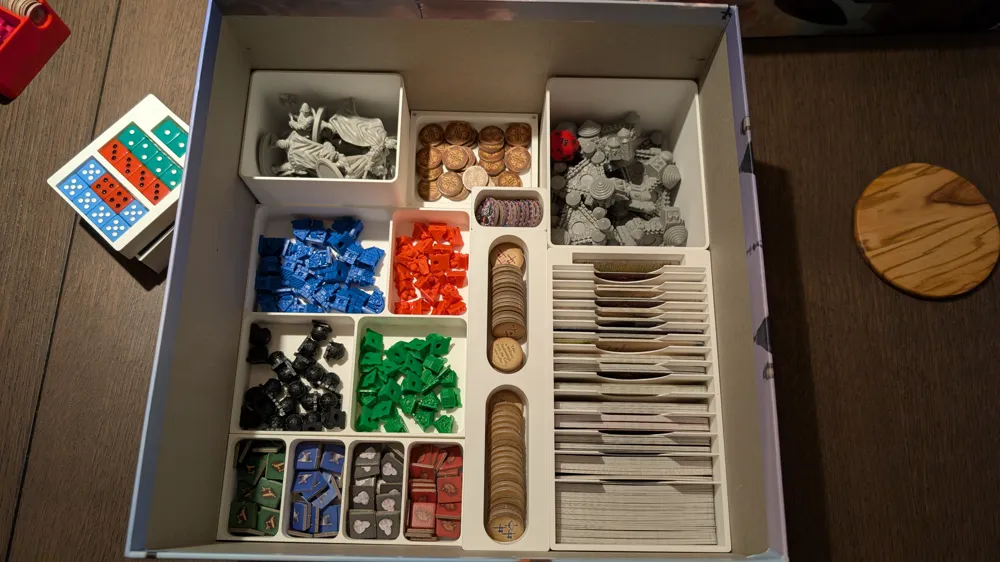

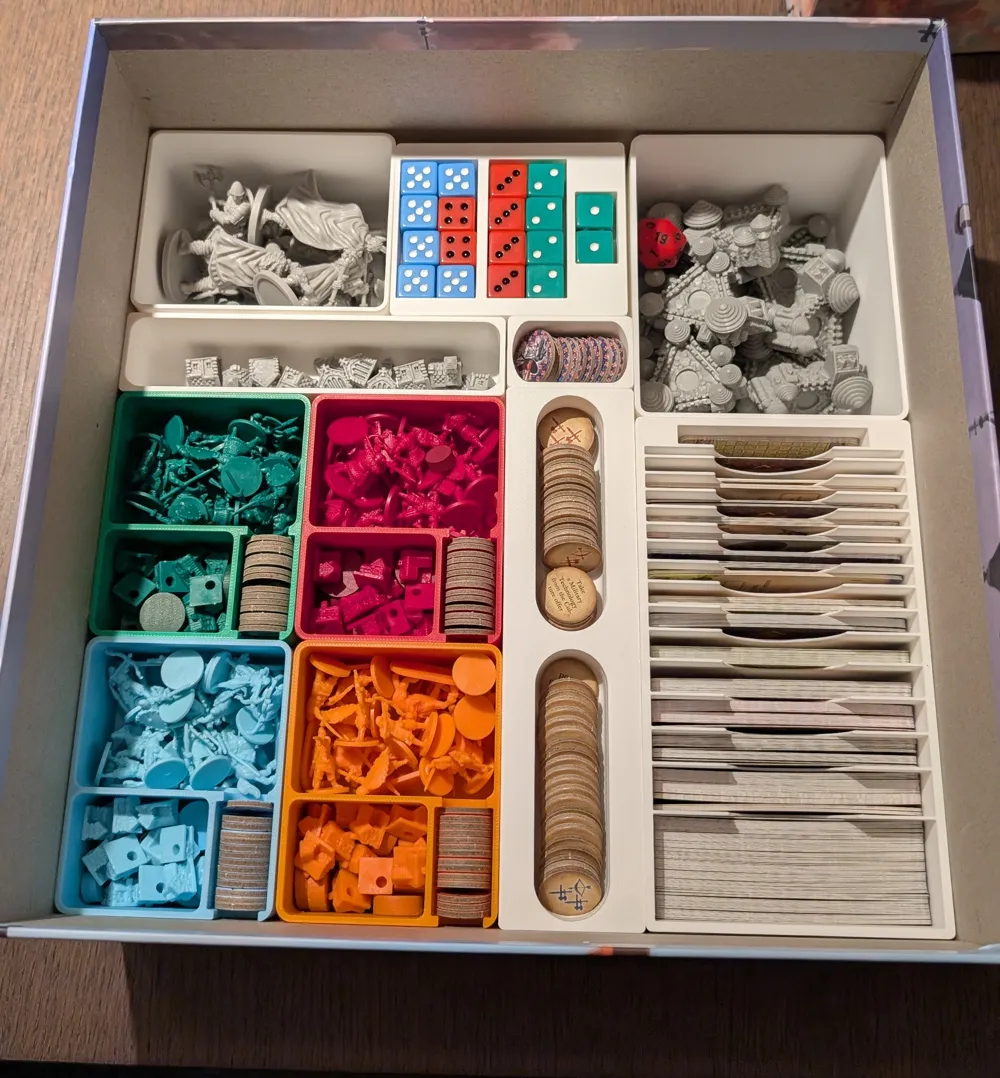

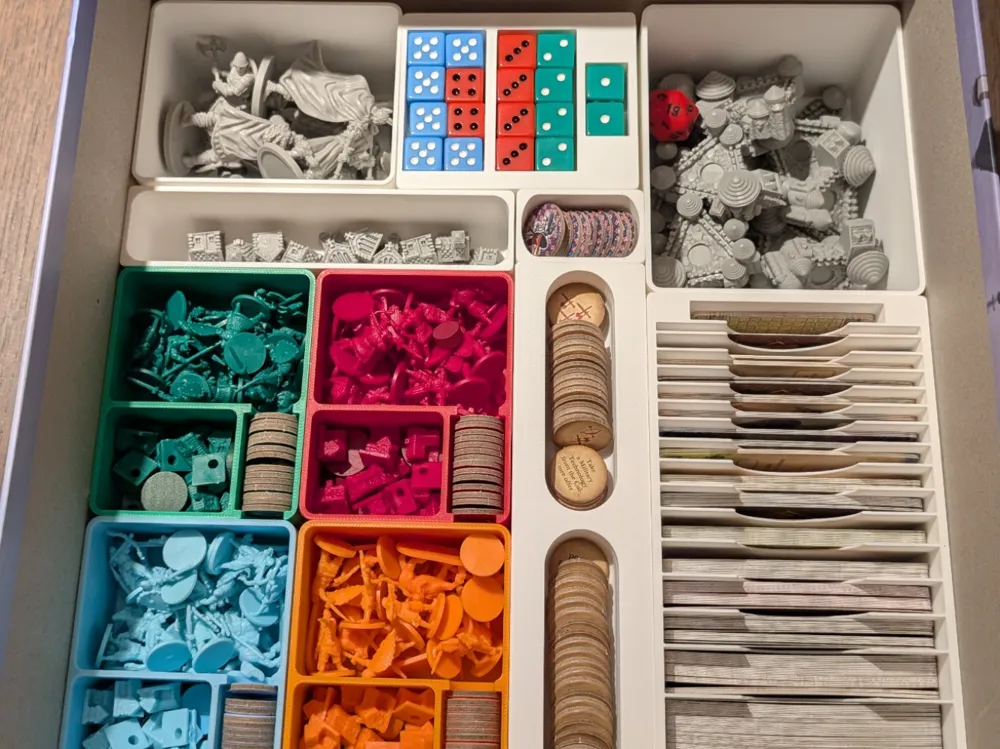

I kept the player trays, coin holder, cities and commanders/monument holders, resource, and resourced building trays.  I did increase the height of several items to get everything level.  It also makes it so that you don't have to carefully stack everything so neatly to make it fit, and you can quickly just throw it all in the resource holders.

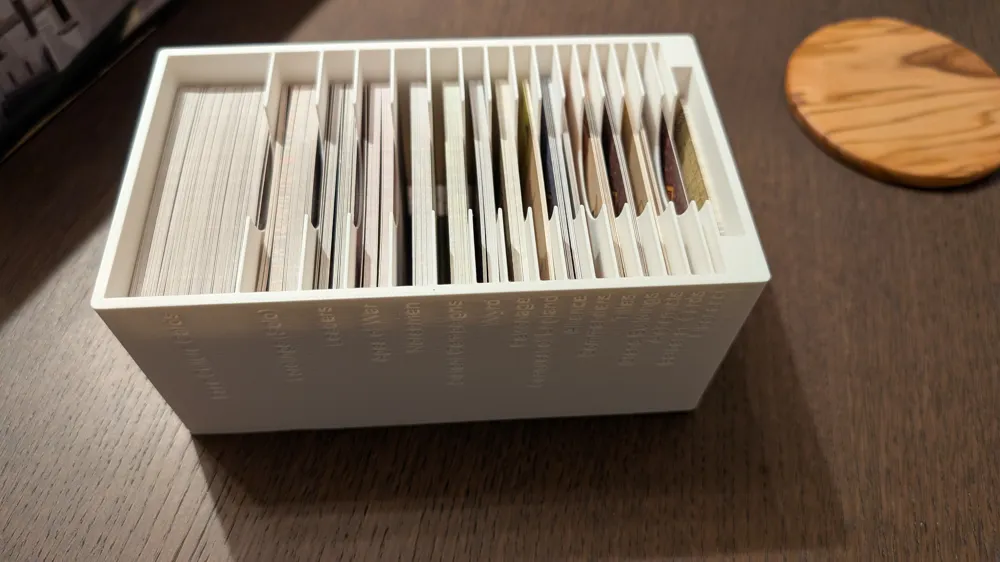

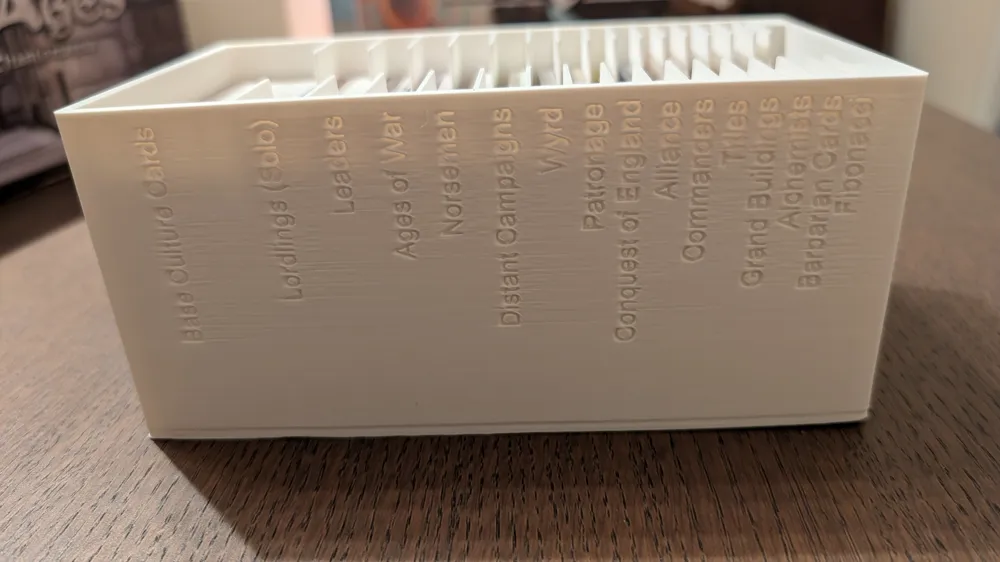

I added card holders with labels for both Heritage of Charlemagne and Holy Roman Empire so it's easier to pick which Modules you want to include.   The labels are debossed (indented) as part of the model, so you don't have to print separate labels.  The card holders don't support card sleeves unfortunately.  But if you scale them up a little bit there may be enough to make card sleeves work.  I haven't tested it. But to get everything in the box you would need to scale other items down accordingly.

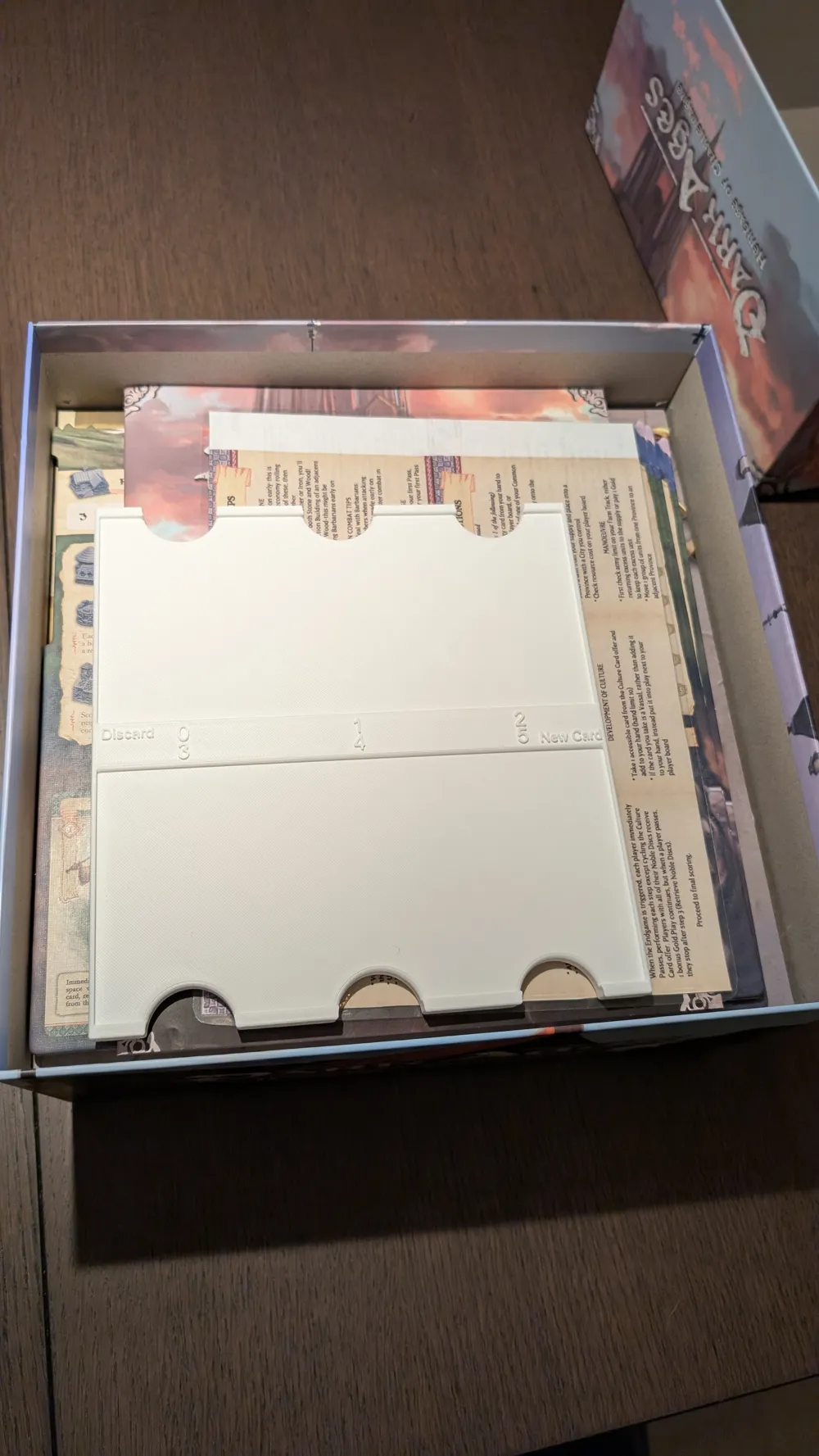

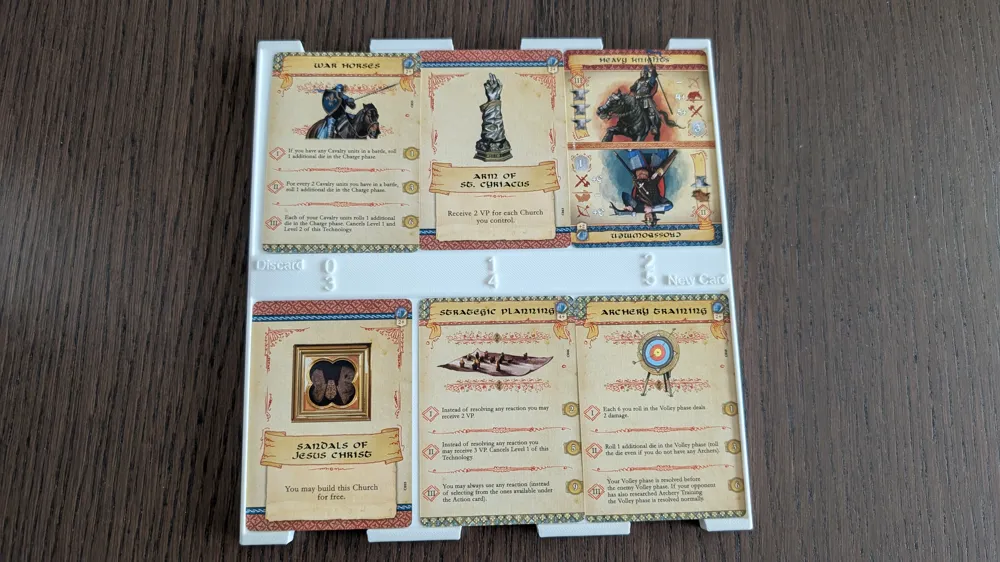

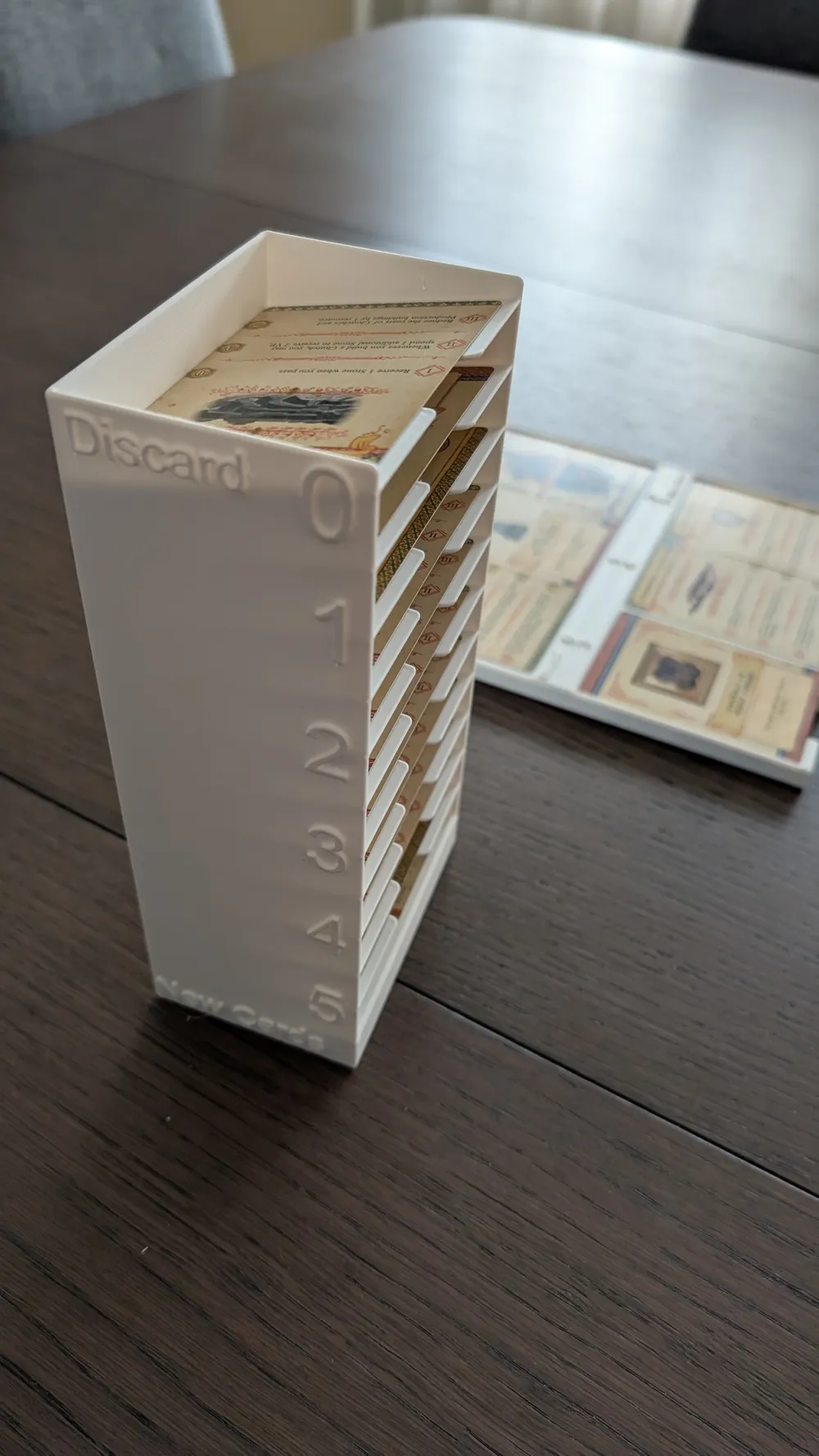

I also created a card tray to replace the bottom portion of the culture track.  This is to make it easier for everyone to see the cards without having to get up.  You can just pass it around.  0 on the track means you have passed 0 of the red markers on the culture track, 1 for when you have passed 1, etc.

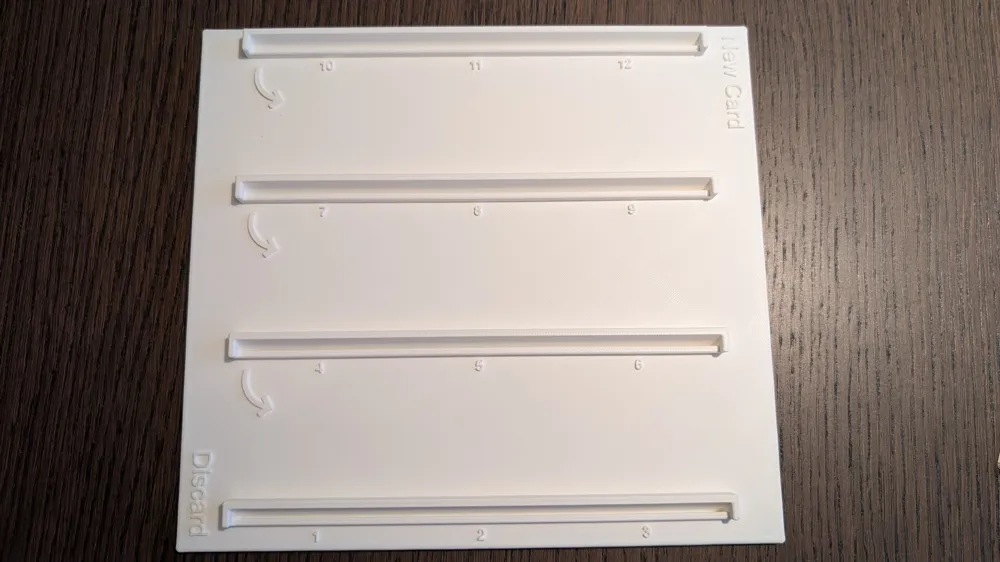

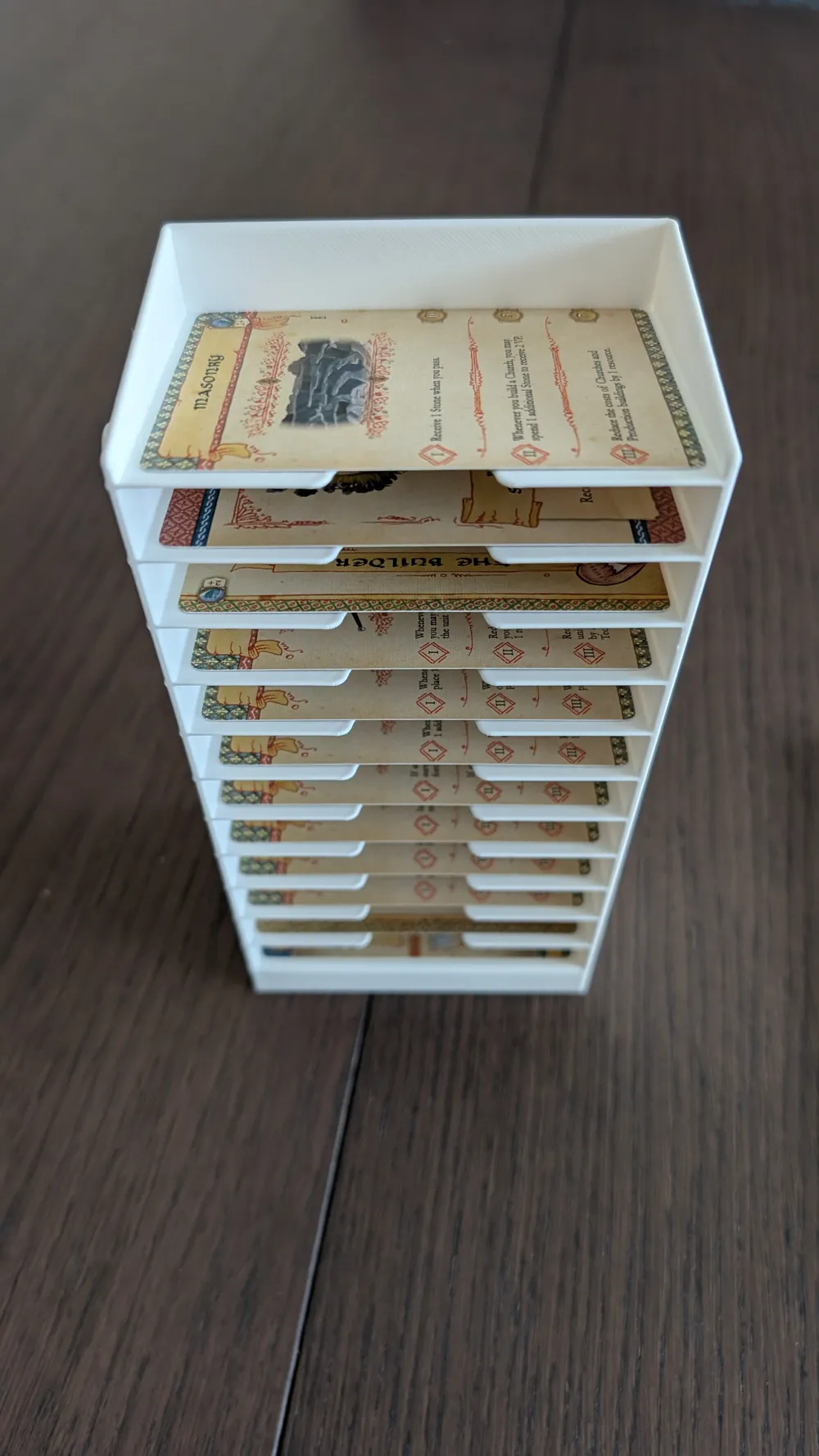

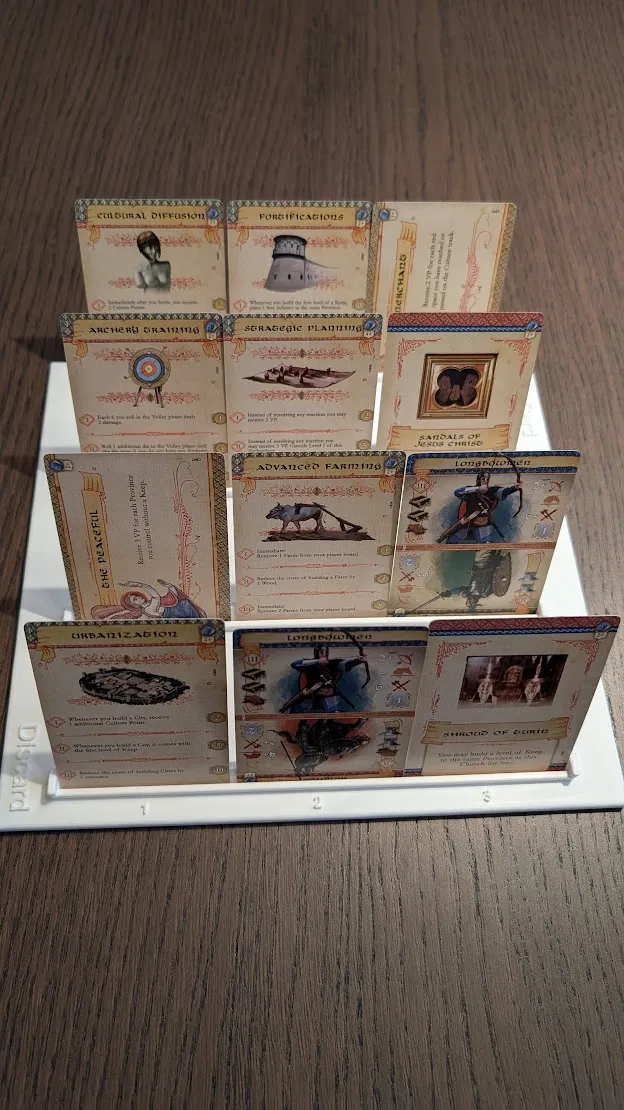

For the Great domain (5-8 player game) I added two options.  One is a 3 x 4 card tray and the other is a vertical card tower version to hold all 12 cards.  The 4p culture tray and the 8p 3x4 tray both fit in the box, but the vertical card tower variant does not.  For the 3 x 4 card tray I went with numbering each space instead of the 0-5 numbering.

This insert should significantly help with the time it takes to set up and tear down the game.



I used 10% infill on the spacers and 5% on the card trays to make things lighter and save on filament.  Let me know if you have any feedback or questions. Thanks!

Edit 1: Added another option for holding the Great Domain cards  in game.
