10x15 cm picture frame with interchangeable title/name bar for attaching.

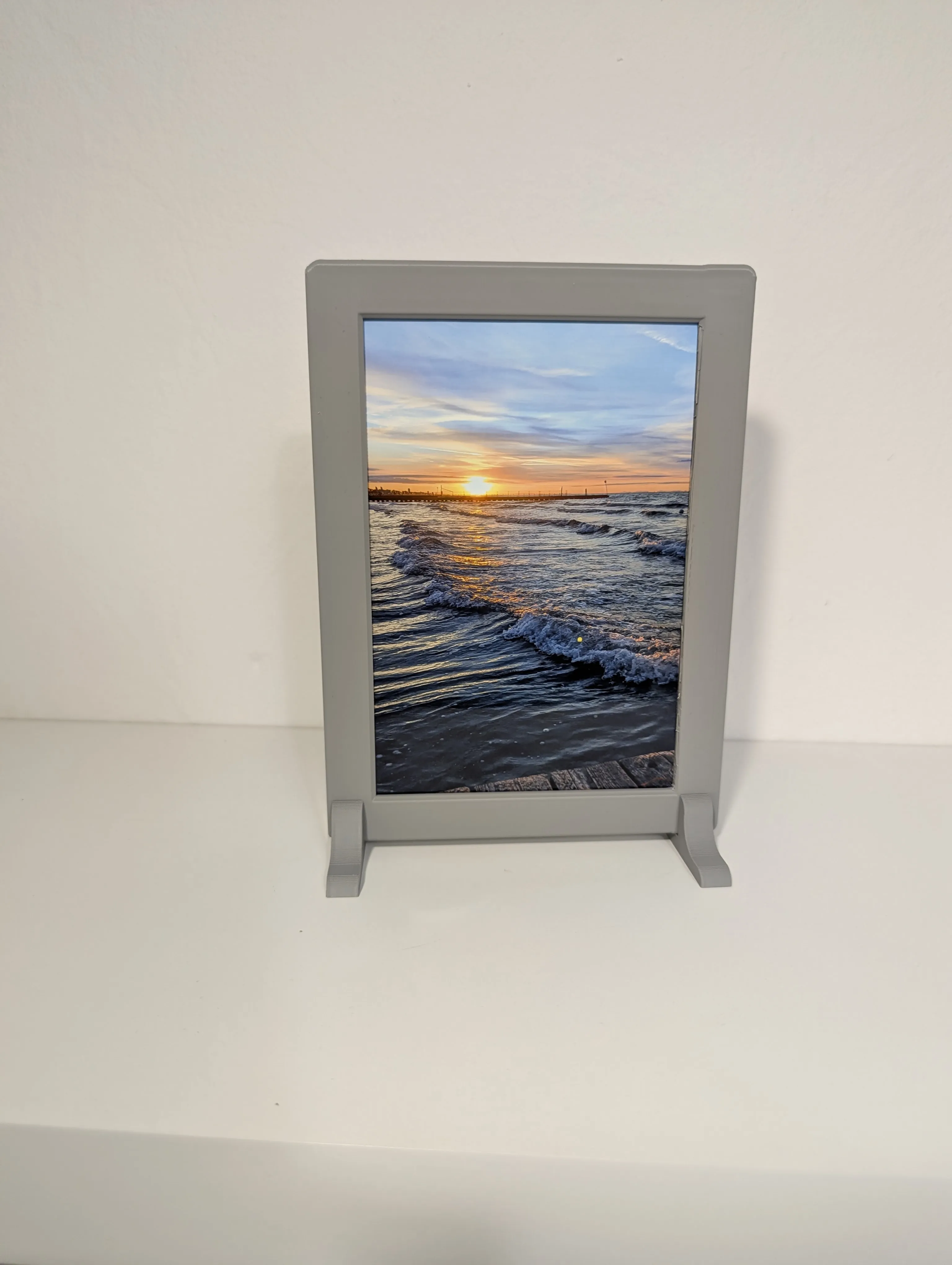

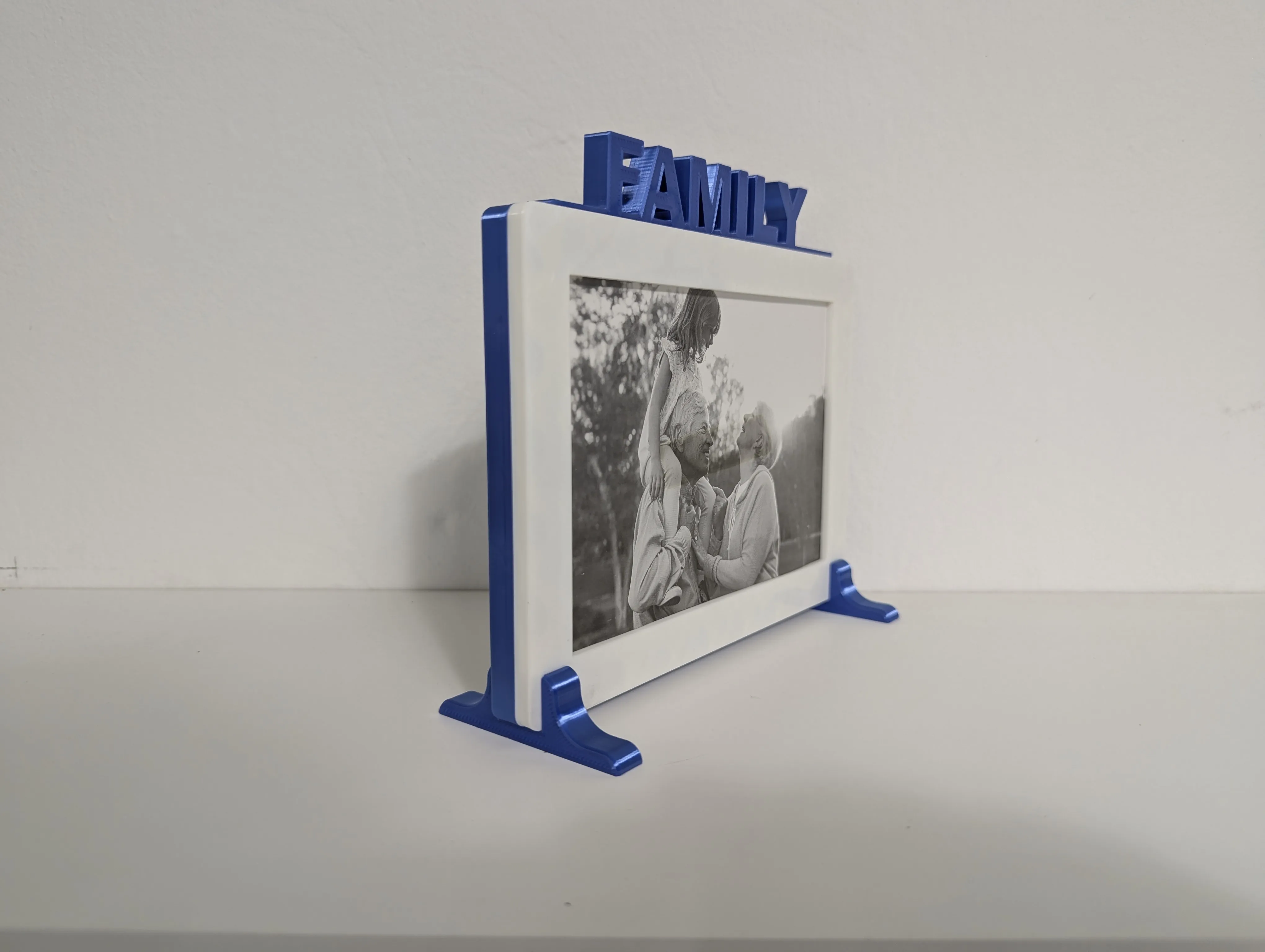

With eyelet for wall mounting or feet for standing on a table.

The frame consists of two parts (front and back), which allows for multi-color prints and also simplifies assembly.

Simply connect with the connectors. This also makes it reassemblable. (Can, of course, also be glued).

Perfect as a personal gift, stylish photo presentation on the wall or table, or as a decorative home accessory.

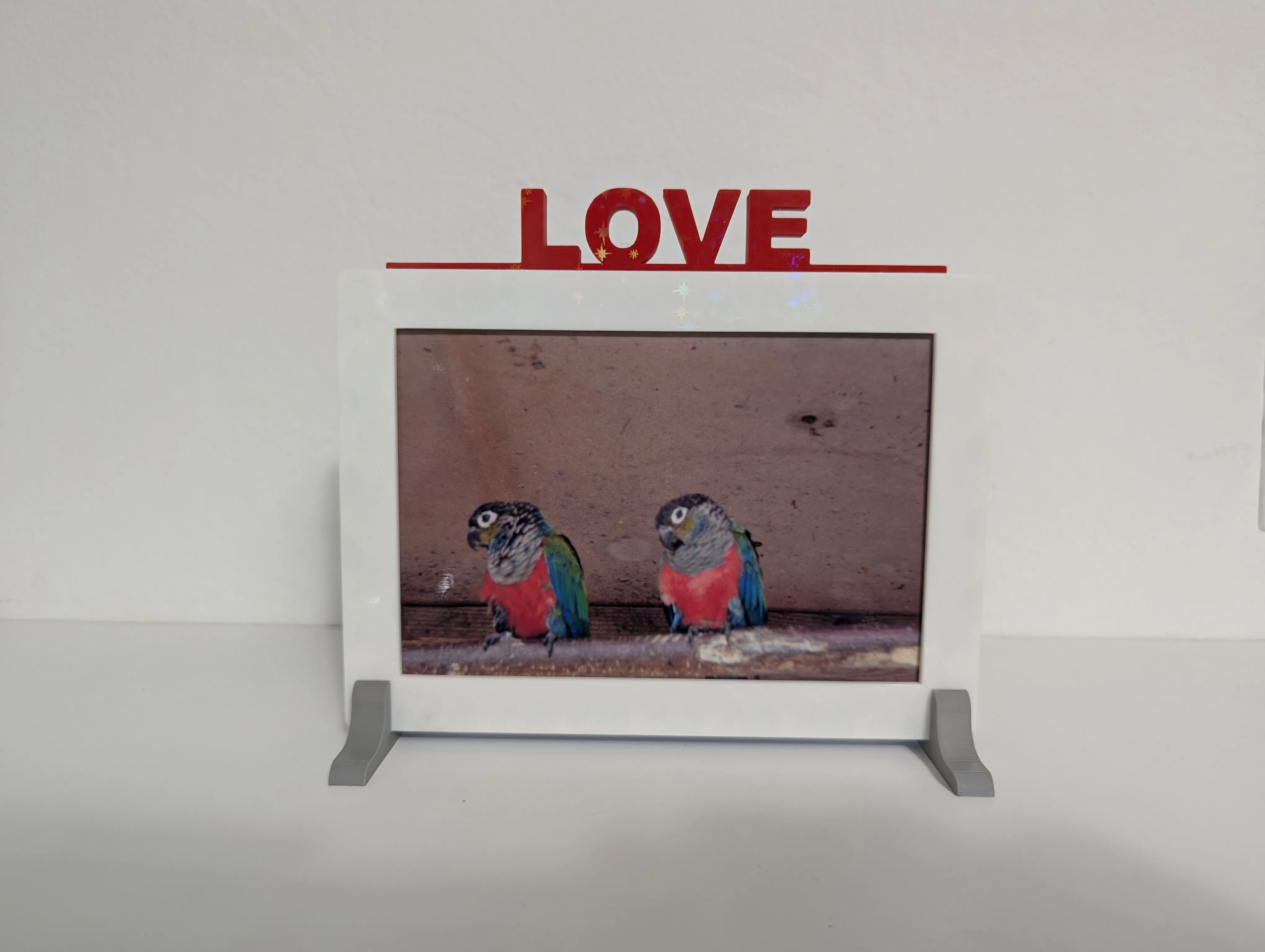

The title is attached by sliding it on.

The frame and titles are arranged on the print bed so that the pattern of the plate is visible.

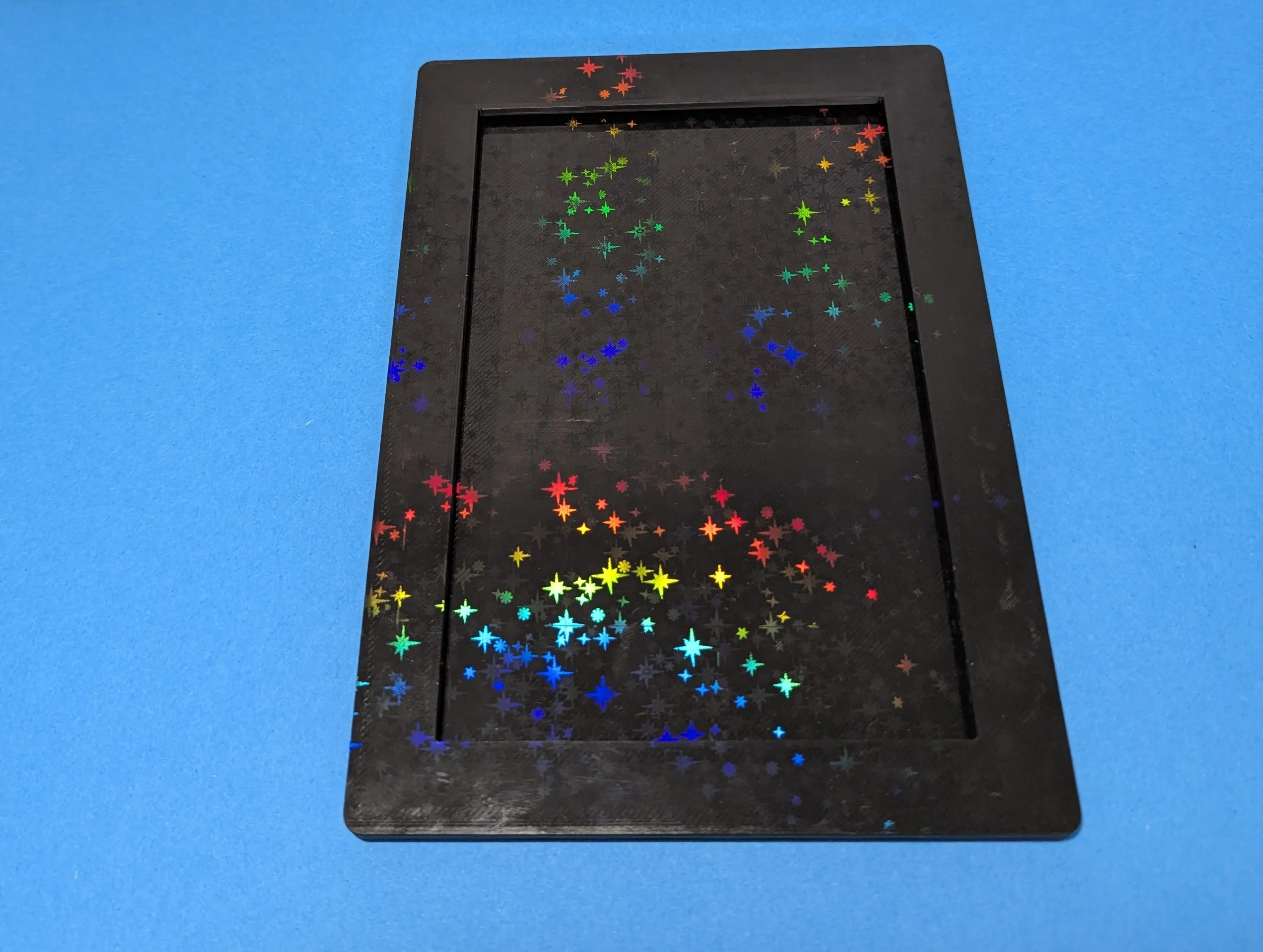

I printed my versions with a 3D effect plate “Starry”. It has a very nice effect depending on the incidence of light.

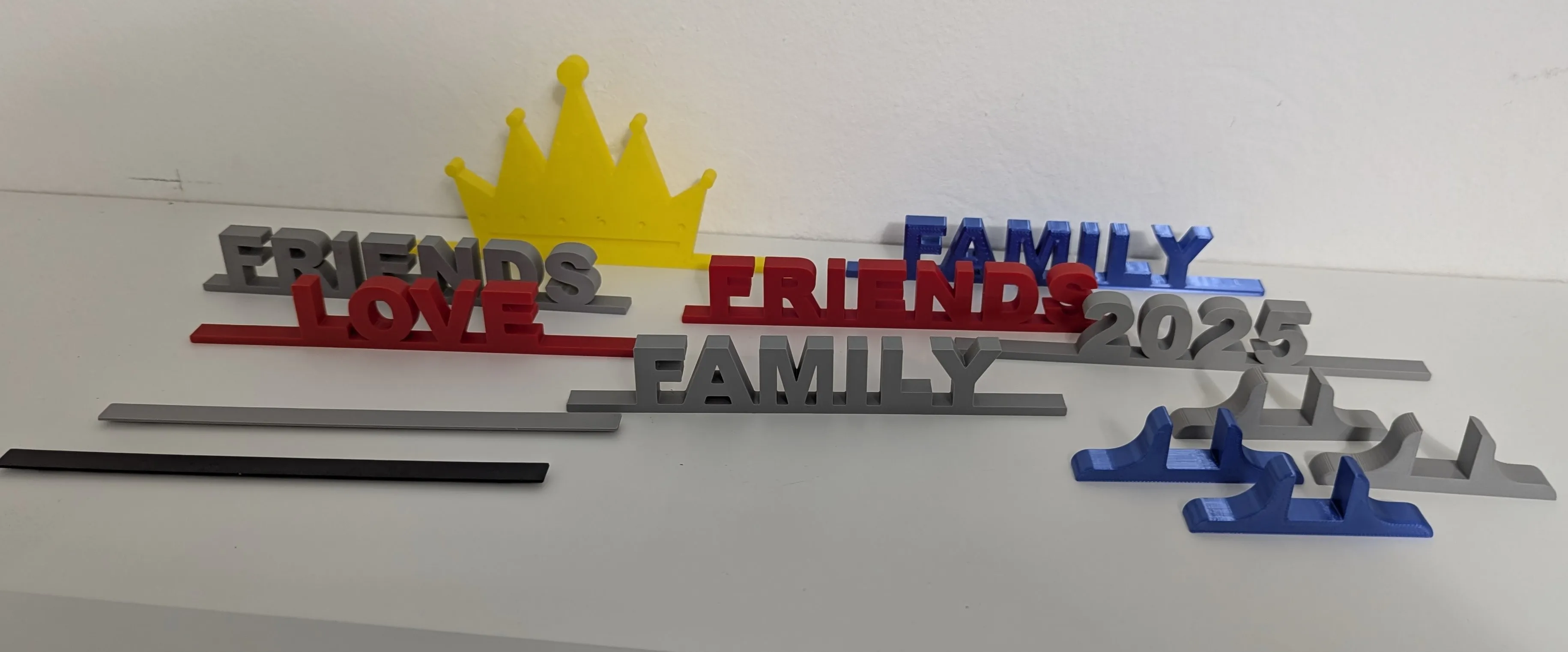

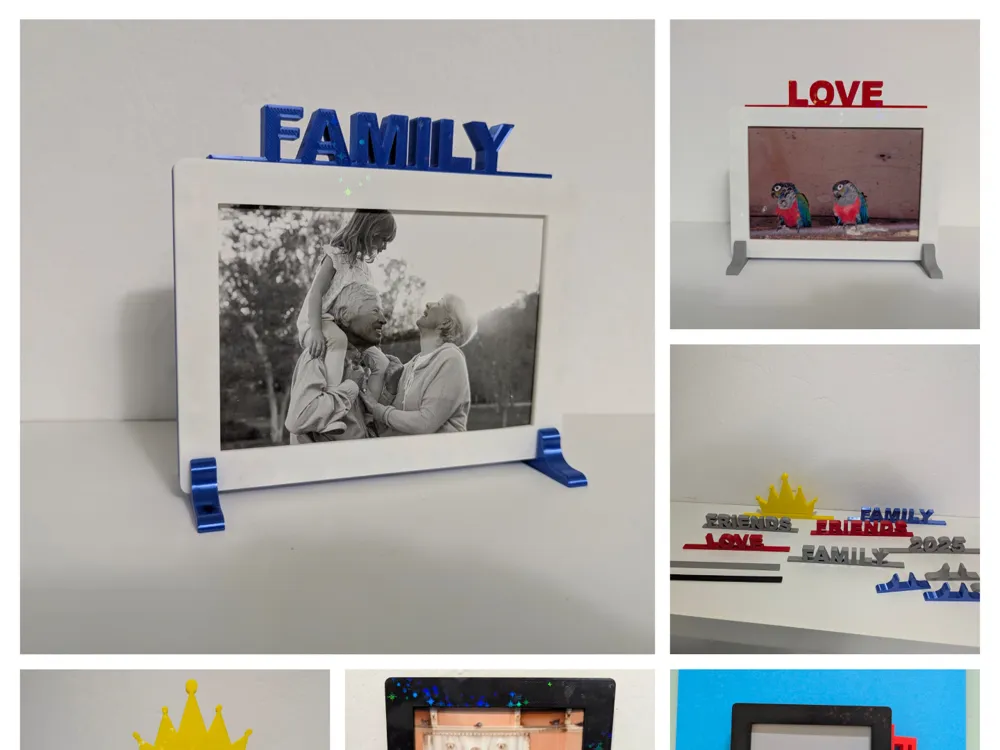

I have created various titles:

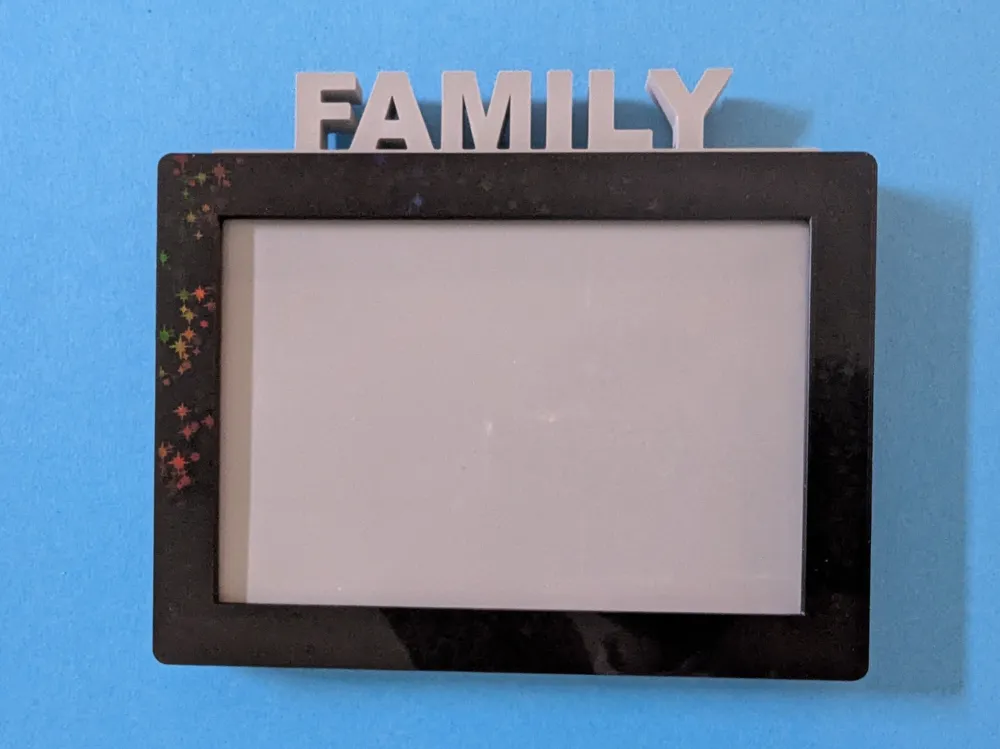

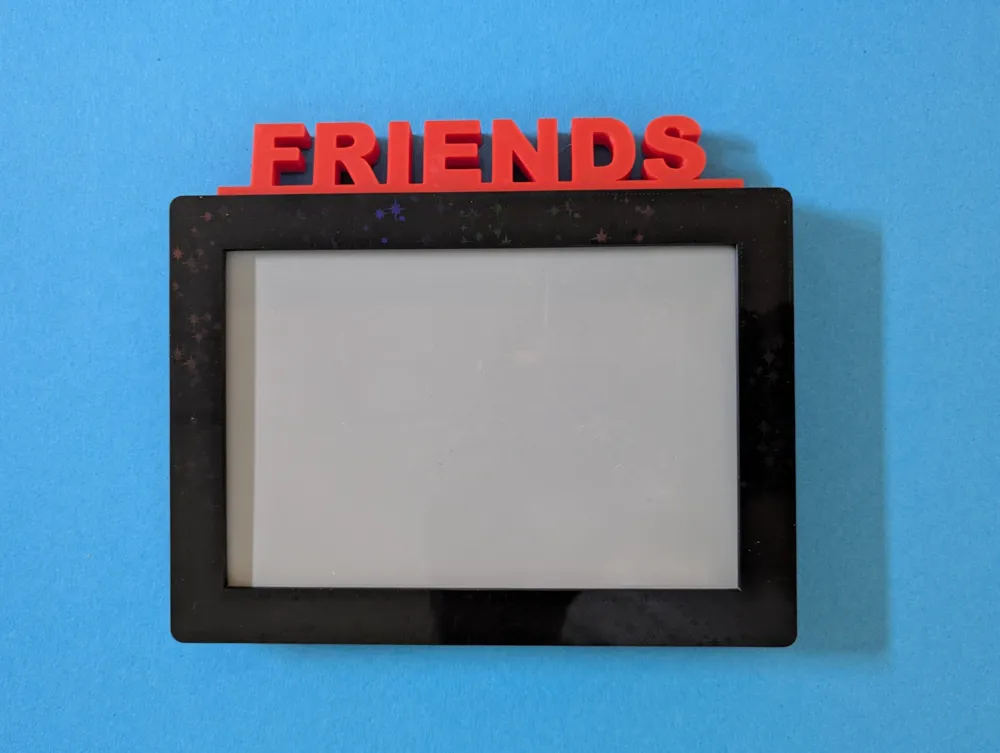

Friends, Family, Love, 2025, 2026, a princess crown, and

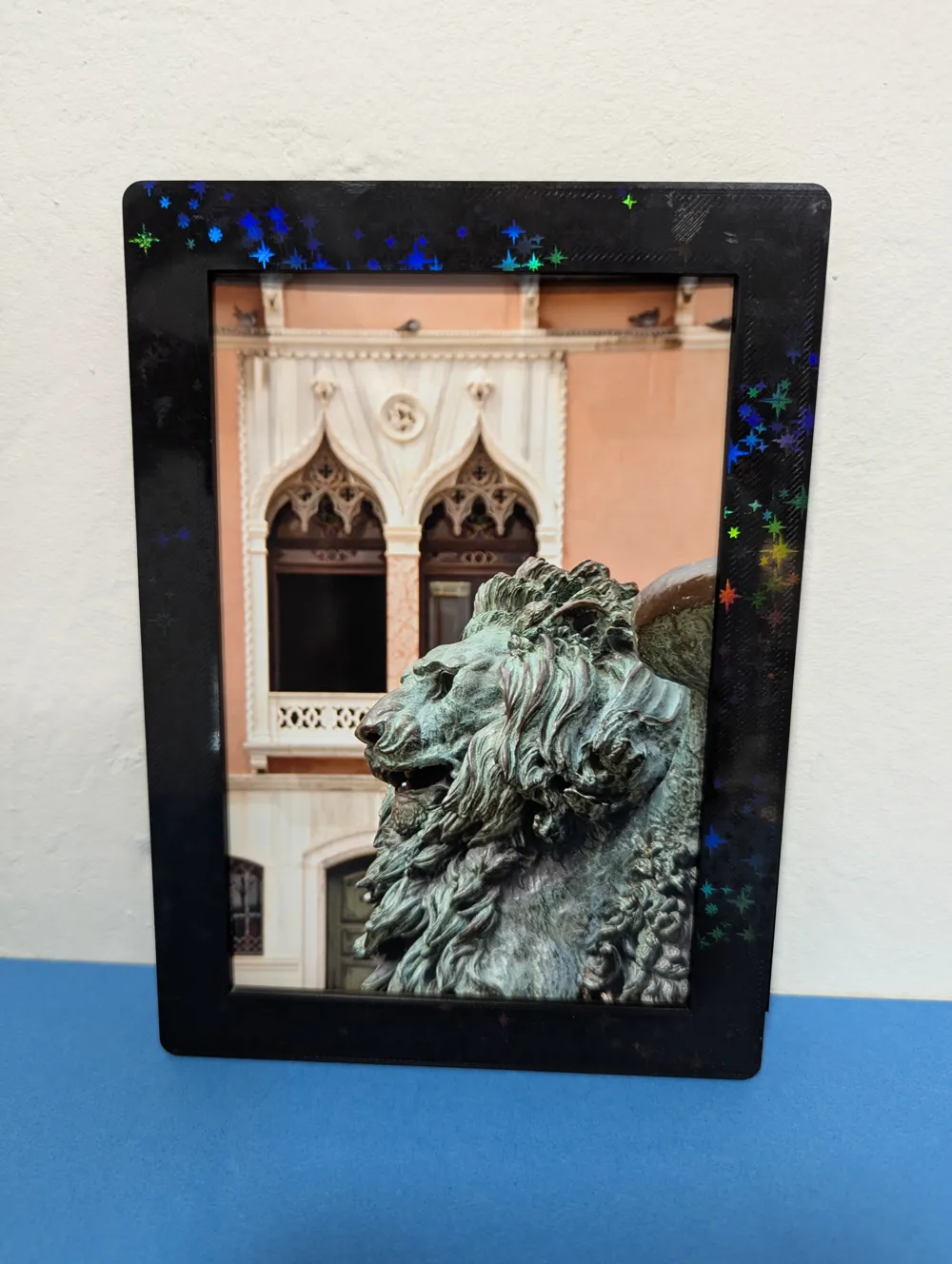

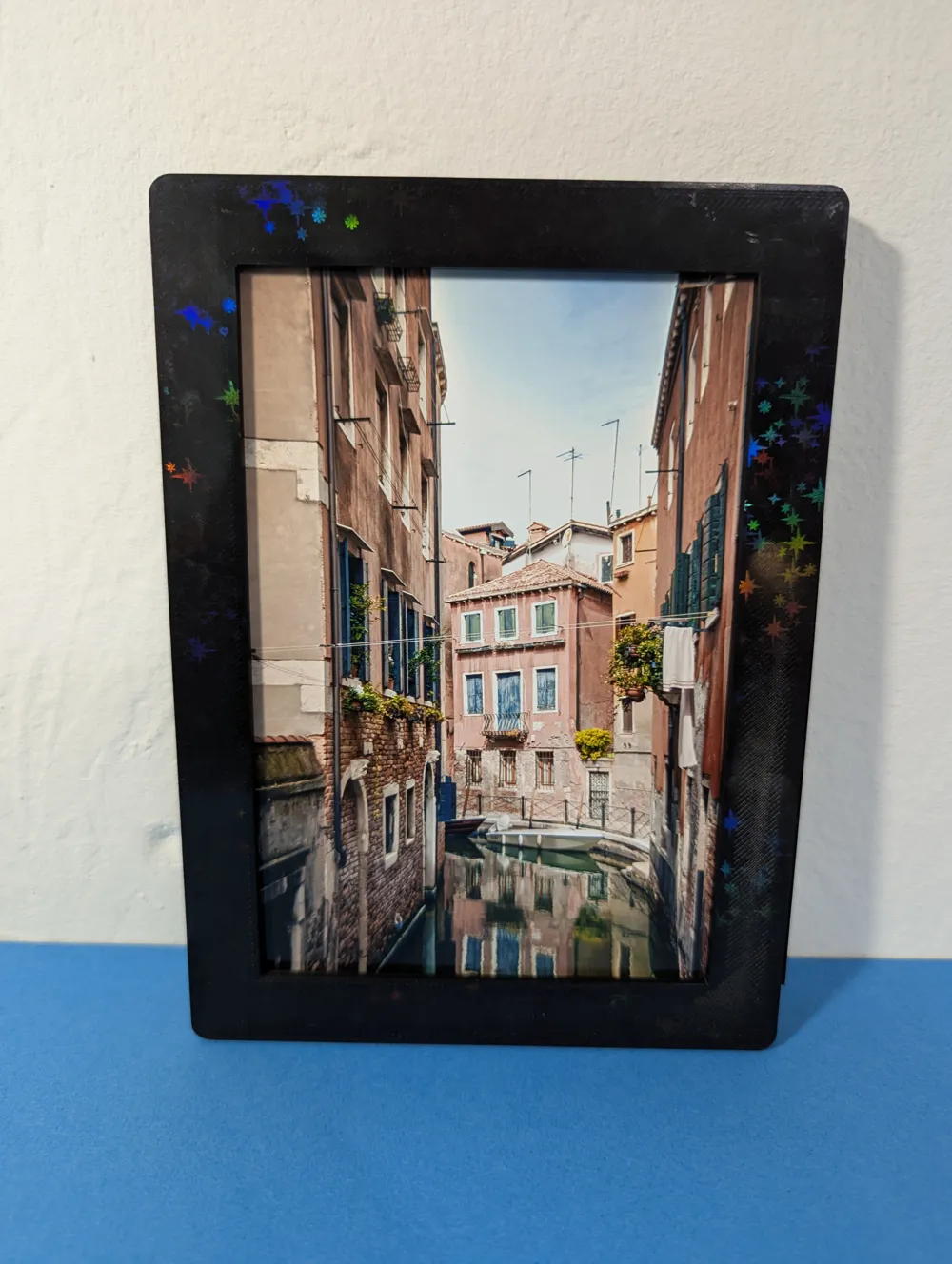

Blank covers if no title is needed or if a picture is inserted vertically.

Stand feet

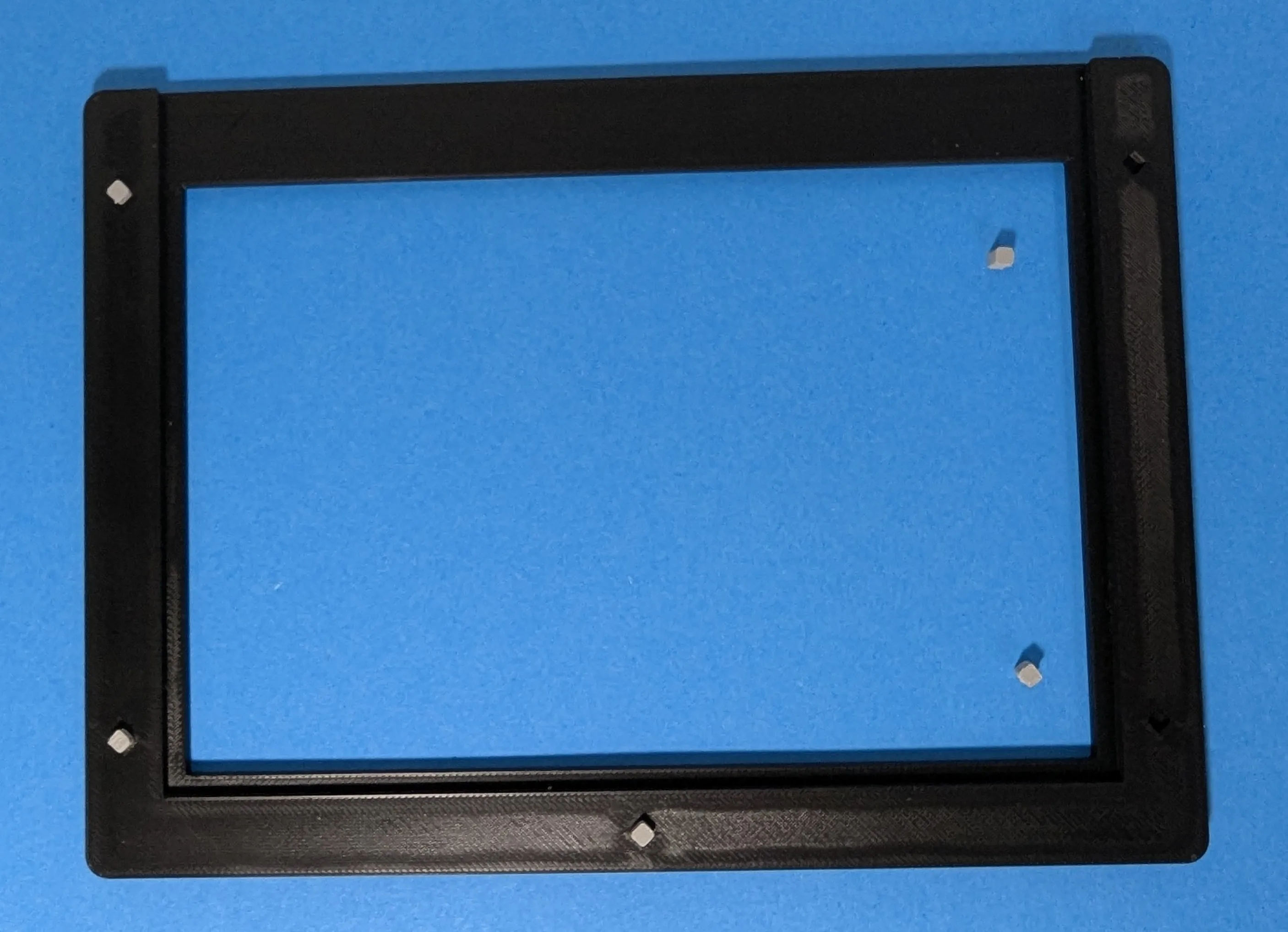

The frame is assembled with the dowels and can also be glued if necessary:

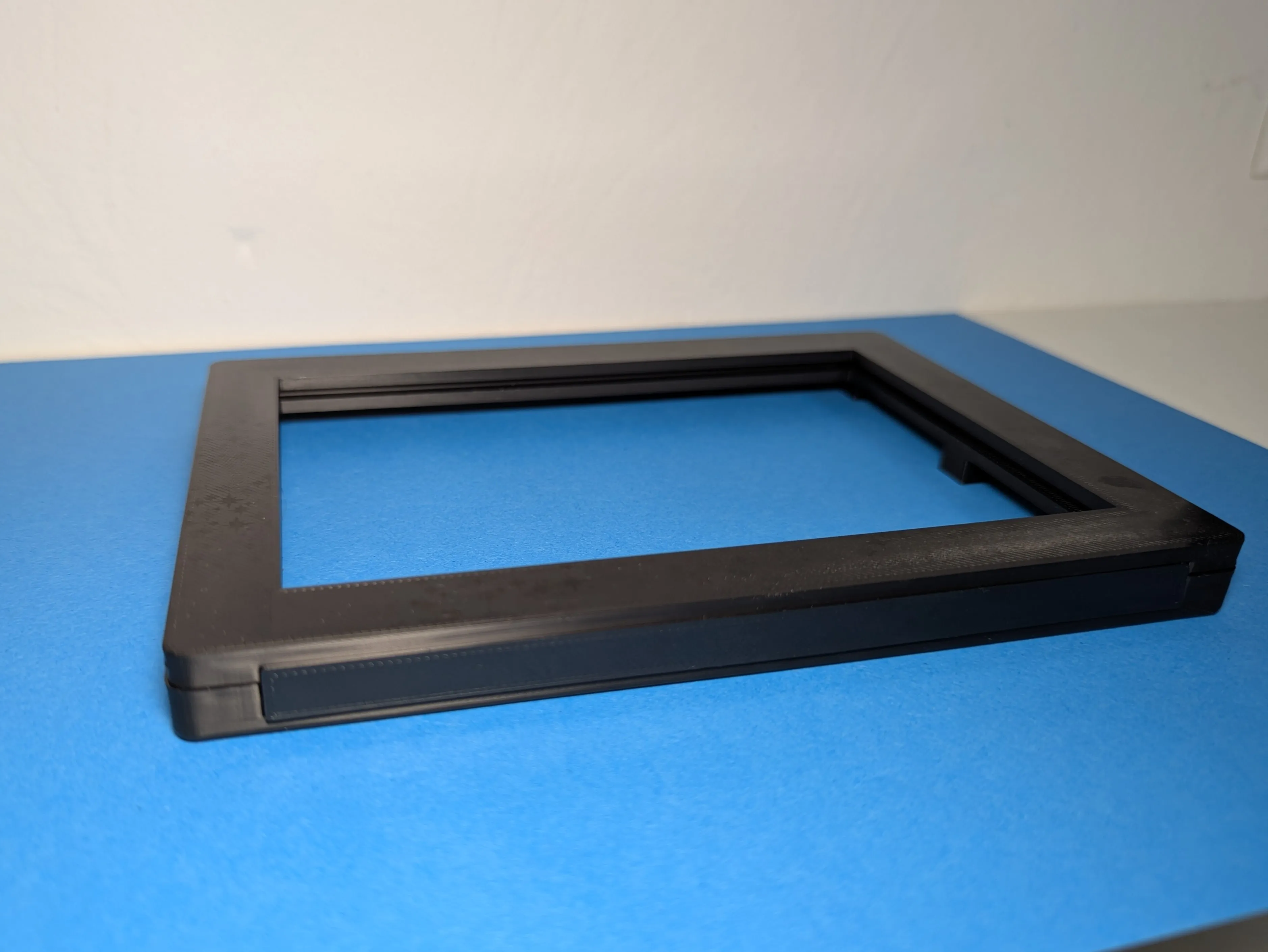

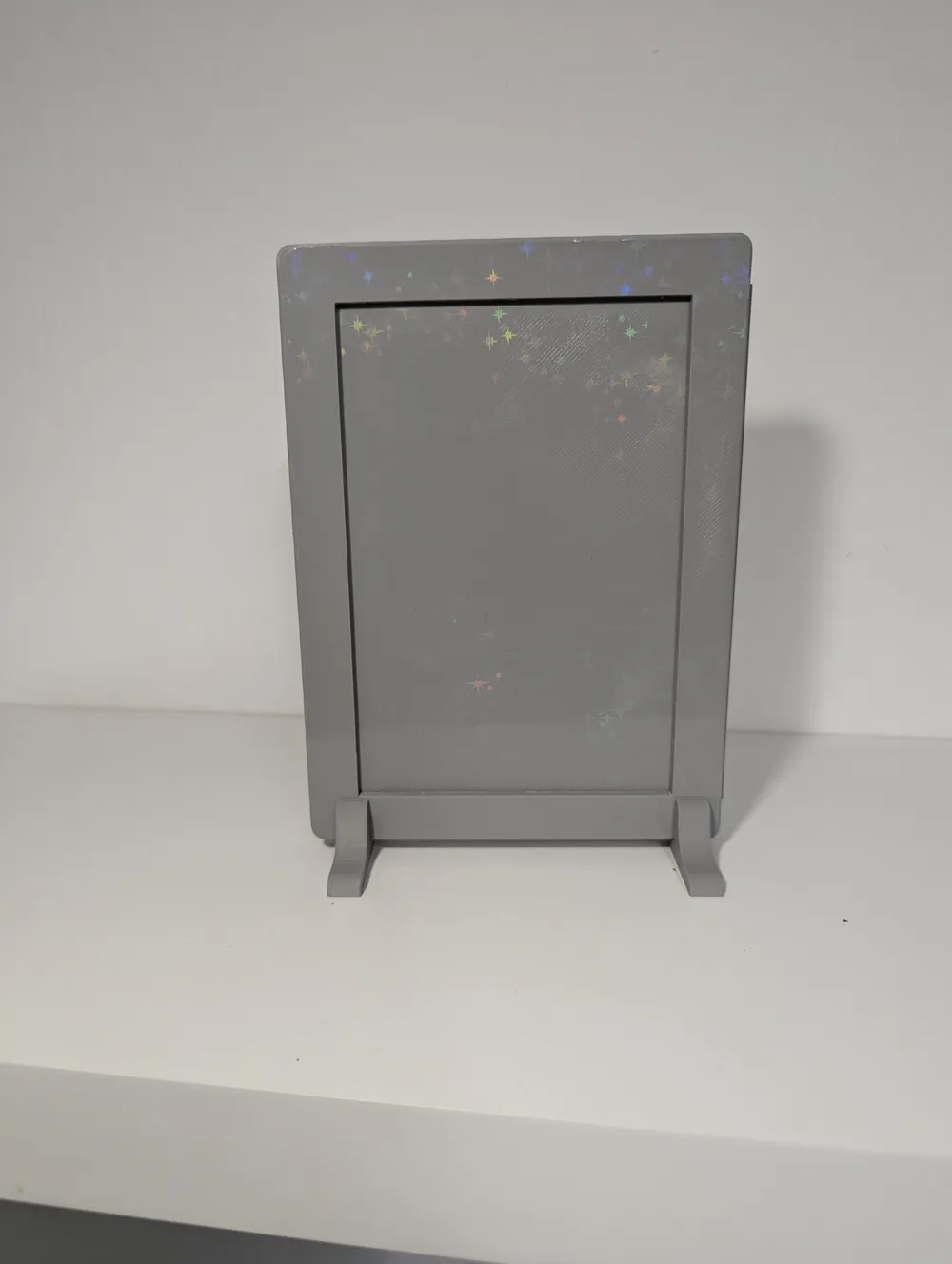

Assembled with blank cover:

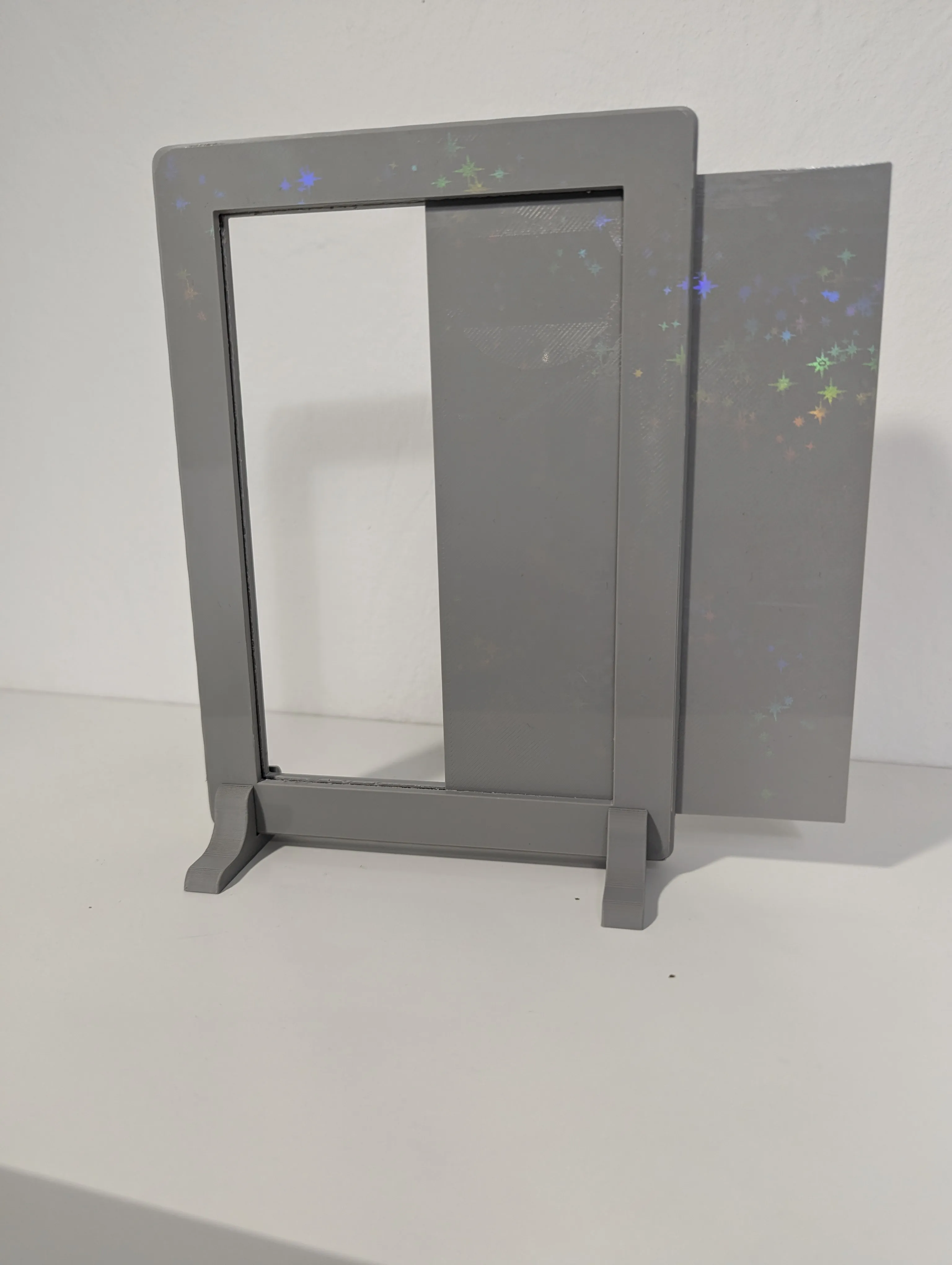

Once the frame is assembled, the back panel, including the picture, can be slid into the slot.

Use a title or a blank cover as a cover for the slot.

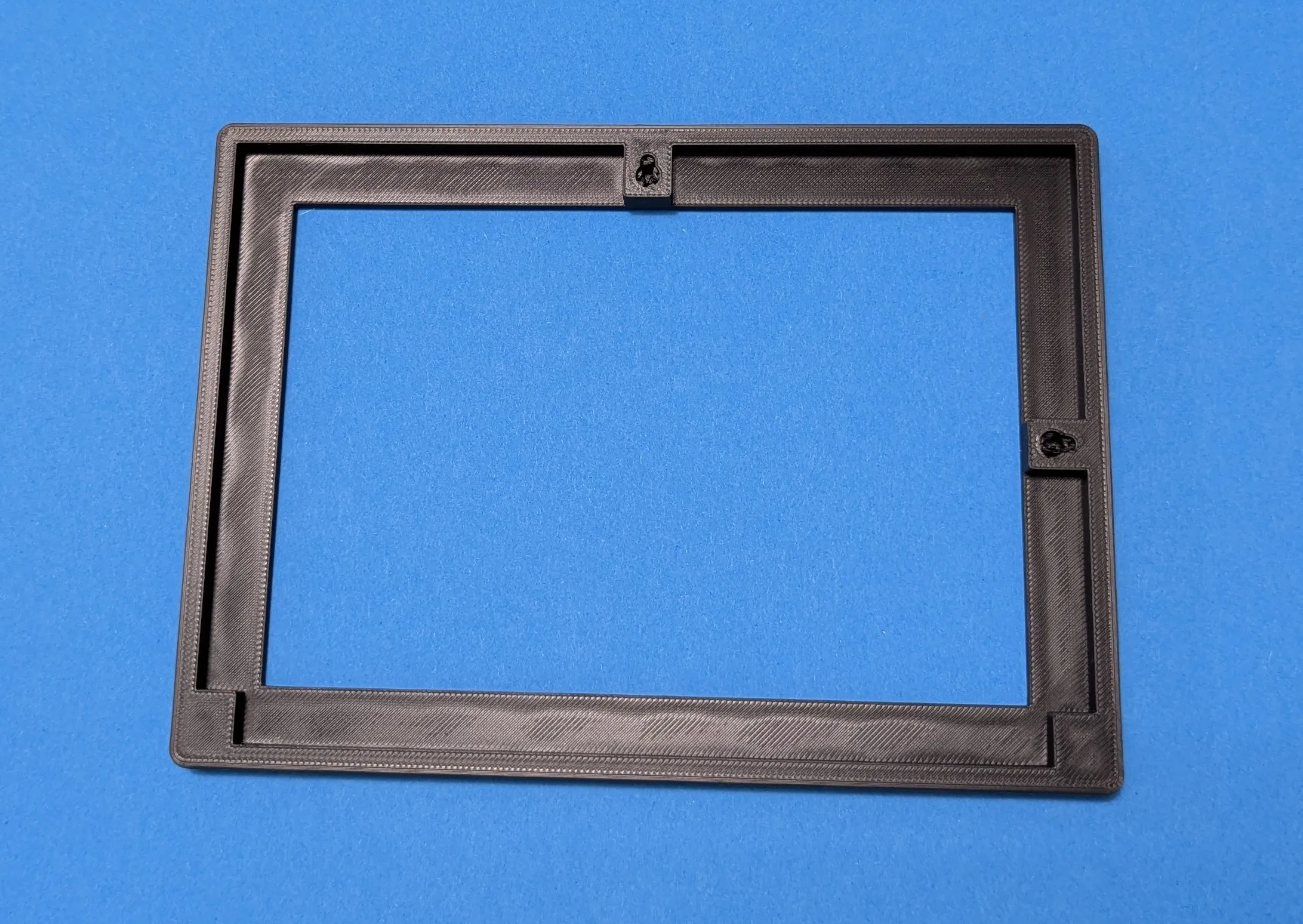

The picture frame can be attached to the wall with nails using the mounting holes on the back panel.

It should be noted here that the support structure still needs to be removed from the holes. This is best done with a very narrow flat screwdriver or similar.



The frame on plate 6 is for testing. With an upright print, the layers would be visible, which also offers a visual appeal. However, it is not easy to remove the support structure, and this also makes it difficult to mount the back panel. Perhaps someone has an idea/solution.



Good luck with printing.

Thanks for a rating, and a Boost would be a nice reward.
