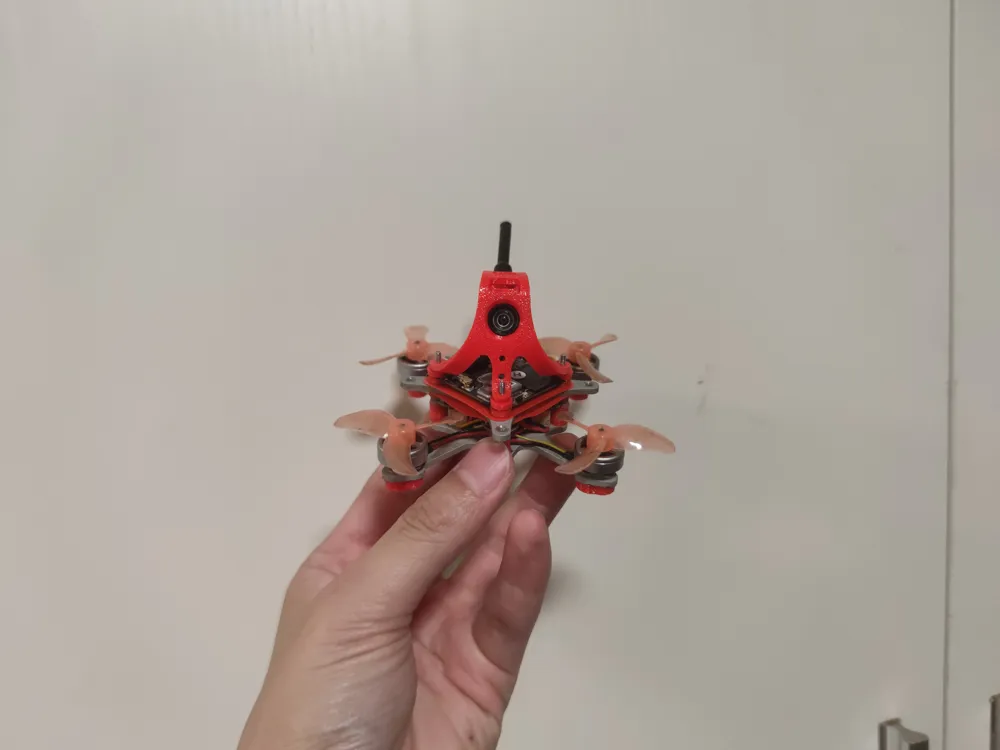

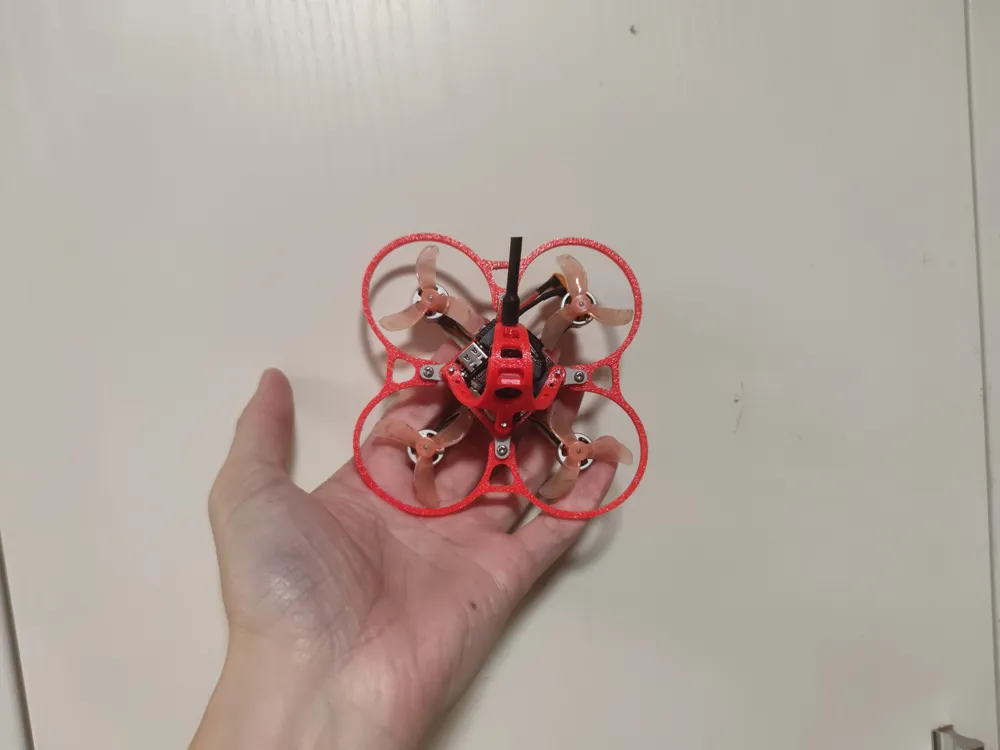

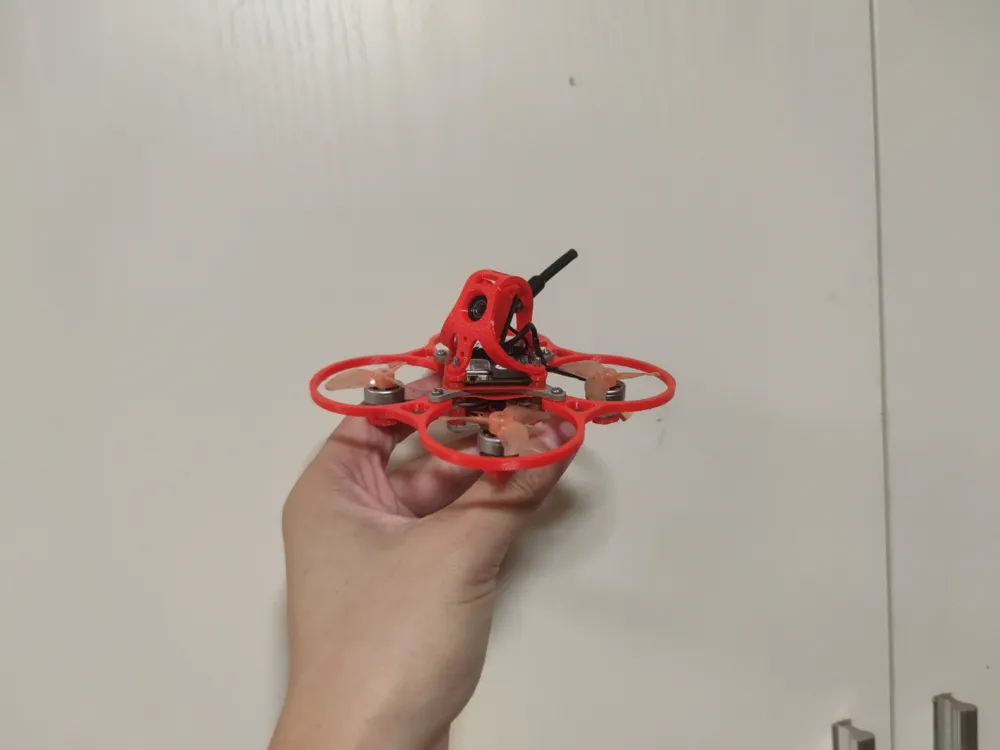

MechanicalSwift75 FPV Whoop Toothpick Drone
IP Report
Print Profile(4)
MechanicalSwiftFrames
Designer
1.1 h
4 plates
MechanicalSwiftRings
Designer
2.4 h
5 plates
MechanicalSwiftCanopys
Designer
41 min
2 plates
MechanicalSwiftFootpads
Designer
56 min
4 plates
Open in Bambu Studio
Boost
47
88
6
6
78
25
Released
Description
为我助力 (for free)
制作概述

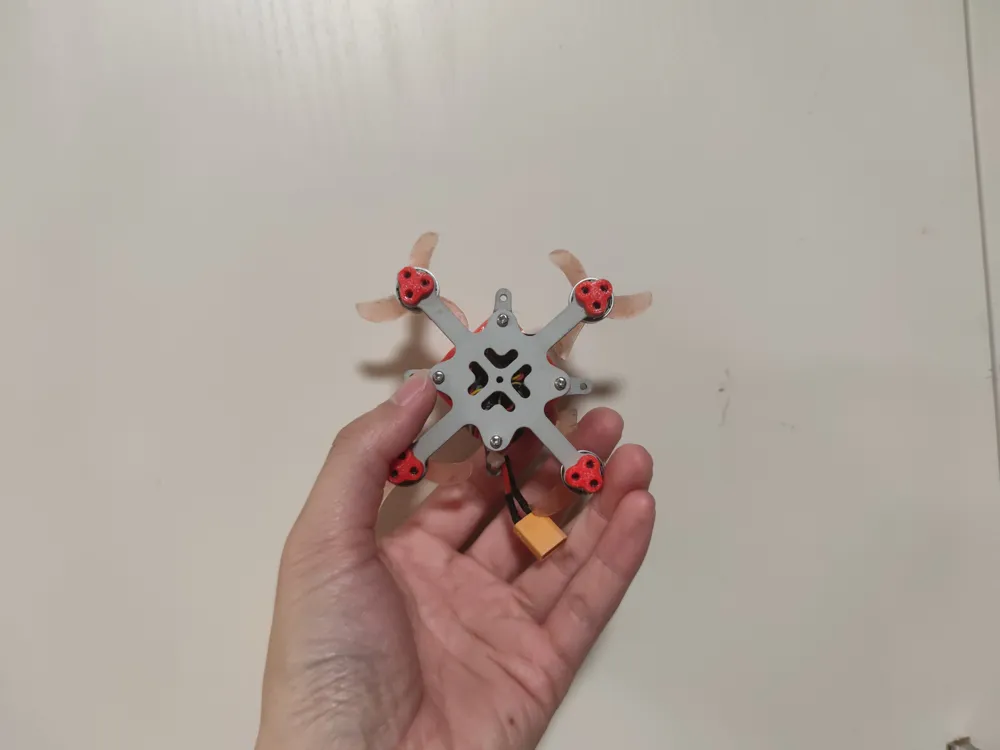

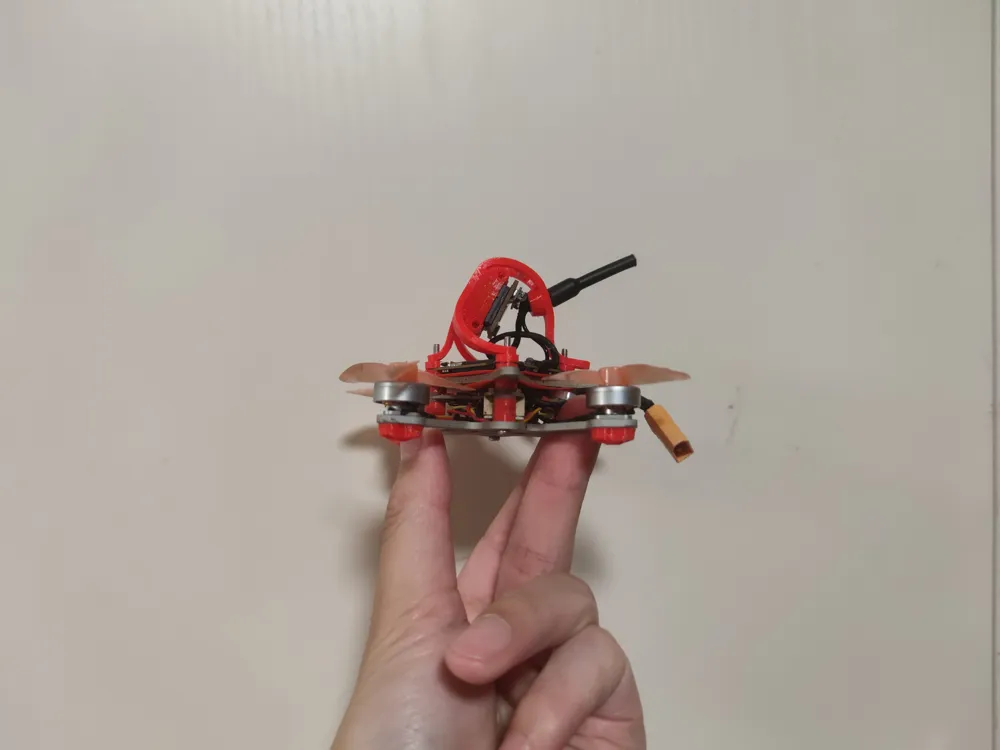

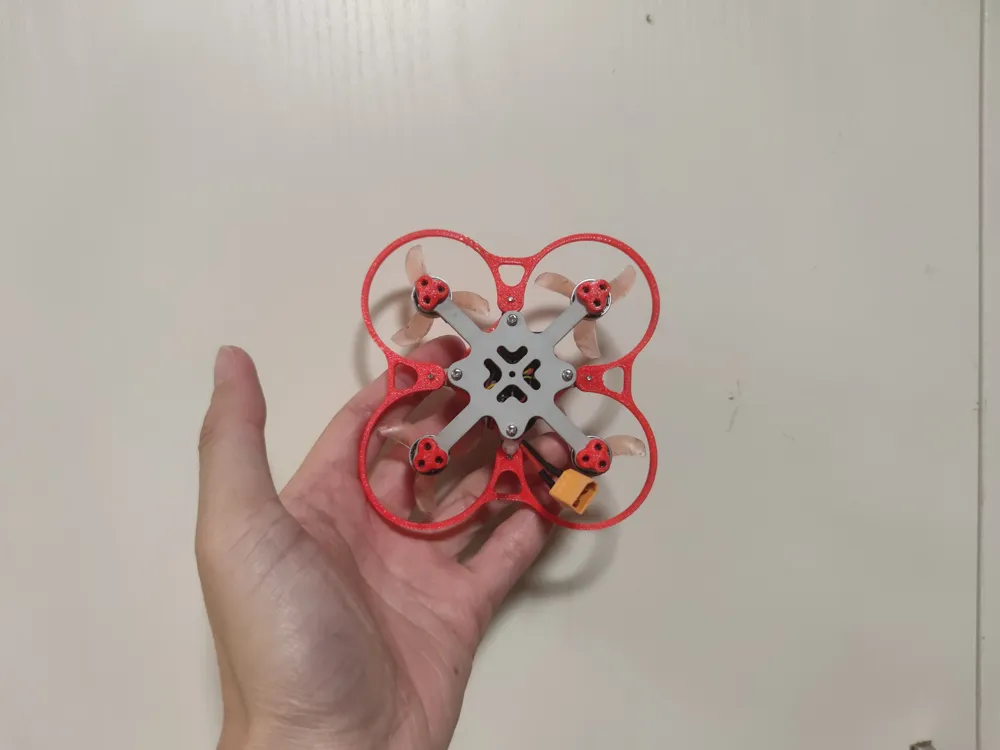

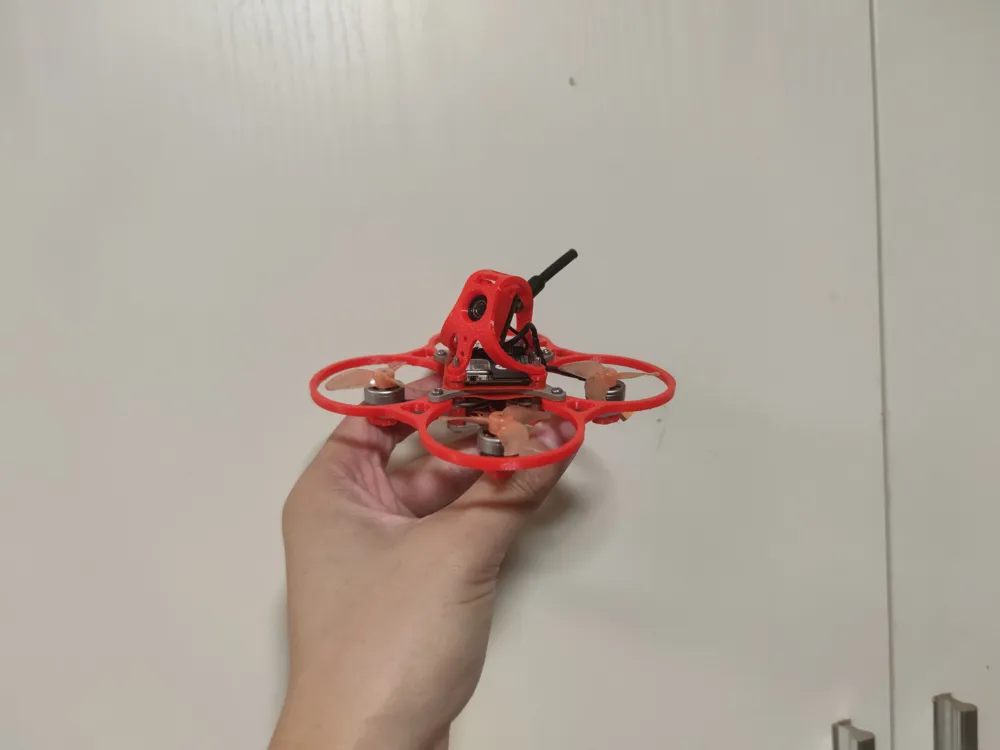

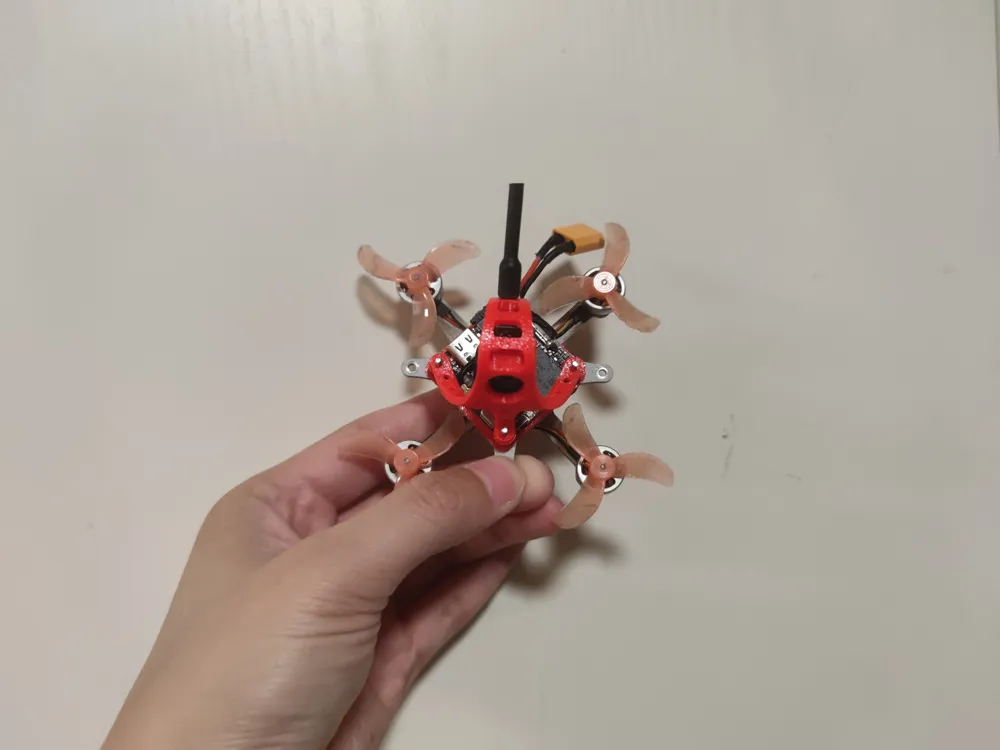

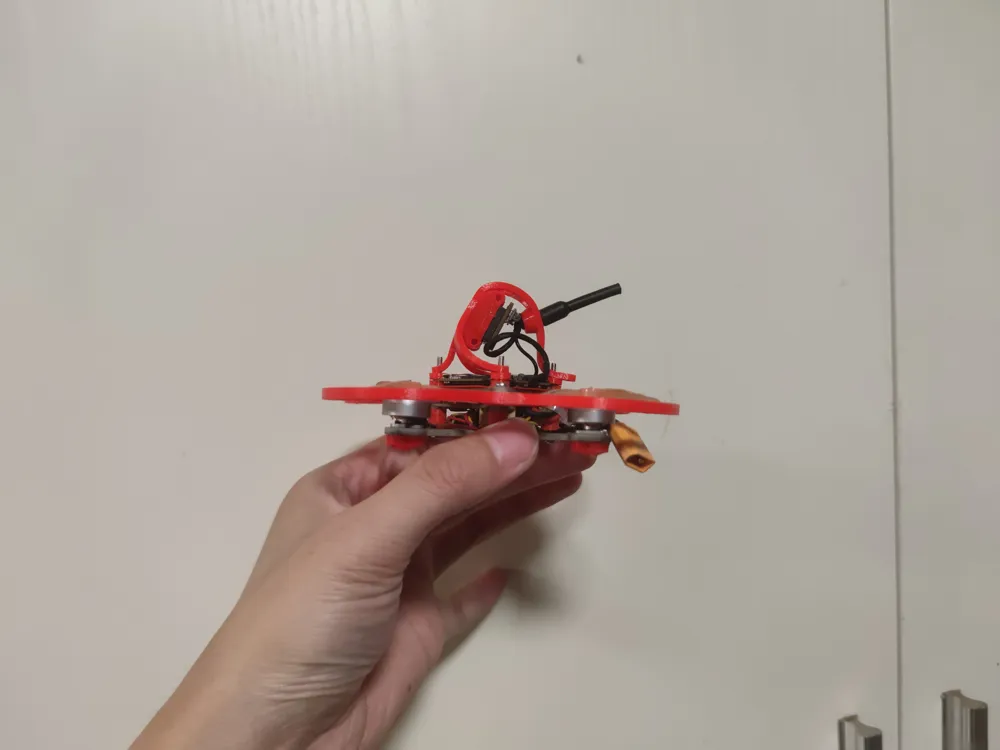

机械雨燕75（MechanicalSwift75）是一个75圈圈机。
配置清单一（模拟图传）
- BETAFPV Matrix 1S 5IN1 AIO x1
- BETAFPV C03 FPV Micro Camera x1
- Brushless Motor 1103 x4
- GEMFAN 1608-3 40MM x4
- M2x17 Screw x4
- M2x7 Screw x4
- M2x1.6 Nut x8
- M1.4x4 Screw x12
配置清单二（数字图传）
- BETAFPV Matrix 1S 3IN1 HD AIO x1
- DJI O4 Air Unit x1
- Brushless Motor 1103 x4
- GEMFAN 1608-3 40MM x4
- M2x17 Screw x4
- M2x7 Screw x4
- M2x1.6 Nut x8
- M1.4x4 Screw x12

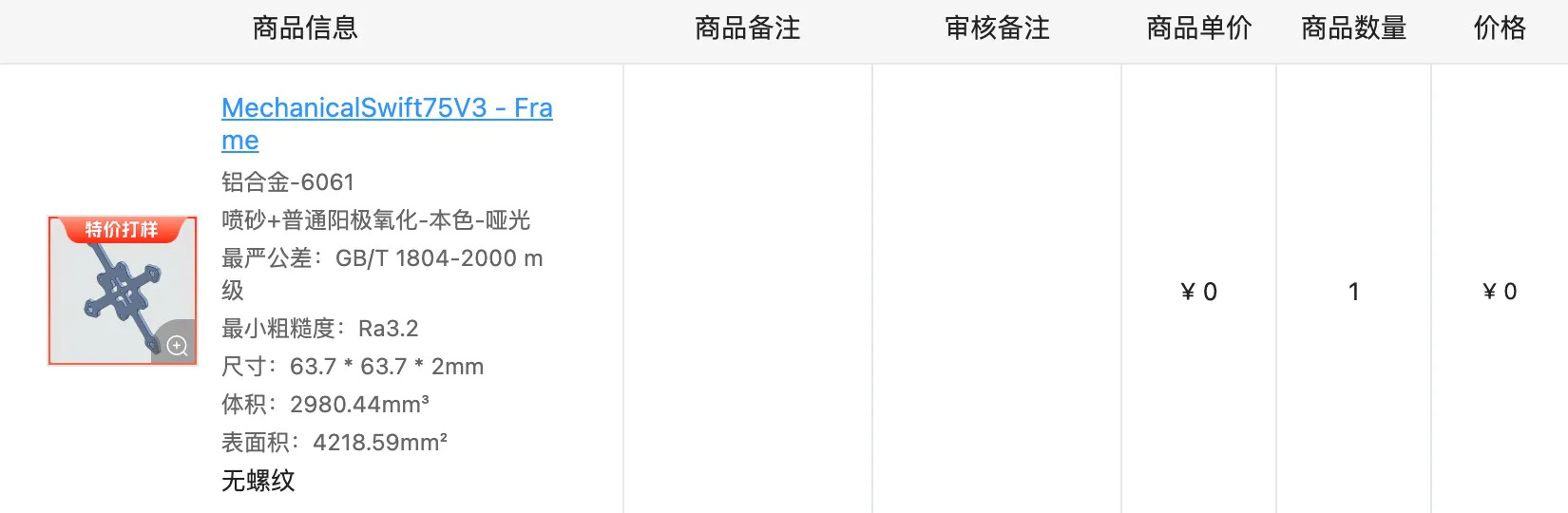

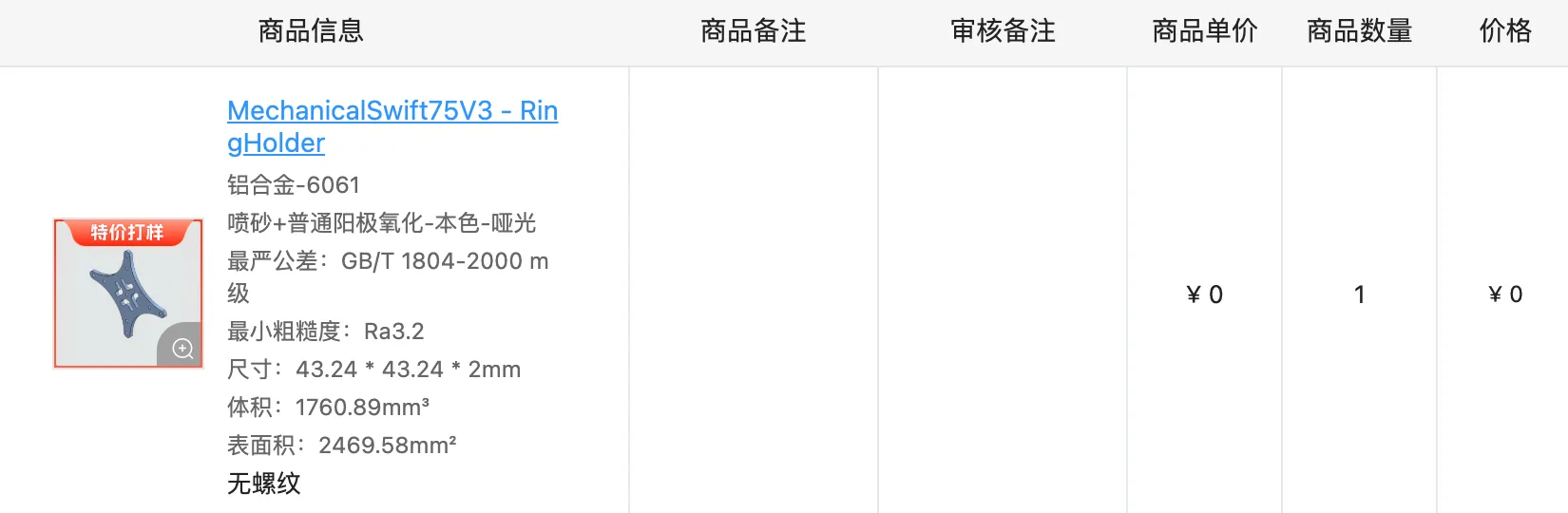

金属机架由嘉立创免费制作
【嘉立创CNC】我正在参加嘉立创CNC特价板类零件免费打样活动，点击和我一起参加免费打样CNC零件吧：
https://www.jlc-cnc.com/ac/ACUHiDI0/CPQ6uR9M

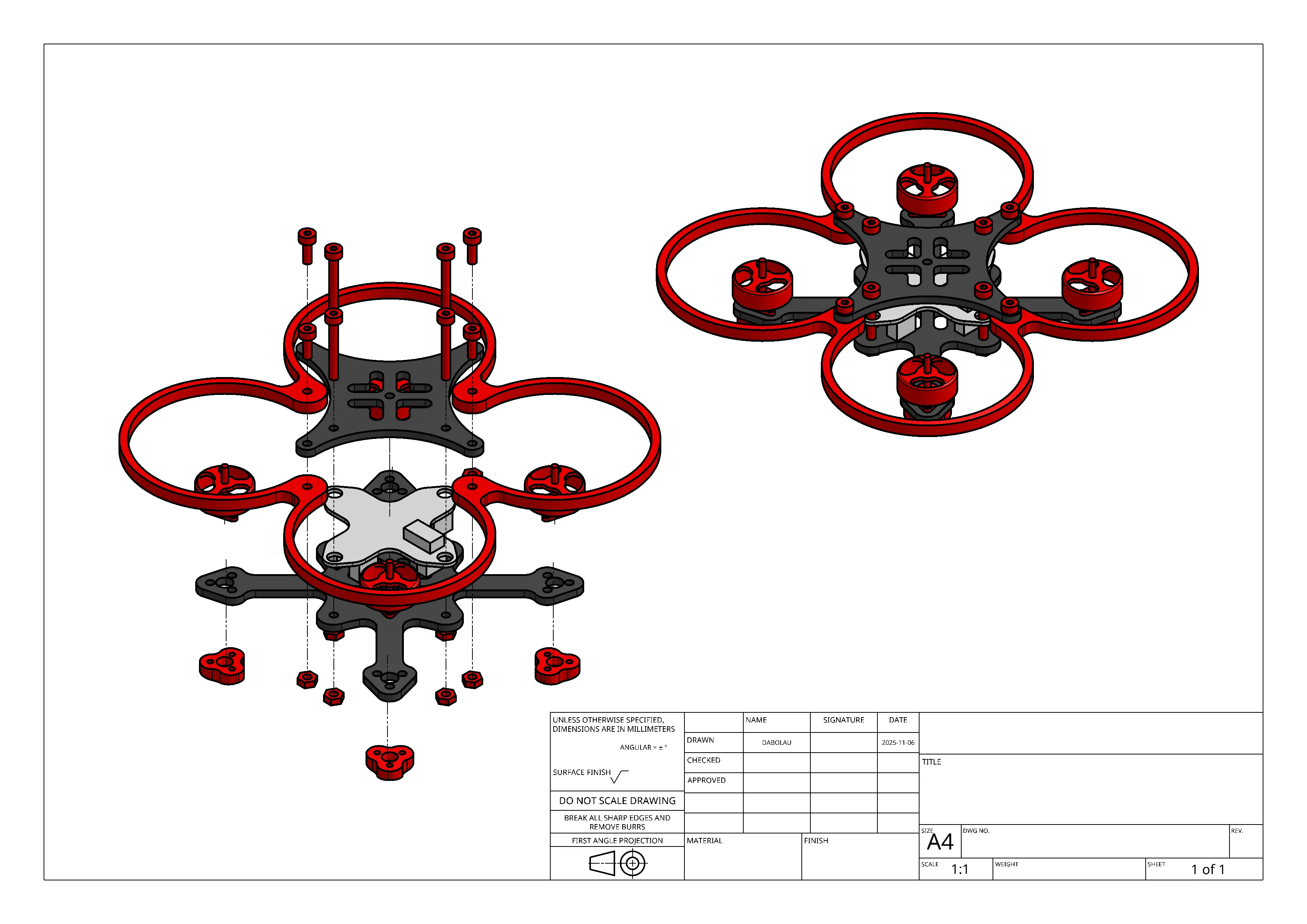

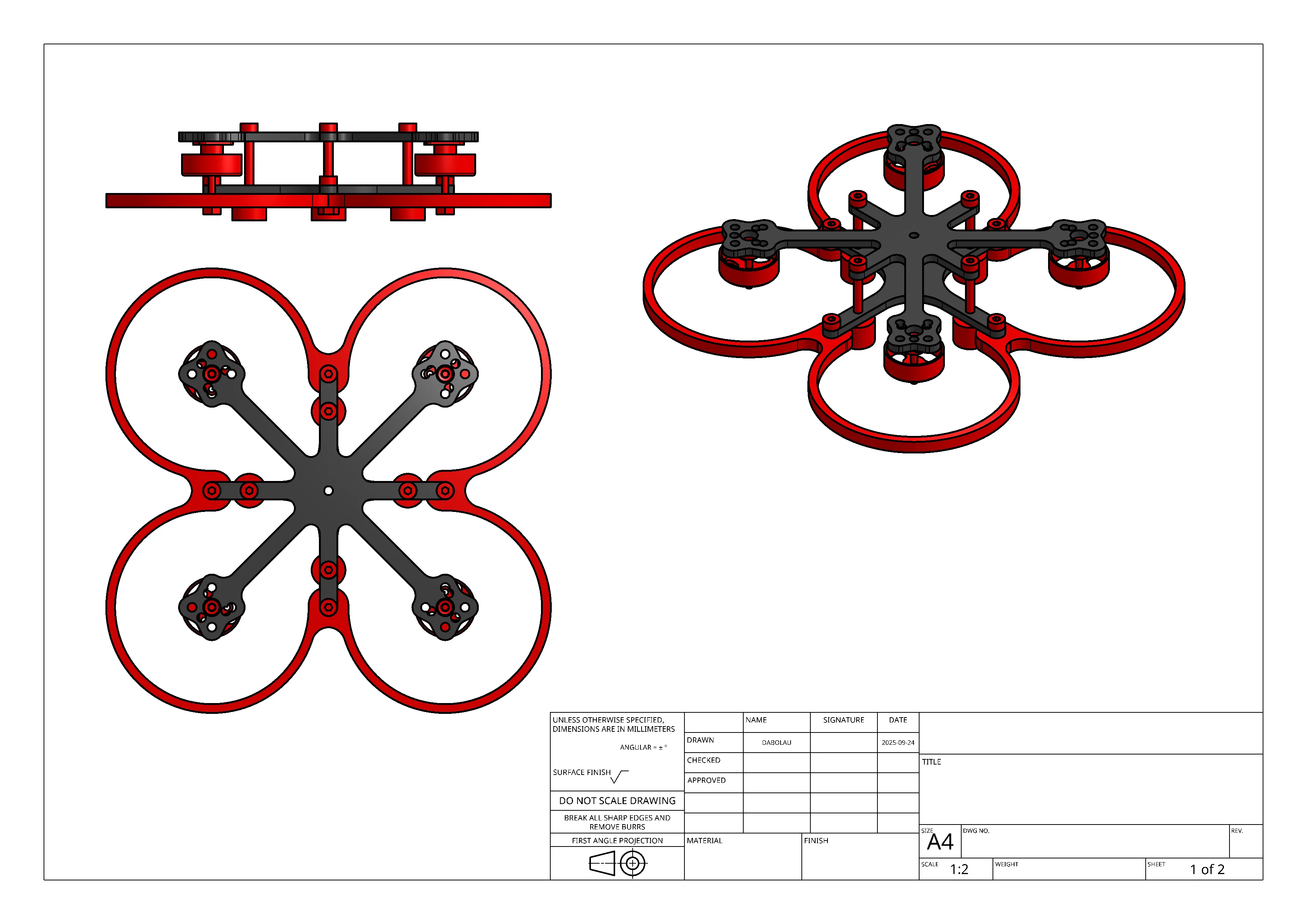

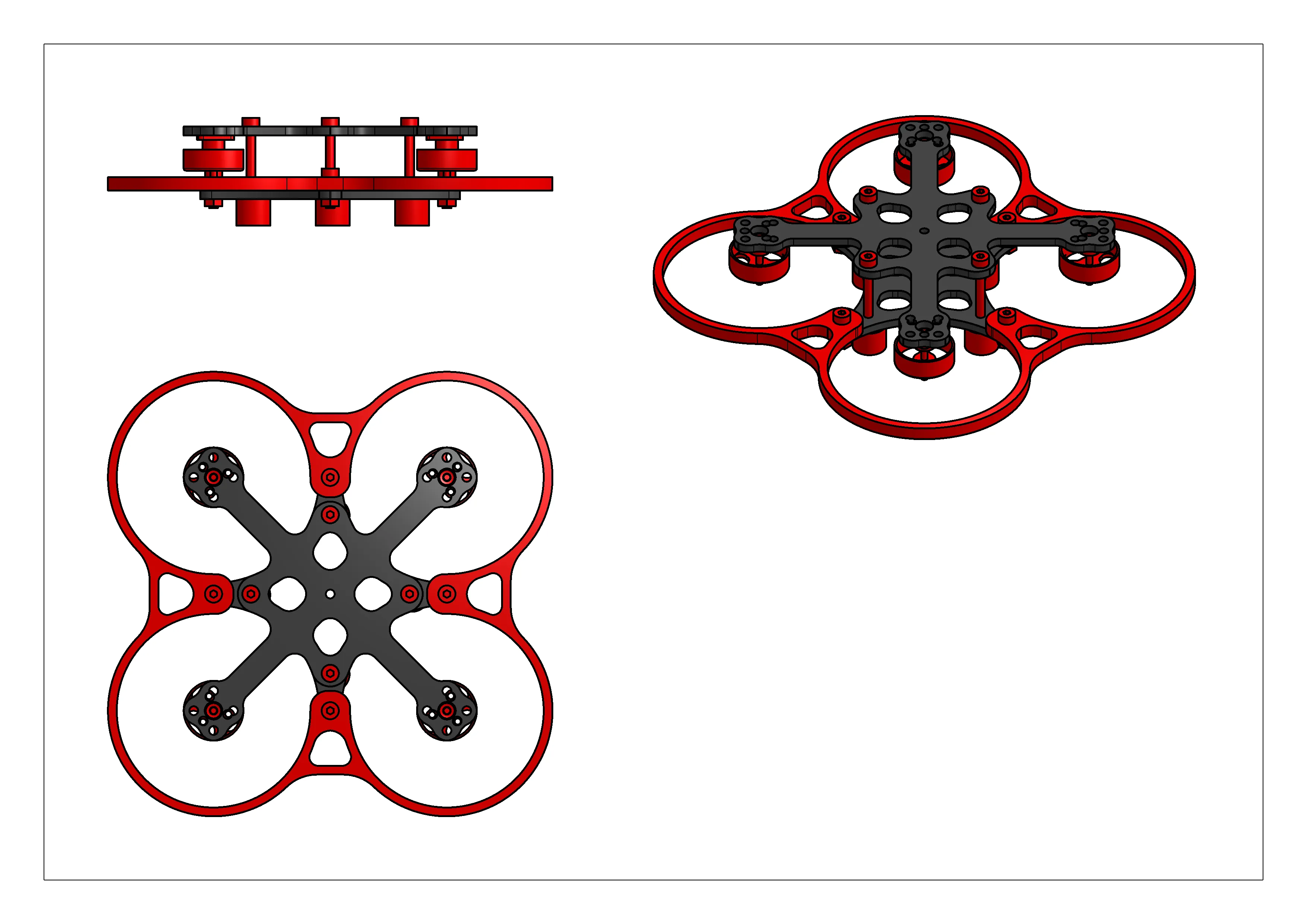

爆炸视图

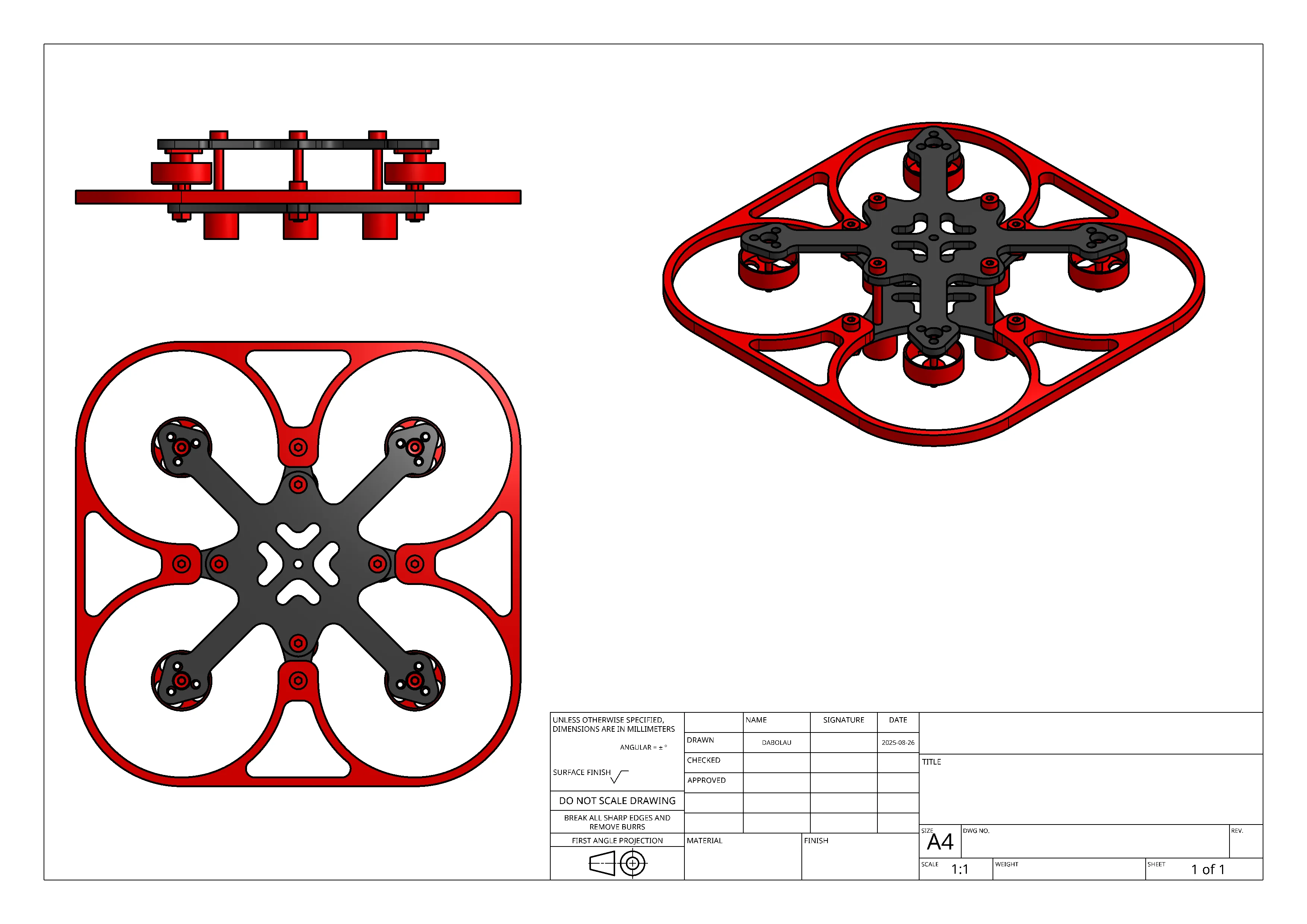

MechanicalSwift75V1
MechanicalSwift75V2
MechanicalSwift75V3

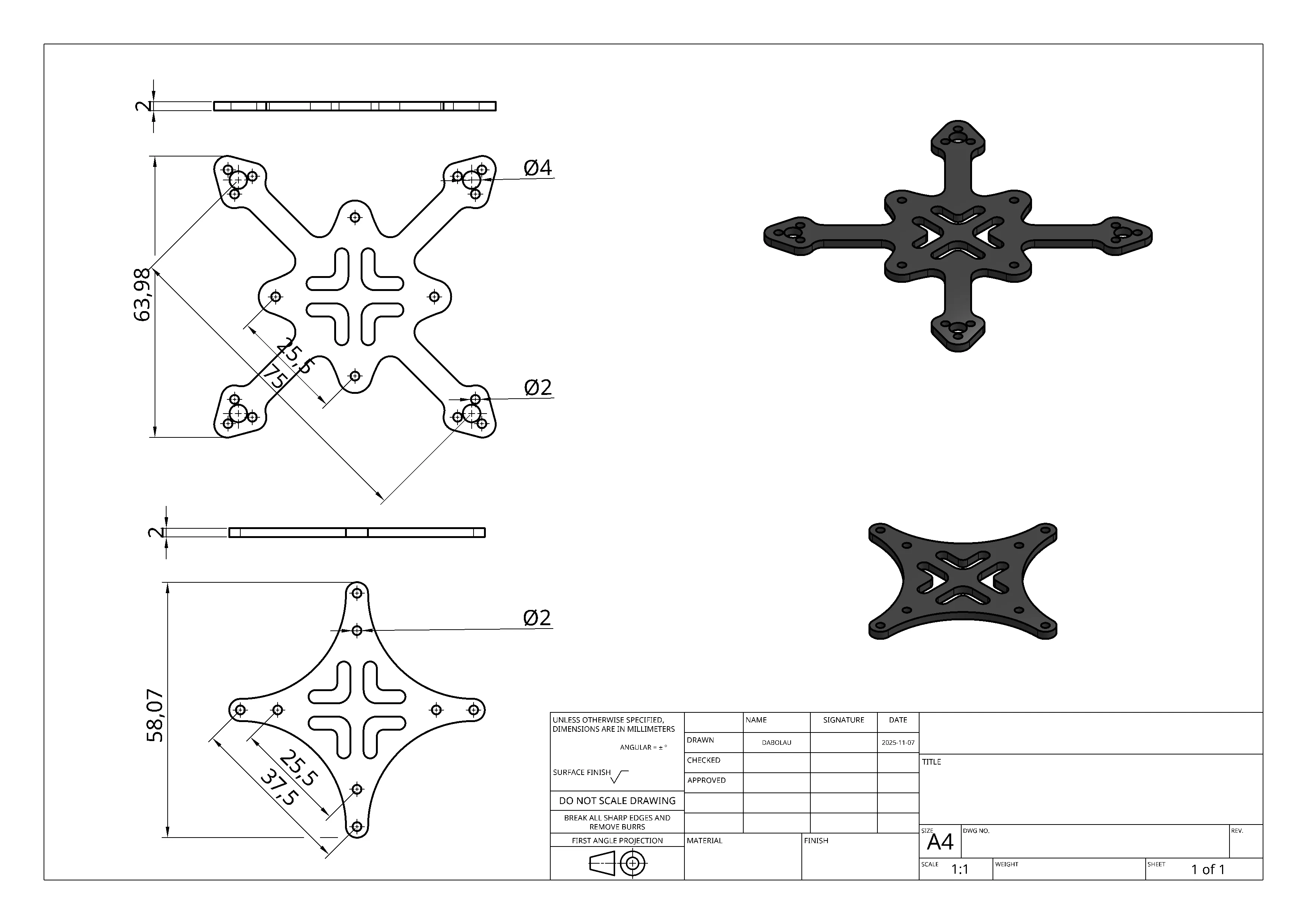

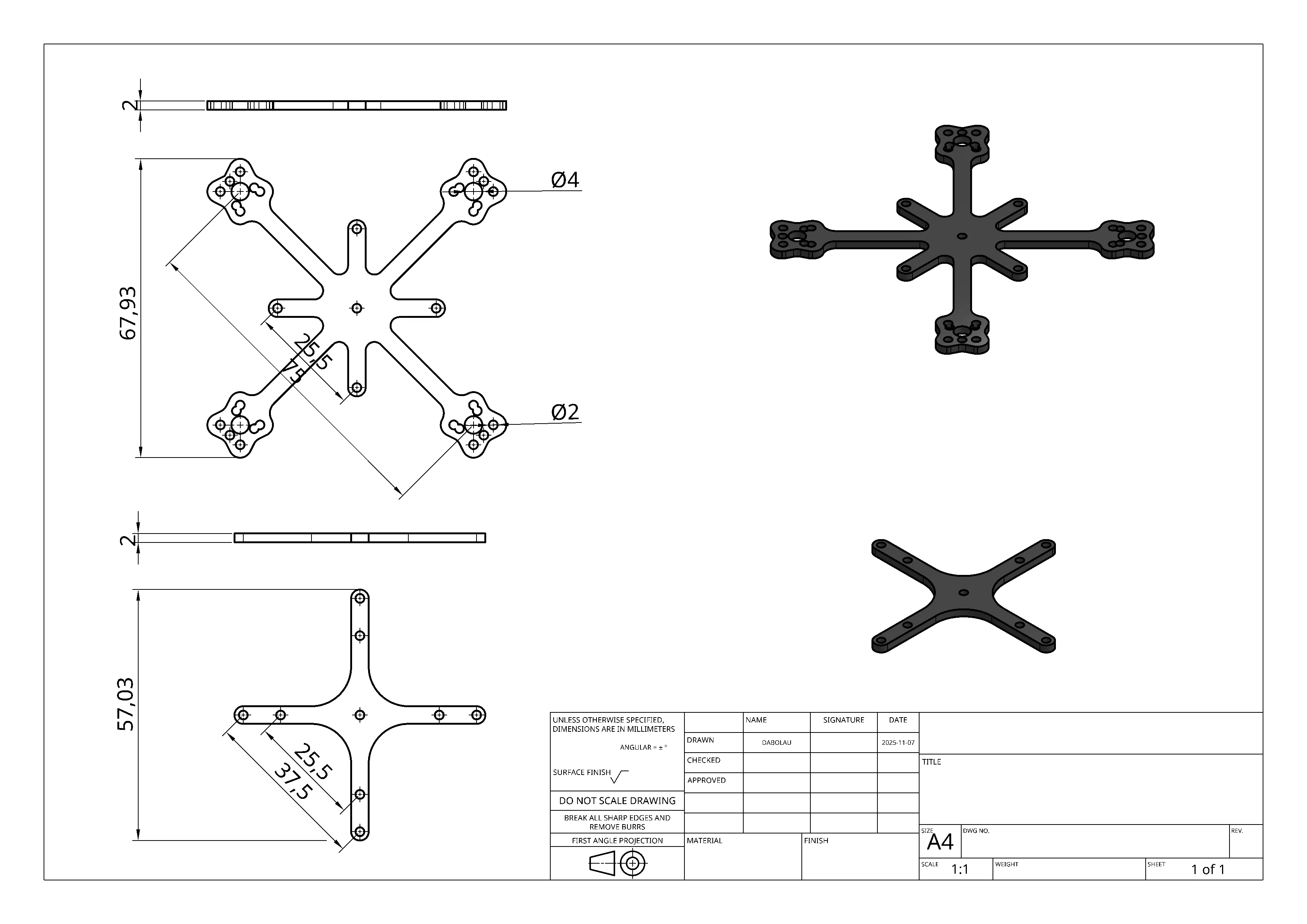

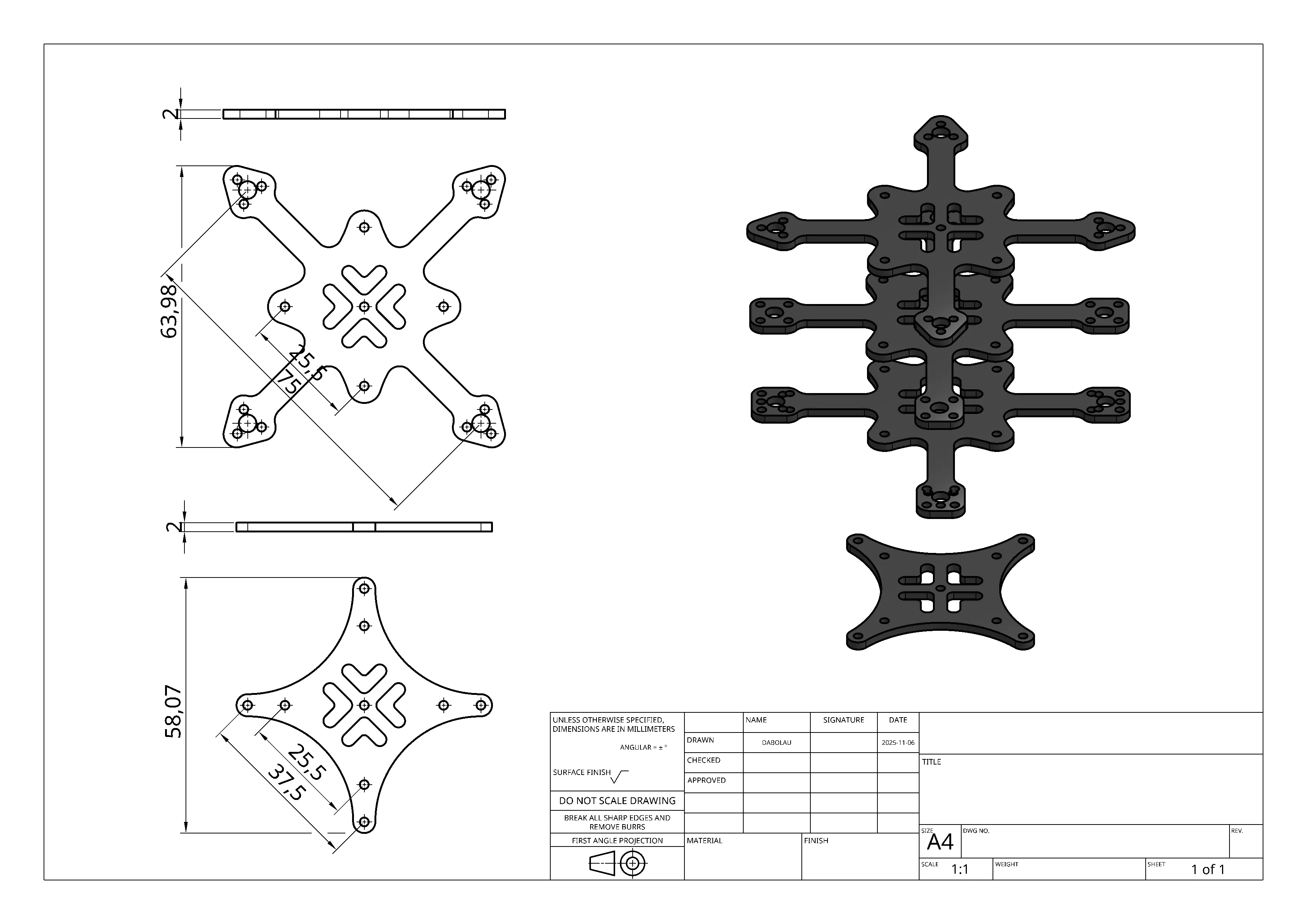

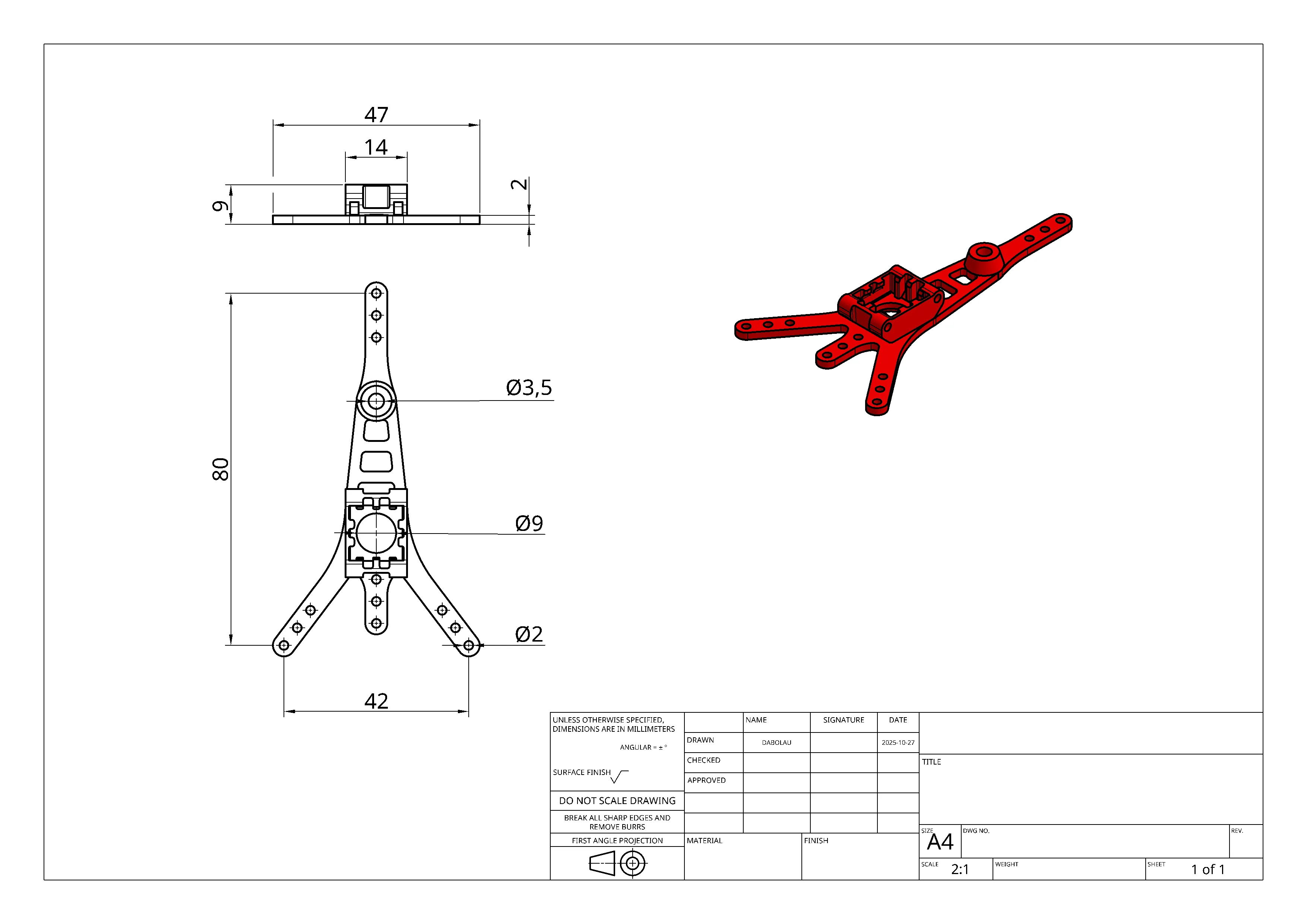

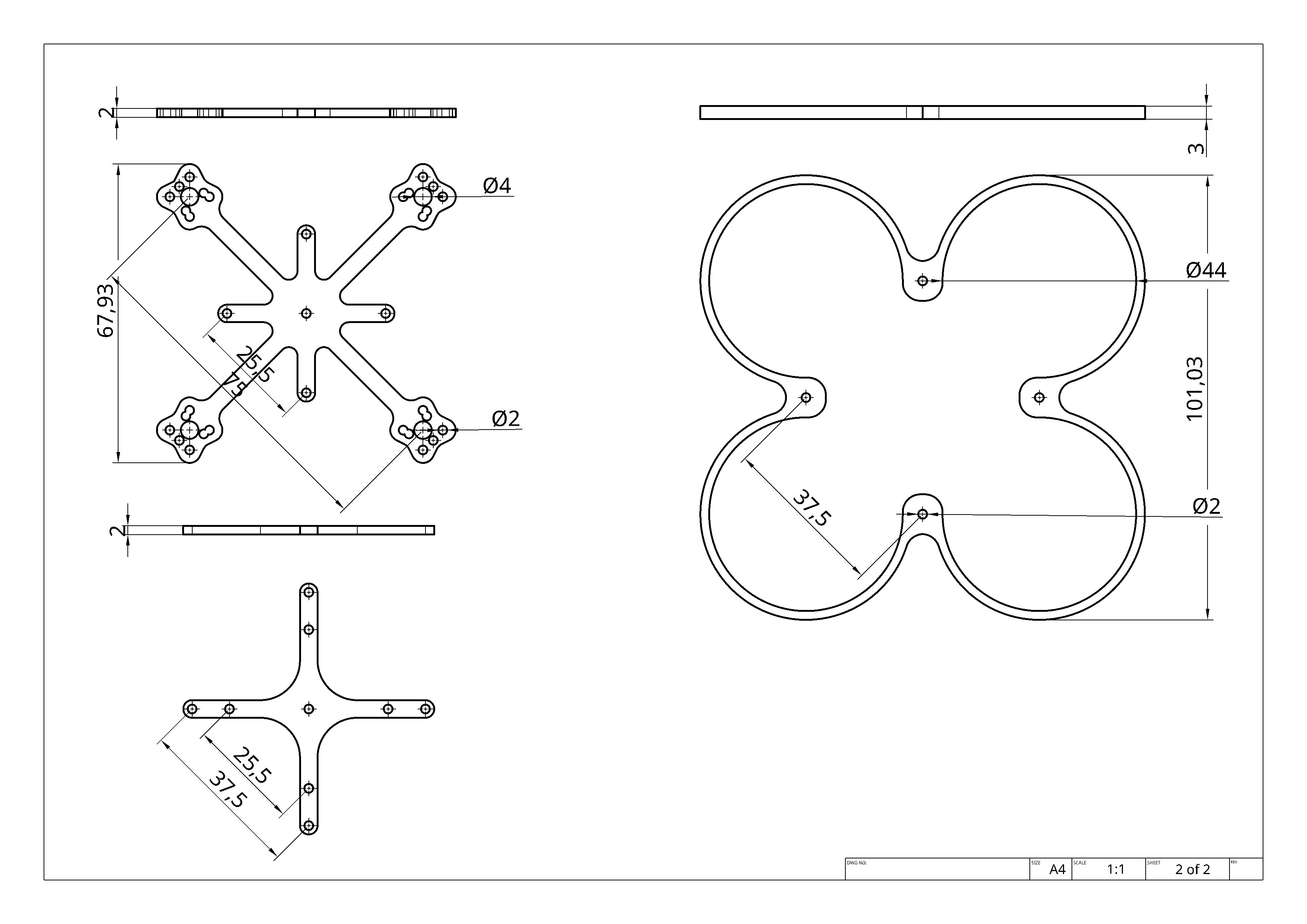

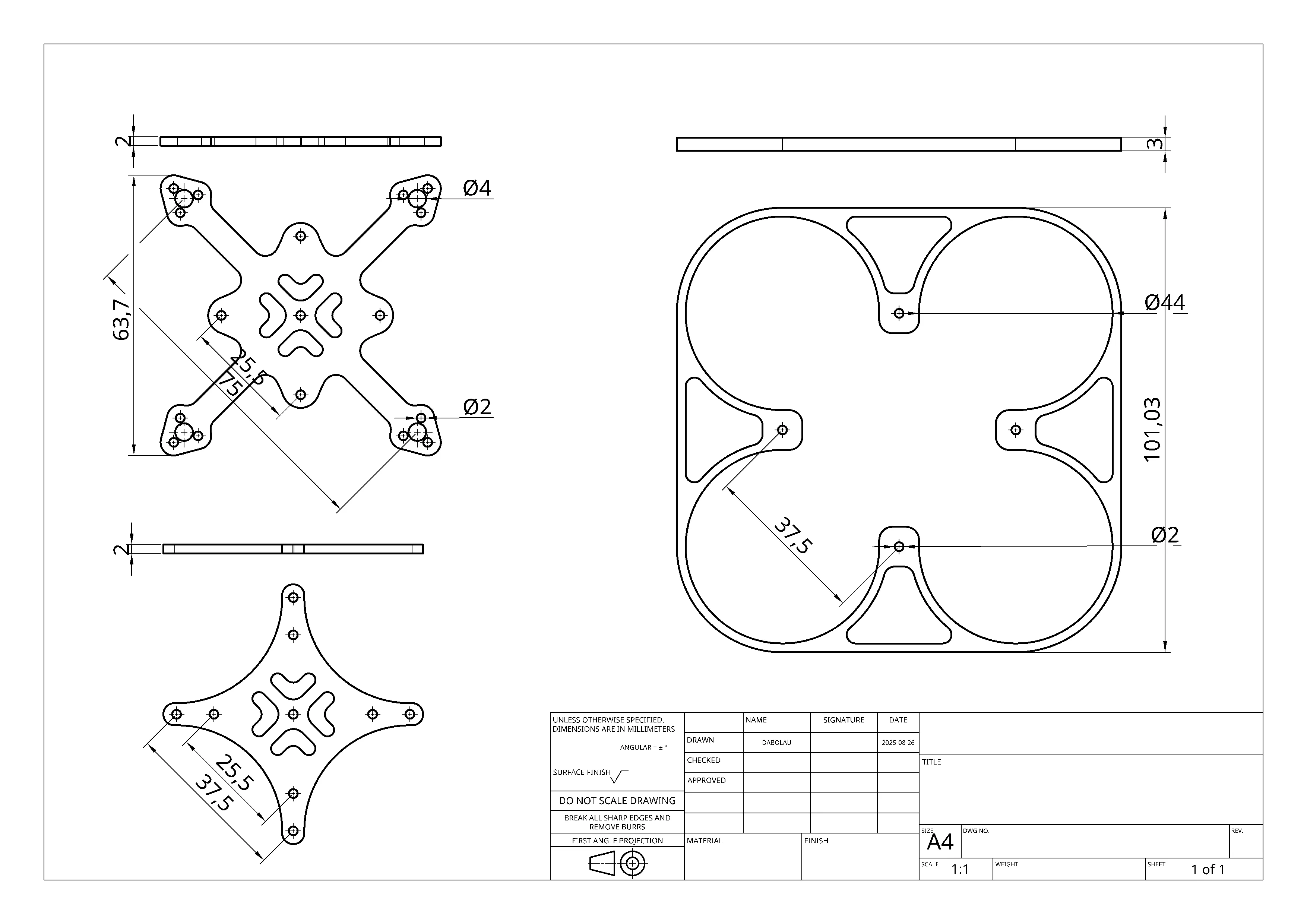

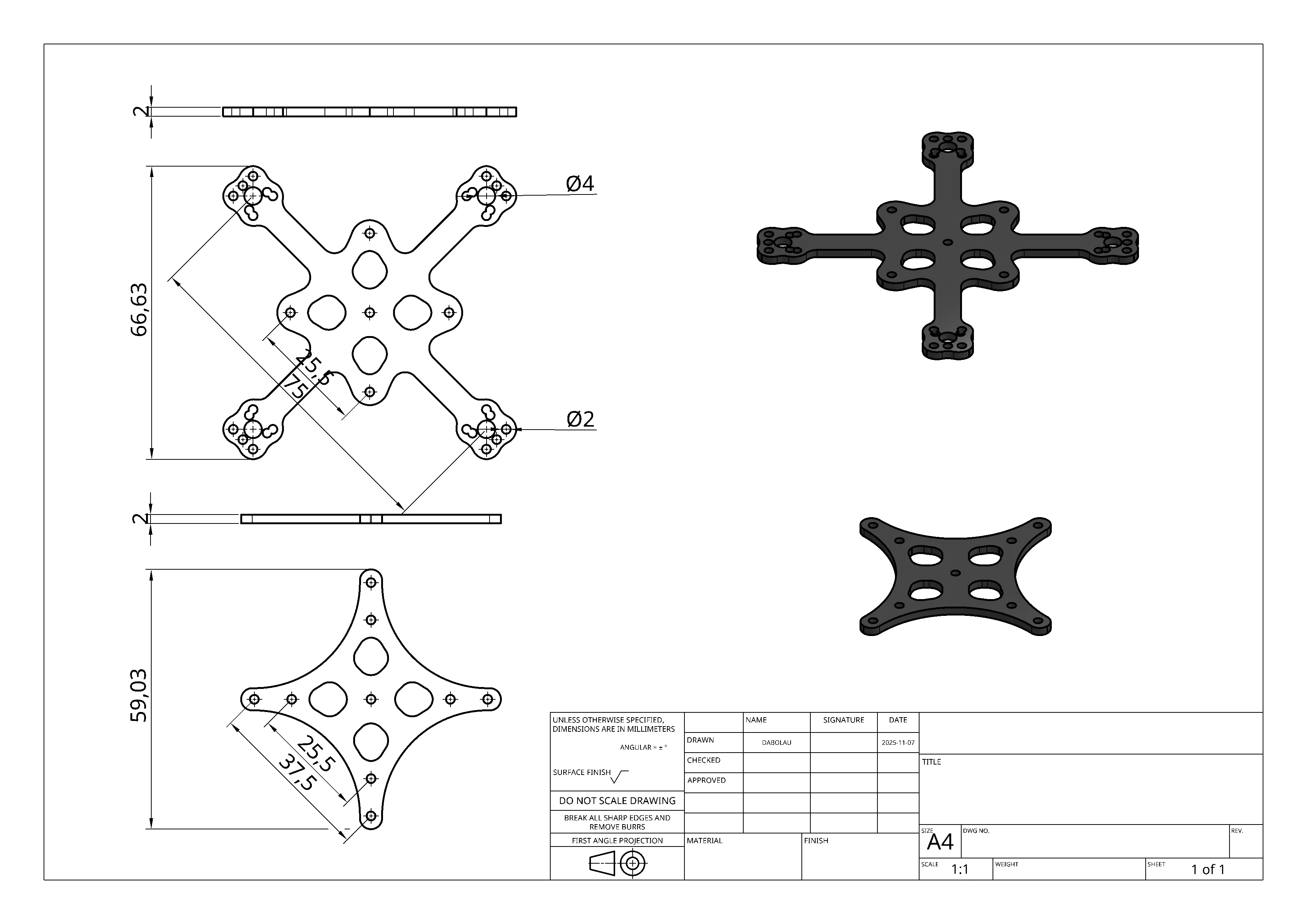

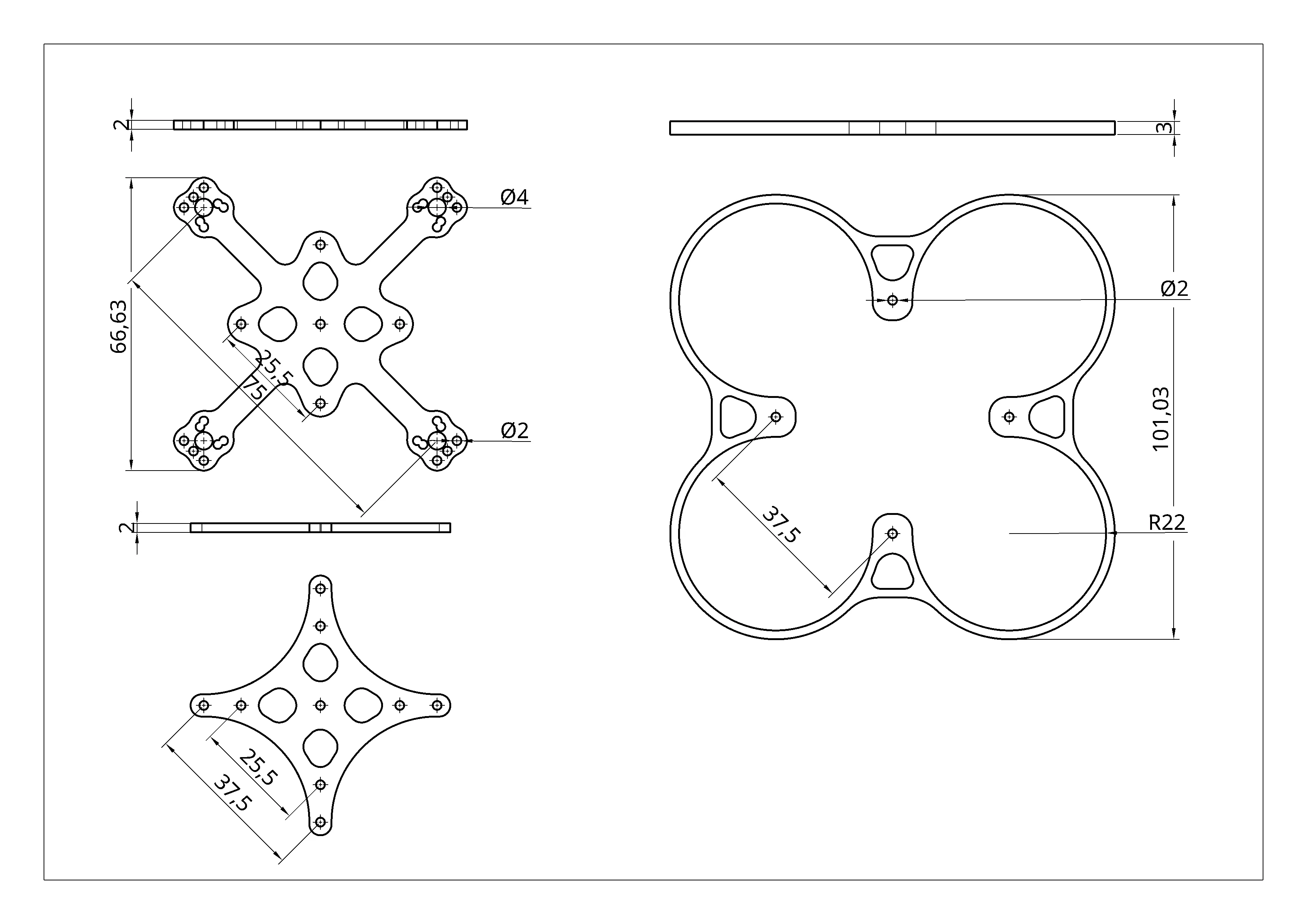

FrameV1
FrameV2
FrameV3
FrameV5
FrameV6

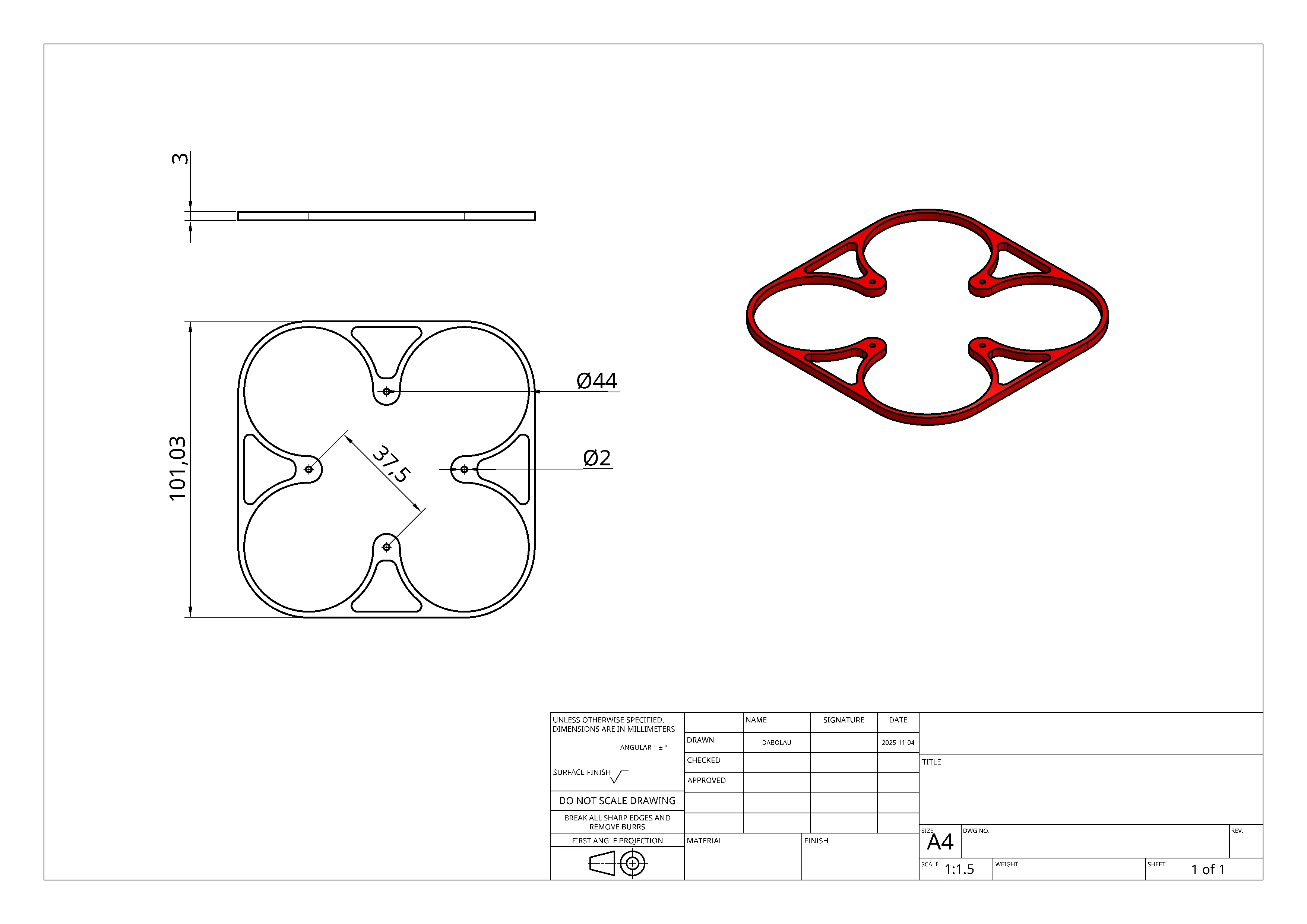

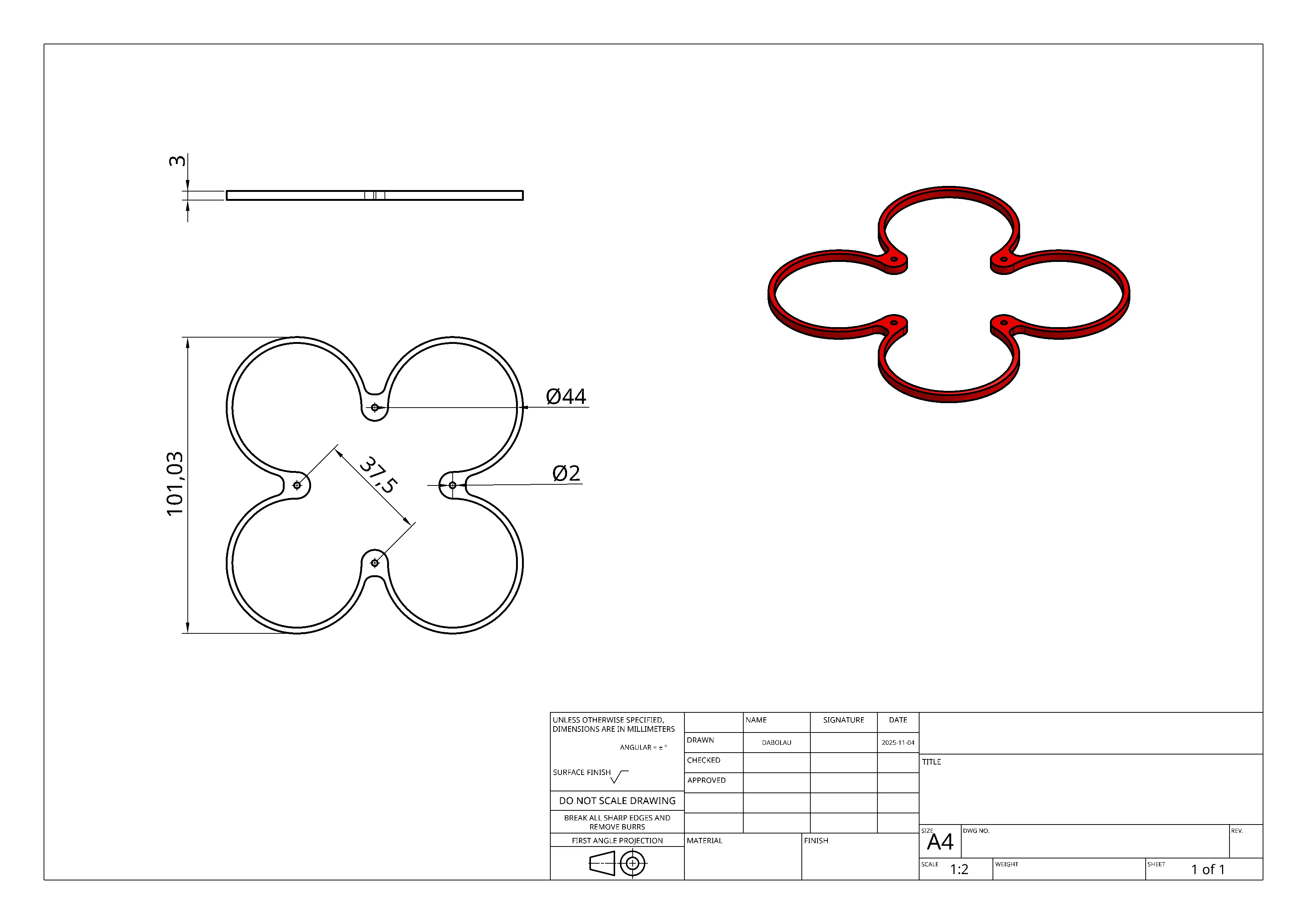

RingV1
RingV2
RingV3

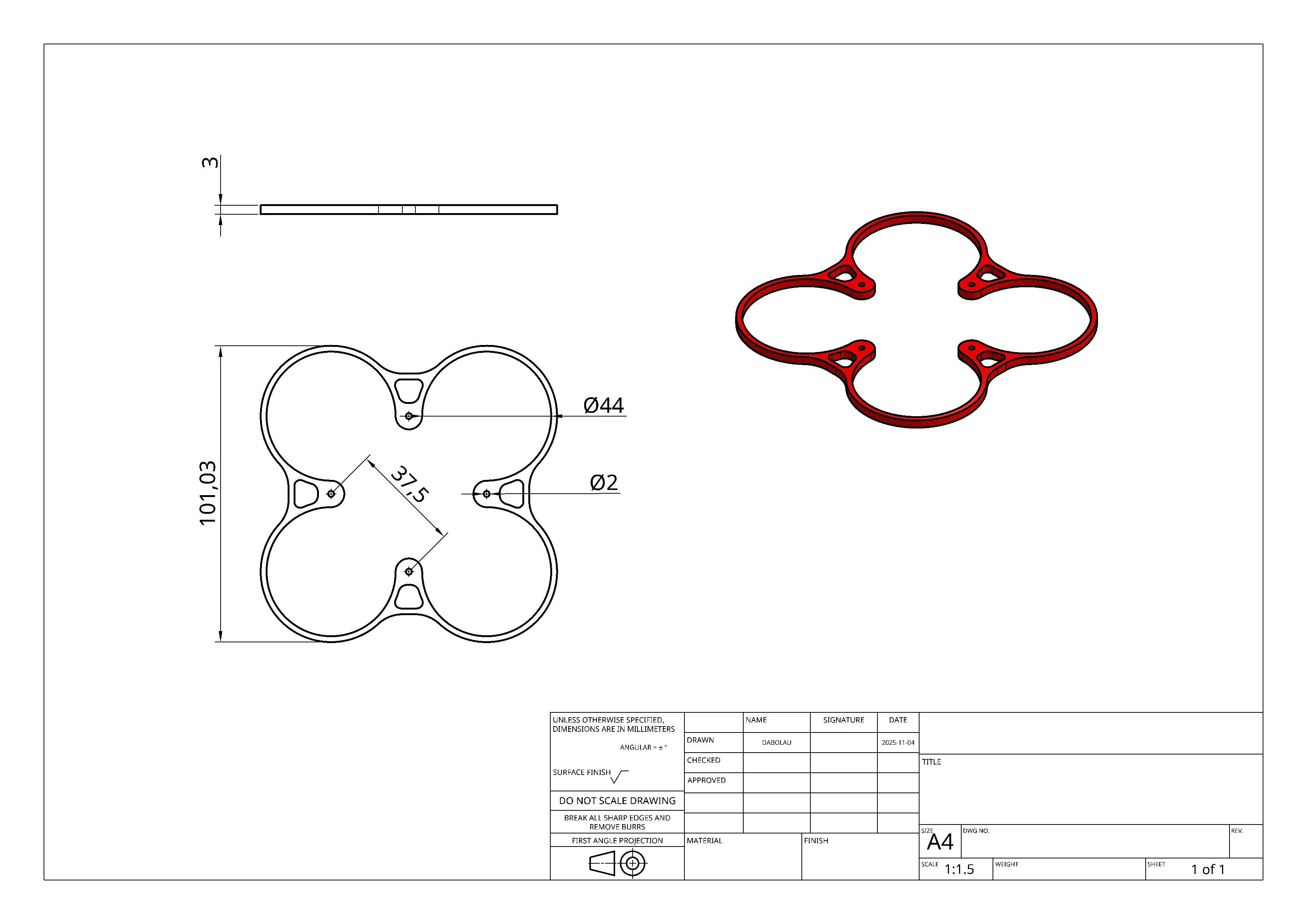

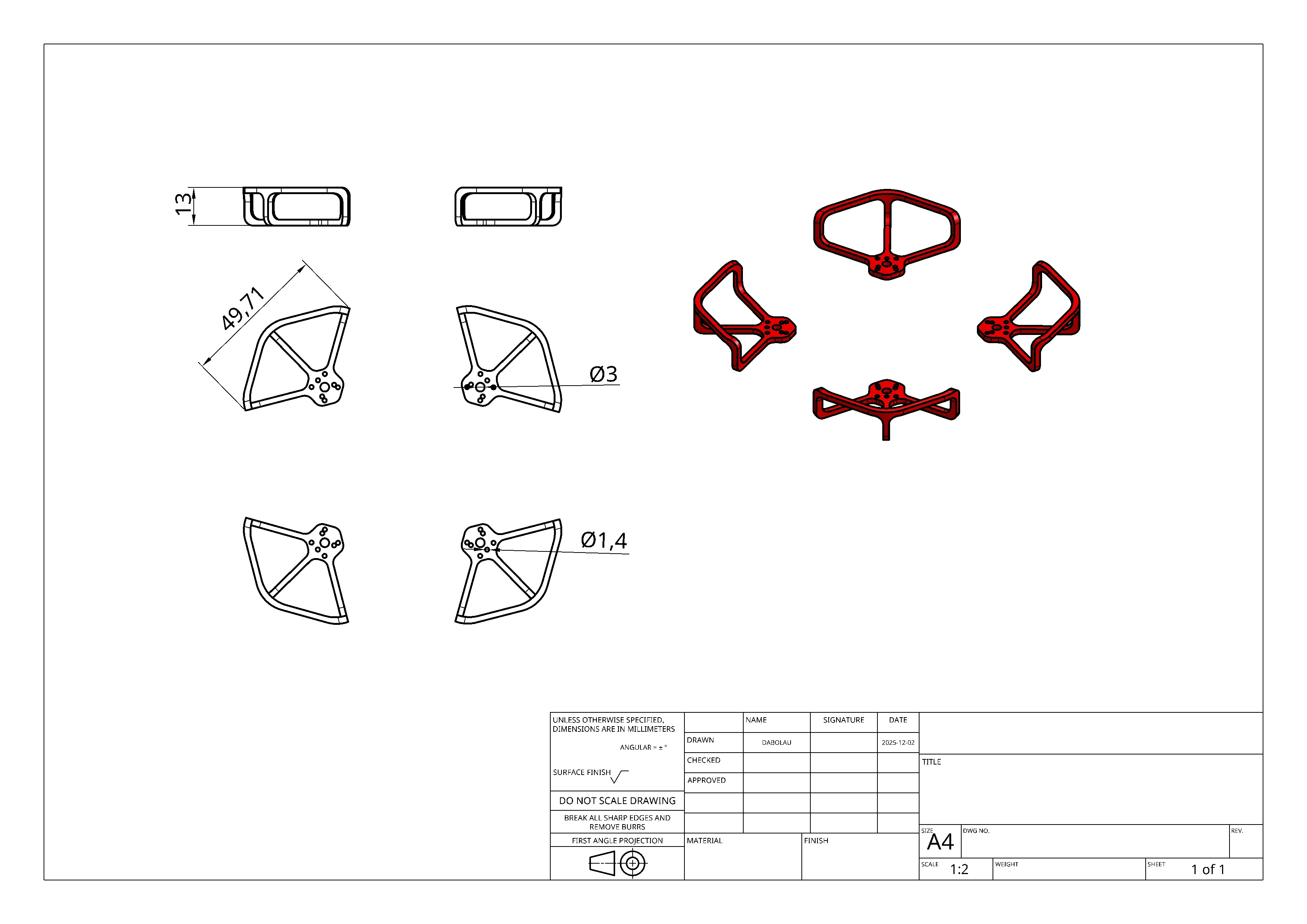

PropellerGuardRingV5

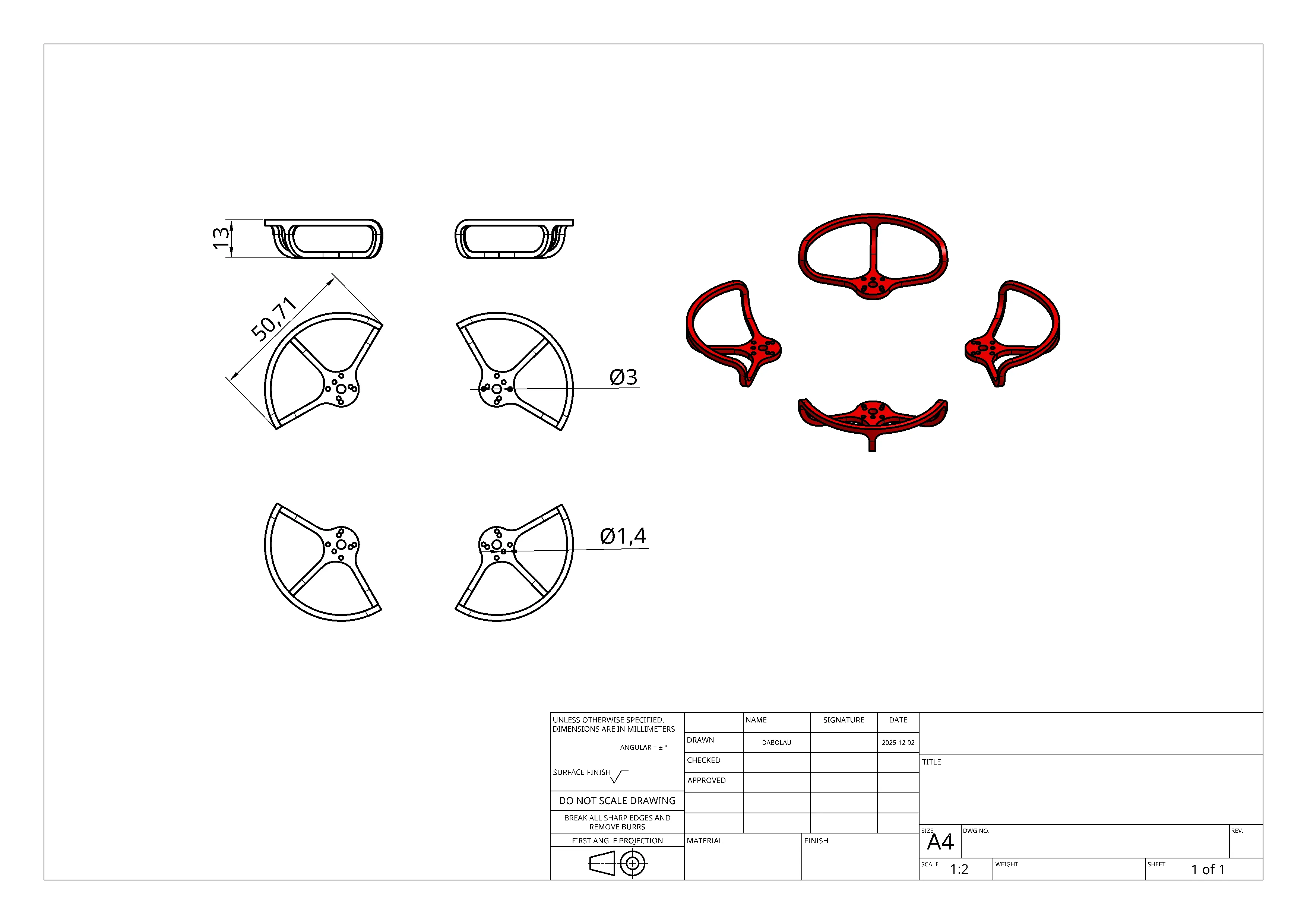

PropellerGuardRingV6

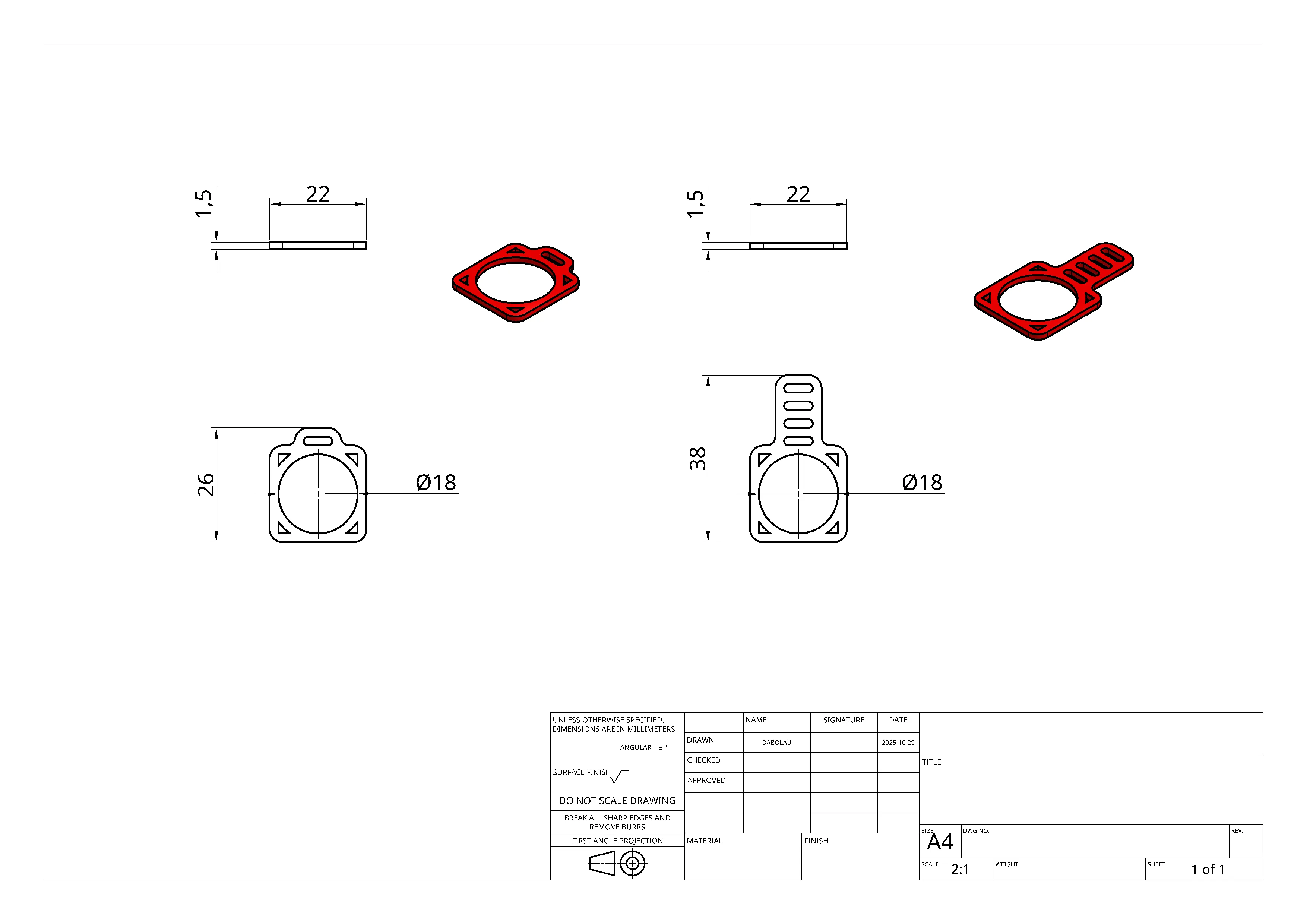

DJIO4LiteCameraCanopy
BETAFPVC03CameraAirCanopy

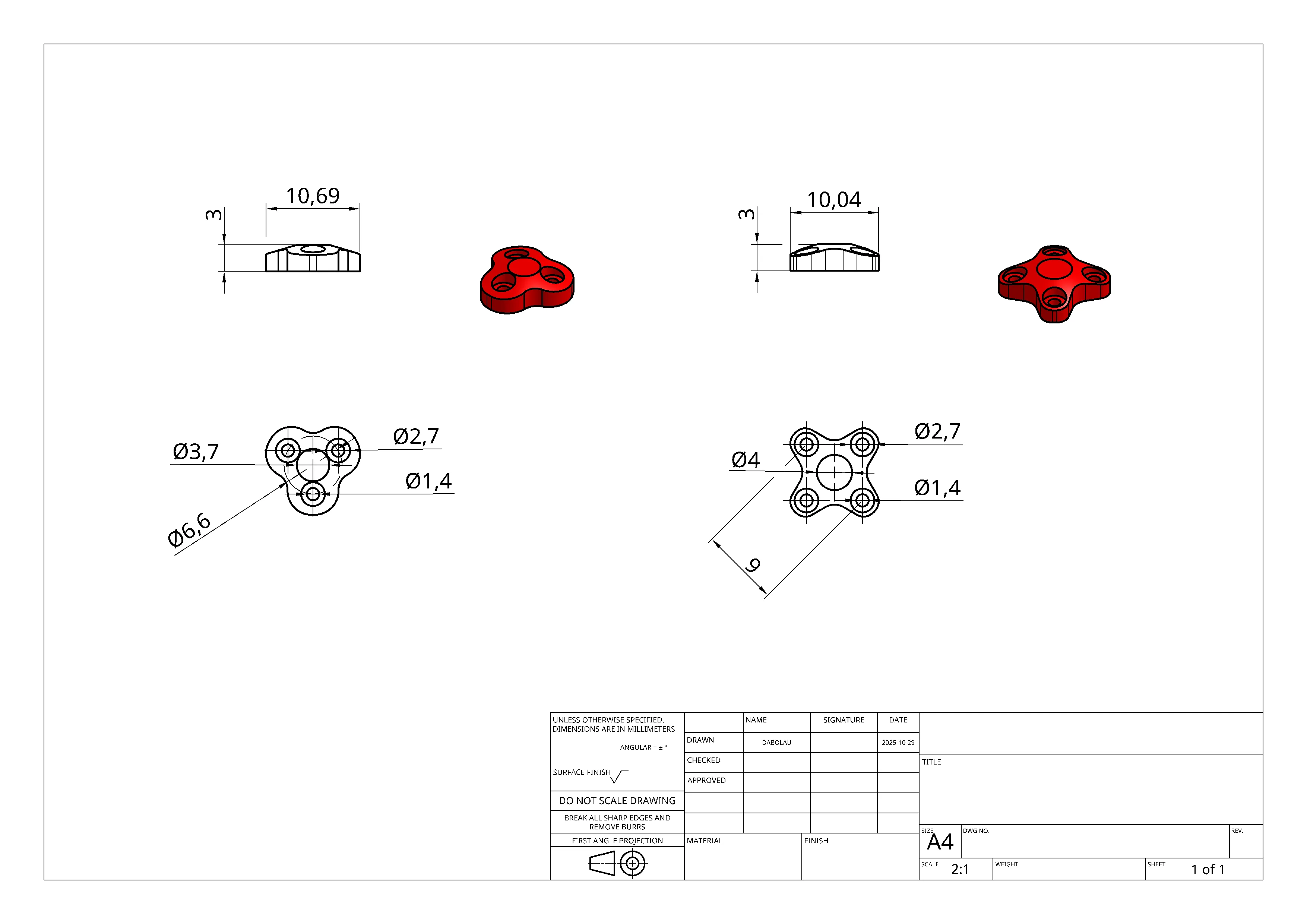

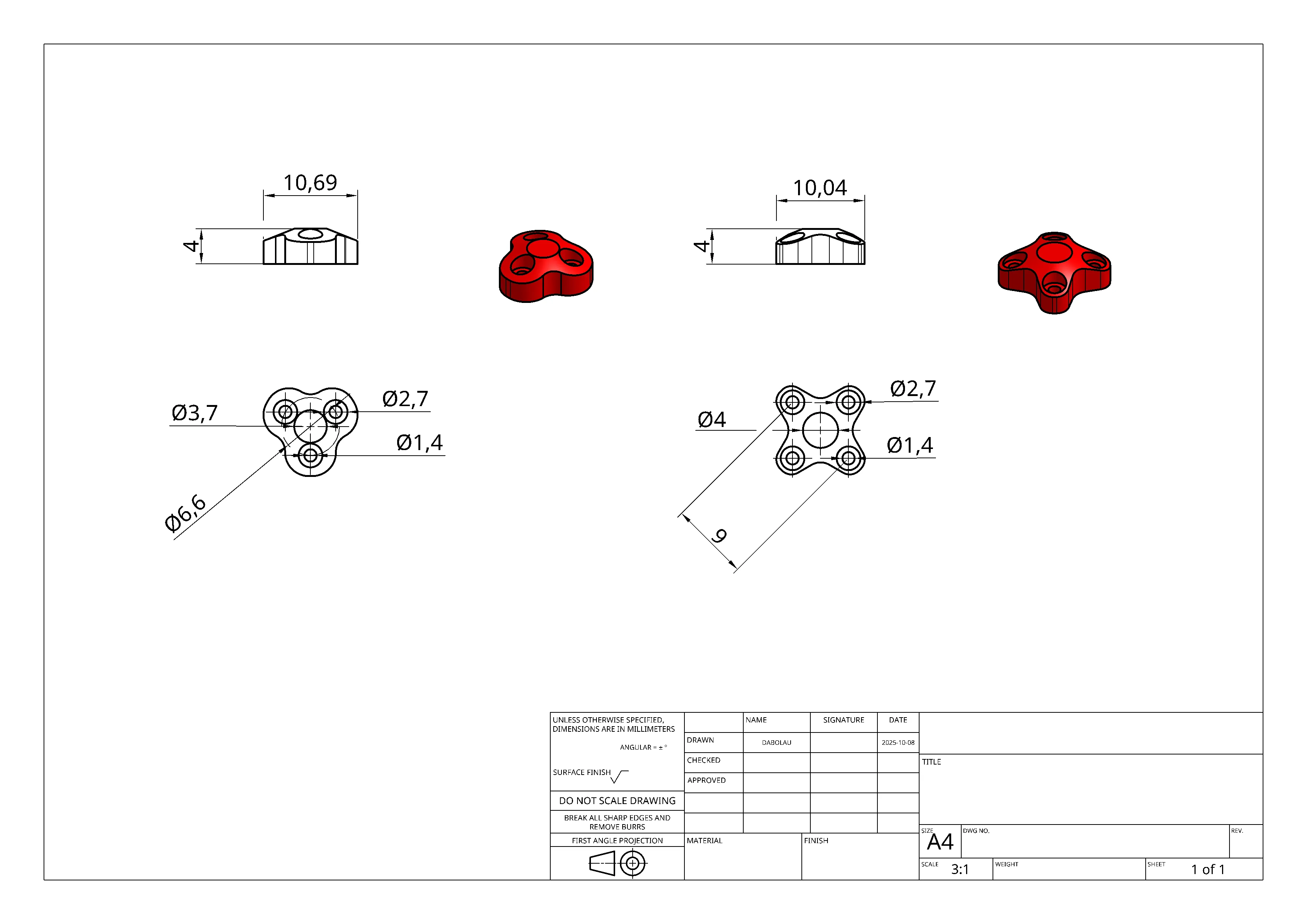

FootPad3MM
FootPad4MM

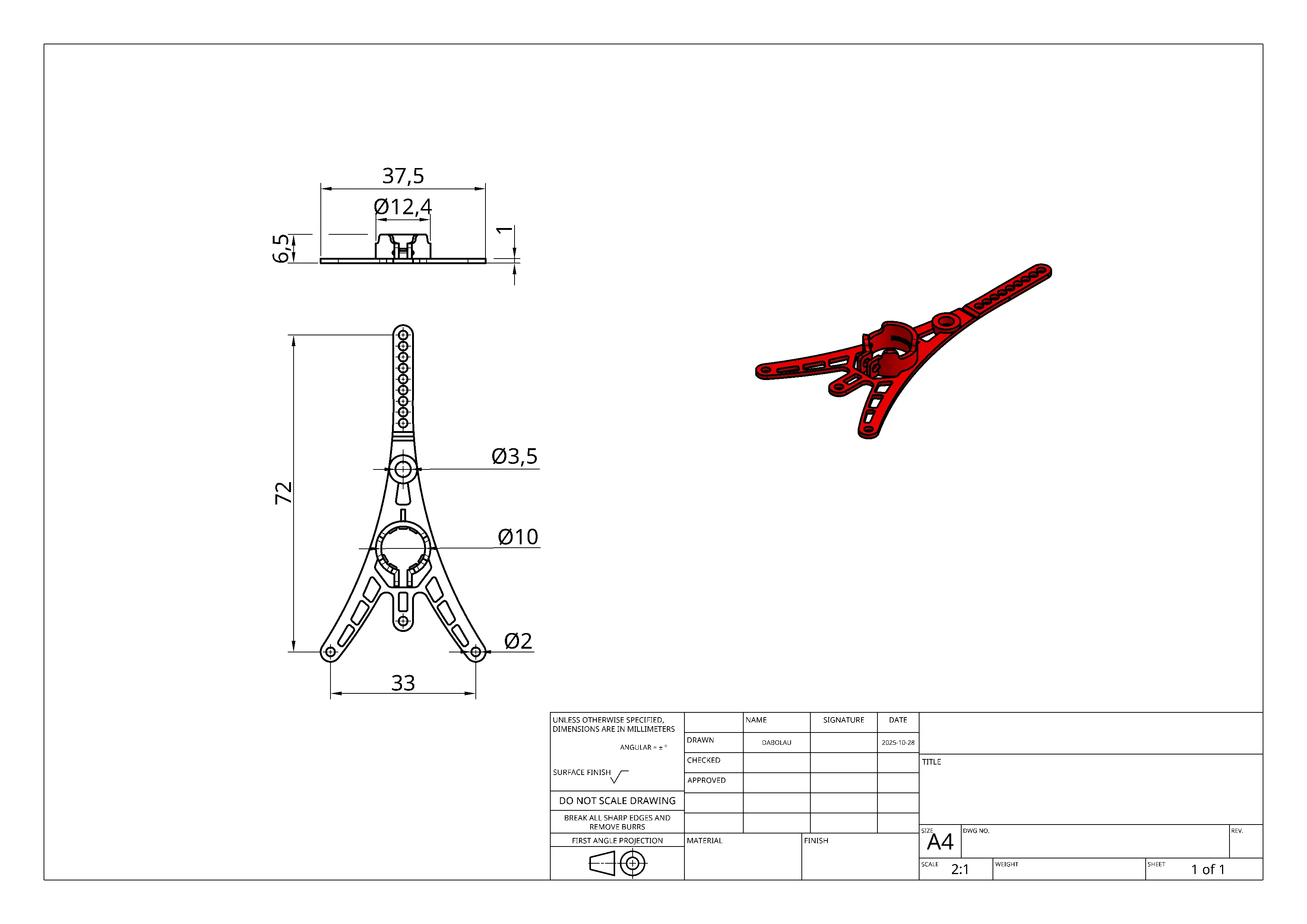

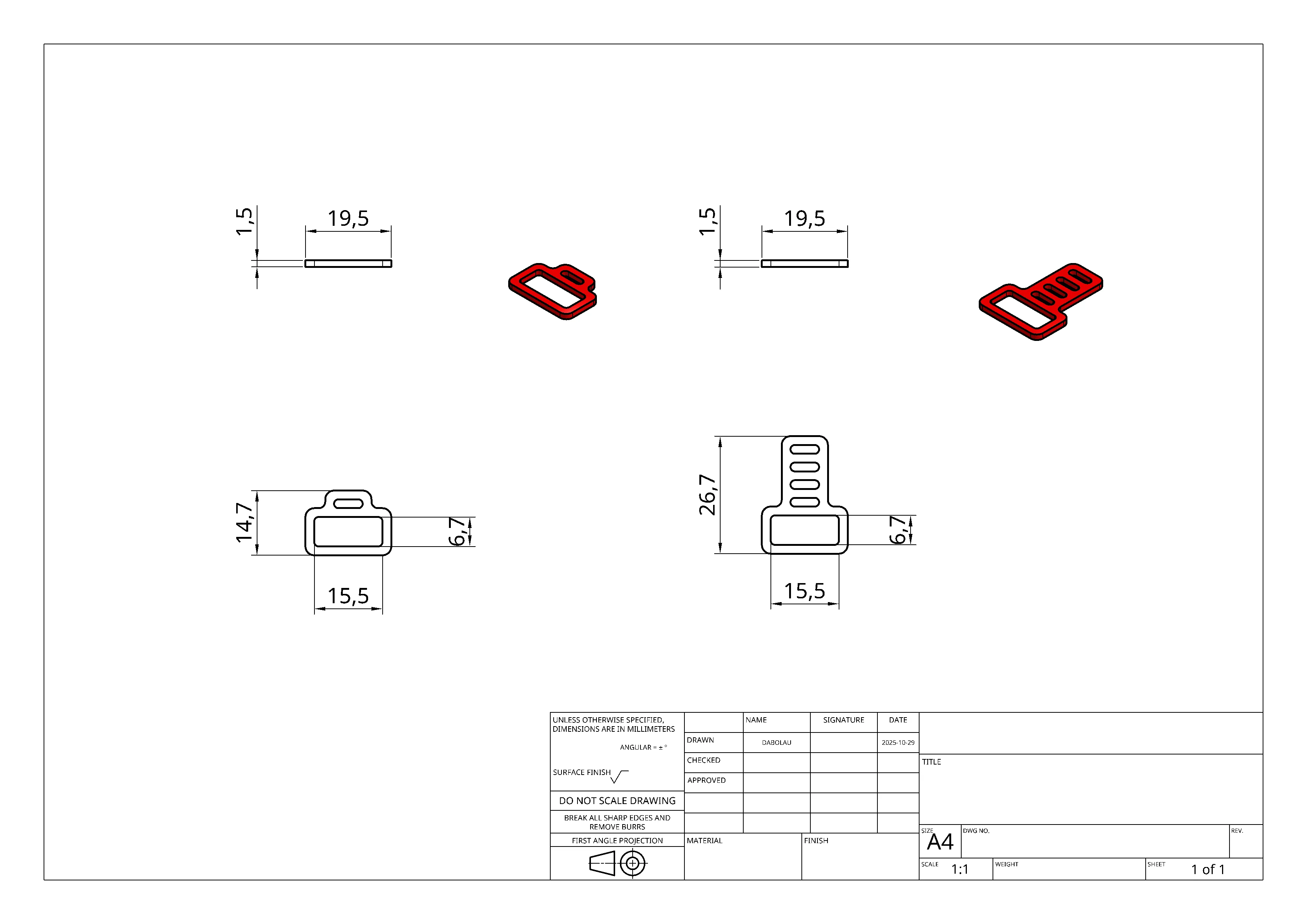

BatteryHolder15.5x6.7

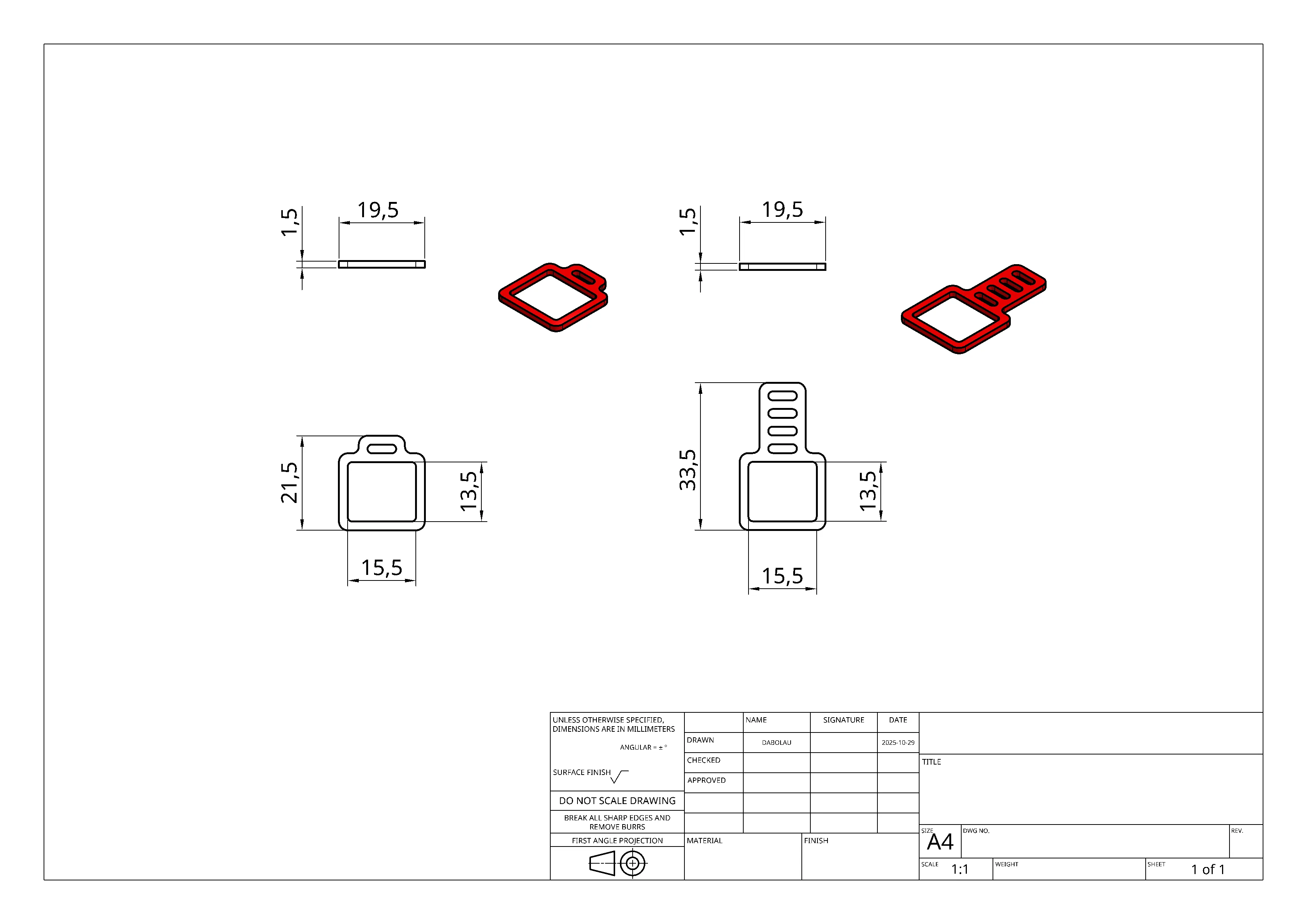

BatteryHolder15.5x13.5
BatteryHolder18650
BatteryHolder21700
