F-150 MagSafe Charger Replaces Coin Holder

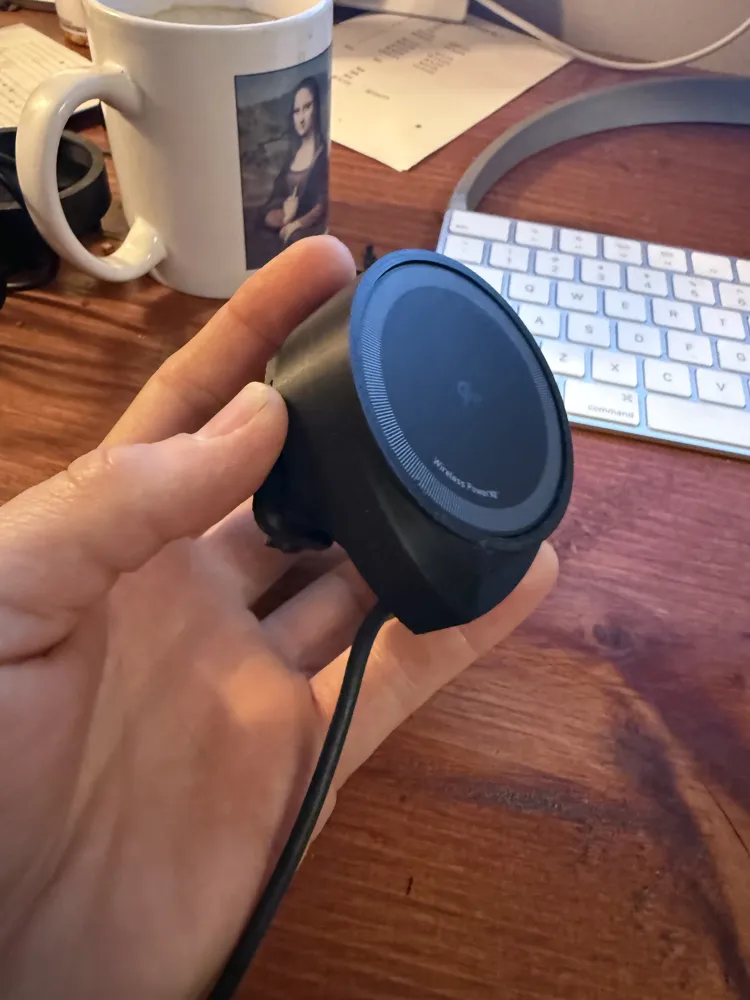

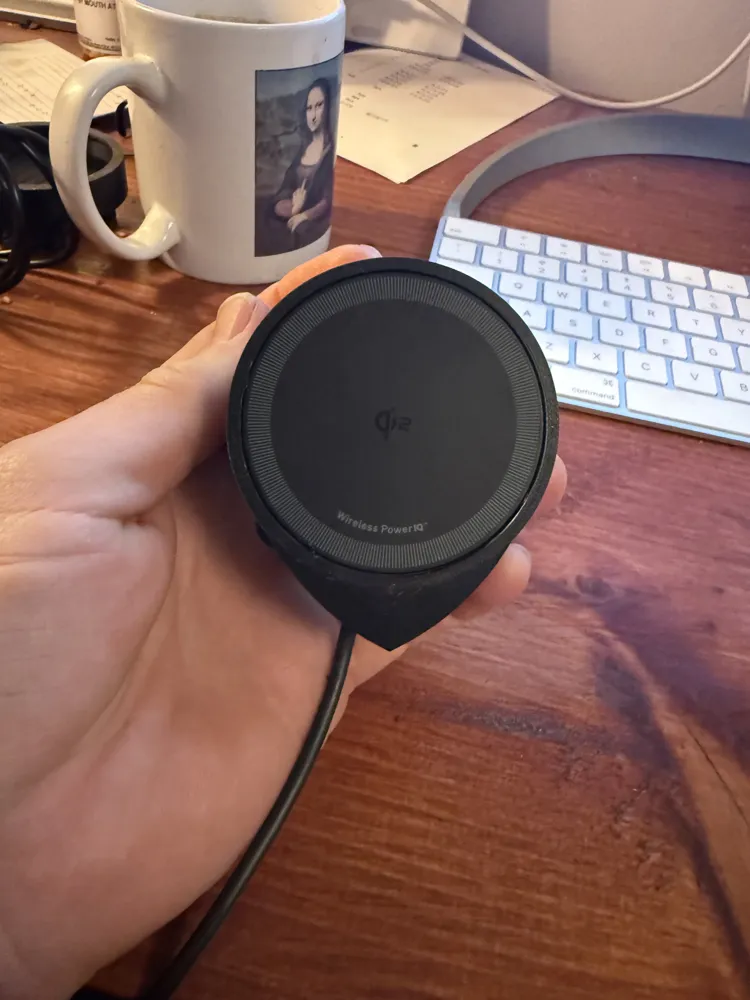

This is a holder for the MagSafe charger to replace the coin holder in an F-150 with the 12" screen. It holds an Anker MagSafe with integrated USB-C (non-referral link, I don't use referral). The backing to fit the hole was from a model I found on MakerWorld (referenced as the remix) and all of the charger modeling was done original by me.

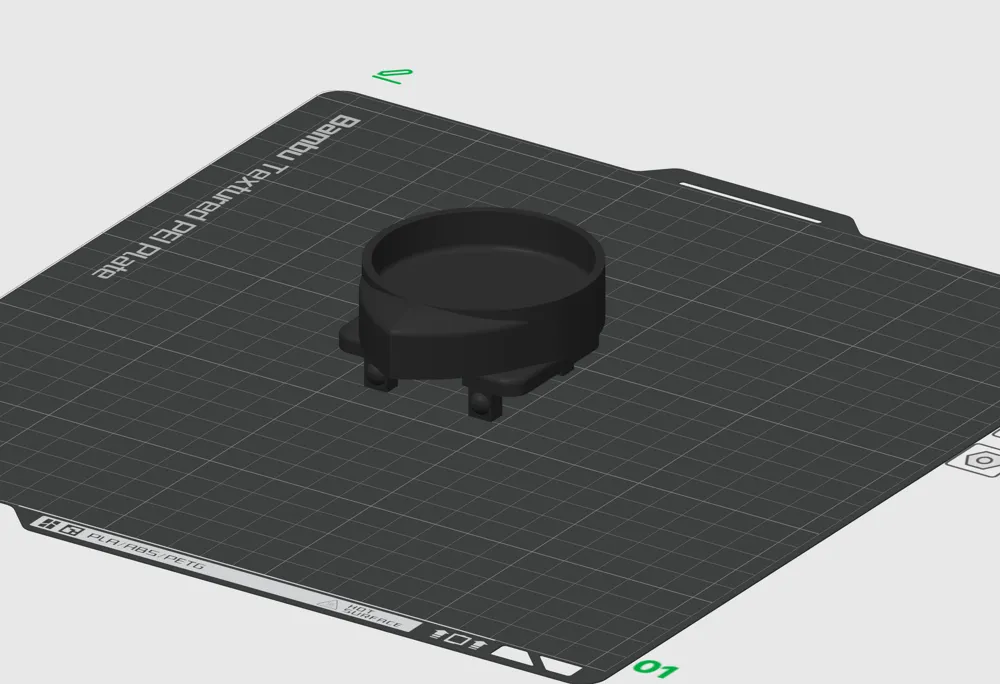

I printed in PETG but I'm sure that ASA/ABS would be better. I think PETG-CF would work too. I first printed in PLA but it deformed in the heat, so, while it works, I wouldn't recommend it.

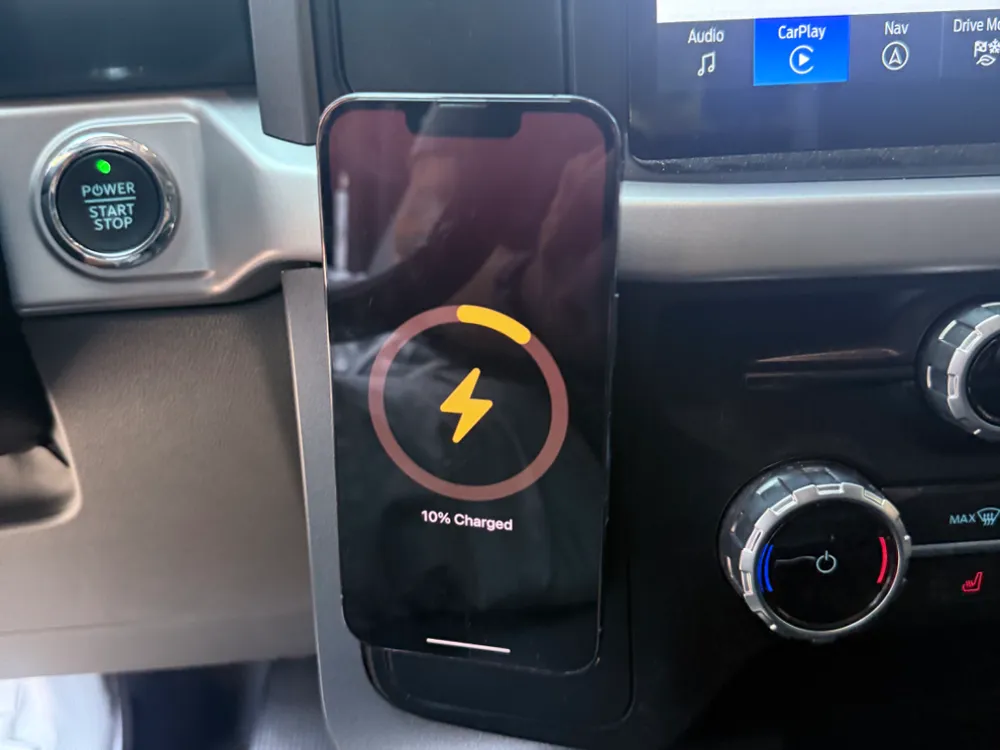

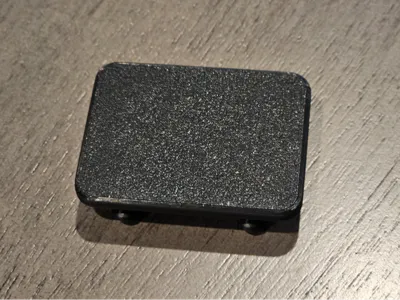

To install, you just pop out the coin holder and feed the usb cable along the side of the center console. The trim between the seat and the center console just pops off. Depending on the year of your truck you can either remove one small screw and push the cable through to the center console USB port (which i did-2023) OR you have to drill a hole (2025). Honestly drilling the hole is easier in either year but i did it without just to show I could.

The entire installation takes about 10 minutes your first time, or, like me since i have done it a bunch now, about 2 minutes.

This model is for this specific charger and screen size. I will be adding new models for the larger screen size and for a different charger that i think looks better but is more well suited for the iPhone Max due to sizing. This model is excellent for the regular size iPhone and iPhone pro and also works great with the Max. The only downside to this version is the shape of the V at the bottom for the usb cable, which the other model to be posted soon will avoid.
