Digital Caliper Depth Gauge Adaptor

Digital Depth Gauge - for setting and checking depths for routing and sawing applications.

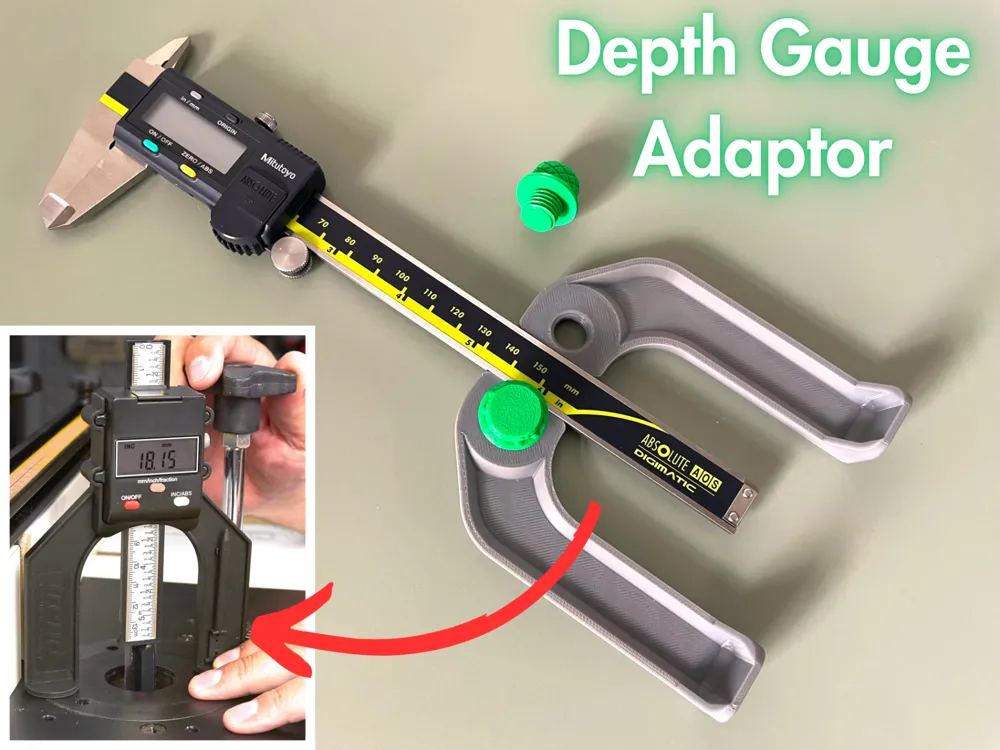

This adaptor can be quickly attached to any standard set of 16mm wide Digital Calipers (that's most of them!).

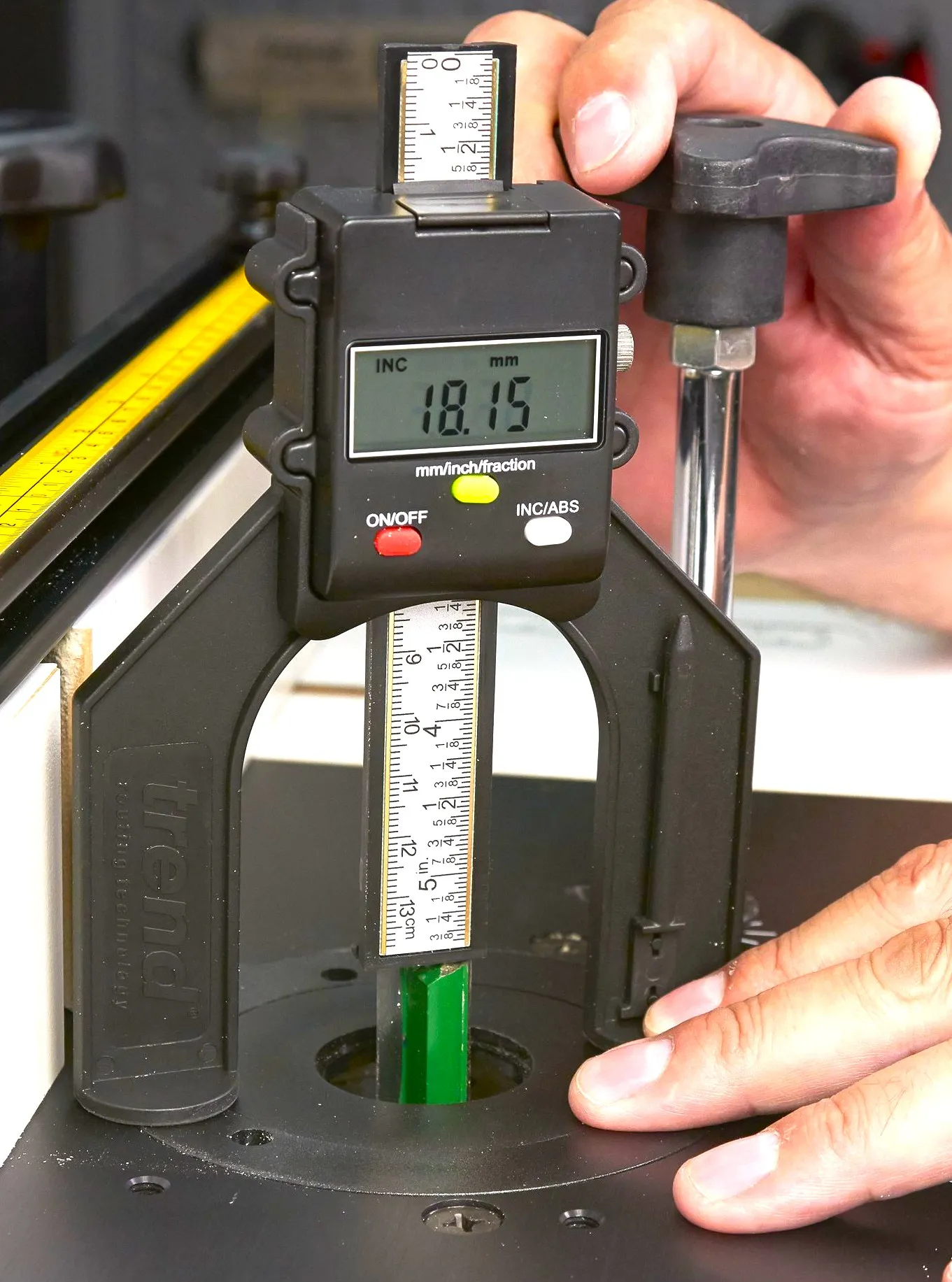

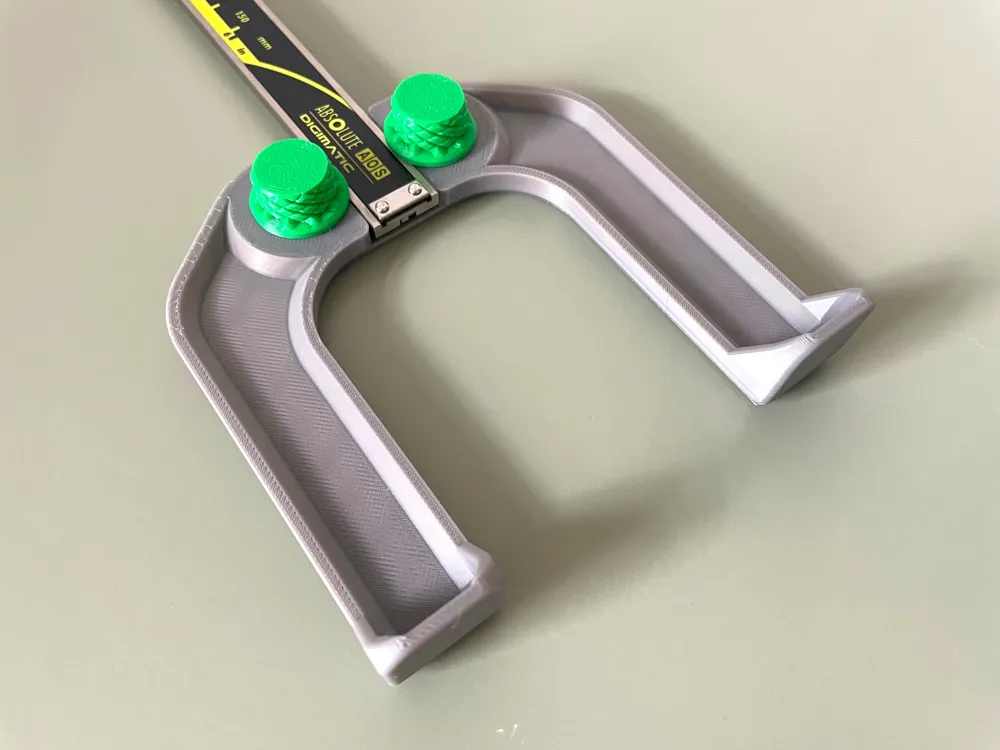

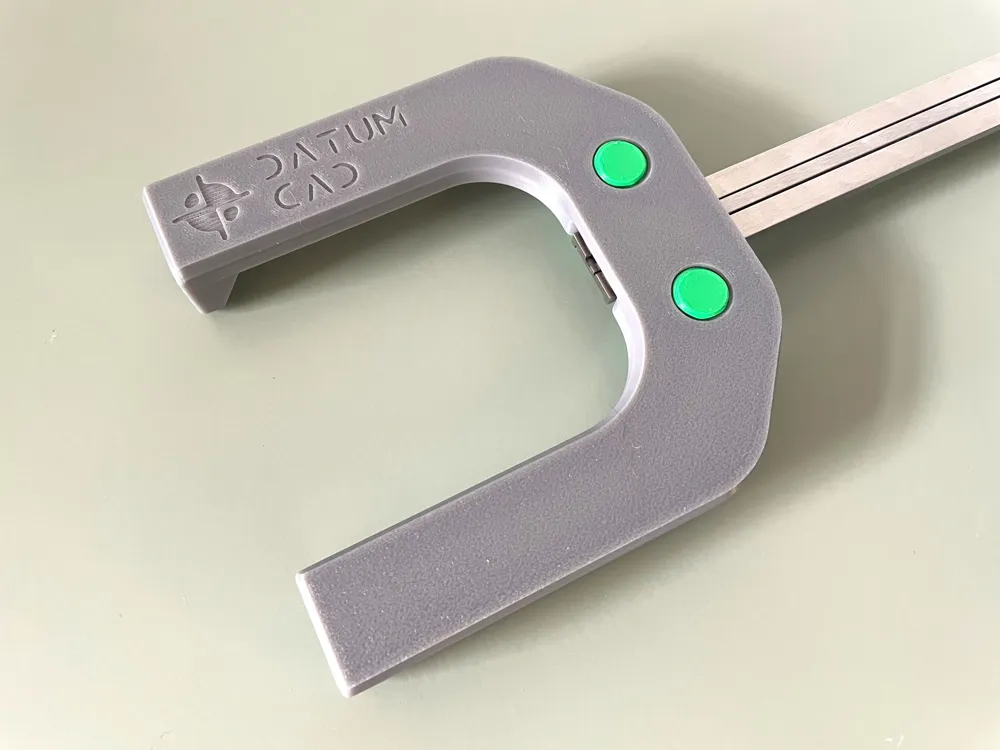

It provides a 60mm wide span to your calipers, and makes measuring heights of saw blades, router bits etc. (using the caliper depth sword) referencing the router table / saw bed.

There are of course many more use cases for this…..as it effectively allowing you to obtain measurements for objects / features that were previously very difficult or even impossible.

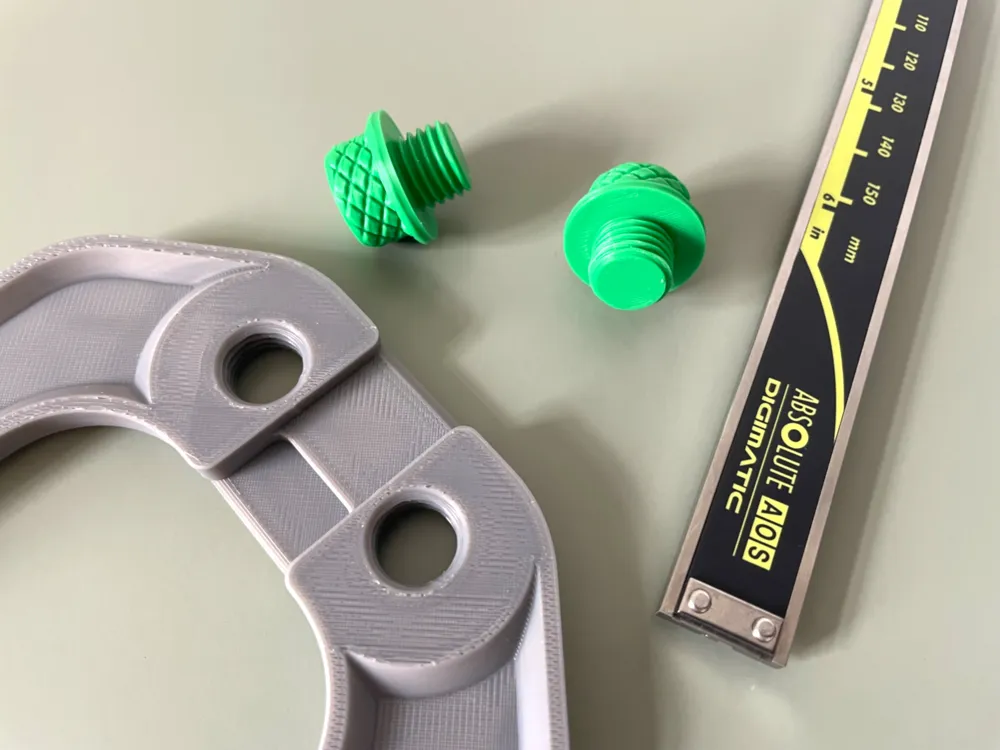

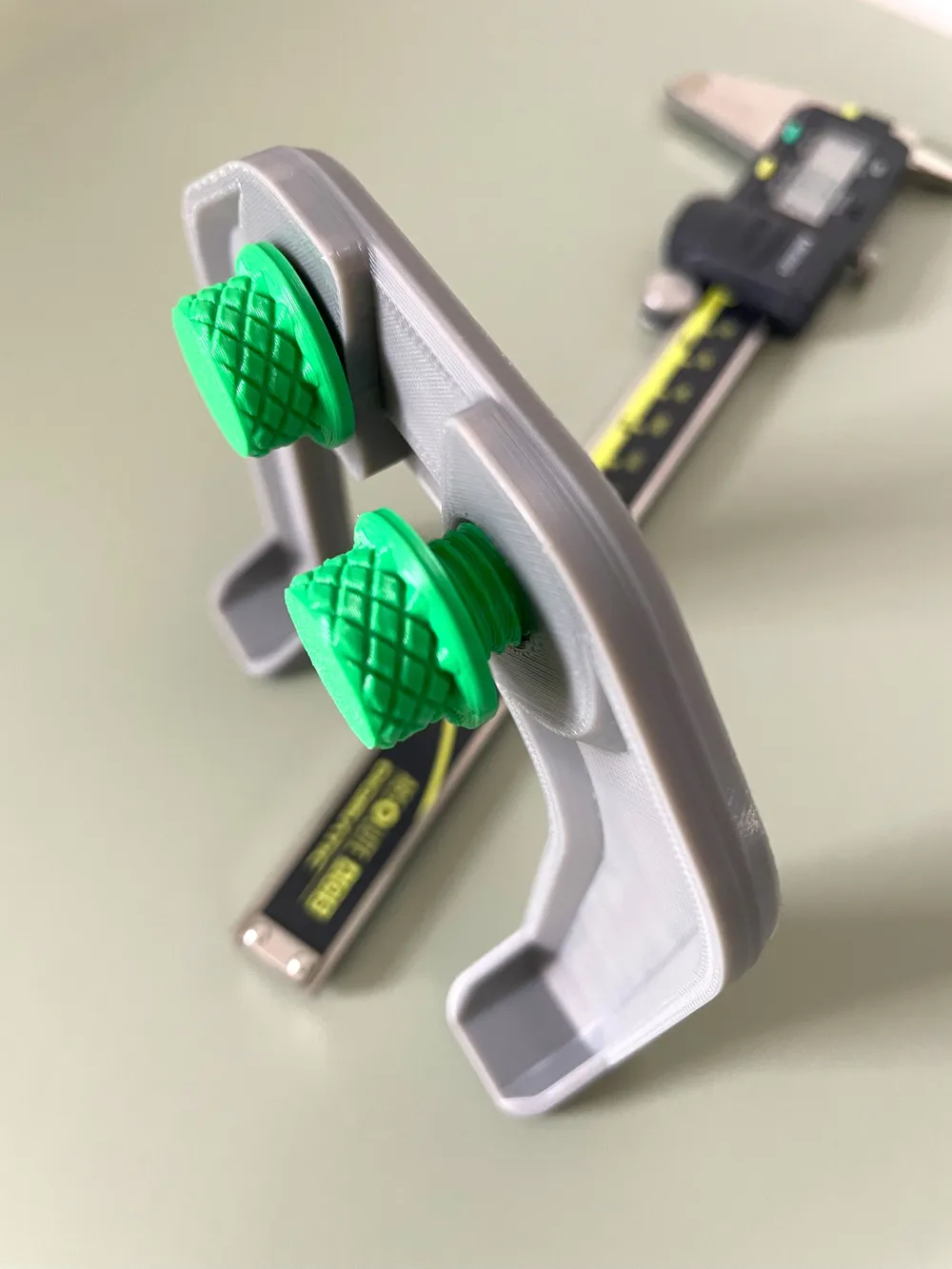

All items print with zero support. No need for metal fasteners as the knurled thumb screws are all printed too and are more than up to the job.

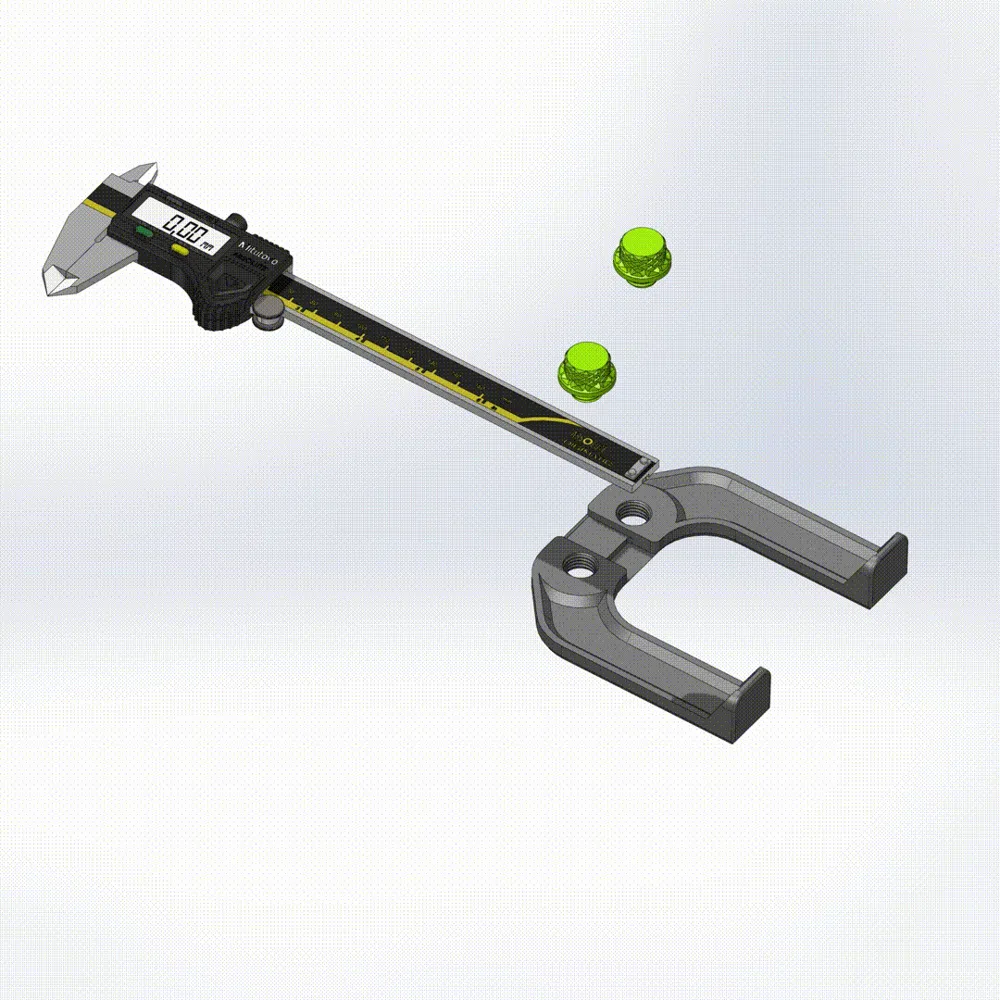

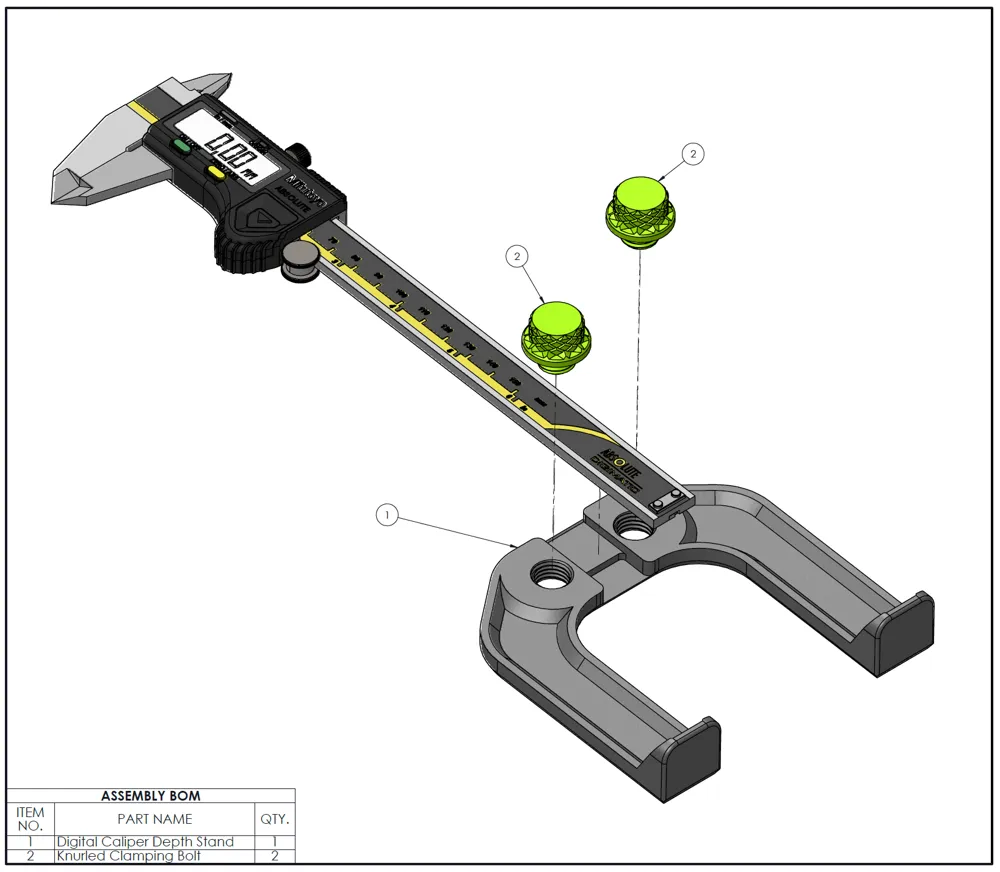

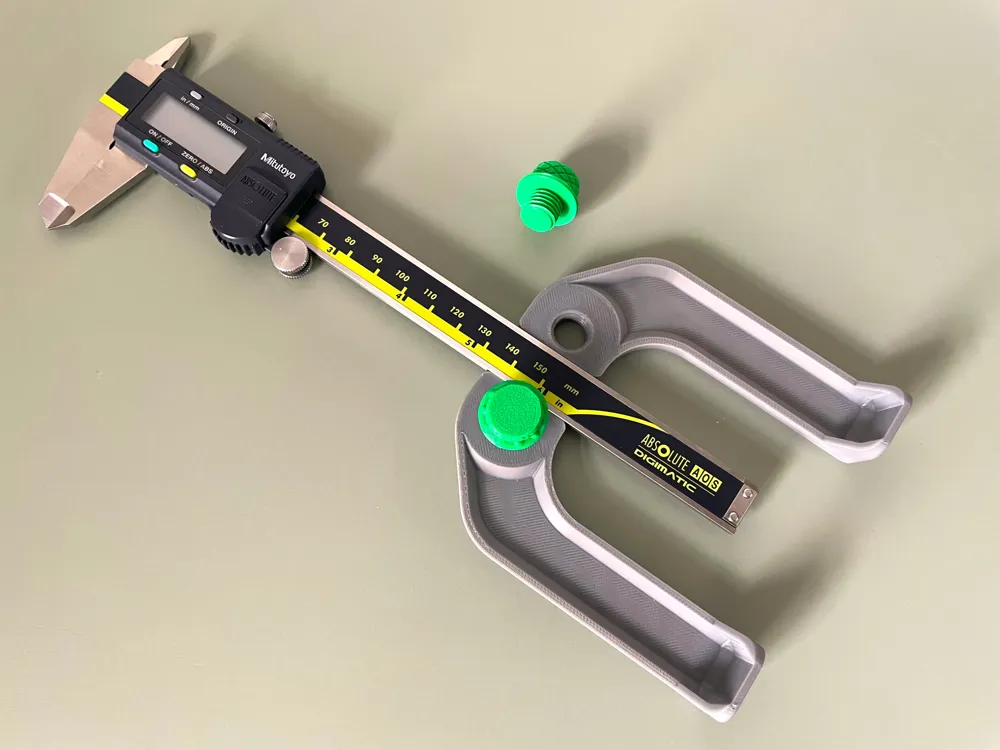

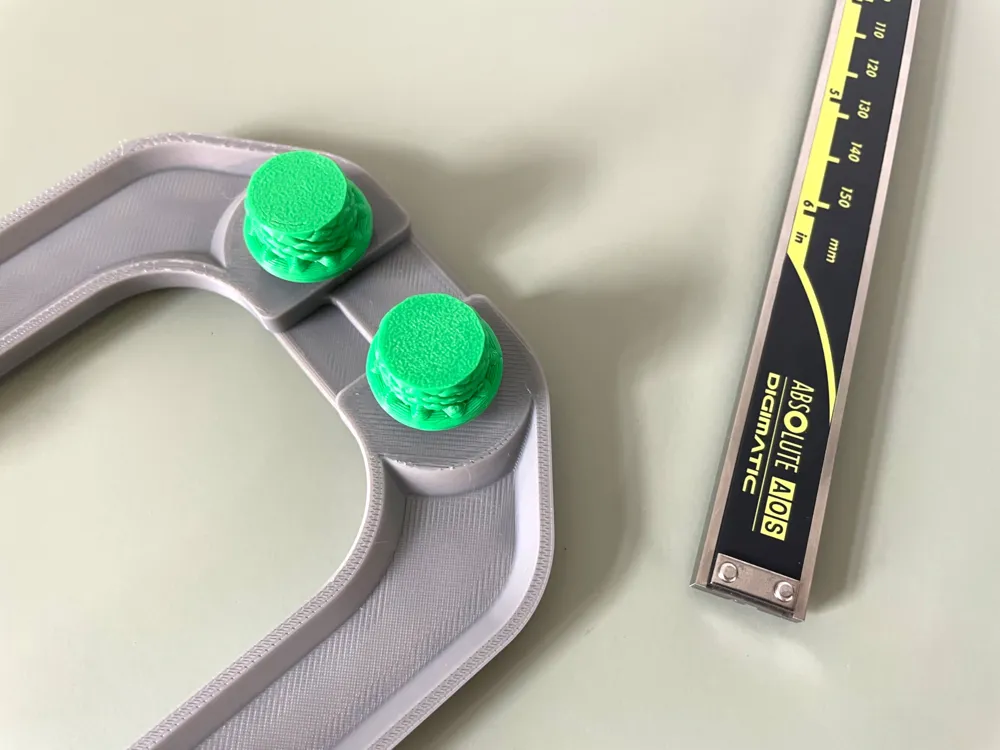

Assembly: Simply drop in your calipers then insert the two knurled locking bolts, tightening down onto the edge faces of the caliper. See exploded assembly BOM. Note: You don't need to fully remove the bolts each time, just back off a few turns then you can slide the calipers out past.

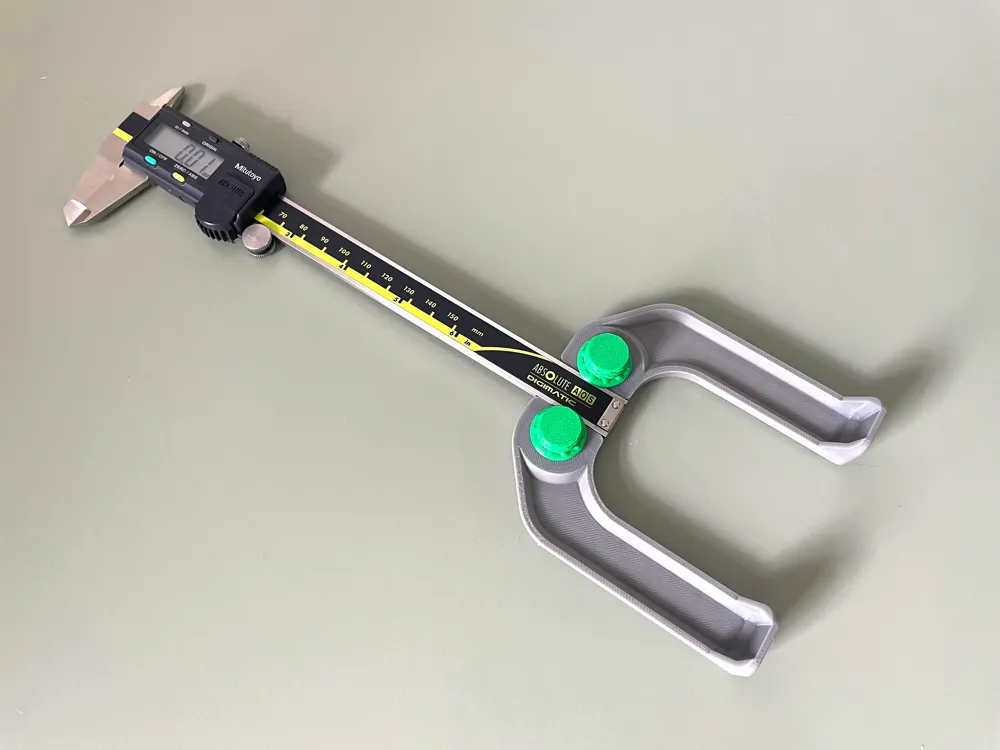

Set zero & use: Simply slide down flush with the end calipers, fully tighten the locking bolts. alternatively, you can lock whenever you like along the calipers length and just zero off to obtain your relative / differential measurement.

I have tested all at 0.16 layer height and 0.2mm also and both work well. Uploaded print profile at the higher resolution along with change of colour for the thumbscrews as it just looks better that way :) Enjoy printing and I hope this increases measuring bliss for you!
