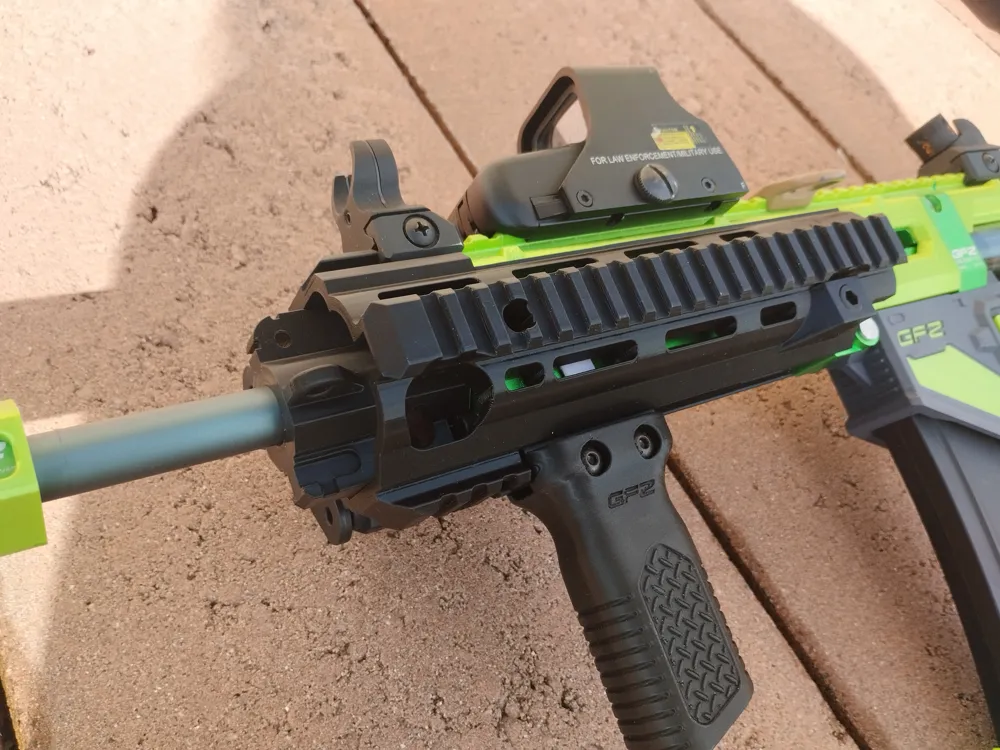

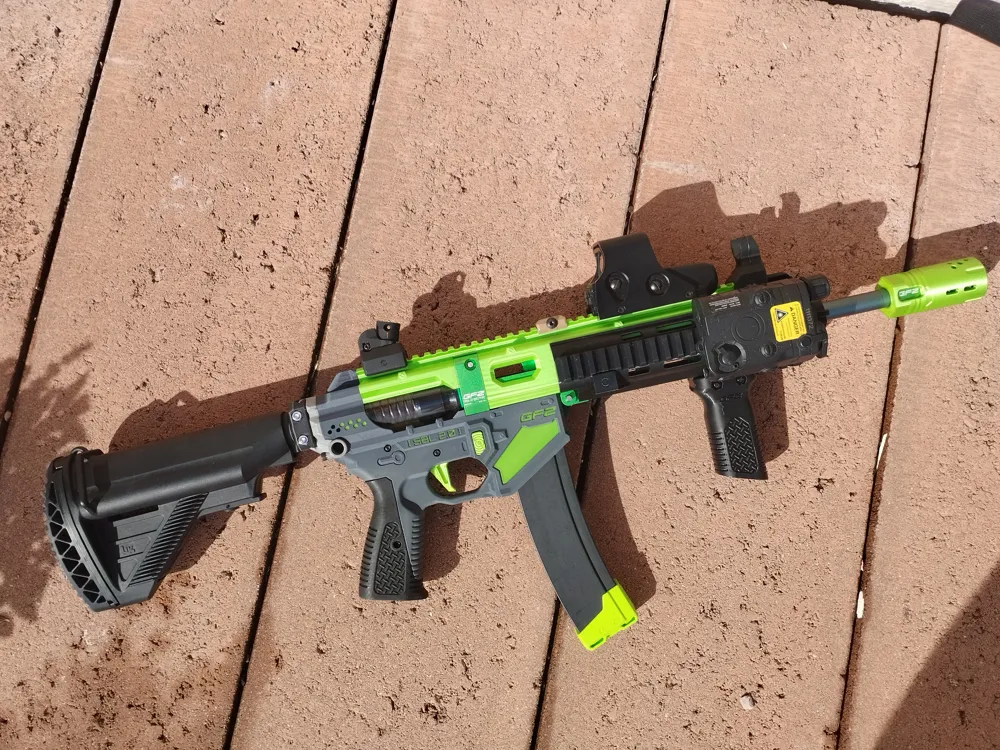

A handguard for the SBL 2.0 by Gavinfuzzy. Inspired by the HK416.
There is picatinny on the 12, 3, 6 and 9 o'clock positions.
Handguard and the gasblock dummy come in separate parts. Insert the gasblock before attaching it to the blaster. Rotate by ~45° around barrel axis, insert from the front and rotate into place. The gasblock will hold in the handguard on its own.
.stl's come pre-oriented. .stp file is included.
SOME ADDITIONAL HARDWARE REQUIRED:
The original 2 thumbscrews for for the handguard need to be replaced with 2x M4 socket head screws; EITHER:
- 2x M4x12mm socket head - just to secure the handguard
- 2x M4x16mm socket head - if you want to secure the barrel from the sides with the screws
