2.5D Framed Blueprint | Pacific Clipper

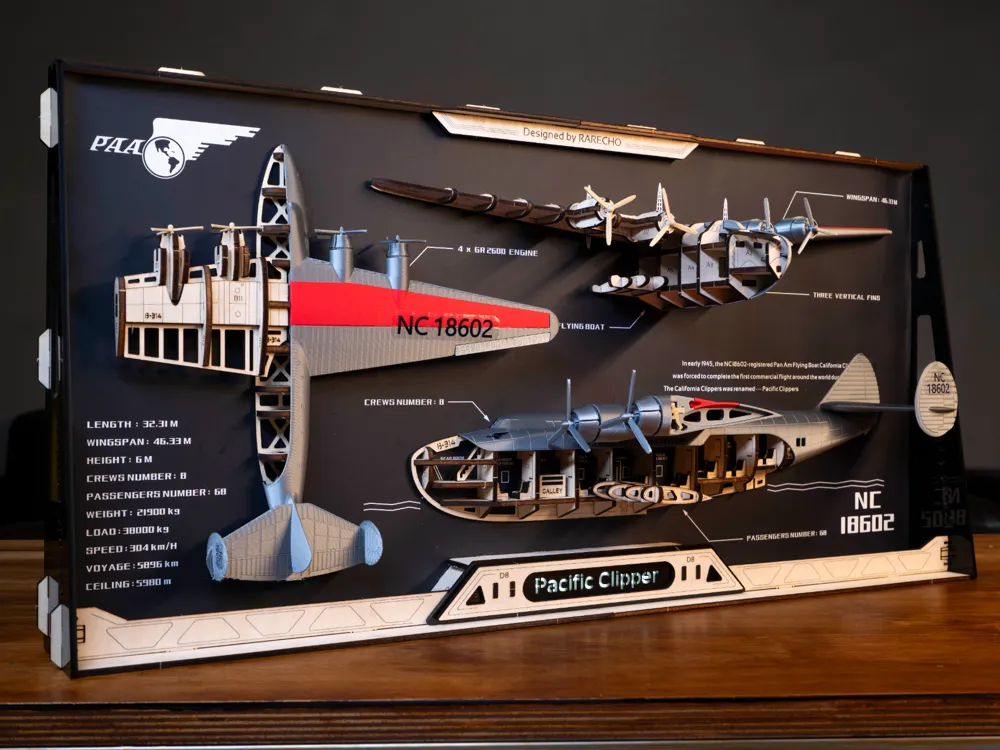

 「2.5D Framed Blueprint | Pacific Clipper」 is a 2.5D effect stereoscopic blueprint frame that presents the appearance and internal structure of the "Pacific Clipper" through three-view drawings.

    This is a remix model. We used various techniques and materials to realize this design idea. The complete production will involve 3D printing, laser cutting, and knife cutting processes, and will use the "Maker's Supply" kit along with additional simple printing techniques. This page is for the 3D printing part. For the laser cutting and knife cutting parts, please visit:   2D Processing Section

 「2.5D Framed Blueprint | Pacific Clipper」 is a 2.5D effect stereoscopic blueprint frame that presents the appearance and internal structure of the "Pacific Clipper" through three-view drawings.

This is a remix model. We used various techniques and materials to realize this design idea. The complete production will involve 3D printing, laser cutting, and knife cutting processes, and will use the "Maker's Supply" kit along with additional simple printing techniques. This page is for the 3D printing part. For the laser cutting and knife cutting parts, please visit:2D Processing Section

 "Origin"

   We are Rarecho® Studio, a product design workshop dedicated to creating modular and customizable product series for everyday life and work. Our designs are inspired not only by practical needs but also by trend culture and DIY spirit, which we love to weave into every creation.    From the very beginning, we’ve dreamed of building a non-commercial, open-source project—something that lets more makers explore fun ideas with desktop-level tools. After connecting with the brilliant team at Bambu Lab, it felt natural to launch our very first open-source project.          This project carries forward the playful creativity of our trendy toy product series Armpal®, but redesigned and optimized specifically for Bambu Lab devices and DIY enthusiasts. The result is this decorative model.

   If our design philosophy resonates with you, visit 「www.rarecho.com」to explore more of our work, or reach out to us at support@rarehoer.com to share your ideas—we’d love to hear from you.

We are Rarecho® Studio, a product design workshop dedicated to creating modular and customizable product series for everyday life and work, while also focusing on trend culture and DIY culture, integrating them into our products. We have always wanted to create a non-commercial open-source project, allowing more friends to explore fun designs using desktop-level equipment. After connecting with the excellent team at Bambu Lab, we naturally launched Rarecho®'s first open-source project. This project continues the creative spirit of our trendy toy product series Armpal®, redesigned and optimized specifically for Bambu Lab devices and DIY enthusiasts, resulting in this decorative model. If you are interested in our design philosophy, you can visit our official website www.rarecho.com to see more interesting designs, or contact us at support@rarehoer.com to share your ideas.

“Design Features and Use Scenarios”

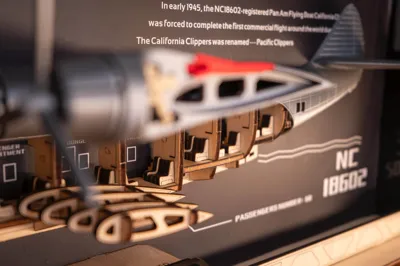

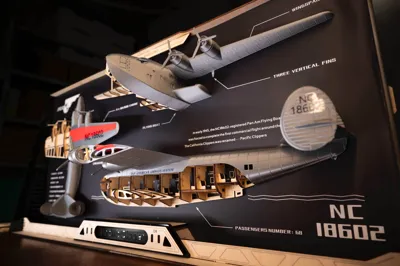

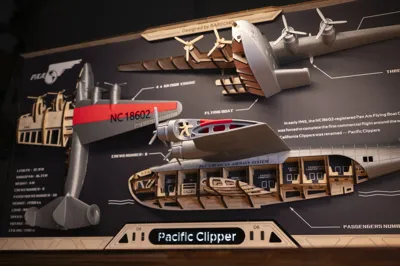

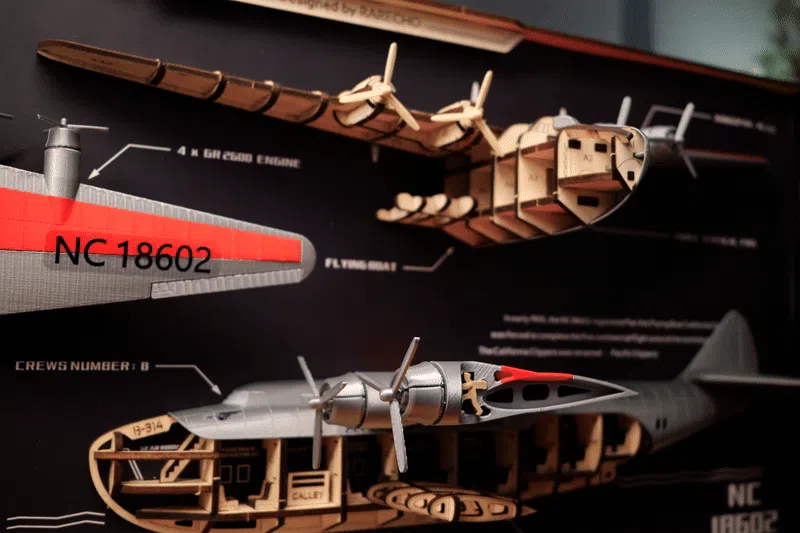

• 2.5D Creative Effect: Instead of a traditional flat blueprint, we designed a framed 2.5D model that gives the illusion of depth—making the airplane look as if it’s leaping straight out of the drawing.

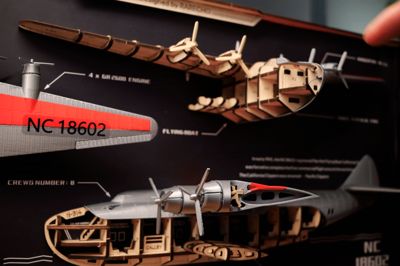

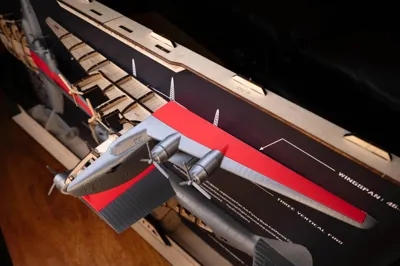

• Perspective effect: The combination of a wooden frame and a PLA shell presents a three-dimensional airplane body, not simply a 3D restoration of the appearance, but allowing the internal structure to be seen through the shell, which better aligns with the blueprint theme of the entire frame.
• Size: We designed a splicing structure to achieve a frame size of 585✖️283mm within the workpiece size that the "Bambu Lab" device can produce. This not only brings a stronger visual impact but also gives us space to showcase more internal structures. Of course, this size is not only suitable for display but can also be used as a real picture frame to hang on the wall.

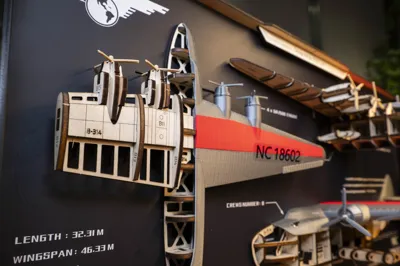

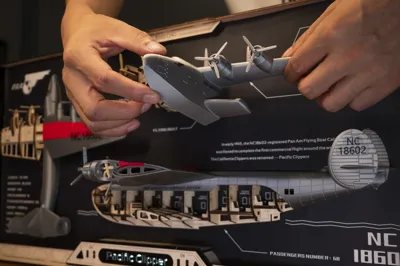

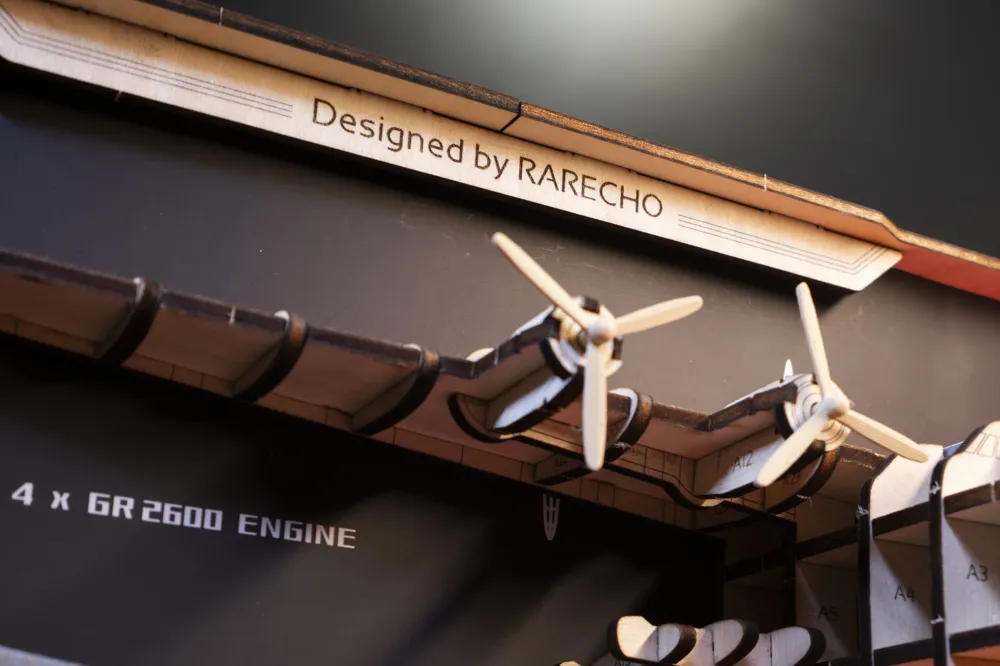

• Details: We selected some details to make the frame interactive, with manually rotatable propellers and manually movable ailerons. It also showcases the iconic design of this model - the wing passage for engine maintenance (you can see the maintenance engineer is also depicted). Additionally, we provide sticker files, allowing you to create water transfer decals or PET/PVC transparent stickers to complete the logos and decals on the aircraft.

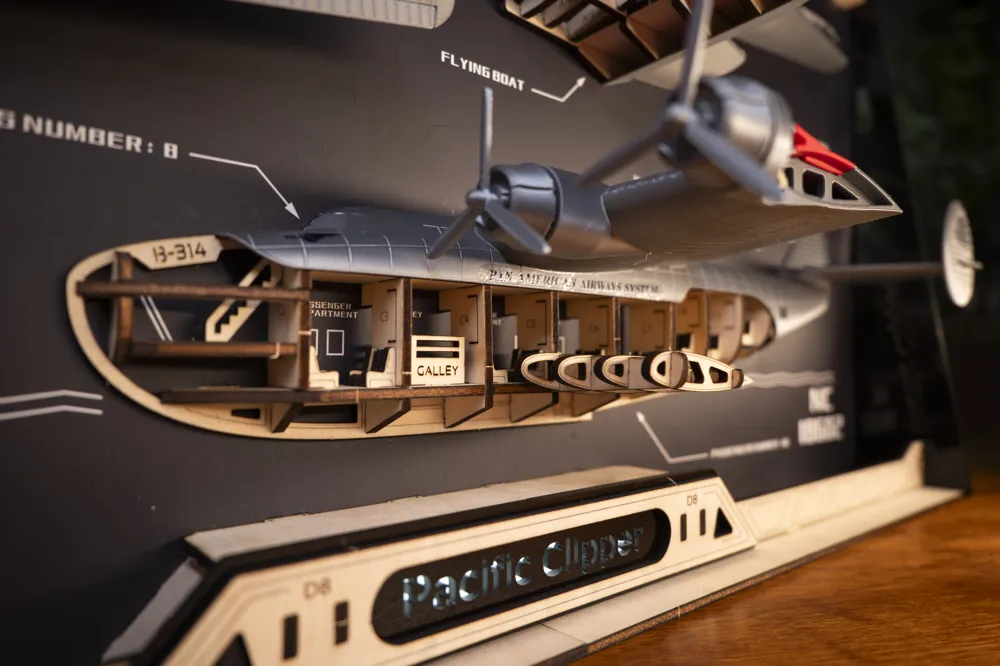

• Nameplate with backlight: We used the Maker's Supply kit as the backlight source for the nameplate of the picture frame, further enhancing the visual experience of the entire frame.

    We believe this is a sufficiently refined decorative picture frame suitable for placing or hanging in a home or studio, and you can also enjoy an interesting assembly process.

• 2.5D Creative Effect: Instead of a traditional flat blueprint, we designed a framed 2.5D model that gives the illusion of depth—making the airplane look as if it’s leaping straight out of the drawing.
• Perspective effect: The combination of a wooden frame and a PLA shell presents a three-dimensional airplane body, not simply a 3D restoration of the appearance, but allowing the internal structure to be seen through the shell, which better aligns with the blueprint theme of the entire frame.
• Size: We designed a splicing structure to achieve a frame size of 585✖️283mm within the workpiece size that the "Bambu Lab" device can produce. This not only brings a stronger visual impact but also gives us space to showcase more internal structures. Of course, this size is not only suitable for display but can also be used as a real picture frame to hang on the wall.
• Details: We selected some details to make the frame interactive, with manually rotatable propellers and manually movable ailerons. It also showcases the iconic design of this model - the wing passage for engine maintenance (you can see the maintenance engineer is also depicted). Additionally, we provide sticker files, allowing you to create water transfer decals or PET/PVC transparent stickers to complete the logos and decals on the aircraft.

• Nameplate with backlight: We used the Maker's Supply kit as the backlight source for the nameplate of the picture frame, further enhancing the visual experience of the entire frame.



   We believe this is a sufficiently refined decorative picture frame suitable for placing or hanging in a home or studio, and you can also enjoy an interesting assembly process.
