Straightener tool for 3/16 (4.8mm) brake copper brake pipe.

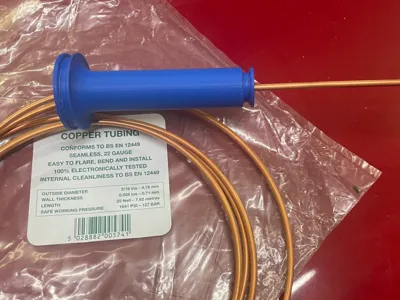

I drew this up to help straighten brake line when unrolling from the coil. Just push the pipe through the tool. It does a much better job than just trying to straighten it by hand.

Please note however that it will not take sharp bends or kinks out of pipes.

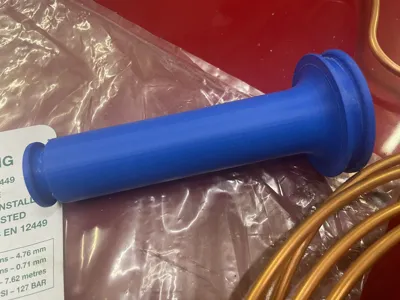

I have also added a grove at either end that can be used as a former when bending the pipe. One end is approximately 1 inch diameter and the other end is approximately 2 inch.

Printed in PLA.

There is support material in the bending groves. I found that it was easiest to remove with a small screwdriver.
