Desktop Scotch Tape Dispenser
Print Profile(3)
Description

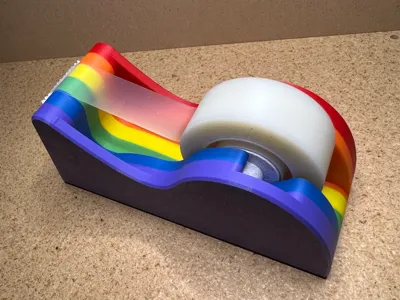

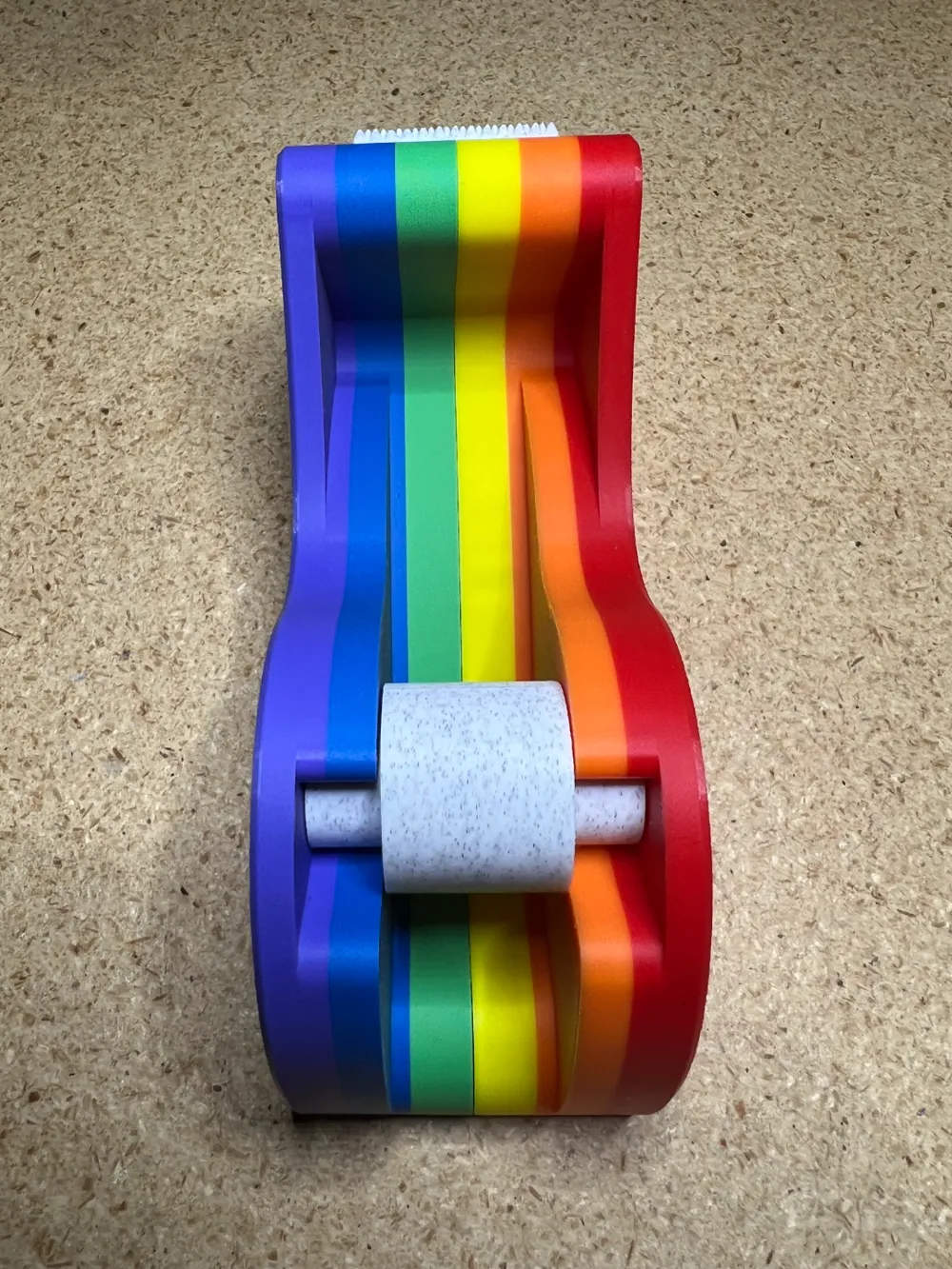

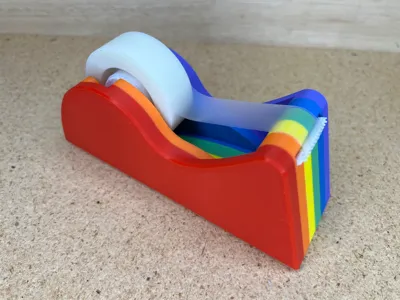

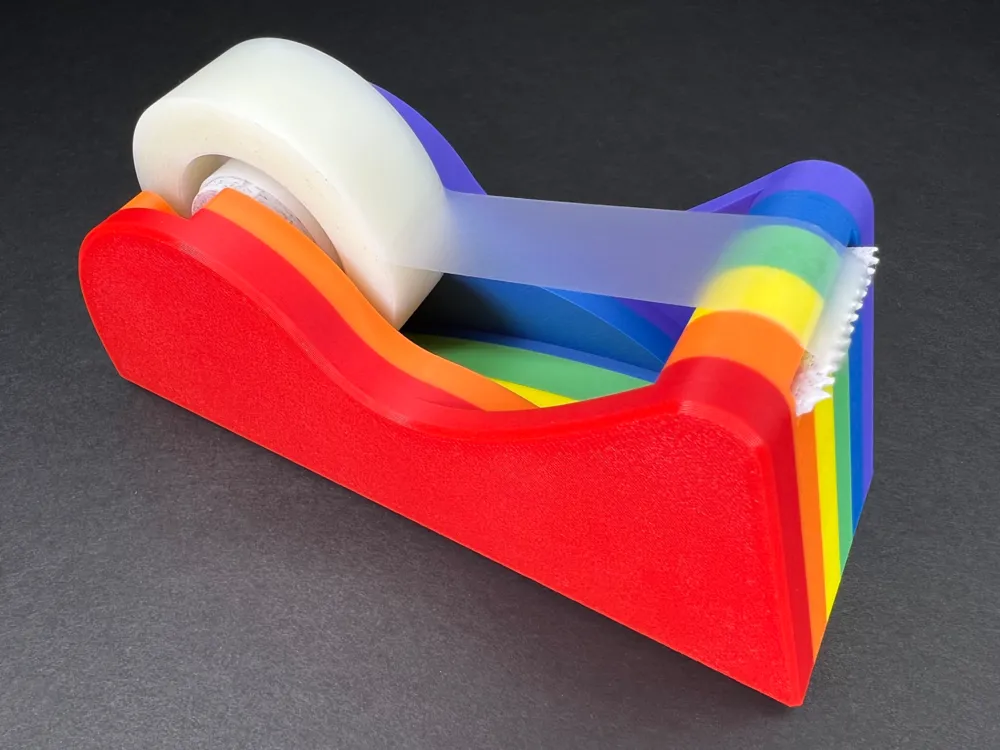

A stylish desktop tape dispenser for home or office use. This dispenser supports standard size Scotch tape roles with a core width of 1 inch (~26mm) and a tape width of 3/4 inch (~20 mm).
* Features a double sawtooth design that catches and cuts tape cleanly!
I printed with multiple filaments to create a rainbow spectrum to show off the ability to band colors due to the print orientation of the dispenser halves. Please be creative and share your results!
Notes:
- No supports required.
- All parts printed without using brims.

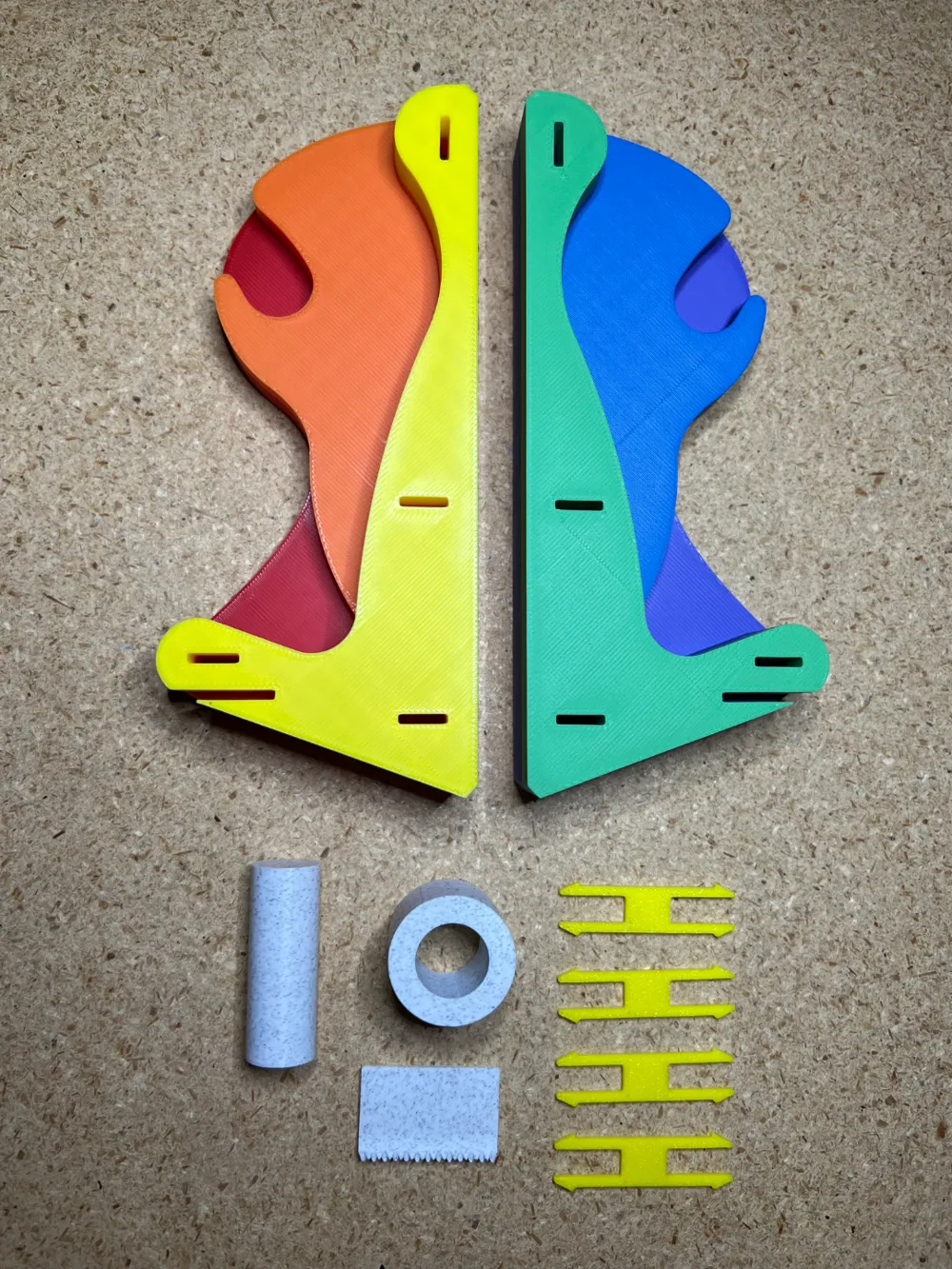

- Duplicate and mirror the dispenser half model to create each side.
- Easily assemble the two halves using four printed connectors.
- Drop in place the teeth.
- Insert the pin core and shaft through the center of the tape role and drop in place.
- No glue, screws, or additional parts required.
- I originally printed this model using Bambu PLA Matte filament which worked well. I later reprinted the teeth with a Bambu PLA Basic which resulted in them being a bit sharper and cutting the tape better.
- I printed all parts except the teeth with 15% infill at 0.16mm (Optimal in Bambu Studio slicer).
- The teeth I printed with 100% infill at 0.08mm (Extra Fine in Bambu Studio slicer).
- Shown as printed on a Bambu X1C.
