HP Server Power Supply Conversion 12V XT60 RC 460 750 1200
Print Profile(1)
Description

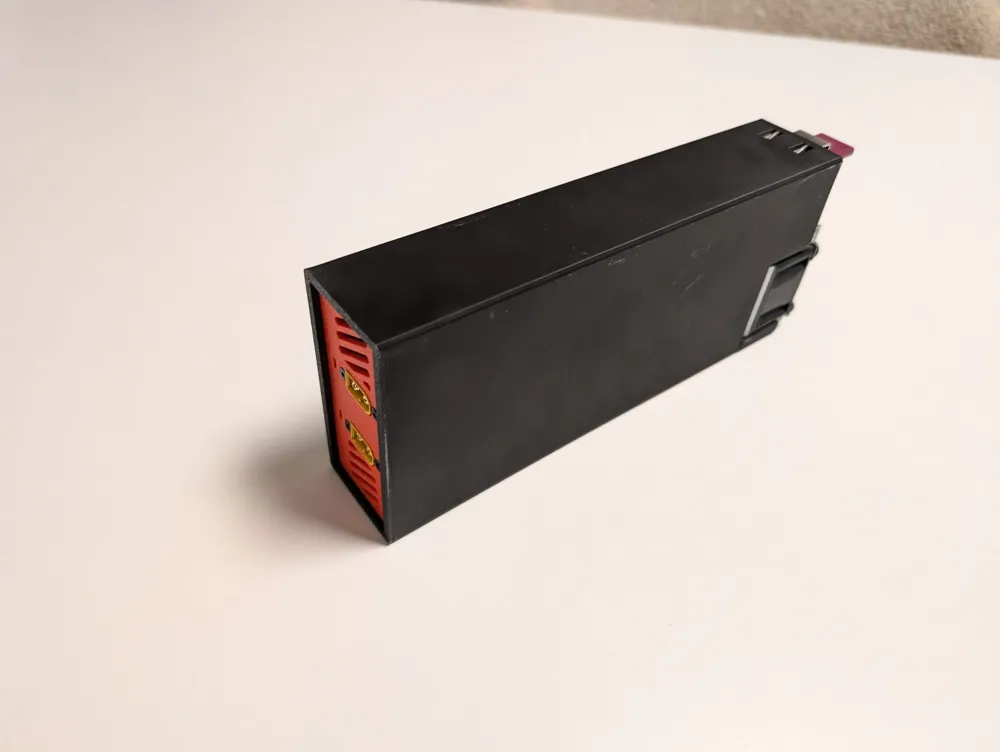

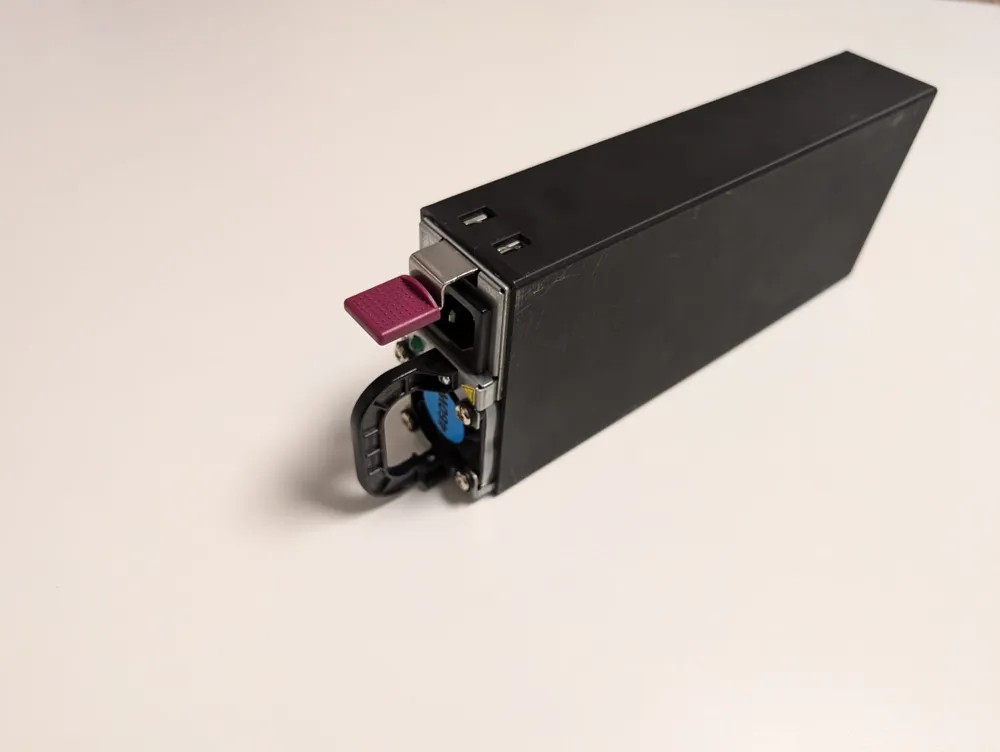

Case for HP server power supplies with 460W/750W/1200W

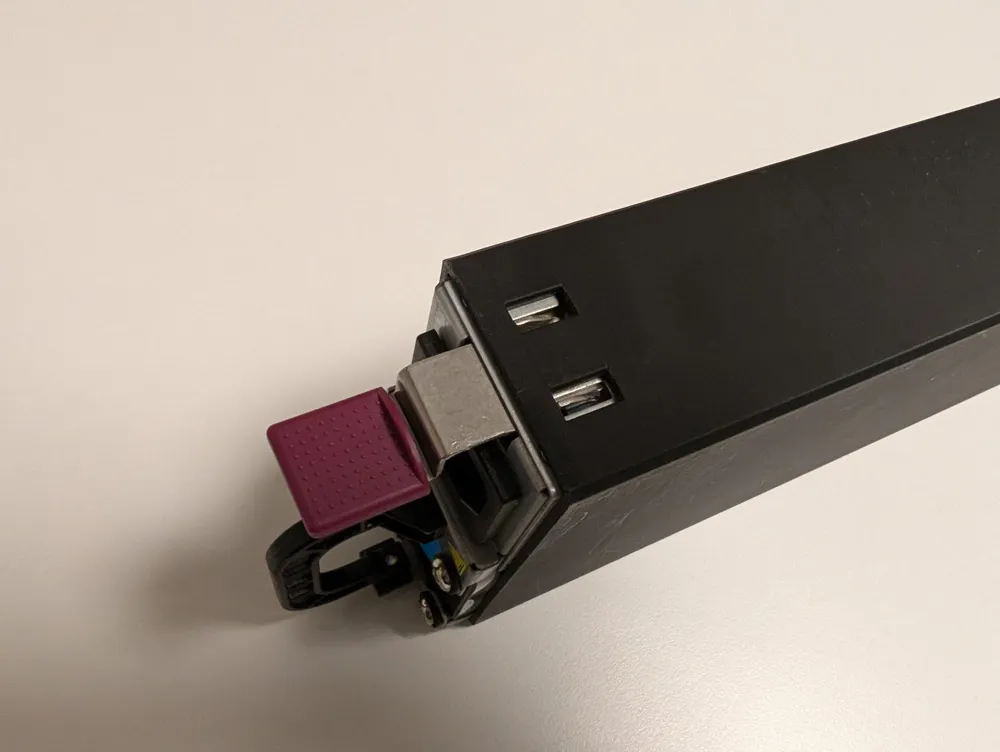

the case is simply slid over the power supply and locks into place with the existing hooks
the lid is simply secured to the case
several versions are available in the print profile
2 different cases
- Standard case

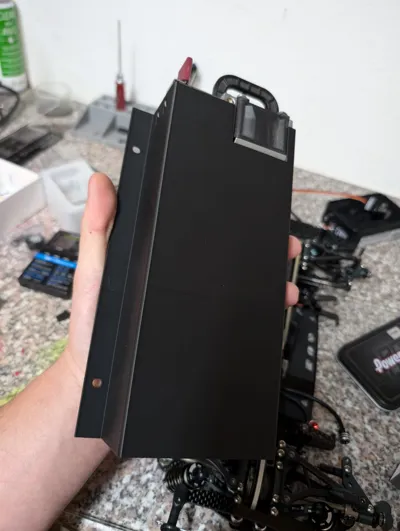

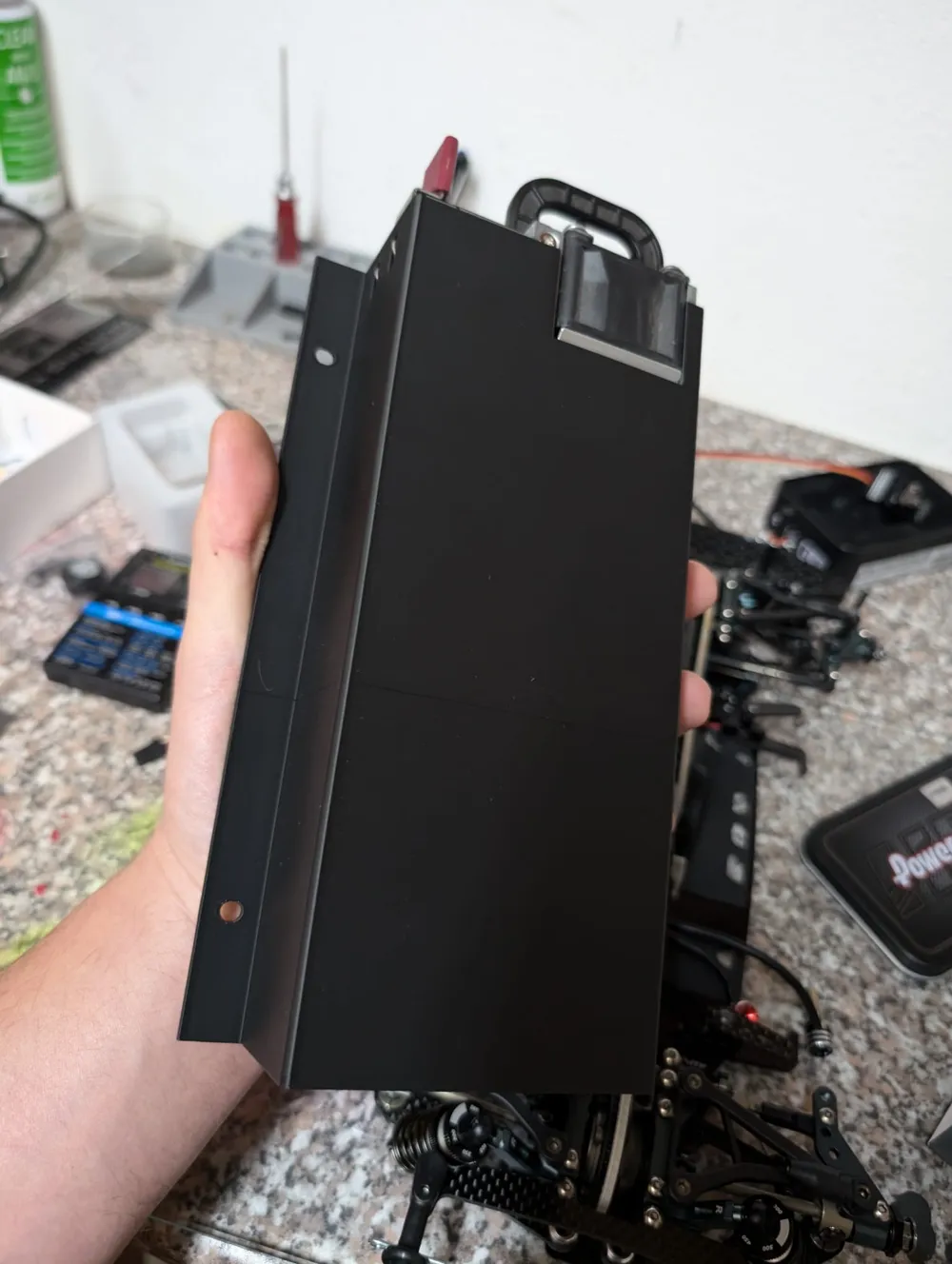

- Case with mounting bracket (to securely install the case)
2 different lids

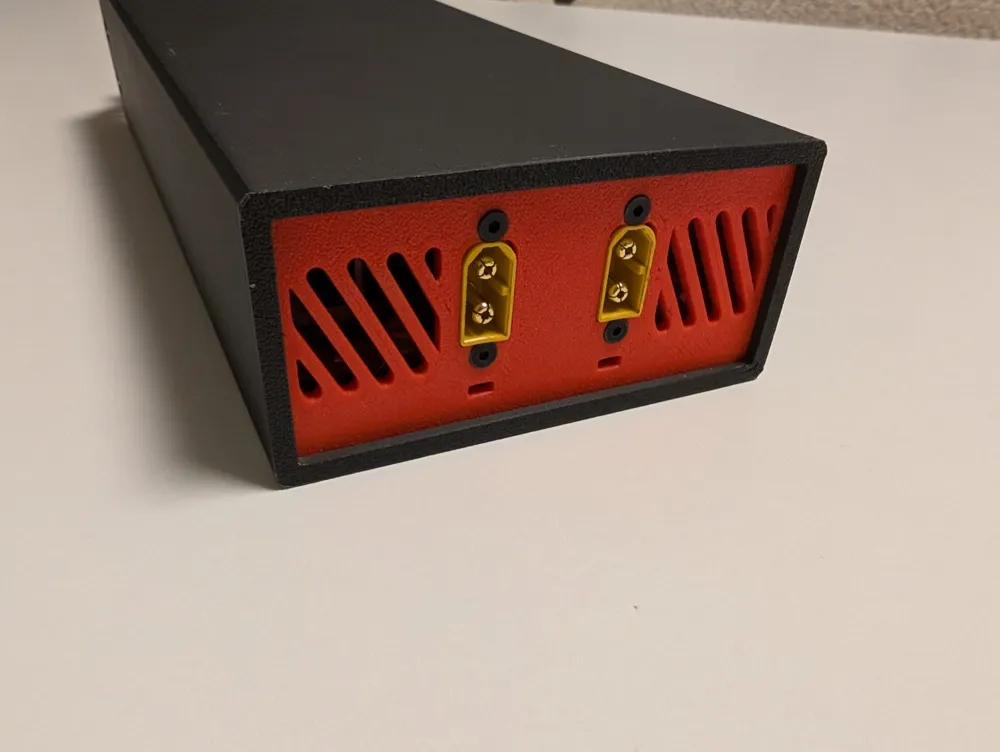

- XT60-M (2X XT60-M sockets are needed here and can be easily mounted)

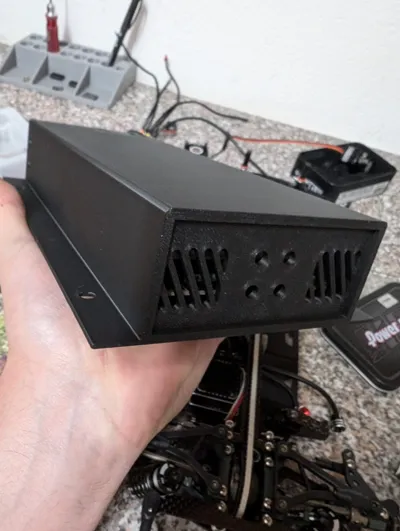

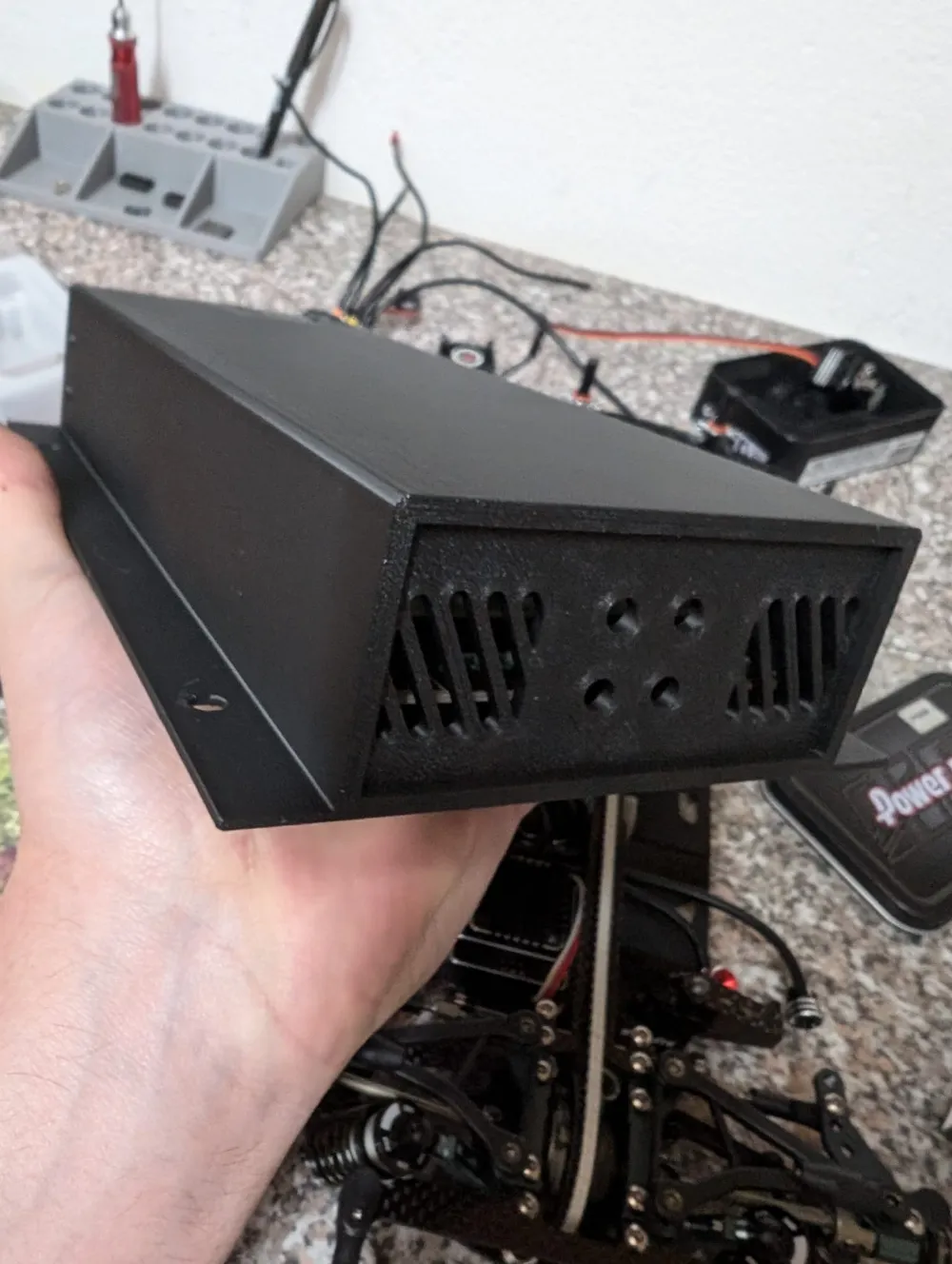

- Pass-throughs for 12AWG cables

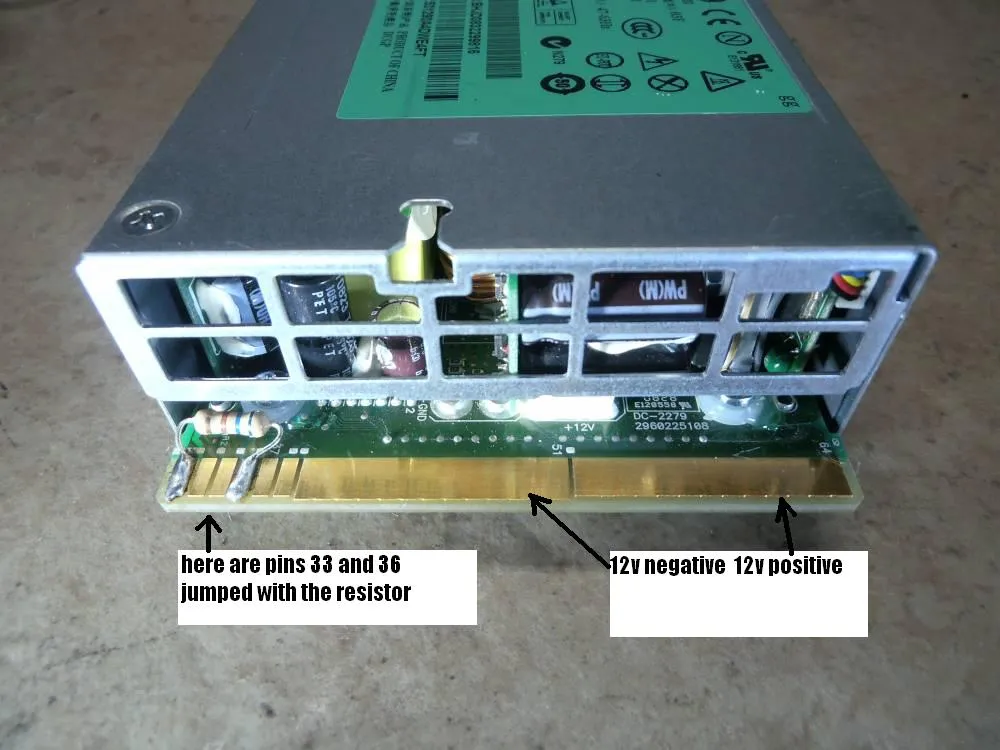

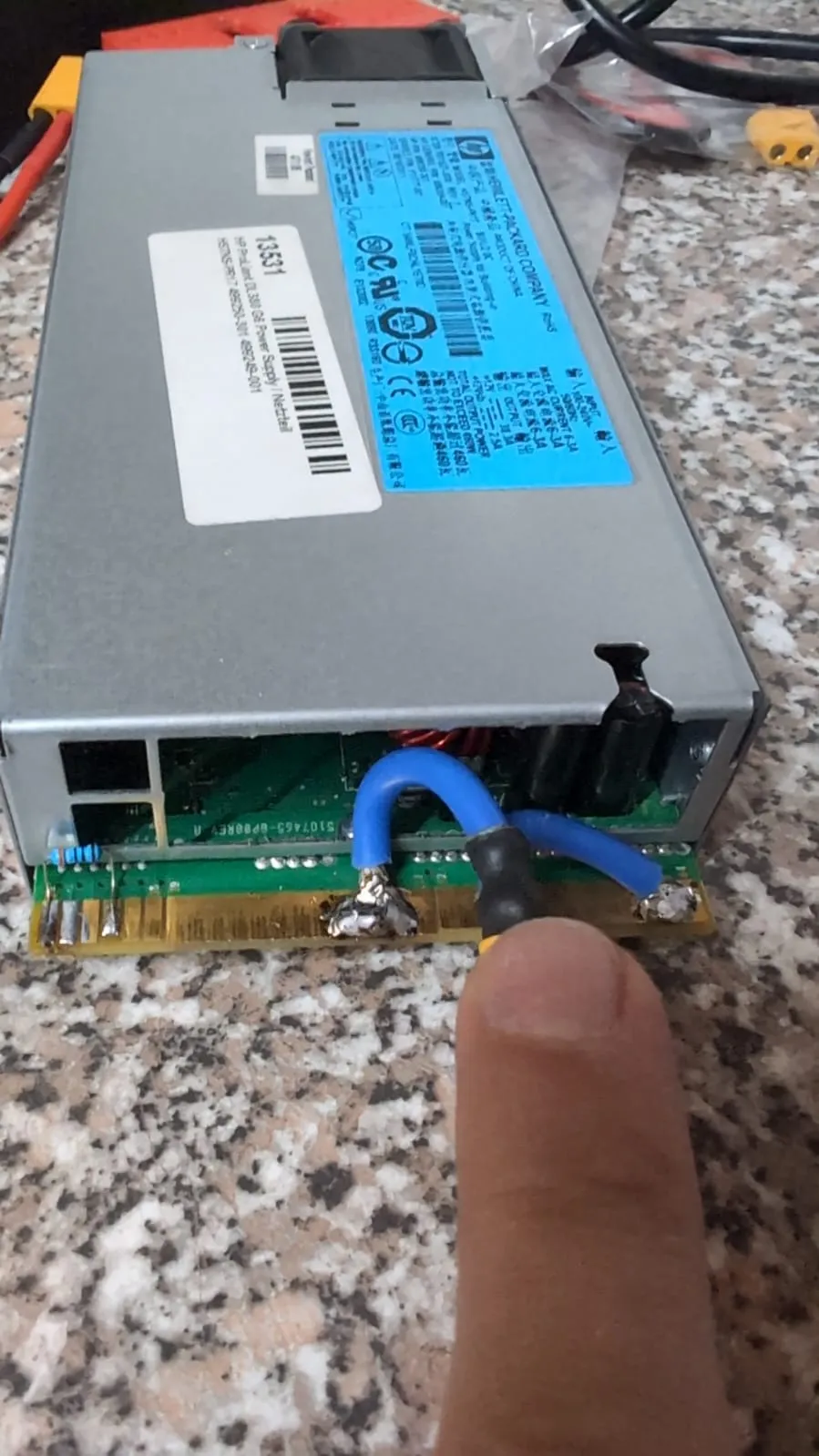

for the power supply to output 12 volts, a resistor must be soldered in
the resistor must be between 330 ohms and 1k ohm
I have included a wiring diagram with the pictures
to get more space for the cables, the grille on the power supply can simply be removed
Have fun with the modification
