Ball Head Mount 90° with Clamp for desk/shelves

This is a ball head mount with 90° angle for attaching small devices to furniture such as desks, shelves, or IKEA Kallax units.
The printed clamping screw presses the mount securely against the panel (no drilling required). A built-in cable pass-through keeps things tidy.

First attaching the ball and the with a screw to your device, you can screw it into the ball socket and rotate it freely in any direction — perfect for flexible positioning.

Other ball head mounts can be found here: https://makerworld.com/de/collections/9129741-ball-head-mounts

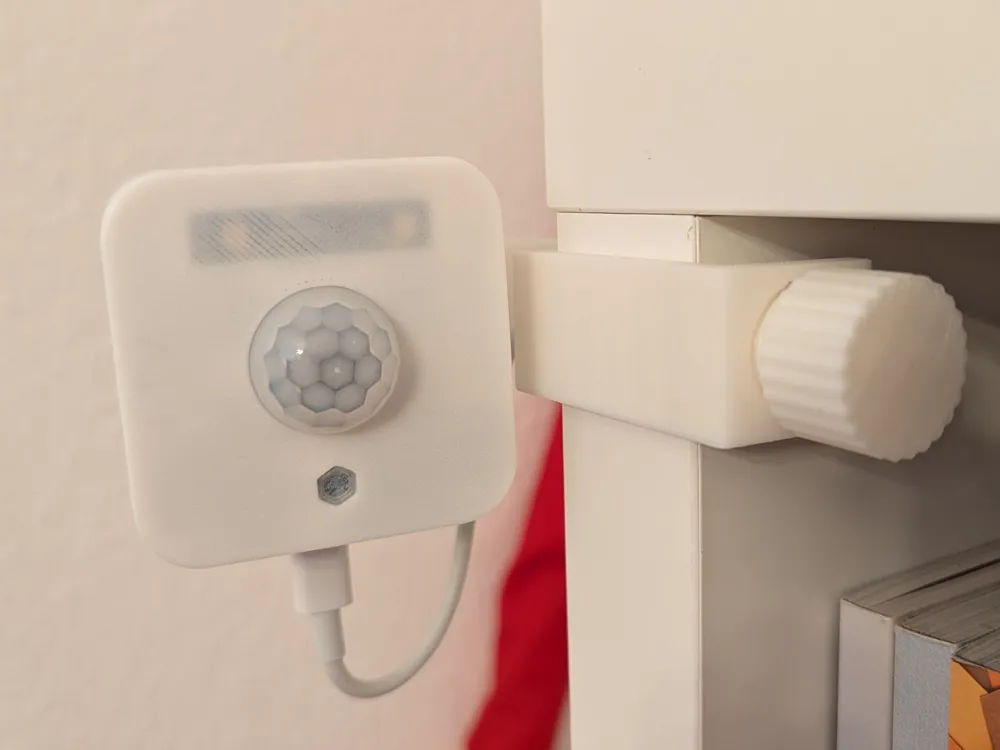

The all-in-one smart home sensor case depicted in the pictures is this design: https://makerworld.com/de/models/1744429-all-in-one-smart-home-sensor-case#profileId-1854007

🖨️ Print Settings

• Material: PLA/PETG
• Layer Height: 0.20 mm
• Nozzle: 0.4 mm
• Infill: 15–20 %
• Walls: 2
• Supports: Manual supports only at the ball head socket

✅ Features

• Clamp mount – no permanent holes needed
• Cable pass-through for neat routing
• Adjustable ball joint for flexible angles
• Designed for standard furniture thickness (fits e.g. IKEA Kallax)

Credits
Remix of the model Kugelkopfhalterung für Gehäuse / Ball joint wall mount for cases by @matzik on Thingiverse.
