Description

Content has been automatically translated.
Show original

This is my new insert for the still excellent game "Stone Age" by Hans im Glück (German edition). It should also fit the international edition by Z-Man.

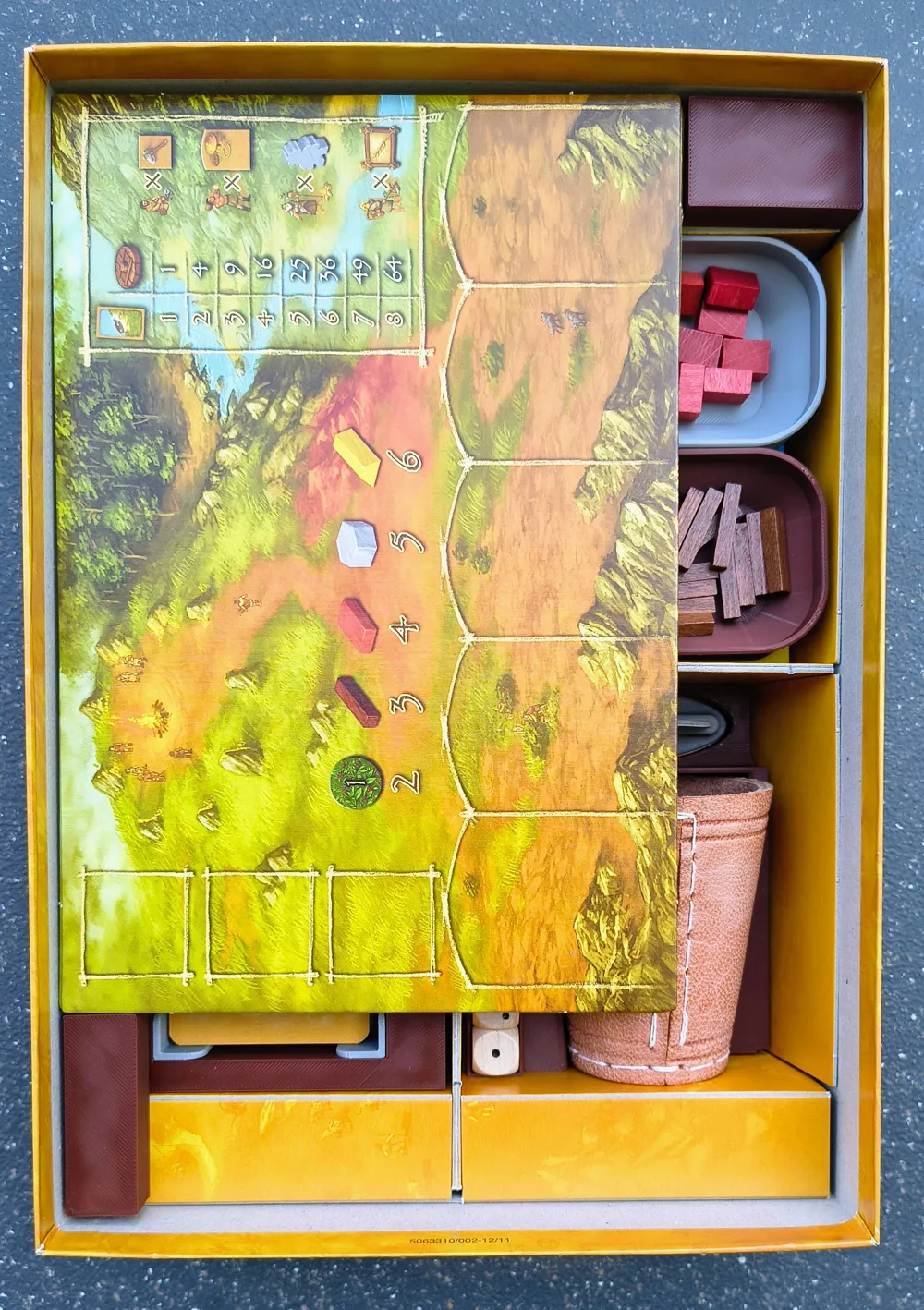

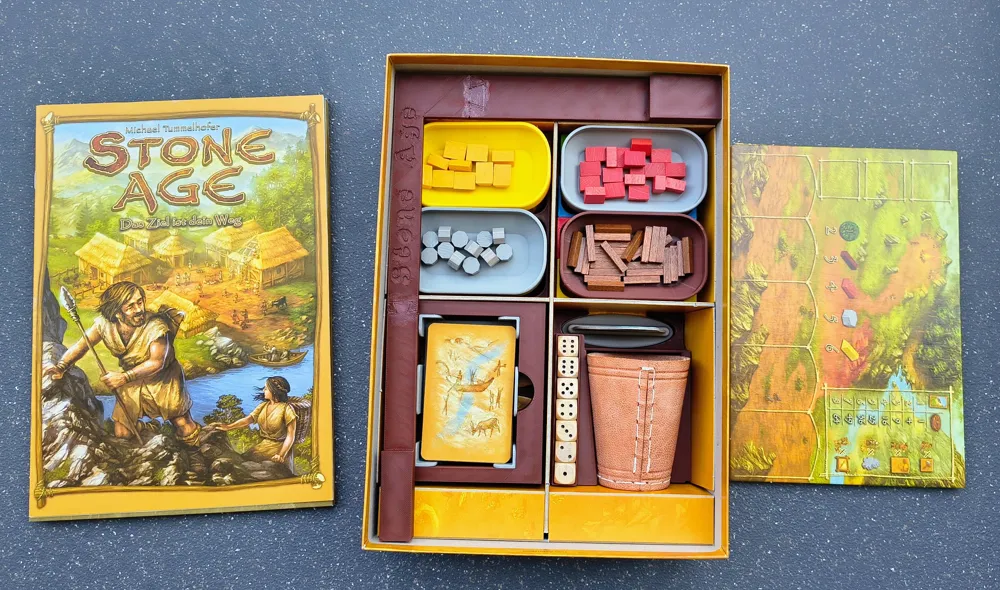

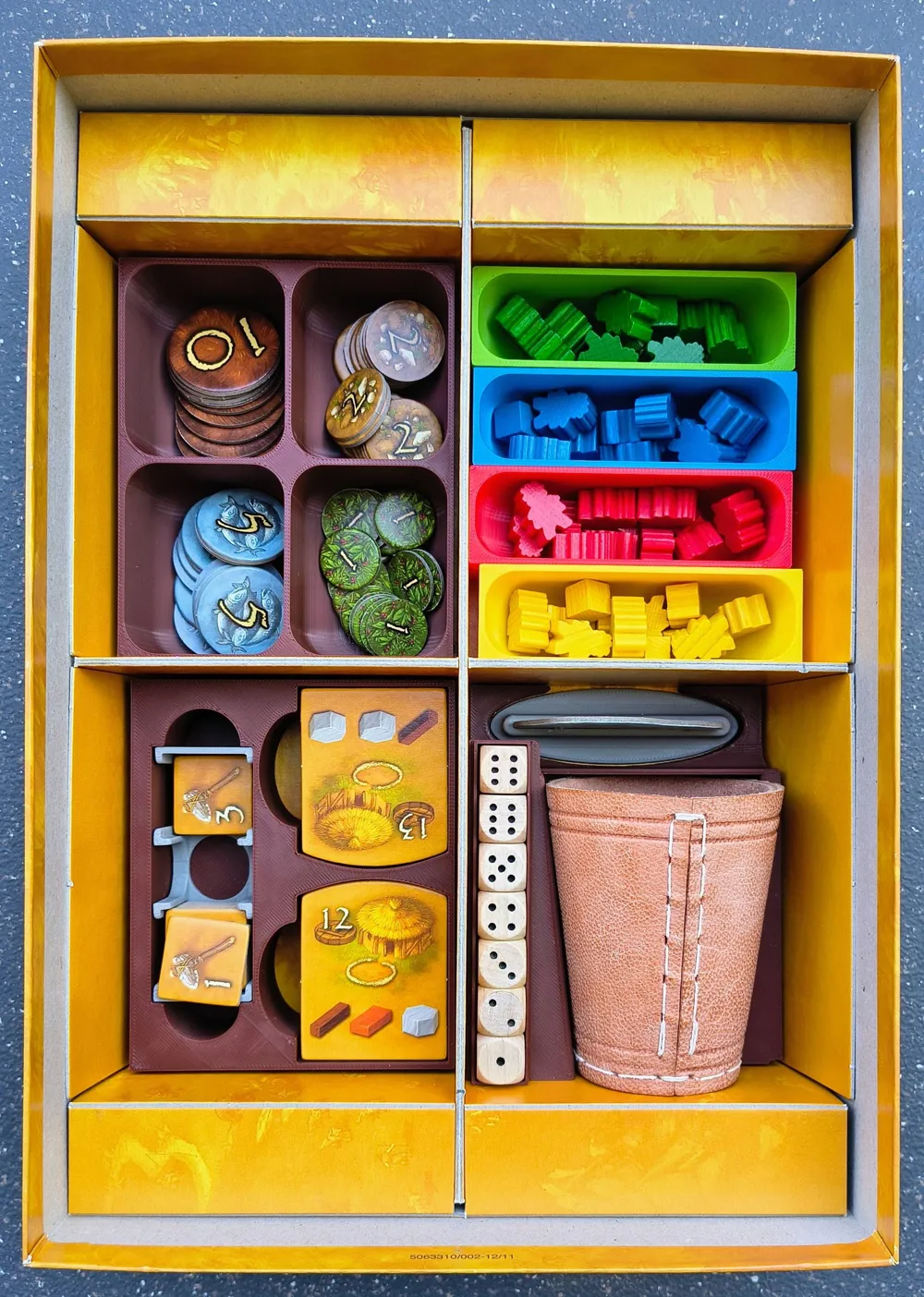

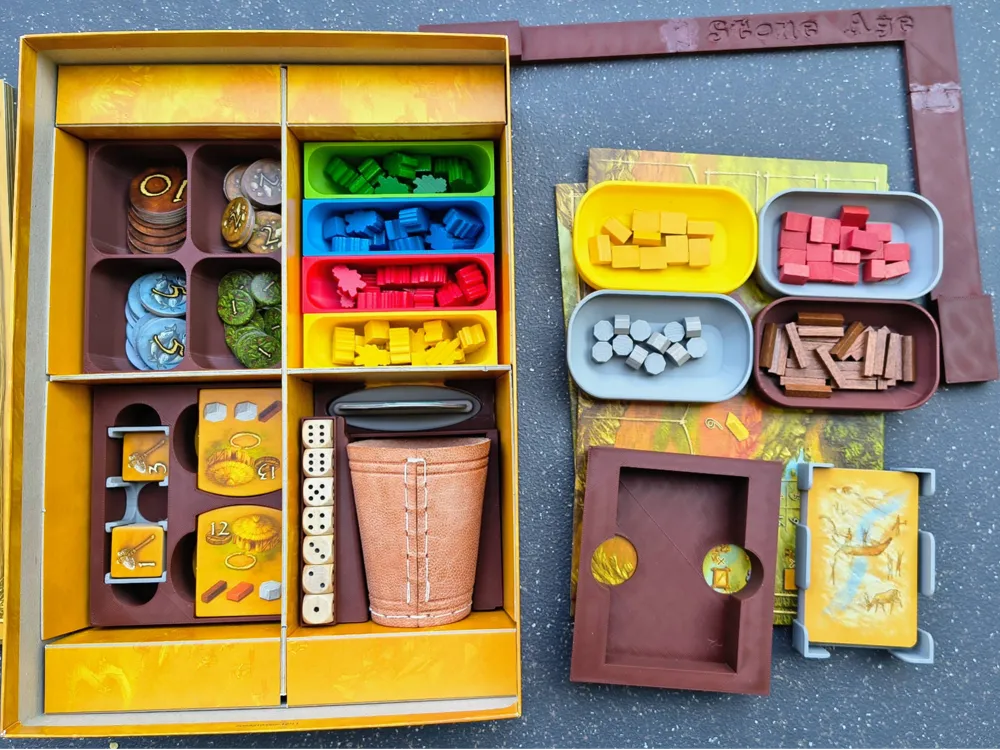

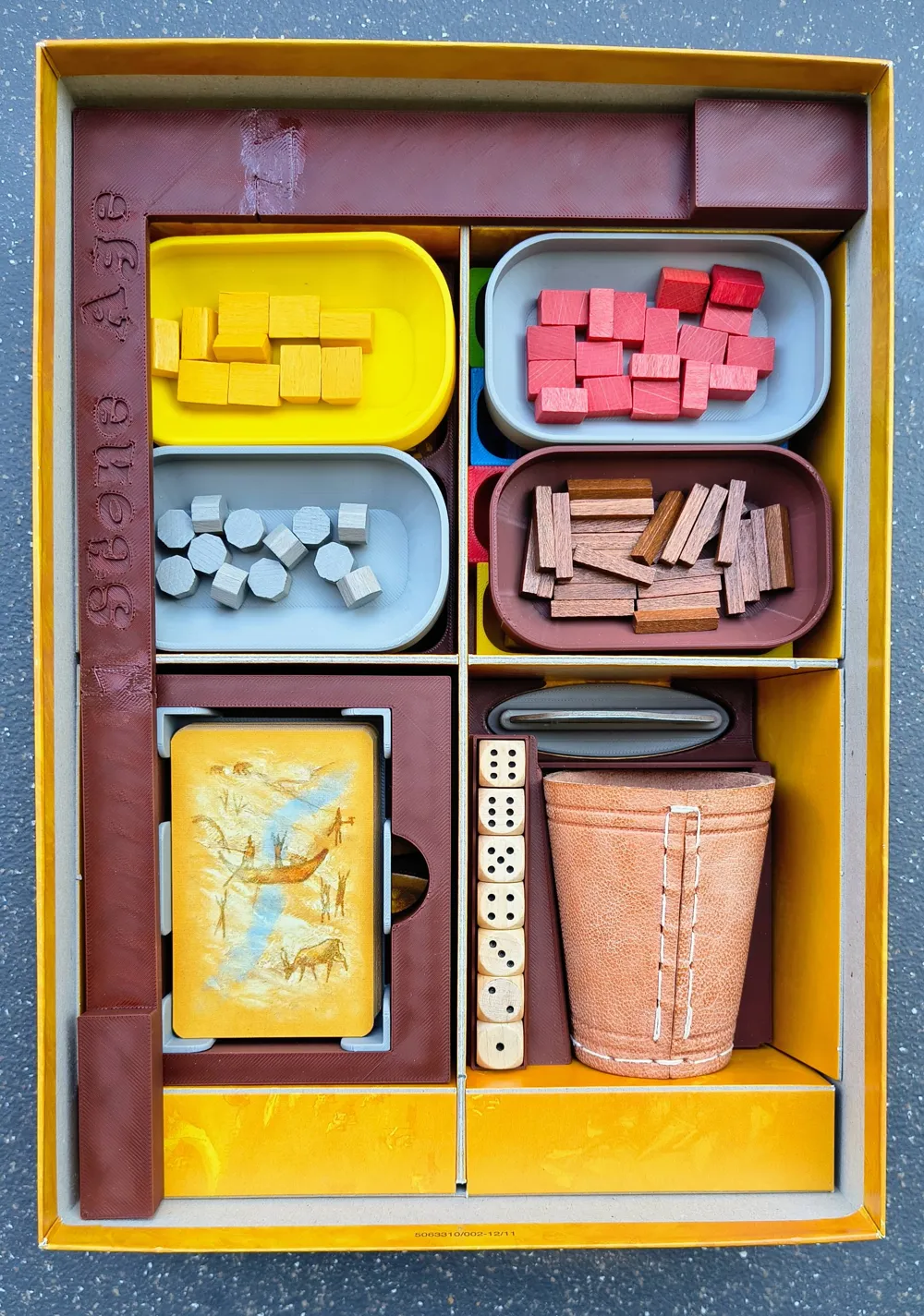

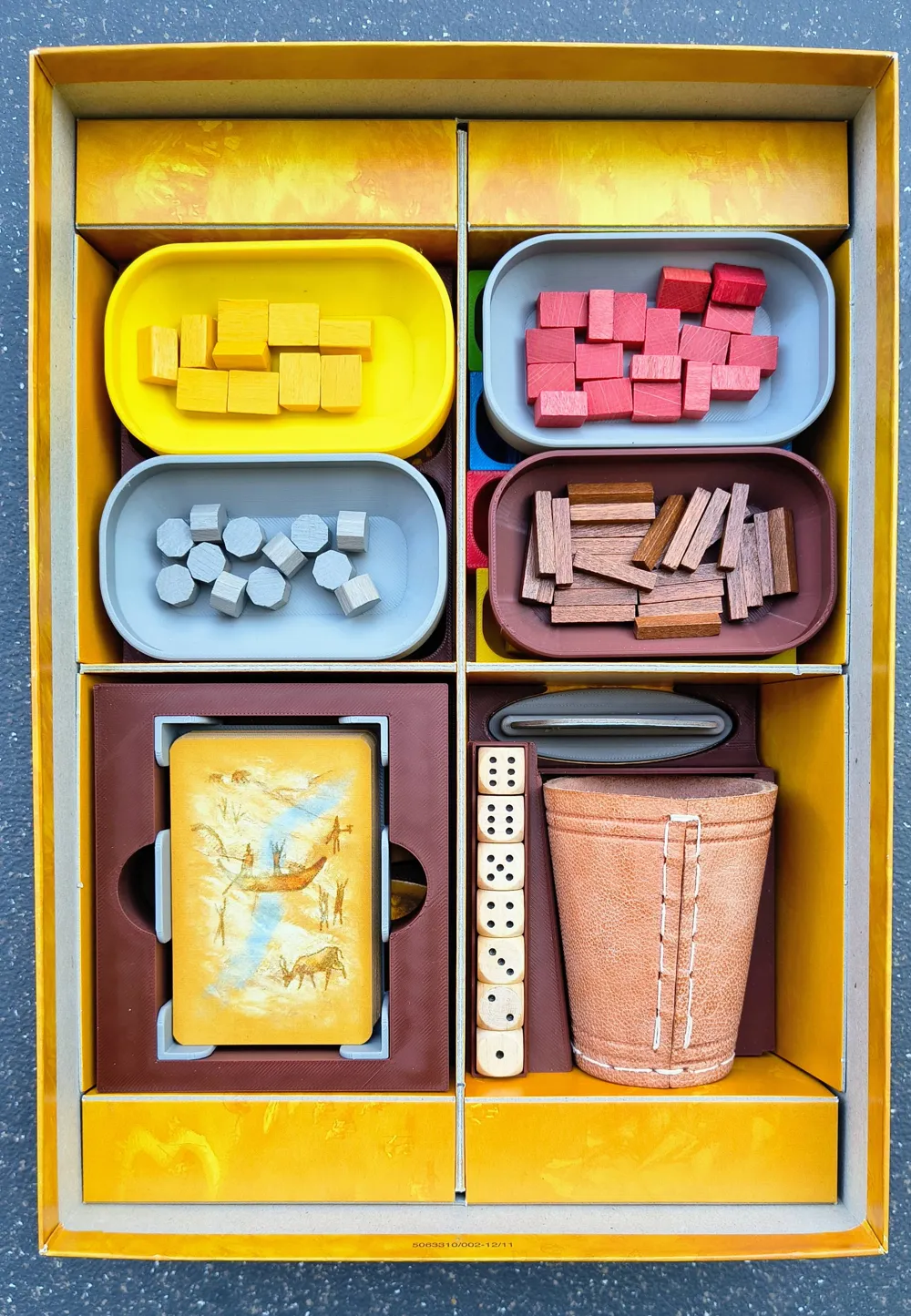

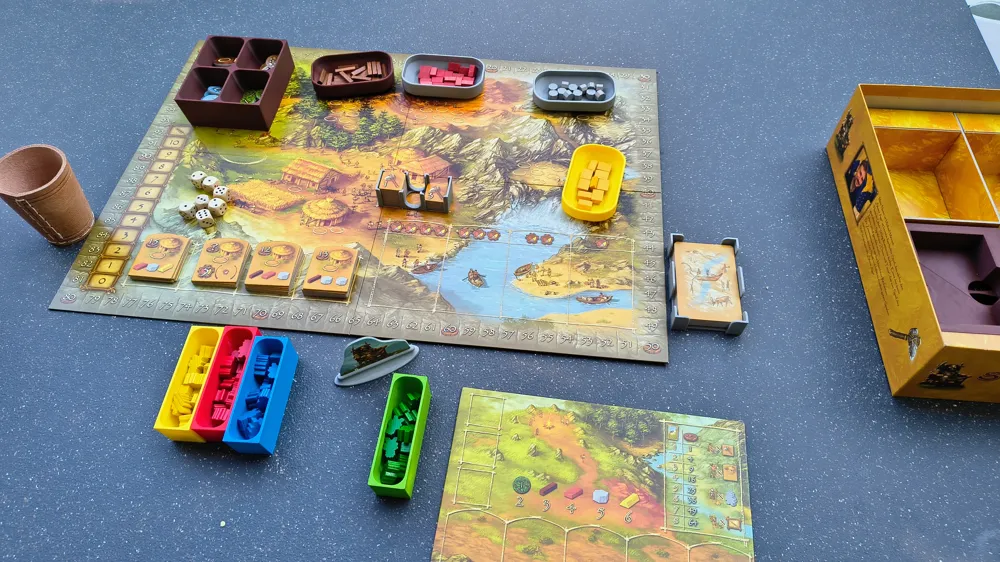

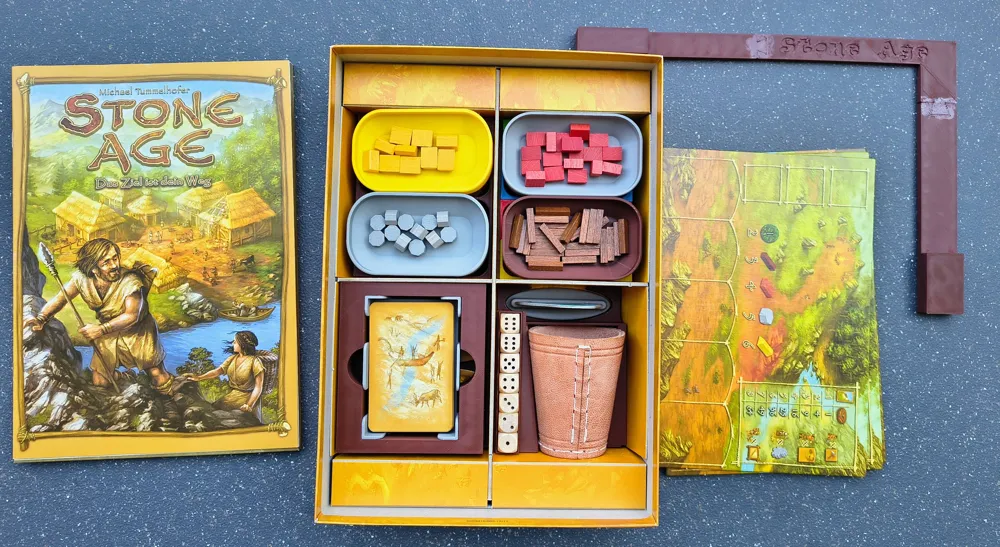

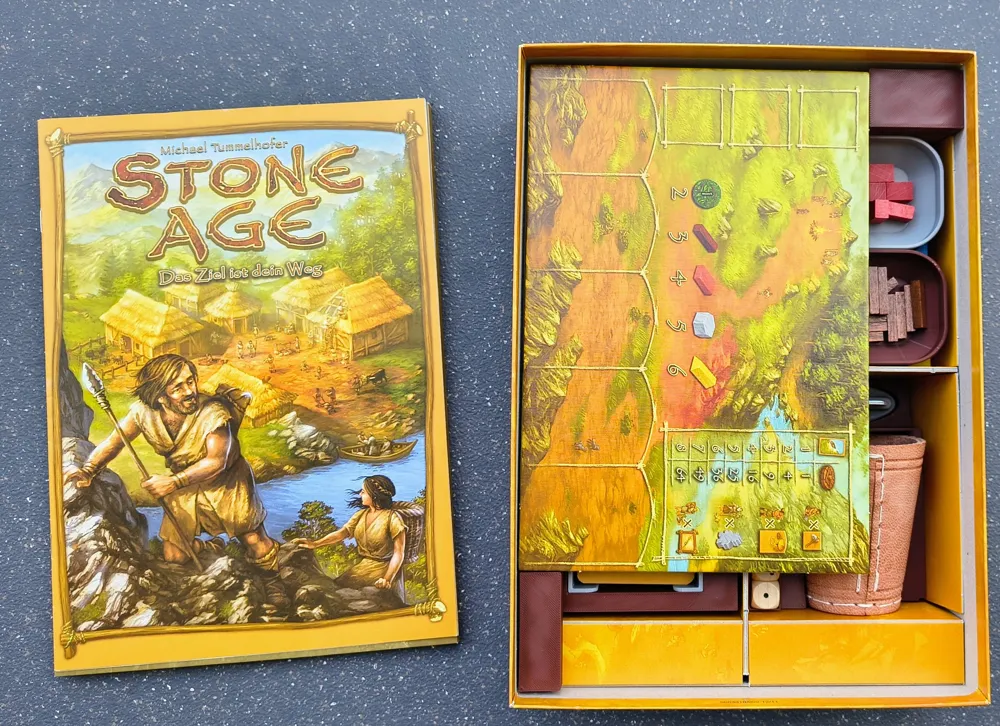

On the one hand, I wanted to neatly store all the parts in the existing box, and on the other hand, I wanted the game to be set up quickly by placing the part containers directly on the game board.

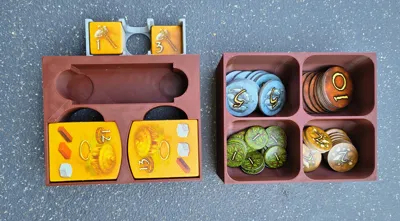

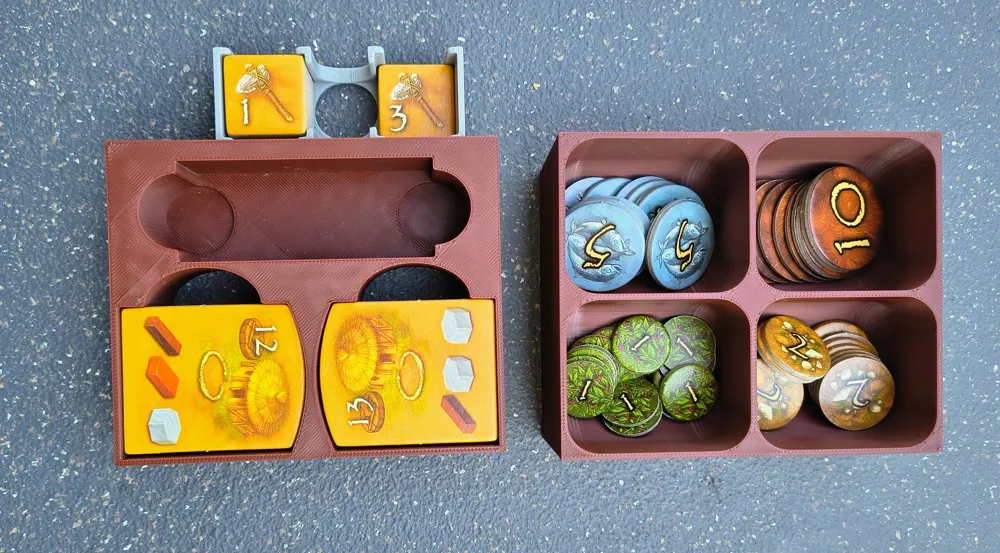

For this purpose, the containers were adapted so that the included parts can be easily removed. Furthermore, the existing four-part division in the box should not be changed, and the appearance should naturally fit as well...



The insert is a remix with modifications of the following inserts:
https://www.printables.com/model/581191-stone-age-insert
https://www.printables.com/model/374402-stone-age-board-game-insert



Additionally, a holder for the first player token is required:
https://www.printables.com/model/145994-stone-age-first-player-stand



Currently, no room is provided for expansions. However, individual parts from promo sets or mini-expansions can still find space in between.

The entire set is optimized for minimal material consumption (1 wall line, 5% infill) and printed at a higher speed (0.24 mm draft layer height). The total material consumption is only approx 340 g.
In my opinion, this is sufficient; everything is sufficiently stable even with PLA. Those who prioritize aesthetics should print with 2 wall lines and, for example, a 0.2 mm layer height (standard).

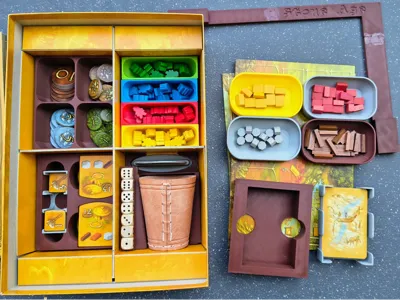

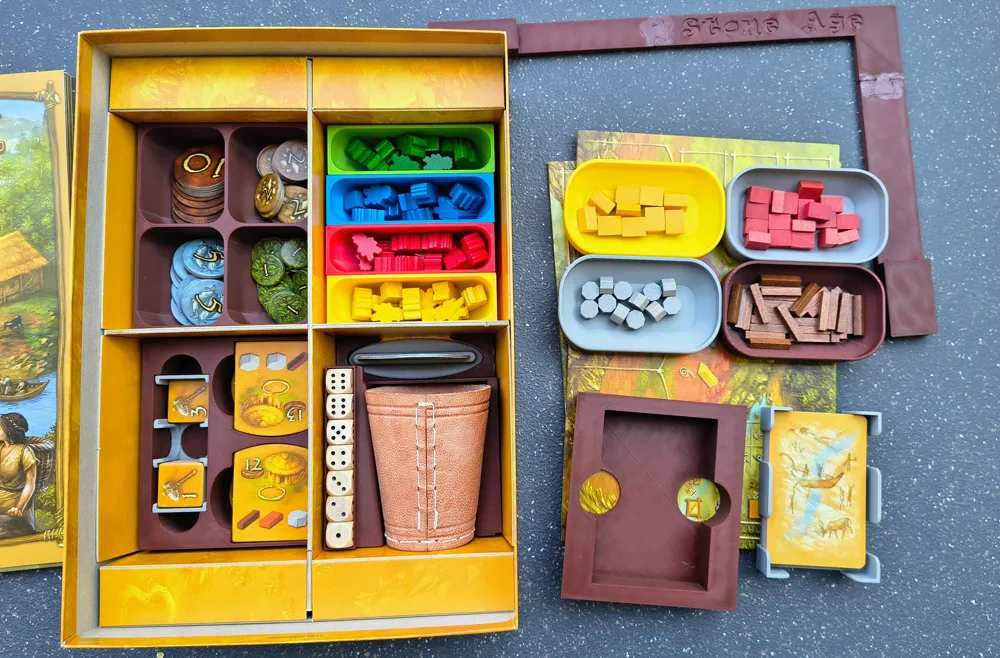

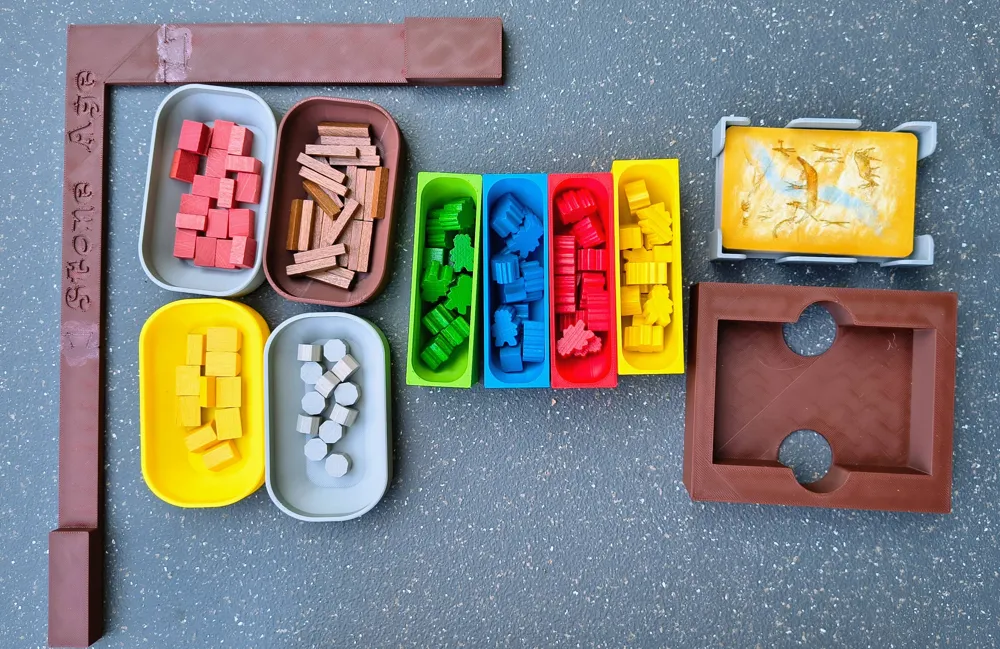

The parts are divided into different printing plates so that each part can be colored separately. If you don't want to do this, simply assemble the plates to suit your needs.
The resource containers for wood and brick are the same, but slightly taller than those for stone and gold.
The upper frame is cut into 3 parts in the project file and must be glued together. The corresponding .stl file still contains the complete frame.



In principle, the following parts need to be printed:

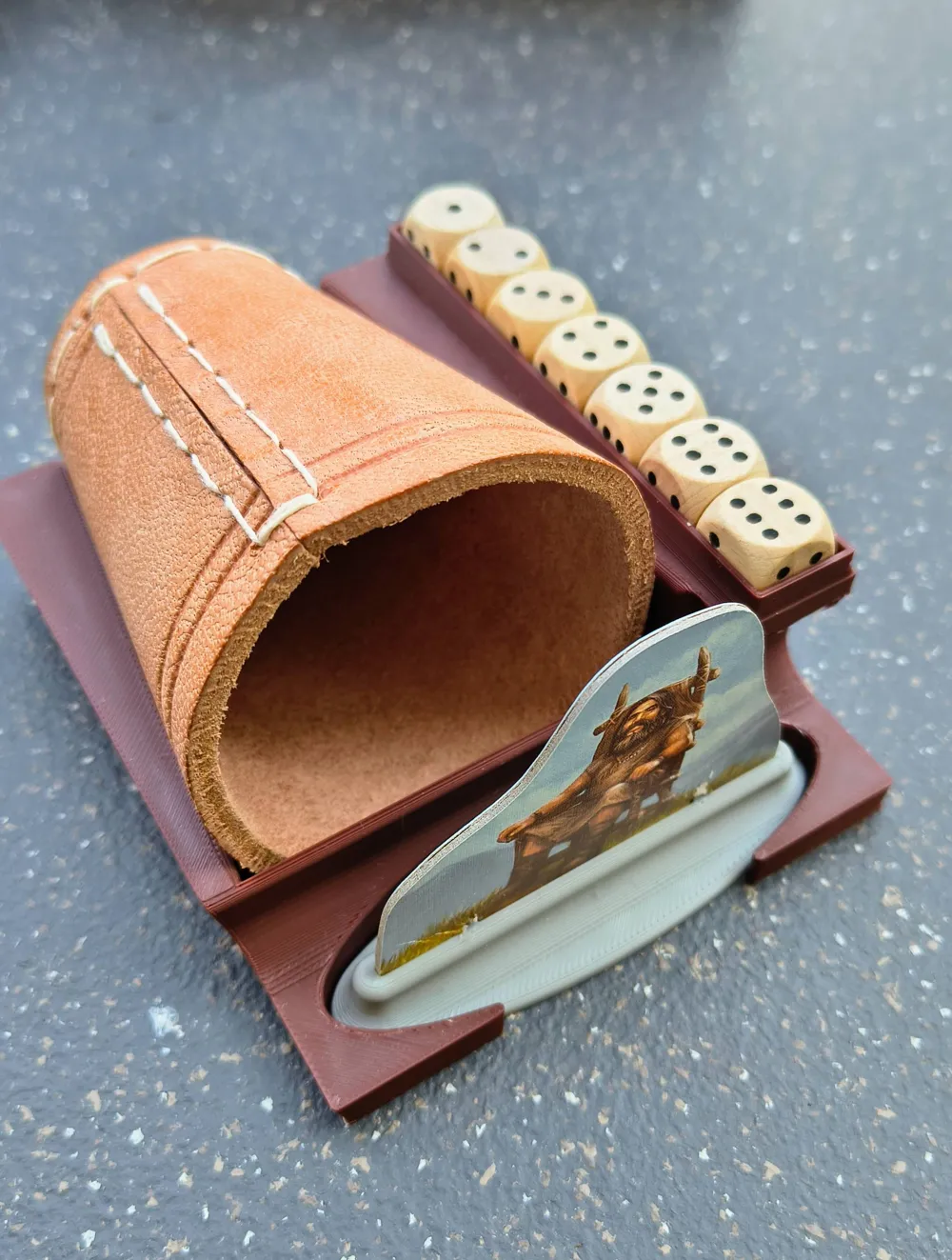

  • BlockA_Ebene0_1_Halter Becher+Würfel+Startspieler v3rep.stl (1x)
  • BlockA_Ebene0_2_Einsatz1_Startspielerständer.stl (1x)
  • BlockB_Ebene0_2_Träger Werkzeuge v2.stl (1x)
  • BlockB_Ebene0_1_Halter Hütten+Werkzeugträger v2.stl (1x)
  • BlockB_Ebene1_1_Halter Kartenträger v3.stl (1x)
  • BlockB_Ebene1_2_Kartenträger v2.stl (1x)
  • BlockC_Ebene1_1_Nahrung.stl (1x)
  • BlockC_Ebene2_1_Gold+Stein x2.stl (2x)
  • BlockD_Ebene1_1_Spielermaterial x4.stl (4x)
  • BlockD_Ebene2_1_Holz+Ziegel x2.stl (2x)
  • BlockE_Ebene3_1_Rahmen Spielertableaus v2.stl (1x)



This is my first major project.
Enjoy reprinting!
