Glock Pistol Box Handle Lock Case

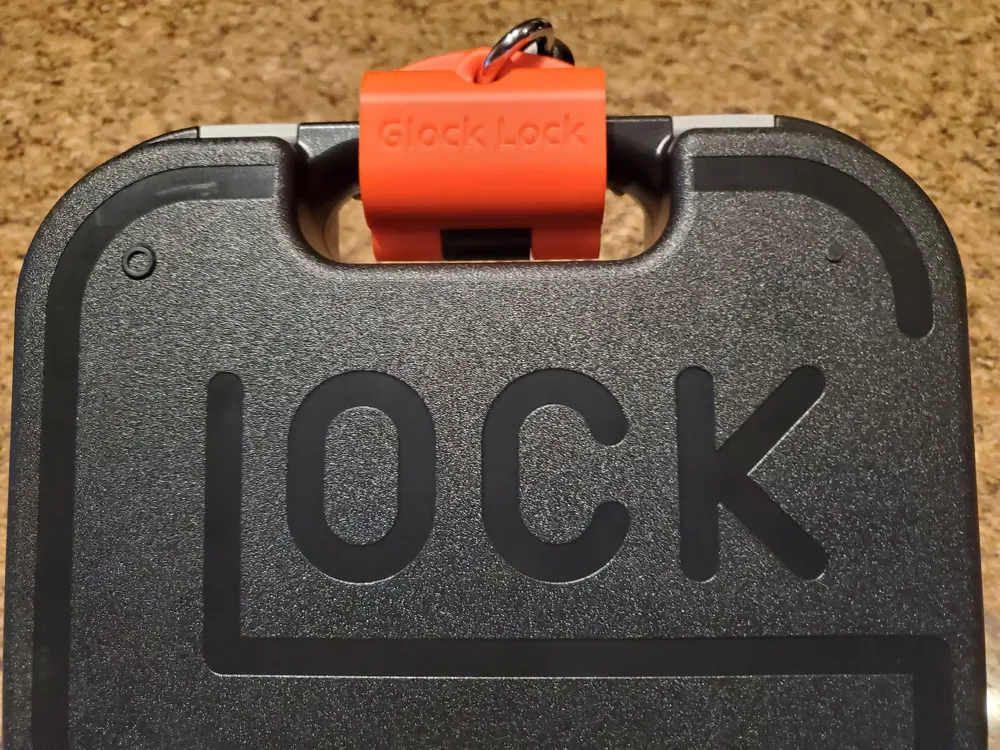

Glock Box Handle Lock. Glock boxes have no way to lock and secure the box. Where other manufacturers do. Most should understand if someone wants to get into a plastic lock, they will, and pistols should have an additional chamber or be stored in a proper safe. This only adds an additional level of security when no safe is available, especially during transport.

There are two different versions for this design. A larger full handle lock and a mini handle lock. You can print each part in any direction you deem strongest. You can even change the colors of each half to make them unique. I have also provided .3mf files.

The design consists of three parts:

• Part one of the lock
• Part two of the lock
• The pin for combining the hinge of part one and part two

There is an additional part that is just a cap for the hinge so you can put a 7.5mm metal rod in the middle over a plastic rod. Just cut a hair less than 52mm for Full Lock and a hair less than 28mm for Mini Lock. Something like this would suffice: Round Steel Rod, 7.5mm

You will need supports and my prints are made of PLA, but I'm sure it will also work with other materials. ASA/ABS might just need to account for the extra shrinkage, so perhaps 101%.

I added a single drop of super glue gel to the bottom of the hinge of the first part for extra holding power.

This is the lock I used for my tests. However, others should be fine if they measure less than 7.5mm in diameter and 16mm in length for the metal locking hook.

I found this impressive system on Printables. Many thanks

Glock Pistol Box Handle Lock by Walkul | Download Free STL Model | Printables.com

Walkul | Printables.com Walkul is the publisher on Printables and allows sharing the file. Thanks
