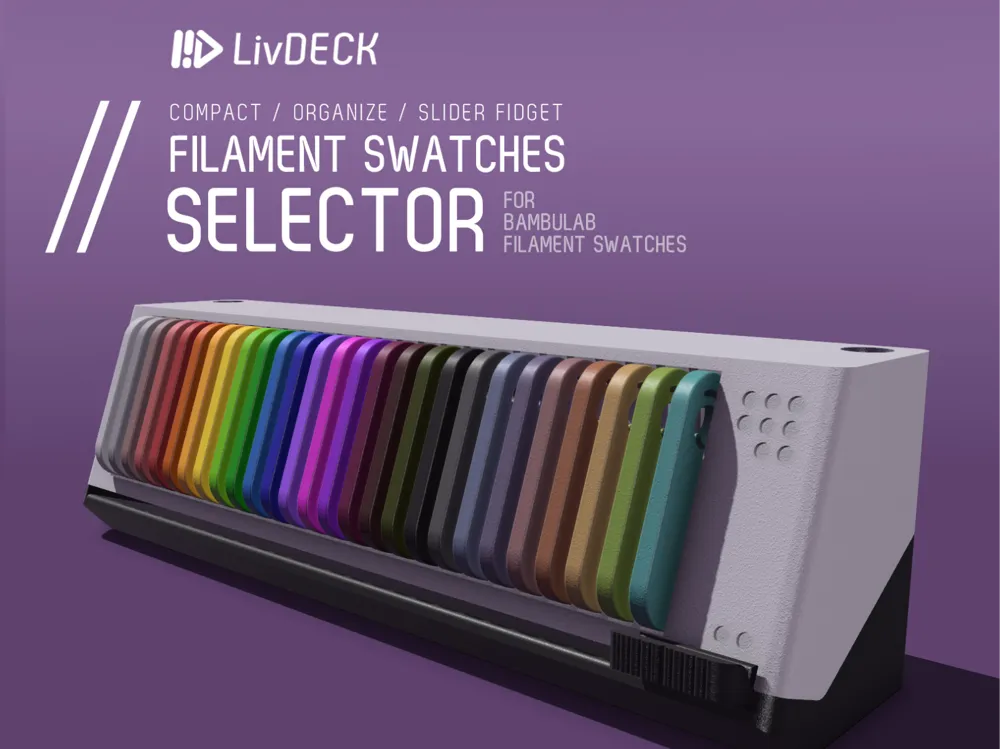

Yet Another Filament Swatches Selector Dock
Print Profile(7)
Bill of Materials
Description
Boost Me (for free)
Thank you for paying attention to my work and hope you can get help with this design. A small boost will bring me great help, thanks!
If you find that the swatches selectors in round and long shapes take up a lot of space you have, This design will be your best choice, not only abandoning various practices that sacrifice space for easy display, but also providing slightly more practical storage performance.
[ = 9 / 1| UPDATE = ] :
Cover with Custom Tags for Skadis design add-on.
Customizing Text labels within BambuStudio.
Check the [ Print Profile ] → [ Click to see more ] to find the download option.
[ = 8 / 30| UPDATE = ] :

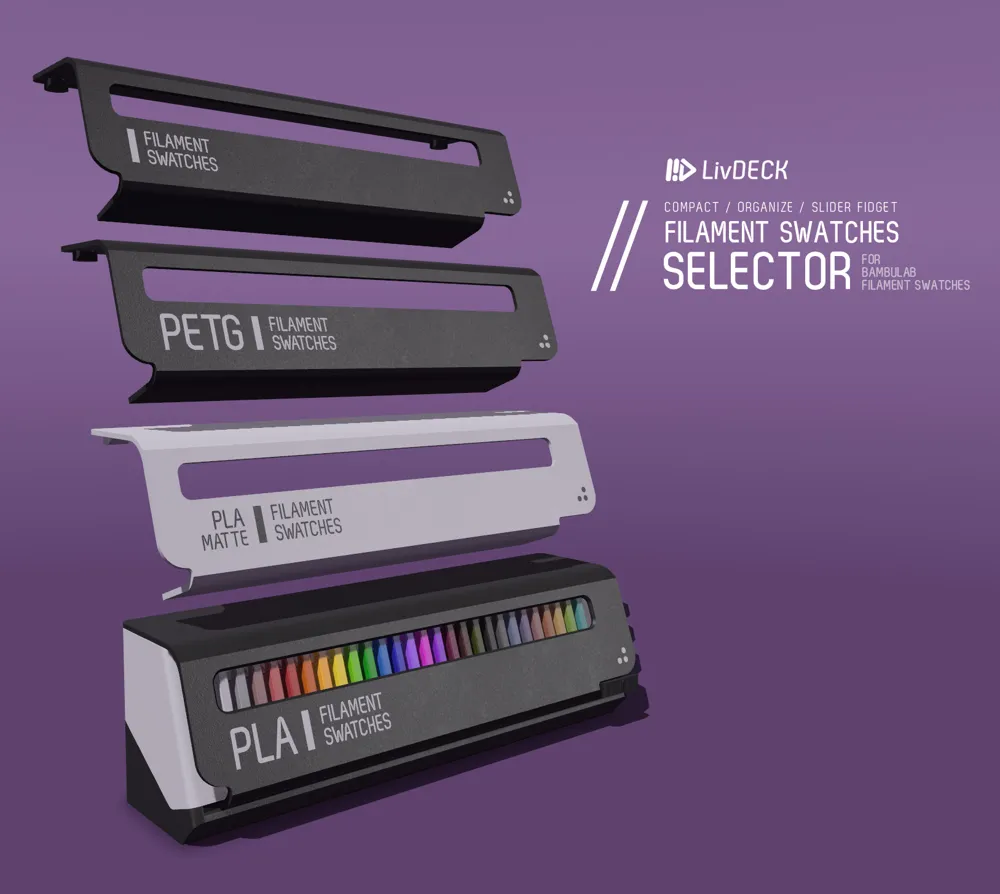

Added several different categories of Filament covers,
and Cover Tags design models for customizing text labels within BambuStudio.
Check the [ Print Profile ] → [ Click to see more ] to find the download option.
[ = 8 / 29 | UPDATE = ] :
IKEA Skadis Compatible Hook tweaks for better fit on the offical board.
[ = 8 / 28 | UPDATE = ] :
BBL Swatches Mockup Model added.
[ = 8 / 26 | UPDATE = ] :

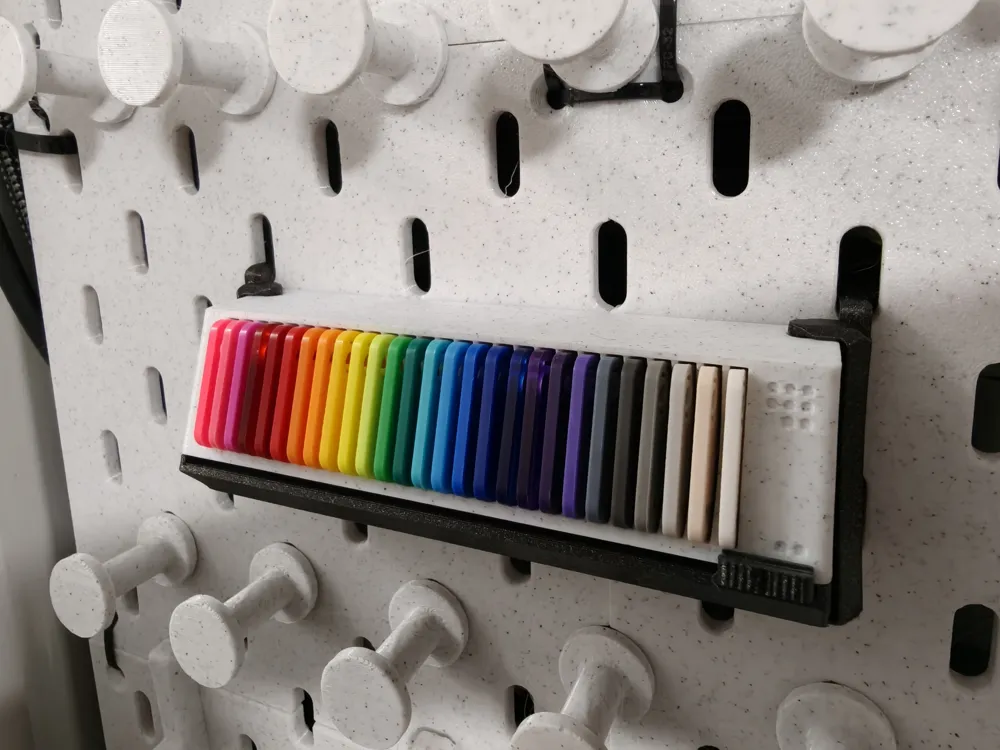

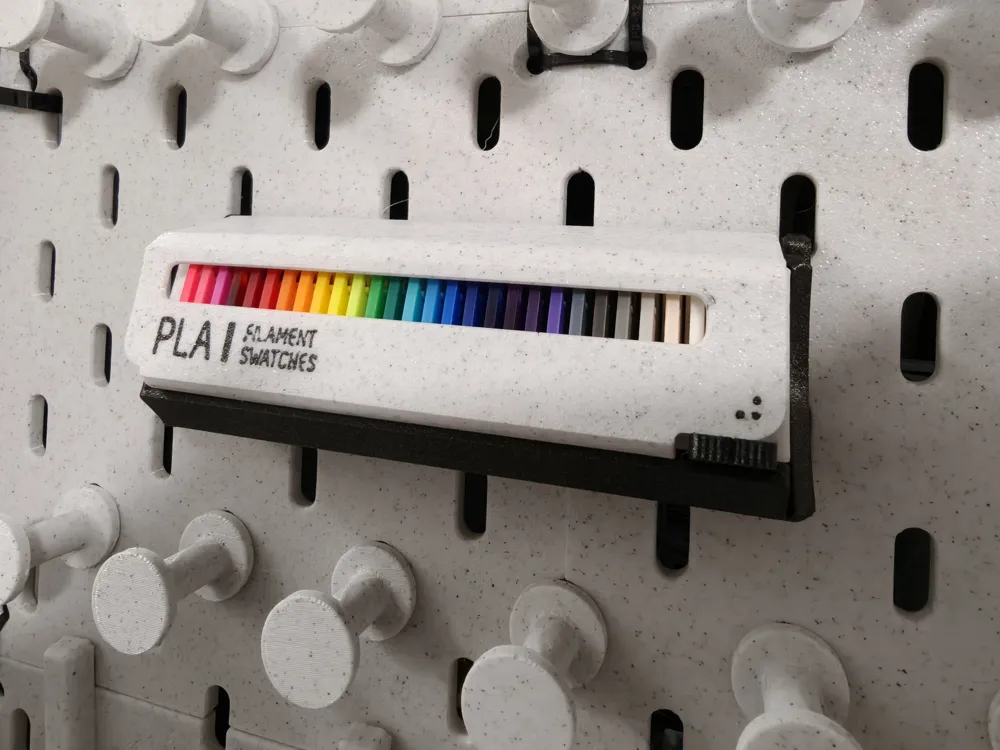

IKEA Skadis Compatible Hook Uploaded. Feel free to make it on the Board !!
---------------------------------------

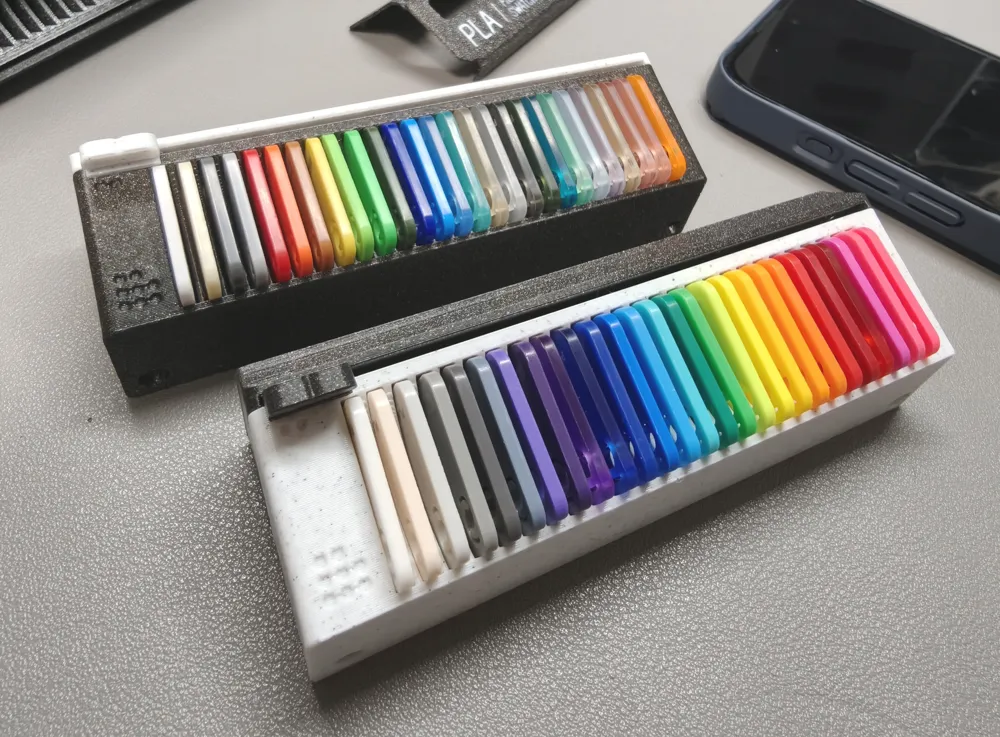

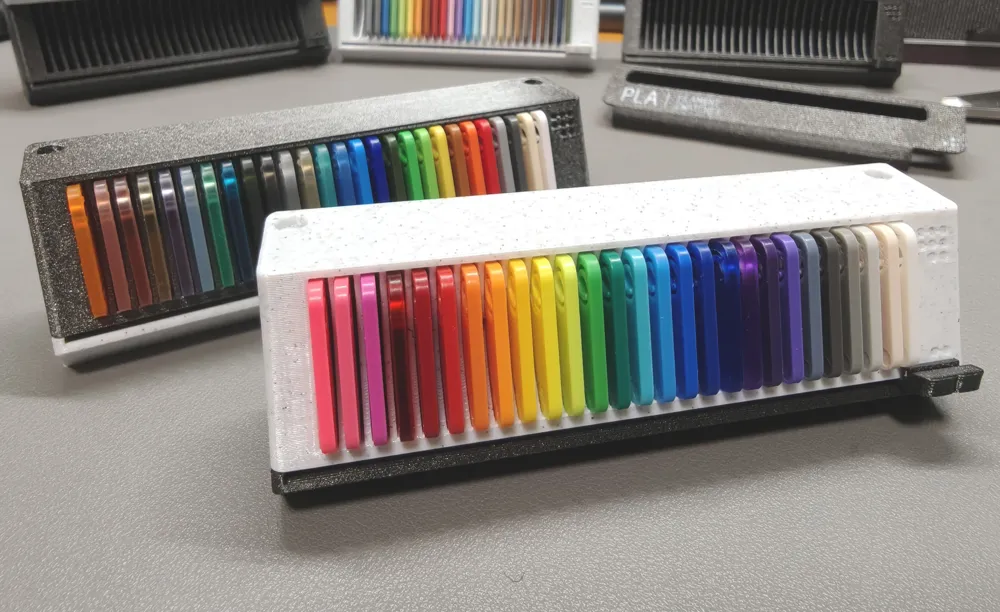

Compact size
Vertical storage design ( also can be laydown )

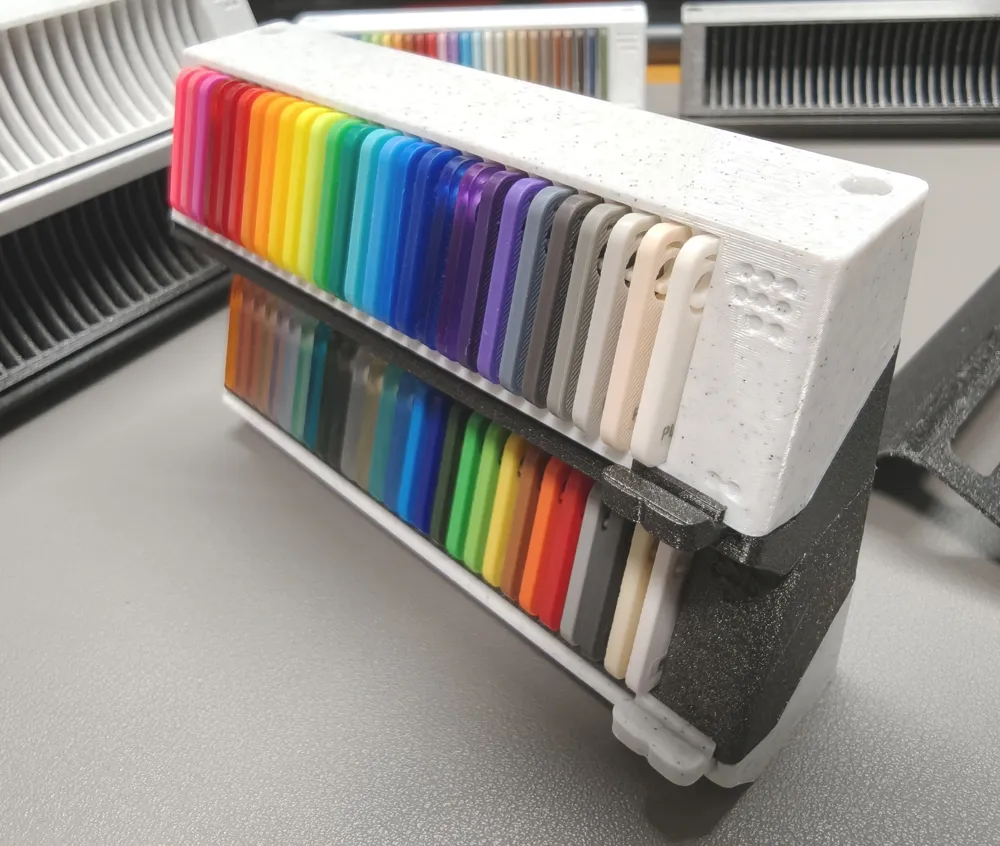

Vertical Stackable design

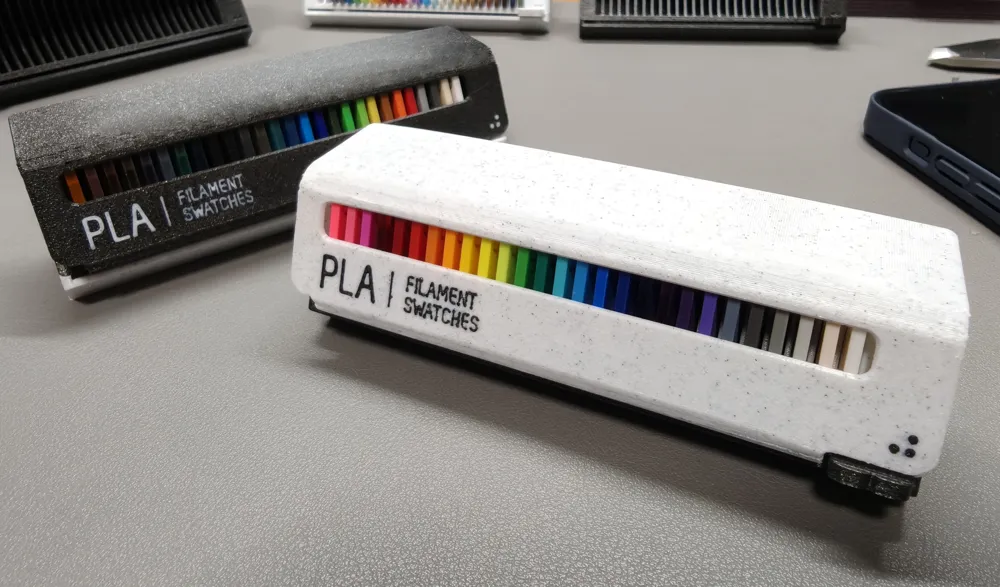

Cover with label text print in place

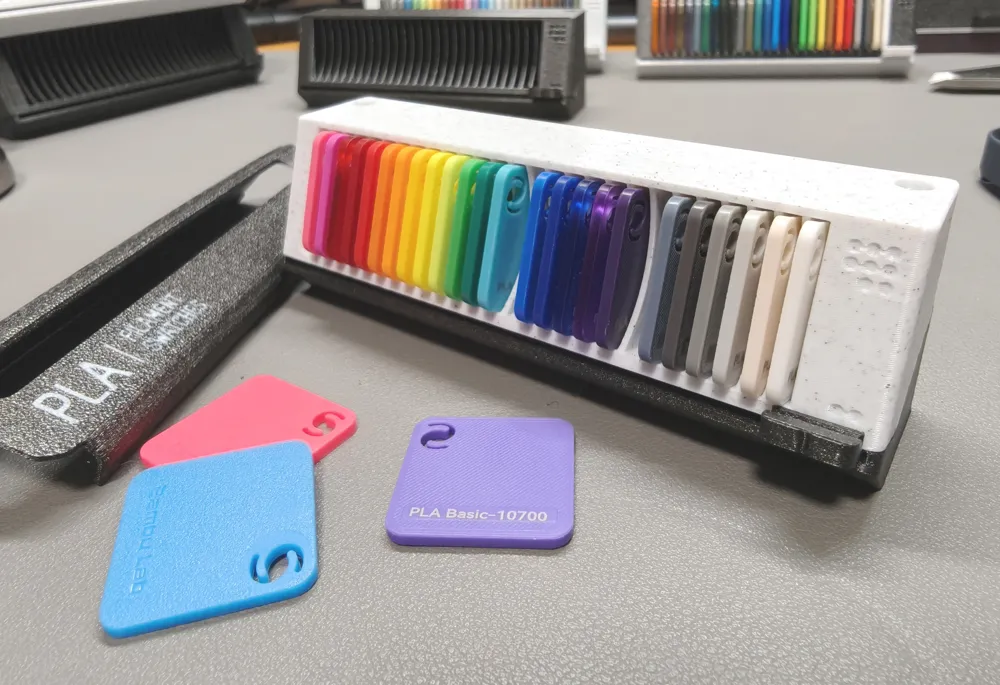

Cover with swatches preview window

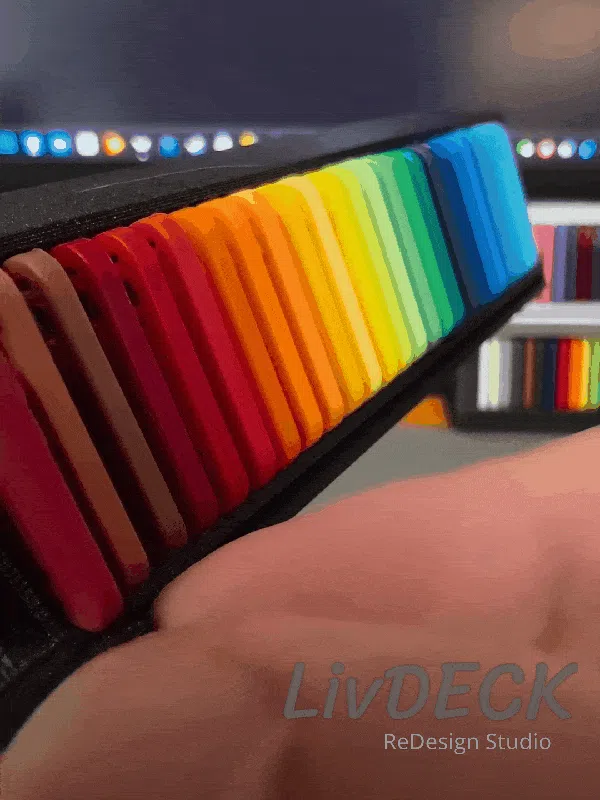

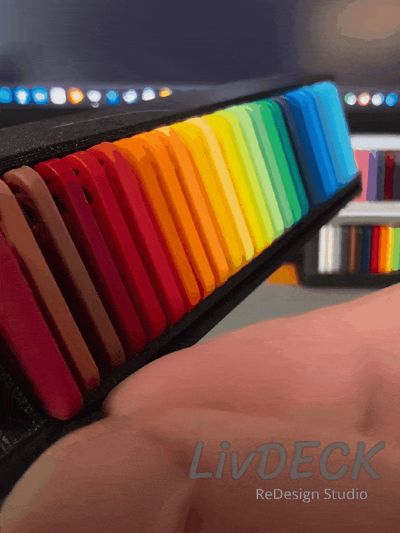

Smooth Slider with slight tilted angle
Easy assembly with one snap togeter
---------------------------------------
Litte Tips:
- If you want a smooth slider experience, it is recommended to use a utility knife, high-mesh sandpaper or file to smoothly polish the small hills of the slider so that you can feel smooth when touching with your fingers.
- If you don't need Cover with text, you can just use the coloring tool in BAMBU Studio to fill in the entire model into the filament color you need to print. And you can distinguish different swatches by sticking self-printing labels.
- If dock body hard to sanp togeter, try using utility knife to shave some shred off the four coner latch.

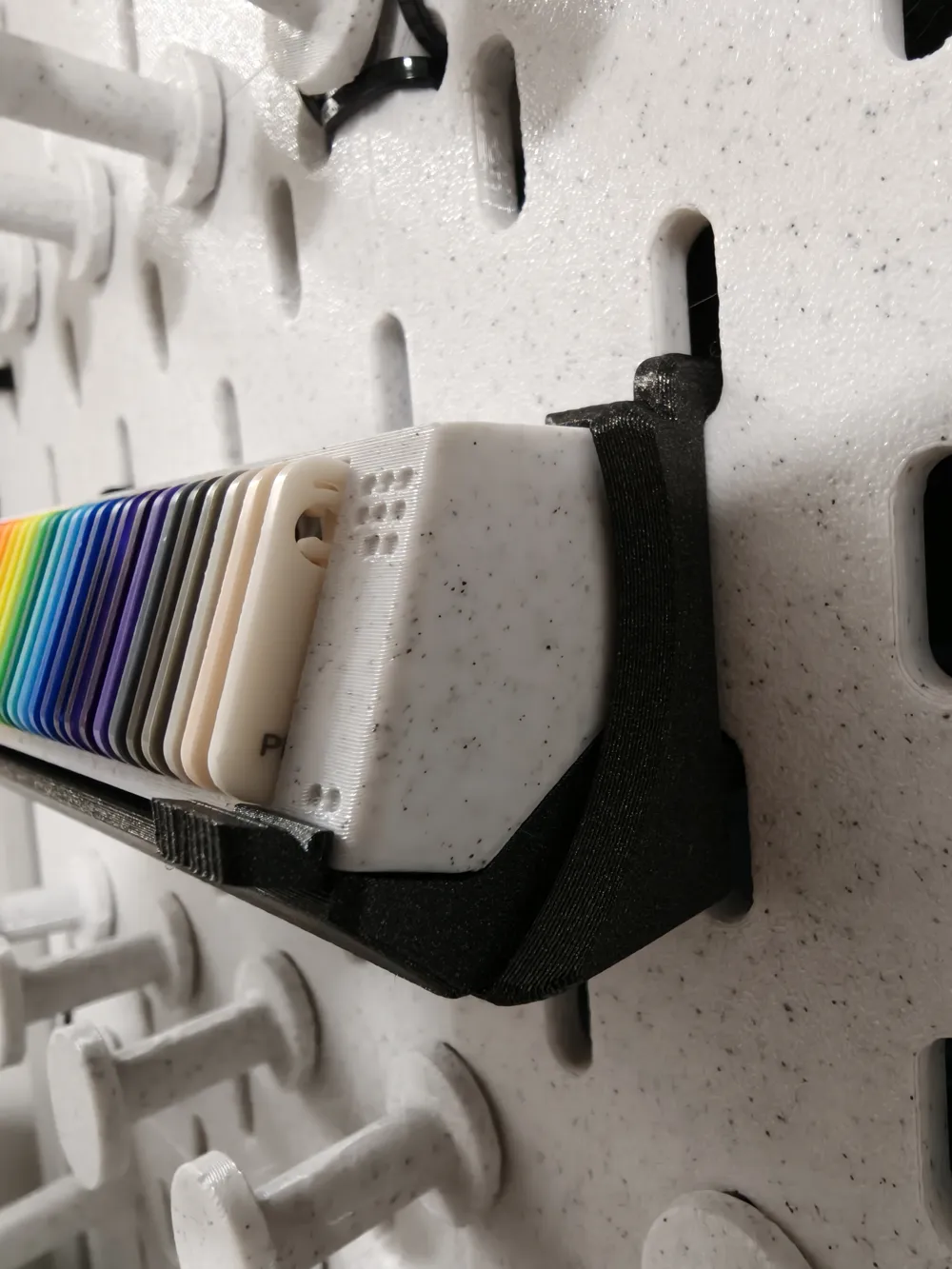

- IKEA Skadis Hooks recommended to install them on the board first and then snap the DOCK in.
- The original version of Cover is not directly compatible with Skadis hooks, and is only suitable for protecting and identifying Swatches Types. If you want Skadis compatible cover wait next add-on design.
- The original version of Cover buckle are relatively tight fitting, so try to insert them only halfway to make them easier to open.
