Wash Bucket Dirt Separator

Wash Bucket Dirt Separator

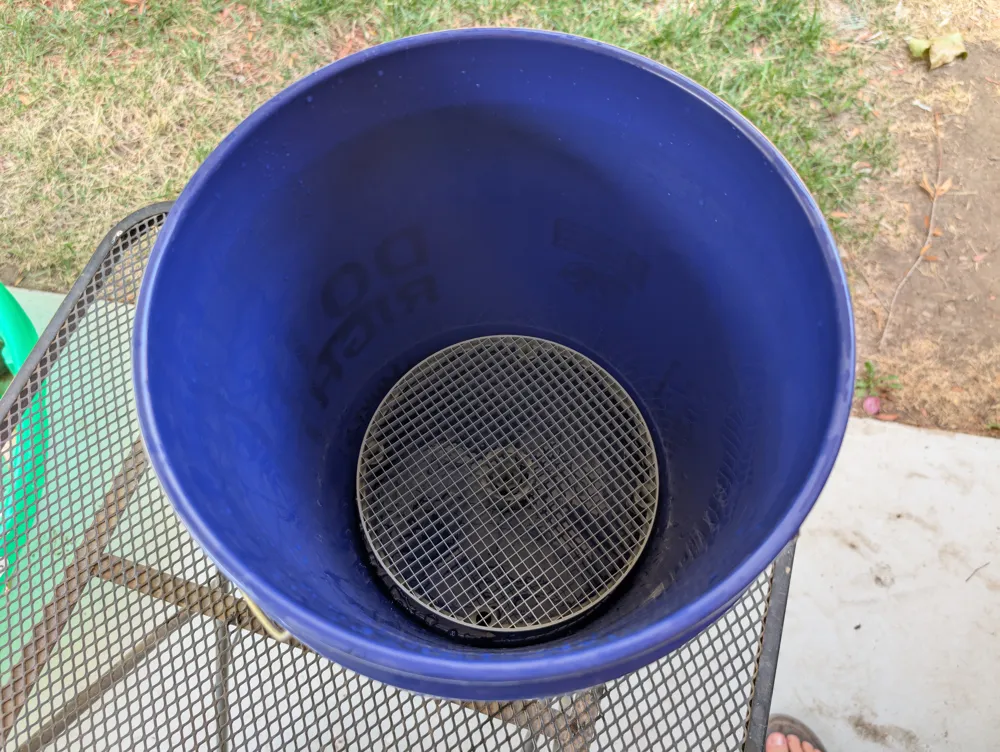

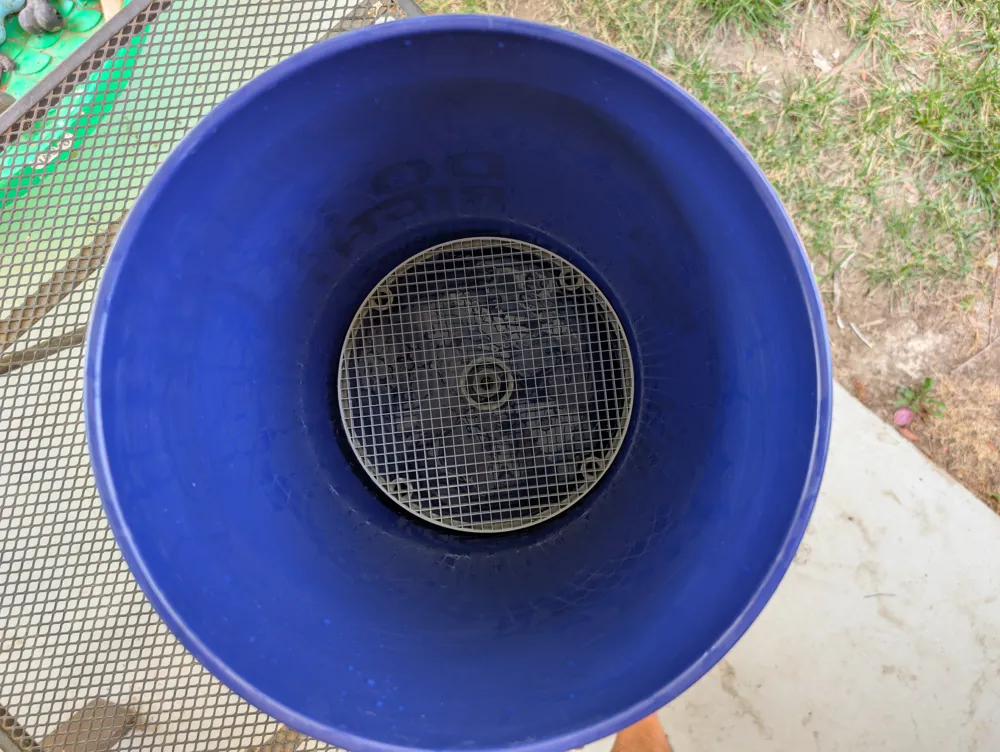

This will print very quickly with minimum filament and allow for excellent dirt separation at the bottom of your wash bucket.

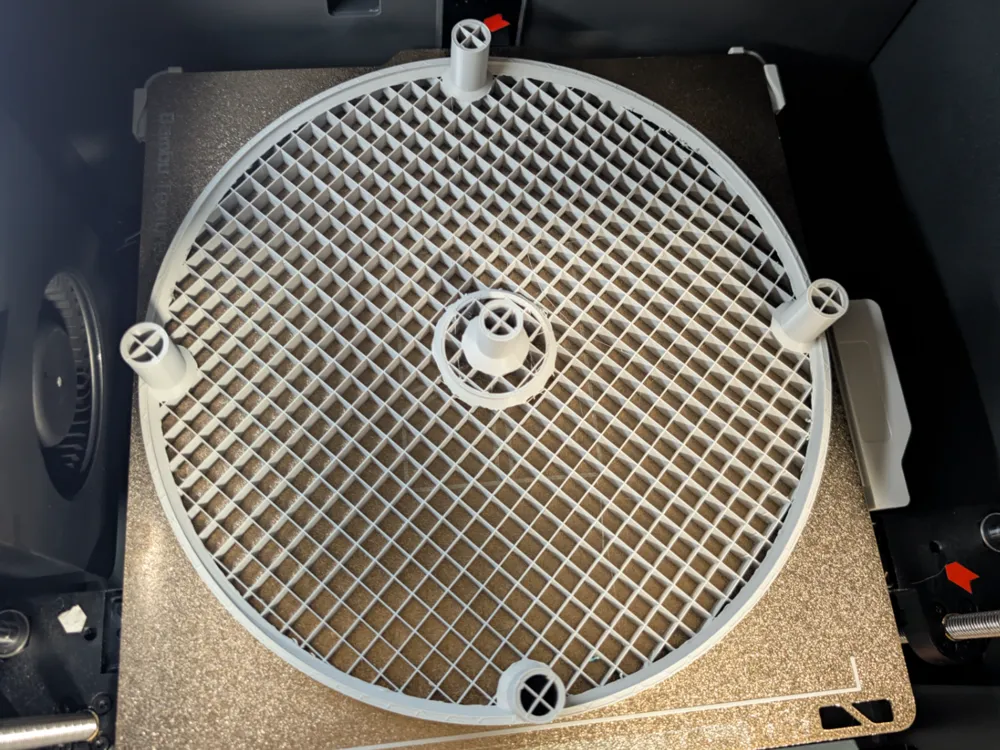

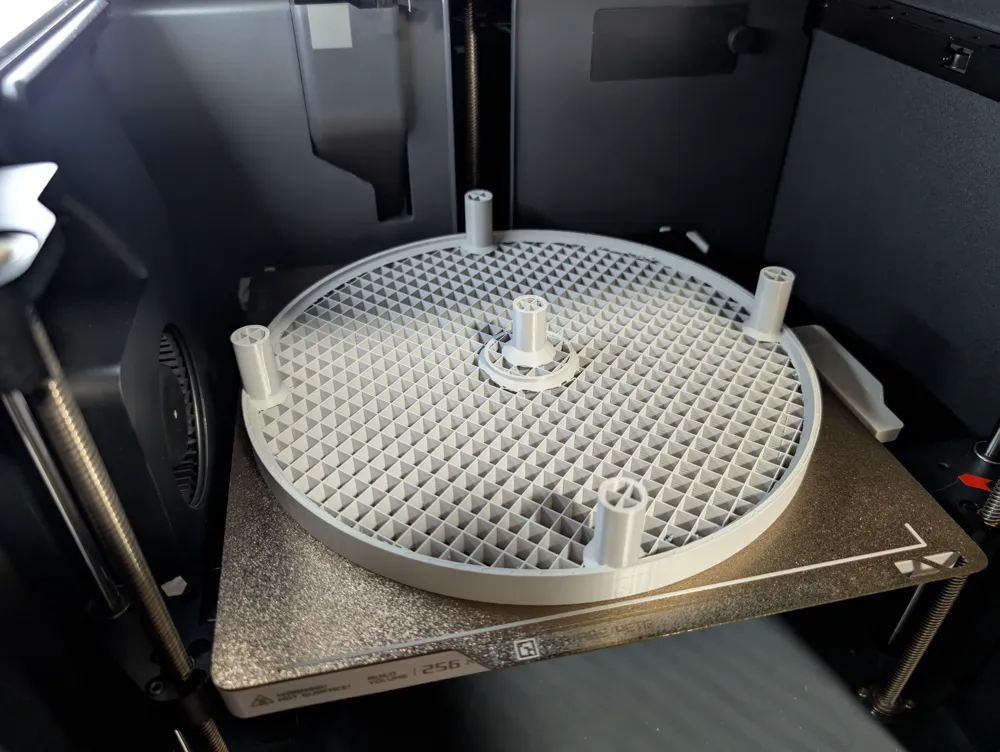

The model is optimized for printing with no top or bottom layers.  Dimensions nominal dimensions are set for a standard 5 gallon bucket (145 mm diameter x 40mm height) (5.7 inch diameter x 1.57 inch height).  This is sized for nominal 256 x 256 print bed with a bit of clearance.  The model should be pretty tolerant to scaling to fit different buckets.

Recommend printing in a water tolerant filament, I used PETG.

Important settings if using the STL:

• 0 top layers
• 0 bottom layers
• Grid Infill 10%
• At least 4 wall loops
